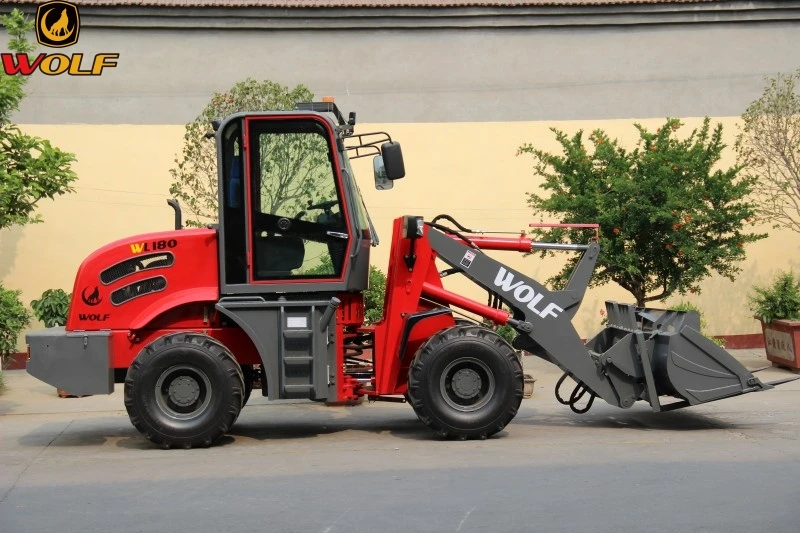

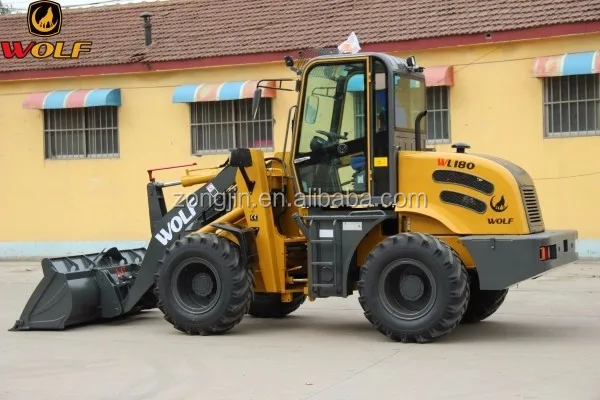

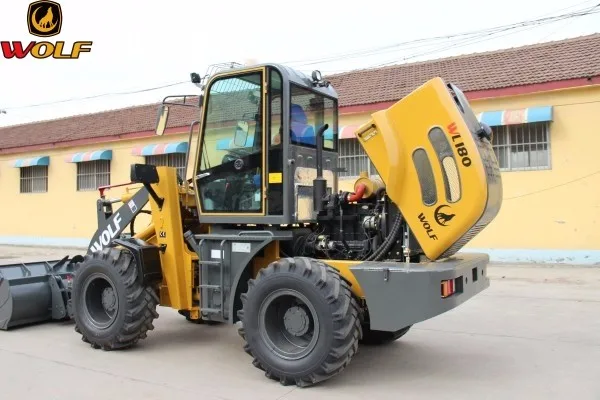

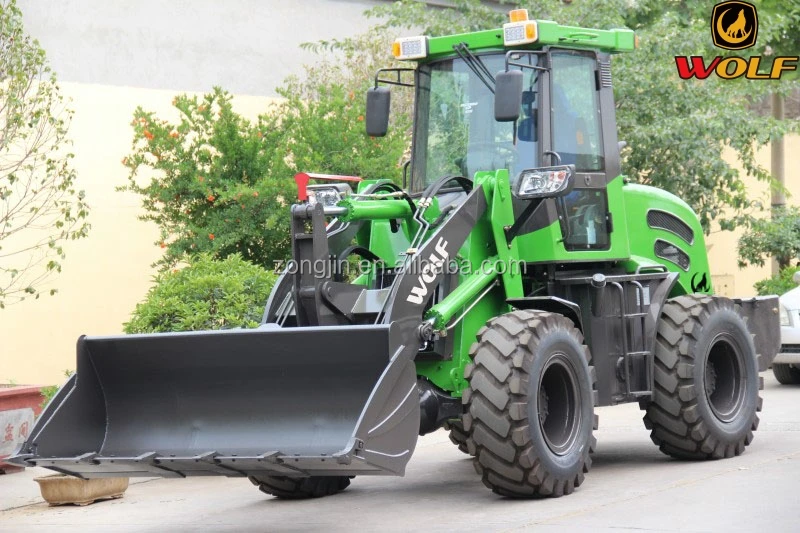

WOLF 1.8t/2t popular zl 920 radlader with changchai 4G33 70kw/95hp engine
- Category: >>>
- Supplier: Qingdao Zongjin Engineering Machinery Co. Ltd.
Share on (1601258143473):
Product Overview
Description
International Leading Professional
Wheel Loader Provider
Products Description
WL180
Dimensions(mm)
5505×1950×2720Engine Model
CHANGCHAI 4G33
CHANGCHAI 4G33
Power(KW)
70
Rated Load（kg）
1800
Performance and characteristic
* The design of streamline form is more attractive and modern.
* The cab fully adopting tempered glass is safer for the wider visual field.

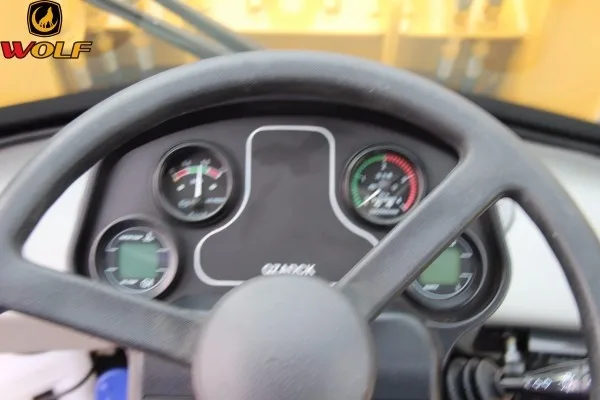

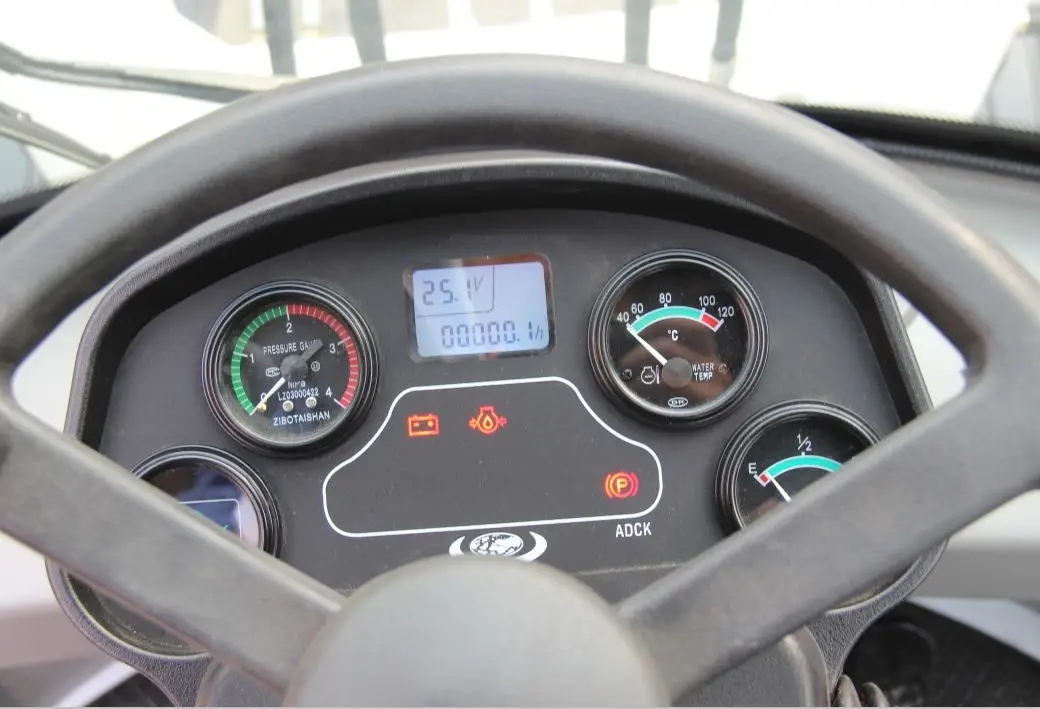

* Adopting the improved elastic connection method, a novel instrument panel is installed to reduce vibration, ensuring operation more comfortable.
* The frame is optimally designed by the computer with high-quality steel, and the loader body is lengthened to make operation and driving more stable, safer and more reliable.
* The cab fully adopting tempered glass is safer for the wider visual field.
* Adopting the improved elastic connection method, a novel instrument panel is installed to reduce vibration, ensuring operation more comfortable.
* The frame is optimally designed by the computer with high-quality steel, and the loader body is lengthened to make operation and driving more stable, safer and more reliable.
Standard configuration: Changchai 4G33TC engine 70kw, 16/70-20 wider tires, joystick, standard bucket, VARTA battery, floating function, luxury cabin with heater, warning light, adjustable steering wheel and seat, bucket can be level automatic, back sound, radio, fan, hand brake, extinguisher, window hammer, free parts, tool box.Standard with 3 hydraulic lines | Optional configuration: Xinchai/Yunnei Euro V engine, Imported engines EPA 4 engine, quick hitch, air conditioning,rear view camera, optional WL80 cabin, electric floating, hydraulic oil cooler, diesel heater, extra hydraulic lines, all kinds of attachments etc. |
Specification
Performance | Rated loading | 1800kg |
Overall weight | 4800kg | |
Rated bucket capacity | 0.8-1.1m3 | |
Maximum dump height | 3300mm | |
Overall dimension (L×W×H) | 5505X1950X2720mm | |
Max.Breakout force(KN) | 72 | |
Minimum turning radius | 4367mm | |

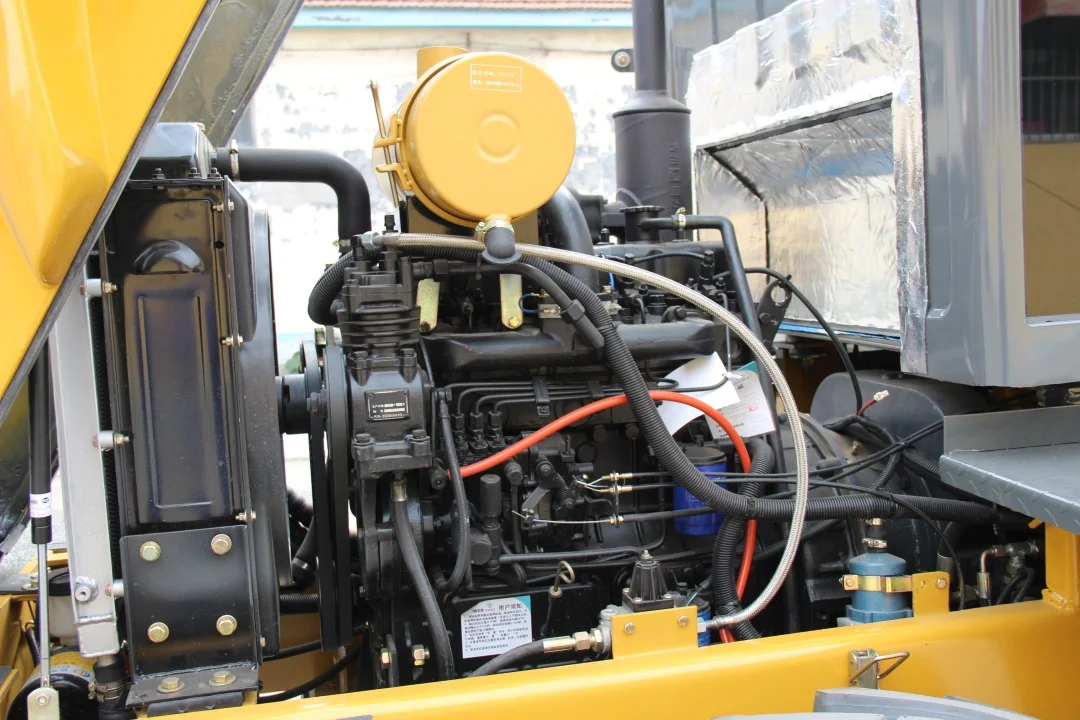

Engine | Model | Changchai 4G33TC 70kw |
Engine type | In line,direct injection,four-stroke,liquid cooled | |
Rated speed(r/min) | 2400 | |
Optional engine | Kohler KDI2504 EPA4 E5 55kw FOTON CUMMINS QSF2.84TC74 Yunnei DEF20CAF4 E5 55kw DF Cummins 4BT3.9-C100 | |
Transmission system | Model of torque converter | YJ265 |
Type | Single-stage,3 elements | |
Gearbox type | Axial full power shift transmission | |
Gear shift | 2 gears ahead,2 gear astern | |
Hydraulic system | Distribution of work valve | DF15.2C |
Working pump | CBG2040 | |
Steering system | Type | Articulated hydraulic steering |
Max. turning angle | left and right 35±1° | |
Min turning radius(mm) | 4200 | |
Brake system | Service brake | Air assist disc brake on 4 wheels |
Parking brake | Flexible shaft operated external drum | |
Tyre | Type specification | 23.5-16 |

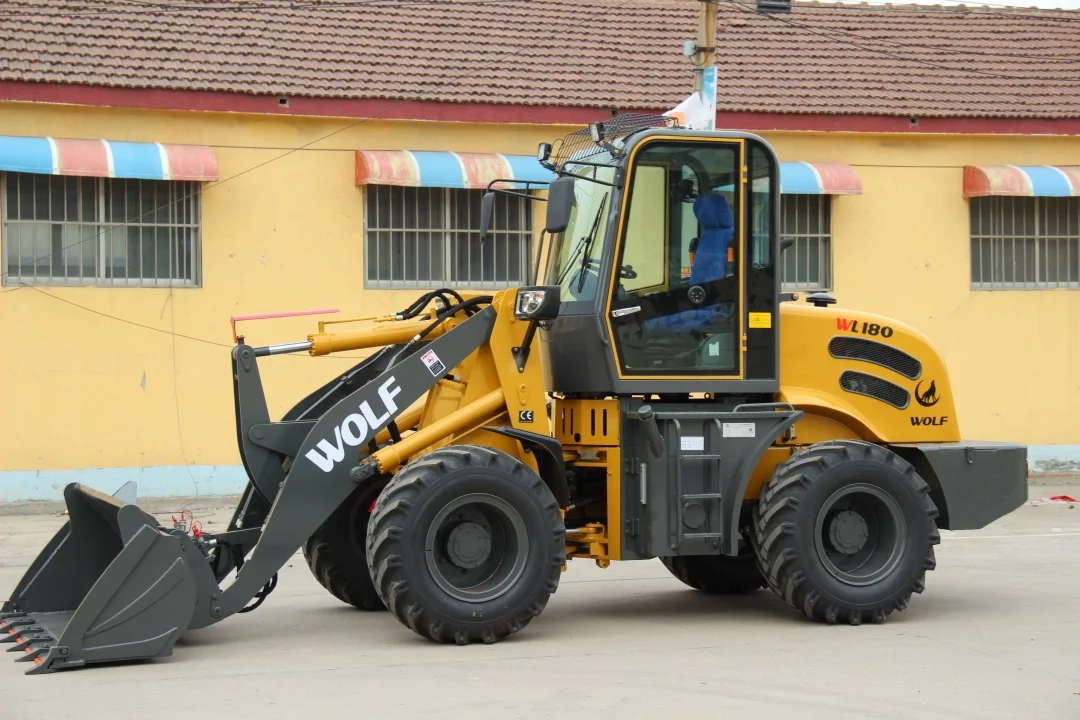

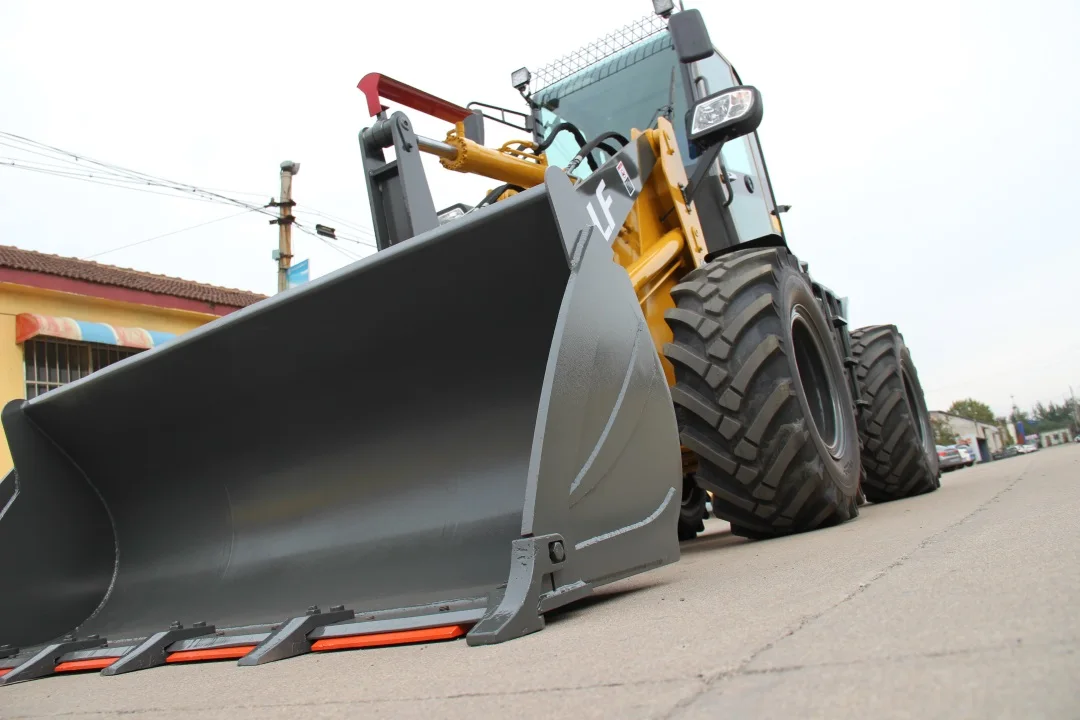

Optional tire | 16/70-20(as picture shows) |

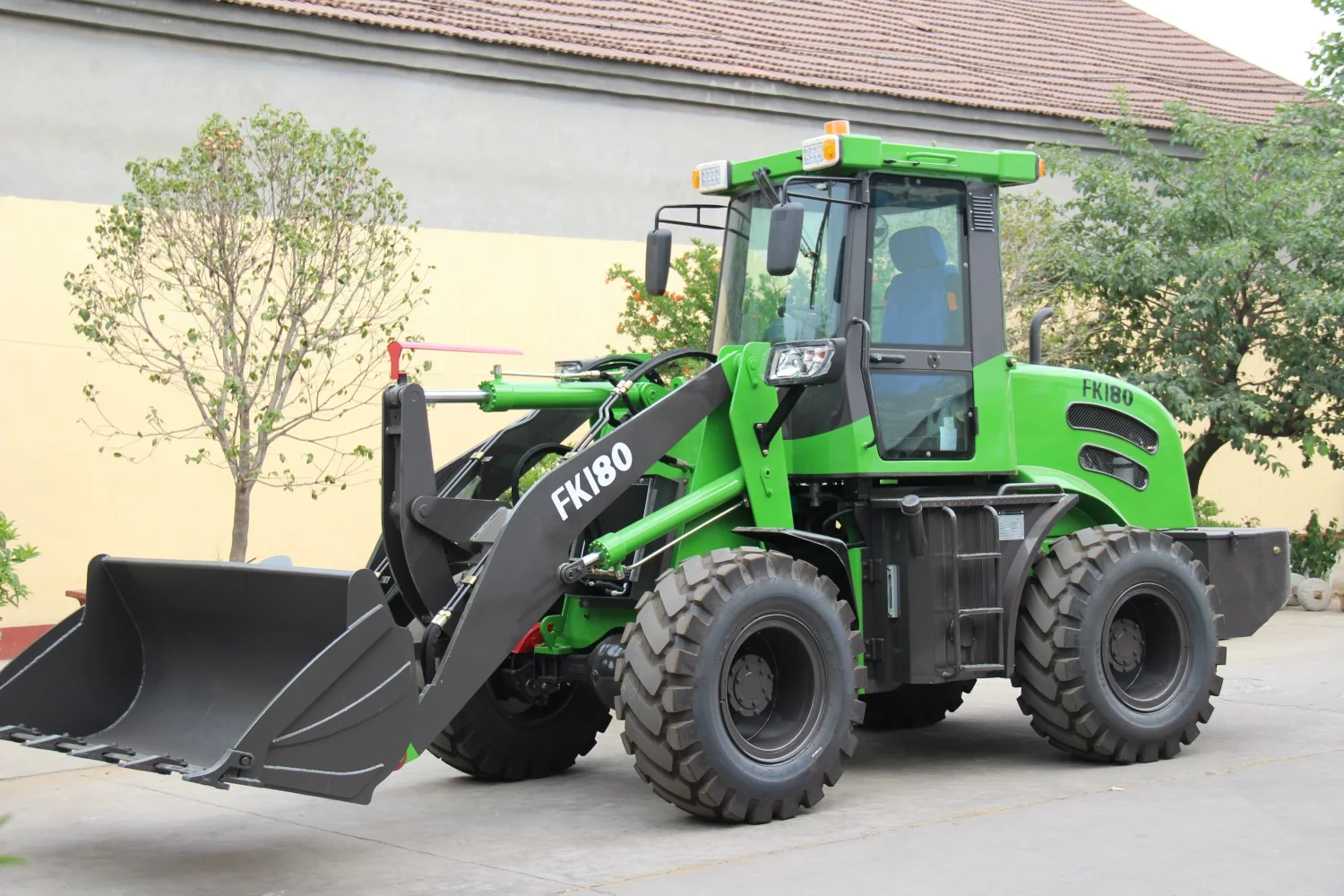

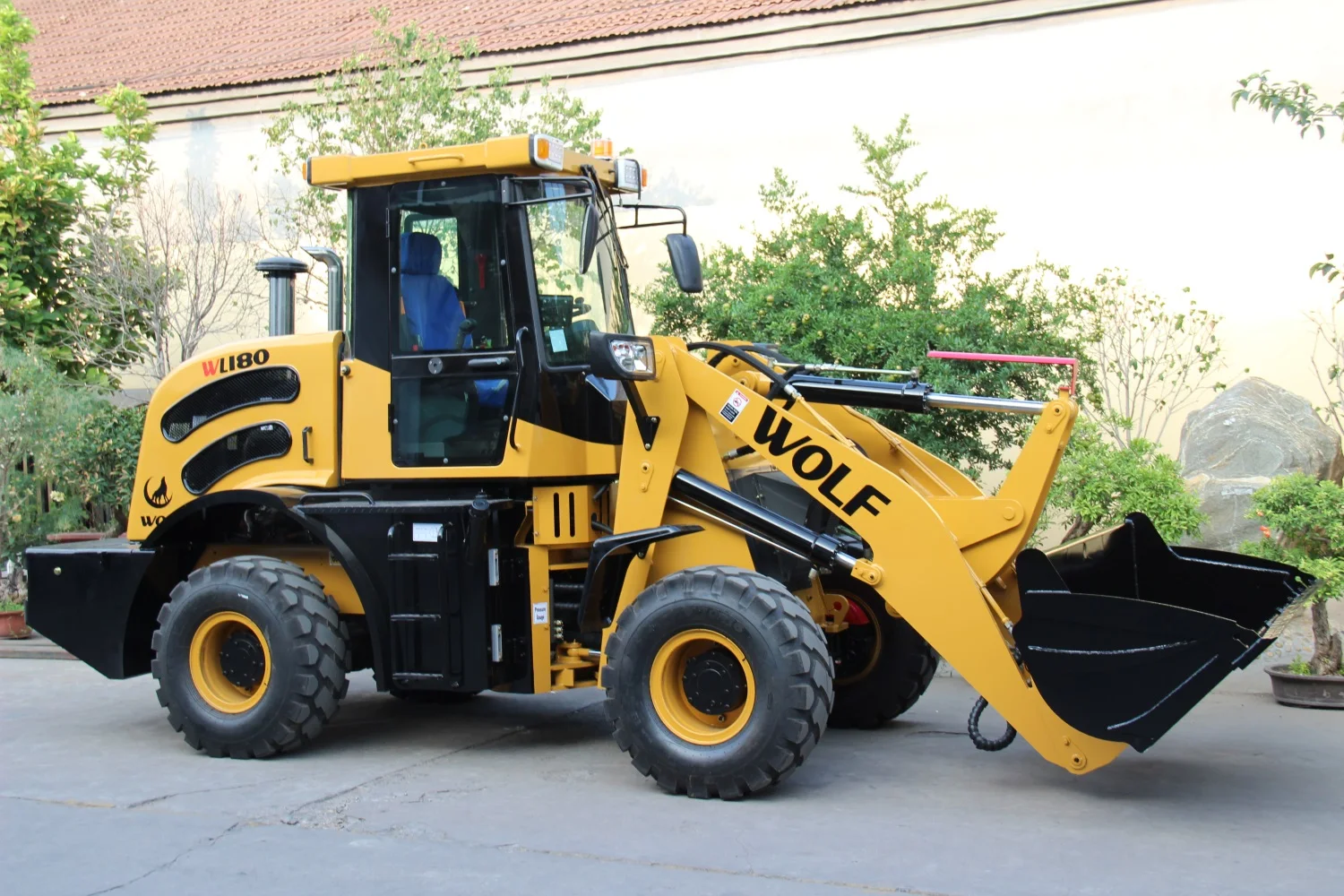

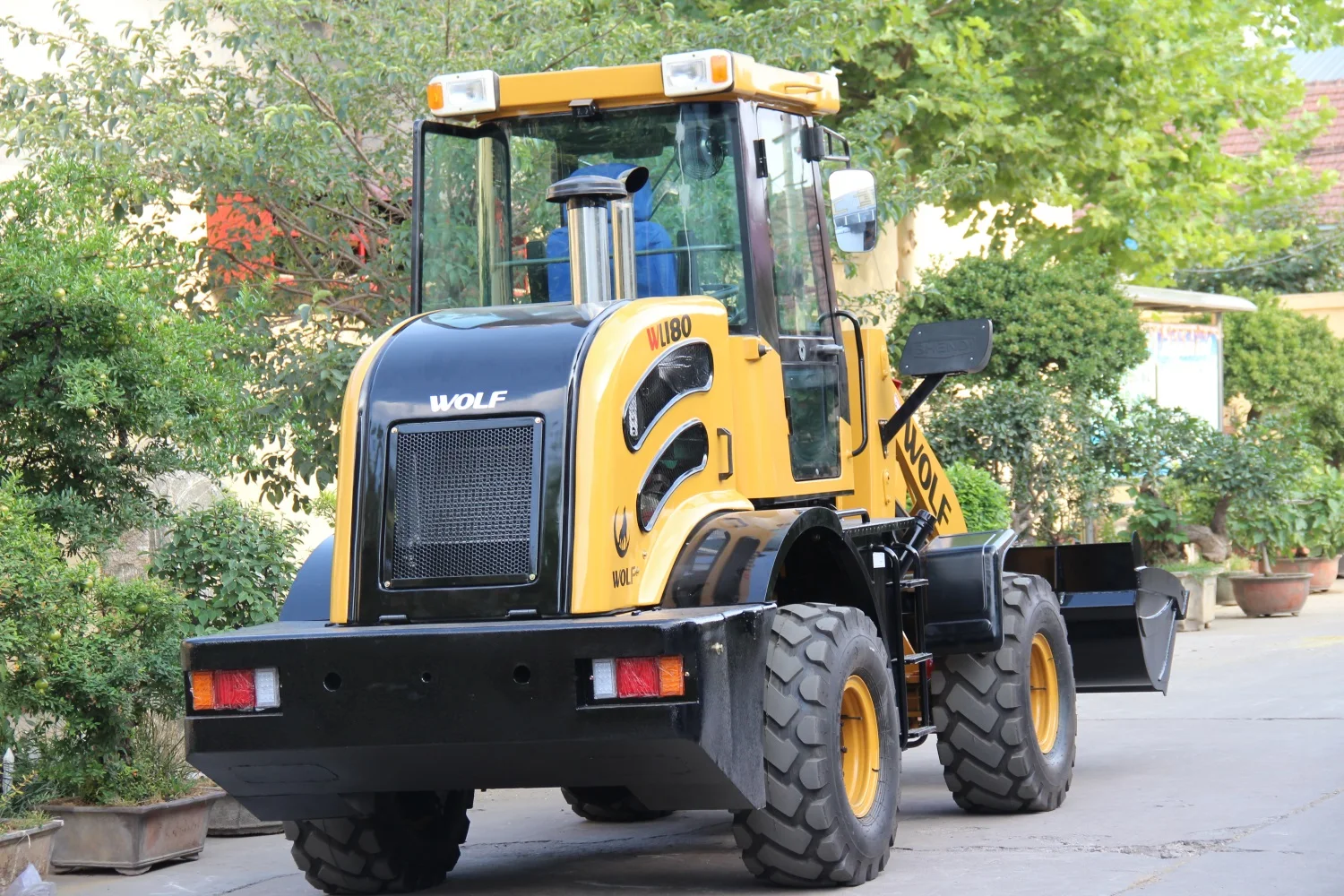

There are two types of cabins for the WL180. You can choose the one you like.

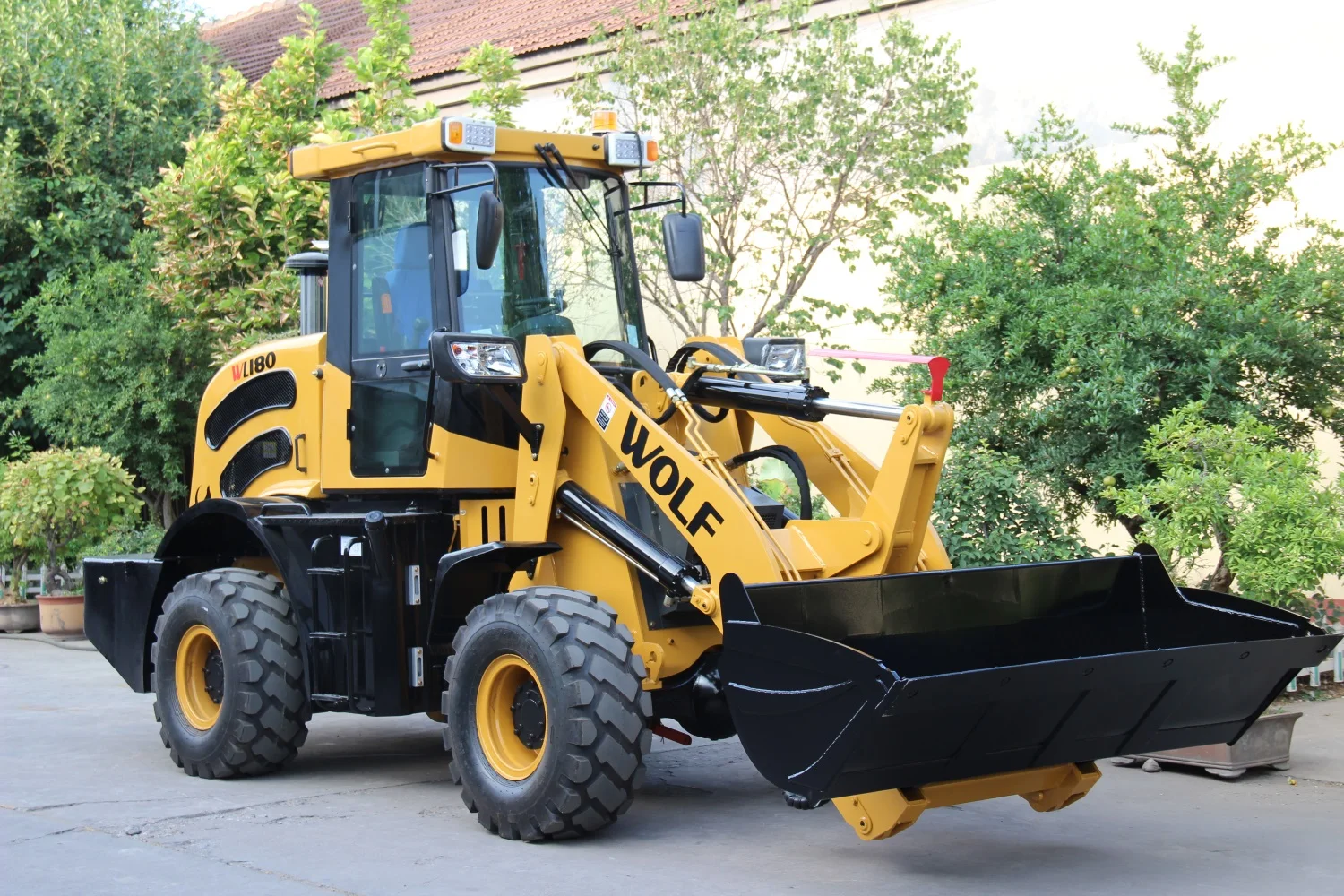

WOLF can customize your machine into different color based on customers' needs.
Details
Attachments
Company Profile
Shipment
FAQ
Q:Why should I choose Wolf instead of other brands?
Q: What is your delivery time?
A:The delivery time is around 30 working days. In peak season, the production time would take longer
Q: What is the payment term?
A:Normally we use T/T 30% deposit for production. balance 70% before shipment.
Q: Can I see the loader production progress after order?
A:Yes,during production. we could take some photos/videos for your reference.
Q:What kind of service can I get from you if l buy? How can I get parts?
A:We have 18 months warranty for each machine. within 18 months if any parts broken because of quality issues. the new parts would be sent to you free of charge, within 5 working days.We have professional after sales department to support for you at any time.
A:Since 2011, Wolf has been a well known brand in the market now you can see Wolf machines in more than 100 countries
What we can provide.
1.Quality machines.CE certificated
2.More competitive price based on same configuration machines
3. More timely and effective service base on same price
What we can provide.
1.Quality machines.CE certificated
2.More competitive price based on same configuration machines
3. More timely and effective service base on same price
Q: What is your main market?
A: Europe, North America, South America, Oceania, Southeast Asia, Africa, Eastern Asia and so on.
A: Europe, North America, South America, Oceania, Southeast Asia, Africa, Eastern Asia and so on.
Q: What is your delivery time?
A:The delivery time is around 30 working days. In peak season, the production time would take longer
Q: What is the payment term?
A:Normally we use T/T 30% deposit for production. balance 70% before shipment.
Q: Can I see the loader production progress after order?
A:Yes,during production. we could take some photos/videos for your reference.
Q:What kind of service can I get from you if l buy? How can I get parts?
A:We have 18 months warranty for each machine. within 18 months if any parts broken because of quality issues. the new parts would be sent to you free of charge, within 5 working days.We have professional after sales department to support for you at any time.
