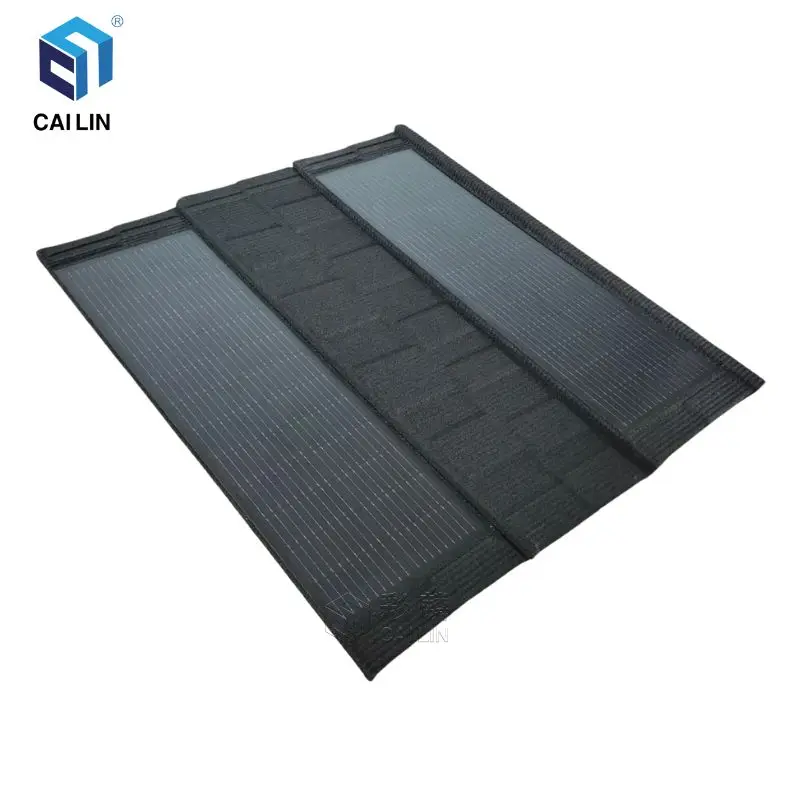

50 Years Warranty 2 To 1 Red Photovoltaic Panels Roofing Tiles Stone Coated Metal Solar Energy Storage System Roof
- Category: >>>
- Supplier: Singer Cailin (tianjin) Building Tech. Co. Ltd.
Share on (1601258206471):
Product Overview
Description

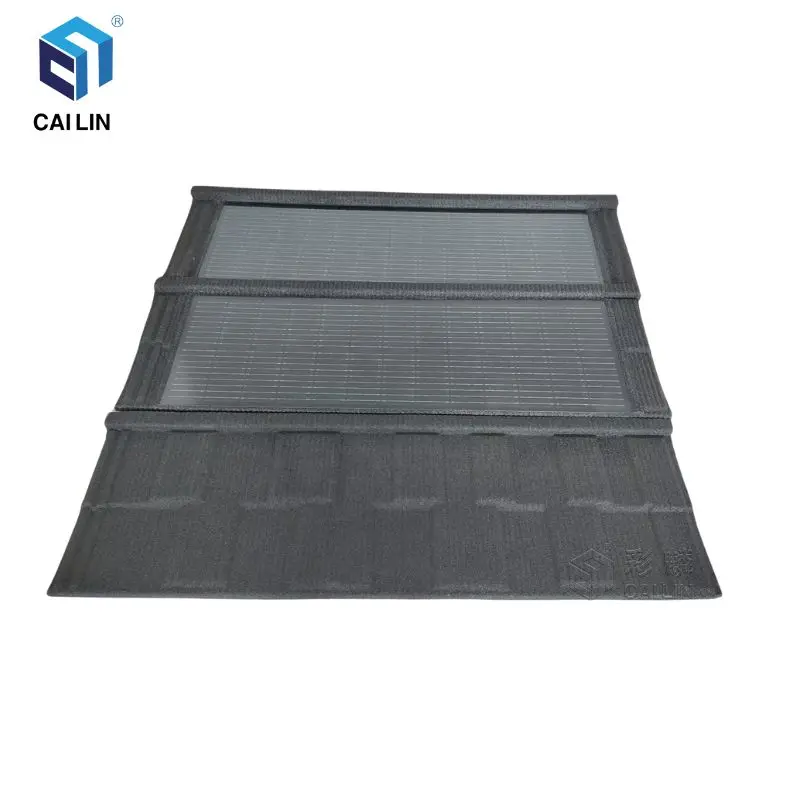

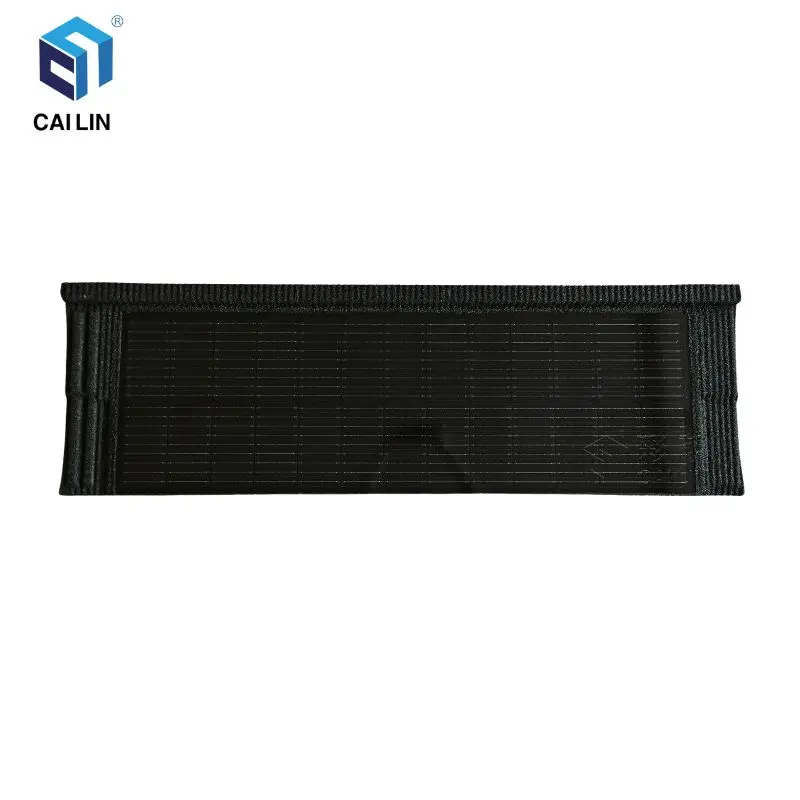

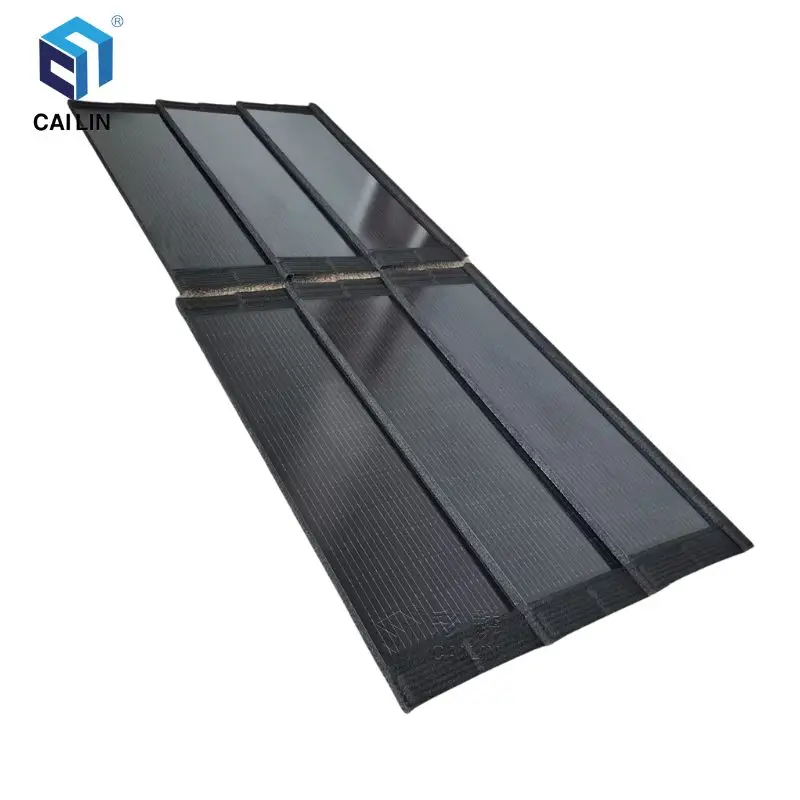

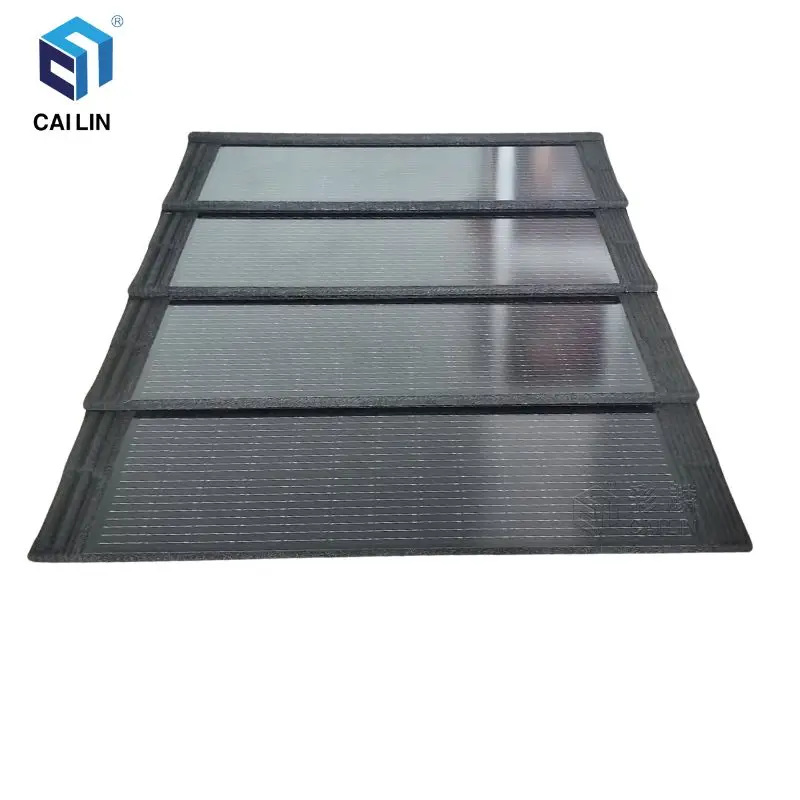

Cailin Solar Roof Tile
The most elegant in-roof solution
The most elegant in-roof solution
Cailin solar Roof is a roofing system that not only serves as a protective covering for a building but also generates electricity from the sun through integrated solar panels. This type of solar roofing solution can help reduce a building's reliance on grid electricity and provide a sustainable energy source.
Cailin solar Roof differ from traditional solar panel installations because they are integrated into the building's design and often blend in with the roof's appearance, giving the building a more aesthetically pleasing look. Sangobuild's BIPV Solar Roof is likely designed to be an efficient and attractive solar roofing solution that is seamlessly integrated into the building's structure
Product Description
Solar roof tiles are small scale solar panels，replace your existing roof and are permanently attached to the roof of a home. Solar shingles operate in the same way as solar panels using a photovoltaic system to generate solar energy. They capture radiation from the sun and convert that energy into usable energy through an inverter.
Our seamlessly integrated solar tiles with no ugly solar panels,, our product can meet extreme weather events and diverse climates, it Interlocked, no roof penetrations; it can keep the whole roof complete; it can with standing extreme weather; the installation is very easy, can get power more than 160 Watt per square meters, and the Min roof pitch for standard install only need 15 degrees, less visible and more efficient than solar panel, can give customer the excellent design and aesthetics feeling. Our product also extreme wind and hailstorm proof, providing durability and peace of mind during storms. Our product also has self-cleaning function, long span life, we can ensure you can get the power more than 80% after 25 years, it can work more than 50 years. we also have CE and TUV certificate.
Our seamlessly integrated solar tiles with no ugly solar panels,, our product can meet extreme weather events and diverse climates, it Interlocked, no roof penetrations; it can keep the whole roof complete; it can with standing extreme weather; the installation is very easy, can get power more than 160 Watt per square meters, and the Min roof pitch for standard install only need 15 degrees, less visible and more efficient than solar panel, can give customer the excellent design and aesthetics feeling. Our product also extreme wind and hailstorm proof, providing durability and peace of mind during storms. Our product also has self-cleaning function, long span life, we can ensure you can get the power more than 80% after 25 years, it can work more than 50 years. we also have CE and TUV certificate.
PHYSICAL PARAMETERS | ||||||
Color | Black | Red | Grey | |||
Product model | JS80D-13d 1/2 | JS62D-13d 1/2 | JS66D-13d 1/2 | |||
Dimensions | 1340*420mm | 1340*420mm | 1340*420mm | |||
Weight | 6.5kg | 6.5kg6.5kg | 7.5kg | |||
Cell (material /dimensions) | 166*83mm（2*13） | 166*83mm（2*13） | 166*83mm（2*13） | |||
Junction box | ≥IP67 | ≥IP67 | ≥IP67 | |||
Cable type | 500mm / 4mm² | 500mm / 4mm² | 500mm / 4mm² | |||
Glass (material/thickness) | Tempered glass / 3.2mm+backplane | |||||
Plug connector | MC4 | |||||
Life span | >30years | |||||
Cell size | 166*83mm |
photoelectric conversion efficiency | 16%-19.4% |
Type | PERC, Half Cell, Bifacial, Double-glass, BIPV |
Product name | BIPV Roofing Tiles Solar Roof System |
Material | Tempered glass,PVB/EVA/POB, Solar Cell, Bottom Support |
Size | 1340*420mm |
Weight | 6.5KGS |
Color | Black/ Red / Grey |
Brand Name | Cailin |
Power output | 62W/ 80W |
Thickness of the glass | 3.2mm |
Certificate | IEC 61215, IEC 61730, 3C, ISO 9001:2015, ISO 14001:2015, |
Application | Residential Villa,public building,rural house,rebuild house,Demonstration project |
Certificate: | IEC 61215, IEC 61730, 3C, ISO 9001:2015, |
Features
1.High power generation
4.Fashion and beauty
Texture color is customizable, Integrated roof design ,Coordinated and beautiful.
5.Energy saving and thermal insulation
Unique heat dissipation structure can effectively reduce the roof temperature by 5°C.
6.Easy installation
Standardized modular unit installation, saving time by more than 50%.
High-efficiency crystalline silicon cell technology, unique packaging process, higher power generation efficiency.
2.High Security
ClassA class fire protection, Class 15 instantaneous wind protection, Excellent waterproof and shock resistance,The same life span as the building.
ClassA class fire protection, Class 15 instantaneous wind protection, Excellent waterproof and shock resistance,The same life span as the building.
3.High loading
Super strong structural strength, 3 times the strength of ordinary tiles, no fear of trampling and hail.
Super strong structural strength, 3 times the strength of ordinary tiles, no fear of trampling and hail.
4.Fashion and beauty
Texture color is customizable, Integrated roof design ,Coordinated and beautiful.
5.Energy saving and thermal insulation
Unique heat dissipation structure can effectively reduce the roof temperature by 5°C.
6.Easy installation
Standardized modular unit installation, saving time by more than 50%.

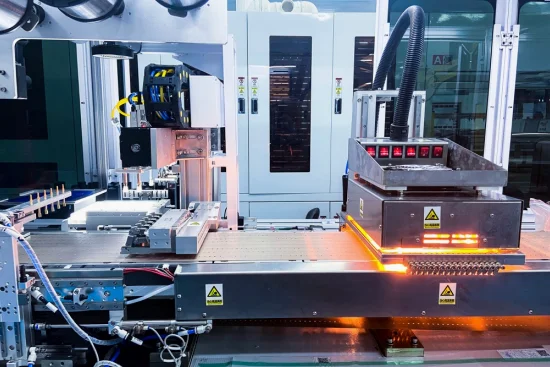

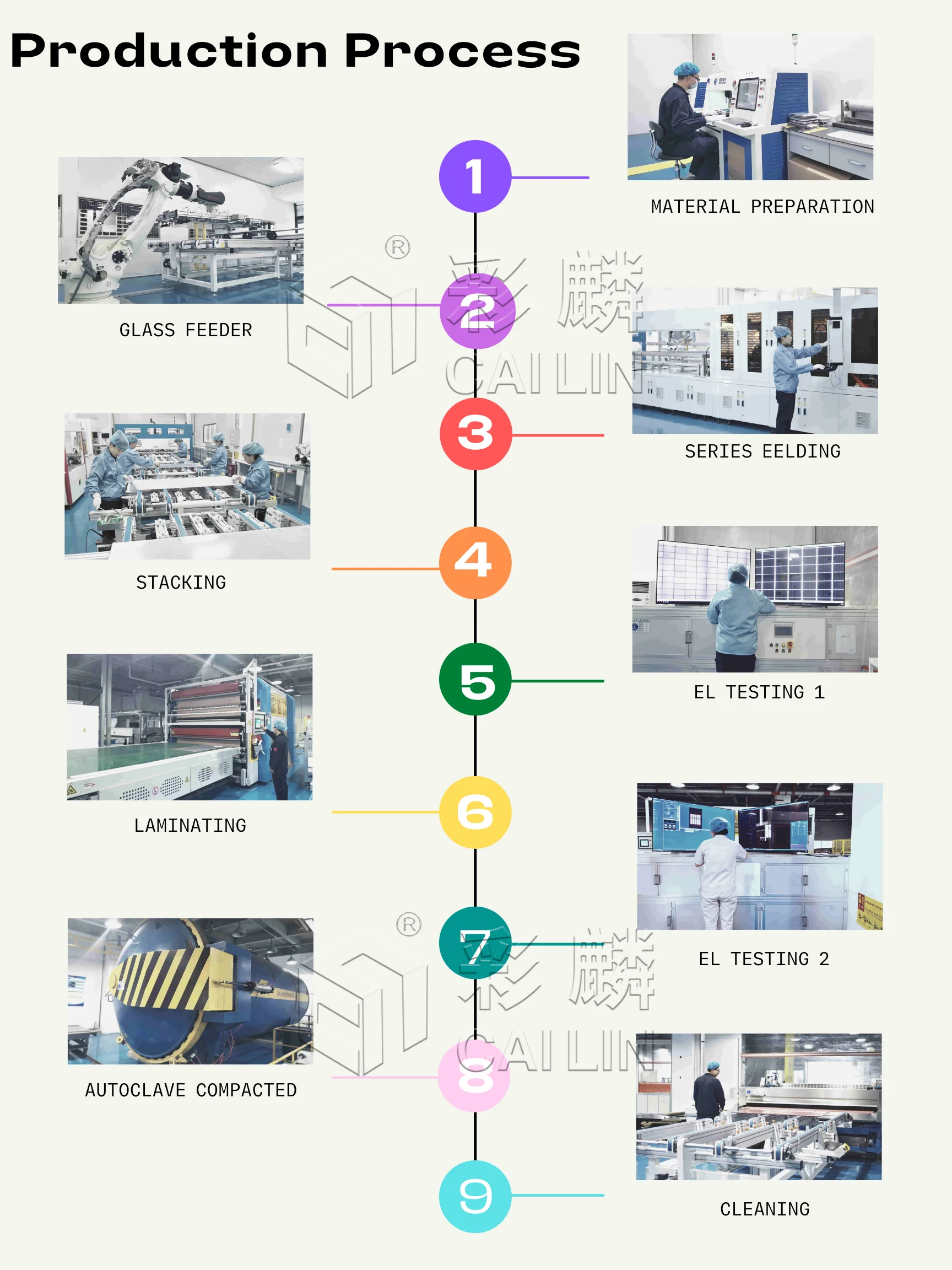

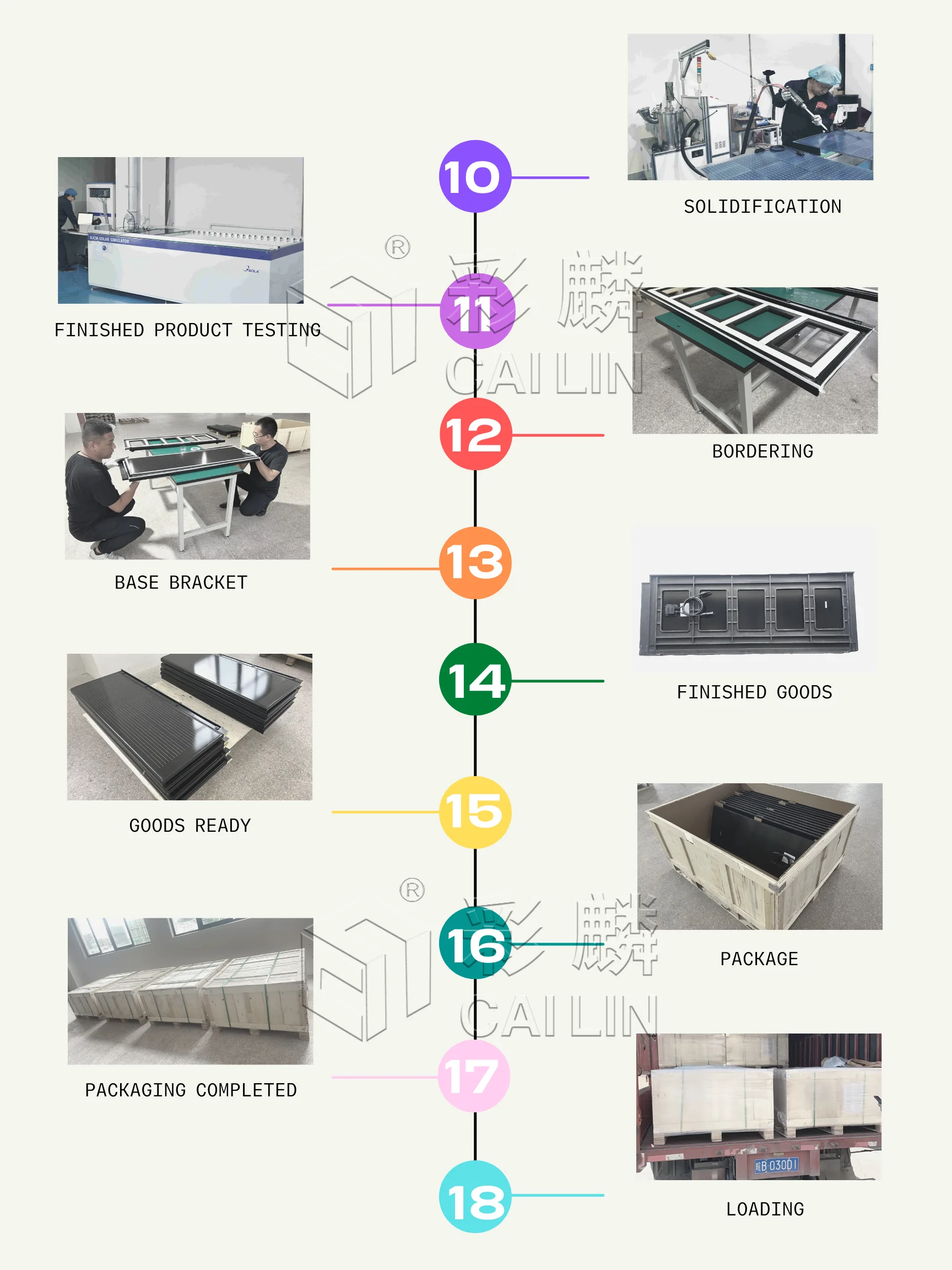

Production Process

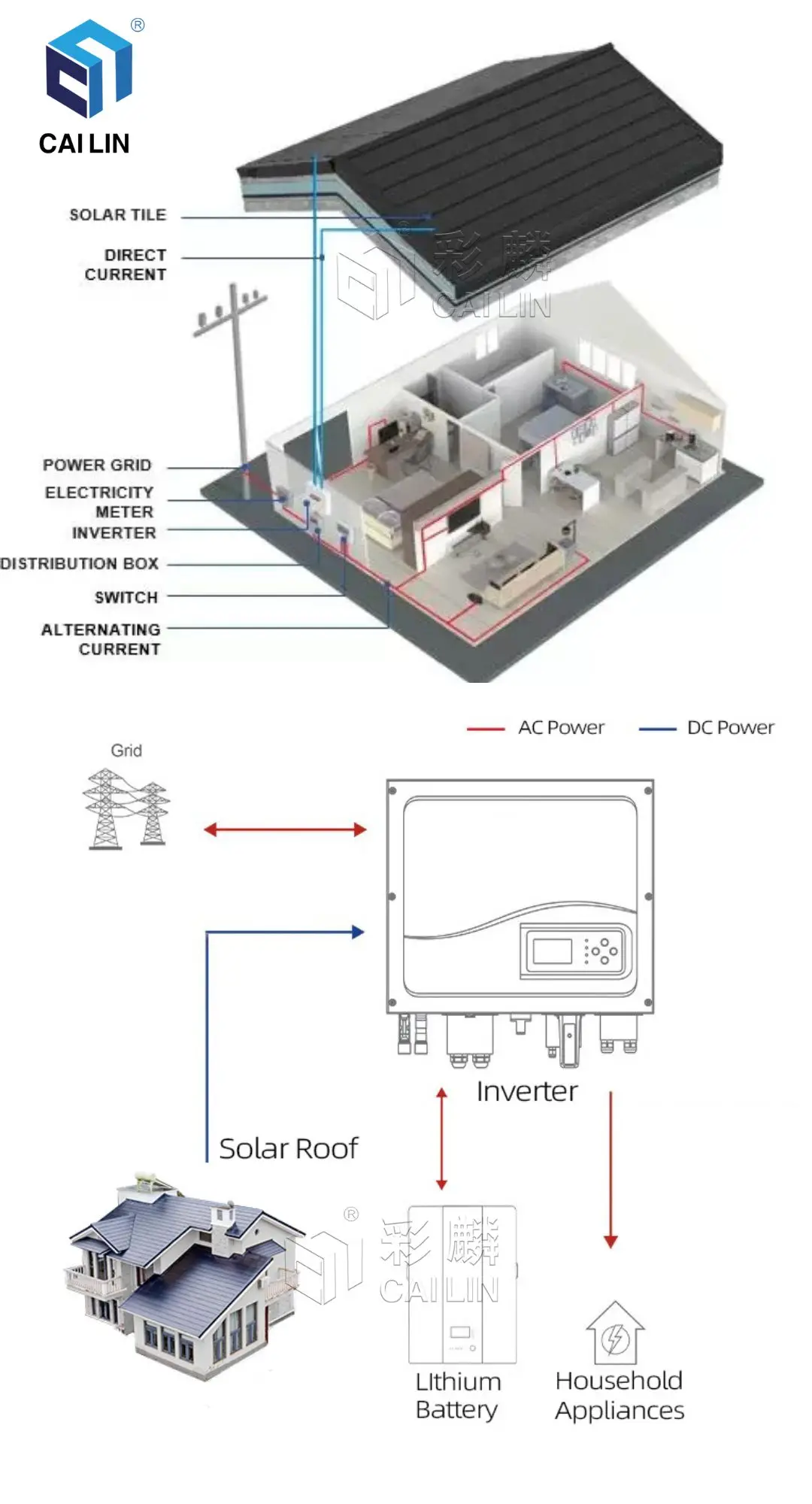

Working principle

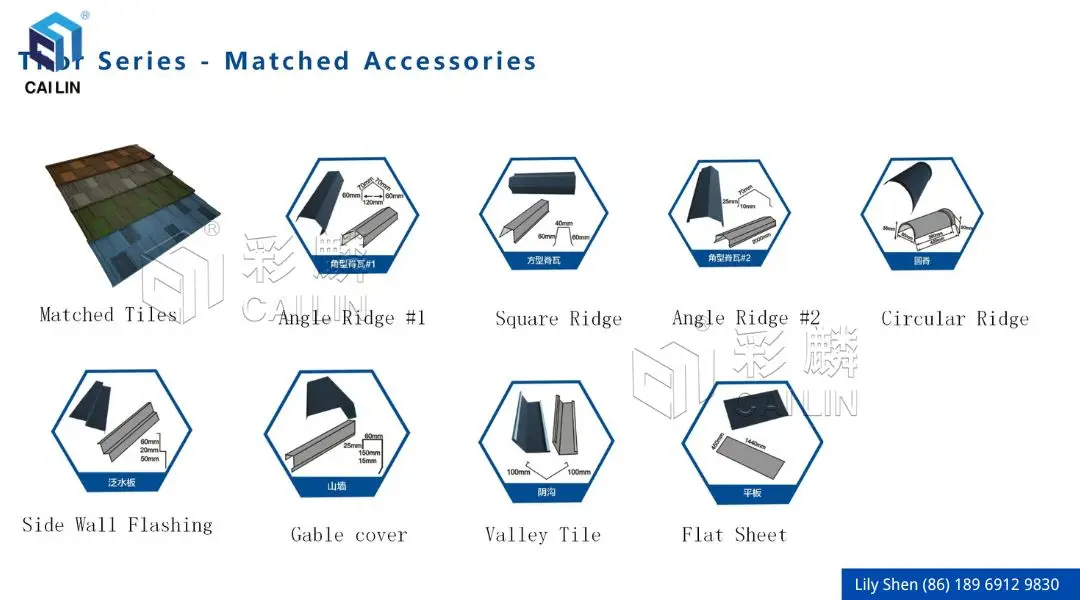

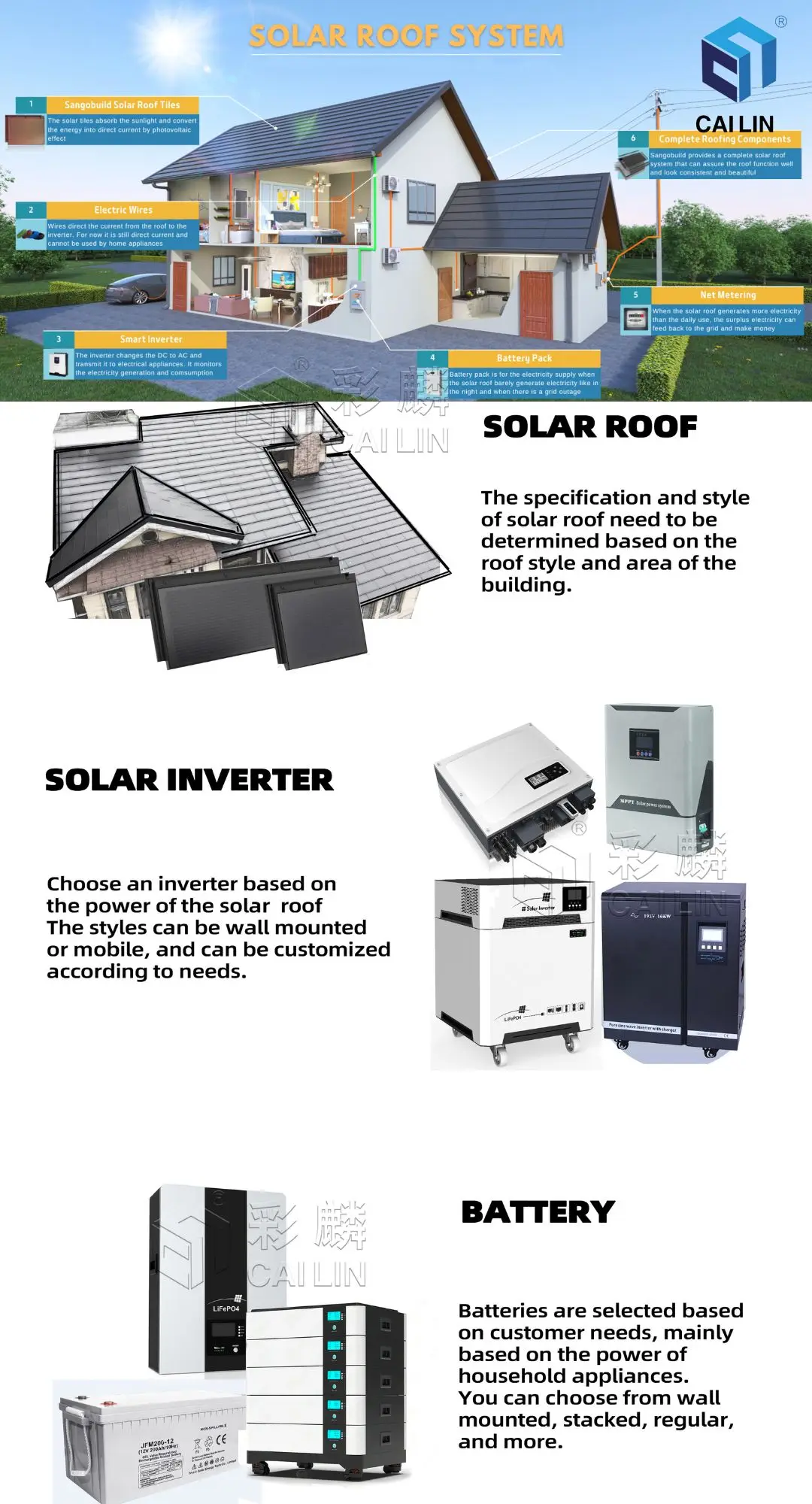

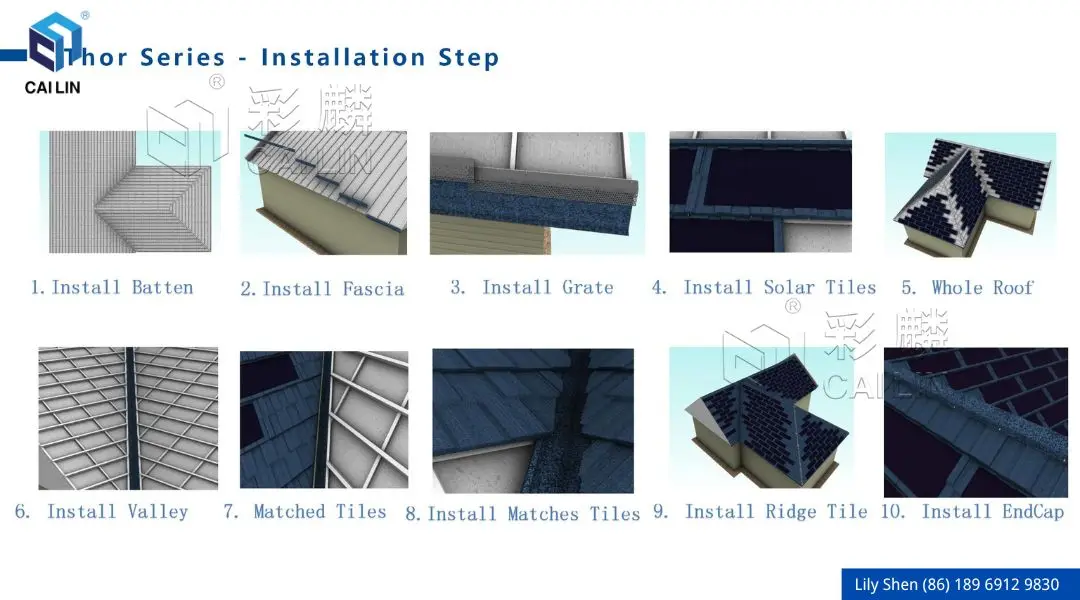

Accessories and Installation
Test and Certificate

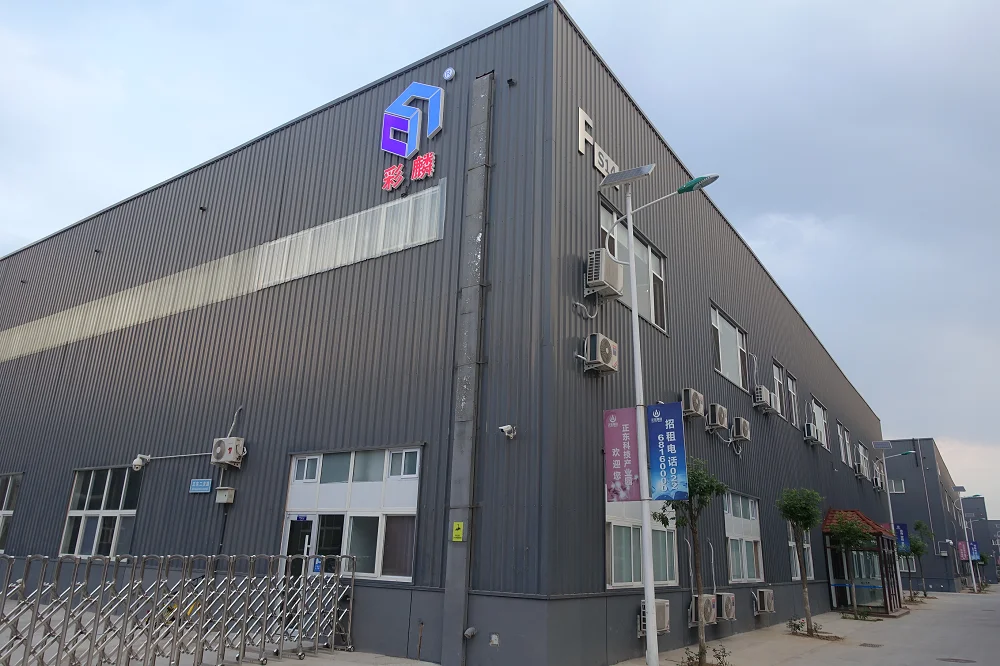

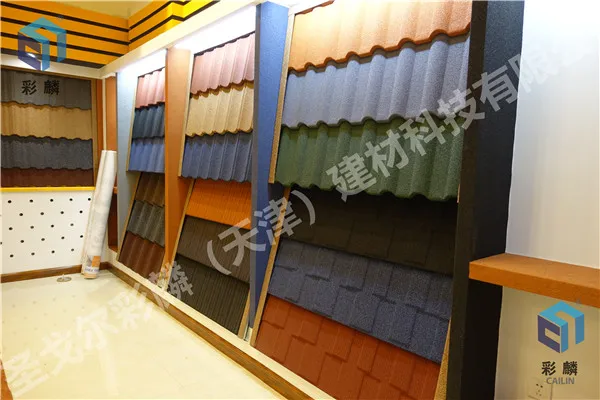

Company Profile
"In the crowd, only Cailin"
Our company is located in Tianjin.With 14 years of experience in production and research and development, our company keeps innovating in products, so that we could meet the various demand on both practical and aesthetic needs from consumers.
Singer Cailin (Tianjin) Building Tech. Co., Ltd. is a professional roofing system solution provider with 14 years experience. Our products cover stone coated roofing tiles, ancient tile, rain gutter system, waterproof material and relative supporting products. There are 4 product lines for stone coated roofing tile, 2 lines for aluminium gutter system,2 lines for ancient tiles, and 2 lines for Waterproof Butyl Rubber Tape. Our full production lines anable us to offer you solution instead of only products.
Our company is located in Tianjin.With 14 years of experience in production and research and development, our company keeps innovating in products, so that we could meet the various demand on both practical and aesthetic needs from consumers.
FAQ
1.Where Can You Install Building Integrated Photovoltaic (BIPV)?
Essentially, anywhere that sunlight directly hits the exterior surface of your home, homeowners can potentially incorporate
BIPV products into the building design. Companies that operate in the BIPV market continue to find ingenious ways to integrate BIPV products into the building envelope seamlessly. They can be part of standard building components such as roofs, or windows. Though you could not generate electricity by placing solar panels on your home foundation, virtually anywhere that sunlight is present, you may be able to find a BIPV product to install.
2.What Types of Building-Integrated Photovoltaic Can You Buy?
BIPV products used to be exclusively for roofing. This feature makes sense since our roofs generally receive the most direct solar radiation. Most early innovators in BIPV technology focused on replacing traditional roofing with panels, tiles, or shingles that could generate renewable solar energy while protecting the home from the elements. The impetus for this innovation stemmed from a simple economic calculation. Suppose the average cost of a roofing replacement in the USA costs between $5,500 and $11,500. In that case, solar panels that doubled as a roof could essentially "subsidize" part of the cost of going solar. BIPV products are systems that can function as a component of the building skin or envelope while simultaneously converting solar energy into
electricity by serving a dual purpose. Instead of attaching solar panels to a separate roof , BIPV products can offer weather protection, thermal insulation, noise protection, daylight illumination, and even increased safety, along with an independent, clean source of renewable energy for your home. According to one financial analysis, building-integrated photovoltaic products' total global market size will grow to an astounding $59.5 billion by 2028. As more and more companies rush to enter the BIPV industry, the market could see a compound annual growth rate of at least 20 percent! In practical terms, this means that the options for building-integrated photovoltaic currently available to homeowners and builders will only continue to expand. Prices should also continue to drop as competition stiffens and more innovative products become available. The combination of the plummeting cost of solar energy and innovative technologies in solar energy production (such as thin-film technologies, solar cell efficiency, open-circuit voltage, short circuit current, maximum effect, and fill factor) will almost certainly continue to drive
innovation in BIPV products.
3.How Much Energy Can BIPV Produce?
The exact amount of energy that BIPV products or systems can produce is contextual. The total amount of energy will depend on several environmental factors related to your home location, including: Insolation /Solar Radiation: The average amount of solar radiation your home receives, as calculated by KWh/SQM /day, is the most common way to describe the amount of solar resources in a particular area. Check out this tool provided by the US Department of Energy to determine your home's solar radiation potential. Climate and other Weather Conditions: Both scorching summer temperatures and continuously cloudy/rainy conditions can negatively affect the system output for all types of BIPV. Also, urban areas with high levels of air pollution may increase cleaning and maintenance requirements to ensure the BIPV systems operate at maximum efficiency. Shading Conditions: Though solar technologies today deal better with shady conditions, the presence of trees, buildings, and other structures that block the sun from your home for long periods of the day will reduce the BIPV system energy production.
4.Are BIPV Worth It?
The primary appeal of BIPV products is twofold. BIPV systems increase the space on and around that home where you can turn solar radiation into usable energy for your home. More importantly, is the economic factor because BIPV products serve a double function. They provide renewable energy while also protecting the house, reducing the cost of autonomous solar energy generation for homeowners. By using solar shingles instead of asphalt panels, homeowners can essentially "discount" the roofing price from their solar installation. The same "discount" could also be applied to skylights, railings, skylights, and other places where manufacturers could design BIPV systems.
5.How Long do BIPV Last?
Another added economic benefit with some BIPV systems is that they could potentially be much more durable than the building systems/elements they replace. For example, most asphalt shingle roofs have an average lifespan of 15 years. Conversely, most solar shingles will last 25-30 years with only a small drop in efficiency towards the end of that lifespan. The total economic savings associated with a BIPV roof, then, should take into consideration the cost of two roof installations. You could apply the same principle to solar facades and other BIPV systems.
6.What Is a Solar Shingle?
Like solar panels, solar roofing is designed to capture the energy from the sun that is shining on your roof and turn that energy into a usable power source for your home. Though different types of solar roofing products are available, they are all essentially mini solar panels designed to look like and function as conventional roofing materials. The main market driver of solar roofing products was consumer demand for solar panels that were less noticeable and conspicuous. Though some people appreciate the "futuristic" look of a roof clad in solar panels, others lament the loss of traditional roofing appearance. Solar roofing, then,is made to resemble asphalt shingles or slate tiles while also producing electricity. All of the different types of solar roofing are known as building-integrated photovoltaic (BIPV).
7.How Long Does Solar Roofing Last?
Solar shingles and other solar roofing products are lightweight and easy to install. Like all types of roofing alternatives, they are designed to withstand rain, wind, and hail and should easily last for 25 years or more. For example, Tesla's Solar Roof comes with the following specifications/warranty
* Tile warranty: 25 years
* Power warranty: 25 years
* Weatherization warranty: 25 years
* Wind rating: ASTM D3161 Class F
* Fire rating: Class A (highest rating)
* Hail rating: ANSI FM 4473 Class 3
Essentially, anywhere that sunlight directly hits the exterior surface of your home, homeowners can potentially incorporate
BIPV products into the building design. Companies that operate in the BIPV market continue to find ingenious ways to integrate BIPV products into the building envelope seamlessly. They can be part of standard building components such as roofs, or windows. Though you could not generate electricity by placing solar panels on your home foundation, virtually anywhere that sunlight is present, you may be able to find a BIPV product to install.
2.What Types of Building-Integrated Photovoltaic Can You Buy?
BIPV products used to be exclusively for roofing. This feature makes sense since our roofs generally receive the most direct solar radiation. Most early innovators in BIPV technology focused on replacing traditional roofing with panels, tiles, or shingles that could generate renewable solar energy while protecting the home from the elements. The impetus for this innovation stemmed from a simple economic calculation. Suppose the average cost of a roofing replacement in the USA costs between $5,500 and $11,500. In that case, solar panels that doubled as a roof could essentially "subsidize" part of the cost of going solar. BIPV products are systems that can function as a component of the building skin or envelope while simultaneously converting solar energy into
electricity by serving a dual purpose. Instead of attaching solar panels to a separate roof , BIPV products can offer weather protection, thermal insulation, noise protection, daylight illumination, and even increased safety, along with an independent, clean source of renewable energy for your home. According to one financial analysis, building-integrated photovoltaic products' total global market size will grow to an astounding $59.5 billion by 2028. As more and more companies rush to enter the BIPV industry, the market could see a compound annual growth rate of at least 20 percent! In practical terms, this means that the options for building-integrated photovoltaic currently available to homeowners and builders will only continue to expand. Prices should also continue to drop as competition stiffens and more innovative products become available. The combination of the plummeting cost of solar energy and innovative technologies in solar energy production (such as thin-film technologies, solar cell efficiency, open-circuit voltage, short circuit current, maximum effect, and fill factor) will almost certainly continue to drive
innovation in BIPV products.
3.How Much Energy Can BIPV Produce?
The exact amount of energy that BIPV products or systems can produce is contextual. The total amount of energy will depend on several environmental factors related to your home location, including: Insolation /Solar Radiation: The average amount of solar radiation your home receives, as calculated by KWh/SQM /day, is the most common way to describe the amount of solar resources in a particular area. Check out this tool provided by the US Department of Energy to determine your home's solar radiation potential. Climate and other Weather Conditions: Both scorching summer temperatures and continuously cloudy/rainy conditions can negatively affect the system output for all types of BIPV. Also, urban areas with high levels of air pollution may increase cleaning and maintenance requirements to ensure the BIPV systems operate at maximum efficiency. Shading Conditions: Though solar technologies today deal better with shady conditions, the presence of trees, buildings, and other structures that block the sun from your home for long periods of the day will reduce the BIPV system energy production.
4.Are BIPV Worth It?
The primary appeal of BIPV products is twofold. BIPV systems increase the space on and around that home where you can turn solar radiation into usable energy for your home. More importantly, is the economic factor because BIPV products serve a double function. They provide renewable energy while also protecting the house, reducing the cost of autonomous solar energy generation for homeowners. By using solar shingles instead of asphalt panels, homeowners can essentially "discount" the roofing price from their solar installation. The same "discount" could also be applied to skylights, railings, skylights, and other places where manufacturers could design BIPV systems.
5.How Long do BIPV Last?
Another added economic benefit with some BIPV systems is that they could potentially be much more durable than the building systems/elements they replace. For example, most asphalt shingle roofs have an average lifespan of 15 years. Conversely, most solar shingles will last 25-30 years with only a small drop in efficiency towards the end of that lifespan. The total economic savings associated with a BIPV roof, then, should take into consideration the cost of two roof installations. You could apply the same principle to solar facades and other BIPV systems.
6.What Is a Solar Shingle?
Like solar panels, solar roofing is designed to capture the energy from the sun that is shining on your roof and turn that energy into a usable power source for your home. Though different types of solar roofing products are available, they are all essentially mini solar panels designed to look like and function as conventional roofing materials. The main market driver of solar roofing products was consumer demand for solar panels that were less noticeable and conspicuous. Though some people appreciate the "futuristic" look of a roof clad in solar panels, others lament the loss of traditional roofing appearance. Solar roofing, then,is made to resemble asphalt shingles or slate tiles while also producing electricity. All of the different types of solar roofing are known as building-integrated photovoltaic (BIPV).
7.How Long Does Solar Roofing Last?
Solar shingles and other solar roofing products are lightweight and easy to install. Like all types of roofing alternatives, they are designed to withstand rain, wind, and hail and should easily last for 25 years or more. For example, Tesla's Solar Roof comes with the following specifications/warranty
* Tile warranty: 25 years
* Power warranty: 25 years
* Weatherization warranty: 25 years
* Wind rating: ASTM D3161 Class F
* Fire rating: Class A (highest rating)
* Hail rating: ANSI FM 4473 Class 3
