drum asphalt bitumen melter plant

It is mainly composed of drum box, lifting mechanism, hydraulic propeller, heat conduction oil heating system, heat conduction oil pipeline system and electrical control system.

• 20s Turning Barrel Into Mixer



• Lifting Mechanism Adopts Cantilever Structure


• Internal Circulation Function


• Automatic Slag Removal


• Convenient Relocation

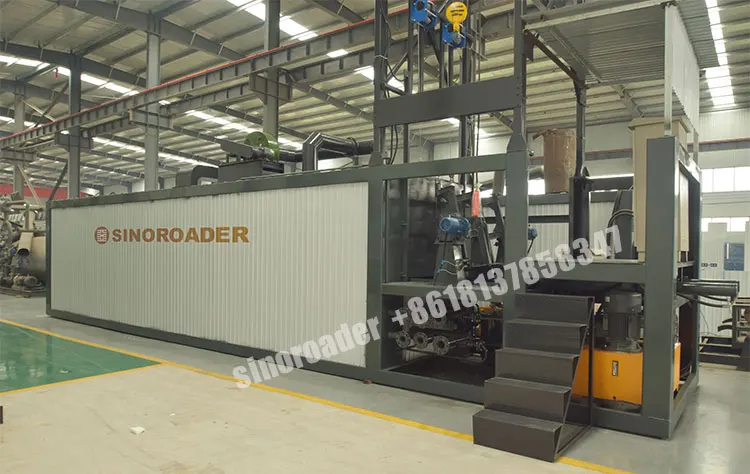

The Directly-heated Drummed Bitumen Decanter asphalt melting equipment is mainly composed of the barrel body, the  barrel platform, the  barrel turning into the barrel integrated device, the heat conducting oil heating system and the electrical control system.

 Top Quality Bitumen Decanter Directly-heated Drummed Asphalt Bitumen Decanting Plant

The box is divided into two chambers, the upper chamber is the barreled asphalt melting chamber, and the heating coils are distributed all around. The heating tubes and the asphalt drums mainly exchange heat in a radiation way, so as to achieve the purpose of asphalt drum removal. The two guide rails are the tracks for the asphalt drums to enter. The lower chamber mainly talks about the asphalt out of the bucket to continue heating. After the asphalt reaches a certain temperature, the asphalt pump is started. Through the asphalt pipeline system, it comes out from one end of the stripper and drives into the other end of the stripper for circulation. In this way, it can be heated up and dehydrated, and pumped into the asphalt storage tank after basically reaching the use temperature and no moisture. It is mainly composed of drum box, lifting mechanism, hydraulic propeller, heat conduction oil heating system, heat conduction oil pipeline system and electrical control system.

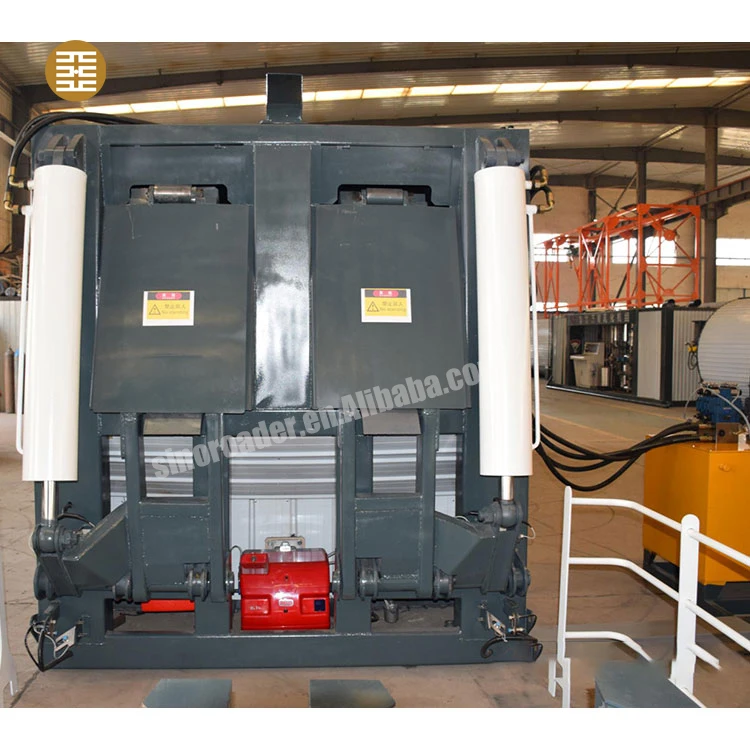

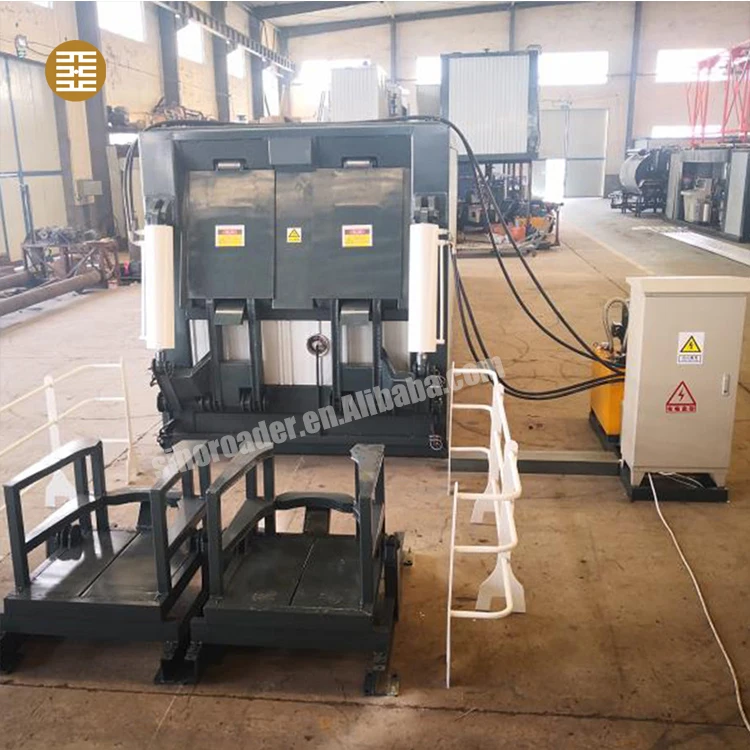

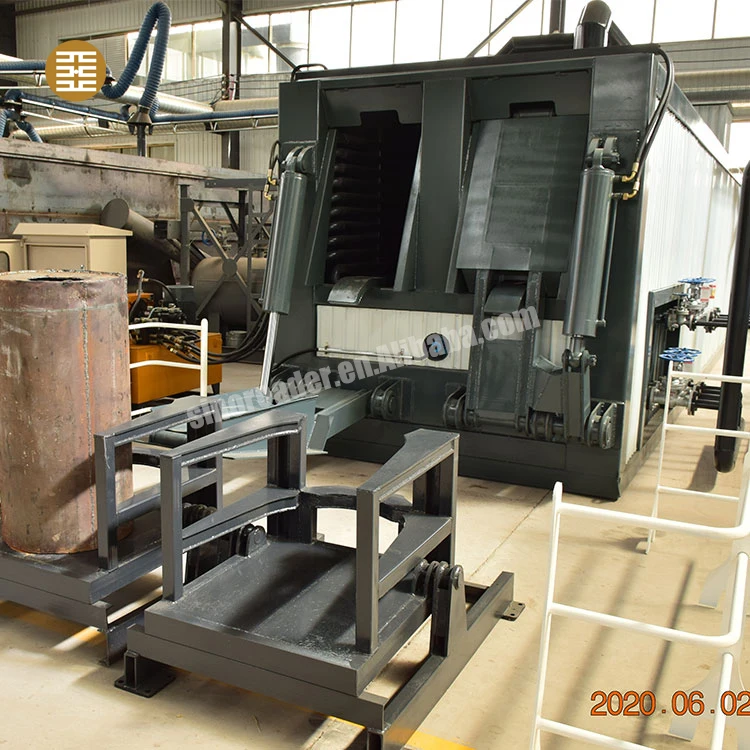

In the asphalt pipeline system, a filter is installed to automatically remove the asphalt slag in barrels. The lifting mechanism adopts the cantilever structure, and lifts the asphalt bucket by the electric hoist. The asphalt bucket is placed on the turning platform through the moving coordination of the rotary crane, and the bucket is turned down from the turning platform to the opening, and the barrel is pushed into the asphalt melting chamber by the hydraulic cylinder.

1.Turning over the barrel and turning the barrel into mixer can be completed in one time, single bitumen decanting process takes less than 20s.
2.The machine automatically reverses the oil barrel instead of manually turning over the oil barrel, which greatly reduces the labor intensity of the workers.
3.The bitumen pump set has an internal circulation function to optimize the heat transfer coefficient and increase the bitumen melting speed.
4.The electrical operating system uses in both manual and automatic ways.
5.Hydraulic cylinder speed can be adjusted according to actual needs.
6.Automatic slag removal: The equipment has automatic slag removal function. The asphalt pipeline system is provided with a filtering device, which can automatically remove the slag of the barreled bitumen through the filtration of the filter.
7.Environmental protection: closed structure, no pollution.
8.Adaptability: It can be customized according to various sizes of asphalt drums.
9.Convenient relocation: The whole machine adopts modular design and compact structure, which is convenient for relocation and quick assembly.

Sinoroader | Barrel-melting Body Bitumen  In order to ensure the heat-dissipation efficiency and prevent heat loss,the device is completely insulated with 100 mm rock wool. The inside of the equipment is divided into upper and lower rooms. The upper room is for heating the bitumen barrel. The upper chamber temperature is kept at about 70 degrees.The bitumen in the barrel is softened by heat and flows out to the lower chamber of the equipment. The melted bitumen continues to be heated in the lower chamber to pumping temperature (120℃).

Sinoroader | Bitumen Heating system In the hot oil heating bitumen decanter ,all the heating of the bitumen is done by thermal oil; the equipment with the burner, the heating of the bitumen barrel is completed by the thermal oil, and the heating of the melted bitumen is through the hot steam generated by the burner.

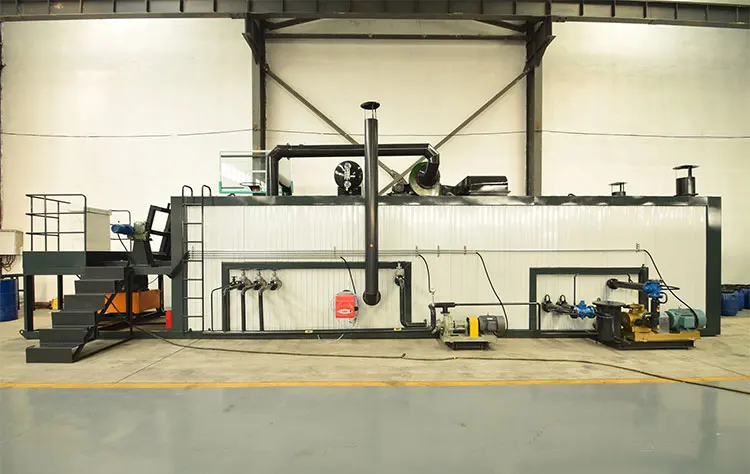

Sinoroader | Pump Set and Asphalt Piping System The asphalt pump set adopts a screw pump, and cooperates with the heat preservation three-way valve to complete the pumping and internal circulation functions. In the asphalt pipeline system, a filtering device is provided to automatically remove the barreled asphalt slag. The burner heating device is equipped with a heat-conducting oil pump to accelerate the heat-conducting oil circulation and accelerate the heat exchange rate between the heat-conducting oil on the upper part of the equipment and the asphalt drum.

• Asphalt Mixing Plant:
  Asphalt batch mix plant,drum mix asphalt plant,container type asphalt plant,mobile asphalt mixing plant,hot recycling asphalt mixing plant.


• Bitumen Plant:
  Polymer modified bitumen plant(PMB),suitable for SBS,SBR,MAC,EVA,PE modifier;Emulsion bitumen plant,crumb rubber bitumen plant.Also have bitumen decanter/ bitumen melting machine;


• Special Vehicles:
  asphalt distributor truck,bitumen transporta- tion truck,synchronous chip sealer,microsurfacing paver;

Packaging Details: 40HQ Container
Port: Shanghai,Qingdao,Tianjin,or other China ports
Lead Time: 45days in general

 Top Quality Bitumen Decanter Directly-heated Drummed Asphalt Bitumen Decanting Plant

Firstly,We send after service engineers to help installation, commissioning of the equipment.Returning visit by after service department for each set of equipment after installation.

Secend,We offer the customer training for the operator, maintenance worker, and also provide free technical advice services.

According to the production demand, guide to choose the right equipment;

Provide technical consultation ;

ensure punctual delivery.

Train the users  for safe production.

We are responsible for all the repairs that caused by our quality problems within one year’s warranty.

The customers whose products have passed its warranty date are entitled to enjoy our after-sales service for life
