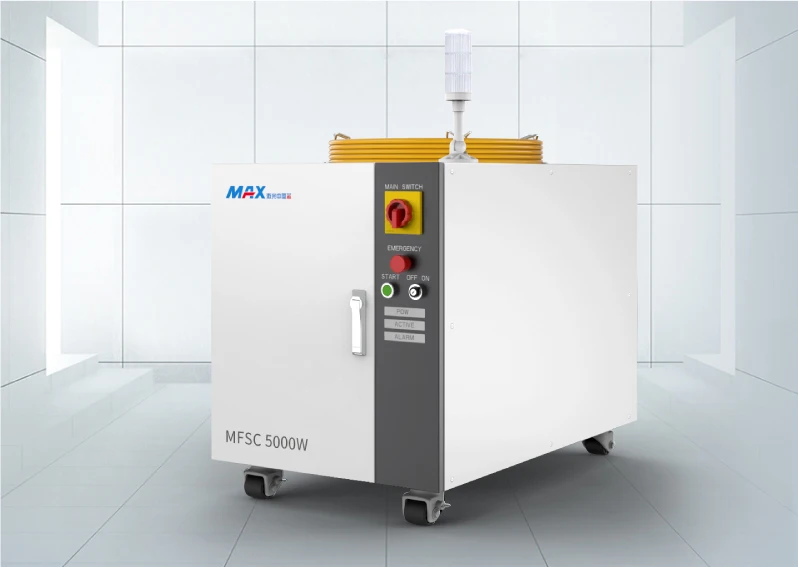

MAX Original MFSC 6000 6KW Continuous Laser Source 6000W Metal Fiber Laser Cutting Machine New Competitive Price Restaurant
- Category: >>>
- Supplier: Wuhan Cs Tec Co. Ltd.Wuhan Ltd.
Share on (1601258220640):
Product Overview
Description
Products Description

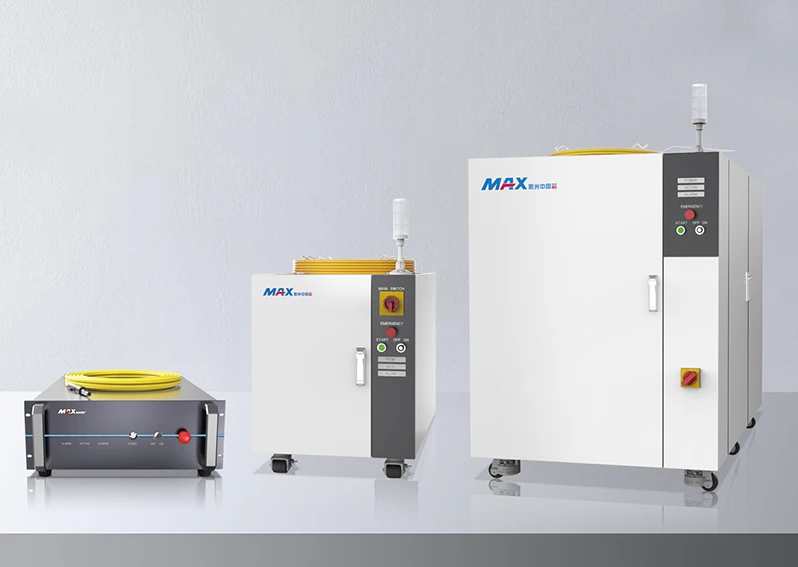

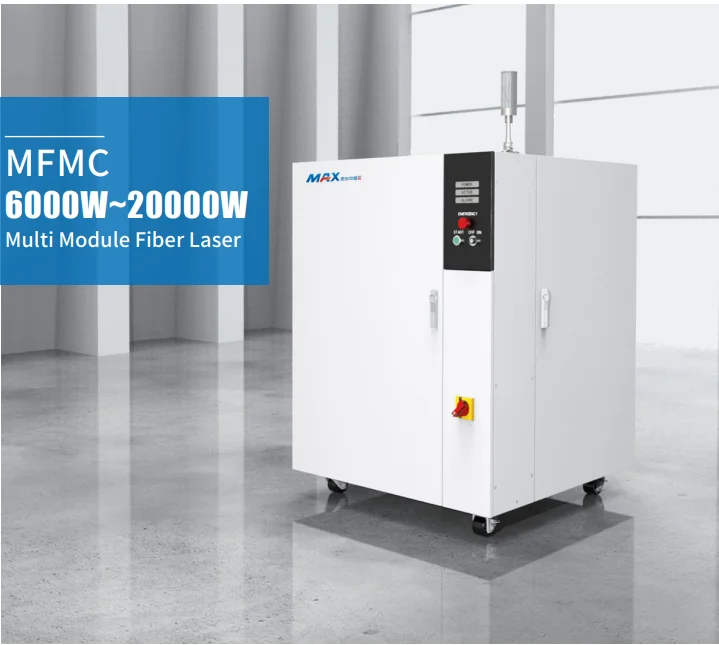

6000W-20000W High Power Multi-Module CW Laser series
Product Feature
High Power with Great Beam Quality
Excellent Material Processing Performance
Compact Design, Maintenance Free
Best Choice for Cutting and Welding
High power density with flat-head distribution
High wall-plug efficiency
Even Energy Distribution
Less splash during cutting and welding
Excellent Material Processing Performance
High speed in thin sheet cutting
Strong capability in thick material processing
Compact Design, Maintenance Free
Highly integrated system with modular design
High stability and easy maintenance significantly reduce TCO
Best Choice for Cutting and Welding
Widely used in hardware processing, automobile, shipping.
construction machinery, medical industries and more.
Product Paramenters
Models | MFMC-6000W | MFMC-12000W | MFMC-15000W | MFMC-20000W | |||
Nominal Power | 6000W | 12000W | 15000W | 20000W | |||
Mode of Operation | CW/Modulated | ||||||
Polarization | Random | ||||||
Power Tunability | 10 to 100% | ||||||
Wavelength | 1080 ±5nm | ||||||
Power Stability | ±1% | ||||||
Laser Beam Quality,BPP | 3.5 to 4.5 mm x mrad (100μmQBH) | ||||||
5 to 6.5 mm x mrad (150umQBH) | |||||||
6.5 to 9 mm x mrad (200μmQBH) | |||||||
Modulation Frequency | ≤5kHz | ||||||
Preview Red Light Power | 200 μW | ||||||
Interface | QBH | LOE | |||||
Length | 20m standard, other lengths optional | ||||||
Diameter | 100/150/200 μm | 150/200 μm | |||||
Bending Radius | 200mm | ||||||
Supply Voltage | 400(-15% to +10%) VAc 3-phase | ||||||
Operating Temperature | +10to+40℃ | ||||||
Storage Temperature | -10 to+60℃ | ||||||
Humidity | 10 to 80% | ||||||
Cooling Method | Water Cooling | ||||||
Cooling Medium | Distilled water/ Glycol Antifreeze | ||||||

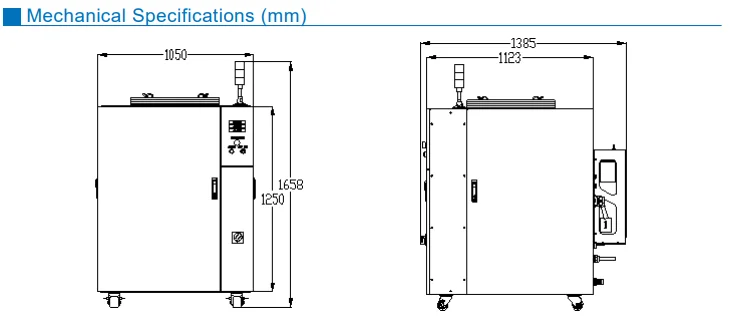

Dimension | 1050x1385x1658 mm | ||||||
Weight | 534(±4) kg | 646(±5)kg | 726(±5)kg | 815(±5)kg | |||
Product Details
Product Application
Laser Welding
Laser welding is a high-efficiency precision welding method that uses a high energy density laser beam as a heat source.
3D Printing
Additive manufacturing combines computer-aided design, material processing and forming technology, based on digital model files,
Laser Cutting
Laser cutting is to use a focused high power density laser beam to irradiate the workpiece, so that the irradiated material quickly melts.
Laser Marking
Laser marking is a method that uses a
high-energy-density laser to locally irradiate a workpiece to vaporize the surface material or change the color of the chemicalreaction.
high-energy-density laser to locally irradiate a workpiece to vaporize the surface material or change the color of the chemicalreaction.
Surface Treatment
Laser surface treatment is a method to improve the surface performance by designing and improving the surface of the workpiece.
Laser Cleaning
Laser cleaning has the characteristics of no grinding, non-contact, no thermal effect and suitable for objects of various materials, and is considered to be the most reliable and effective solution.
Company Profile

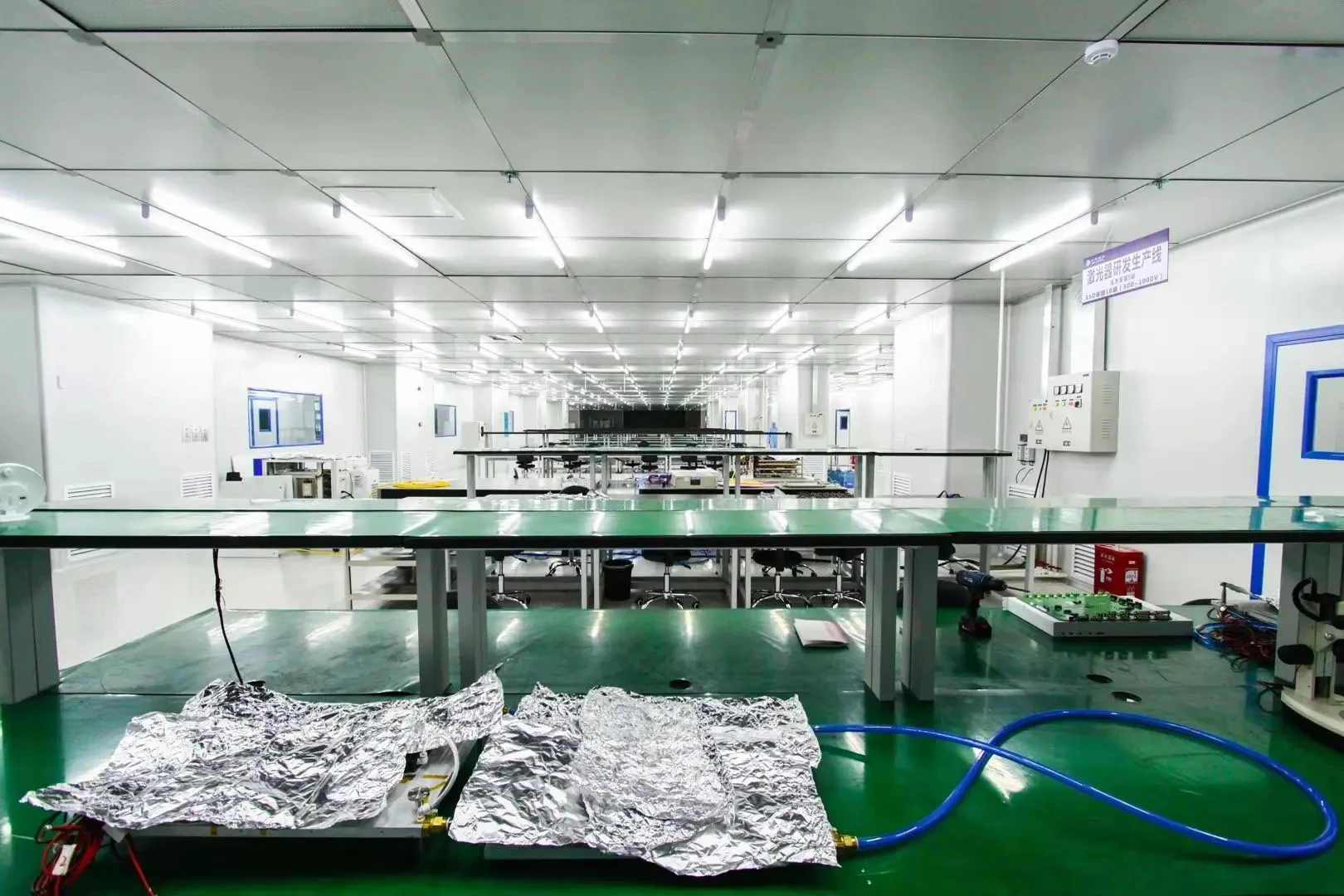

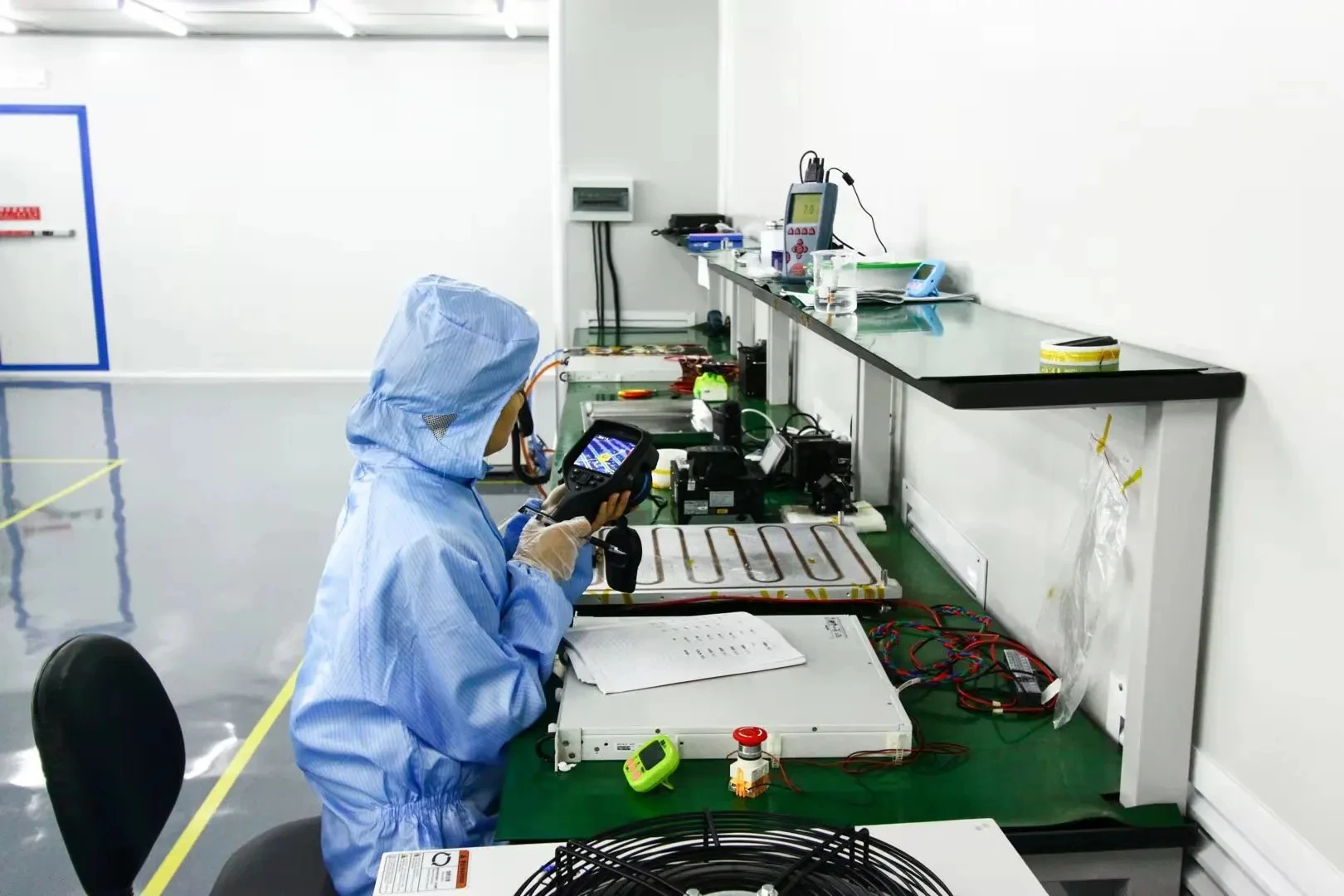

Wuhan CS Tec Co., Ltd
Wuhan CS Tec Co., Ltd.,(also known as "CS"), is a high-tech company located in the heart of Wuhan's Optical Valley. We are a dedicated enterprise specializing in laser-related equipment and customized products, offering an expansive portfolio of services that cater to the diverse needs of our clients. With over a decade of international experience in the laser industry, CS Tec is an established industry leader. Our expertise is deeply rooted in providing a wide array of cost-effective laser products, ranging from fiber laser core devices to comprehensive solutions tailored to our customers' unique needs.
At CS Tec, we pride ourselves on our access to global resources of high-quality, high-power fiber laser products suitable for all types of industrial processing.Our understanding of the market is global in scope. We continuously gather market information from all corners of the world to understand the unique needs of each region, equipping us to serve a wide variety of customers with precision and excellence.
At CS Tec, we are more than a supplier; we are a partner in innovation. We strive to stay at the forefront of laser
technology,constantly innovating and refining our offerings to ensure our customers have the cutting-edge solutions they need.Trust in CS Tec to provide the laser technology that helps shape your future.
At CS Tec, we pride ourselves on our access to global resources of high-quality, high-power fiber laser products suitable for all types of industrial processing.Our understanding of the market is global in scope. We continuously gather market information from all corners of the world to understand the unique needs of each region, equipping us to serve a wide variety of customers with precision and excellence.
At CS Tec, we are more than a supplier; we are a partner in innovation. We strive to stay at the forefront of laser
technology,constantly innovating and refining our offerings to ensure our customers have the cutting-edge solutions they need.Trust in CS Tec to provide the laser technology that helps shape your future.
"Capture the laser, Shape the future" - with CS Tec,
you're in capable hands.
you're in capable hands.
FAQ
Q:What does Wuhan CS TEC Co do?
A: Wuhan CS TEC Co is a high-tech company located in the heart of Wuhan's Optical Valley, specializing in laser-related equipment and customized products. They offer a wide range of services to meet the diverse needs of their clients.
Q: What products does Wuhan CS TEC Co offer?
A: The company's products include laser diodes, laser components and fiber processing equipment, single-mode continuous wave (CW) fiber lasers, special wavelength fiber lasers, direct diode lasers, and more.
Q: What are the features of Wuhan CS TEC Co's laser diodes?
A: The laser diodes offered by the company have multiple advantages such as high reliability, stable output power, high power,high efficiency, long lifespan, and high compatibility. They are wavelength-selectable, covering a wide spectral range from 405 to 1550nm, and are available in different power levels to suit various application needs.
Q: What are the advantages of Wuhan CS TEC Co's fiber lasers?
A: The company's fiber lasers boast high beam quality, high energy density, and high electro-optical efficiency, making them suitable for various fields such as precision machining, deep penetration welding, and scientific research.
Q: What are the characteristics of Wuhan CS TEC Co's special wavelength fiber lasers?
A: The company's special wavelength fiber lasers feature a complete fiber design, a wide selection of wavelengths, and an optimized OEM solution, catering to the needs of the industrial, medical, and R&D markets.
Q: What are the benefits of Wuhan CS TEC Co's direct diode lasers?
A: The company's direct diode lasers have a wall-plug efficiency approaching 35% and are used across a variety of
applications.such as soft soldering, metal hardening, plastics welding, silicon surface modification, and Flat Panel Display (FPD) bonding.They also serve as an excellent source for optical laser pumping.
Q: What system solutions does Wuhan CS TEC Co provide?
A: The company provides comprehensive solutions for all laser systems, with a particular emphasis on traditional laser applications for marking and cutting.
Q: What are the features of Wuhan CS TEC Co's marking machines?
A: The company's marking machines include both table and portable types, equipped with either fiber laser or UV laser technology.These marking machines cover the full range of power, making them suitable for a wide array of applications, from small-scale marking tasks to high-volume industrial projects.
Q: What are the advantages of Wuhan CS TEC Co's cutting machines?
A: The company's cutting machines offer several standard types, each tailored for specific applications. Their precision cutting machines are designed for tasks requiring high levels of accuracy. The single table and double table models cater to different work volume requirements, while their full enclosure machines provide an extra level of safety for operators.
Q: What are the characteristics of Wuhan CS TEC Co's welding machines and cleaning machines?
A: The company's welding machines come in two standard types: handheld and platform models. They are equipped with Continuous
Wave(CW), Quasi Continuous Wave (QCW), or Yttrium-Aluminum-Garnet (YAG) lasers, covering the full range of power to suit different
welding tasks. Their cleaning machines offer two types based on their source of power. The first type is equipped with a
Continuous Wave (CW) fiber laser with power up to 3000W, ideal for intense cleaning operations. The second type employs a pulsed
fiber laser with power up to 500W, which is perfect for tasks requiring controlled and precise cleaning.
