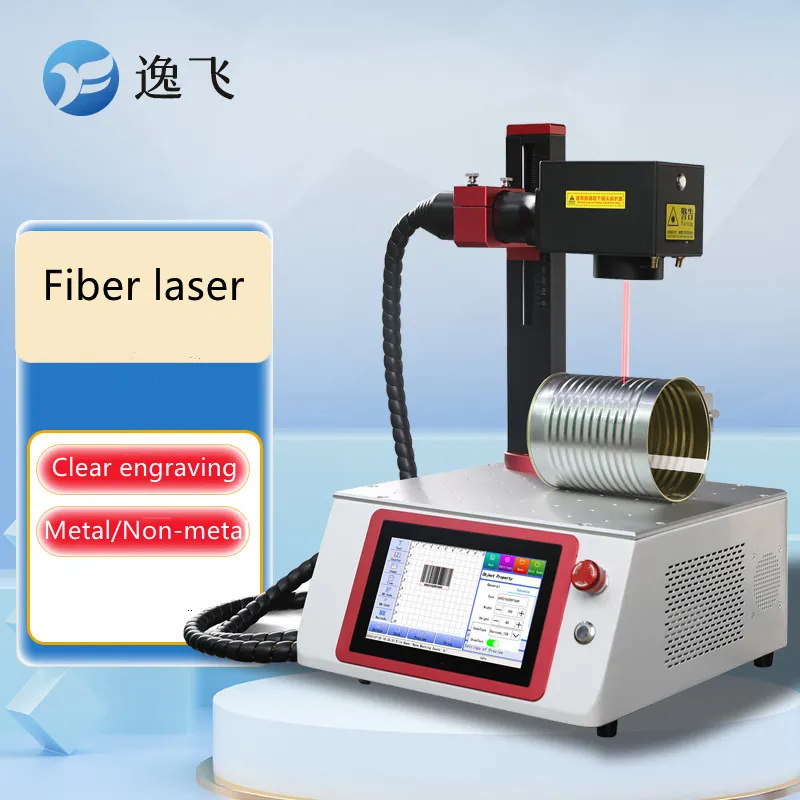

20W Portable Handheld Laser Fiber Marking Machine Laser Marker Laser Engraving Machine
- Category: >>>
- Supplier: Anhui Yifei Intelligent Packaging Machinery Co. Ltd.
Share on (1601258313052):
Product Overview
Description
Products Description
Product Parameter
Model | L7 |
Material | Aluminum alloy + engineering plastics |
Laser Type | Raycus 20W fiber laser |
Laser wavelength | 1060-1085nm(1.06-1.085)μm |
Maximum pulse capability | 0.8mJ |
Frequency adjustable range | 20-100KHZ |
Printing method | high-precision two-dimensional scanning method |
Marking speed | ≤7000mm/s |

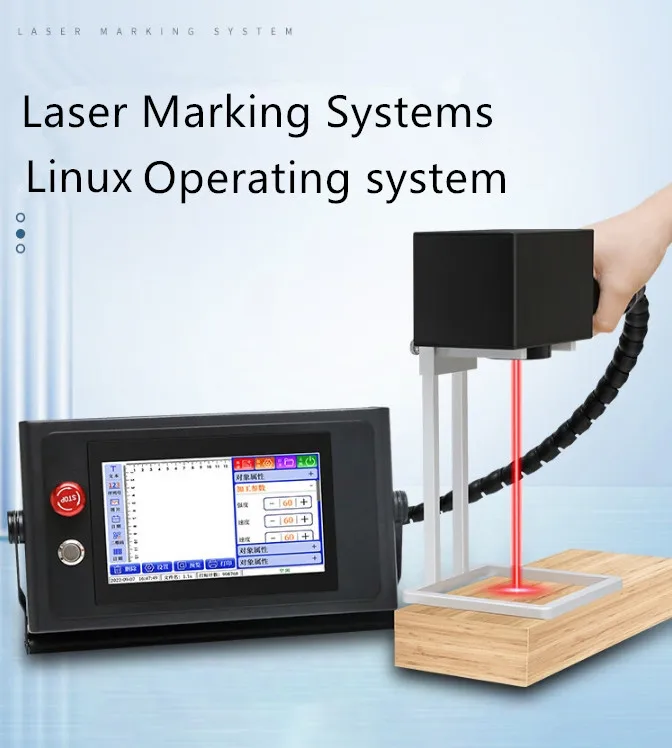

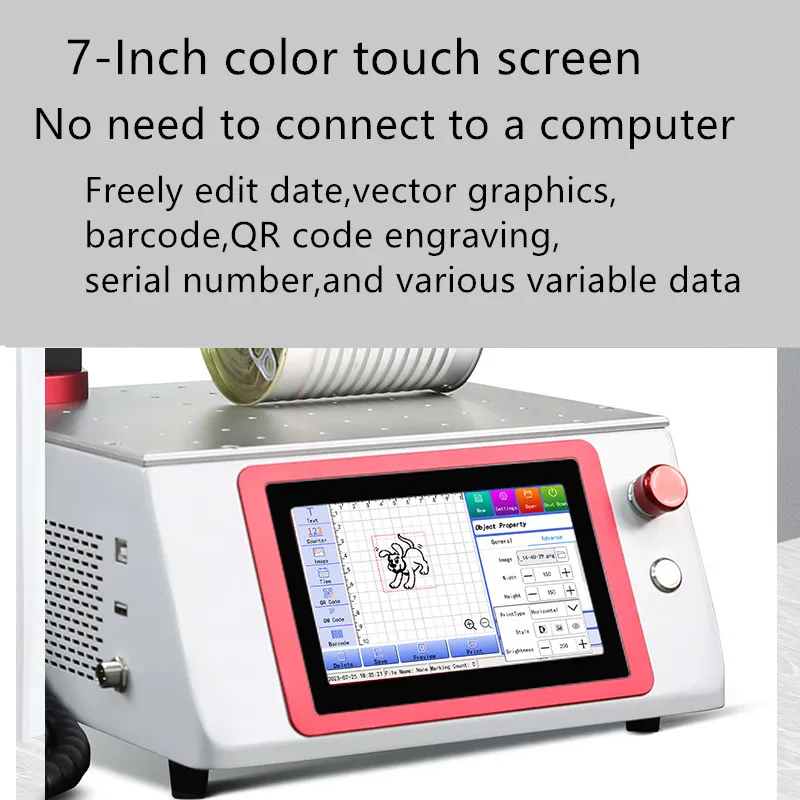

Controller | Built-in 7-inch screen, Linux operating system |
Cooling system | Normal temperature air cooling/metal heat dissipation |
Preview mode | Border preview, print content preview |
Marking range | 70mmx70mm |
Number of lines of characters | Any line within the marking range |
Printing speed | 300 characters/second (the specific speed depends on the product material and print content) |
Language | Chinese/English/Korean/Japanese, etc. |
File format | jpg, png, svg, bmp |
Print content | Variable jump code/QR code/barcode/picture/text/time/number, etc. |
Voltage | 220V |
Power | 150W |
Power Supply | DC power supply, outdoor power supply |
Net Weight | 7.55kg |
Adapt temperature | 0-40℃ |
Ambient humidity | 30-85RH |
Package Size | 471*482*263mm |
Weight | 9kg |
Product details

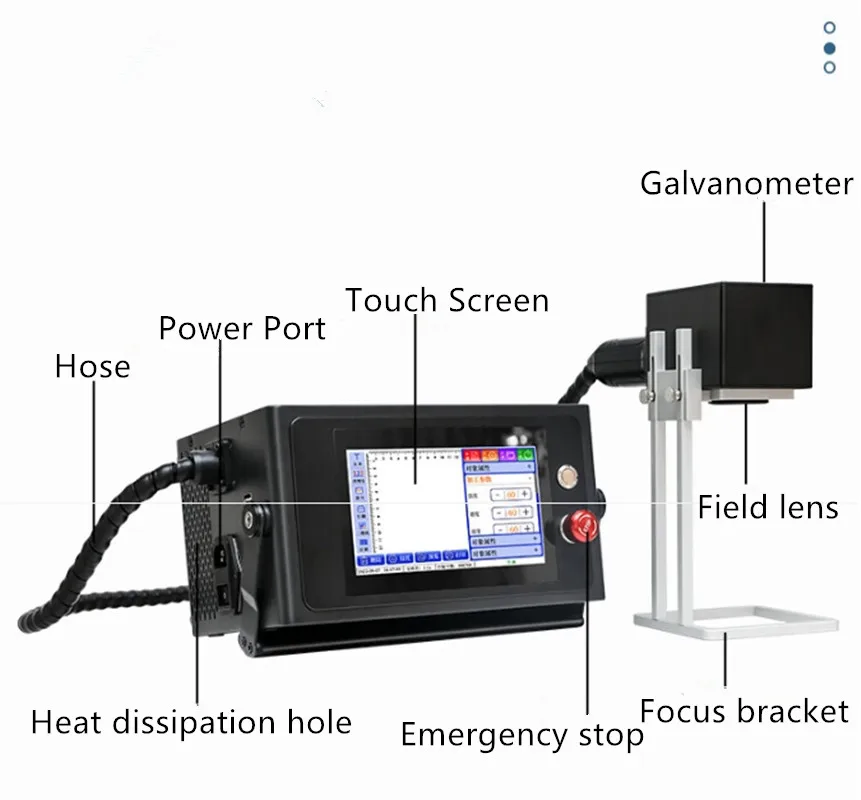

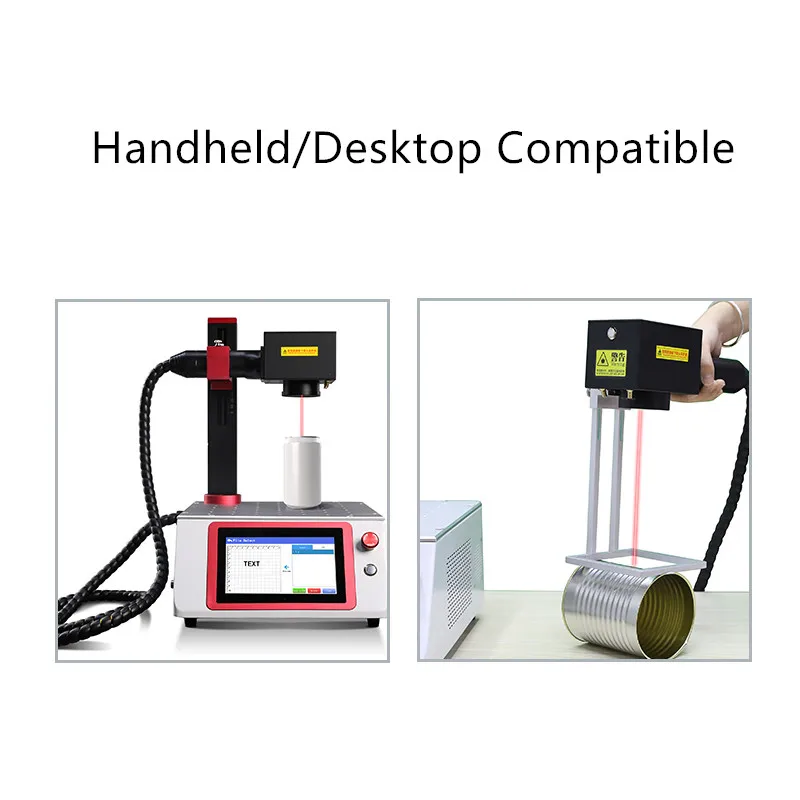

The angle of the marking head can be changed at will to adapt to complex marking environments

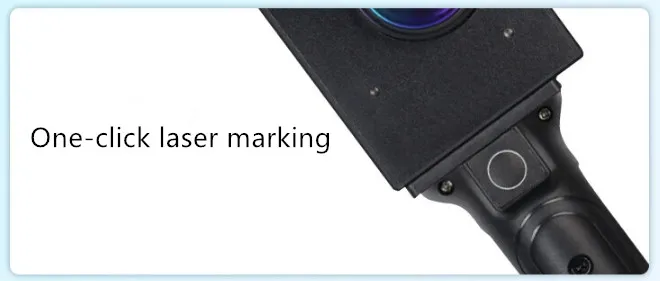

After turning on the printing mode, you can mark with one button, which is easy to operate.

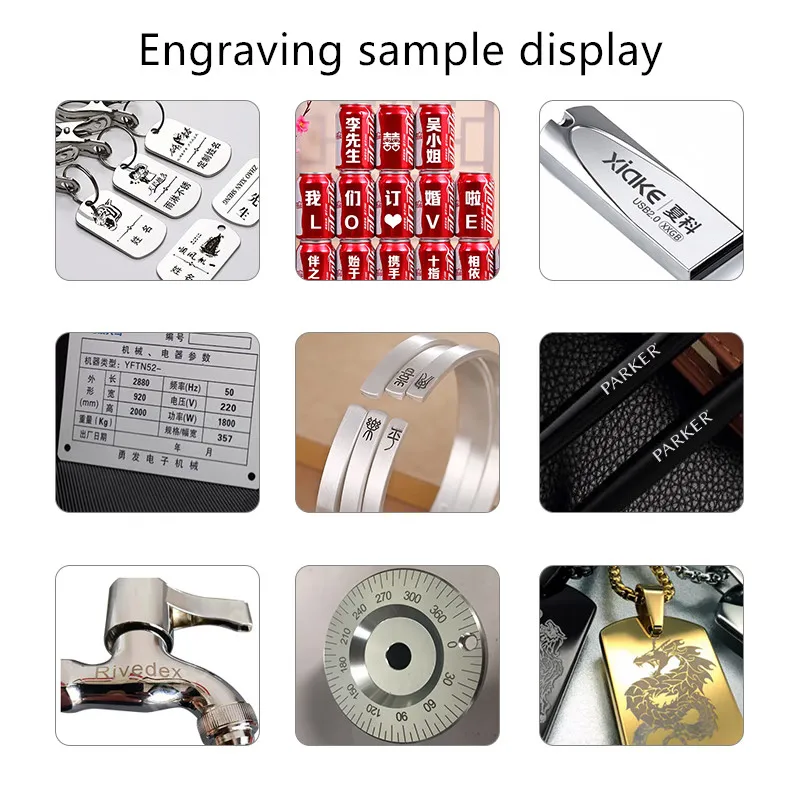

Can import LOGO images for marking, and then edit and mark the images in different sizes.

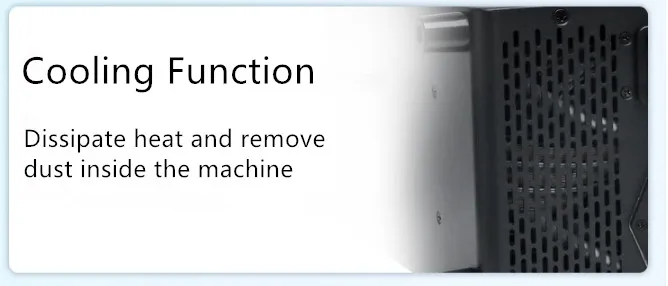

Dust blown away by the machine can be removed from the inside
Recommend Products

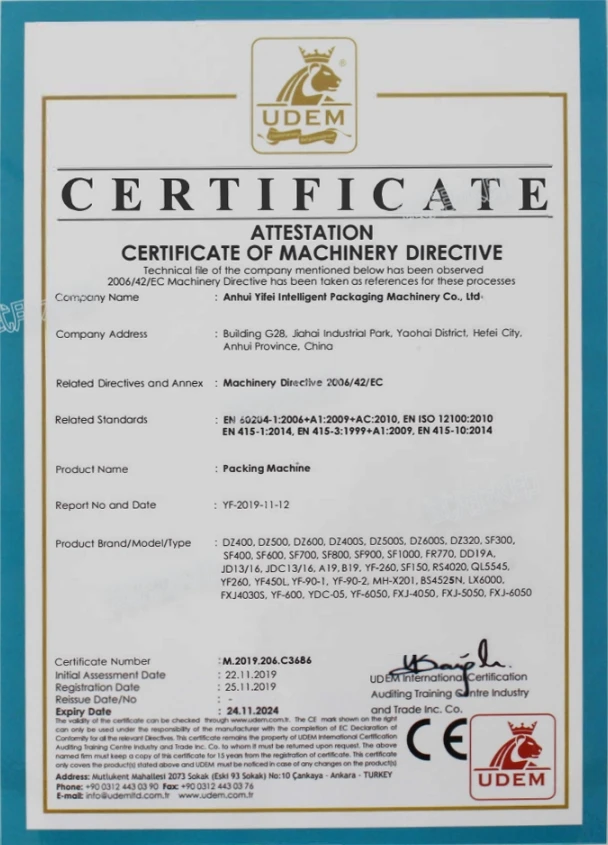

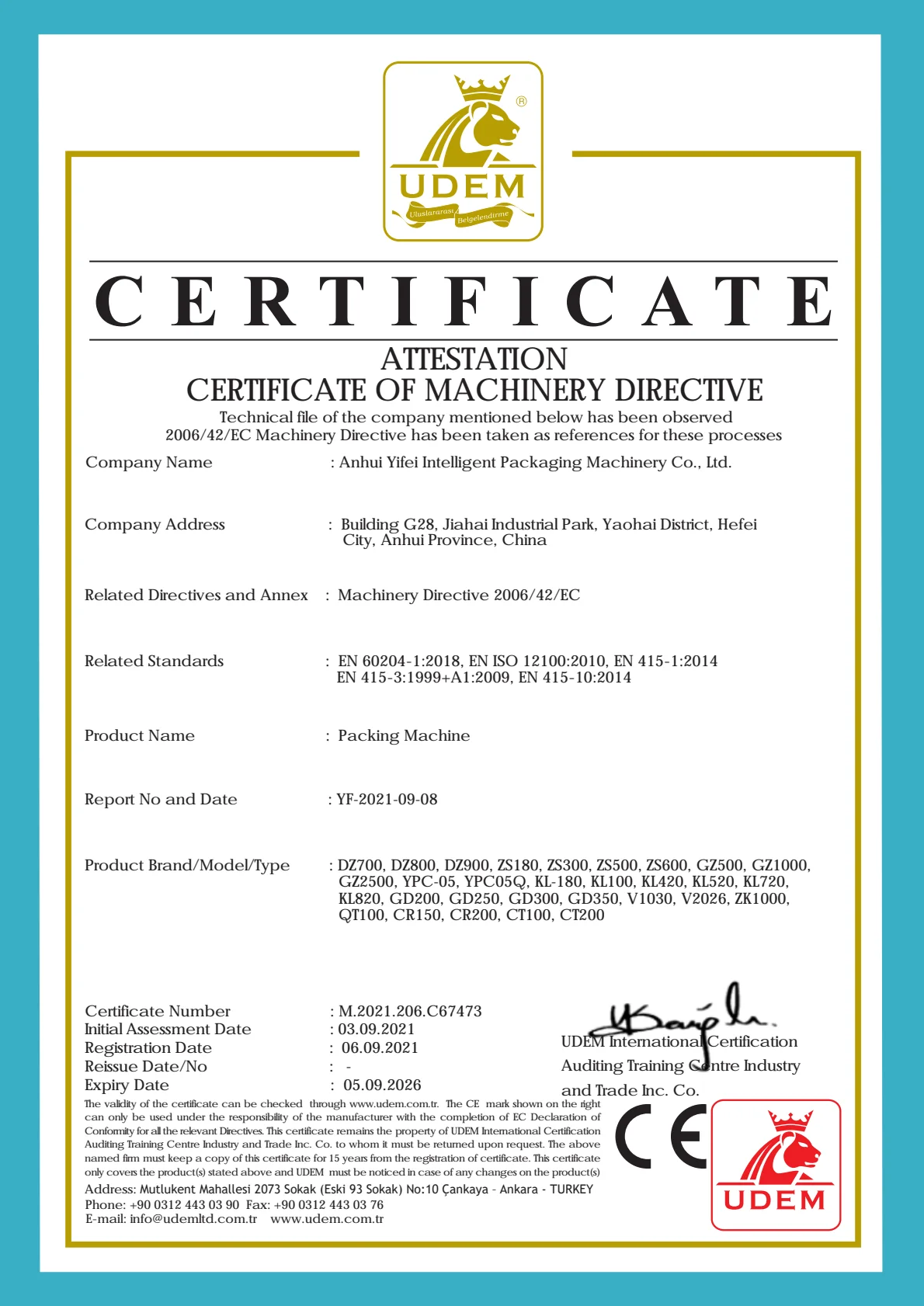

Certifications
Packaging&Shipping
Company Profile
Anhui Yifei Intelligent Packaging Machinery Co., Ltd. is a collection of R&D, design, production, installation, commissioning and technical services, relying on technology to provide customers with packaging equipment solutions.
The company's main products are: granular packaging machine, powder packaging machine, sauce liquid packaging machine, tea packaging machine, rotating bag packaging machine, horizontal packaging machine, multi-row packaging machine, pillow packaging machine, vacuum packaging machine, automatic shrink film sealing machine, open box machine, packing machine, packing machine, palletizing machine, winding machine, spraying machine, filling machine, sealing machine, labeling machine, etc. packaging machinery and supporting production lines.
Our products are widely used in food, medicine, chemical industry, hardware, pesticides, logistics and other industries. After several years of development and growth, the company has established a sound sales network and service network, products sold well throughout the country, and exported to Europe, America, Southeast Asia and other countries all over the world
Over the years, our company has been praised and appreciated by the vast number of new and old customers in line with the purpose of "high quality and perfect service". In order to thank the vast number of new and old customers for their great love for Yifei packaging machinery, we solemnly promise that we are willing to repay our customers with the management concept of high quality and high service.
Warmly welcome You to Y-F Packaging Machinery for inspection and business negotiation.
