Factory Direct Sale FAW 20000 liters oil tank truck faw 6x4 Oil Tank Truck fuel tanker truck

Product Overview

Description

Factory Direct Sale FAW 20000 liters oil tank truck faw 6x4 Oil Tank Truck fuel tanker truck

cheap truck oil tank heavy oil tank truck service truck oil tanks truck tank fuel hydrolic oil tank truck truck fuel tank production line aluminum truck fuel tanks sale fuel truck tank fuel tank truck with 6 wheels heavy oil tanker truck price tanker truck price truck bed fuel tank fuel tank for truck

   Fuel tank truck is mainly used for all kinds of oil derivatives (gasoline, diesel oil, crude oil, lubricating oil and coal tar oil) transportation and storage. The truck has a variety of refuel or oil transport function according to     different purpose and use of the environment. Tank high strength,stable center of gravity,transporting safety. optional equipments as below:

  1. Optional tanker material: stainless steel,aluminium alloy and pure aluminum cans.

  2. Optional:centrifugal pump,gear pump,copper core gear pump,stainless steel pump.

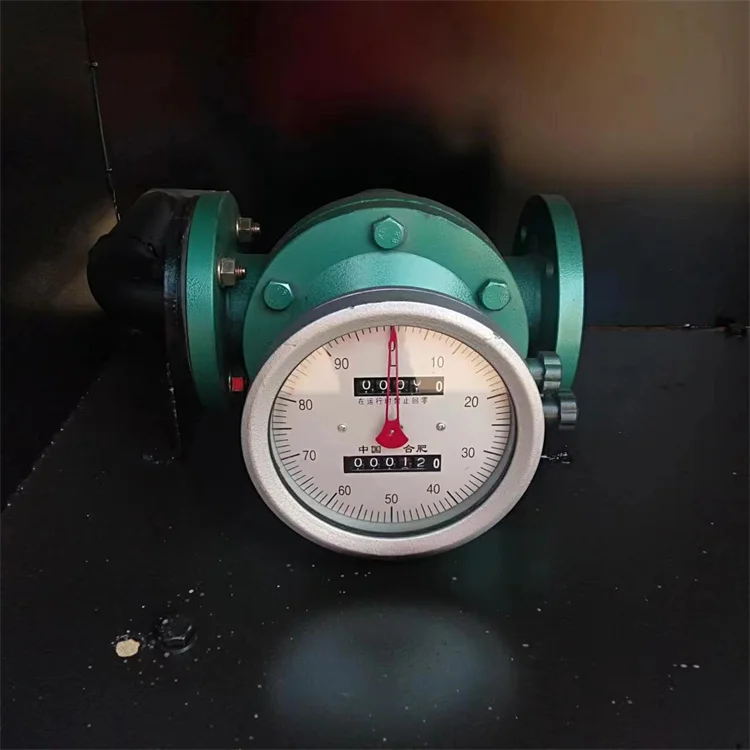

  3. Measurement:flowmeter or vehicular tax-controlled computer oiling machine.

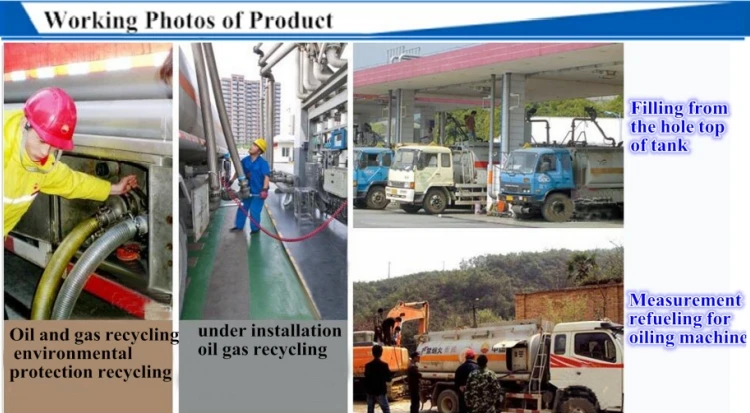

  4. Under installation oil gas recycling.

  5. Emergency shutdown device.

  6. Multichannel wave plate in tank.

  7. GPS.

  8. Electromagnetic valve.

  9. Pneumatic valve,

  10.Visual operating system,

  11. External power.

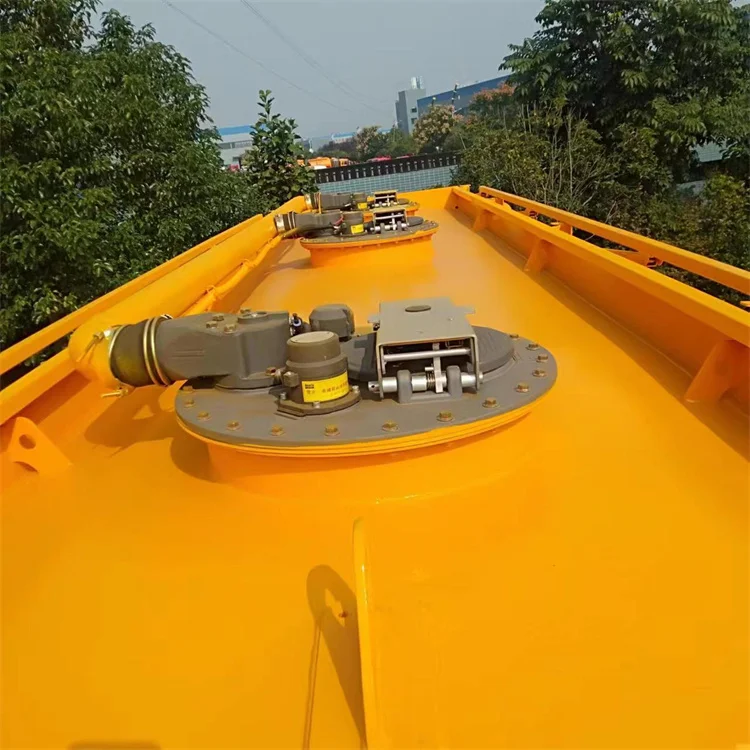

  12. Movable rail on top of tank.

  13. 15m TLJP(self-return)

  14. ABS,the front dish and rear drum, the speed limit device.



  1. Tank volume:17~22CBM.

  2. Chassis brand: FAW.

  3. Drive type:6*4/6*6

  4. Engine :280HP

  5. Emission standard:Euro 2/Euro 3/Euro 4/Euro 5/Euro 6.

  6. With 3C and passes the ISO9001-2008,SGS.

  7. OEM, We are a professional manufacturer and can produce all kinds of sizes for fuel tank truck.

  8. You can customize.

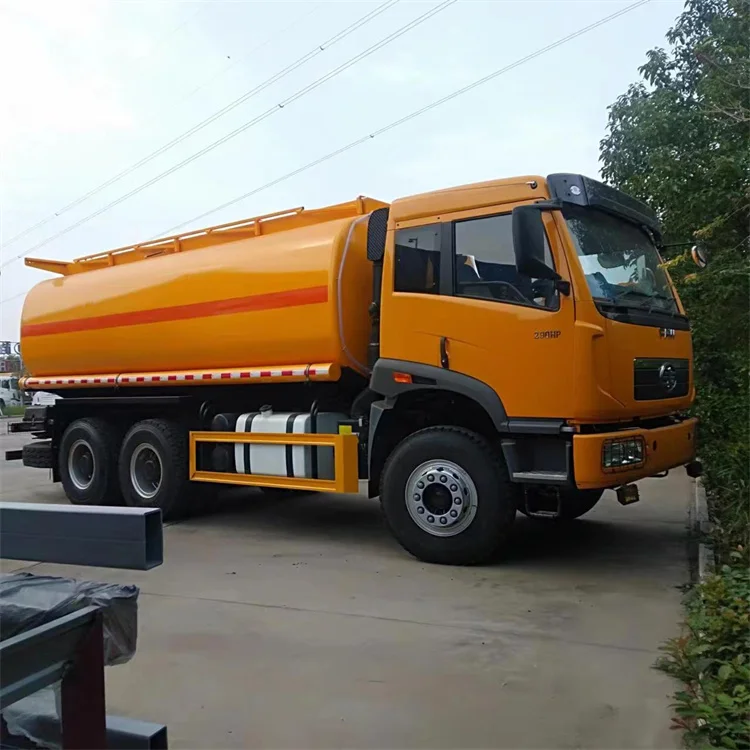

Product name	FAW 6x4 20cbm Oil tank truck
Tank volume	17~22CBM	Chassis model	CA5260
Overall dimension(mm)	10100×2550×3490	Brand name	FAW 6x4
Gross weight(Kg)	26000	Wheelbase(mm)	4350+1350
Payload(Kg)	16700	Drive type	6*4
Curb weight(Kg)	9105	Fuel type	diesel
Axle No.	3	Emission standard	Euro 2/Euro 3/Euro 4/Euro 5/Euro 6
Cab seats(person)	3	Transmission	10-speed
Approach/departure angle(°)	18/11	Tires No.	10+1
Axle load (Kg)	7000/19000	Tire specification	10.00R20
Front/rear hang(mm)	1400/2550	Max speed(km/h)	79
Front/Rear track(mm)	1988/1878/1878	Steel spring number	3/-
Engine parameters
Engine model	Engine  manufacturer	Displacement (ml)	power(HP)
CA6DK1-28E51	Faw Group Co., LTD	7.146	280
Chassis Description	1.FAW 6x4 chassis,Row half cab with left/right hand drive optional. 2.4350+1350mm wheelbase,280P Engine,10-speed transmission, front brige 5.5T/ rear brige 13T,10.00R20 tire. 3.Oil brake and Power steering.

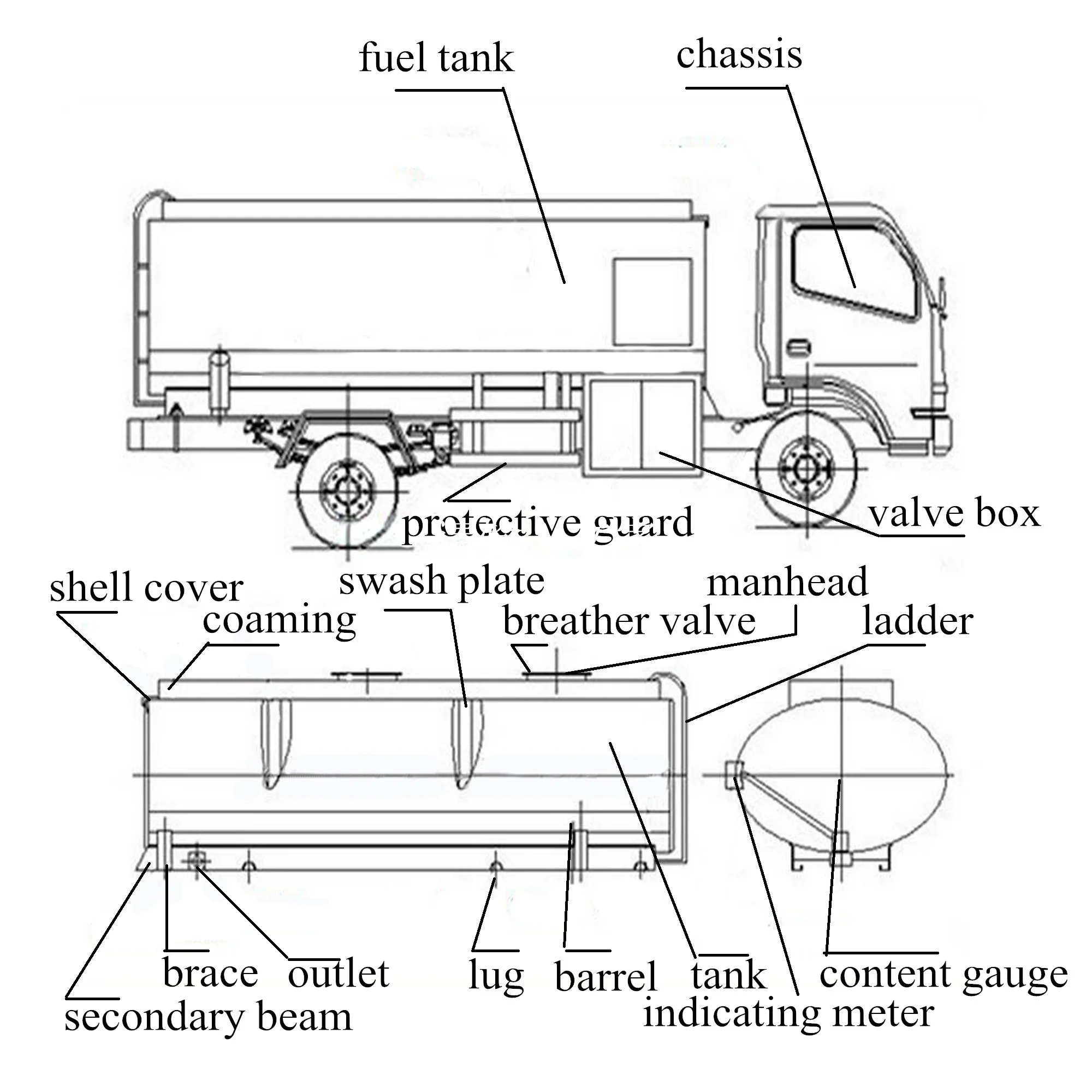

Standard Equipment	1.Tank valume:17~22CBM;round or square;tanker material:4-6mm carbon steel.

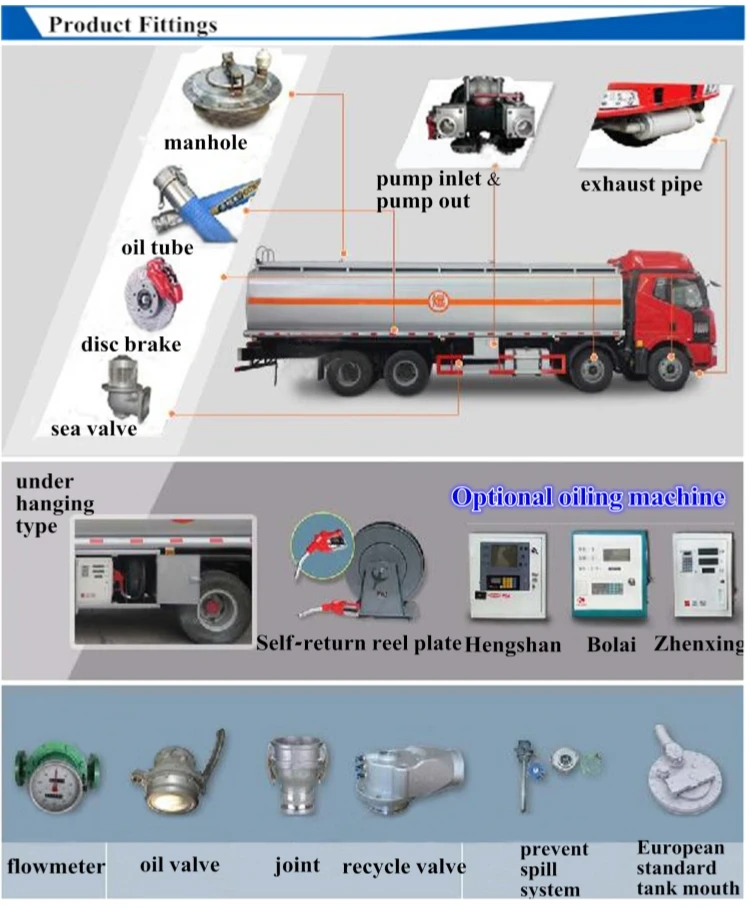

	2.Equipped with oiling machine,fueling gun, sea valve,European standard tank mouth, shell cover, self-priming pump,gear pump,double pump,oil absorbing,transmission shaft,special gear pump,pipe system,out and in oil hole,attendant's cabinet,safeguard system and so on.
	3. Built-in type oiling machine, separate parts for different oils,out and in through pump,self-flow.

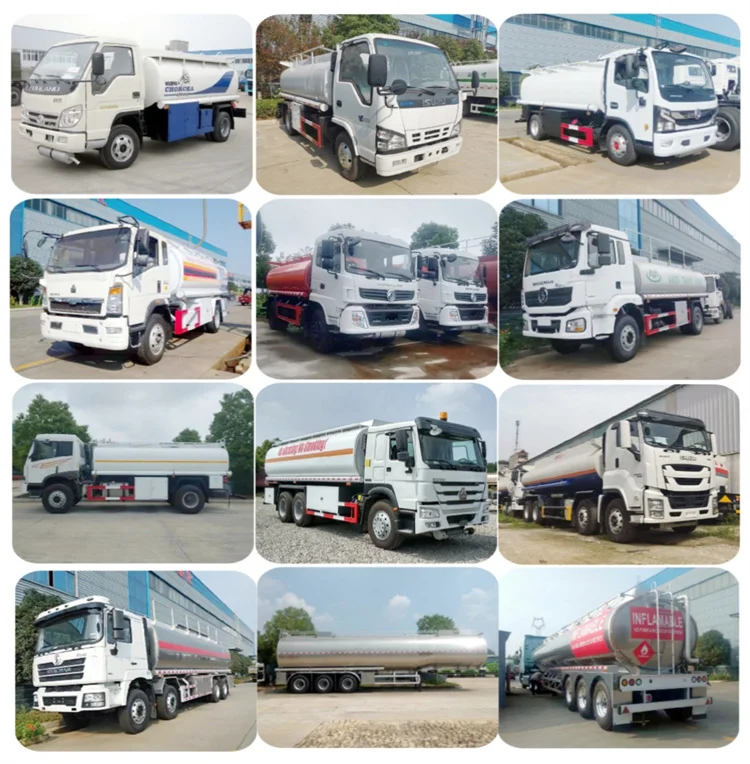

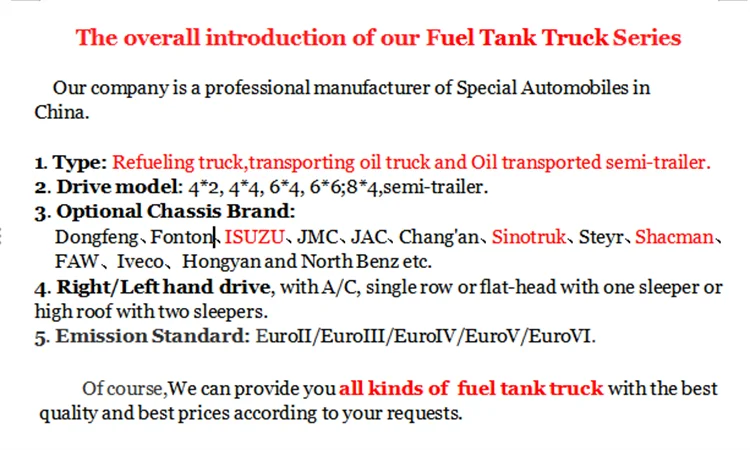

    Our factory can produce all kinds of trucks with Isuzu,Sinotruk,Shacman and other chassises.

Factory Direct Sale FAW 20000 liters oil tank truck faw 6x4 Oil Tank Truck fuel tanker truck

cheap truck oil tank heavy oil tank truck service truck oil tanks truck tank fuel hydrolic oil tank truck truck fuel tank production line aluminum truck fuel tanks sale fuel truck tank fuel tank truck with 6 wheels heavy oil tanker truck price tanker truck price truck bed fuel tank fuel tank for truck







Factory Direct Sale FAW 20000 liters oil tank truck faw 6x4 Oil Tank Truck fuel tanker truck

cheap truck oil tank heavy oil tank truck service truck oil tanks truck tank fuel hydrolic oil tank truck truck fuel tank production line aluminum truck fuel tanks sale fuel truck tank fuel tank truck with 6 wheels heavy oil tanker truck price tanker truck price truck bed fuel tank fuel tank for truck

The truck is manufactured by CLW group, which is the biggest manufacturer producing all kinds of special trucks.If you are intrerested in our products please browse our company's website(https://www.clwqytruck.com)
