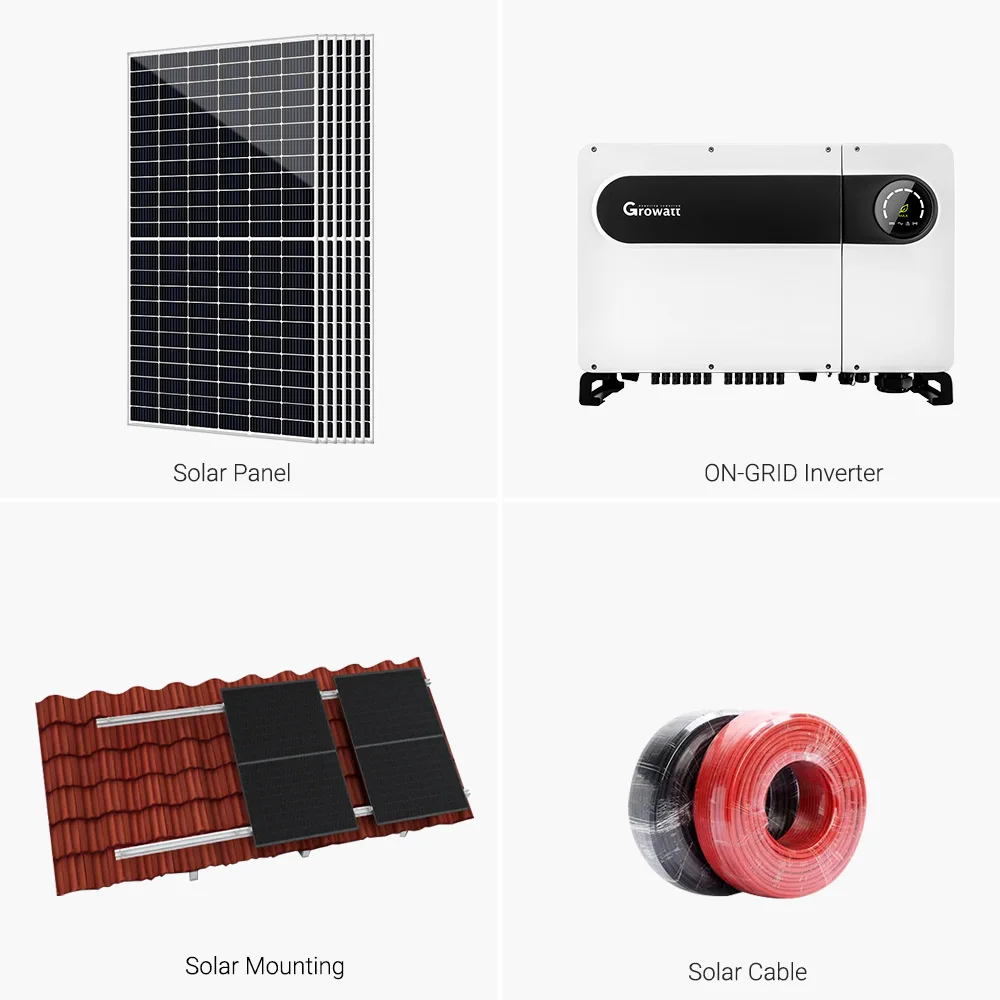

Good Quality Growatt max 80kw 100kw 150kw on Grid Solar System Growatt On Grid Inverter 500kw with JA Trina Solar Panel
- Category: >>>
- Supplier: Lovsun Tek Co.Ltd
Share on (1601258509668):
Product Overview
Description
Product Description
Product Details

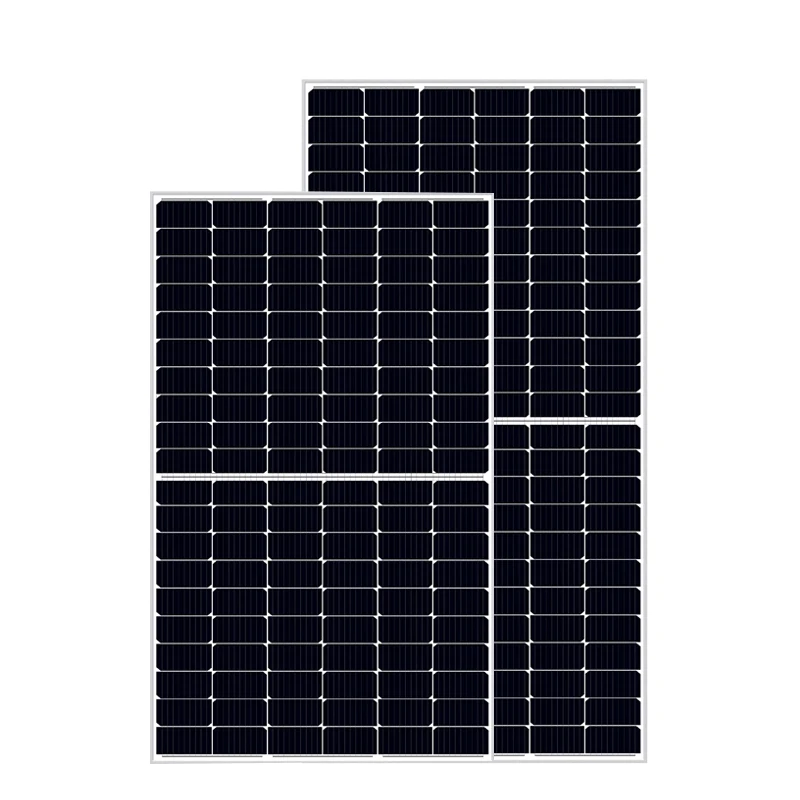

Half Cut Solar Panel
*Highest conversion efficiency of 21.5%
*0~+5W positive power tolerance
*PID Protection
*Higher performance under low light.
*MBB cell technology.
*Maximum system voltage:1500V *Junction box:IP68
*Frame:Aluminum alloy
*Cell amount:72*2pcs
Application level:Class A
*12Years product warranty,25 Years power output guarantee.

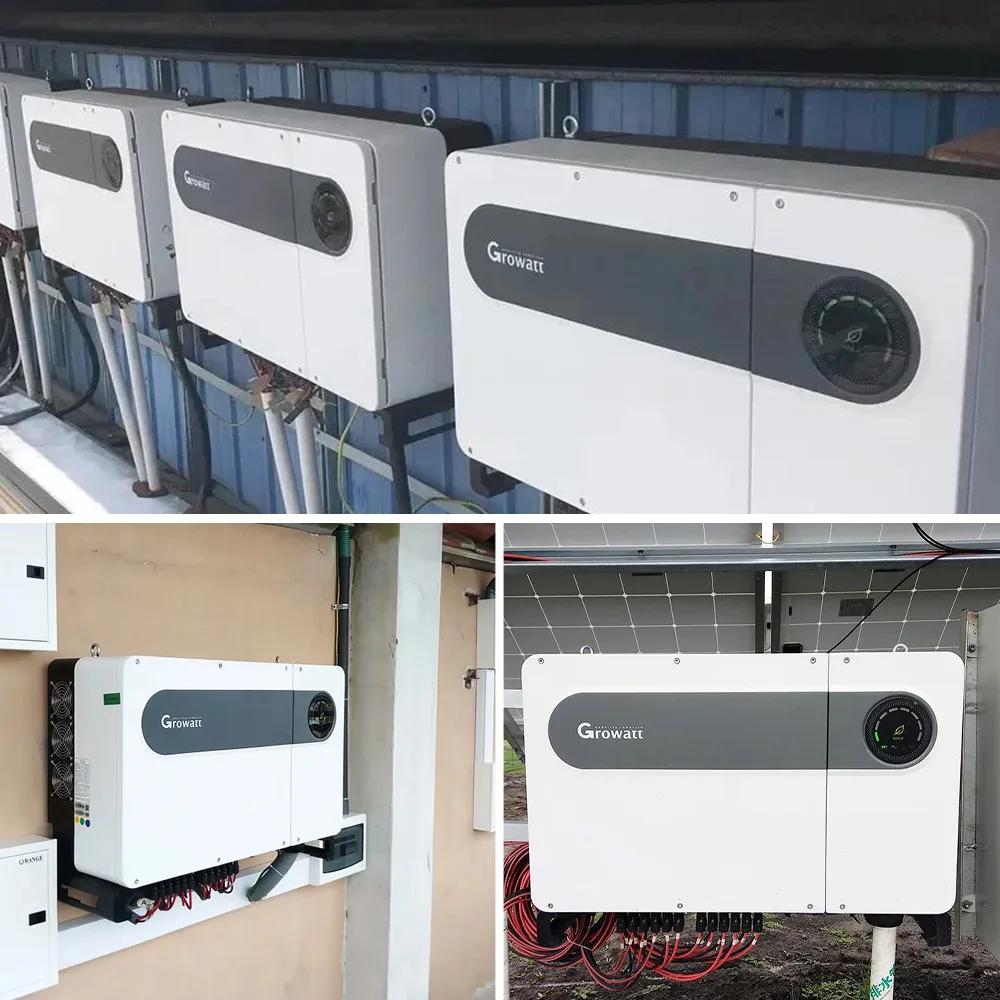

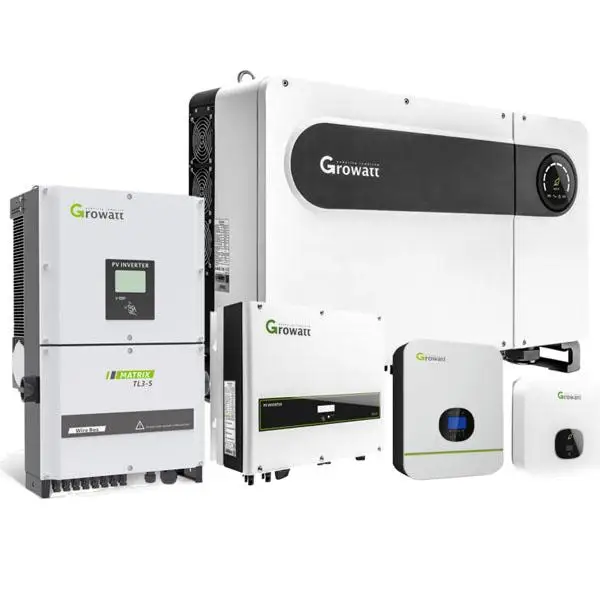

Growatt On Grid Solar Inverter
*Touch key and OLED display.
*2-10 MPPT trackers.
*Support export control.
*DC/AC ratio upto 1.4
*Three phase 380VAC/400VAC output
*IP65 protection rating
*Maximum efficiency of 99%
*Anti-isolating protection
*DC surge protection
*AC short-circuit protection
*AC grid connection type:3W+N+PE
*Standard 5Years warranty.
*2-10 MPPT trackers.
*Support export control.
*DC/AC ratio upto 1.4
*Three phase 380VAC/400VAC output
*IP65 protection rating
*Maximum efficiency of 99%
*Anti-isolating protection
*DC surge protection
*AC short-circuit protection
*AC grid connection type:3W+N+PE
*Standard 5Years warranty.

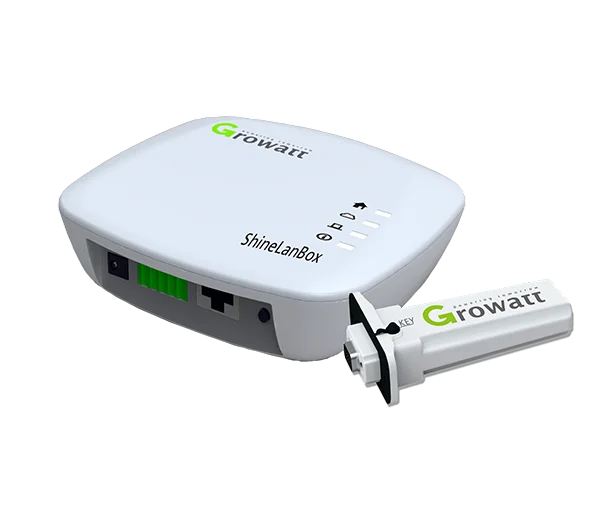

*EASY INSTALLATION PLUG-AND-PLAY.
*WIRELESS COMMUNICATION.
*DATA ARCHIVING FOR 30 DAYS EVEN THE INTERNET OUTAGE.
*SUPPORT REMOTE FW UPDATING
AND PARAMETER SETTING.
*Standard 5Years Warranty.
*WIRELESS COMMUNICATION.
*DATA ARCHIVING FOR 30 DAYS EVEN THE INTERNET OUTAGE.
*SUPPORT REMOTE FW UPDATING
AND PARAMETER SETTING.
*Standard 5Years Warranty.

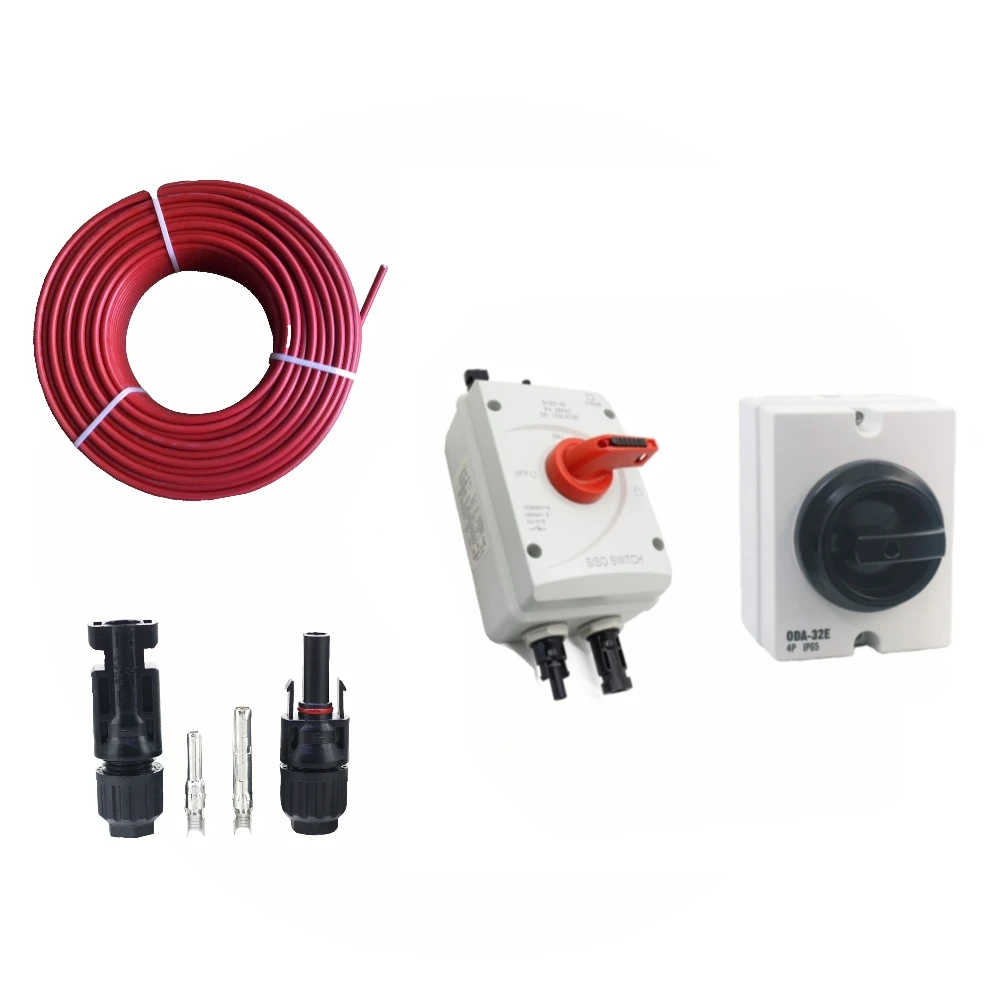

Solar Accessories
*Black/Red color 4/6/10 mm2 PV cable
*Universal compatible PV connectors
*With CE TUV certificate
*15Years Warranty
*Universal compatible PV connectors
*With CE TUV certificate
*15Years Warranty

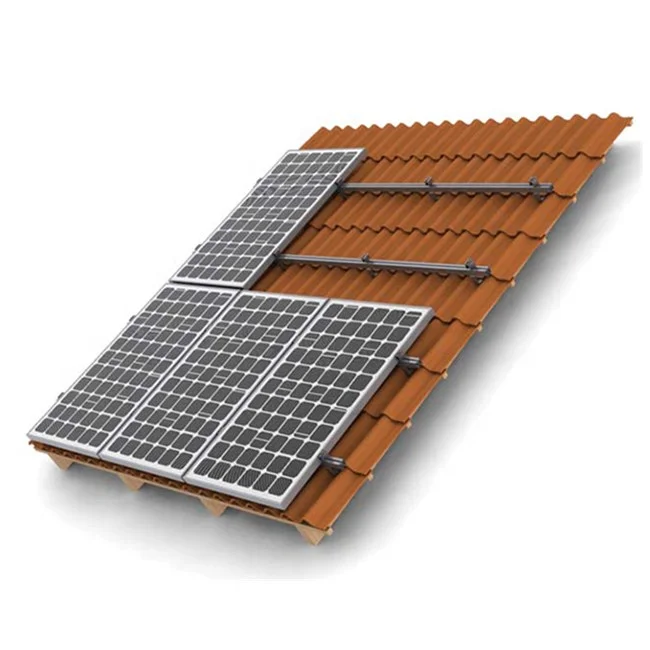

PV Mounting System
*Customized for roof&ground etc.
*Adjustable angle from 0~65 degree
*Compatible with all type solar panel
*Mid & End Clamps: 35,40,45,50mm
*L Foot Asphalt Shingle Mount & Hanger Bolt Optional
*Cable Clip & Tie Optional
*Ground Clip & Lugs Optional
*25 Years Warranty
*Compatible with all type solar panel
*Mid & End Clamps: 35,40,45,50mm
*L Foot Asphalt Shingle Mount & Hanger Bolt Optional
*Cable Clip & Tie Optional
*Ground Clip & Lugs Optional
*25 Years Warranty

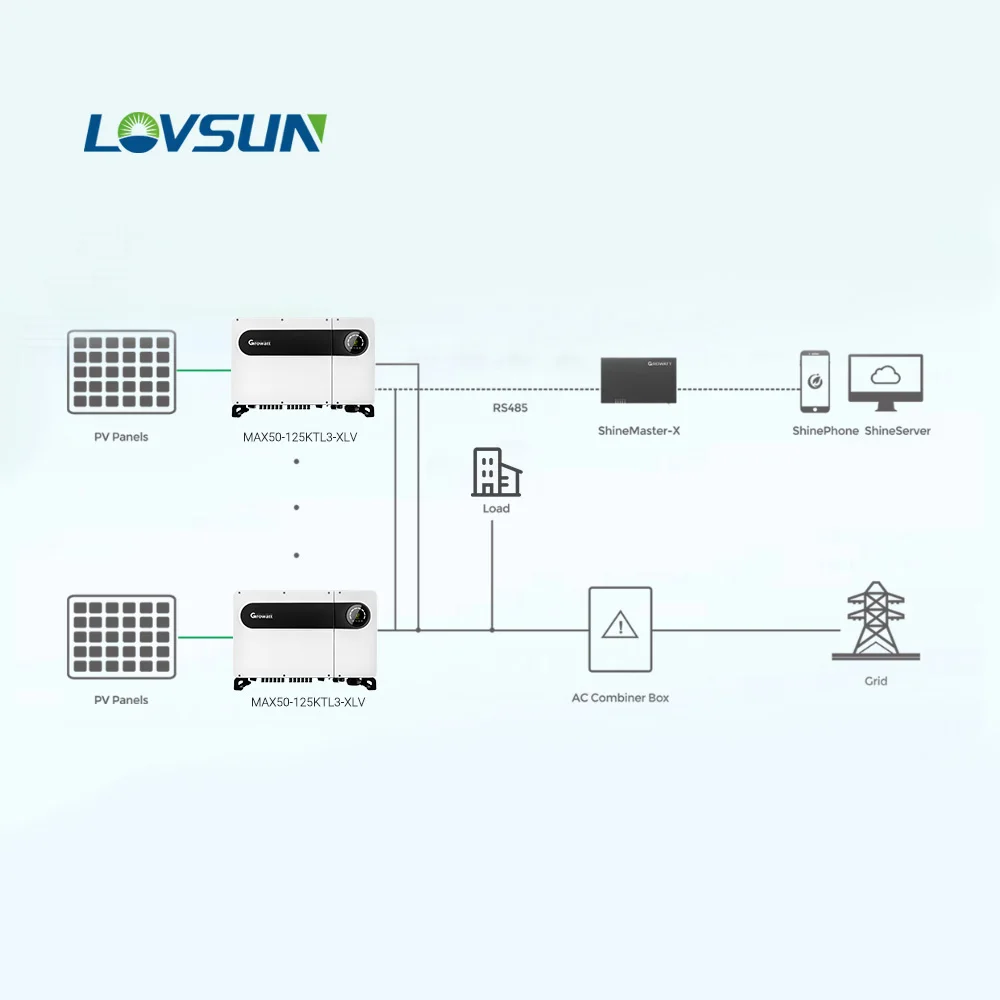

Components | 200KW-3MW Three Phase Complete On Grid System | ||||||
Models | LT200KW-ON | LS300KW-ON | LS500KW-ON | LS600KW-ON | |||
System Power (KW) | 200KW | 300KW | 500KW | 600KW | |||
On Grid Inverter (pcs)Growatt MAX 100KTL3-X LV | 2pcs | 3pcs | 5pcs | 6pcs | |||
Monitoring System | 1Piece Growatt ShineMaster | ||||||
550 W Mono Solar Panel (Pcs) | 384pcs | 576pcs | 960pcs | 1152pcs | |||
DC Disconnect Switch (Pcs) | 32 pcs | 48 pcs | 80 pcs | 96 pcs | |||
AC Combiner Box | 2 input,1 output 1piece | 3 input,1 output 1piece | 5 input,1 output 1piece | 6 input,1 output 1piece | |||
PV Cable (M) | 3200 meters | 4800 meters | 8000 meters | 9600 meters | |||
MC4 (Pair) | 190pairs | 280 pairs | 480pairs | 570pairs | |||
Mounting System | Customized Based On Your Installation Site | ||||||
Components | 200KW-3MW Three Phase Complete On Grid System | ||||||
Models | LT800KW-ON | LS1000KW-ON | LS2000KW-ON | LS3000KW-ON | |||
System Power (KW) | 800KW | 1000KW | 2000KW | 3000KW | |||
On Grid Inverter (pcs)Growatt MAX 100KTL3-X LV | 8pcs | 10pcs | 20pcs | 30pcs | |||
Monitoring System | 1Piece Growatt ShineMaster | ||||||
550 W Mono Solar Panel (Pcs) | 1536pcs | 1920pcs | 3840pcs | 5760pcs | |||
DC Disconnect Switch (Pcs) | 128 pcs | 160 pcs | 320 pcs | 480 pcs | |||
AC Combiner Box | 8 input,1 output 1piece | 10 input,1 output 1piece | 10 input,1 output 2piece | 10 input,1 output 3piece | |||
PV Cable (M) | 12800 meters | 16000 meters | 32000 meters | 48000 meters | |||
MC4 (Pair) | 760pairs | 960 pairs | 1920pairs | 2880pairs | |||
Mounting System | Customized Based On Your Installation Site | ||||||

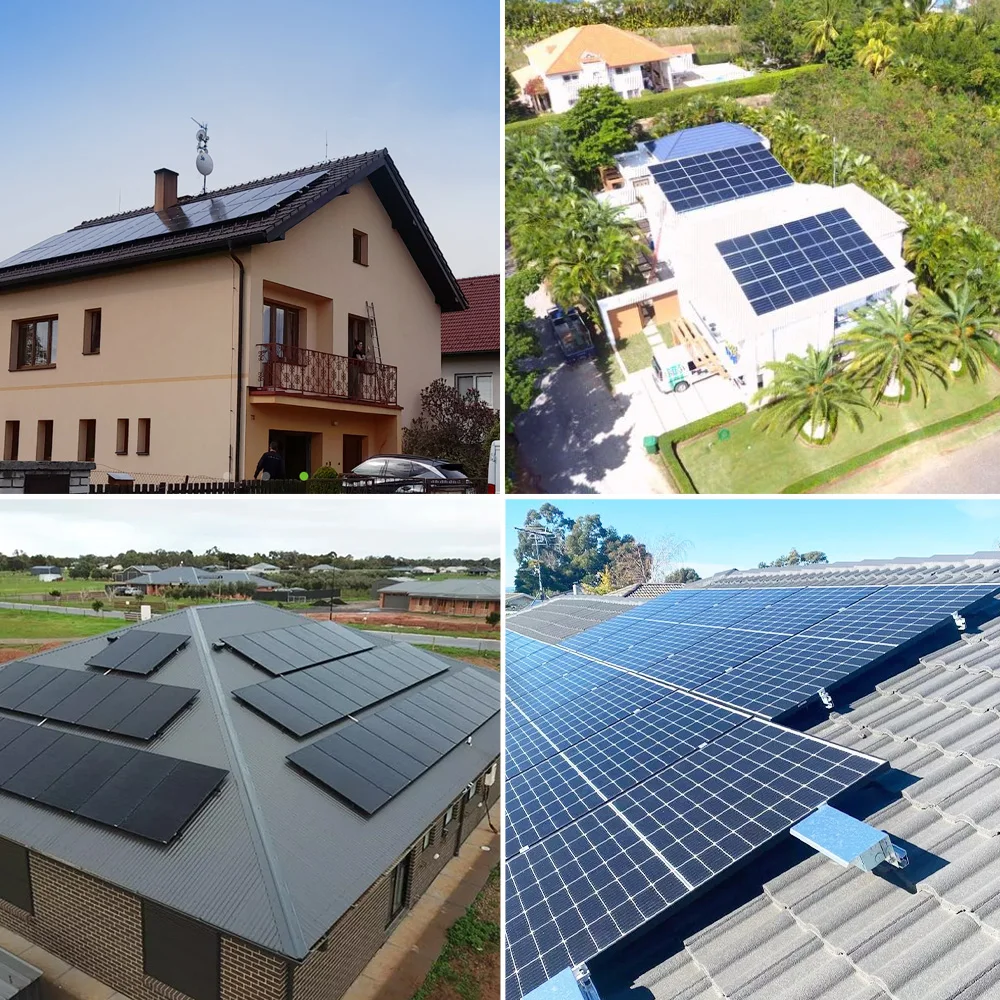

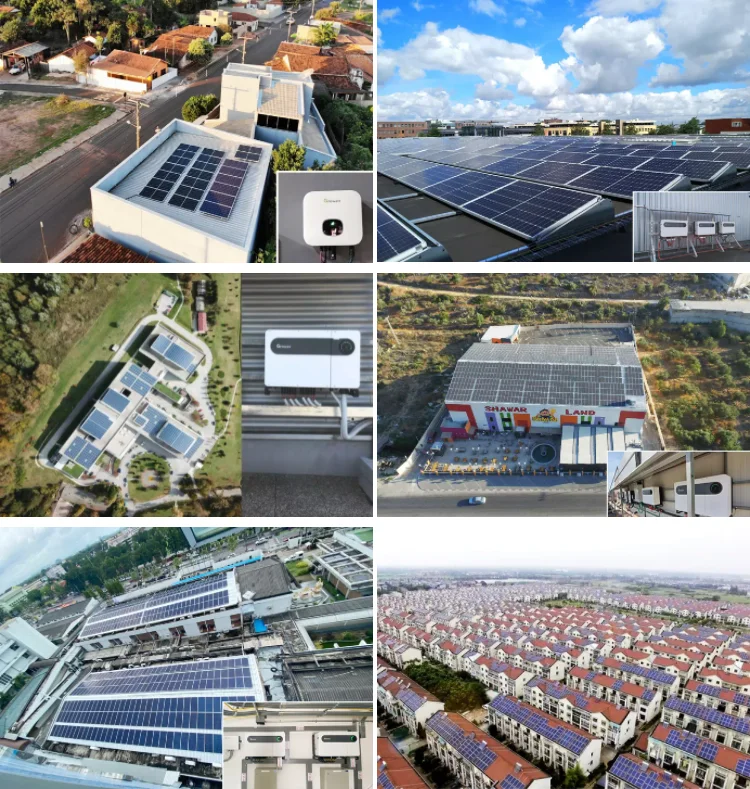

Application

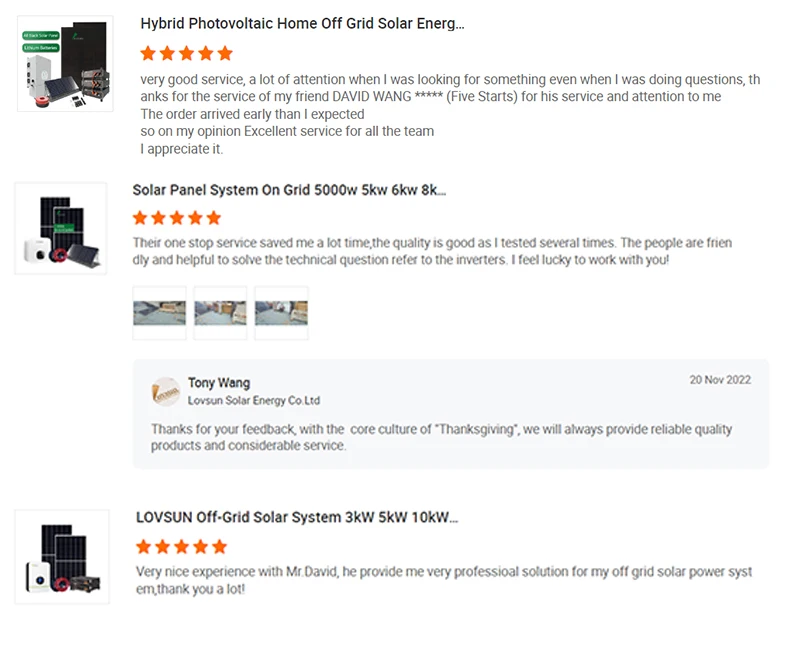

Favorable comment
Recommend Products
Pack&Shipping
Note: Product dimensions and physical appearance in this data sheet are nominal. Luxtek Group reserves the right to make the product changes from time to time, without prior notification, which may change the dimensions and/or physical appearance shown.
