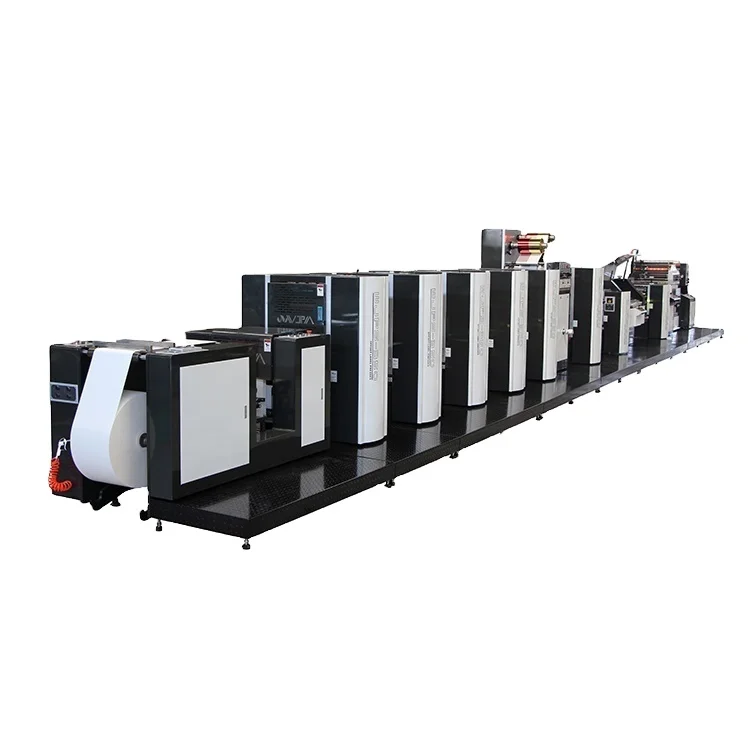

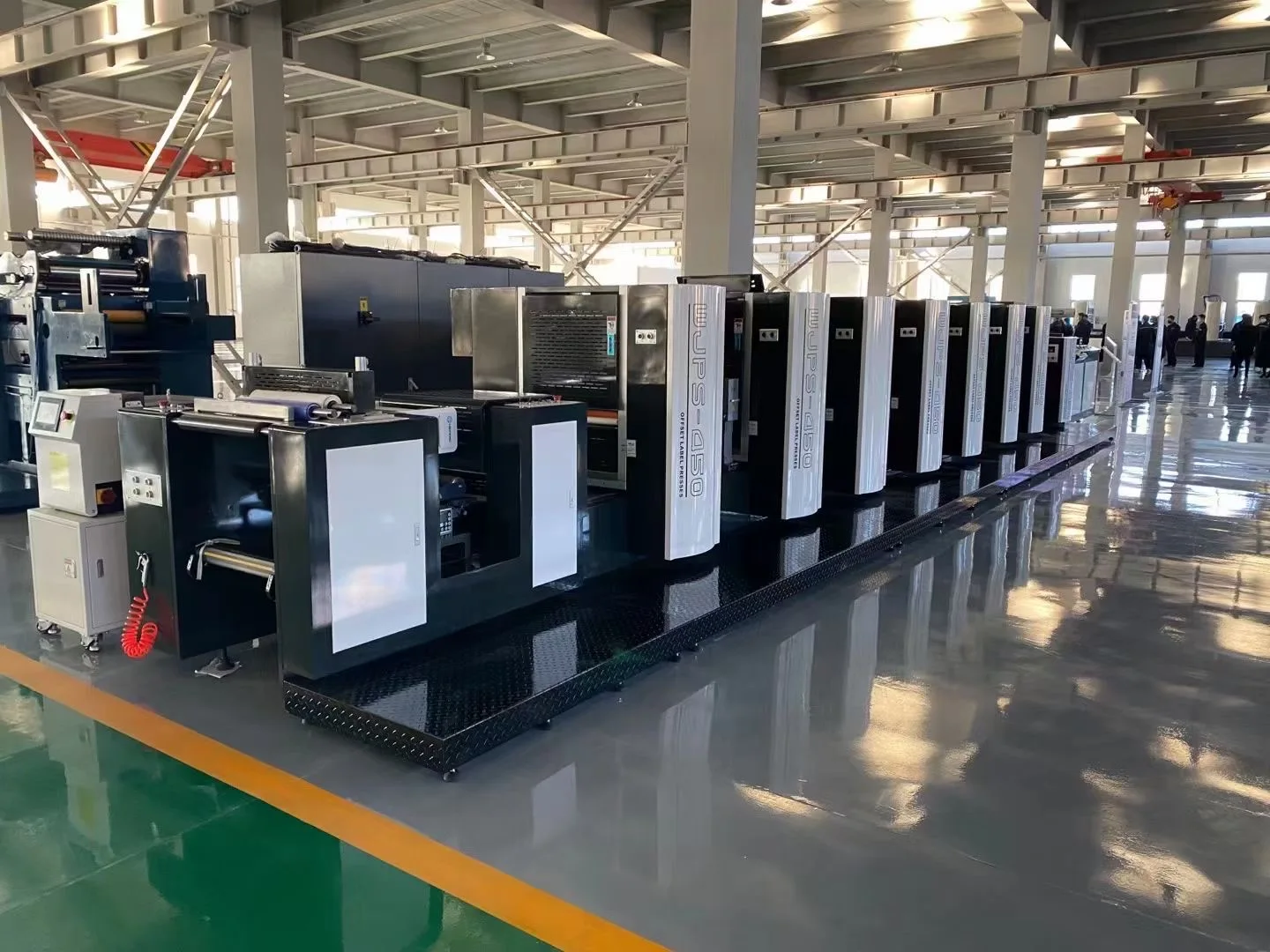

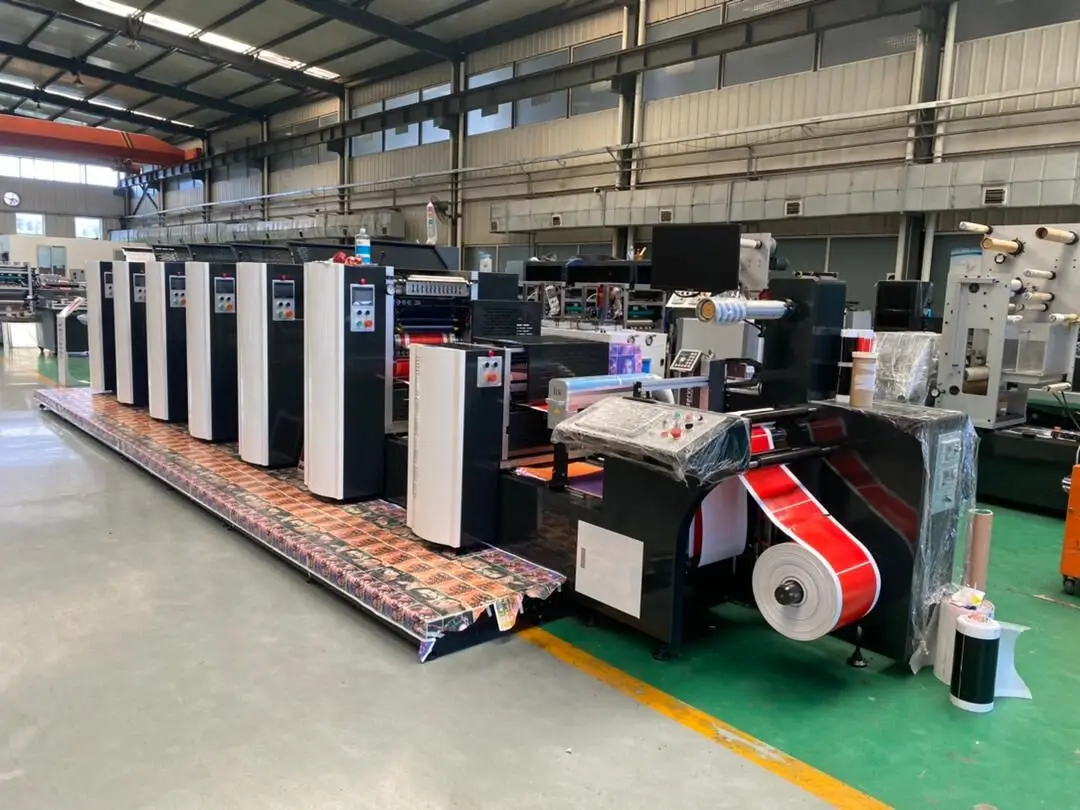

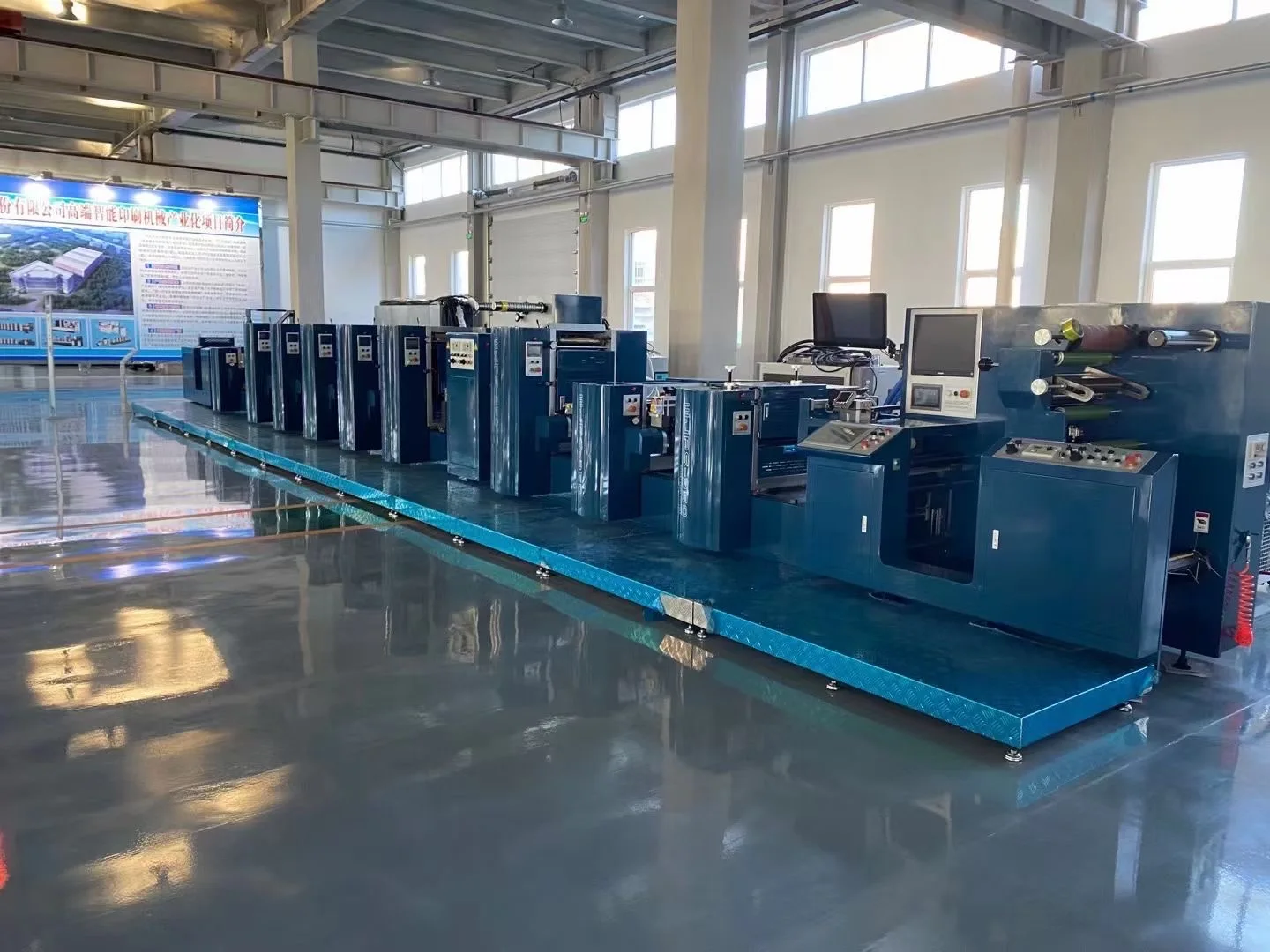

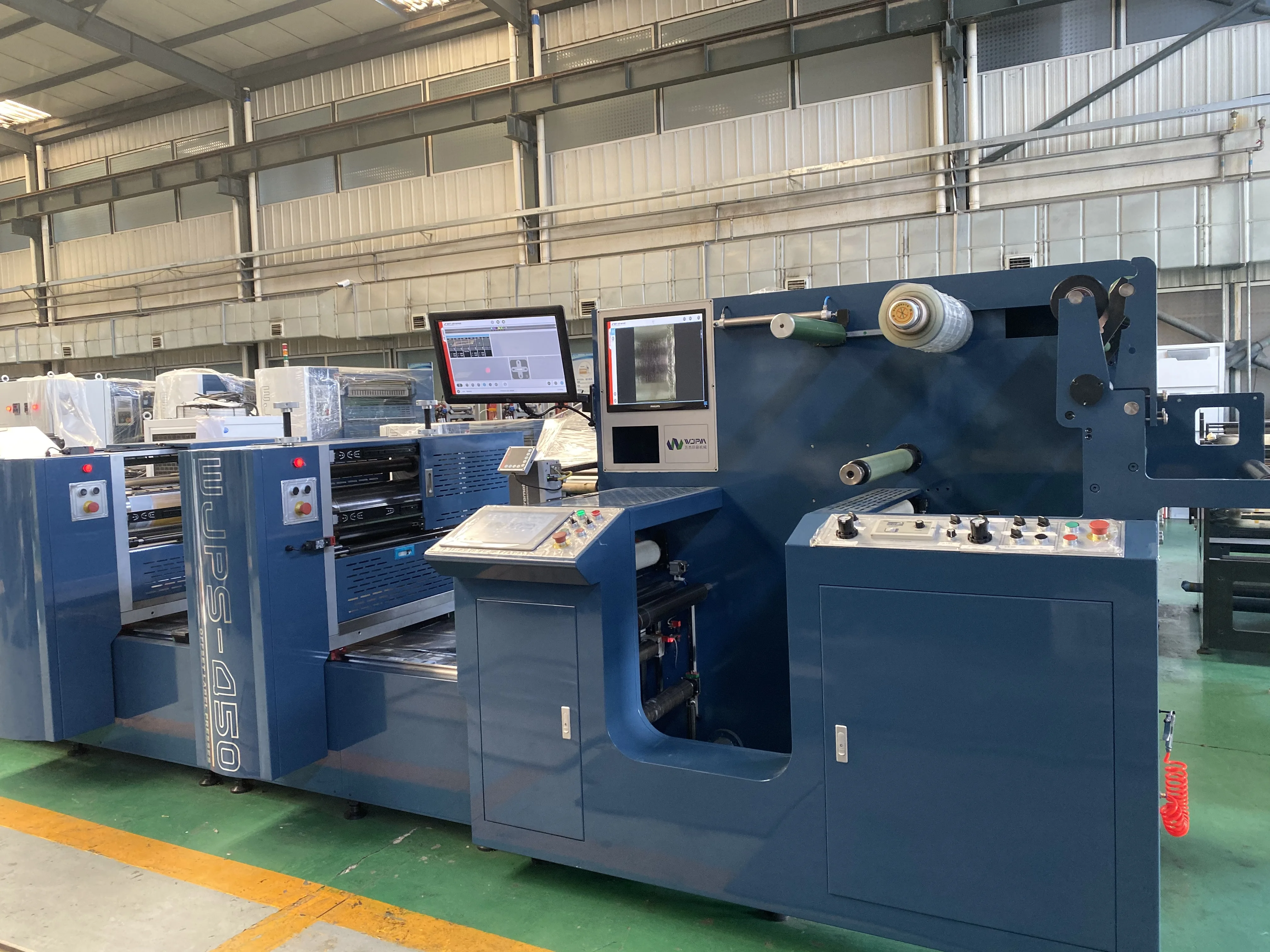

WJPS 450 Intermittent Label Offset Printing Machine
- Category: >>>
- Supplier: Hebei Wanjie Machinery Technology Co. Ltd.
Share on (1601258556774):
Product Overview
Description
Product Description
Benefits:
--Design from short run to long run (each job cost less than 5 USD
Features:
---Low material waste
---Quick job change and fast job set up.
---Fully servo motor system from YASKAWA
---Pre-register system
---Plate cocking(skewing)adjustment)
---Heavy offset printing unit
---Independent lubrication system for each unit
---Automatic and Manual plate mounting system
---Partition ink fountain
---Unwinder and rewinder adopts pneumatic paper loading
Main Specification:
Items | Specifications | |
Max. printing Area | 440*410mm | |
Diameter of unwinding web | 800mm | |
Diameter of rewinding web | 800mm | |
Thickness of printing material | 80-350gsm | |
Printing Length | 210-420mm | |
Printing speed | 30-150rpm/min | |
Power | 39.5KWfor 6 color | |
UV | 4.8KW/color | |
Overall dimensions | 1100*3600*1900mm（L*W*H） | |
Machine weight | 15000 kgs |
Printing Unit: it uses advanced US ink supplying system to ensure the shinning of the print. China's first low-speed differential water supply system, effectively ensuring the high, low speed of the ink-water balance and color stability; water bridge ink roller by a version in the first ink roller to achieve the unity of the classic structure of the ink to reach the pre-equilibrium, significantly reduce paper waste; pioneered use of floating roller, effectively prevents the ink bars and ghost. The ink line is made up of 18 ink rollers and 5 dampening rollers (Alcohol System). Both film and paper can be printed in this machine
Options
---Flexo Printing Unit
---Rotary Die Cutting
---Fold foil Stamping
---Screen Printing Unit
---Embossing Unit
----Hot foil stamping unit
Company Introduction
Hebei Wanjie Machinery Technology Co.,Ltd founded in 1999, is located in northern China printing machinery production base-Yutian City. We have more than 100 employees and 4000 square meters building.
We are one of the leader manufacture for label machines, our CE standard products have offset ,letterpress, flexo label printing machine, label die cutting , slitting , inspection, rewinding machines.
FAQ
1.Q:How about the after service?
A: We have a strong team, special for after service, we can arrange engineers to do service for you
2.Q: Are you factory or trading company?
A: We are a factory in this field nearly 20 years
3. Q: Where is your factory located? How can I visit?
A: Our factory is located in Tangshan City, near to the Beijing airprot, you can fly to Beijing directly, we can arrange to pick you up.
4. Q: How does your factory do the quality control?
A:Quality is priority, we always attach great importance to quality controlling from the beginning
5. Q:Why choose Wanjie Machinery?
A: We are one of leader in this filed in China. Our quality products and service have enabled use to expend our market from China to more than 30 countries.
