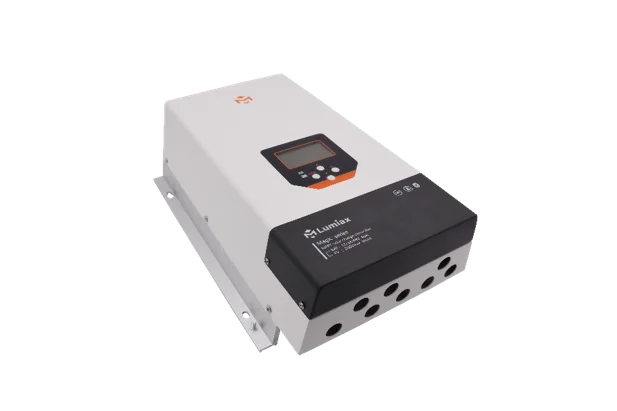

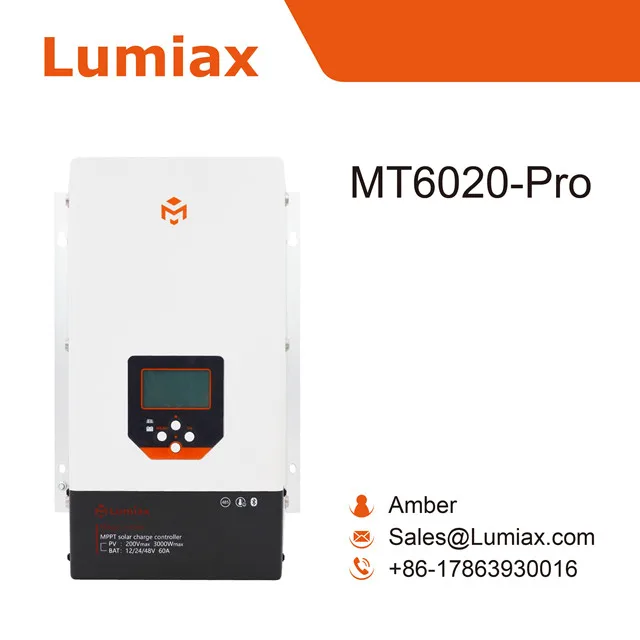

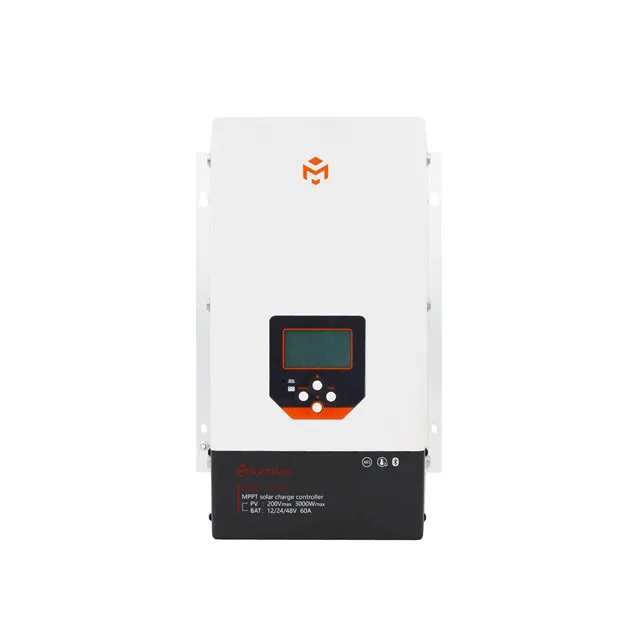

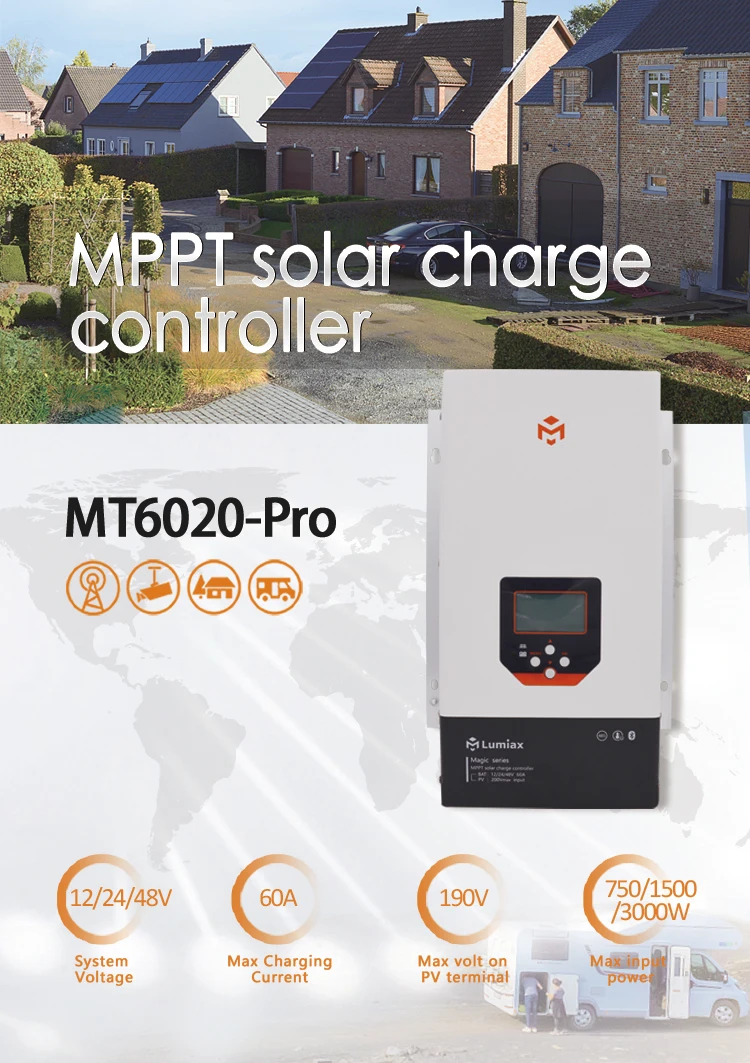

Lumiax 60A 12V 24V 48V mppt solar charge controller 200V max PV input for telecom communication base station
- Category: >>>
- Supplier: Qingdao Skywise Technology Co. Ltd.
Share on (1601258579346):
Product Overview
Description
Product Paramenters
Item | MT6020-Pro | ||
Max charging current | 60A | ||
System voltage | 12/24/48V | ||
System voltage setting | Automatic/12V/24V/48V | ||
Gel, AGM, Liquid | MPPT charging voltage | before boost or equalization charging stage | |
Boost Voltage | 14.0~14.8V/28.0~29.6V/56.0~59.2V(default: 14.5/29.0/58.0V) | ||
Equal Voltage | 14.0~15.0V/28.0~30.0V/56.0~60.0V (default: 14.8/29.6/59.2V) | ||
Float Voltage | 13.0~14.5V/26.0~29.0V /52.0~58.0V(default: 13.7/27.4/54.8V) | ||
Overcharge Protect | 10.8~11.8V/21.6~23.6V/43.2~47.2V(default: 11.2/22.4/44.8V) | ||
Low voltage disconnect | 11.4~12.8V/22.8~25.6V/45.6~51.2V(default: 12.0/24.0/48.0V) | ||
Low voltage reconnect | 15.8/31.3/62.3V | ||
Temp compensation | -4.17mV/K per cell (Boost, Equalization)， -3.33mV/K per cell (Float) | ||
Lithium | Charging voltage target | 10.0~64.0V(Lithium, default: 29.4V) | |
Charging voltage recovery | 9.2~63.8V(Lithium, default: 28.7V) | ||
Low voltage disconnect | 9.0~60.0V(Lithium, default: 21.0V) | ||
Low voltage reconnect | 9.6~62.0V(Lithium, default: 22.4V) | ||
Battery type | Gel, AGM, Liquid, Lithium（default: Gel) | ||
Max volt on Bat. Terminal | 65V | ||
Max volt on PV terminal | 190V(@-20℃), 170V(@25℃) *1 | ||
Max input power | 750/1500/3000W | ||
MPPT tracking range | （Battery Voltage + 2.0V）~Voc*0.9 *2 | ||
Max tracking efficiency | >99.9% | ||
Max charge conversion | 97.0% | ||
Efficiency at full load | 96.5% | ||
Self consumption | ＜5W | ||
Grounding | Common Positive | ||
Data memory | 5 years | ||
Relay | 3A/30VDC | ||
Communication | BLE, IoT, RS485（Default, RJ11 interface） | ||
Dimensions | 339*230*109mm | ||
Mounting Dimensions | 220*215mm | ||
Mounting hole size | φ6mm | ||
Weight | 5Kg | ||
Terminal size | 2AWG(35mm2) | ||
Recommended cable | 6AWG(16mm2） | ||
Operating temperature | -20~+60℃ | ||
Derating | From＞65℃ internal | ||
Fan | Internal, temperature controlled | ||
LCD temperature range | -20~+70℃ | ||
Storage temperature | -25~+80℃ | ||
Ambient humidity | 5~95%RH(No condensation) | ||
Protection degree | IP20 | ||
Max Altitude | 4000m | ||
