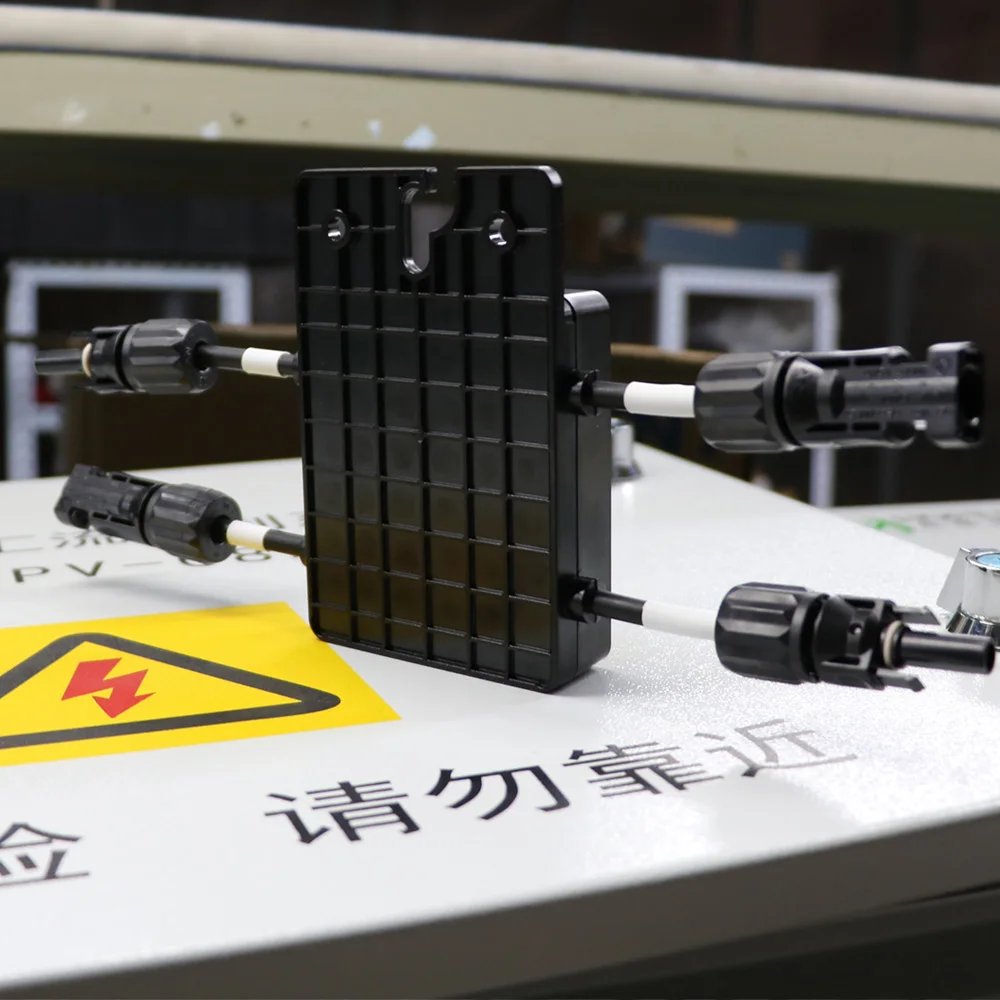

Solar Power Optimizers for PV Solar Panel System
- Category: >>>
- Supplier: Chengdu Hop Technology Co. Ltd.Chengdu Ltd.
Share on (1601258580697):
Product Overview
Description
Application
Solar Energy Complementary to Commercial Electricity
The solar photovoltaic power generation system is integrated into the mains power system. When the photovoltaic power generation system is working, it is preferred to use the photovoltaic system to provide power energy to communication load equipment. More economical and energy-efficient.
Solar Energy and Oil Engine Complement Each Other
The solar photovoltaic energy storage system and oil engine power generation complement each other. When the photovoltaic energy storage system is working, priority is given to using it to provide electrical energy to communication load equipment. Can achieve better energy-saving and emission reduction effects
Products Description

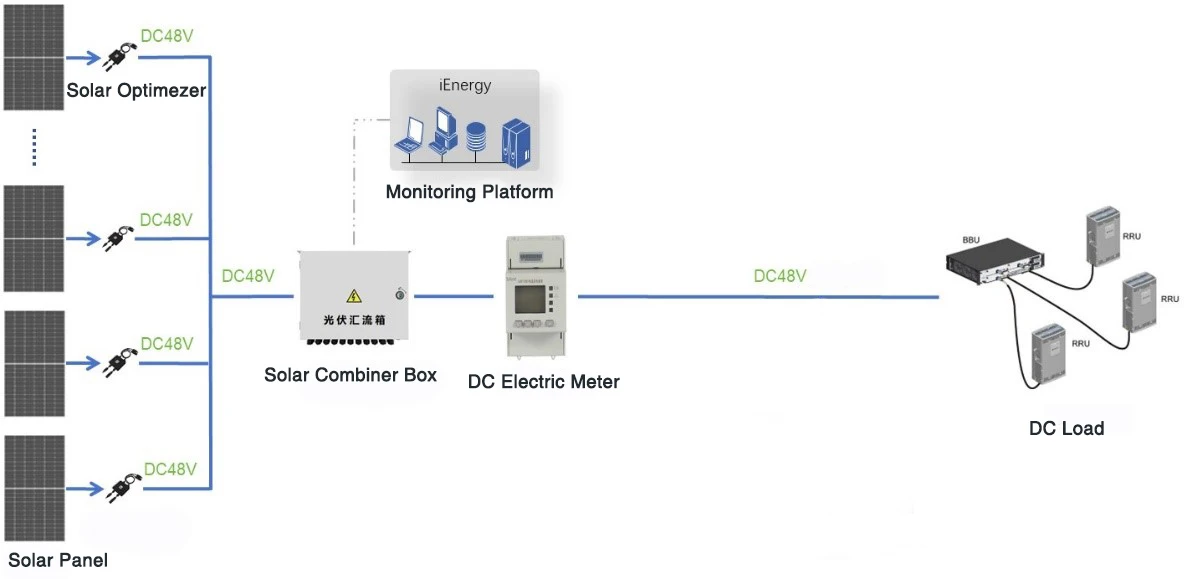

Solar Panel Series Connection technology solution
The application scenarios of the solar optimizer are various types of solar power systems, which can collect the data (such as power, voltage, current, temperature) of solar modules in real time, and the data is summarized at the communication gateway and uploaded to the server. At the same time, the product has the function of actively and quickly shutting off the output of the corresponding solar module when necessary. In addition, Maximum Power Point Tracking (MPPT) optimizes the power output of solar modules in real time to increase power generation.
*Solve the current mismatch issues caused by shading gradients, aging variations, temperature gradients, soiling gradients, etc.
*Optimize power generation, lower LCOE, improve system reliability, and extend the service life of solar module
⚫ Realize single component DC/DC boost power supply with efficiency >98%
⚫ MPPT tracking of each photovoltaic panel to improve power generation efficiency
⚫ The output voltage range and output high limit specially designed for communication base stations
⚫ Threshold adjustable
⚫ No need for reverse diode, reducing power loss
⚫ There is no fluctuation in the output when starting, and there will be no impact on load equipment and batteries
⚫ Single photovoltaic module parameter collection through PLC
⚫ IP68 rating, maximum operating temperature 85°C, adaptable to various harsh environments
*Applies to all types of modules, Optimization +Voltage Limiting +Anti-Hotspot
*Solve the current mismatch issues caused by shading gradients, aging variations, temperature gradients, soiling gradients, etc.
*Optimize power generation, lower LCOE, improve system reliability, and extend the service life of solar module
Features
⚫ Realize single component DC/DC boost power supply with efficiency >98%
⚫ MPPT tracking of each photovoltaic panel to improve power generation efficiency
⚫ The output voltage range and output high limit specially designed for communication base stations
⚫ Threshold adjustable
⚫ No need for reverse diode, reducing power loss
⚫ There is no fluctuation in the output when starting, and there will be no impact on load equipment and batteries
⚫ Single photovoltaic module parameter collection through PLC
⚫ IP68 rating, maximum operating temperature 85°C, adaptable to various harsh environments
Parameters

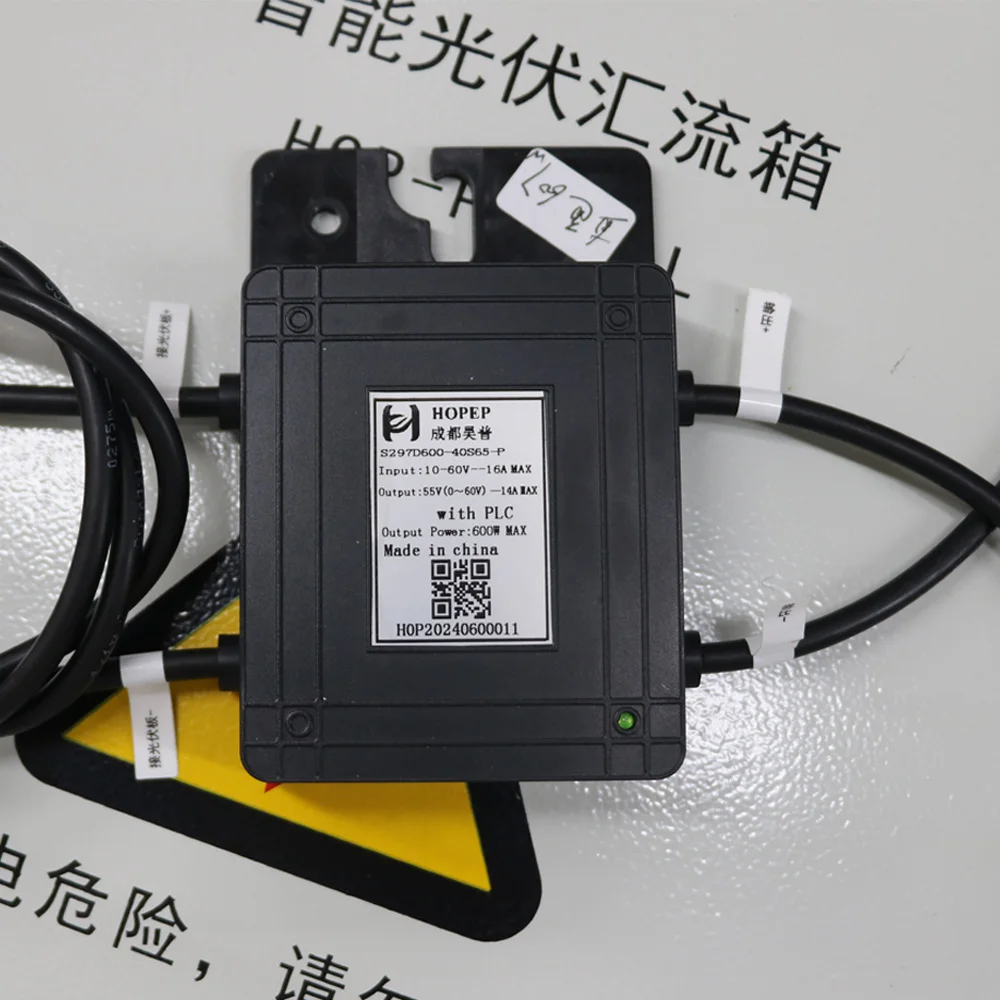

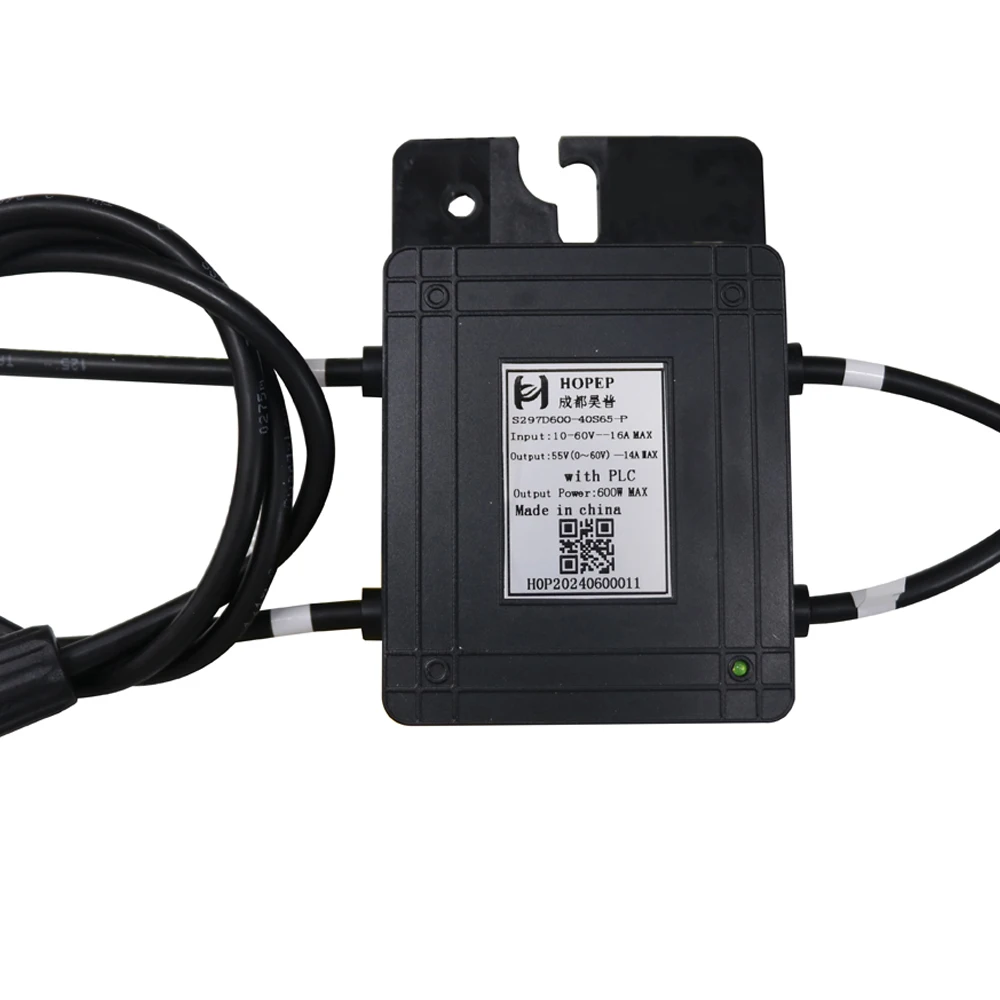

Model | S297D600-40S60-P |
Rated input power | 600W |
MPP voltage range | 10-60V |
Maximum input current | 14A |
Peak efficiency | 97% |
Output voltage range | -43.2V ~ -58V |
Output current | <15A |
Input Overvoltage Protection | Support |
Input overload protection | Support |
Output undervoltage protection | Support |
Output overvoltage protection | Support |
Short circuit protection | Support |
Over temperature protection | Support |
Anti reverse discharge protection | Support |
Working temperature | -40~75℃ (Full load at -40~+50 ℃; Load reduction at 50~75 ℃) |
Company Profile
Chengdu Hop Technology Co., Ltd was founded in 2010, a large China State-Owned Enterprise. We are a professional communication base station equipment manufacturer and energy management solution provider. Its products include telecom solar power product, telecom cabinet air conditioners , smart electric meter and energy management software.
Certifications
E-EMC \\ CE-LVD \\ ROHS \\ ISO14001 \\ ISO9001 \\ OHSAS180001
