small scale 3 ton ball continuous type ball mill equipment lead oxide black powder ball mill grinding machine
- Category: >>>
- Supplier: Henan Hengtailong Machinery Co. Ltd.
Share on (1601258685330):
Product Overview
Description
Product Description
small mobile mining mill equipment aluminum iron zinc gold lead copper ore ball mill grinding machine
Product Application
It is widely used in cement, silicate products, new building materials, refractory materials, chemical fertilizer, black and non-ferrous metal dressing, and glass and ceramics, with dry or wet abrasive ore and other abrasive materials.
Product Details
1.The lining can be replaced.
2.Mineral ball mill is an efficient tool for grinding many materials into fine powder.
3.Two ways of grinding: the dry way and the wet way.
4.Ultimate particle size depends entirely on how hard the material you’re grinding is.
5.As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
2.Mineral ball mill is an efficient tool for grinding many materials into fine powder.
3.Two ways of grinding: the dry way and the wet way.
4.Ultimate particle size depends entirely on how hard the material you’re grinding is.
5.As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.

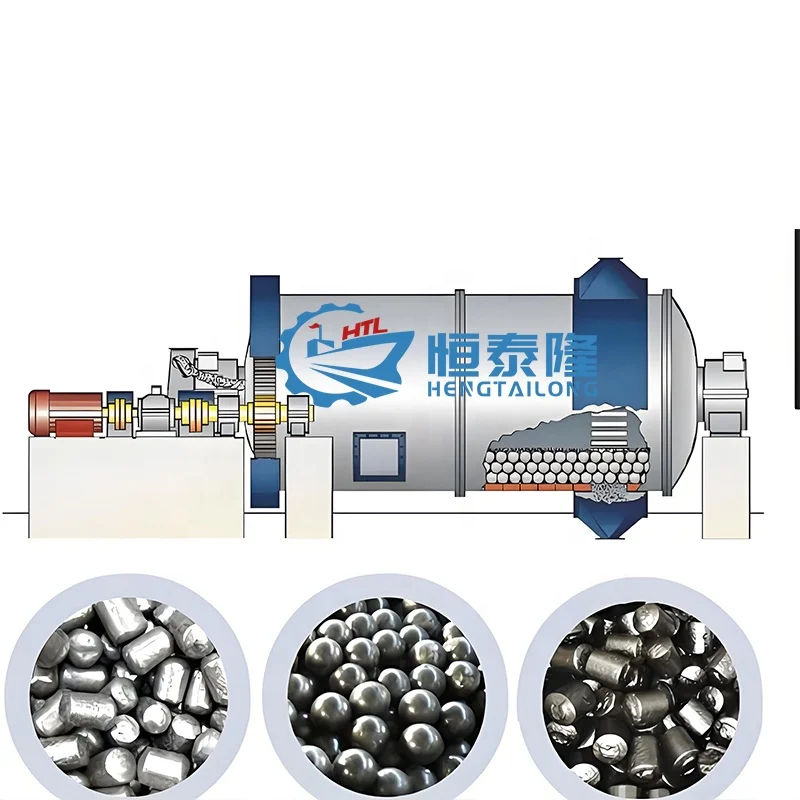

Working Principle
The ball mill needs to add an appropriate amount of water or absolute ethanol during the grinding process, which means that there are certain requirements for the concentration of grinding. The amount of water is determined by the nature of the material.
Qualified materials are discharged out of the cylinder through the discharge part, and unqualified materials are returned to the wet ball mill again for re-grinding.
Qualified materials are discharged out of the cylinder through the discharge part, and unqualified materials are returned to the wet ball mill again for re-grinding.
Model | Cylinder Rotating Speed (r/min) | Ball weight (t) | Feeding Size (mm) | Discharging Size (mm) | Capacity (t/h) | Power (kw) |
φ900×1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 |
φ900×3000 | 38 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 |
φ1200×2400 | 35 | 4.6 | ≤25 | 0.075-0.6 | 1.6-5.8 | 37 |
φ1200×4500 | 35 | 5.5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 |
φ1500×3000 | 29 | 9 | ≤25 | 0.074-0.4 | 2-7 | 75 |
φ1500×5700 | 29 | 17 | ≤25 | 0.074-0.4 | 3.5-6 | 110-130 |
φ1830×4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 155 |
φ1830×6400 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 |
φ1830×7000 | 24.1 | 23 | ≤25 | 0.074-0.4 | 7.5-17 | 245 |
φ2100×4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 |
φ2100×7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 280 |
φ2200×4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 280 |
φ2200×6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 |
φ2200×7000 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 |
φ2400×3000 | 21 | 23 | ≤25 | 0.074-0.4 | 30-50 | 245 |
φ2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 40-60 | 320 |
φ2700×3600 | 20.7 | 40 | ≤25 | 0.074-0.4 | 45-80 | 430 |
φ2700×4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 50-90 | 430 |
φ2700×13000 | 20.7 | 60 | ≤25 | 0.074-0.4 | 50-90 | 630 |
φ3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | -- | 800 |
About Hengtailong
Gongyi Hengchang Metallurgical Building Materials Equipment Factory is located in Zhengzhou, Henan Province, China, specializing in the research and development, manufacturing, and sales services of mining equipment.
We can provide a complete set of equipment including crushing, screening, mineral separation, etc.
The product has been exported to markets in Southeast Asia, the Middle East, Africa, and the Americas. Agents have also been developed in Egypt, Pakistan, Vietnam, and other countries. We provide high-quality products, the best solutions, professional technical support, and excellent after-sales service.
The product has been exported to markets in Southeast Asia, the Middle East, Africa, and the Americas. Agents have also been developed in Egypt, Pakistan, Vietnam, and other countries. We provide high-quality products, the best solutions, professional technical support, and excellent after-sales service.
Customer Visits/Evaluations/Our Services
Product Packaging
Packaging Details:
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below: Nude packing. Bundle packing. Grass rope packing. Water proof packing. Wooden pallets packing. Wooden box or carton box packing.
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below: Nude packing. Bundle packing. Grass rope packing. Water proof packing. Wooden pallets packing. Wooden box or carton box packing.
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
RFQ
Q:Why we believe in Gongyi Hengchang company?
A: 1.More than 28 years’ experience.
2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q:Deliver time ?
A:The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q:Payment terms ?
A:Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign
the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q:What will you do if the machine is broken down?
A:The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q:What should i do if I want to get a best quotation?
A:If you want a suitable type for you, please let us know your material and capacity.
2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q:Deliver time ?
A:The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q:Payment terms ?
A:Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign
the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q:What will you do if the machine is broken down?
A:The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q:What should i do if I want to get a best quotation?
A:If you want a suitable type for you, please let us know your material and capacity.
