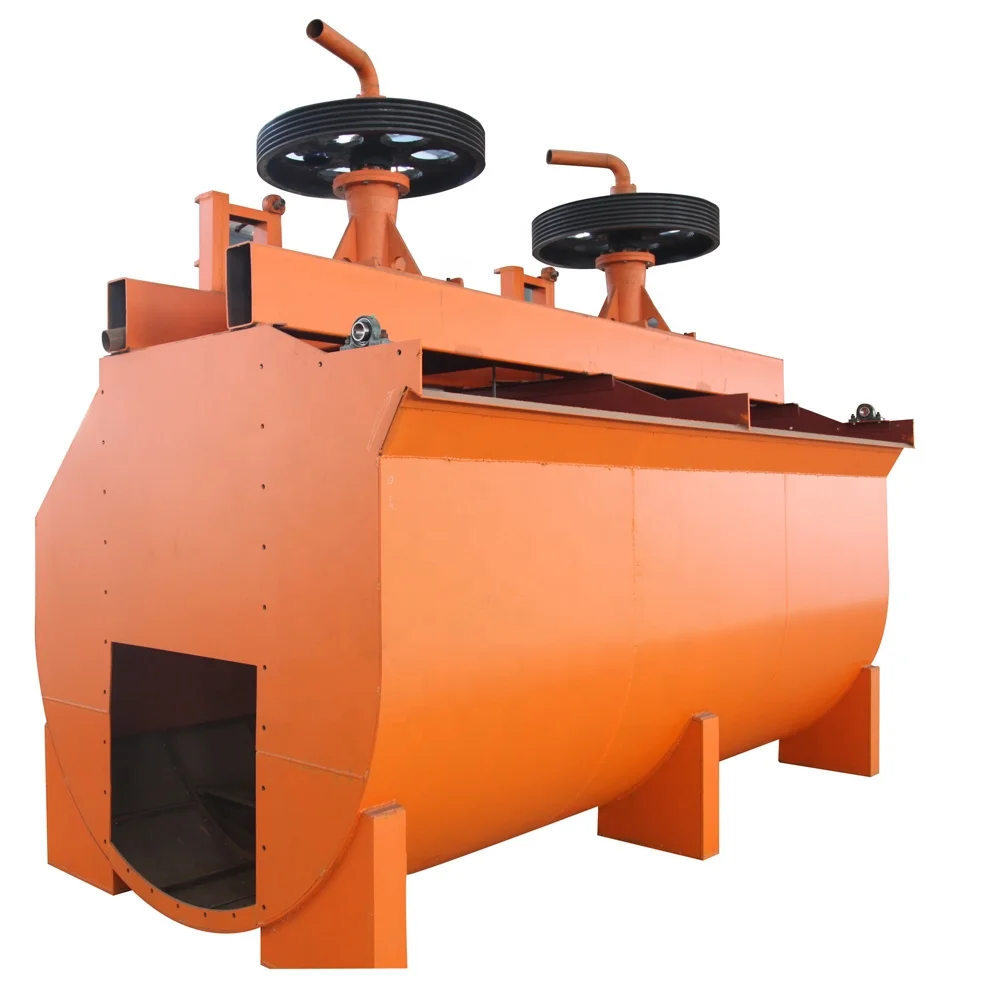

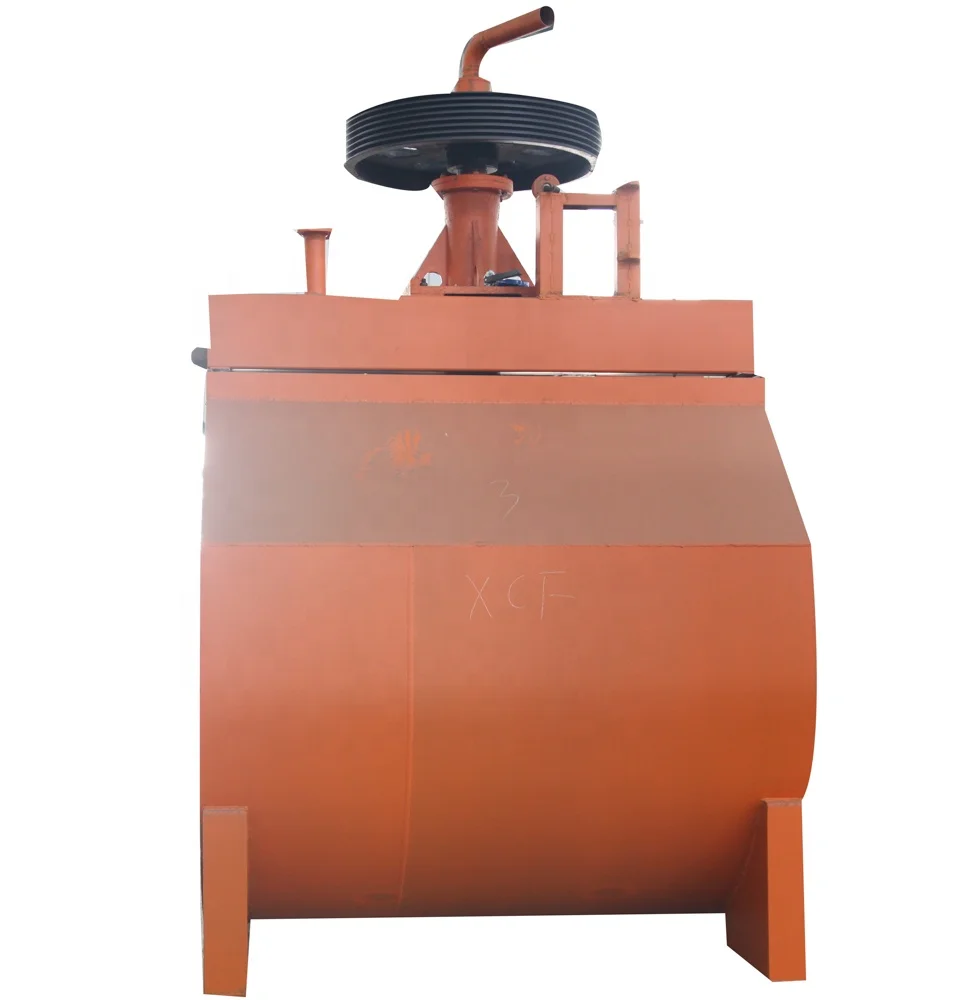

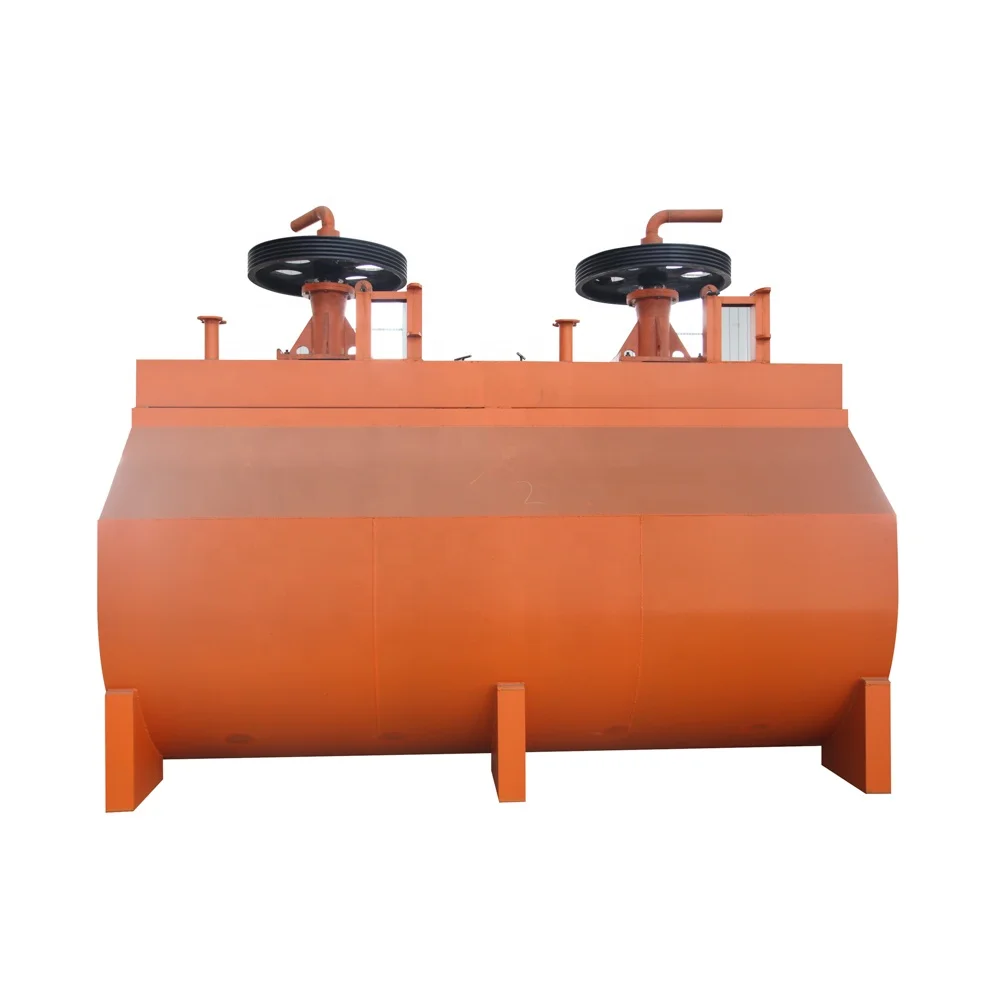

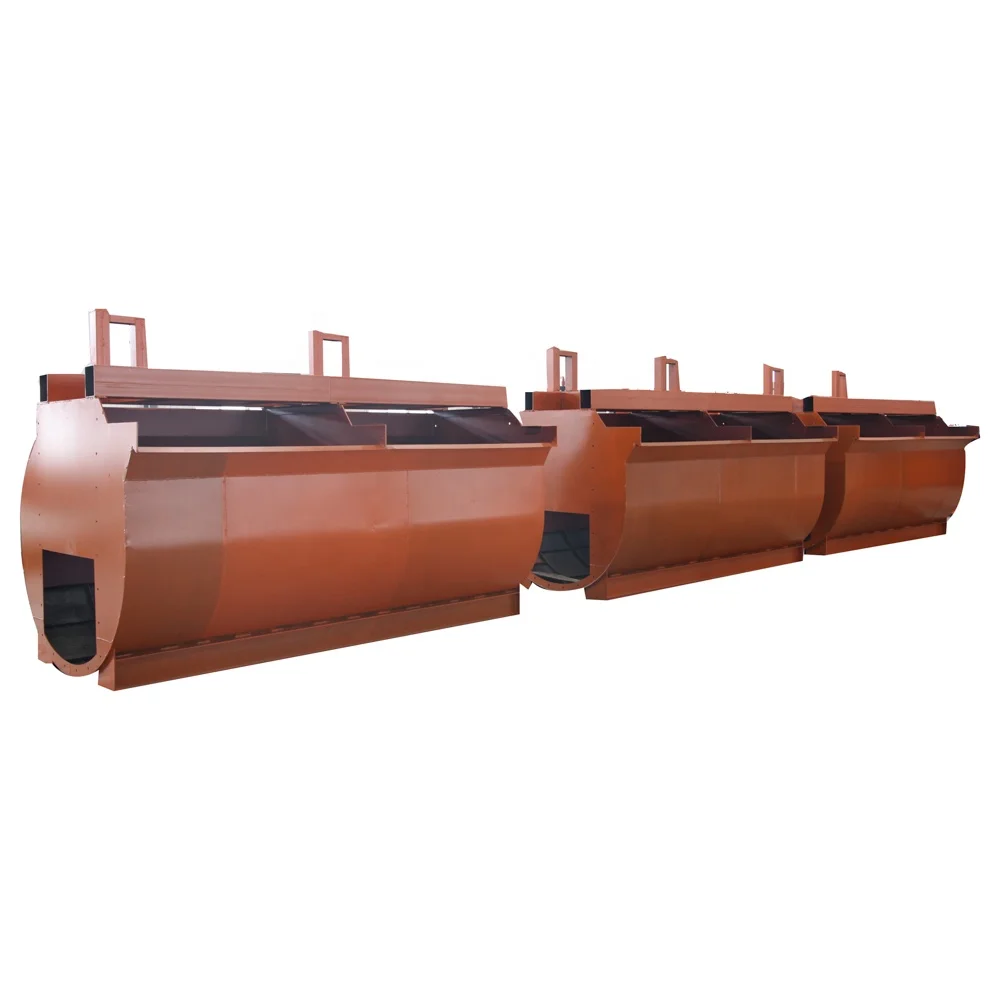

Dali Copper gold flotation cell SF flotation machine
- Category: >>>
- Supplier: Qixia Dali Mining Machinery Co. Ltd.
Share on (1601258705102):
Product Overview
Description
Product Description
Model | Volume m3 | Capacity m3/min | Impeller diameter mm | Impeller revolution rpm | Air blower pressurekpa | Maximum inflation m3/m2·min | Motor power kw | Weight kg | |
mixting | scraping | ||||||||
XCF-1 | 1 | 0.2-1 | 400 | 358 | ≥12.6 | 2 | 5.5 | 1.1 | 1154 |
XCF-2 | 2 | 0.4-2 | 470 | 331 | ≥14.7 | 7.5 | 1659 | ||
XCF-3 | 3 | 0.6-3 | 540 | 266 | ≥19.8 | 11 | 1.5 | 2259 | |
XCF-4 | 4 | 1.2-4 | 620 | 215 | ≥19.8 | 15 | 2669 | ||
XCF-8 | 8 | 3.0-8 | 720 | 185 | ≥21.6 | 22 | 3968 | ||
XCF-16 | 16 | 4--16 | 860 | 160 | ≥25.5 | 37 | 6520 | ||
XCF-20 | 20 | 5-10 | 910 | 155 | ≥25 | 45 | 9200 | ||
XCF-24 | 24 | 4-24 | 950 | 153 | ≥30.4 | 55 | 9660 | ||
XCF-30 | 30 | 7-15 | 1000 | 141 | ≥31 | 55 | 14810 | ||
XCF-38 | 38 | 10-38 | 1050 | 136 | ≥34.3 | 55 | 17000 | ||
XCF-40 | 40 | 10-38 | 1050 | 138 | ≥34.3 | 75 | 17500 | ||
XCF-50 | 50 | 10-25 | 1120 | 110 | ≥33 | 90 | 22000 | ||
XCF-70 | 70 | 13-50 | 1200 | 103 | ≥35 | 90 | 26200 | ||

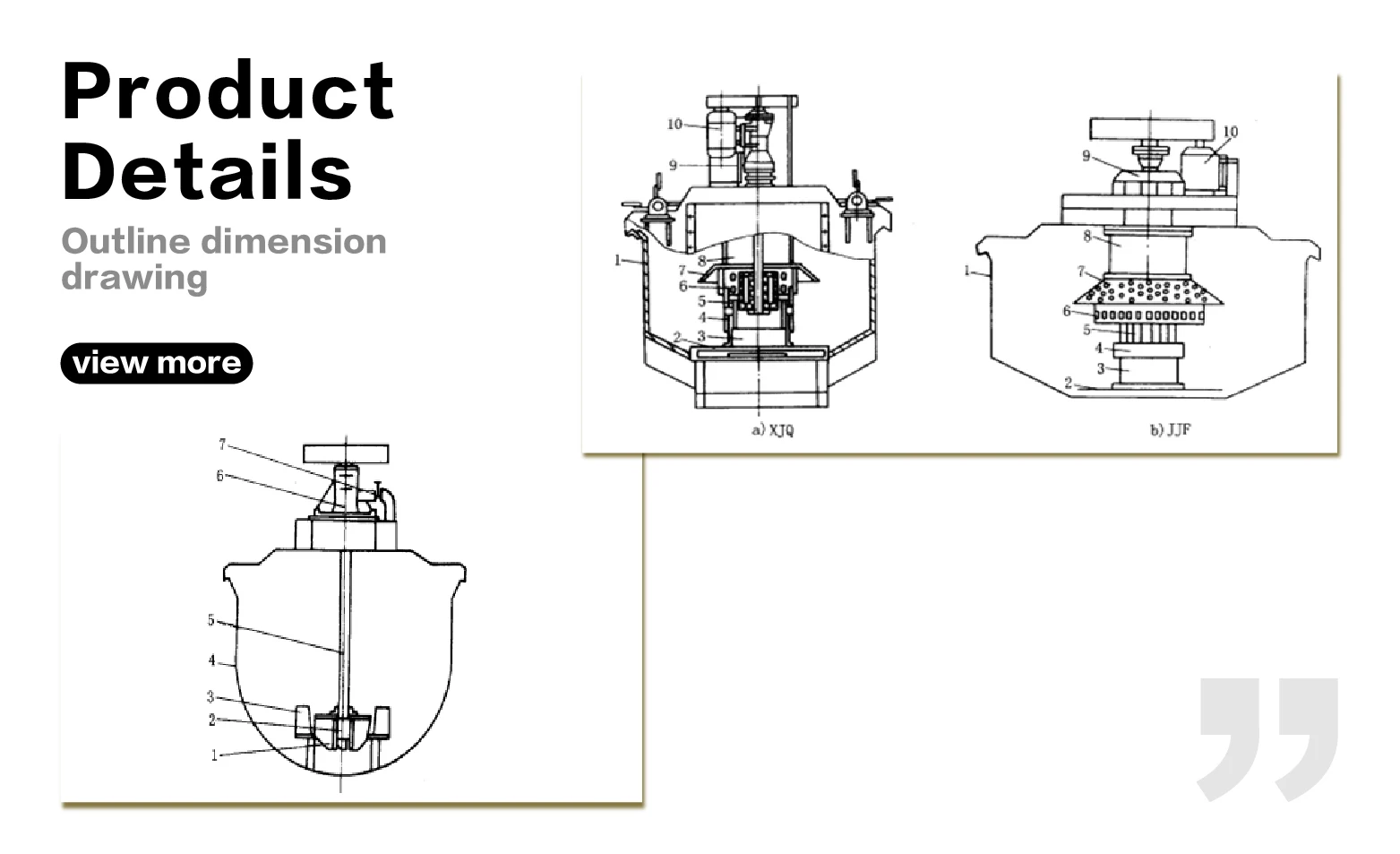

copper flotation cell SF flotation machine Details flotation machine Zinc Ore Flotation Machine Copper Flotation Machine
Company Information
copper flotation cell SF flotation machine Details flotation machine Zinc Ore Flotation Machine Copper Flotation Machine
FAQ
Business type
We are a self-owned factory with years of production and export experience.

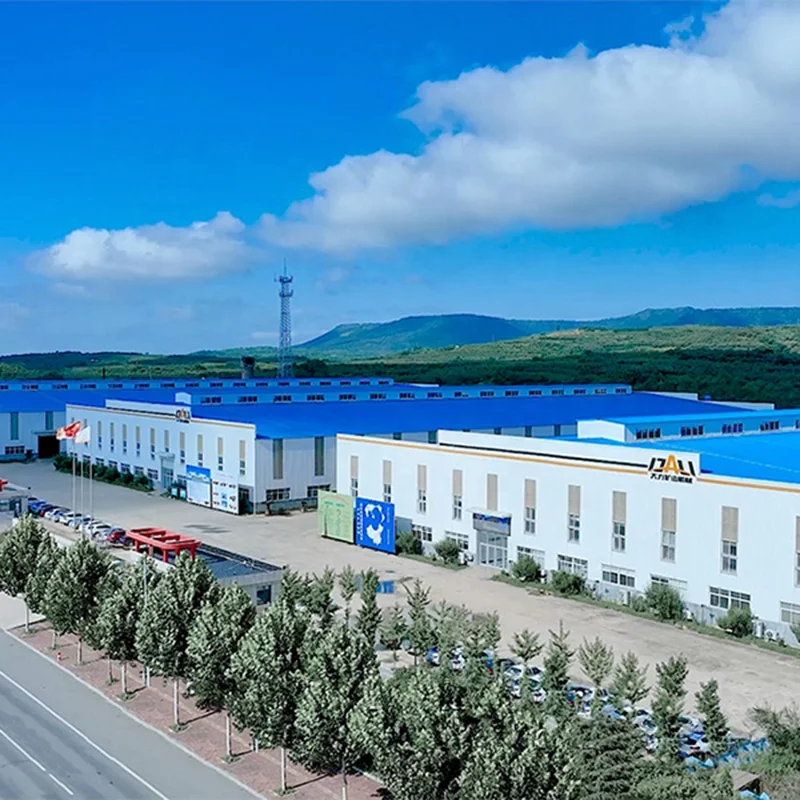

Company location
Our factory is situated in Yantai, Shandong Province, China, a location that boasts both a harbor and an international airport. Additionally, it enjoys close proximity to Qingdao Airport and harbor, providing our customers with great convenience for visiting and shipping goods.
Employee headcount
We have over 100 employees, including experienced engineers (R&D, quality inspection, and after-sales), workers, and salespersons. Additionally, we have local salespersons in some countries.
Main markets
Our products are mainly sold to Peru, Chile, Bolivia, Colombia in South America, Russia, and Kazakhstan, and other CIS countries, as well as some countries in Africa, Eastern Europe, and Southeast Asia. We participate in exhibitions in these regions and visit local customers to understand the needs of customers in different regions and maintain stable cooperative relationships.
Main products
Underground mining equipment(underground mining scooptram, underground mining truck, underground service vehicle, underground electric locomotive, rock splitter, and underground concrete mixer truck, etc.), mineral processing equipment(crush, feeder, leaching tank, vibrating screen, and shaking table, etc.)) and related accessories and spare parts(engine, converter, transmission, axle, tire, filter, etc.).You can check them on our homepage or contact us for details.
Patents and certifications
We have some practical patents for our products and have passed CE, ISO9001, and other authoritative certifications. You can check them on our homepage or contact us for details.
Equipment maintenance
Underground mining equipment requires regular maintenance to ensure optimal performance and safety. This may involve routine inspections, lubrication, replacement of parts(we recommend you purchase some parts along with the equipment for convenient replacement and low shipping), and repairs as needed. We can provide online maintenance guidelines and support.
More information
To learn more about our company's information and products, you can follow us on Facebook, Pinterest, YouTube, LinkedIn, Instagram, and VK. You can also browse our website(www.qxdali.com) or contact us through WhatsApp, WeChat, and Telegram.
machine Zinc Ore Flotation Machine Copper Flotation Machine
