Lumiax 5A 12V regulator charger for solar CCTV PWM solar charge controller
- Category: >>>
- Supplier: Qingdao Skywise Technology Co. Ltd.Qingdao Ltd.
Share on (1601258706182):
Product Overview
Description
Product Description

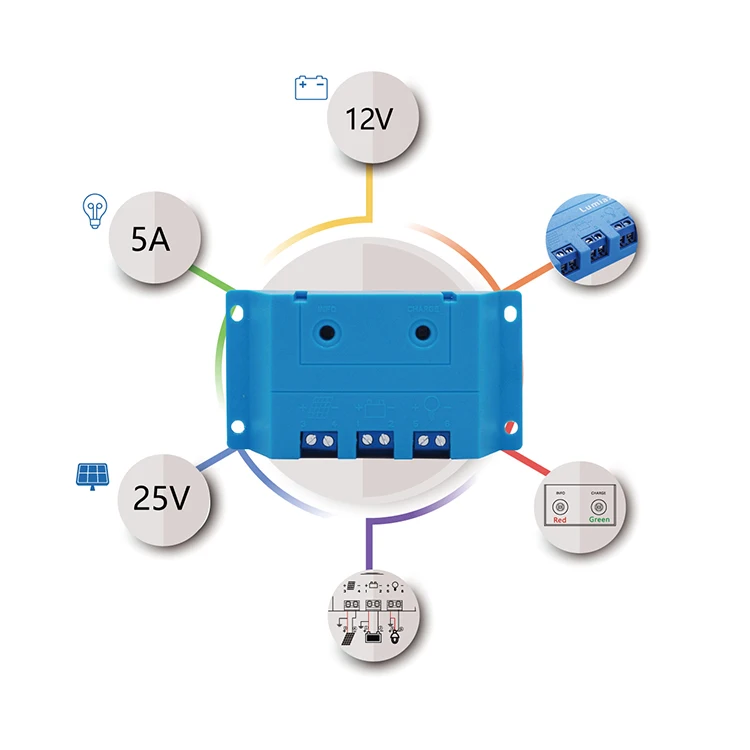

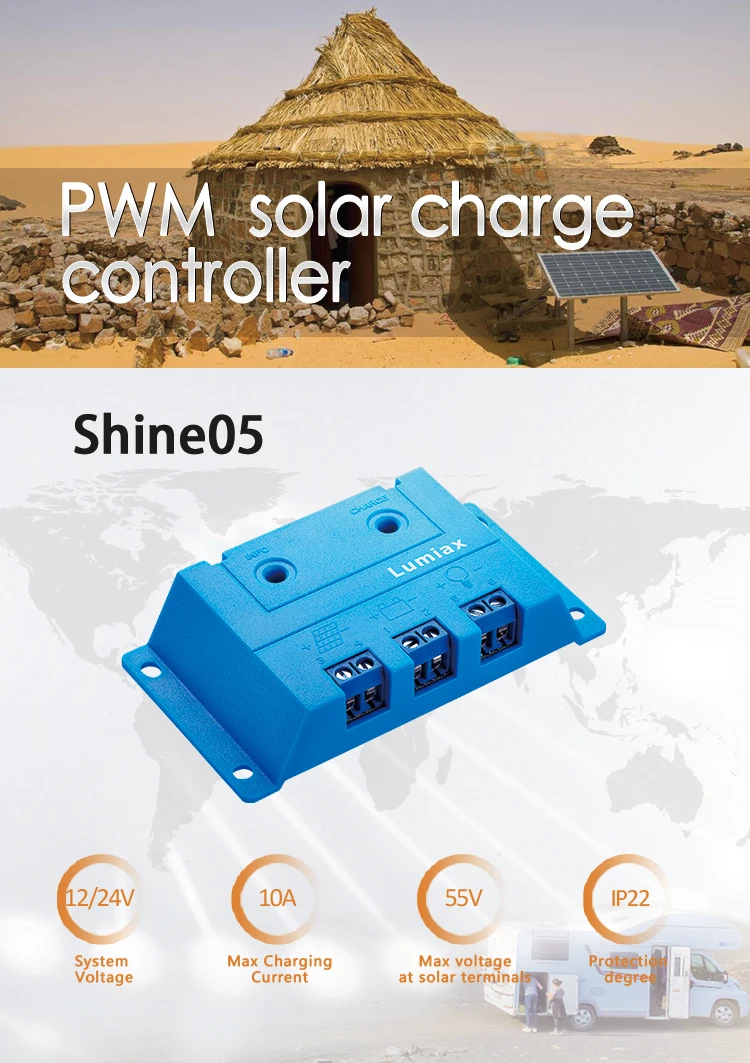

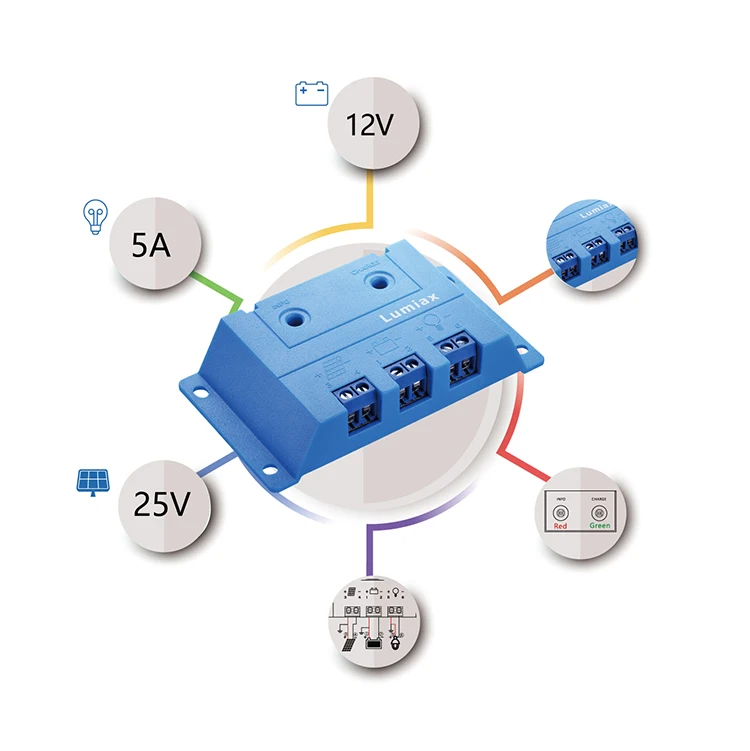

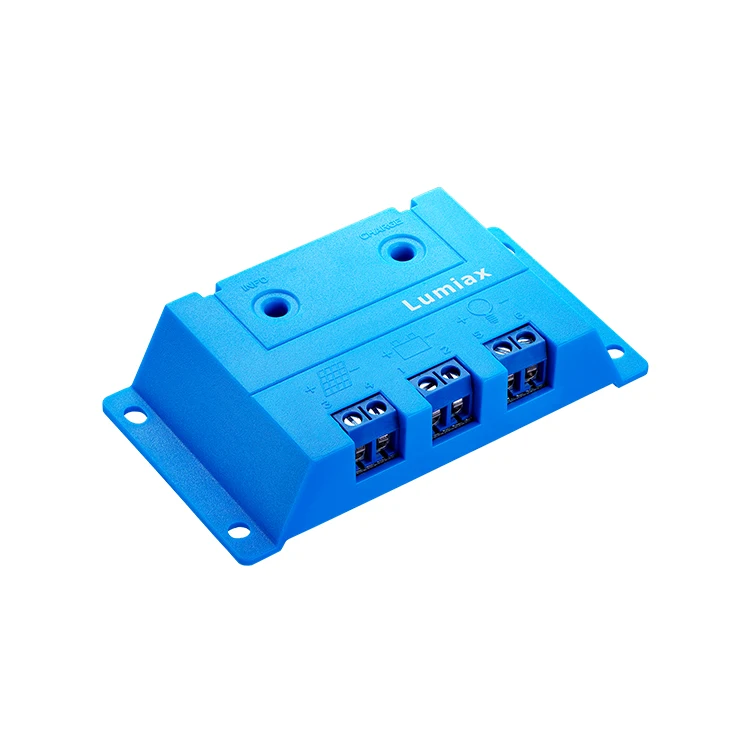

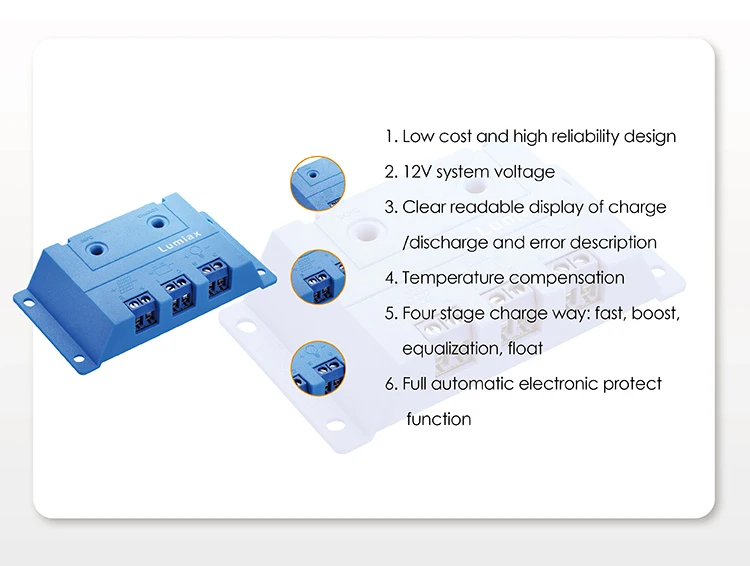

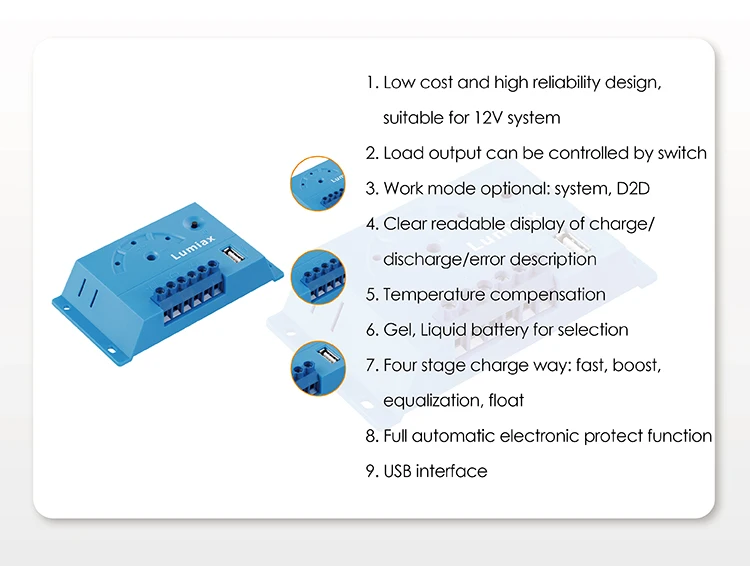

Lumiax PWM Charger Controller 12V 5A solar charge Controller
1. For solar home system or solar street lamp function(pre-programmed)
2. 12V, USB output selectable.
3. Clear readable display of charge/discharge and error description
4. Four stage charge way: fast, boost, equalization, float
5. Full automatic electronic protect function
2. 12V, USB output selectable.
3. Clear readable display of charge/discharge and error description
4. Four stage charge way: fast, boost, equalization, float
5. Full automatic electronic protect function
Product Paramenters

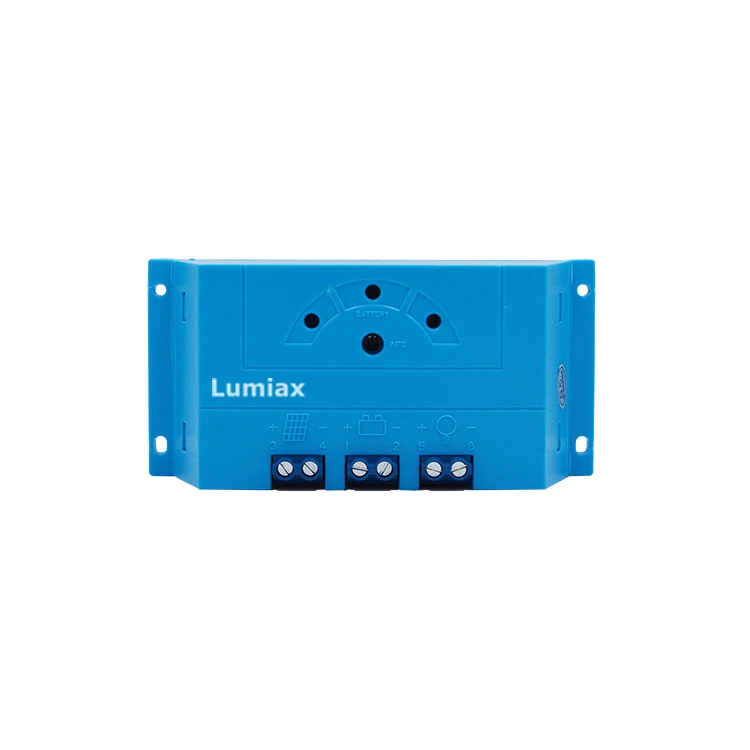

Item | Shine1012EU | Shine05 | |
System Voltage | 12V | ||
Max Charging Current | 10A | 5A | |
Fast Voltage | <14.5V @25℃ | ||
Boost Voltage | 14.5V @25℃ | ||
Equal Voltage | 14.8V @25℃（Liquid） | ||
Float Voltage | 13.7V @25℃ | ||
Temp. Compensation | -4.17mV/K per cell (Boost, Equal), -3.33mV/K per cell (Float) | ||
Over Voltage Protection | 15.5V | ||
Battery Type | Liquid,Gel | Liquid | |
Low Voltage Disconnect | 11V | ||
Low Voltage Reconnect | 12.5V | ||
Max Battery Voltage | 20V | 20V | |
Max Solar Voltage | 25V | 25V | |
Day/Night Threshold | 5V | ||
Output Current | 10A | 5A | |
Usb Interface | 5V, 1A | --- | |
Work Modes | Standard,D2D | Standard | |
Dimensions (mm) | 126*66*33 | 90*49*18 | |
Weight (g) | 110g | 36g | |
Wire Size | 4mm² | 1.5mm² | |
Self Consumption | 6mA | 5mA | |
Ambient Temperature | -35~+60℃ | ||
Degree Of Protection | IP22 | ||
Company Introduction
Registered as “Lumiax”, Qingdao Skywise Technology Co., Ltd. was established in 2007, and located in Qingdao. Due to many years devoted to researching and developing, now we have been the world-leading solar charge controller manufacturer with over 1.5 million controllers exported to 100 countries.
Certificates that we have possessed of ISO9001 Quality Management System, ISO14001 Environmental Management System, CQC Golden Sun Certificate, CE and Rohs. Also with IEC61000, IEC62509,FCC,SASO,CISPR certificates for some models.
Products major including PWM and MPPT solar controllers,for solar 24 hours universal system controller and solar street light controller.
Certificates that we have possessed of ISO9001 Quality Management System, ISO14001 Environmental Management System, CQC Golden Sun Certificate, CE and Rohs. Also with IEC61000, IEC62509,FCC,SASO,CISPR certificates for some models.
Products major including PWM and MPPT solar controllers,for solar 24 hours universal system controller and solar street light controller.
Our Advantages:

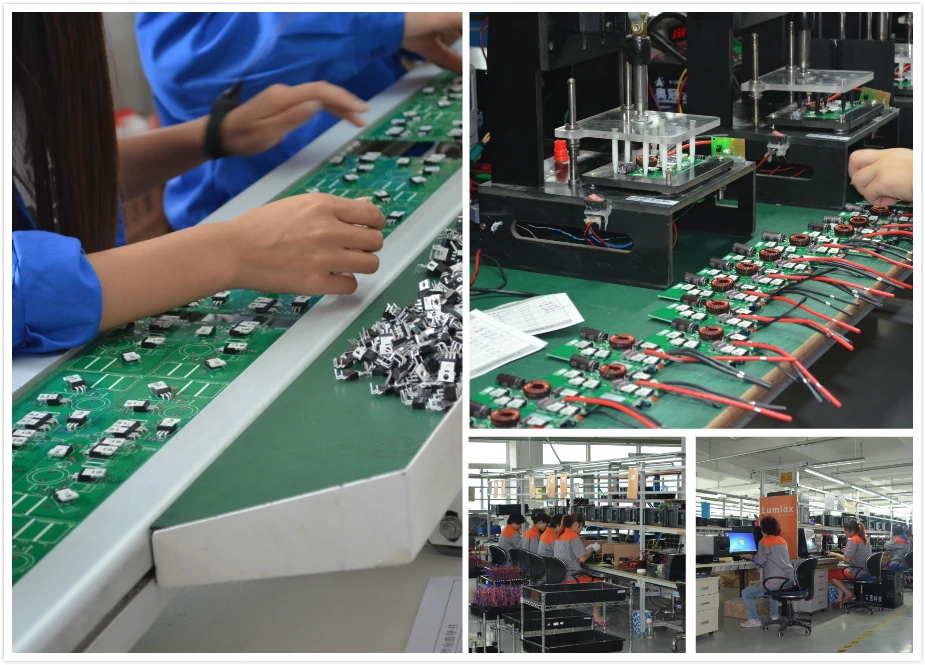

1.All Lumiax products PCB are designed very well, no need for labor soldering, all are welded by machine automatically, which decrease the damage risk, like cold welding\\welding slag\\high temperature harm to components around. 2.Most of Lumiax MOSFET are from IR, ST MOSFETs, very famous brand in the world.
3.Most of Lumiax controllers MCU are from Atmel/ST/Microchip, very famous brands in the world.
4.Lumiax uses TVS from Littelfus, No.1 brand in the world, 1200W
5.We have another sister company, selling the electrical components, so we have the advantages to get components with good quality and low price.
6. CE certificate approved by TUV.

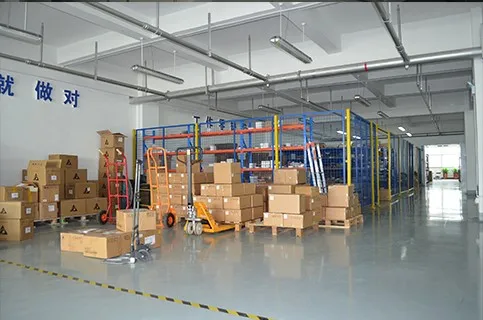

Packing&Shipping
Package size:430*430*23mm /carton
Package Type:200pcs/Carton
G.W:12kg
Package Type:200pcs/Carton
G.W:12kg
About delivery,we can deliver the controllers by air,by sea,by express,such as TNT,DHL,UPS,FEDEX...
Also can deliver them to you Chinese forwarder or supplier!
Also can deliver them to you Chinese forwarder or supplier!
Exhibition

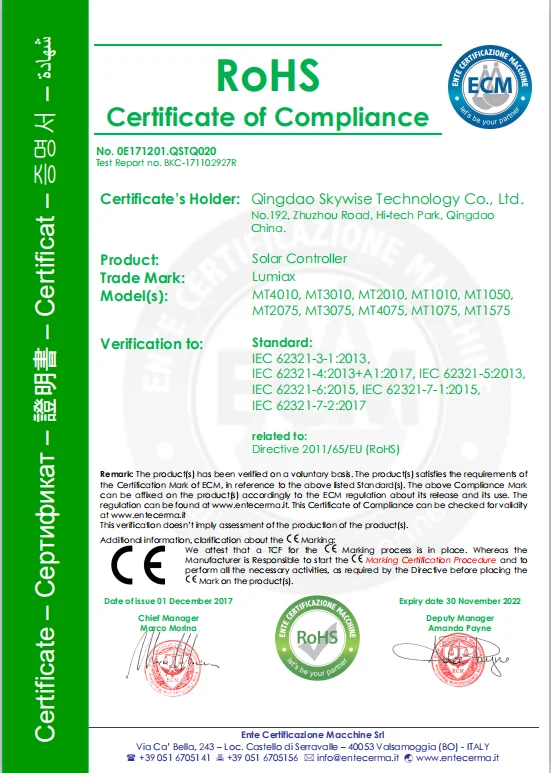

Certifications
Contact me
1.Q:Why always choose Lumiax?
A.* Professional--More than 12 years Professional Solar Controllers Experience
* Reliable--10 years Alibaba Gold Supplier
* Hi-tech--Famous Brand IC and material
*Certifications--CE(TUV), ISO 9001, Patent etc.
2. Q: Are you a factory or trading company?
A: We are a factory, located in Qingdao, China. You are warmly welcomed to visit us.
3. Q: Can the price be cheaper?
A: Of course, you will be offered a good discount for batch order
4.Q:How about your payment and shipment terms?
A: Payment: We accept T/T, L/C Western Union,Paypal etc. terms of payment.
Shipment: We can choose DHL, TNT, FEDEX etc; For batch order, by sea or by air, also can deliver to your forwarder.
Any other controllers,welcome to contact with me!
A.* Professional--More than 12 years Professional Solar Controllers Experience
* Reliable--10 years Alibaba Gold Supplier
* Hi-tech--Famous Brand IC and material
*Certifications--CE(TUV), ISO 9001, Patent etc.
2. Q: Are you a factory or trading company?
A: We are a factory, located in Qingdao, China. You are warmly welcomed to visit us.
3. Q: Can the price be cheaper?
A: Of course, you will be offered a good discount for batch order
4.Q:How about your payment and shipment terms?
A: Payment: We accept T/T, L/C Western Union,Paypal etc. terms of payment.
Shipment: We can choose DHL, TNT, FEDEX etc; For batch order, by sea or by air, also can deliver to your forwarder.
Any other controllers,welcome to contact with me!
