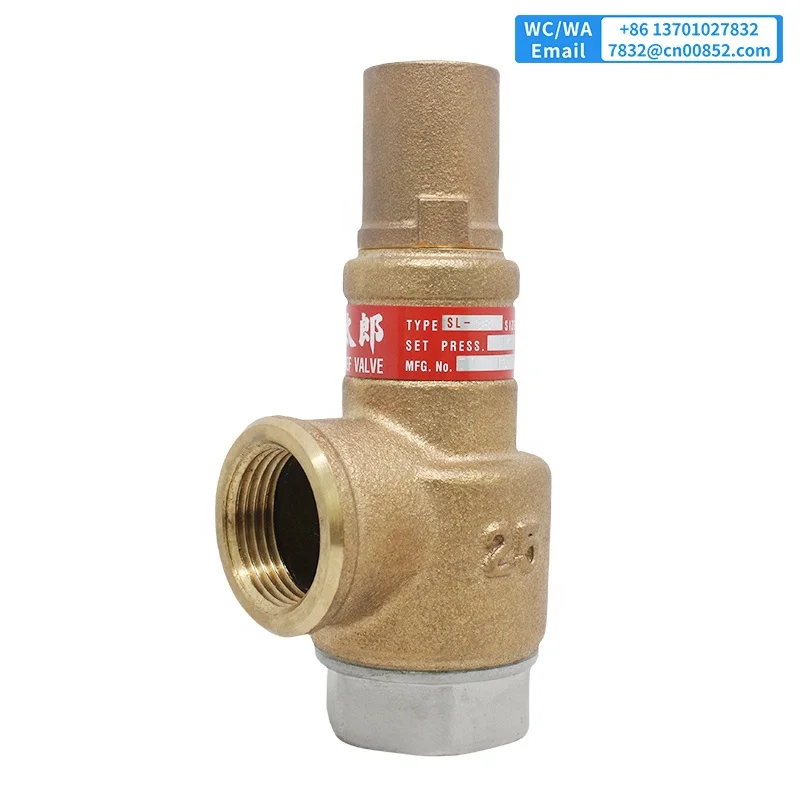

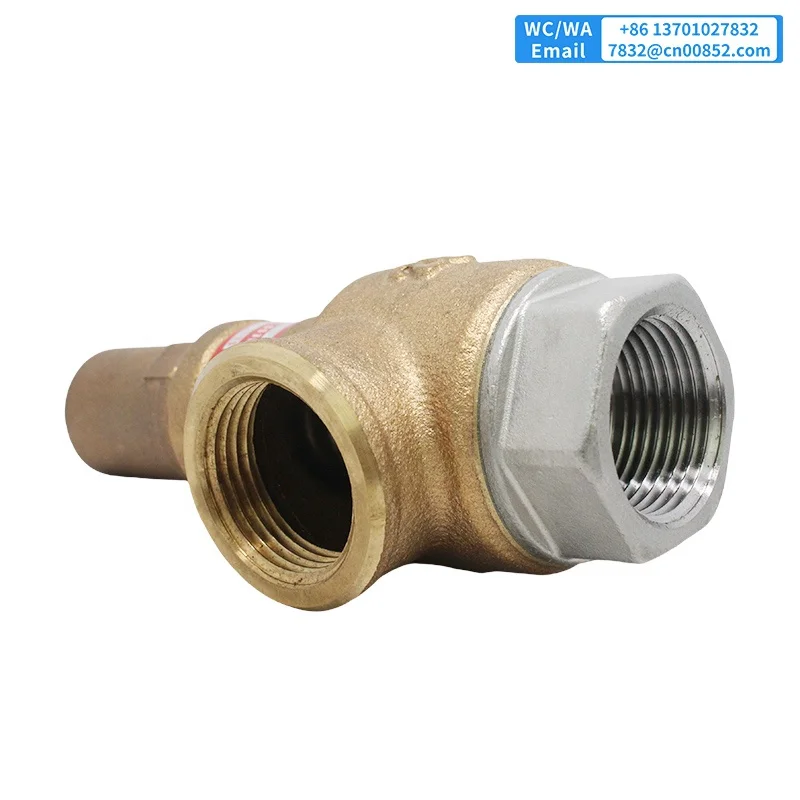

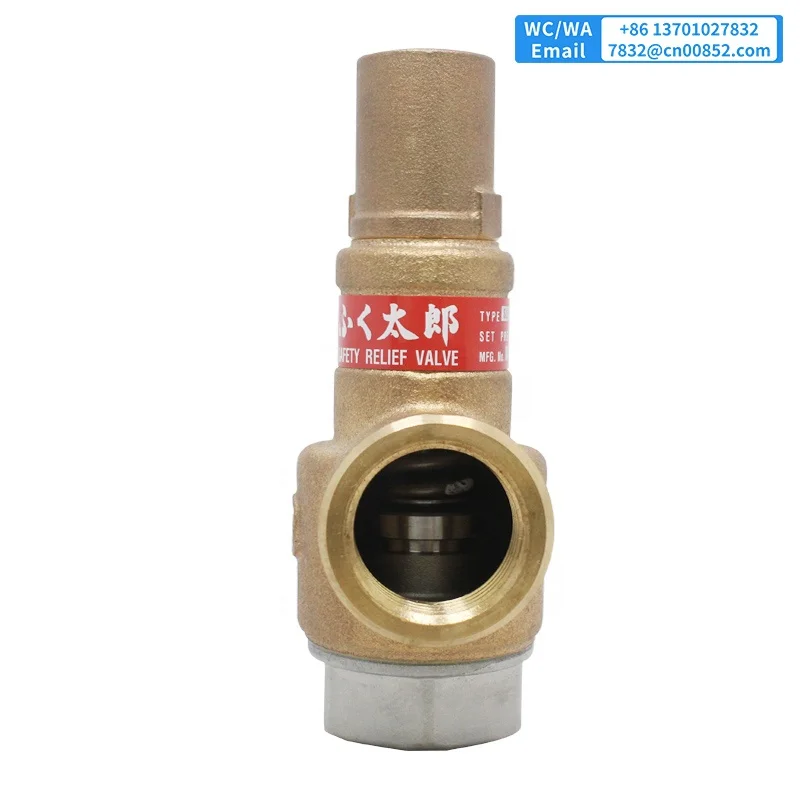

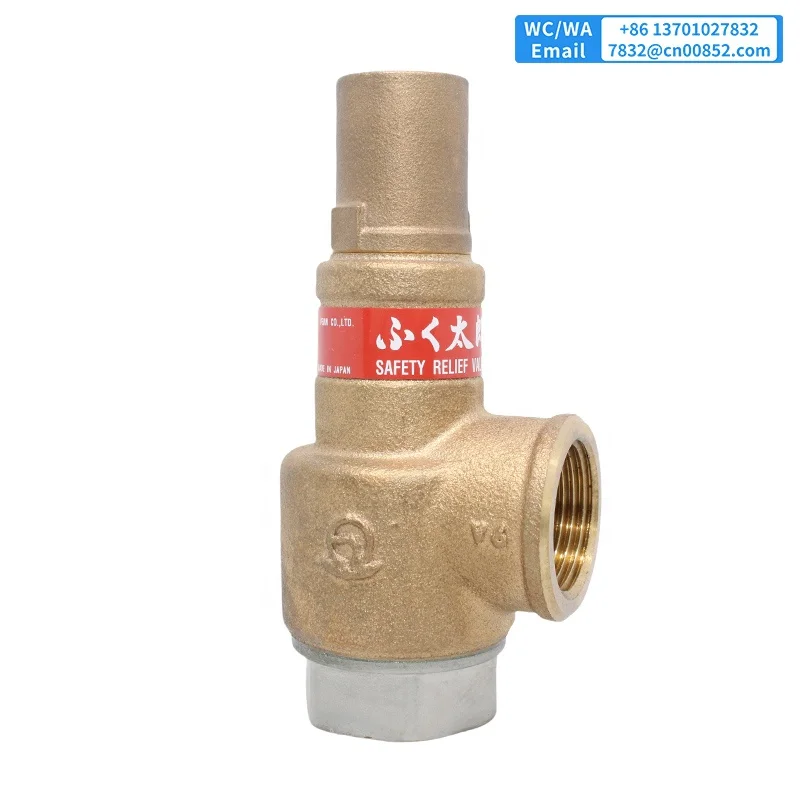

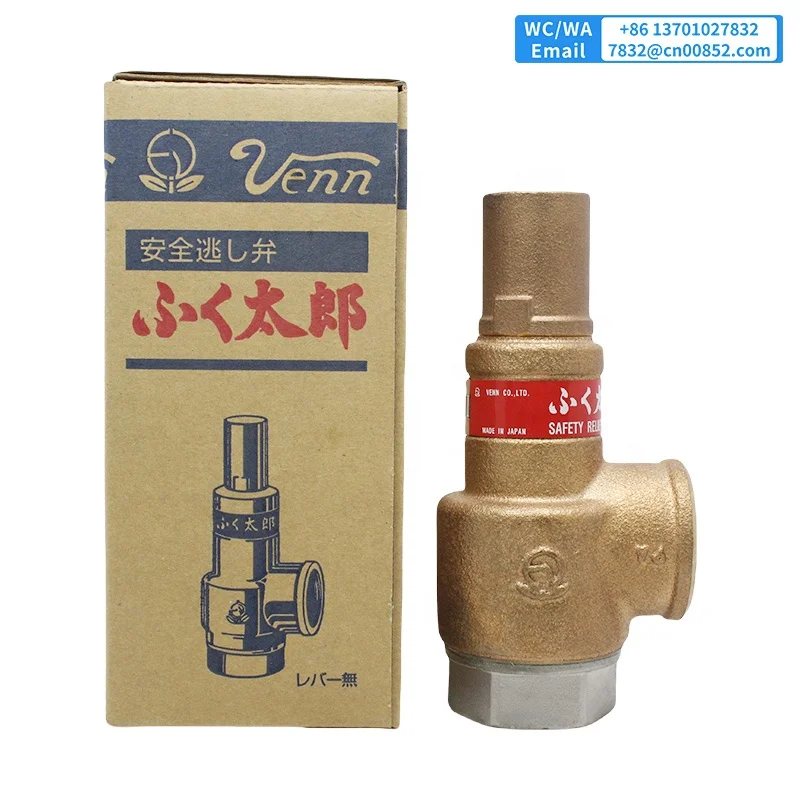

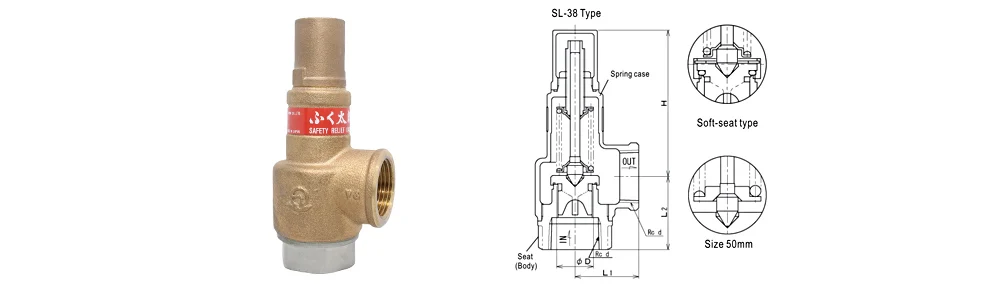

Wholesale Japan VENN SL 38 Stainless steel(Spring case:Cast bronze) Safety Relief Valve for boiler steam system
- Category: >>>
- Supplier: Beijing Ymer Technology Co. Ltd.
Share on (1601258727596):
Product Overview
Description
Safety relief valve is a category of valves with functions between those of safety valves, which are mainly for steam and gases, and those of relief valves, which are mainly for liquids.
Safety relief valve can be used for fluid, steam, gas, and liquid. The metal-seat type safety relief valve has simple structure, high corrosion resistance, and is made of high-grade materials. It is widely used as safety device for pressure vessels, mach- ines/equipments, hot water boilers,water/hot water supply systems, air conditioning systems, and pressure
reducing valves.
Safety relief valve can be used for fluid, steam, gas, and liquid. The metal-seat type safety relief valve has simple structure, high corrosion resistance, and is made of high-grade materials. It is widely used as safety device for pressure vessels, mach- ines/equipments, hot water boilers,water/hot water supply systems, air conditioning systems, and pressure
reducing valves.
Features
1.Bronze spring case, Stainless steel seatand disc,Stainless steel spring. A sealed type safety relief valve with high corrosion resistance.
2.Suitable for three fluids, including steam, gas,and liquid (metal-seat type).
3.1~2 sizes smaller and lighter than prior products of the same type.
3.1~2 sizes smaller and lighter than prior products of the same type.
Type | Standard item(Metal seat type) | ||
Model name | SL-37 | SL-38 | |
Cap type(Closed type) | With lever | Without lever | |
Applicable fluid | Steam, air, gases & liquids | Max.0.98 MPa | |
Fluid temperature | Max.150℃(Max.225℃) | Max.225℃ | |
Set pressure range | 0.05~1.0MPa | ||
End connection | Screwed JIS Rc | ||
Materials Body | Stainless steel(Spring case:Cast bronze) | ||
Materials Disc | Stainless steel | ||
Valve body pressure test | Hydraulic 2.0MPa | ||
Q1：Do you have your products in stock ?
A1：Yes . We have a large warehouse in Beijing
Q2：What is your mode of transportation ?
A2：You can choose any mode of transportation you want . For example , express airand shipping.
Q3：What's the minimum quantity ?
A3：According to the product , the quantity is different.
Q4：Are your products guaranteed ?
A4：All our products have a one-year warranty period.
Q5：How long will the product be ordered ?
A5：Spot products can be shipped at any time . Futures products can be orderedording to different products and different relatives . You can send an email for detailed inquiries.
