New 500m 600m 700m Mine water well drilling rig can be customized drilling rig machine with factory price
New 500m 600m 700m Mine water well drilling rig can be customized drilling rig machine with factory price
New 500m 600m 700m Mine water well drilling rig can be customized drilling rig machine with factory price
New 500m 600m 700m Mine water well drilling rig can be customized drilling rig machine with factory price
New 500m 600m 700m Mine water well drilling rig can be customized drilling rig machine with factory price
New 500m 600m 700m Mine water well drilling rig can be customized drilling rig machine with factory price
New 500m 600m 700m Mine water well drilling rig can be customized drilling rig machine with factory price

New 500m 600m 700m Mine water well drilling rig can be customized drilling rig machine with factory price

Share on (1601258729048):


Price:$41,500.00 - $42,500.00

Quantity:


Product Overview

Description



Product Description




Products Description

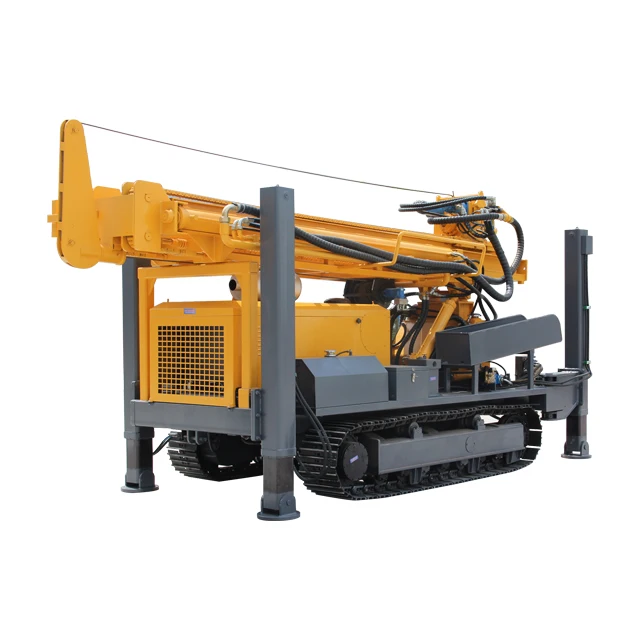

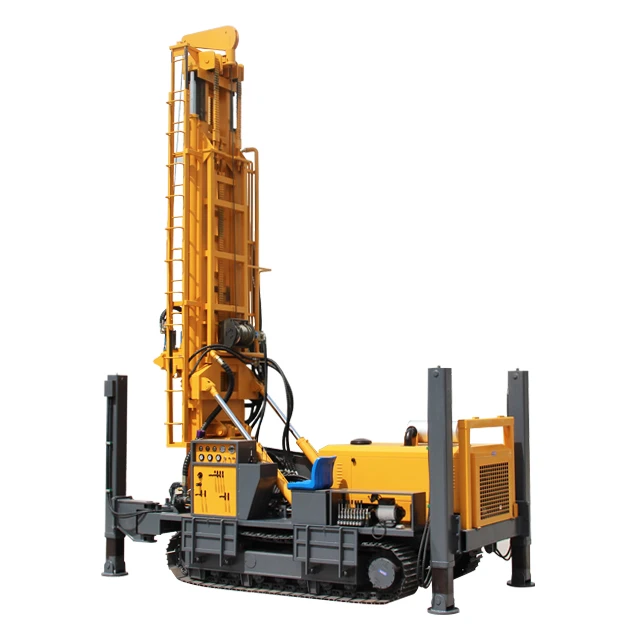

FY450 crawler water well drilling rig


Model
FY7000
11.5The weight(T)
13
The hole diameter(mm)
140-350
Drilling depth(m)
680
One-time advance length(m)
6.6
Walking speed(km/h)
2.5
Climbing angles(Max.)
30
Equipped capacitor(kw)
132
Using air pressure(MPA)
1.7-3.5
Air consumption(m³/min)
17-42
Swing speed(rpm)
45-140
The penetration efficiency(m/h)
15-35
Drill pipe diameter(mm)
Φ102 Φ108 Φ114
Drill pipe diameter(mm)
1.5m 2.0m 3.0m 6.0m
Rig lifting force(T)
30
Rapid rise speed(m/min)
20
Fast feeding speed(m/min)
40
Width of loading(m)
2.95
Hoisting force of winch(T)
2
Swing torque(N.m)
8850-13150
Dimension(mm)
6200*2200*2950
Equipped with hammer
Medium and high windpressure series
High leg stroke(m)
1.7
The engine brand
Cummins engine


Show details

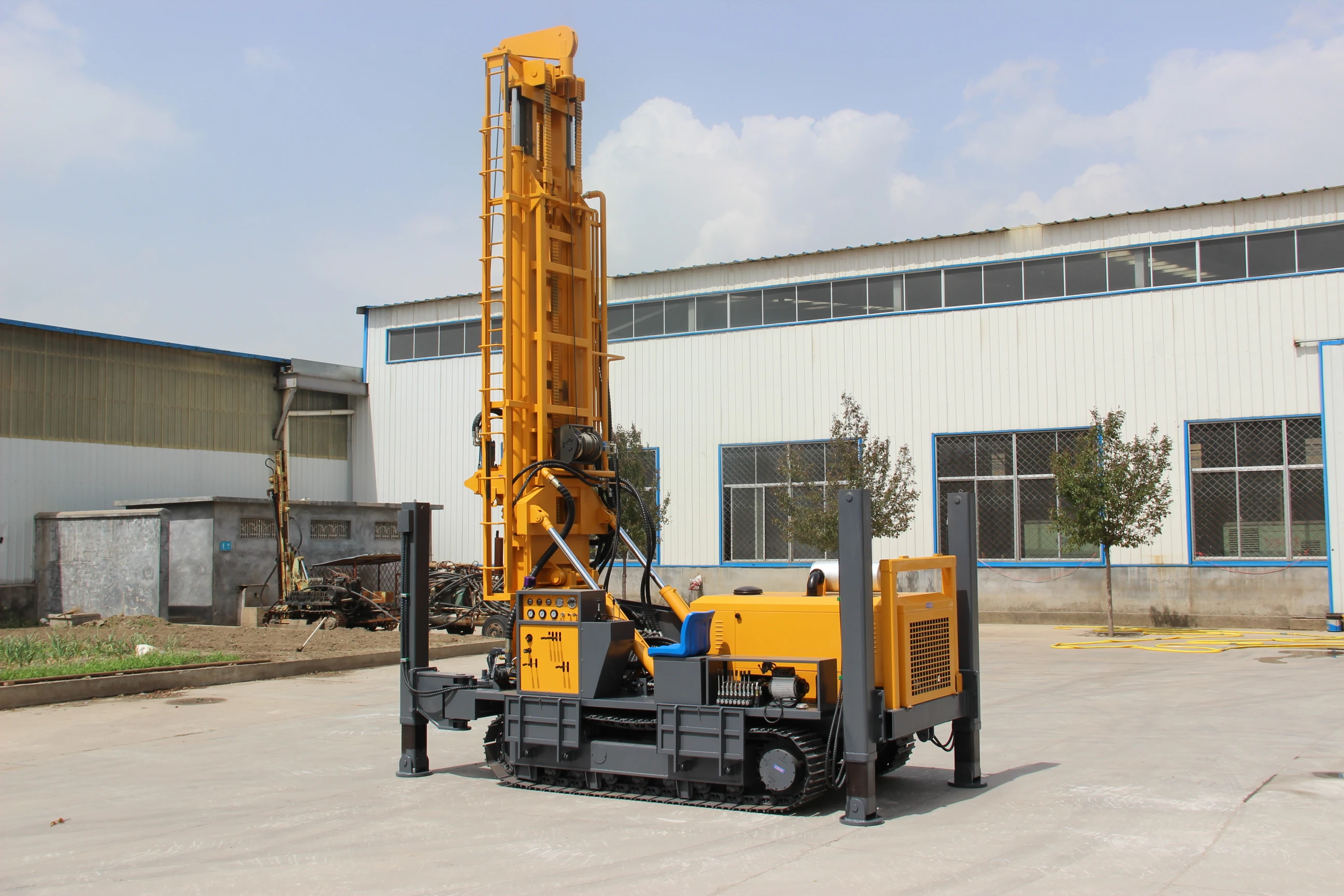

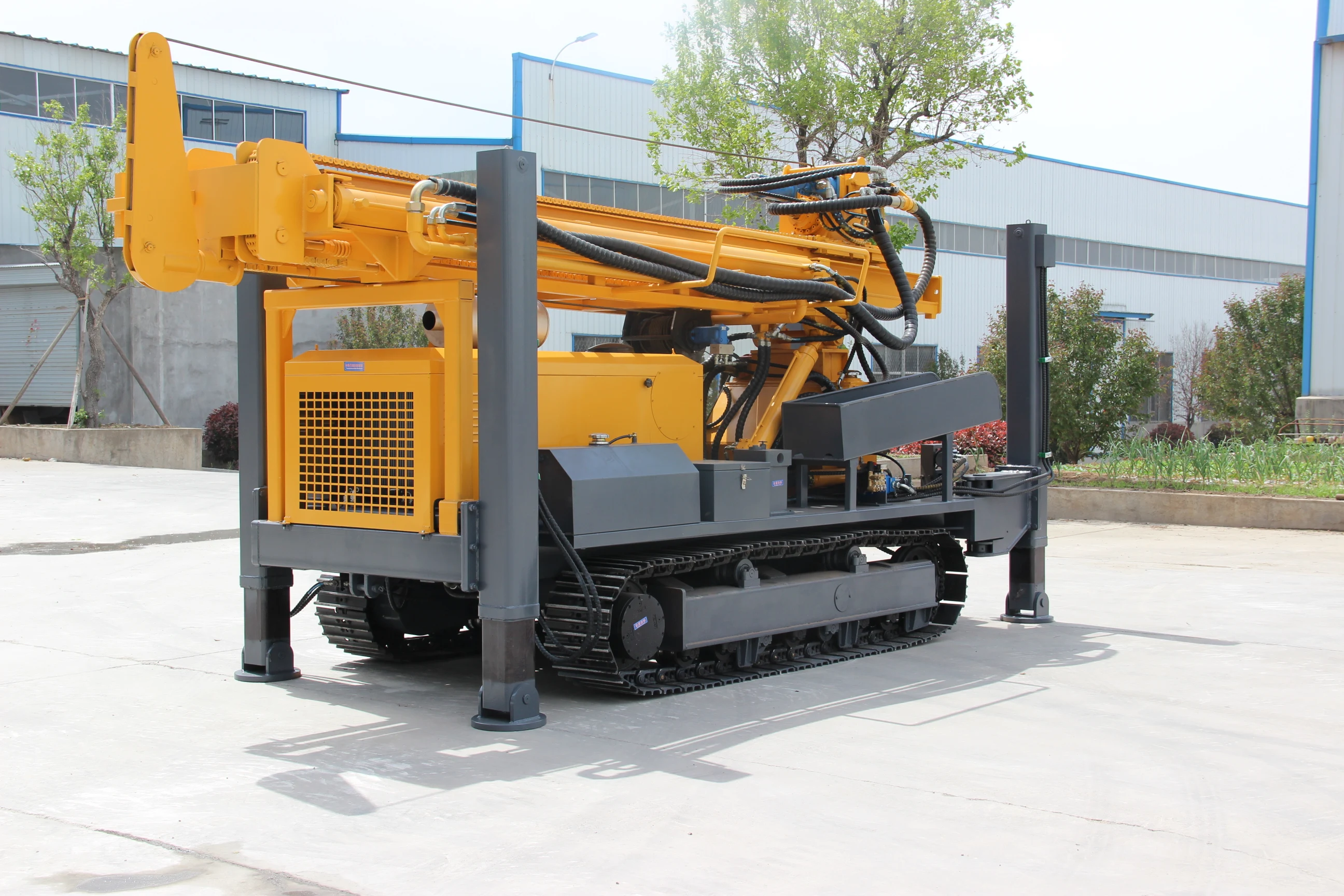

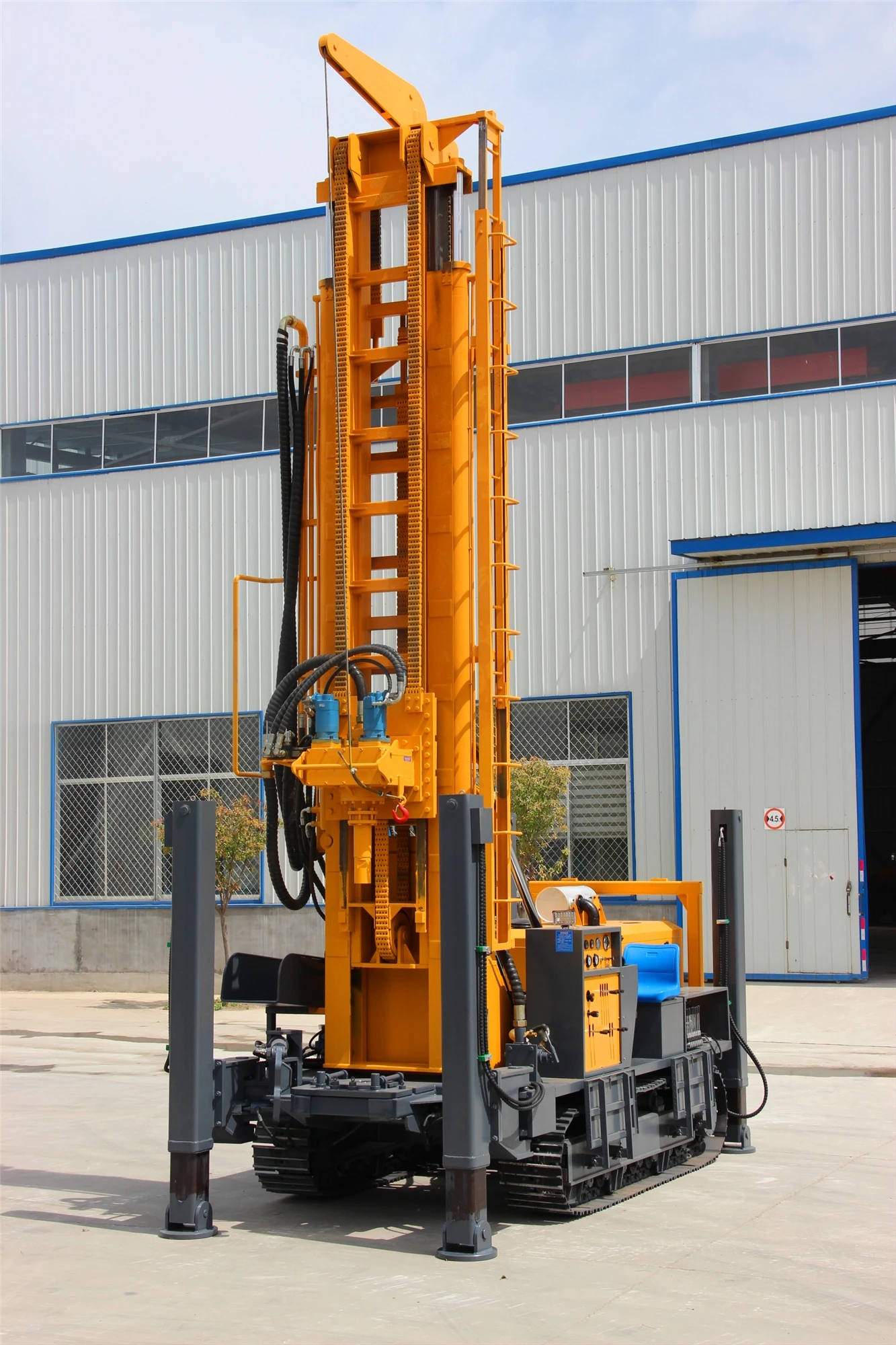

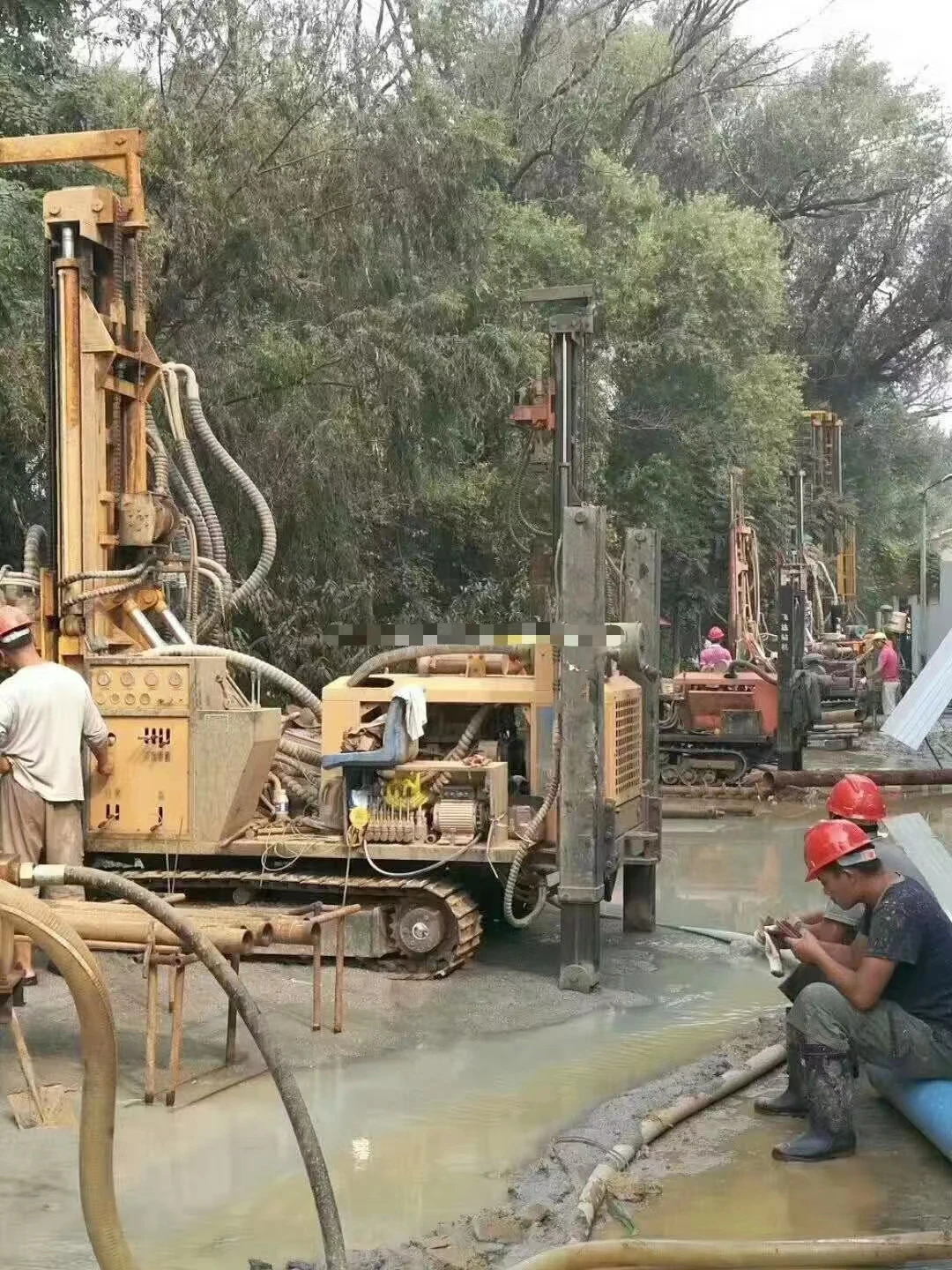

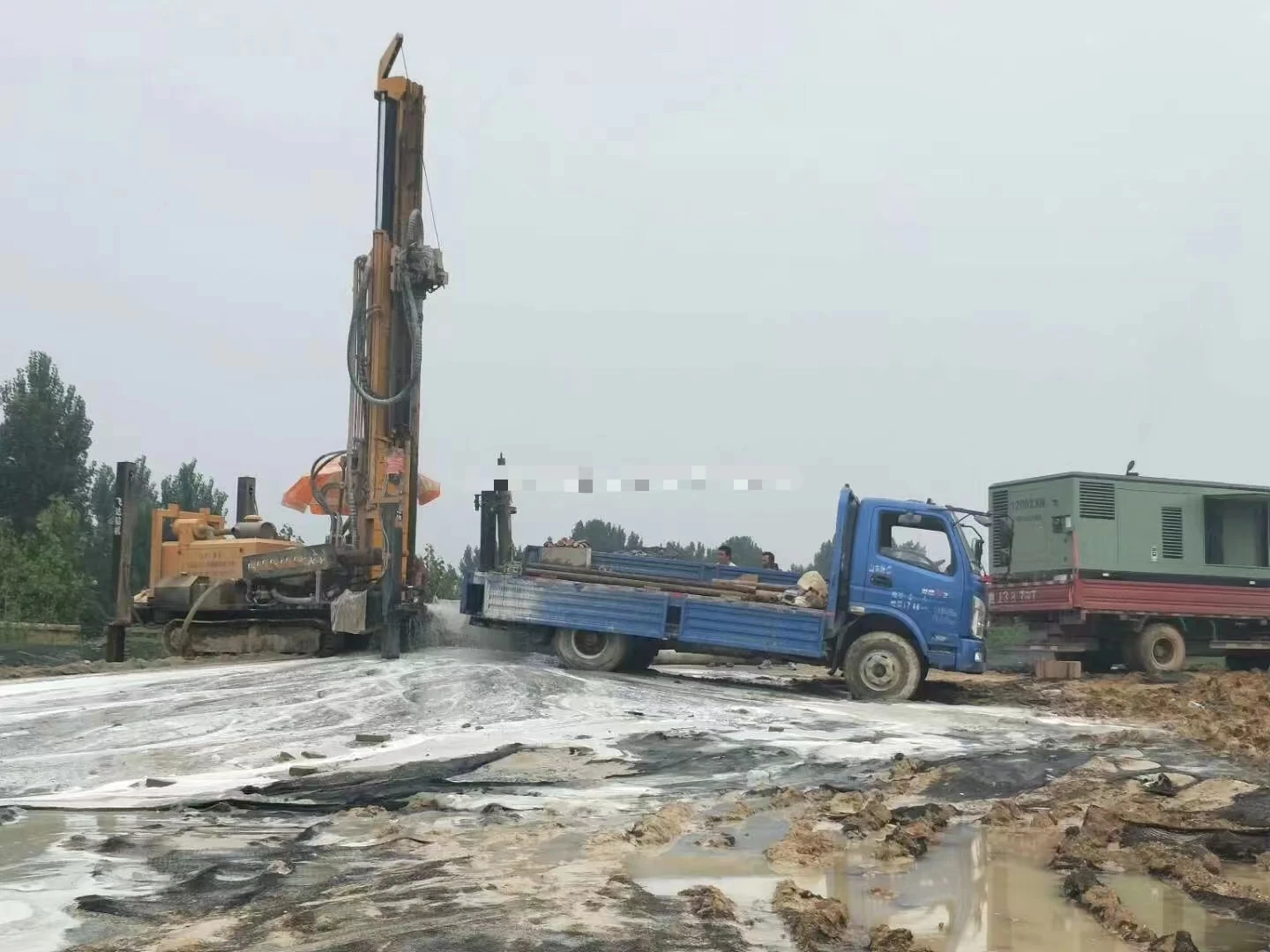

Products Show

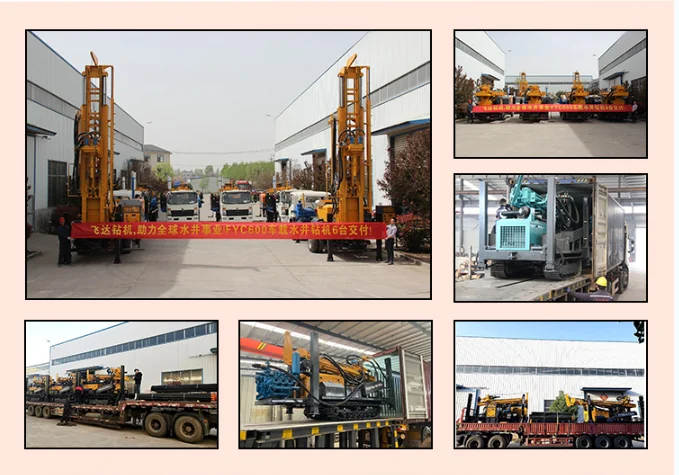

Product packaging




Company Profile


Shandong Wogong Technology Co., Ltd.
Shandong Wogong Technology Co., Ltd. is affiliated to Shandong Mengyin Feida Mining Engineering Machinery Co., Ltd. The main products are: FY180, FY200, FY280, FY350 and other drilling rig series, drill pipe drilling tool series, high, medium and low pressure air compressors and excavation machine series. The company's products have passed ISO9001 international quality management system certification, which can guarantee high-quality products and the best after-sales service. The main customers are located in Southeast Asia, the Middle East and South America. Welcome to visit our factory and send us inquiries.
















FAQ


1.what can you buy from us?
Well Drilling Machine,Drilling Tools and Accessories,Screw Air Compressor，Excavator.
2. How can we guarantee quality?
Always a pre-production sample before mass production;always final inspection is done before shipment；and our main unit has a one-year warranty, during which all damaged accessories can be replaced with new ones. We provide machine installation and operation videos.
3.Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
4.Are you a manufacturer or trading company?
We are professional manufacturer with big modern factory in ShanDong,China.
5.Do you have any certificates for your machine?
All of our products coming with the certificates of CE,ISO9001、EPA.
6. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR,CAD,AUD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Cas.
LanguageSpoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian.
