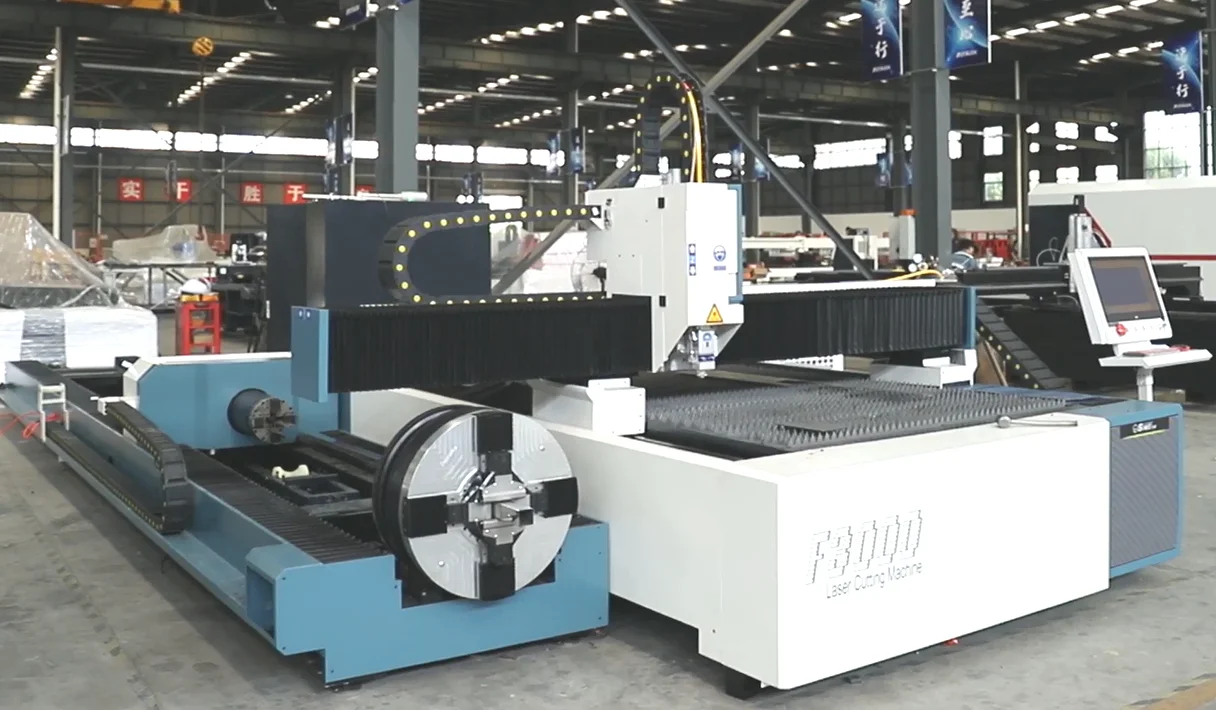

New Products Laser Cutting Machine With Rotary Device Fiber Laser Cutting Machine for Metal and pipe 3000W laser source
New Products Laser Cutting Machine With Rotary Device Fiber Laser Cutting Machine for Metal and pipe 3000W laser source
New Products Laser Cutting Machine With Rotary Device Fiber Laser Cutting Machine for Metal and pipe 3000W laser source
New Products Laser Cutting Machine With Rotary Device Fiber Laser Cutting Machine for Metal and pipe 3000W laser source
New Products Laser Cutting Machine With Rotary Device Fiber Laser Cutting Machine for Metal and pipe 3000W laser source
New Products Laser Cutting Machine With Rotary Device Fiber Laser Cutting Machine for Metal and pipe 3000W laser source
New Products Laser Cutting Machine With Rotary Device Fiber Laser Cutting Machine for Metal and pipe 3000W laser source

New Products Laser Cutting Machine With Rotary Device Fiber Laser Cutting Machine for Metal and pipe 3000W laser source

Share on (1601258731298):


Price:$28,000.00 - $39,000.00

Quantity:


Product Overview

Description









Model Type
F-3015G
F-4015G
F-4020G
F-6020G
Cutting Width
1500×3000mm
1500×4000mm
2000×4000mm
2000×6000mm
Laser Media
Fiber Laser



Power
1000w/1500w/2000w/3000w



Min. Route Width
0.01mm



Reposition Accuracy
±0.05mm



Wave Length
1080nm



Aiming Positioning
Red Dot



Voltage Requirement
220V or 380V / 50Hz~60Hz



Linear Rail
Taiwan Lapping/Japan THK(optional)



Reducer
Japan Shimpo



Laser Source
RAYCUS/MAX/IPG(optional)



Cutting Head
WSX/Raytools



Servo System
France Schneider AC Servo System



Control System
Cypcut/Weihong NC Studio

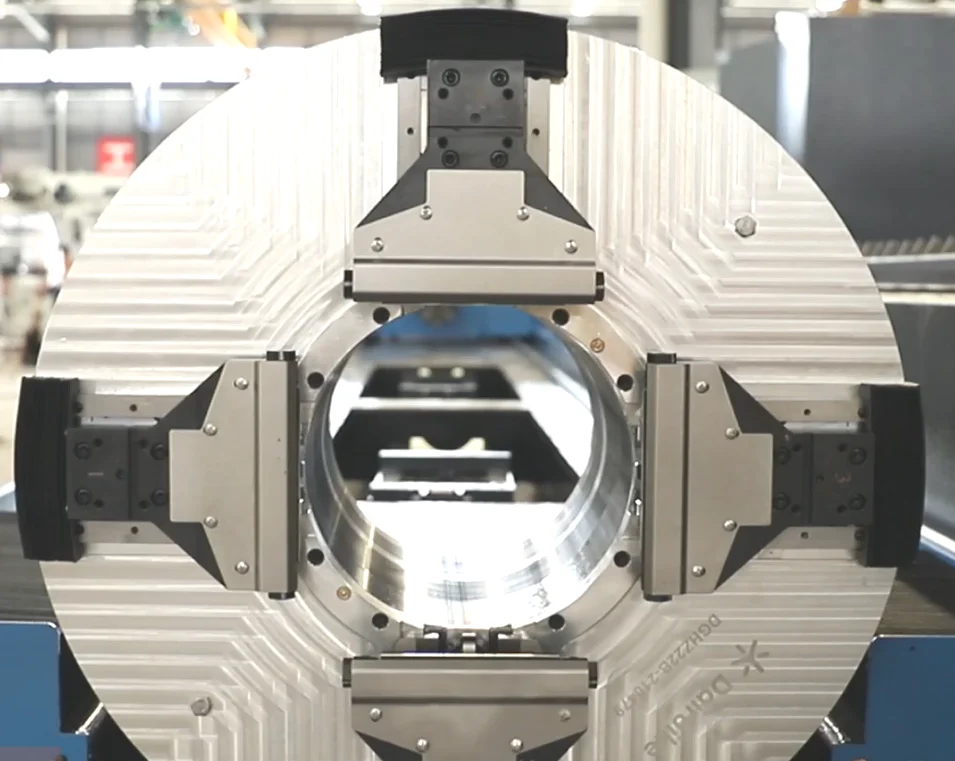

Pipe Length
6m/9m/12m(optional)
Pipe Diameter
Φ10mm~220mm/320mm(optional)

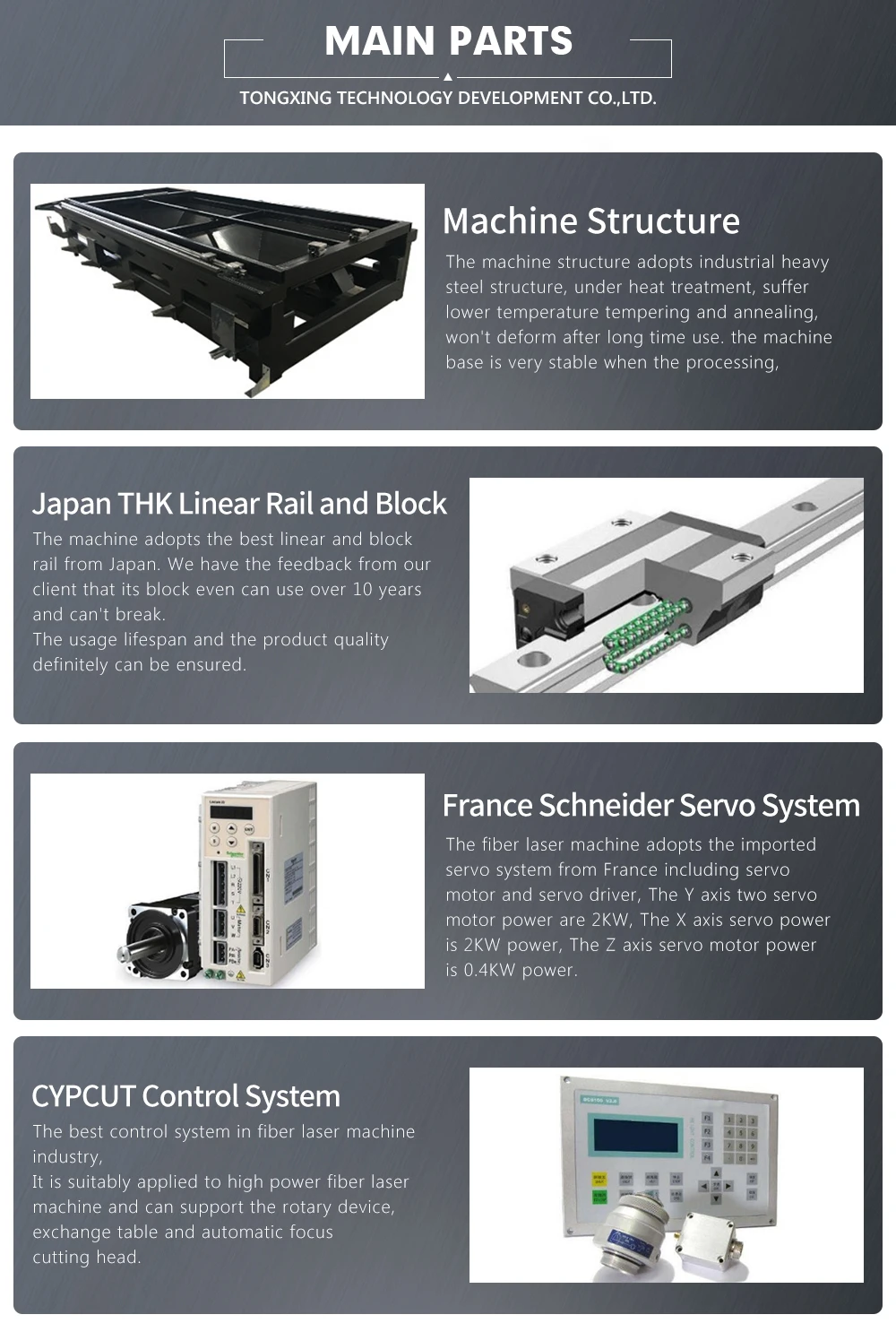

◆ Use Industrial steel welding machine under heat treatment, ensure that the machine body will not be deformation after long time using, more durable
◆ The 5-Axis gantry CNC milling machine center, including milling, drilling, taping and other processes.one time complete, Improves the assembly aceυracy, Ensure the operating accuracy and stability of the equipment
◆ 3-Axis adopts Taiwan iapping and Japan SMG linear rail, running smoothly, Wear-resistant and dust-proof
◆ X/Y Axis adopts grinding rack, Equip with high precision reducer axis adopt grinding screw
◆ X/Y/Z Axis adopt AC servo driver system, Stronger torque, faster speed and smoother

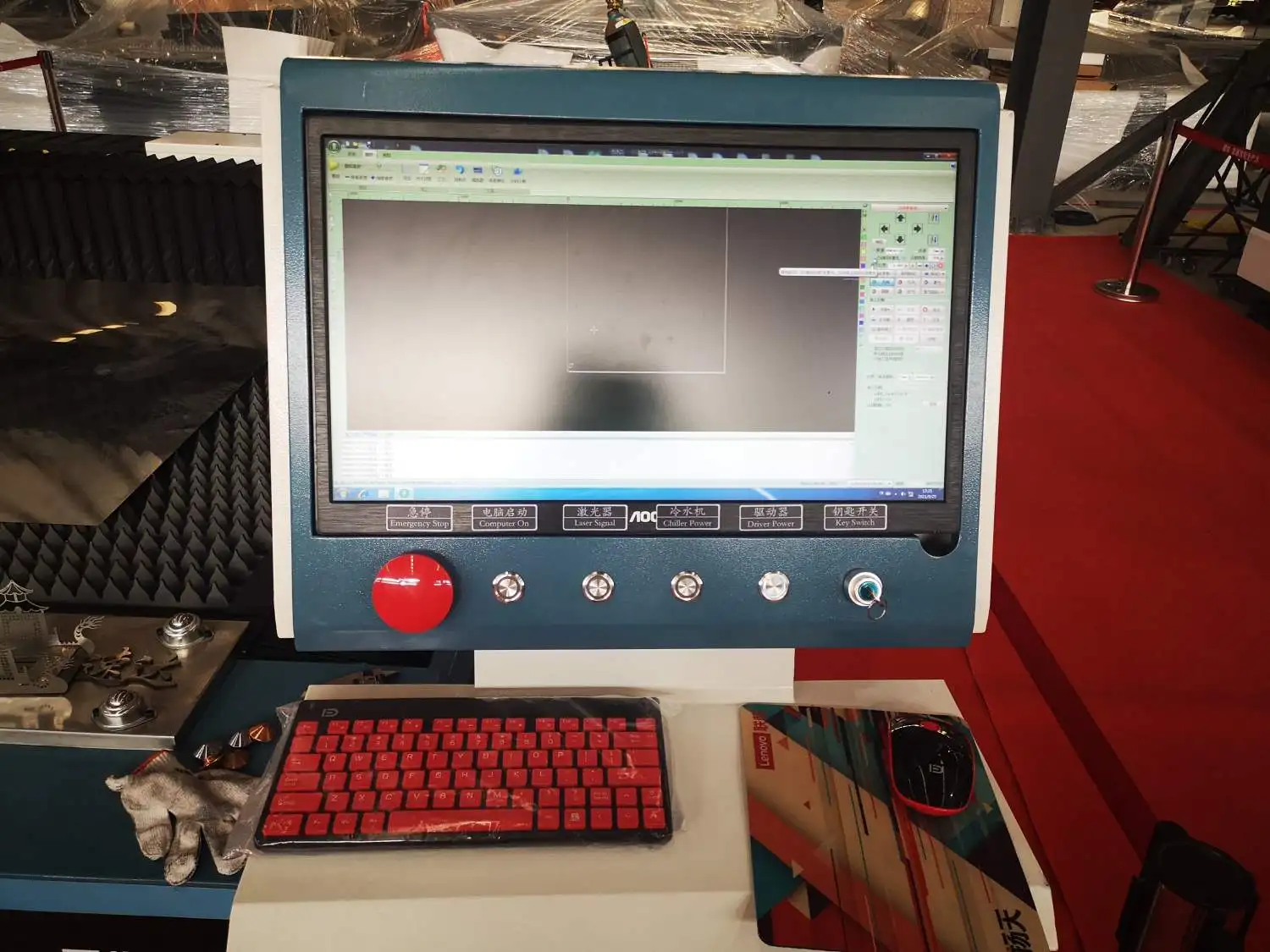

◆ Equipped with professional CNC Laser Control System, more easier for computer operation

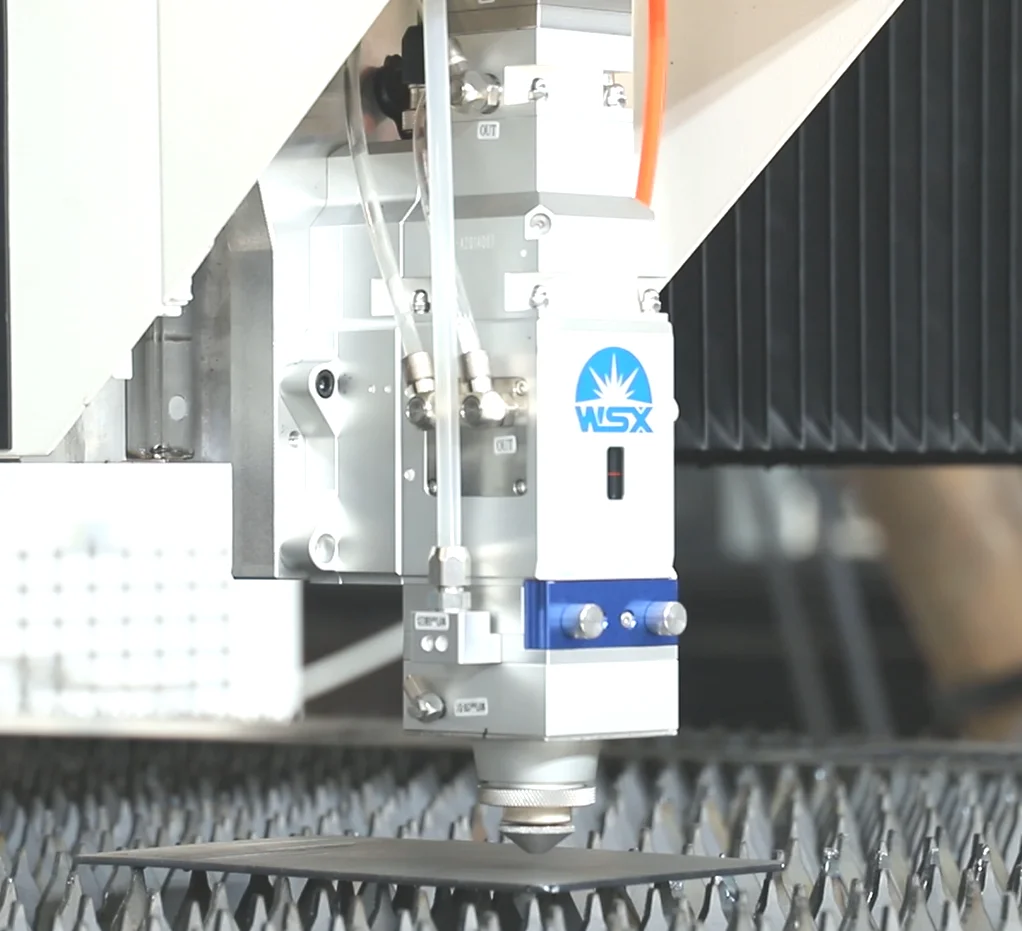

◆ WSX/Raytools laser cutting head well-known, High-sensitivity optical lens, small spot, fine cutting lines, better processing quality and high work efficiency
◆ With non-contact automatic follow-up function to ensure the best focal length and cutting effect
◆ Optical fiber transmission, flexible processing, can achieve equal quality cutting at any point
◆ Equip with Dual-temperature dual-control professional chiller, fast cooling performance, more stable photoelectric conversion rate
◆ Compatible with different software, Various graphics or text can be designed according to your requirements, and the instant cutting operation is simple, convenient and flexible.
