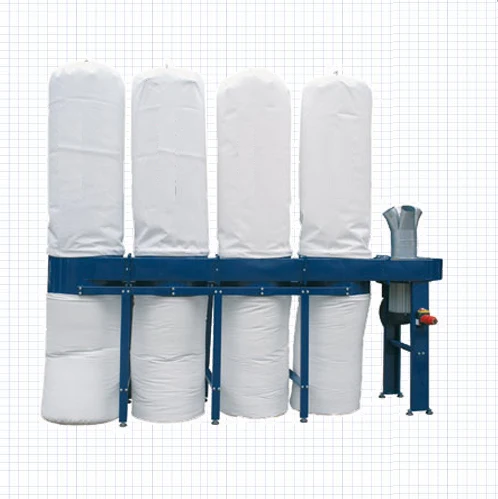

DUST COLLECTOR EXTRACTOR

01)   Motor, 5 hp HQA, 400V three phase
02)   Turbine Fan Dia: 356 mm
03)   Inlet dia:1x180-4x100
04)   Air Flow:2996CFM(84.8m3/min)
05)   Upper bags, 1.200 x 500 mm
06)   Lower bags, 1.100 x 500 mm
07)   Overall Dimension: 1300x1300x2580mm
08)   Diameter, 4 x 100 mm
09)   Net/Gross weight: 83/143 kgs
10)   Packing size, 1220 x 1000 x 770mm
11)   20'Container:27pcs

* 7HP model available with model number FM470A/7HP

* With Polyester fiber material filter bag on the top + plastic collection bag on the bottom fitted as standard fitting.

 Net/Gross weight: 83/143 kgs
 Packing size, 1220 x 1000 x 770mm
 20'Container:27pcs

12 months warrantee, starting at the shipping date.

About the Burt Group
Established in 1993, we produce woodworking machinery and metal cutting band saw. We have more than 20 years of export experience in this field, so we are familiar with the needs of international buyers.

Totally In-house Production
Together, our six factories have a total of 91,500 square meters of workshop space, 27 production lines and more than 900 employees at present. Our 27 automated and semi-automated production lines turn out up to 20,000 woodworking machines and metal cutting band saw every month. And our 53 QC specialists inspect your orders at every stage of production. We are ISO 9001:2000-certified and our products carry CE, GS, CSA and C-UL approvals.

OEM/ODM Ability
Our R&D team has an average of 25 years of experience. They give each of our products a robust design and attractive appearance that will be sure to stand out on your store or workshop.  And to increase our products' durability, we construct our woodworking machines with cast iron and steel plates. And all our machines come with manuals written in professional-level English.

Our Own Foundry

Realizing the importance of casting quality, and in order to get the quality under our full control, we have started our own in-site foundry workshop in the early 2015. Equipped by environment-friendly electric furnaces (total designed capacity of 3 tons/hour), advanced double-position shell molding machines and series of accurate testing instruments (chemical, rigidity, ingredient temperature etc.), we are now be able to apply fine castings with perfect finishing and quality for our products. This important investment also allows us to apply powder painting technology directly onto the castings which could provide fantastic finishing andappearance.

Cooperation for casting projects is also warmly welcome!

Q: What is the trading term?

A: FOB Qingdao

Q: What is the MOQ?

A: You can mix several models in FCL container
