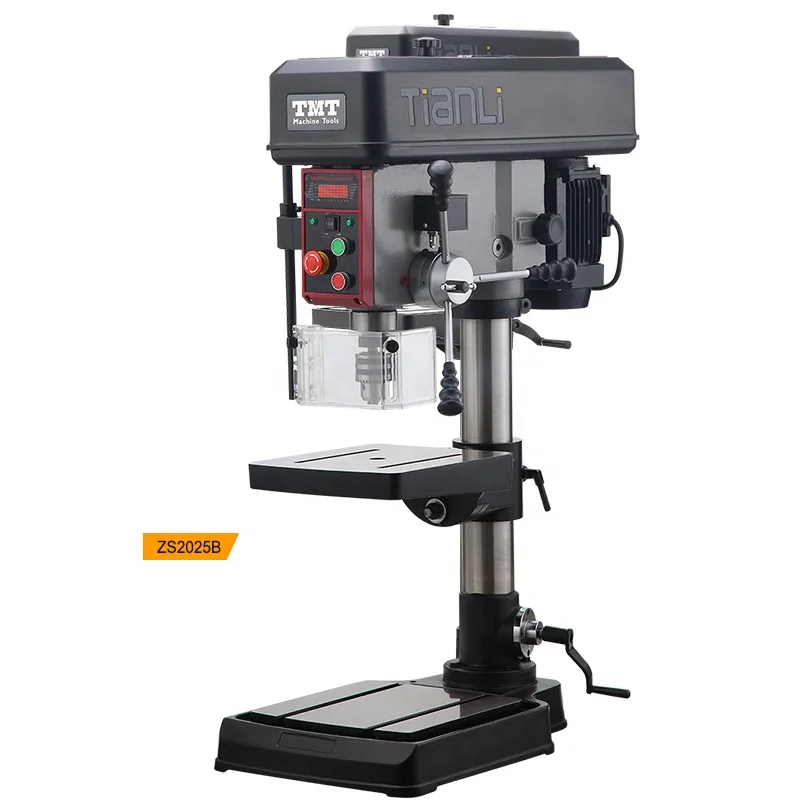

ZS2025B High quality Industry level mini bench mounted drill press Stand drilling and tapping machine
- Category: >>>
- Supplier: Wuxi Mingxu Machinery Equipment Co. Ltd.
Share on (1601258756024):
Product Overview
Description
Products Description
The above price is a deposit, and you need to contact customer service for quotation.
Product Paramenters
MODEL | ZS2025B |
Feature | Drilling&Tapping |
Drill Capacity | 25mm |
Tapping Capacity | M16 |
Chuck Capecity | B16 1-16mm |
Column Diameter | 85mm |
Spindle Travel | 135mm |
Swing | 510mm |
Max.Distance spi | 280mm |
Max Distance spindl | 540mm |
Spindle Taper | MT3 |
Speed Range | 200-2400rpm |
No.of Speed | 5 |
Table Stze | 338*300mm |
Base Stze | 600*385mm |
Ovoral Hoight | 1100mm |
Motor | 1100W/400V/50Hz |
Weight | 160kg |
Packing Size | 1595*710*485mm |
Quantity for 20ft | 46PCS |
MODEL | |||
Feature | Drilling&Tapping | Drilling&Tapping | Drilling&Tapping |
Drill Capacity | 20mm | 25mm | 32mm |
Tapping Capacity | M12 | M12 | M16 |
Chuck Capecity | B16 1-16mm | B16 1-16mm | B16 1-16mm |
Column Diameter | 70mm | 80mm | 98mm |
Spindle Travel | 100mm | 100mm | 135mm |
Swing | 410mm | 410mm | 510mm |
Max.Distance spi | 320mm | 850mm | 860mm |
Max Distance spindl | 530mm | 1160mm | 1200mm |
Spindle Taper | MT2 | MT2 | MT3 |
Speed Range | 200-2400rpm | 200-2400rpm | 200-2400rpm |
No.of Speed | 5 | 5 | 5 |
Table Stze | 283*248mm | 320*320mm | 410*380mm |
Base Stze | 520*345mm | 600*385mm | 650*440mm |
Ovoral Hoight | 1010mm | 1630mm | 1770mm |
Motor | 750W/400V/50Hz | 750W/400V/50Hz | 1100W/400V/50Hz |
Weight | 106kg | 128kg | 237kg |
Packing Size | 1055*610*380mm | 1525*655*440mm | 1595*710*610mm |
Quantity for 20ft | 114PCS | 58PCS | 33PCS |
Company Profile
Certifications
Product packaging
FAQ
1. Who are we?
A:Wuxi Mingxu Machinery Equipment Co., Ltd. was restructured from Wuxi Machinery Equipment Co., Ltd. Mainly produces and sells mechanical equipment, forging equipment, grinders, machining centers, hot die forging equipment, CNC machine tools, lathes, milling machines, CNC shearing machines, CNC bending machines, laser cutting machines, robots, gantry, machine tool parts and so on.
2.What is the package of the machines?
A: The machines standard packed by iron pallets with steel box ,high quality package to reduce the risk of damage during delivery.
3.What is your MOQ of this item?
A: Our MOQ is one set.
4.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
5.When is the delivery time?
A: Conventional Machines, we will deliver then within 20 working days after receiving your deposit. If some special machines will be longer, please contact us for details. According to the delivery date at that time, we will give you a reply accordingly.
6. What is the payment Terms ?
A : Alibaba or T/T ,30% initial payment when order ,70% balance payment before shipment ;
7.What kind of trade terms can you do ?
A:EXW,FOB,CFR,CIF,Etc.
8.What is Trade Assurance?
A:Trade Assurance is a free service by Alibaba .com that's designed to help create trust between buyers
and suppliers.Trade Assurance helps buyers in the event of shipping and quality-related dispute.
9.Dose Trade Assurance charge fees?
A: No.Trade Assurance is free for both buyers and suppliers.
2.What is the package of the machines?
A: The machines standard packed by iron pallets with steel box ,high quality package to reduce the risk of damage during delivery.
3.What is your MOQ of this item?
A: Our MOQ is one set.
4.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
5.When is the delivery time?
A: Conventional Machines, we will deliver then within 20 working days after receiving your deposit. If some special machines will be longer, please contact us for details. According to the delivery date at that time, we will give you a reply accordingly.
6. What is the payment Terms ?
A : Alibaba or T/T ,30% initial payment when order ,70% balance payment before shipment ;
7.What kind of trade terms can you do ?
A:EXW,FOB,CFR,CIF,Etc.
8.What is Trade Assurance?
A:Trade Assurance is a free service by Alibaba .com that's designed to help create trust between buyers
and suppliers.Trade Assurance helps buyers in the event of shipping and quality-related dispute.
9.Dose Trade Assurance charge fees?
A: No.Trade Assurance is free for both buyers and suppliers.
