Trina PV Modules Vertex S Glass Glass Solar Panel TSM NEG9R.28 435W 440W 445W 450Wp
- Category: >>>
- Supplier: Shenzhen Meisongmao Industrial Co. Ltd.Shenzhen Ltd.
Share on (1601258792010):
Product Overview
Description

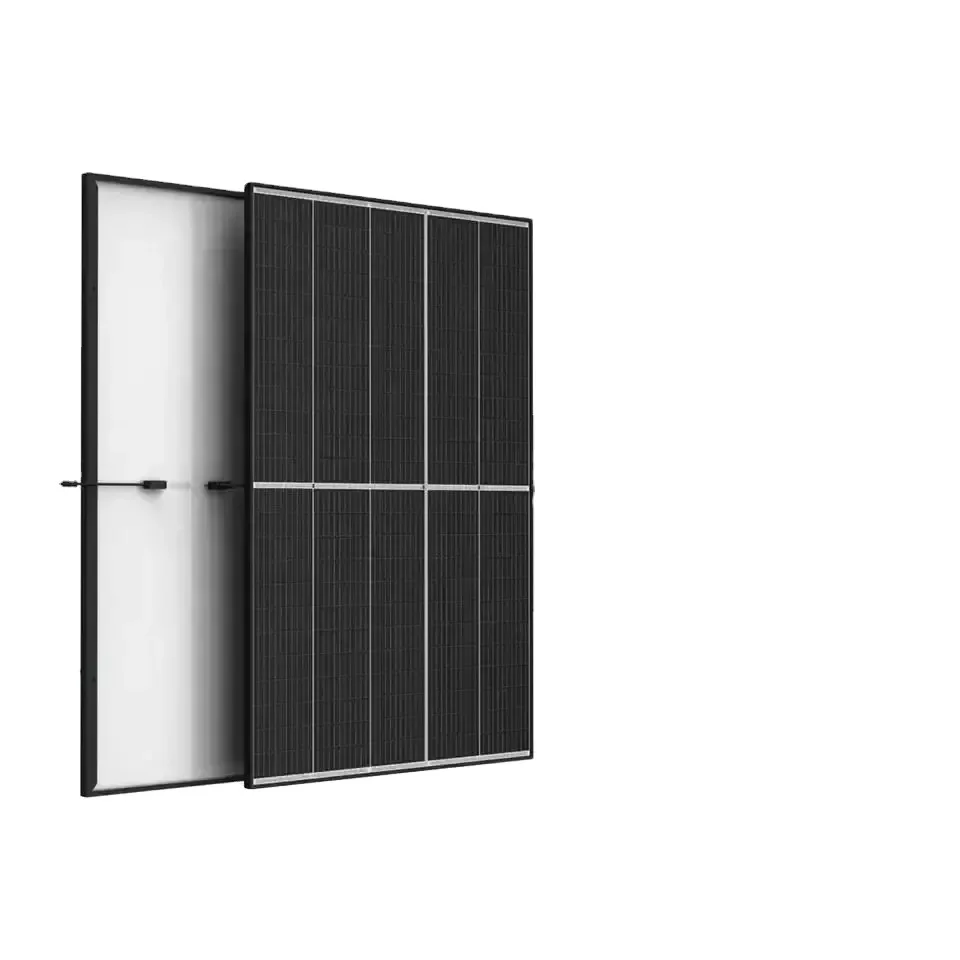

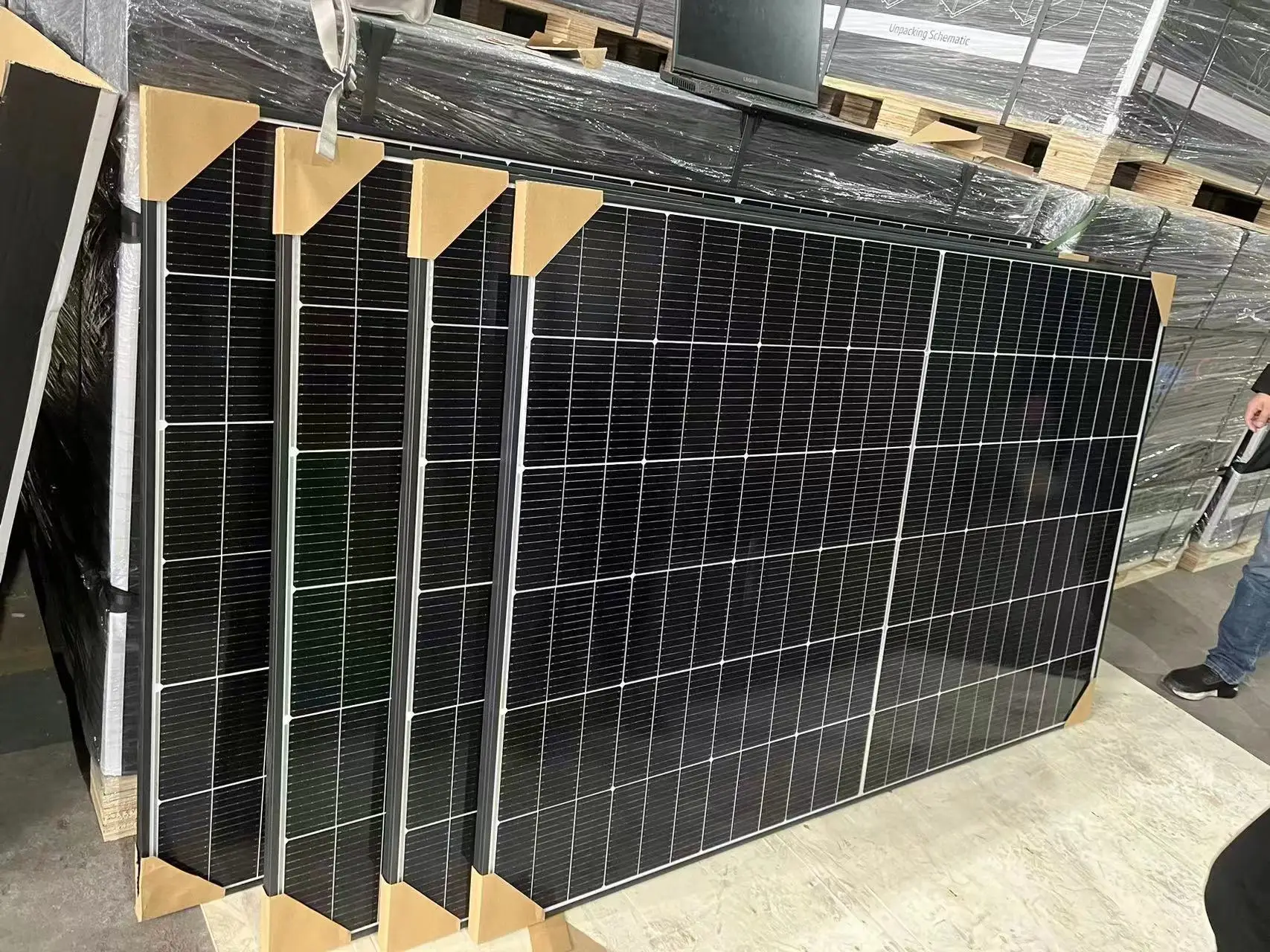

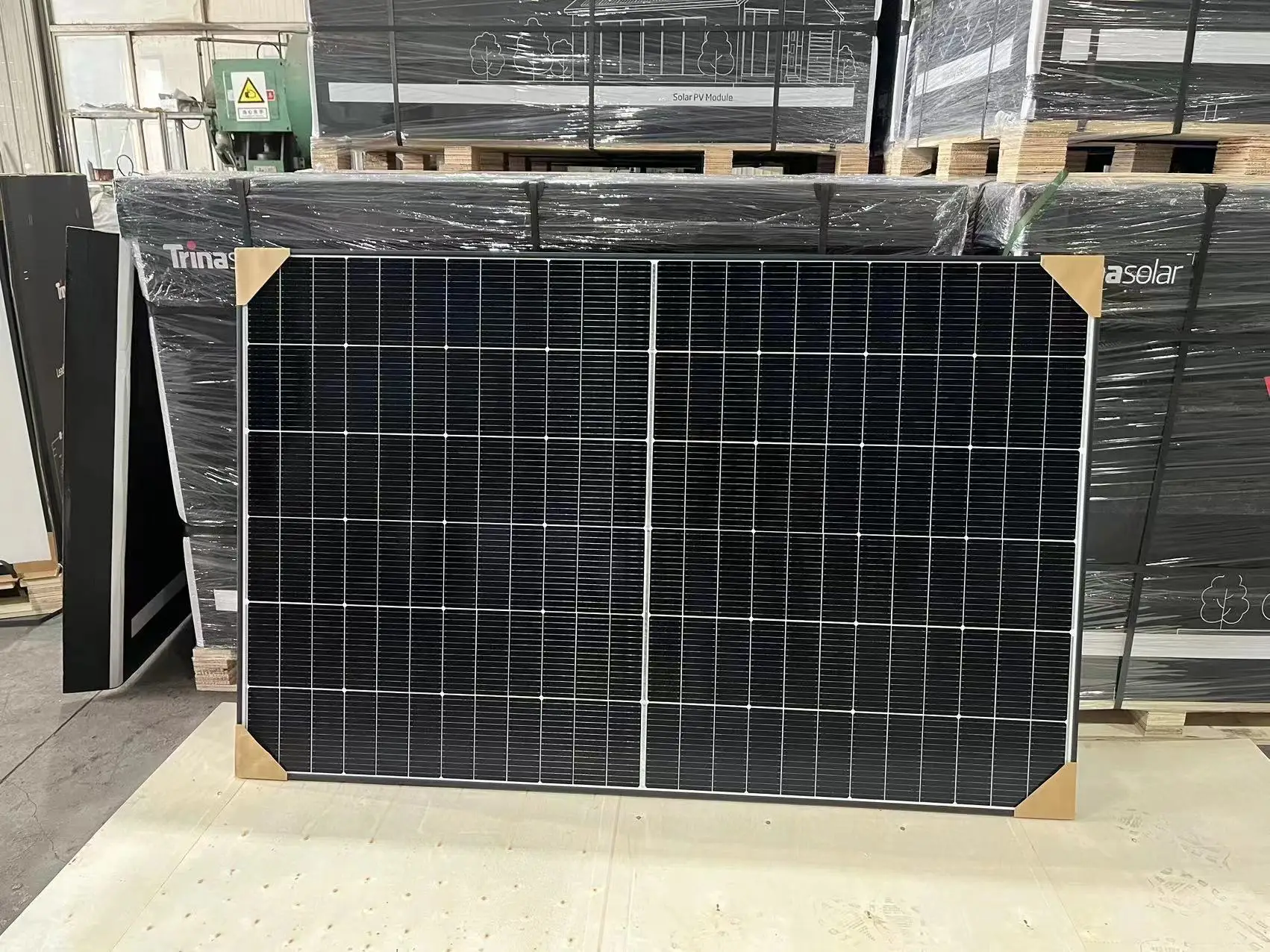

Trina Vertex S+ Monocrystalline 440w Mono Black Frame Solar Panel Dual Glass 435w 440w 445w 450w Pv Panel Solar
Product Description
Specification
Brand Name | Trina Solar |
Model Number | TSM-450NEG9R.28 |
Place of Origin | China |
Cell size | 210mmx210mm |
Type | Half Cell, Bifacial, Double-glass, N-TYPE |
Panel Dimensions | 1762*1134*30 mm |
Panel Efficiency | 22.5% |
Certificate | CE/IEC |
Warranty | 30 Years |
Product name | 450W Photovoltaic Solar Panels |
Solar cell | Monocrystalline Silicon Cells |
Frame | Black Anodized Aluminium Alloy |

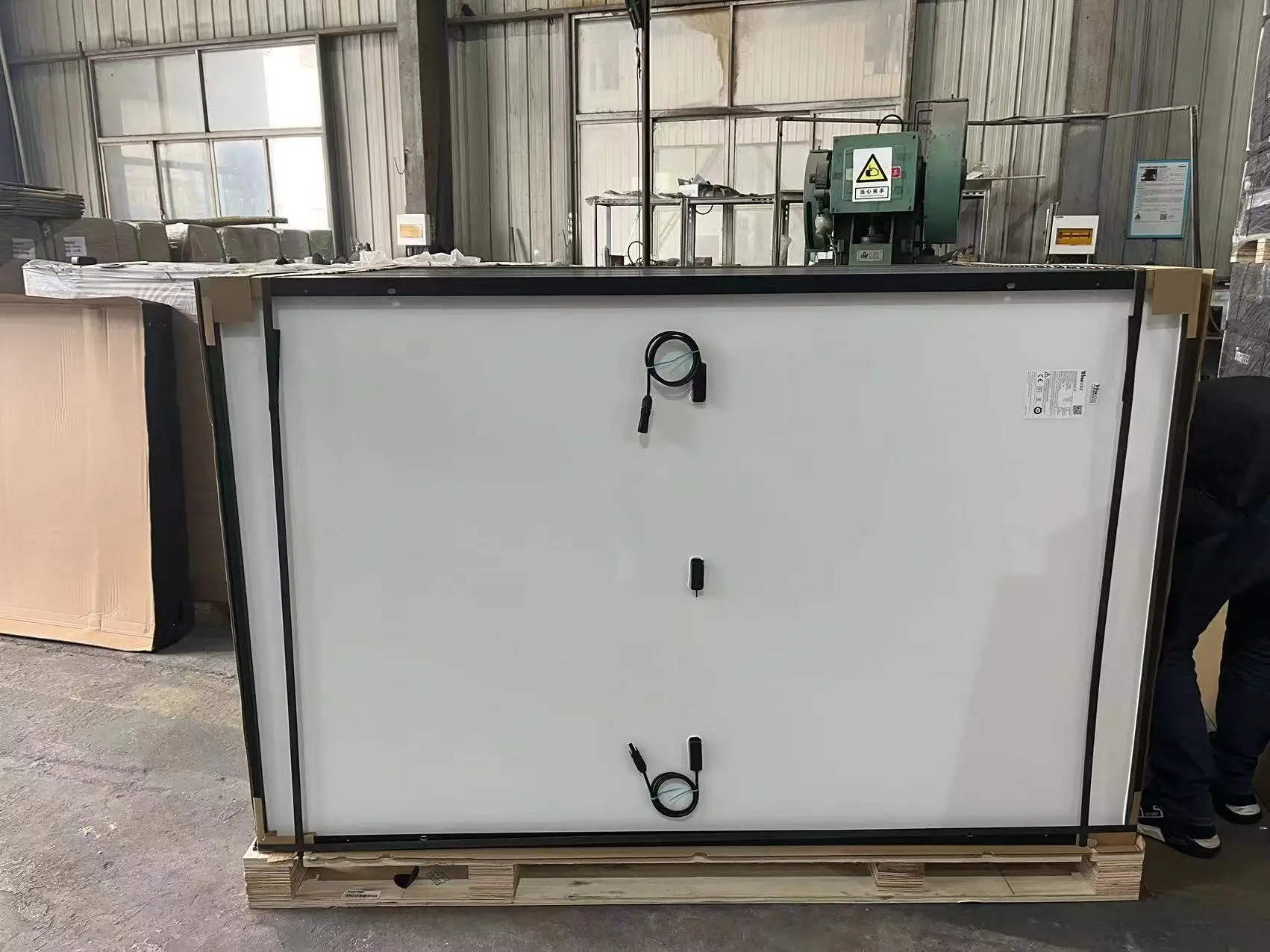

Junction Box | IP68 Rated |
Connector | MC4 Compatible Connector |
Front Glass | 3.2mm High\u007FTransmission |
Output cable | 4.0 Square Millimeter |
Operate Temperature | 40 ~+85 |
Weight | 21kg |
Application | Solar Home System |
ELECTRICAL DATA (STC) | ||||||||||||
Module Type | TSM-NEG9R.28 425-450w | |||||||||||
Maximum Power (Pmax/W) | 425 | 430 | 435 | 440 | 445 | 450 | ||||||
Maximum Power Voltage-VMPP(V) | 42.9 | 43.2 | 43.6 | 44.0 | 44.3 | 44.6 | ||||||
Maximum Power Current-IMPP(A) | 9.92 | 9.96 | 9.99 | 10.01 | 10.05 | 10.09 | ||||||
Open Circuit Voltage-VOC(V) | 50.9 | 51.4 | 51.8 | 52.2 | 52.6 | 52.9 | ||||||
Short Circuit Current-ISC(A) | 10.56 | 10.59 | 10.64 | 10.67 | 10.71 | 10.74 | ||||||
Module Efficiency η m (%) | 21.3 | 21.5 | 21.8 | 22.0 | 22.3 | 22.5 | ||||||

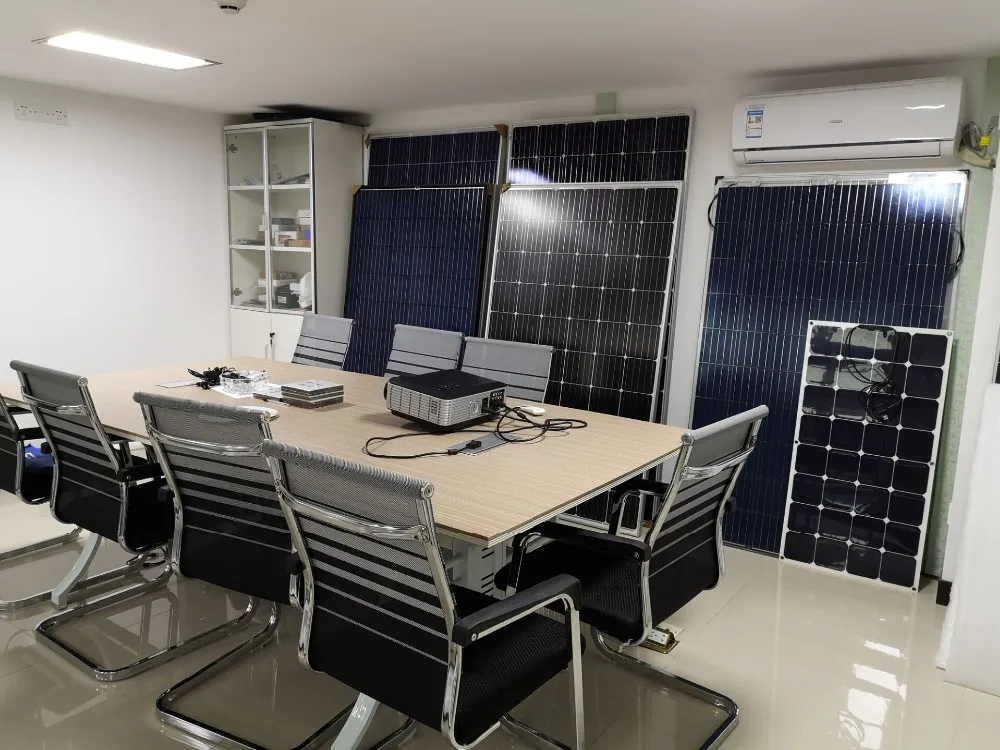

Our Company
Meisongmao Industrial Co., Ltd. has been in solar photovoltaic projects since 2009, serving the whole world. The total annual export volume is about 300MW. Now it supplies customers from more than 60 countries around the world. Our company has long offered photovoltaic solar modules of world famous brands at the most favorable prices.Mei Songmao is working with Installers, developers, contractors, wholesale retailers all over the world, and photovoltaic solar panels can be used to generate electricity at home, outdoor roofs, oceans, mountains, power stations, etc. Anywhere,Providing photovoltaic solar panels to government and commercial projects.
Our partner
Recommend Products

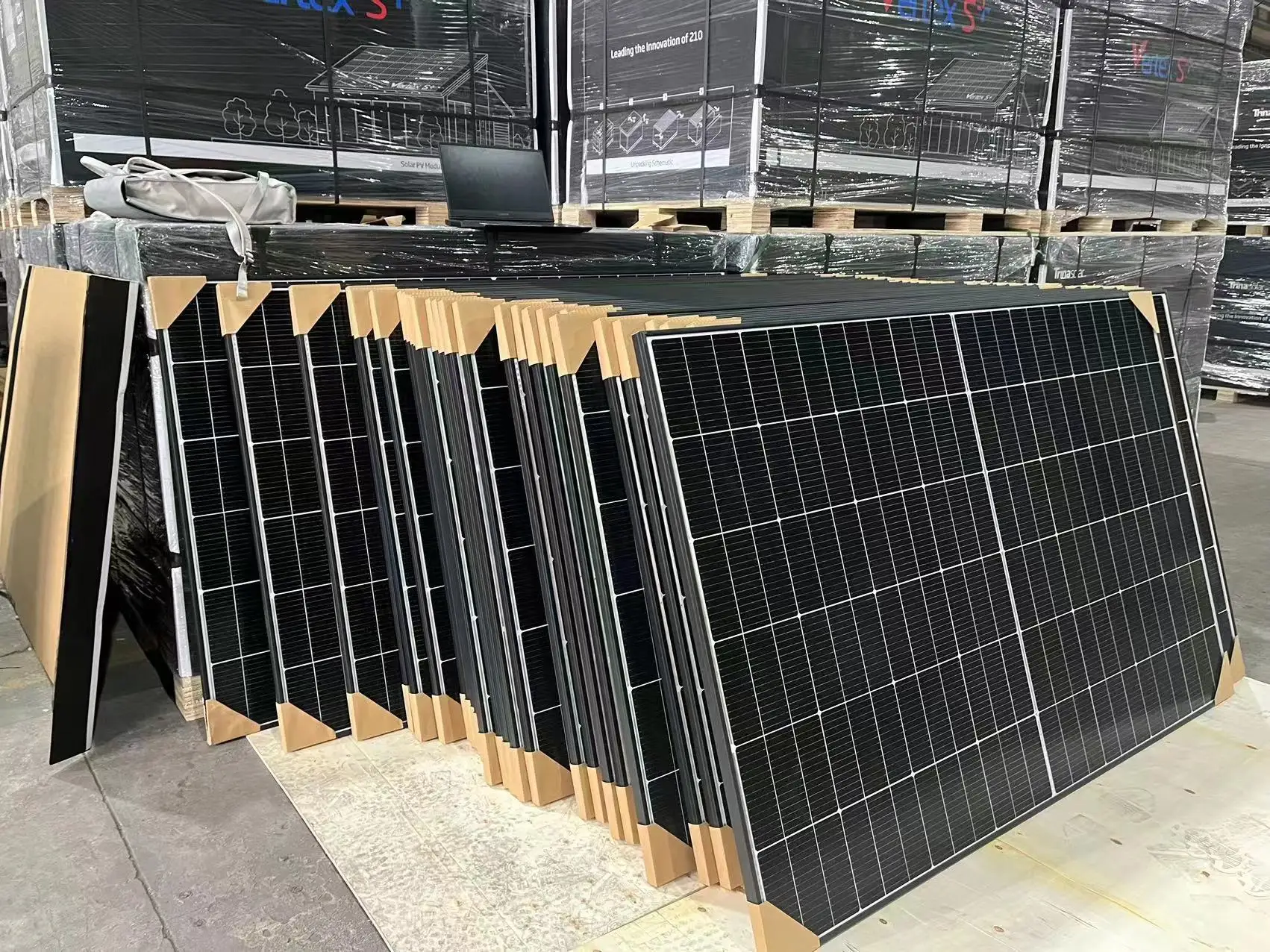

Package
