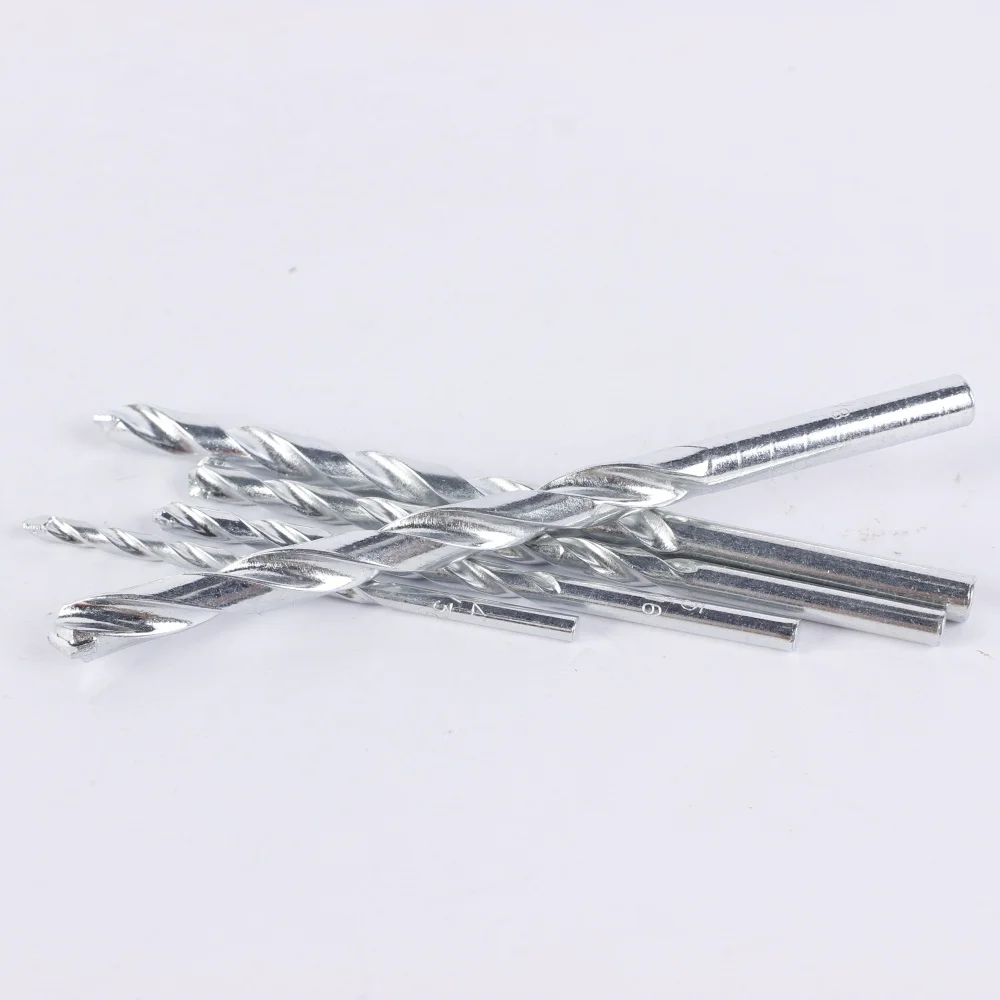

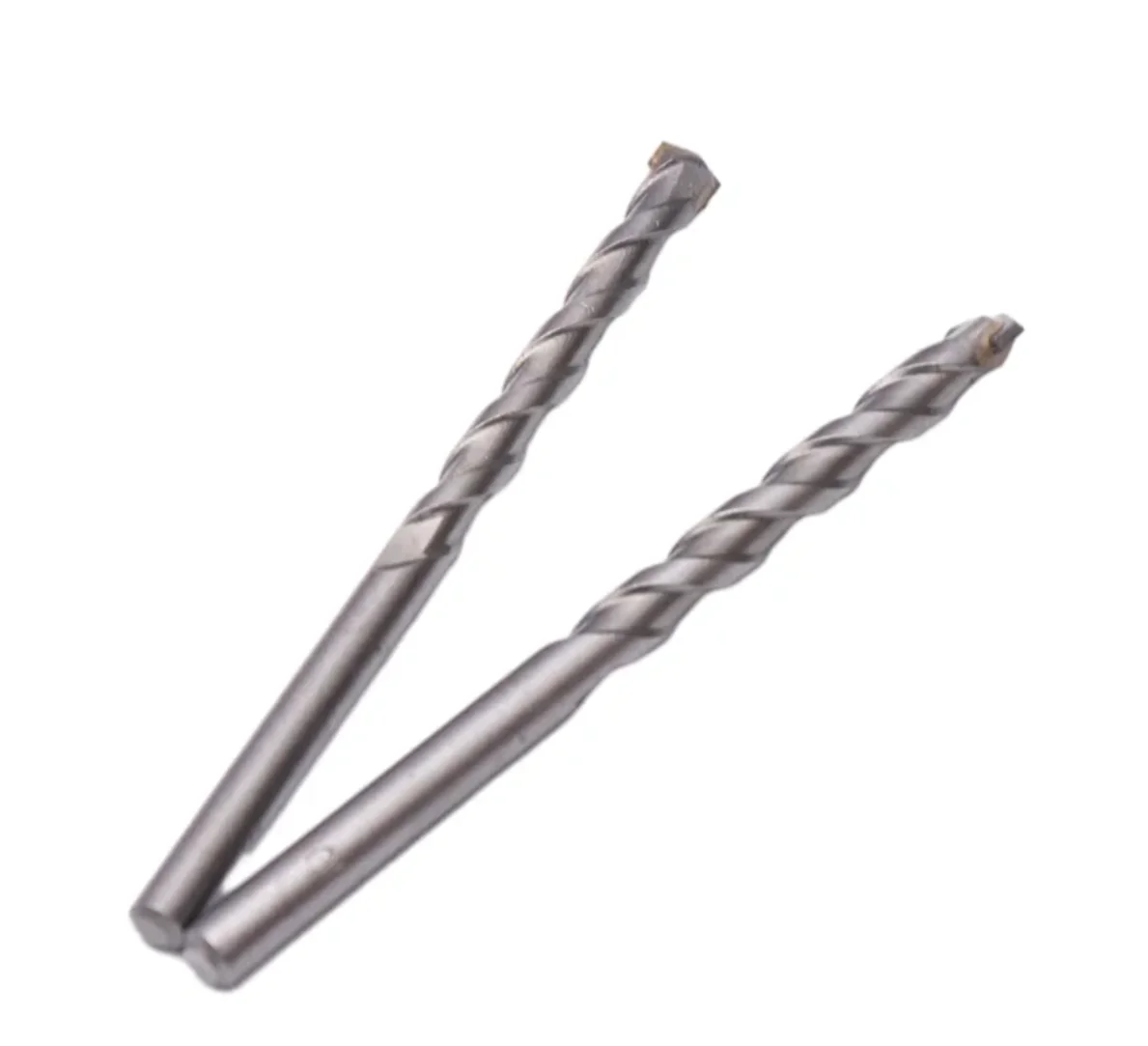

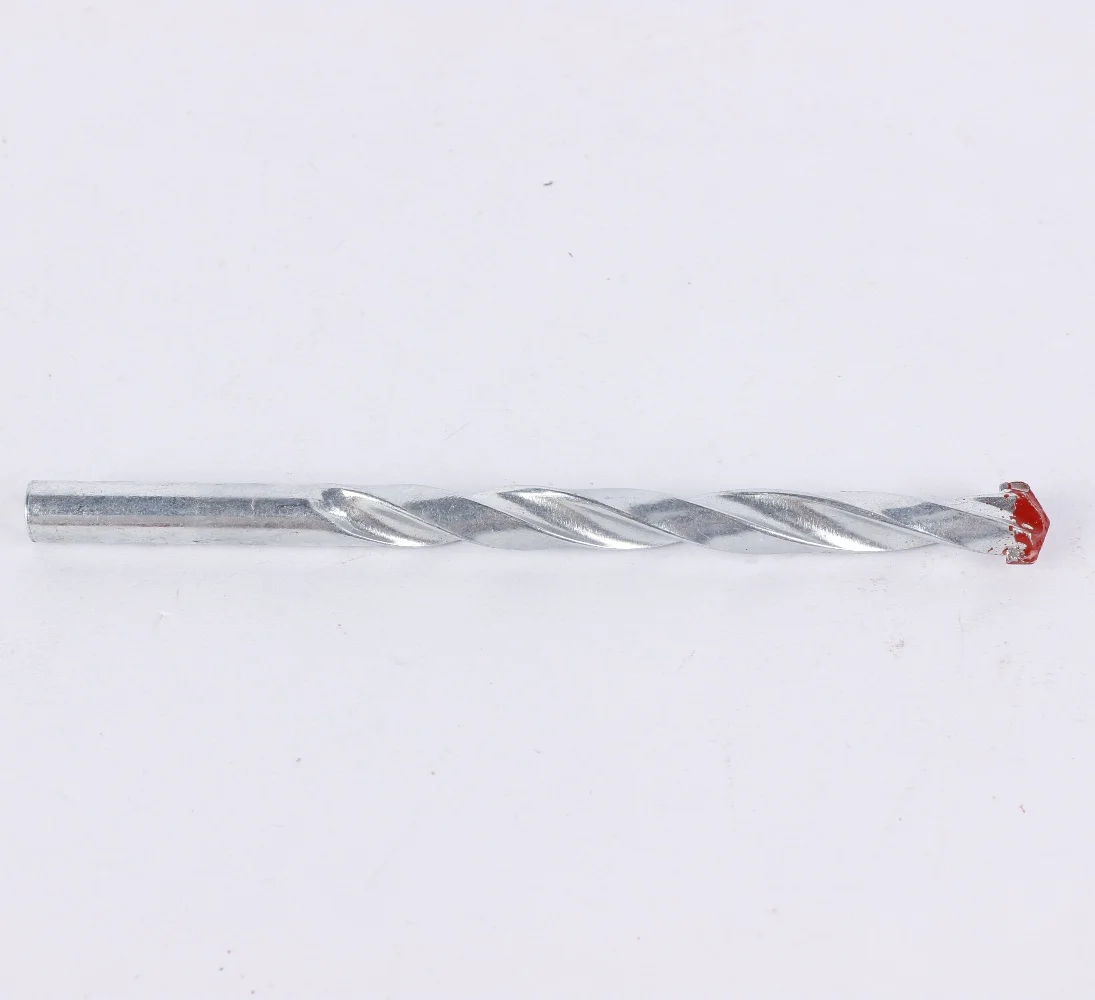

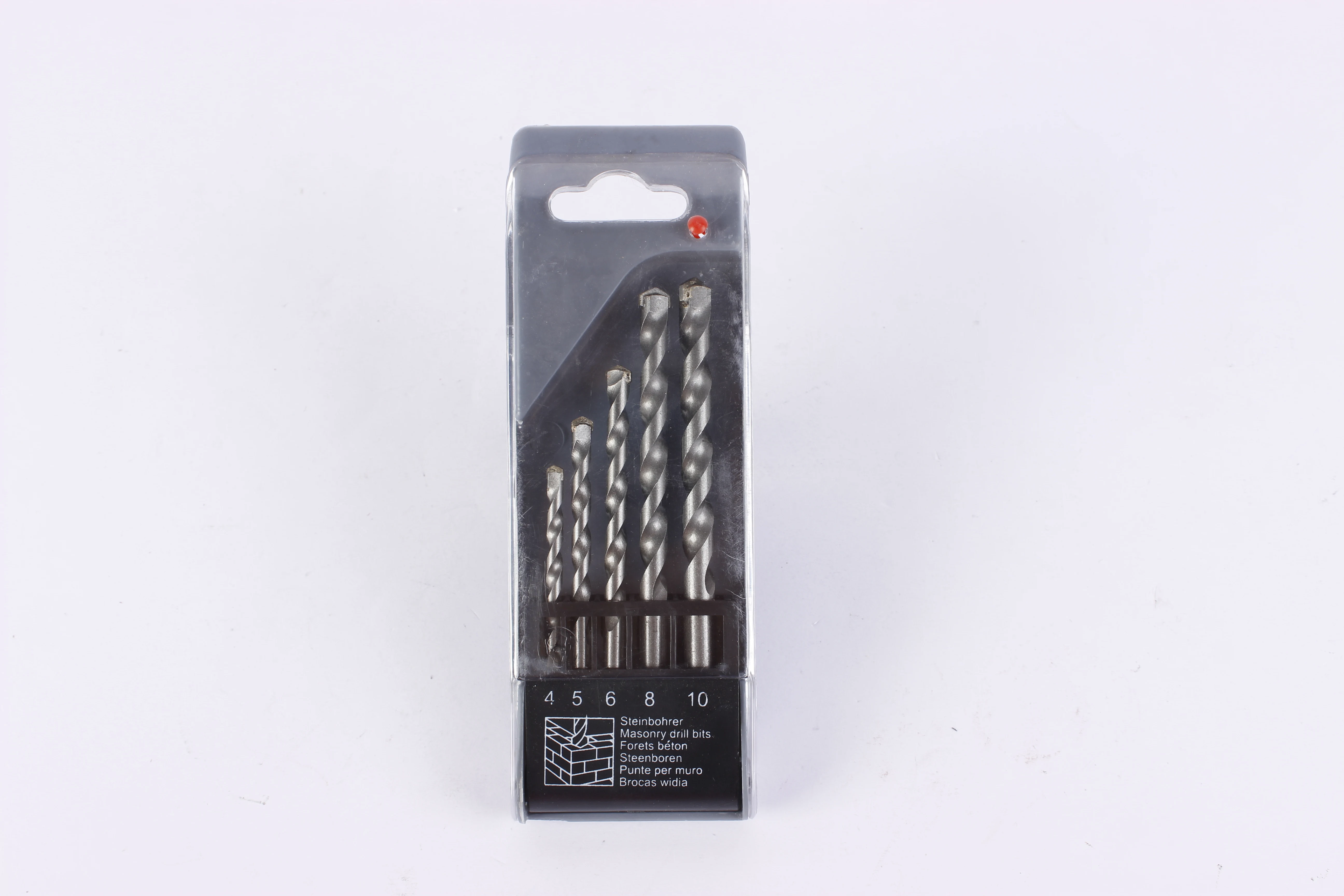

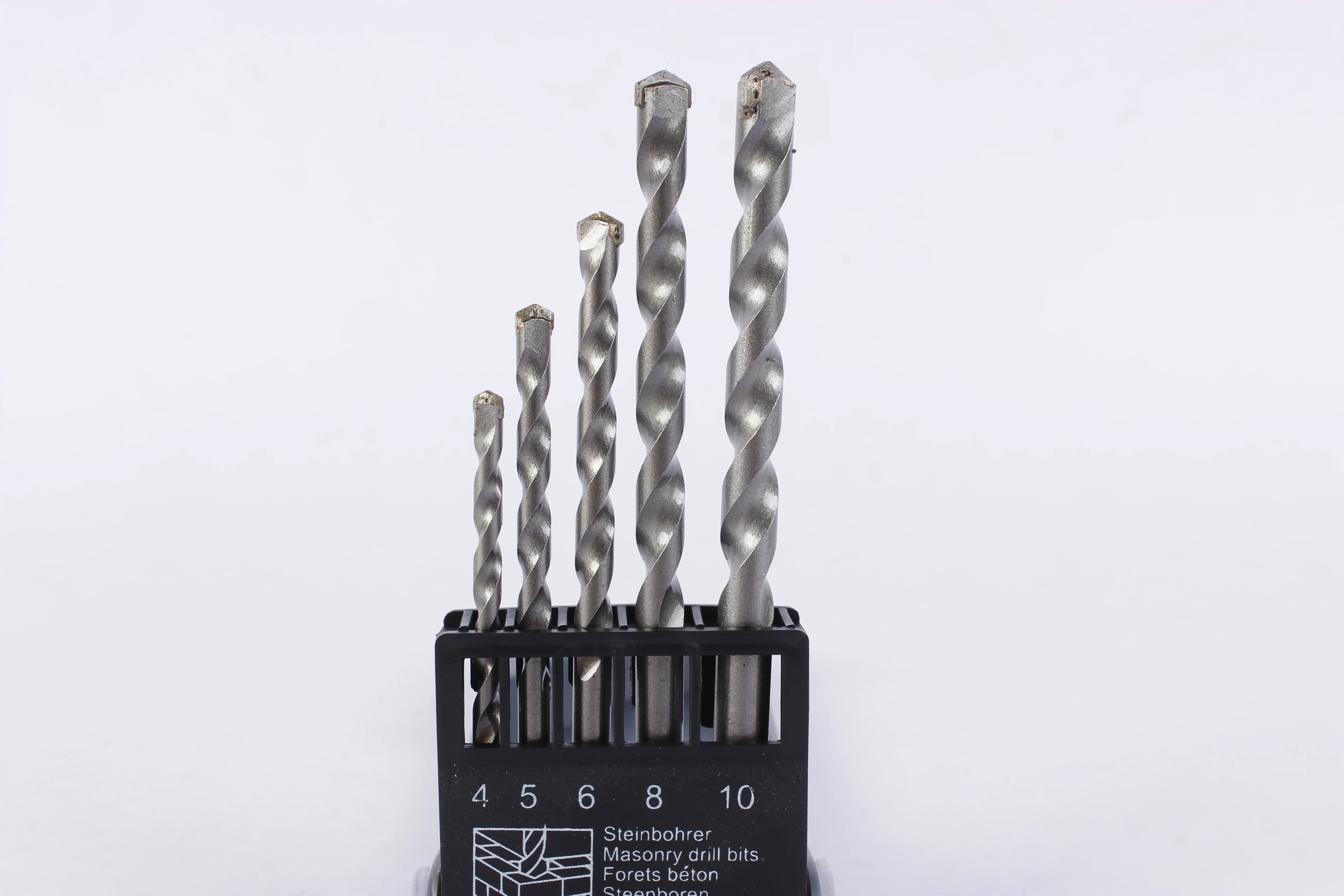

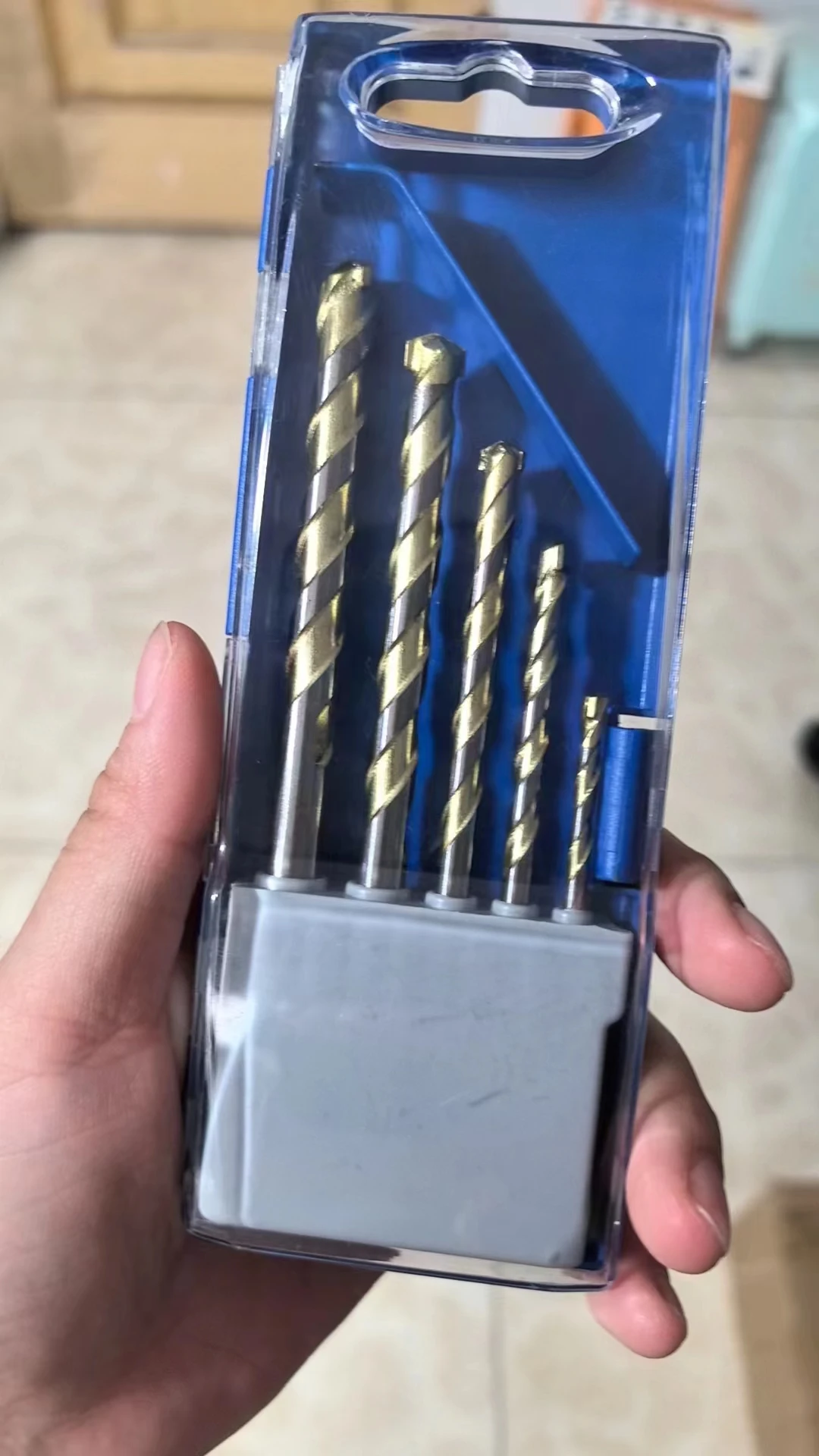

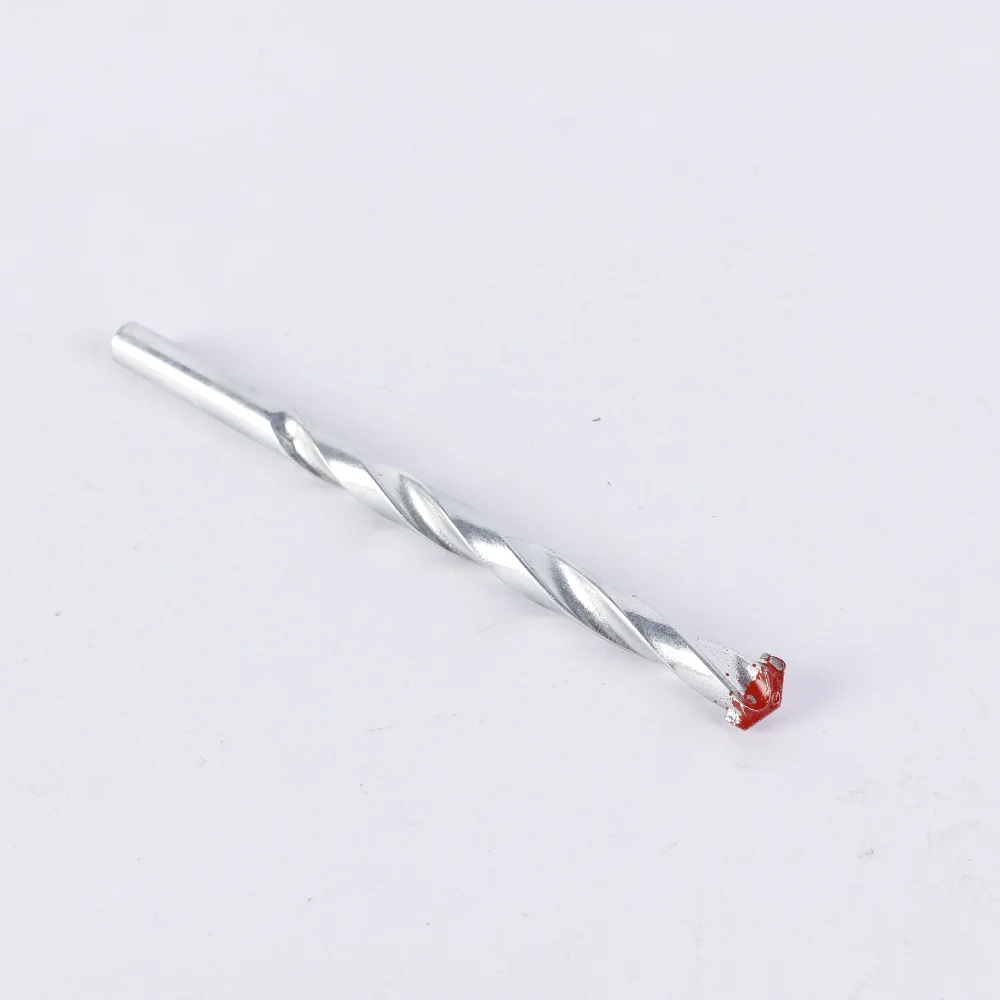

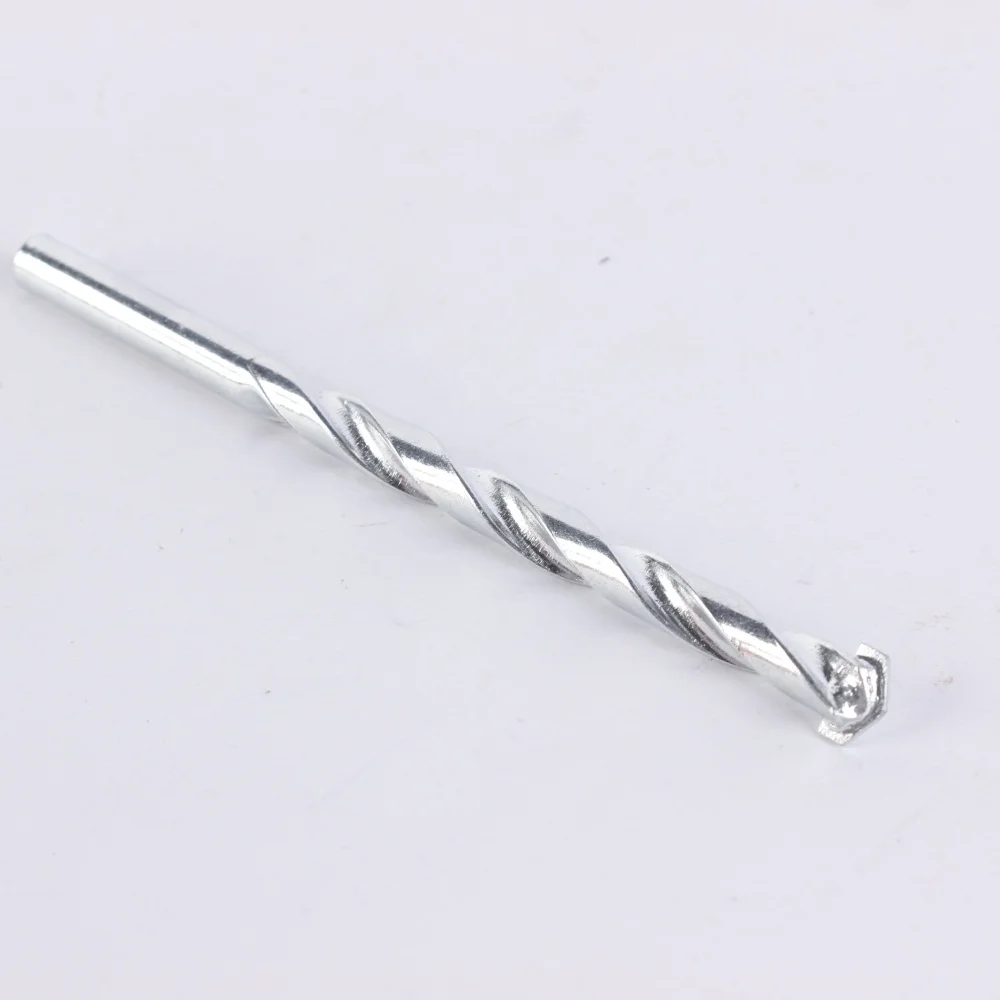

Product: | Masonry drill bit | ||||||
Brand: | HM(BLACK HORSE)/OEM/ODM | ||||||
Standard: | --- | ||||||
Shank Type: | Straight shank | ||||||
Size: | --- | ||||||
Material: | high carbon steel/Alloy blade | ||||||
Color: | Zinc Plated (We Also Have Sand Blasted, Chrome Plated, Copper Plated, Black & Bright) | ||||||
Split point: | Alloy blade | ||||||

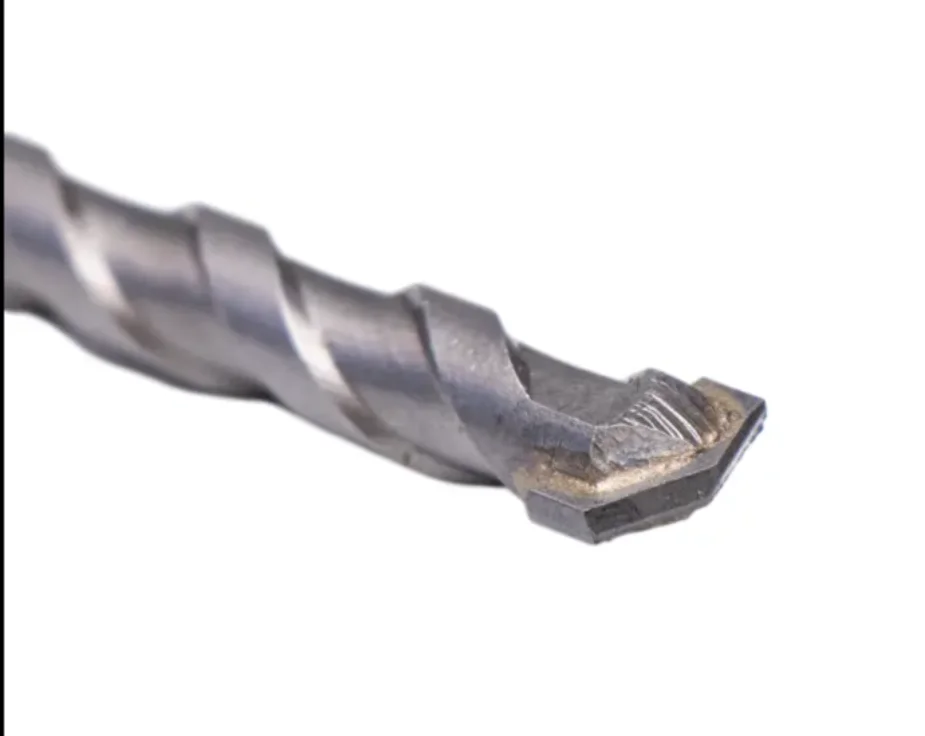

Process: | Milled Flutes and Welded Tip | ||||||
Hardness: | 45-50HRC | ||||||

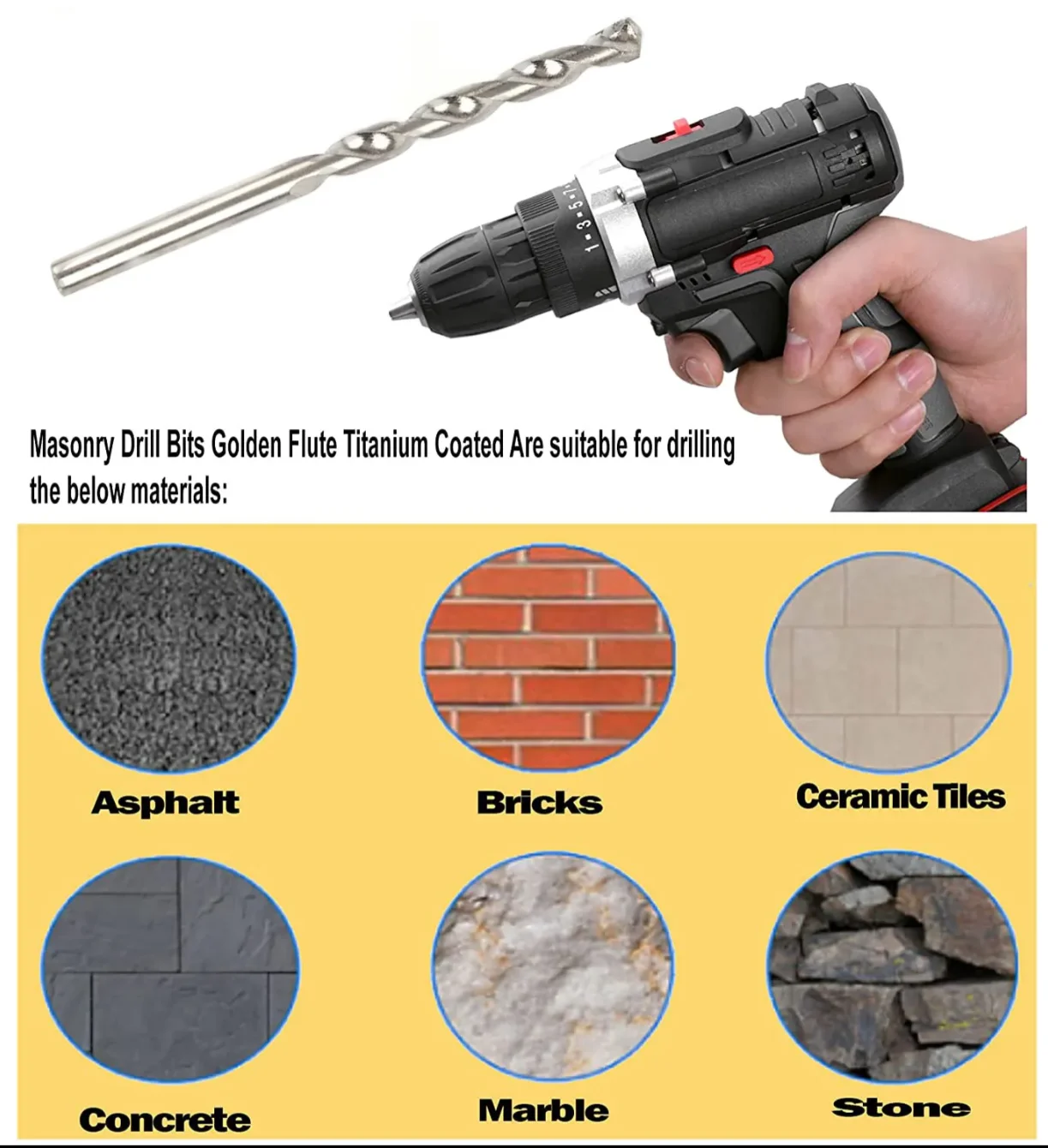

Application: | For masonry concrete brick | ||||||

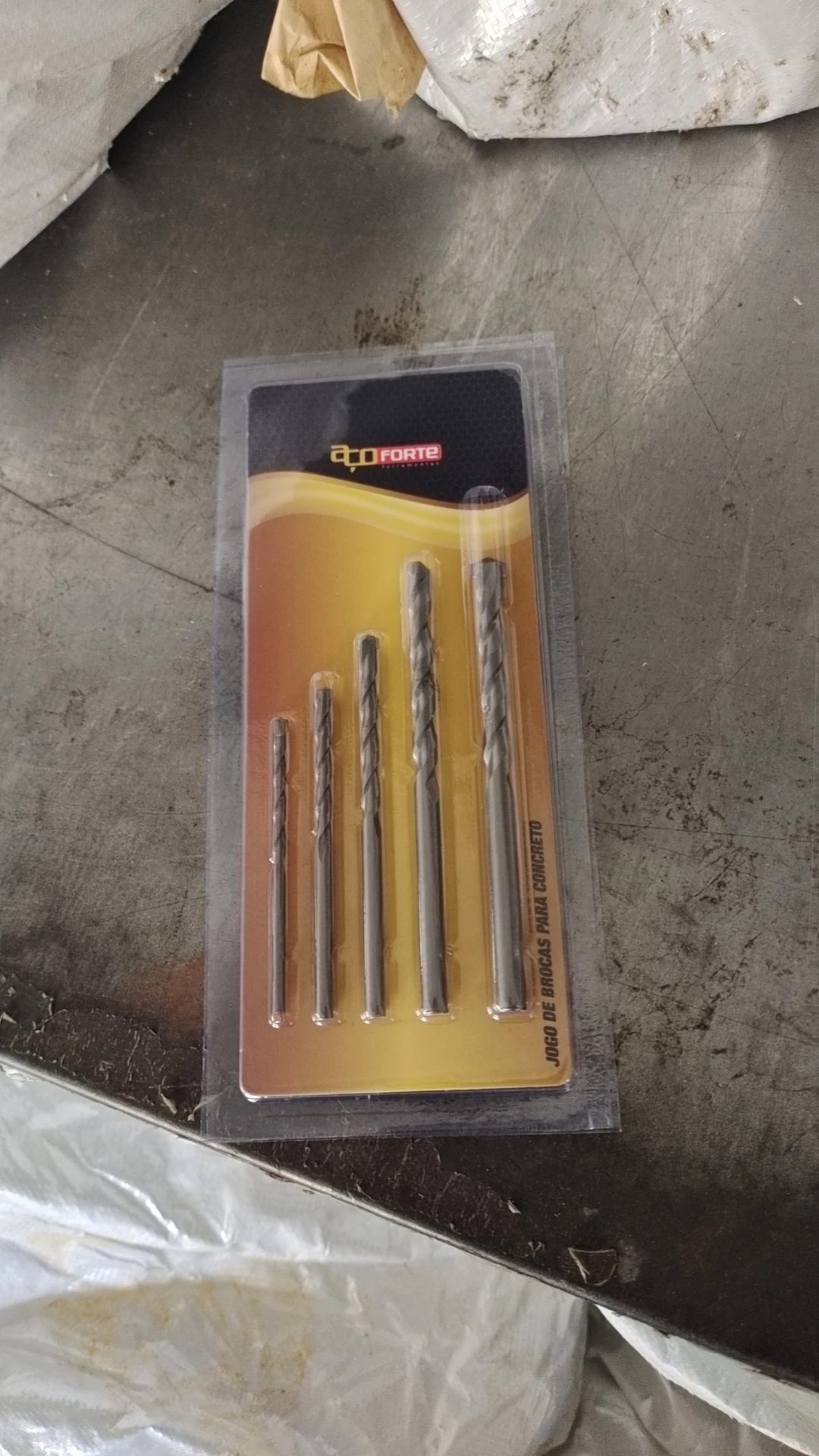

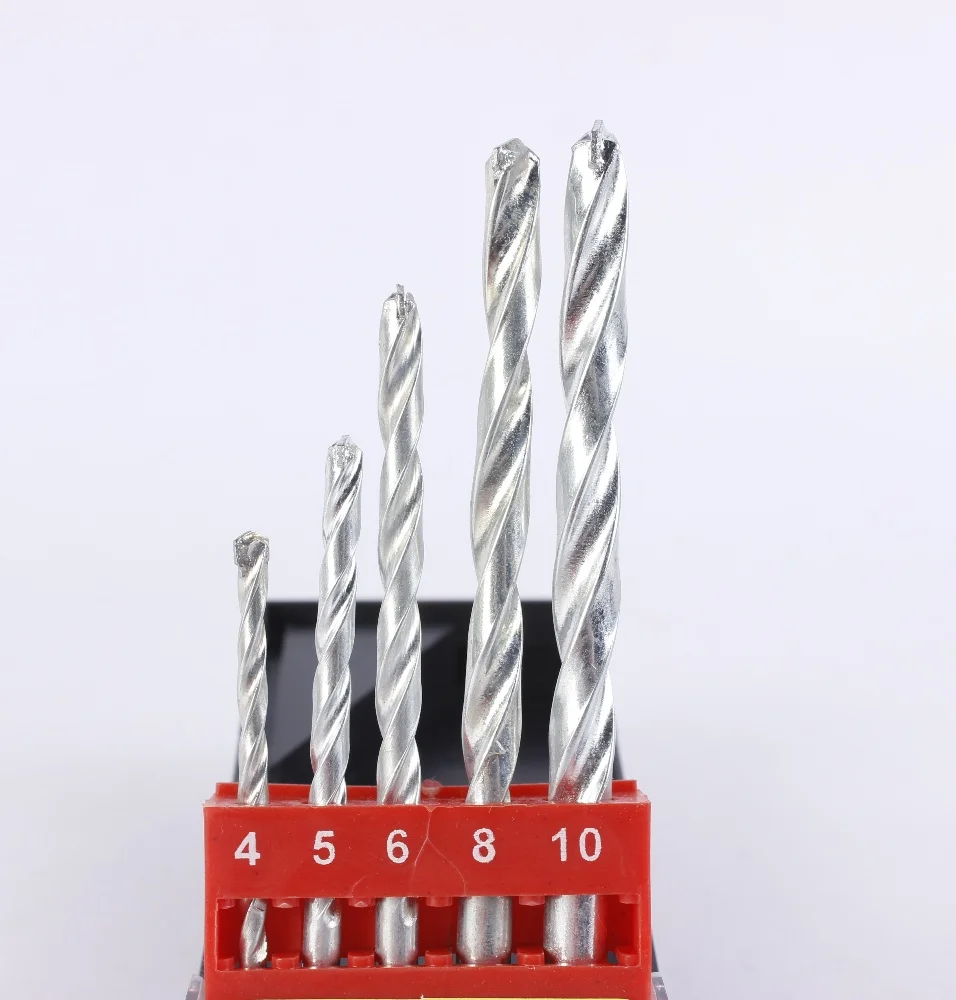

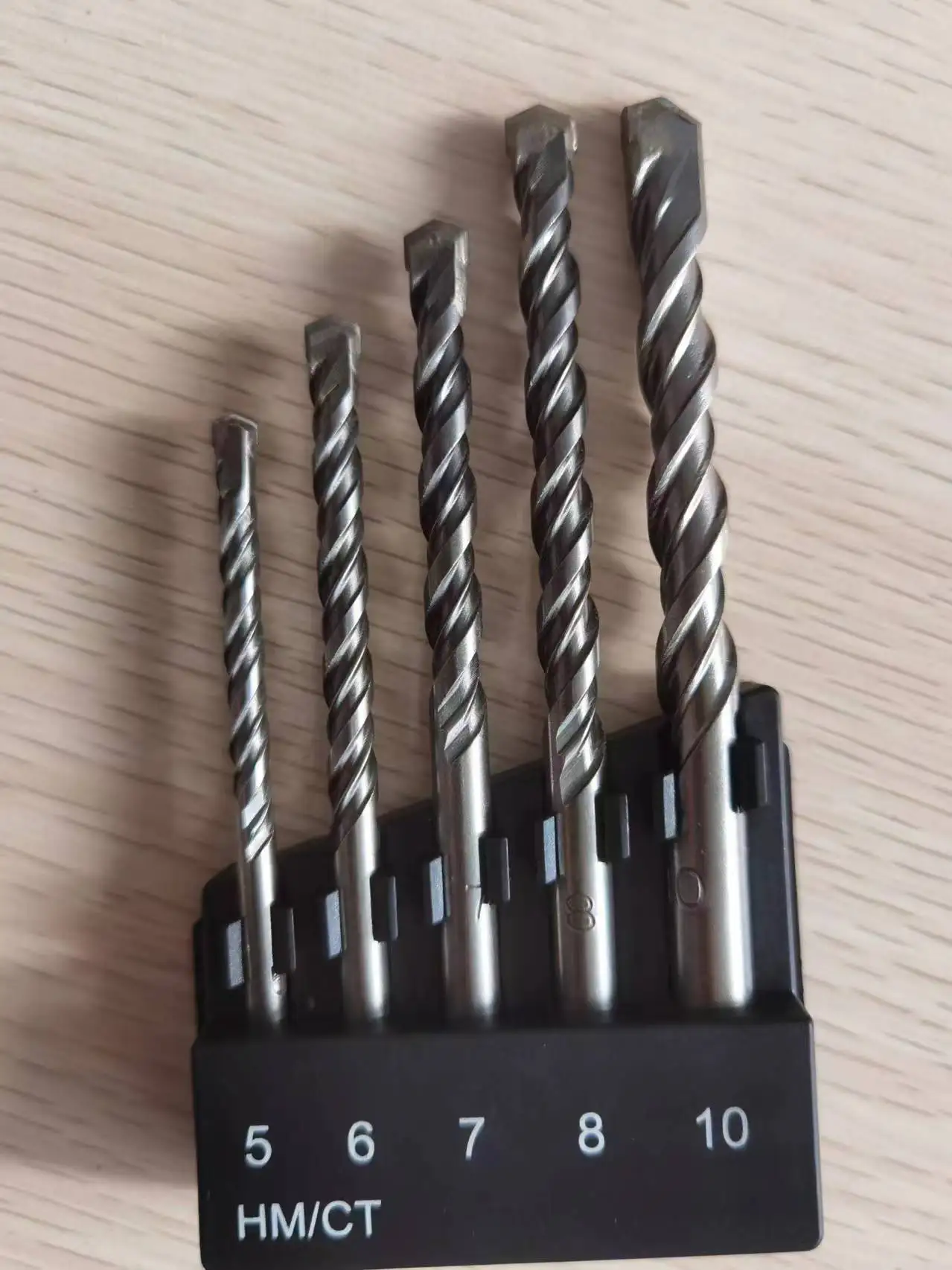

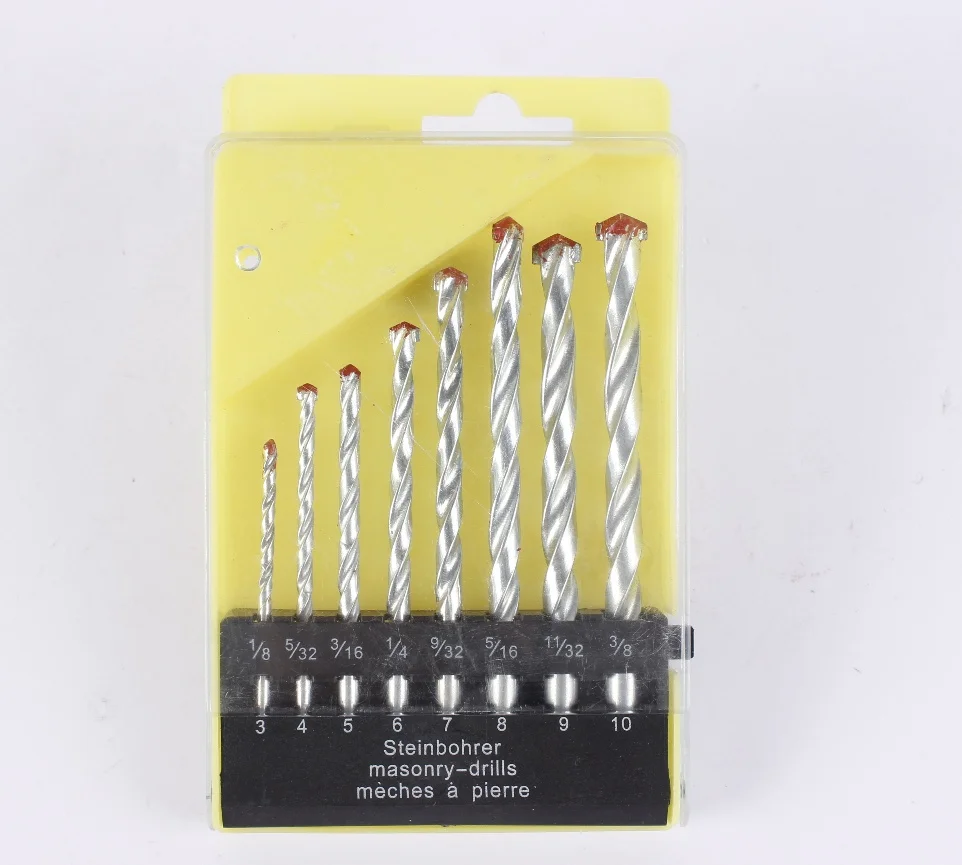

Package: | SETS | ||||||
Delivery Time: | withing 3-30 days according to your order quantity |
Product Size | ||||||||||
Diameter | Flute Length | Overall Length | Diameter | Flute Length | Overall Length | |||||
mm | mm | mm | Inch | Inch | Inch | |||||
3 | 30 | 70 | 1/8" | 1-1/2" | 3" | |||||
4 | 40 | 75 | 5/32" | 4" | 6" | |||||
5 | 50 | 85 | 3/16" | 2" | 3-1/2" | |||||
6 | 60 | 100 | 3/16" | 4-1/2" | 6" | |||||
7 | 60 | 100 | 1/4" | 2" | 4" | |||||
8 | 80 | 120 | 1/4" | 4" | 6" | |||||
9 | 80 | 120 | 1/4" | 8" | 12" | |||||
10 | 80 | 120 | 5/16" | 2-1/2" | 4-3/4" | |||||
11 | 90 | 150 | 5/16" | 4" | 6" | |||||
12 | 90 | 150 | 5/16" | 8" | 12" | |||||
13 | 90 | 150 | 3/8" | 4" | 6" | |||||
14 | 90 | 150 | 3/8" | 8" | 12" | |||||
15 | 90 | 150 | 7/16" | 4" | 6" | |||||
16 | 90 | 150 | 1/2" | 4" | 6" | |||||
17 | 100 | 160 | 1/2" | 8" | 12" | |||||
18 | 100 | 160 | 5/8" | 3" | 6" | |||||
19 | 100 | 160 | 5/8" | 8" | 12" | |||||
20 | 100 | 160 | 3/4" | 3" | 6" | |||||
21 | 100 | 160 | 3/4" | 8" | 12" | |||||
22 | 100 | 160 | 7/8" | 3" | 6" | |||||
23 | 100 | 160 | 7/8" | 8" | 12" | |||||
24 | 100 | 160 | 1" | 3" | 6" | |||||
25 | 100 | 160 | 1" | 8" | 12" |
