titanium manual globe valve

Product Overview

Description

PRODUCT INTRODUCTION

The company has the advantages of titanium, nickel and titanium alloy valve processing and manufacturing, including gate valve, globe valve, throttle valve, ball valve, butterfly valve, diaphragm valve, cock valve, check valve, discharge valve and bottom valve, etc. can be customized according to customer needs.

Scope of application for titanium, nickel and titanium alloy valves

Titanium valve

(1)Alkali industry: salt water, chlorine, sodium hypochlorite

(2)Paper industry: dioxide atmosphere, sodium hypochlorite

(3)Food industry: sodium glutamate

(4)Petrochemical industry: acetaldehyde, acetone, various ammonia and ethylene chloride

(5)Pharmaceutical industry: the production of medicine and pesticide

(6)Sewage, sea water equipment: sewage treatment, sea water desalination equipment

(7)Synthetic fiber industry: the production of titanium acid, etc.

(8)Fertilizer industry: urea, ammonium chloride, ammonium nitrate

(9)Acid industry: nitric acid, acetic acid, acrylic acid

(10)Iron and steel industry: electroplating, pickling, waste acid treatment and so on

Nickel valves

High concentration of alkali and reducing medium

Monel valve

sulfuric acid, phosphoric acid, hydrofluoric acid, hot soda, high temperature halogen and reducing medium.

Hastelloy valve

Hydrochloric acid, sulfuric acid, formic acid, phosphoric acid, organic acid and other media.

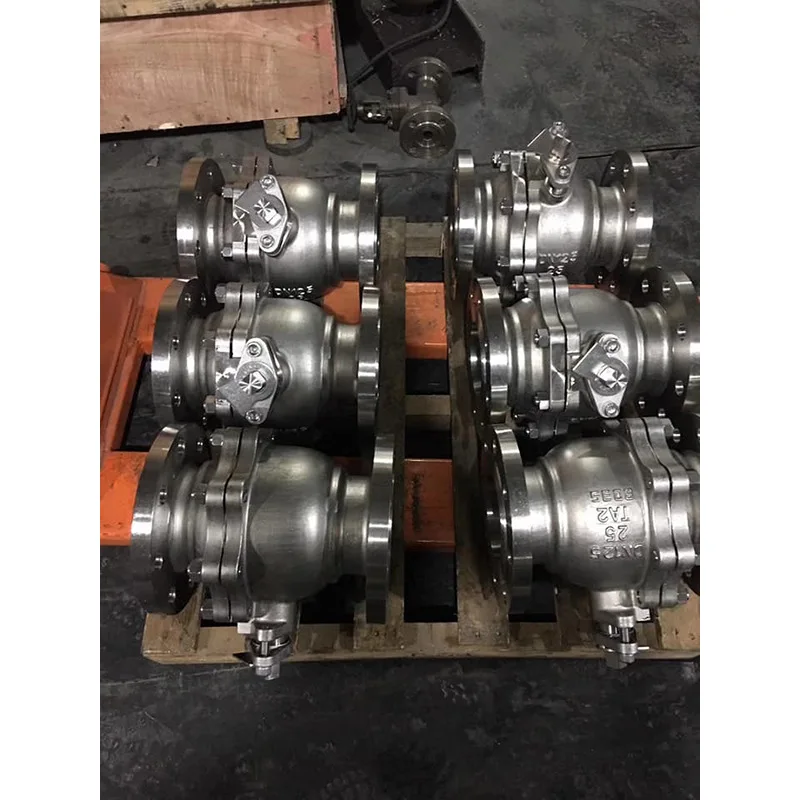

1.Ball valve

Product features

Titanium ball valve seat adopts elastic sealing structure, reliable sealing and easy opening and closing.The stem is provided with an inverted seal under structure, and the stem will not be ejected when the valve cavity is abnormal.Can be set up to 90 ° switch positioning mechanism, according to the need to lock to prevent wrong operation.

Product parameters

Test standard: JB/T9092, GB/T13927,API598

Pressure level: PN1.0-10.0 Mpa CLASS 150-600Lb

Main material : TA1, TA2, TA10,GR2, GR3

Nominal size: DN8-DN300 1/4 "-12"

Working temperature: ≤310 ° C

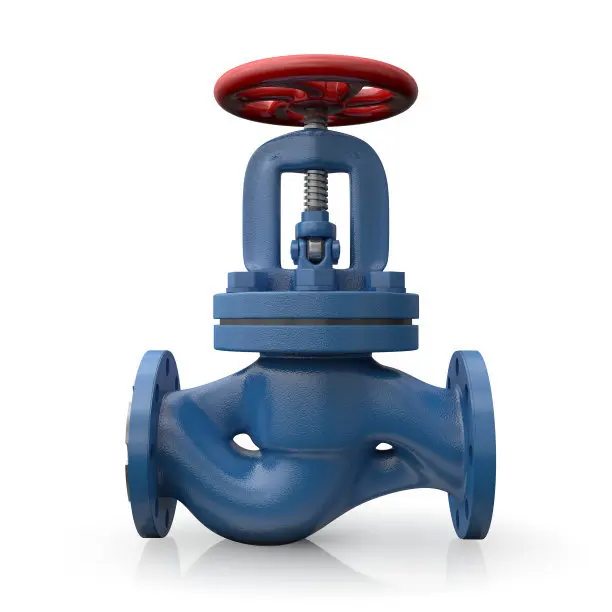

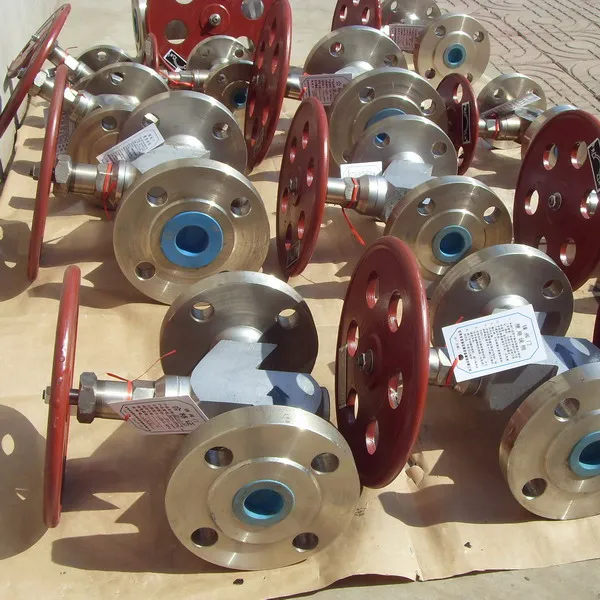

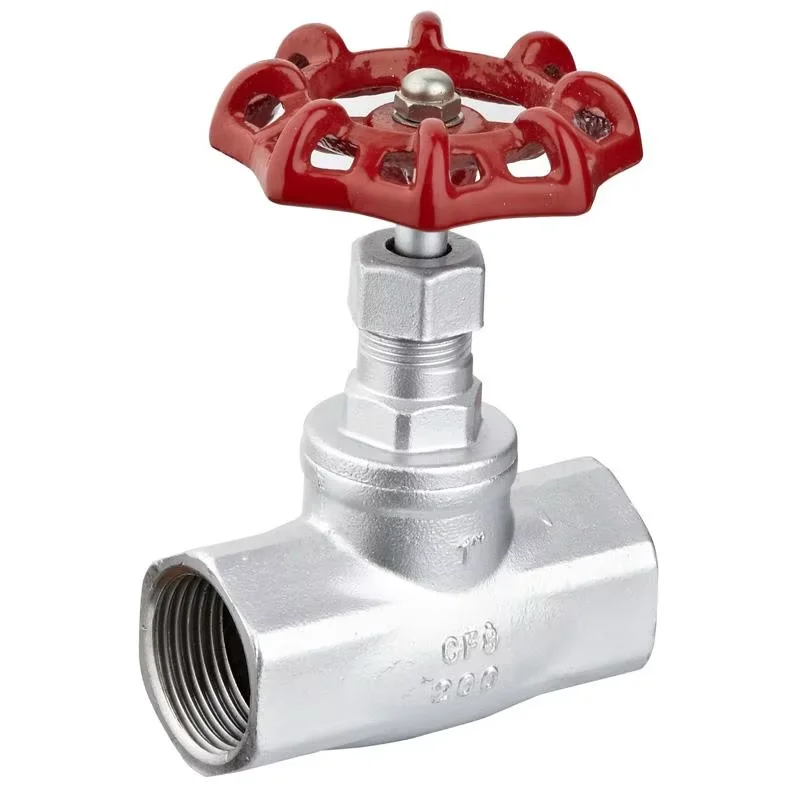

2.Globe valve

Product features

Compact structure, reasonable design, good valve rigidity, smooth passage, low flow negative coefficient.Flexible graphite and tetrafluorotetrafluoroin packing, reliable sealing, easy and flexible operation

Product parameters

Test standards :JB/T9092, GB/T13927, API598

Pressure rating: PN1.0-10.0 MPa CLASS 150-600Lb

Nominal size: DN15-DN300 1/2"-12"

Main material :TA1, TA2, TA10, GR2, GR3

Working temperature :≤310 ° C

3. Butterfly valve

Product features

Excellent corrosion resistance, suitable for flow regulation

Product parameters

Test standard : JB/T 9092 GB/T13927 API598

Pressure rating: PN1.0-4.0 Mpa. CLASS 150-300 Lb

Nominal size: DN50-DN1200  2"-48"

Main materials : TA1, TA2.TA10, Gr2. Gr3

Working temperature : ≤100℃

4. Gate valves

Product features

Clean compact design is reasonable, the valve is rigid, the passage is smooth, the flow negative coefficient is small. Flexible graphite and teflon packing in the form of flexible wedge and double wedge of rigid wedge single wedge and double wedge

Product parameters

Test standard JB/T9092, GB/T13927

Pressure level: PN1.0-16.0Mpa

Nominal size: DN15~DN1000

Main material : TA1, TA2, TA10, Gr2, Gr3

Working temperature: ≤200 ° C

5. check valve

Product features

Titanium check valve adopts the top structure, which reduces the connecting bolts of the] body under high pressure and large diameter, enhances the reliability of the valve and overcomes the influence of system dead weight on the normal operation of the valve.The utility model has simple structure, reliable operation and maintenance convenience, and is widely used in the separation and confluence or flow change device of medium in coal chemical industry, petroleum chemical industry, rubber industry, paper making and pharmacy pipelines

Product parameters

Test standard: JB/T9092, GB/T13927 API598

Pressure level: PN10-100 MPa CLASS 150-600Lb

Nominal size : DN15~DN500

Main material: TA1 TA2, TA10, Gr2, Gr3

Working temperature: ≤310 ° C
