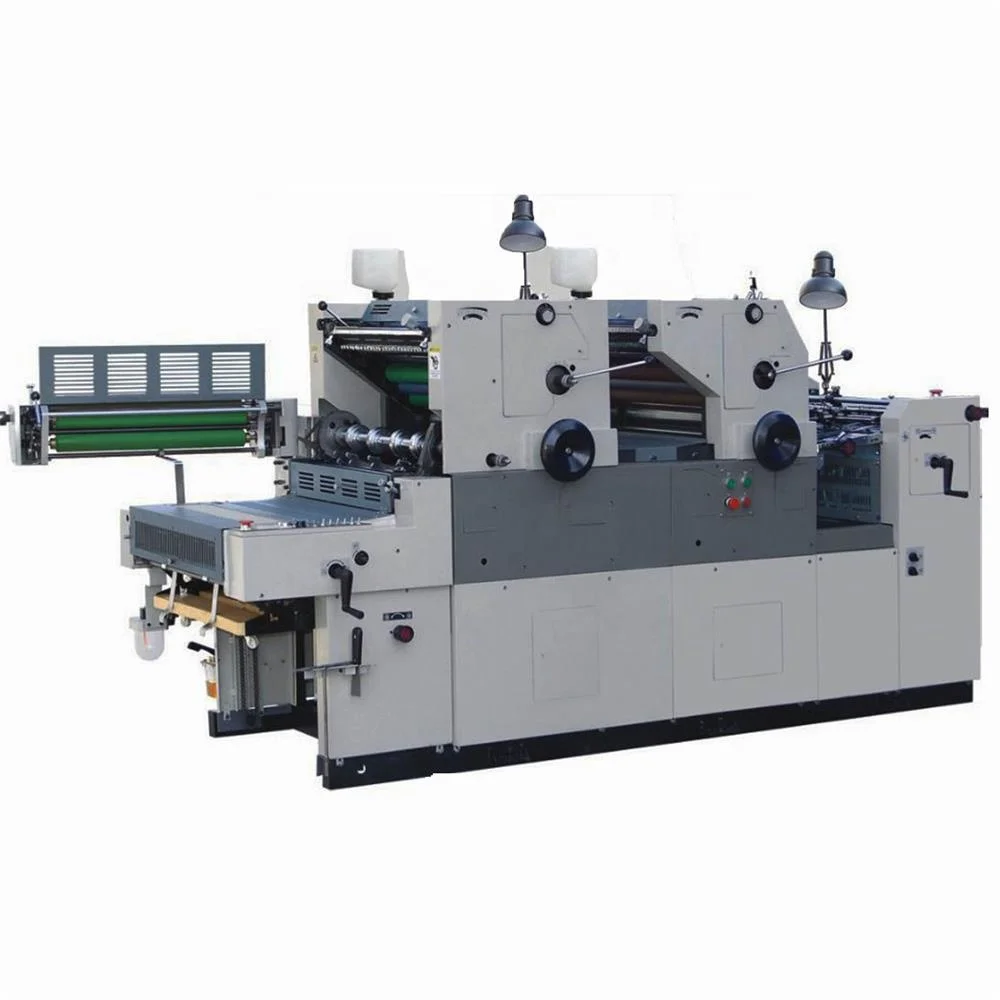

963 two color offset printing machine, Japanese offset printing machines
- Category: >>>
- Supplier: Shanghai Xsheen Machine Electron Technology Co. Ltd.
Share on (1601258949392):
Product Overview
Description
two color offset printing machine, Japanese offset printing machines
Product Description

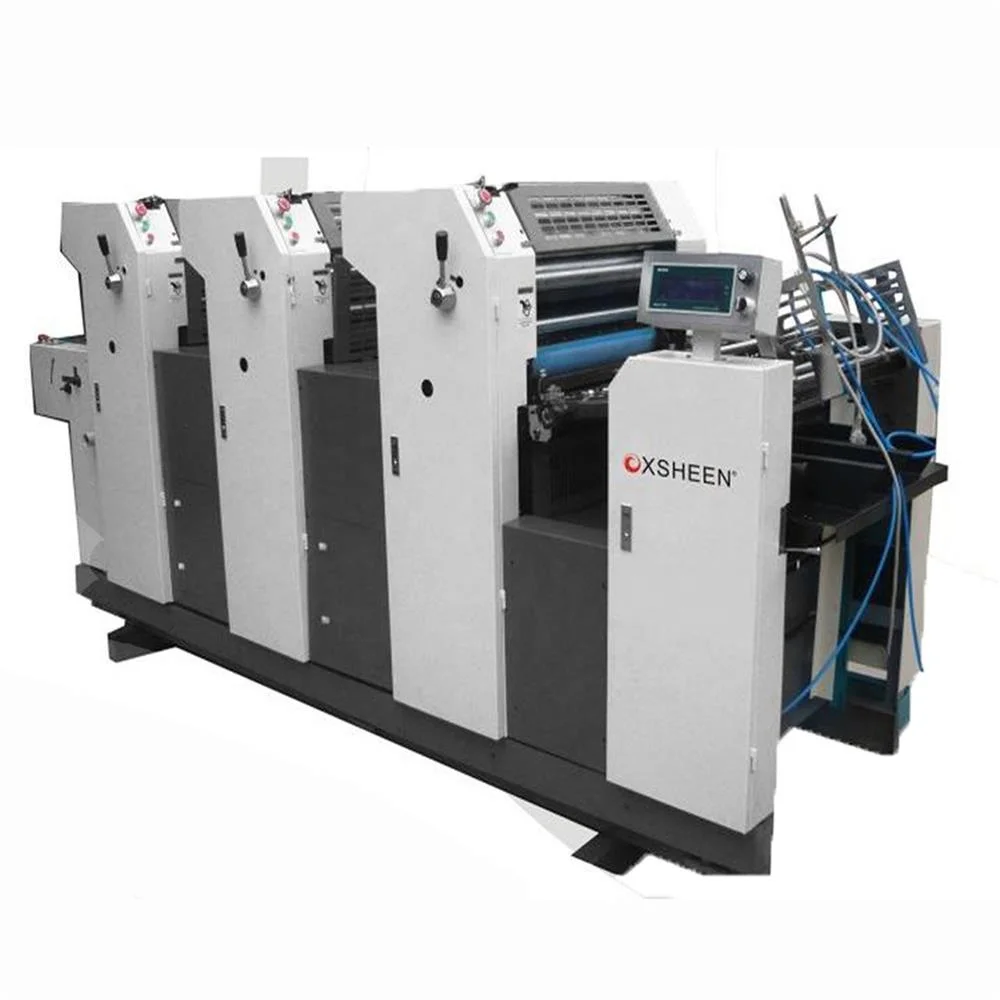

XH-447IIG/456IIG/462IIG four color offset press machine
XH-447IIGNP/456IIGNP/462IIGNP four color offset press machine with numbering & perforating
Features
1. Compact structure, running Steady, easy operation, Compared with other similar models, The Domestic Leading Level. The machine does not only print multiple color overprints, but also single unit print .Flexible Application
2. each unit adopt three ink form rollers and two water form rollers which are used to assure the quality of color printing .Supply water , ink uniformity, print clearly
3. Supplying water, ink, plate pressure adopts pneumatic control, operate easily, Stable performance
4. Feeding paper smoothly, overprinting precision
5. Touch screen operation display device, Easy operation
6. Electrical part adopts advanced PLC control system, a high degree of automation
Technical data
Model | XH447IIG/XH447IIGNP | XH456IIG/256IIGNP | XH462IIG/462IIGNP |
Max. Paper size | 470x365mm | 560x400mm
| 620*450mm |
Max. Printing area | 450x345mm | 550x375mm | 610*440mm |
PS Plate size | 470x395x0.15mm | 560x420x0.15mm | 620*485*0.15mm |
Rubber blanket size | 466x415x1.95mm | 560x455x1.95mm | 620*505*1.95mm |
Paper weight | 28-250gsm | ||
Paper Speed | 2000-8000sheets/h | ||
Power motor | 2.1+0.75KW | ||
Power supply | 220V 50HZ Single phase | ||
Weight | 1800kg/2000kg | 2400kg/2600kg | 2500kg/2700kg |
Over dimension | 4.6x0.935x1.4m | 4.6x1.04x1.4m | 5.5x1.12x1.46m |
Company Information
You can contact us on mobile/whatsapp:+86 18621990329
