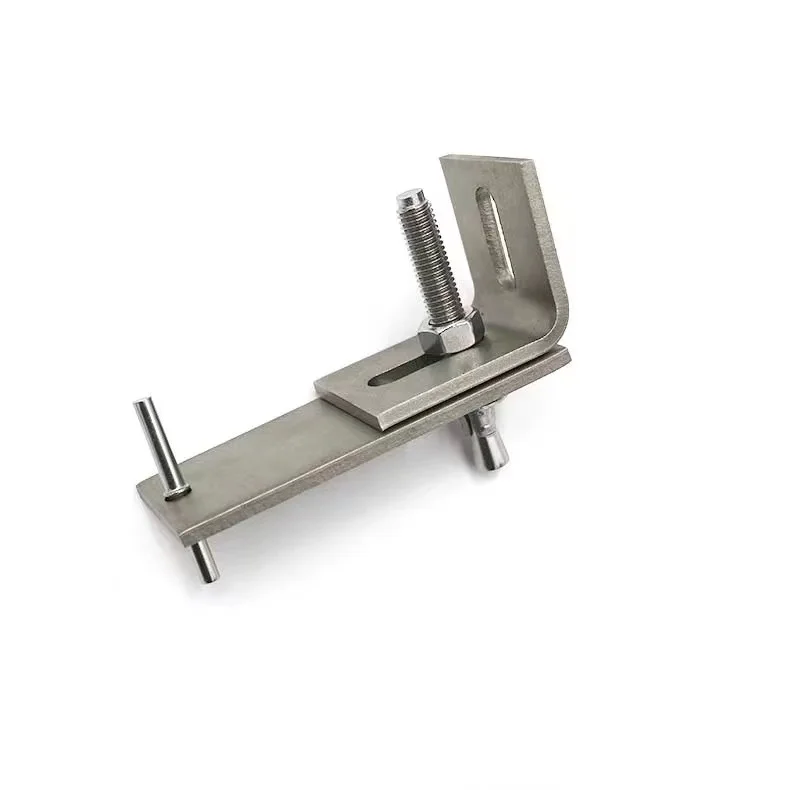

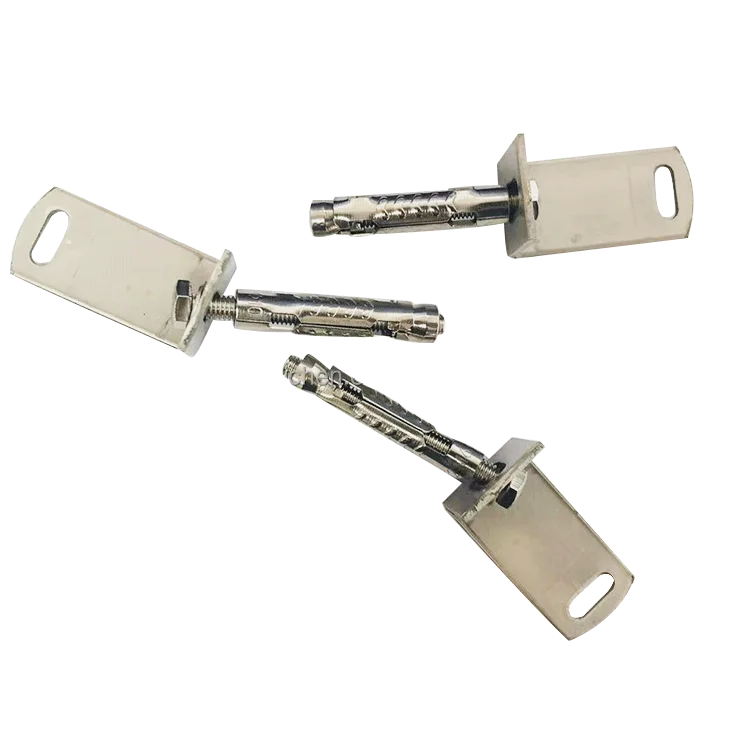

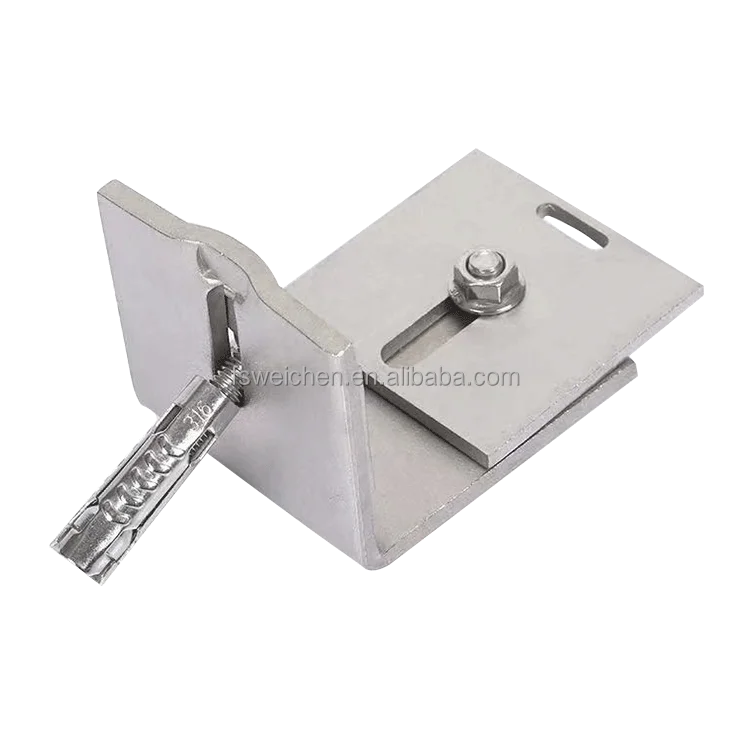

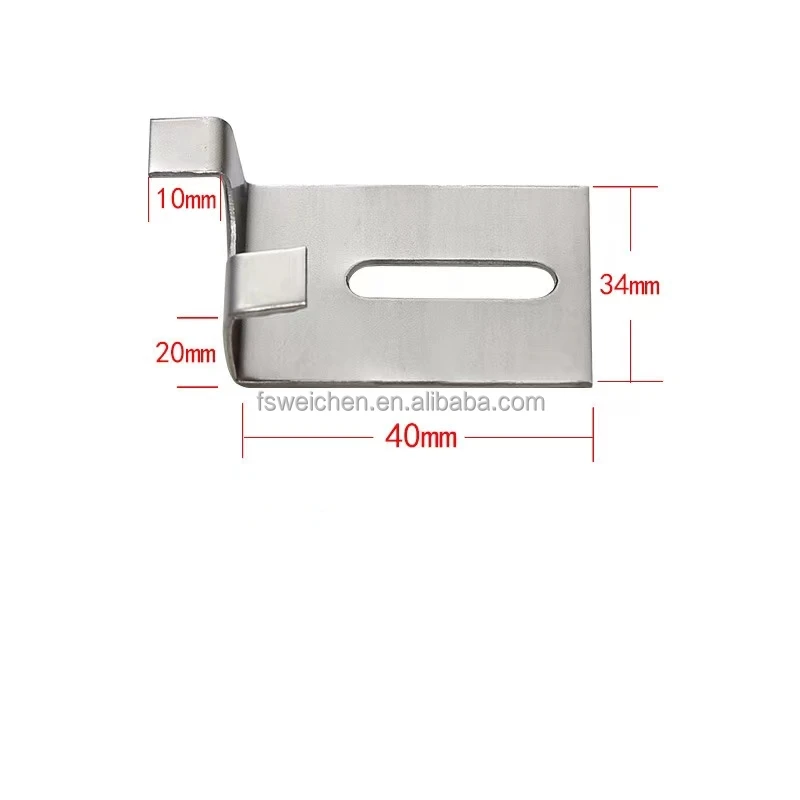

Dry Granite Stone Clamp Curtain Wall Fittings L Anchor
- Category: >>>
- Supplier: Wisine Fasteners And Metal Import Export Co. Ltd.
Share on (1601258968014):
Product Overview
Description
Product Details

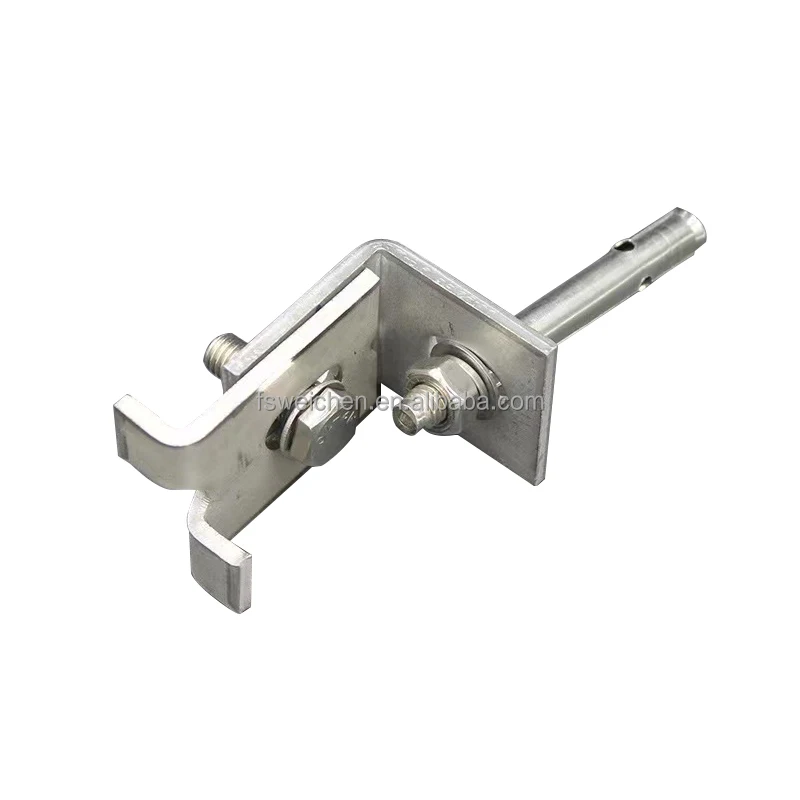

Product name | Stone fixing system cladding L anchor |
Material | Stainless steel :SS304 SS316 SS201 SS303 SS316 SS316L SS904L SS1803 |
Standard | DIN,JIS EN ISO,AS,GB,ASTM ANSI |
Production process | Cold forging and Hot forging,Machining and customized |
Surface treatment | Plain,Zinc(white,yellow,blue,black)Hot dip galvanized,Black,Geomet,Dacroment,Nickel plated |
Applications | Stone fixed to concrete wall,Stone fixed to hollow block wall,Stone fixed to solid block,Stone fixed to composite substructure |
Quality of product | High hardness, corrosion resistance, can be used in humid environment without rust |

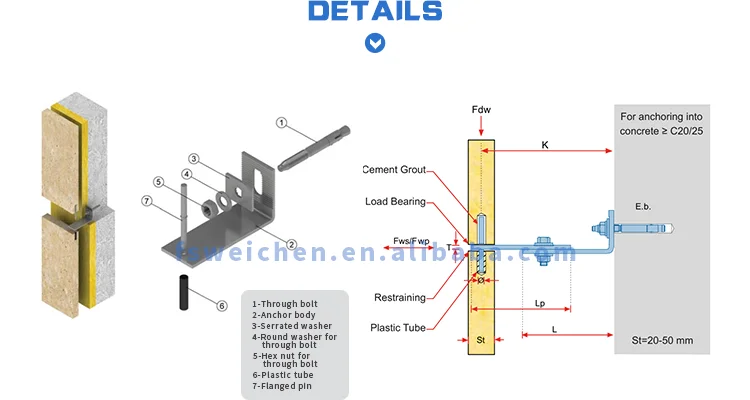

Technical Details | ||||||||||||||||||

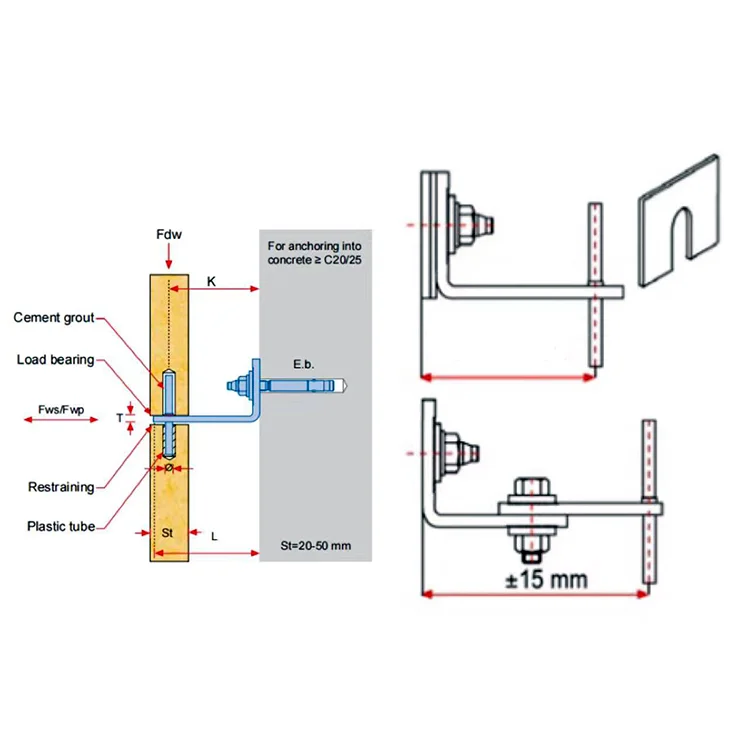

Win-0604 L anchor | ||||||||||||||||||
Projec-tion | Min. Projec-tion | Max. Projec-tion | Dead Load | Wind Pressure | Bolt Size | Pin Diameter | Anchor Length | Adj. Plate Length | Adj. Plate Thickness | |||||||||
K(mm) | K-(mm) | K+(mm) | Fdw(N) | Fwp(N) | E.b.(mm) | ø(mm) | L(mm) | Lp(mm) | T(mm) | |||||||||
100 | 85 | 115 | 600 | 936 | M12X120 | 6 | 70 | 80 80 | 6 6 | |||||||||
120 | 105 | 135 | 90 | |||||||||||||||
140 | 125 | 155 | 110 | |||||||||||||||
160 | 145 | 175 | 130 | |||||||||||||||
180 | 165 | 195 | 150 | |||||||||||||||
100 | 85 | 115 | 800 | 1235 | M12X120 | 6 | 70 | |||||||||||
120 | 105 | 135 | 90 | |||||||||||||||
140 | 125 | 155 | 110 | |||||||||||||||
160 | 145 | 175 | 130 | |||||||||||||||
180 | 165 | 195 | 150 | |||||||||||||||
Contact Us

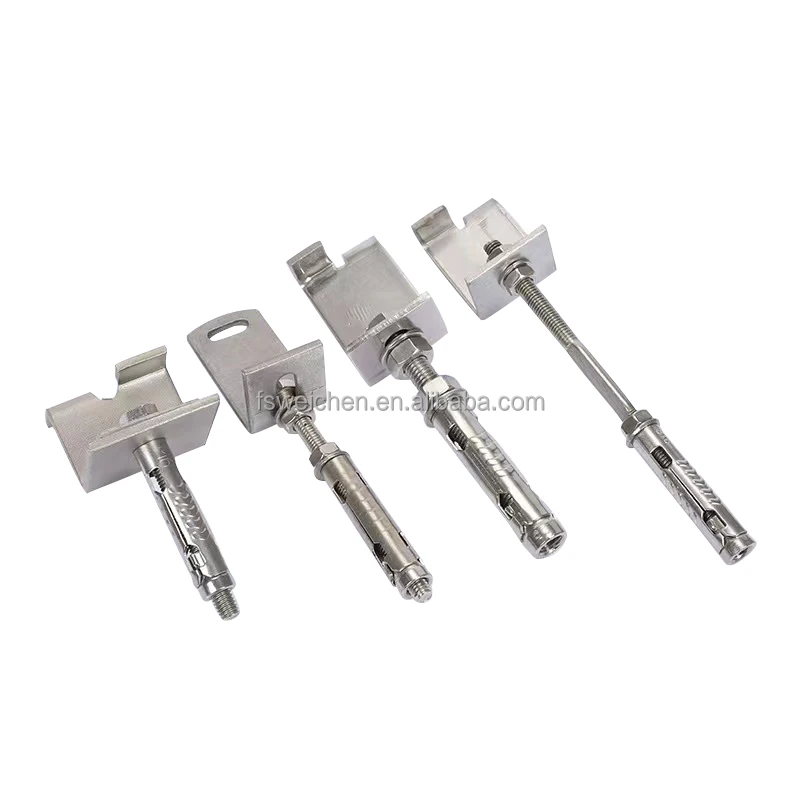

Related Products

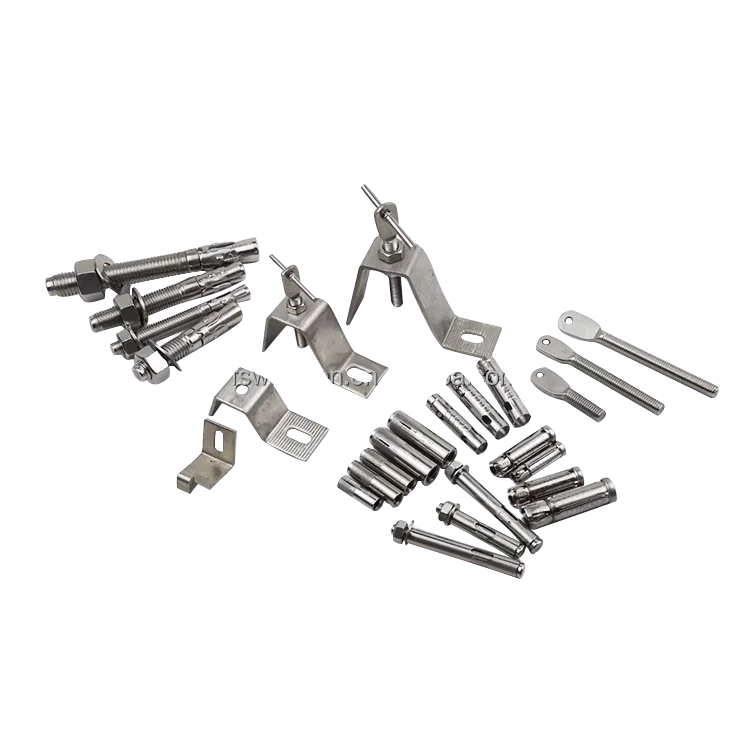

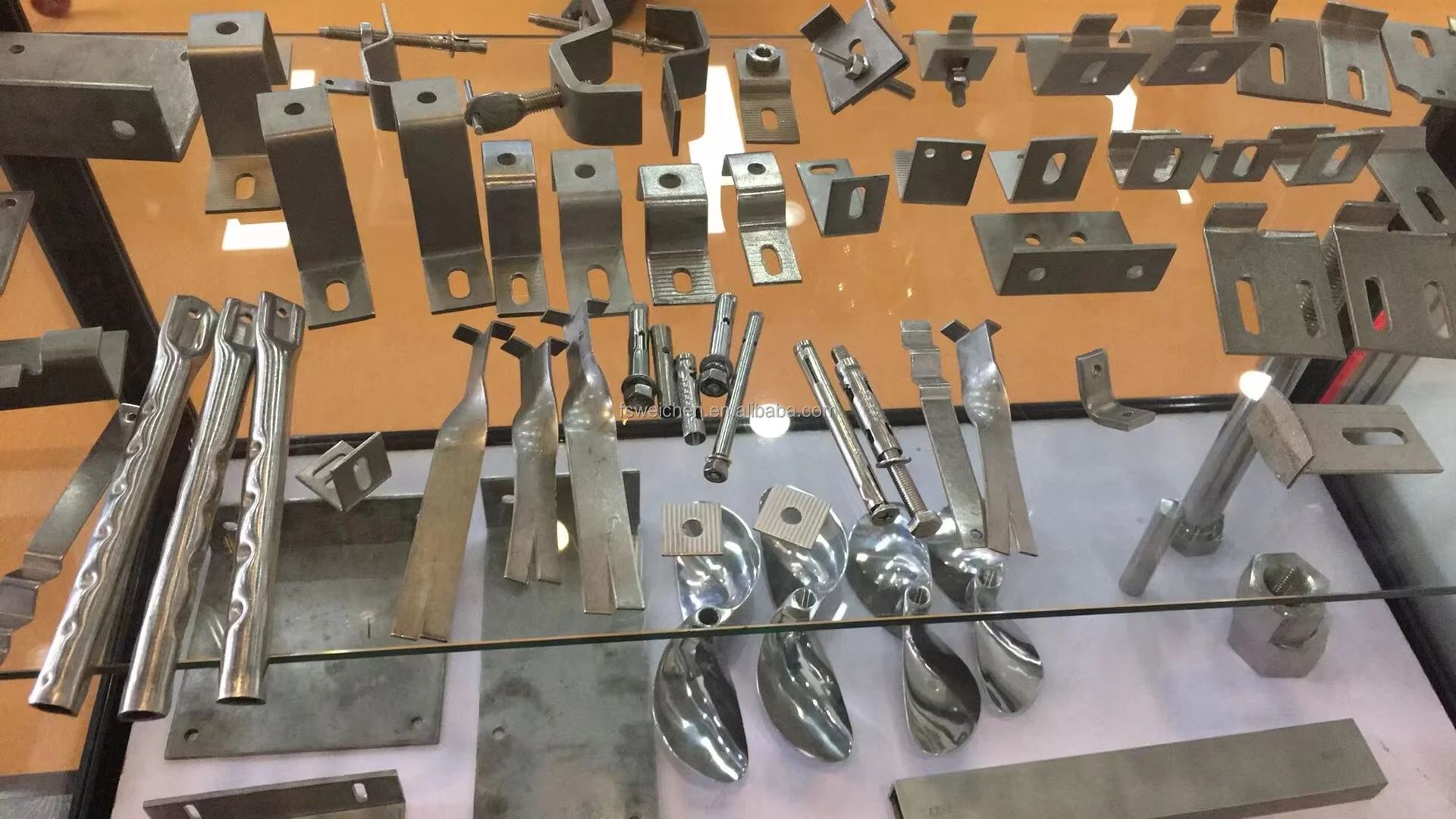

Product Display
components,Expansion bolts,Various construction accessories.We can proposes and specially designs fixing systems according to individual projects requirements.
brackets,suspended ceiling type,wall type,wall stretch type.

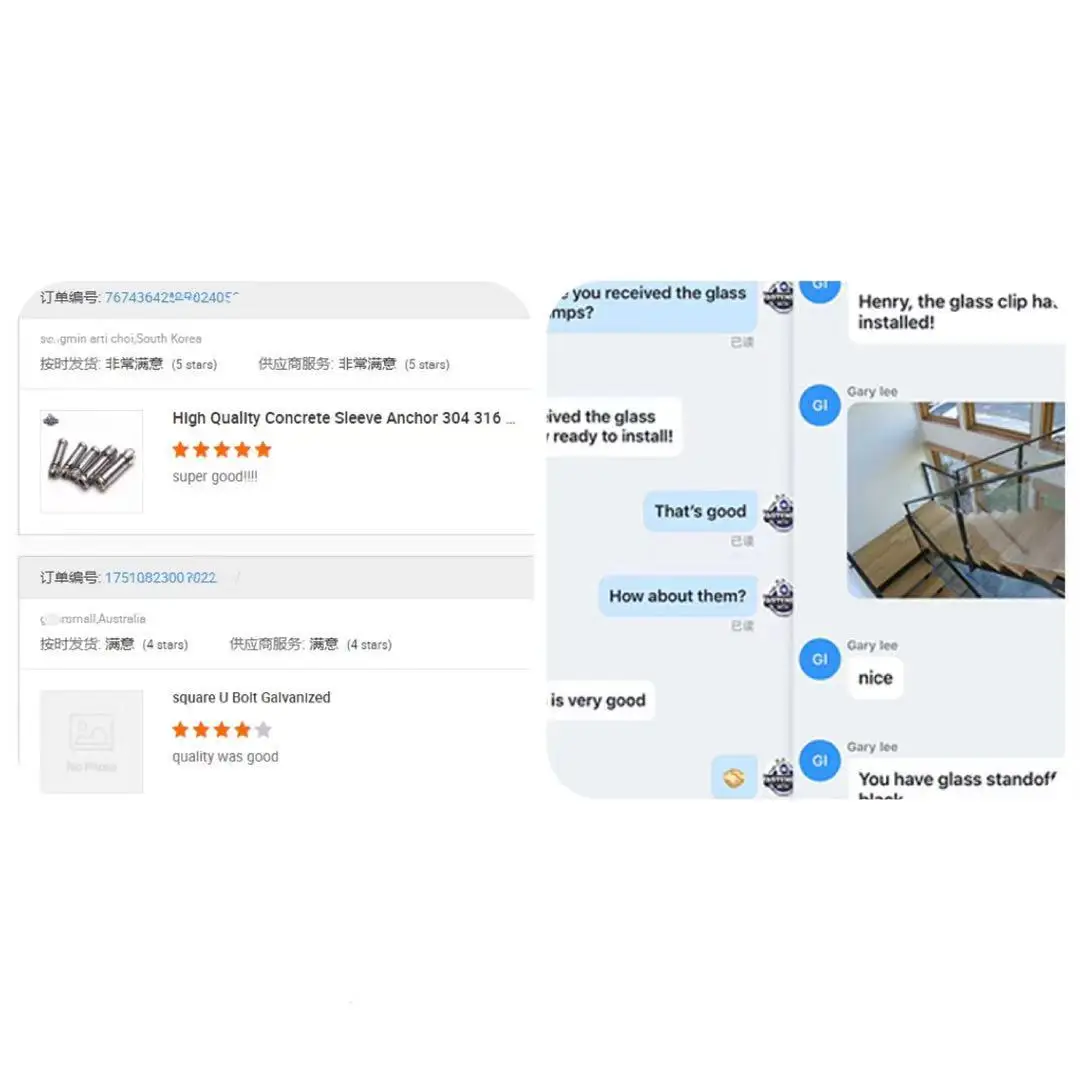

Buyers praise & Customer Photos

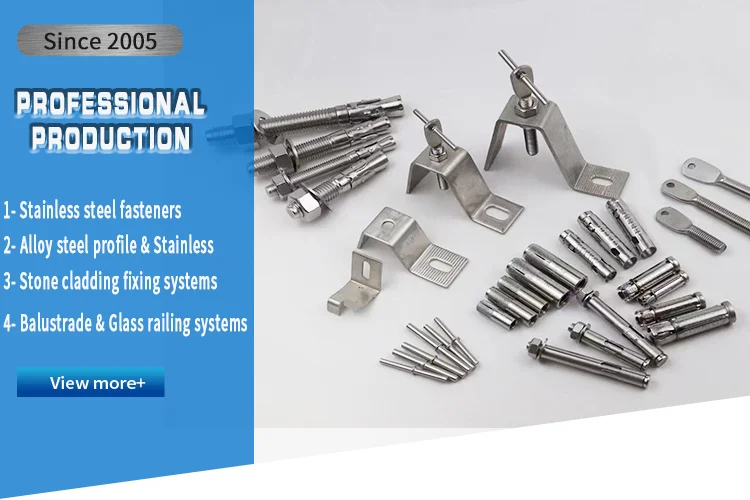

Main Products

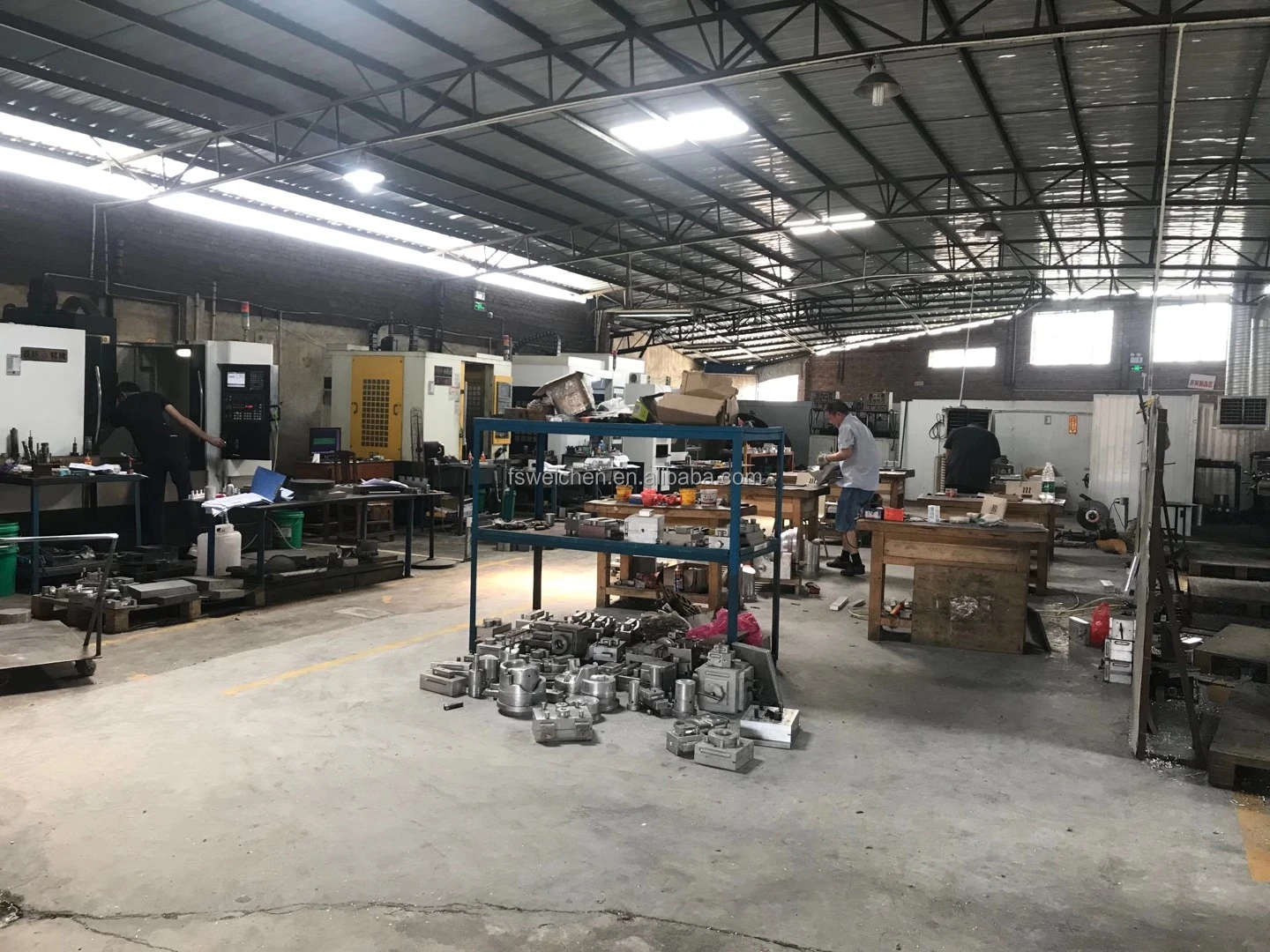

Company Profile
WISINE Metal is a professional stainless steel supplier, located in Nanhai District, Foshan City, China. Since 2005, our products have been exported to more than 40 countries, including the United States, Japan, France, Australia, Saudi Arabia, North America and so on.The main products are stainless steel stone cladding fixing system, alloy steel ,stair handrail accessories, railings, fasteners and so on.As a professional supplier of building materials, we are well received by the market with high quality products, favorable prices and the best service.Customer service is critical to us and over 90% of our orders are delivered within 5 working days.Hope to get your recognition and become our long-term partner.Choose Wisine metal as your most trusted friend!
FAQ
1. The stone cladding anchors are stainless steel?

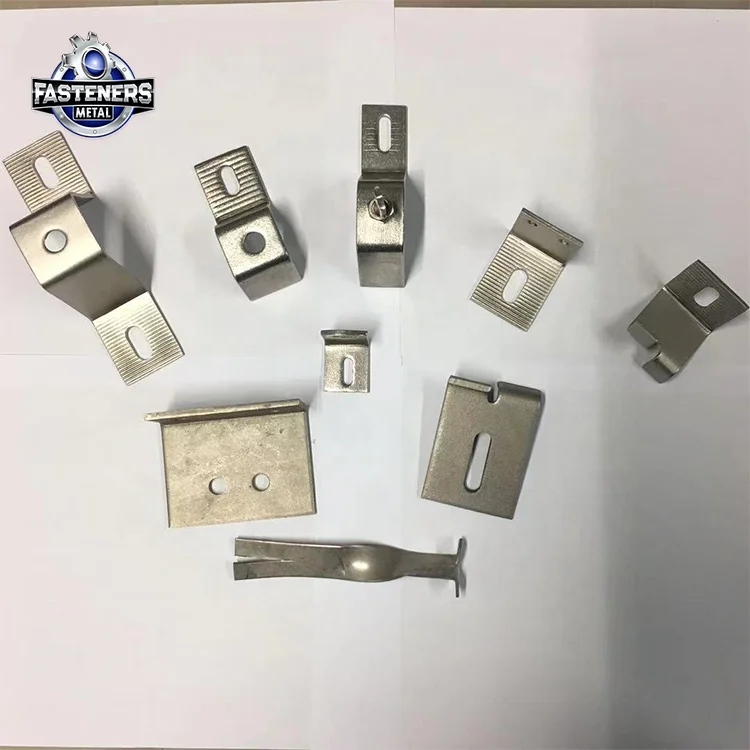

3. What are the shapes of the stone cladding anchor?
We have C natural stone cladding anchor,Z natural stone cladding anchor, Omega natural stone cladding anchor,L natural stone cladding anchor ,body natural stone cladding anchor.
4. Where are these anchors used?

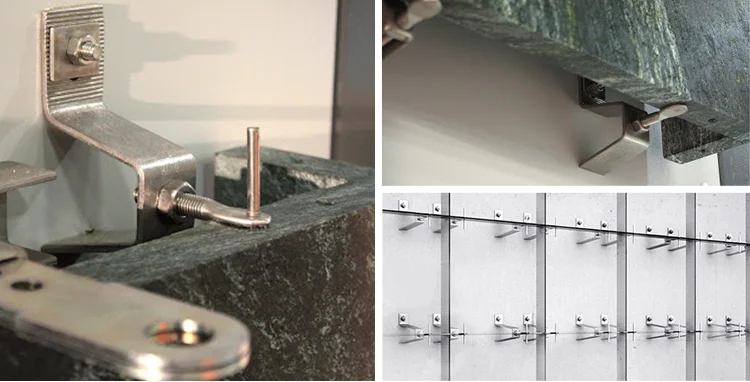

Our products can be used in stone, granite, marble, tile, terracotta, ceramics, glass, aluminum honeycomb boards etc. which widely using in Europe now. The fixing system/bracket can be used for construction buildings exterior wall facade stone anchoring.
5. How to Custom-made (OEM/ODM)?
If you have a new product drawing or a sample, please send to us, and we can custom-made the hardware as your required. We will also provide our professional advices of the products to make the desion to be more realized &.maximize the performance.
Our stone cladding Anchors are made of stainless steel 316 304 201 and alloy steel.
2. Are these stone cladding anchor of good quality?
The anchor made of high quality stainless steel, with high hardness and wear resistance, making it more durable, anti-corrosion and anti-oxidation, can be used in a humid environment.
The anchor made of high quality stainless steel, with high hardness and wear resistance, making it more durable, anti-corrosion and anti-oxidation, can be used in a humid environment.
3. What are the shapes of the stone cladding anchor?
We have C natural stone cladding anchor,Z natural stone cladding anchor, Omega natural stone cladding anchor,L natural stone cladding anchor ,body natural stone cladding anchor.
4. Where are these anchors used?
Our products can be used in stone, granite, marble, tile, terracotta, ceramics, glass, aluminum honeycomb boards etc. which widely using in Europe now. The fixing system/bracket can be used for construction buildings exterior wall facade stone anchoring.
5. How to Custom-made (OEM/ODM)?
If you have a new product drawing or a sample, please send to us, and we can custom-made the hardware as your required. We will also provide our professional advices of the products to make the desion to be more realized &.maximize the performance.
