Penetrating Ceramic Fluore Osram 5W Laser White Light Module
Product introduction
The laser module consists of a laser tube and a laser head module. The small laser module is characterized by small size, easy installation, and is widely used in civil mobile lighting such as headlights, flashlight lighting, and near searchlights. The large laser module is composed of several pieces and needs a fixed power supply mode, which is widely used in stage lights, outdoor landscape lights, ships, tall buildings and other large lighting.
Laser module product advantages
1 The company specializes in the production of PIG, PIC patented products, suitable for high-power LED, blue laser white and so on.
2 Color temperature and appearance，Irradiation distance，can be customized according to customer requirements.
3 Laser module to achieve low power consumption and high brightness, white laser light Angle 60 degrees, easy for customers to receive light twice.
4 The company's unique ceramic fluorescent film technology can withstand high power and high temperature laser excitation.
5 Laser module size: diameter 11 length 17, small volume for customers to install heat sink. (Customizable)
2 Color temperature and appearance，Irradiation distance，can be customized according to customer requirements.
3 Laser module to achieve low power consumption and high brightness, white laser light Angle 60 degrees, easy for customers to receive light twice.
4 The company's unique ceramic fluorescent film technology can withstand high power and high temperature laser excitation.
5 Laser module size: diameter 11 length 17, small volume for customers to install heat sink. (Customizable)

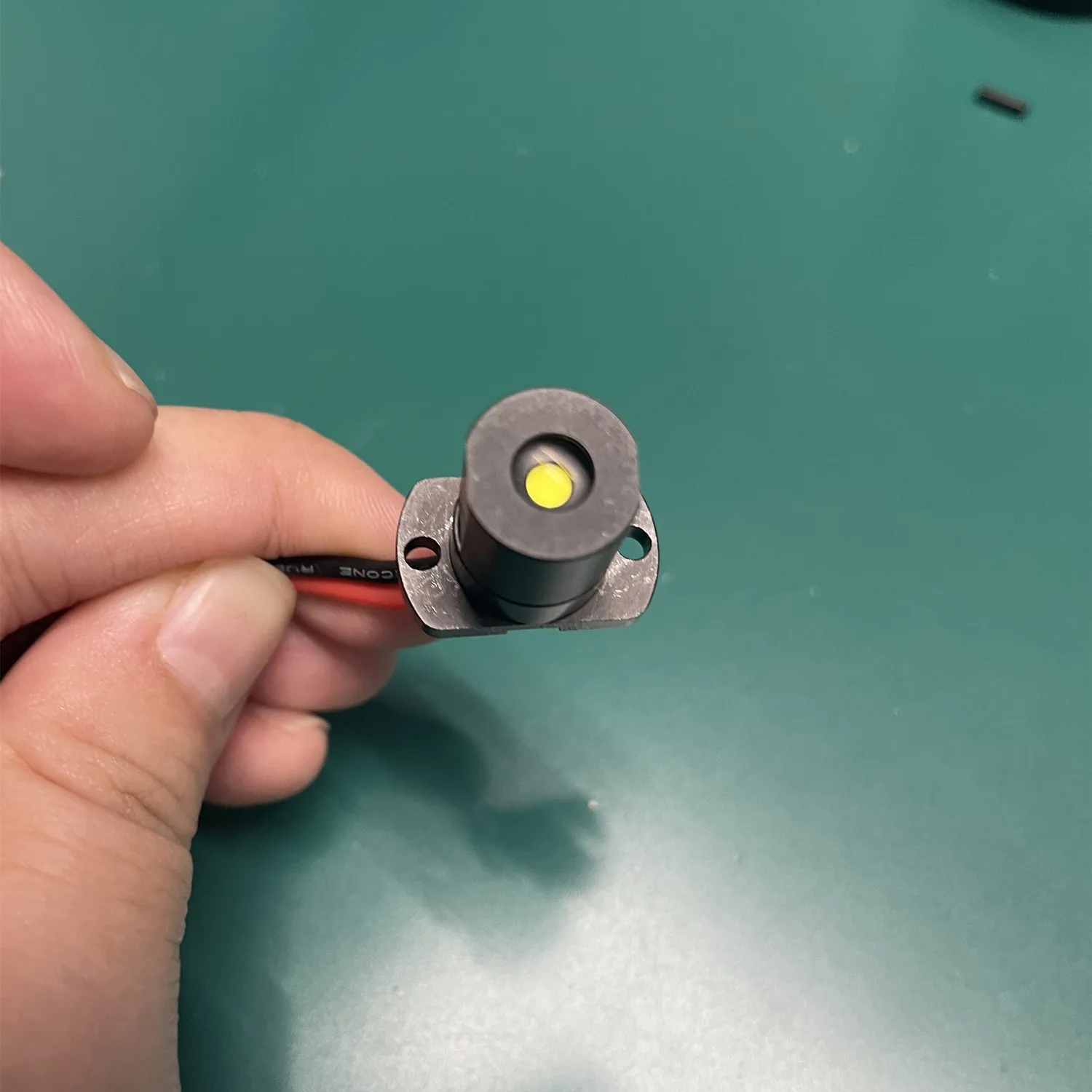

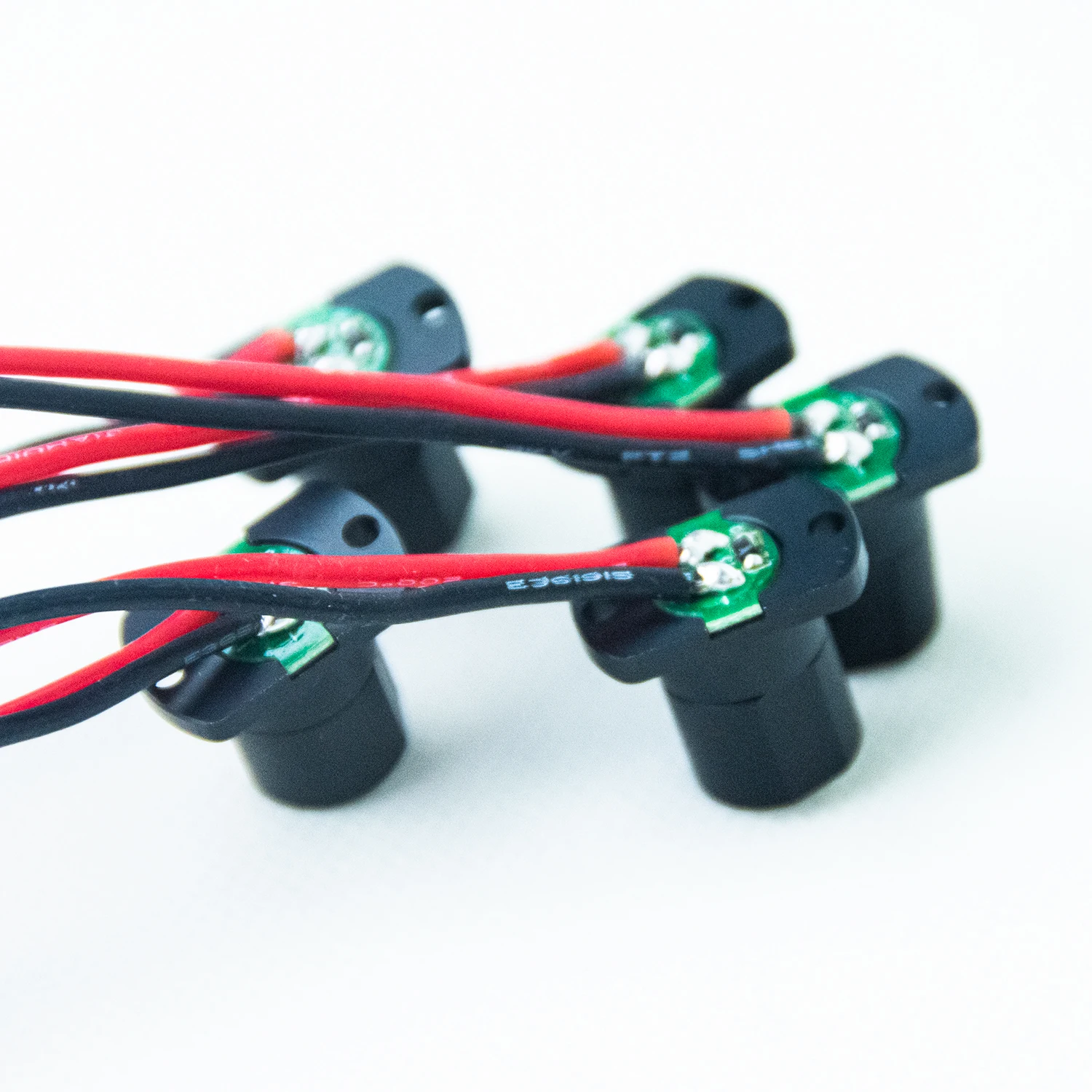

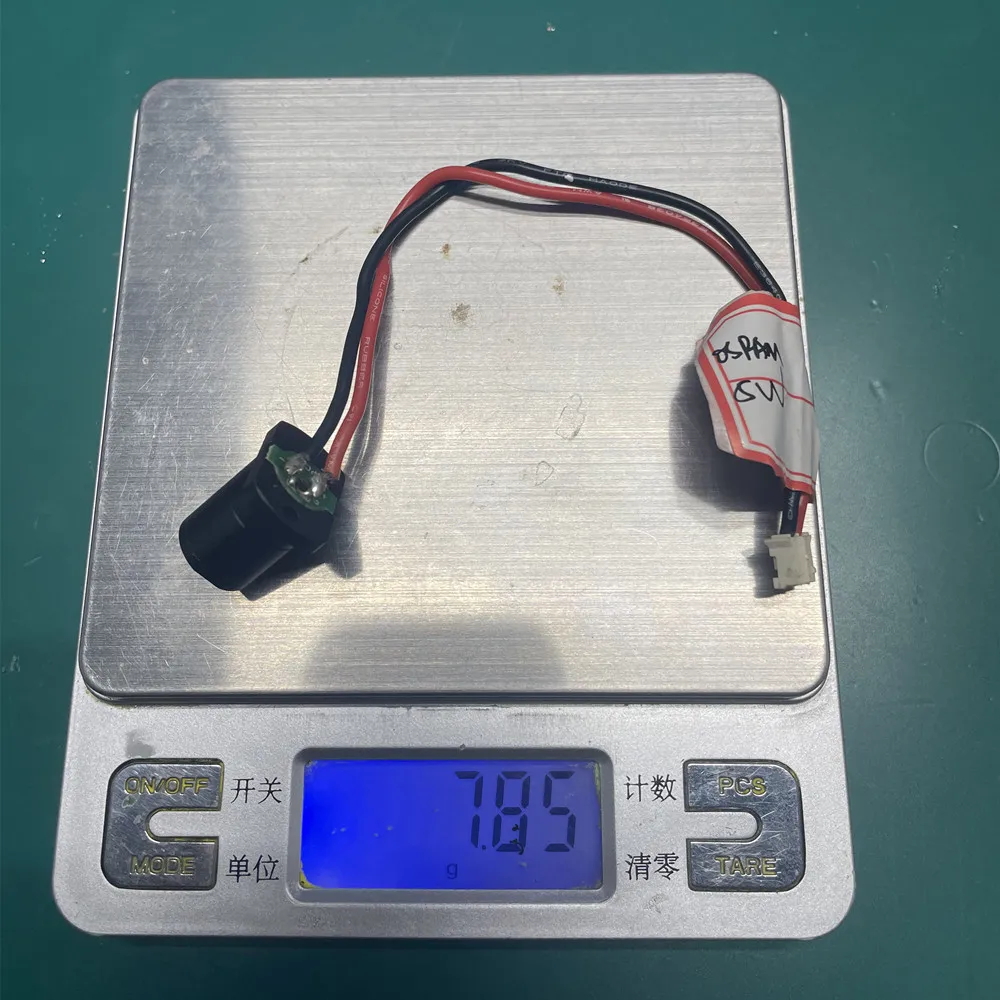

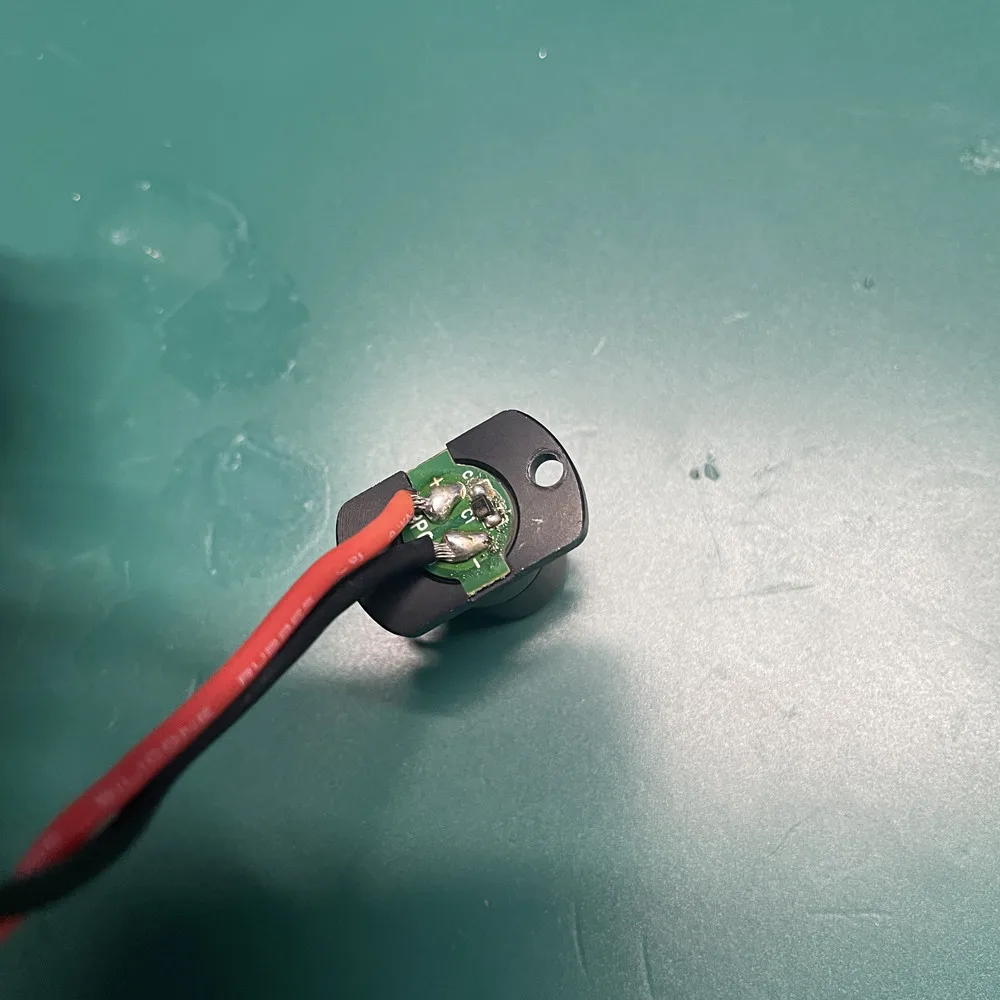

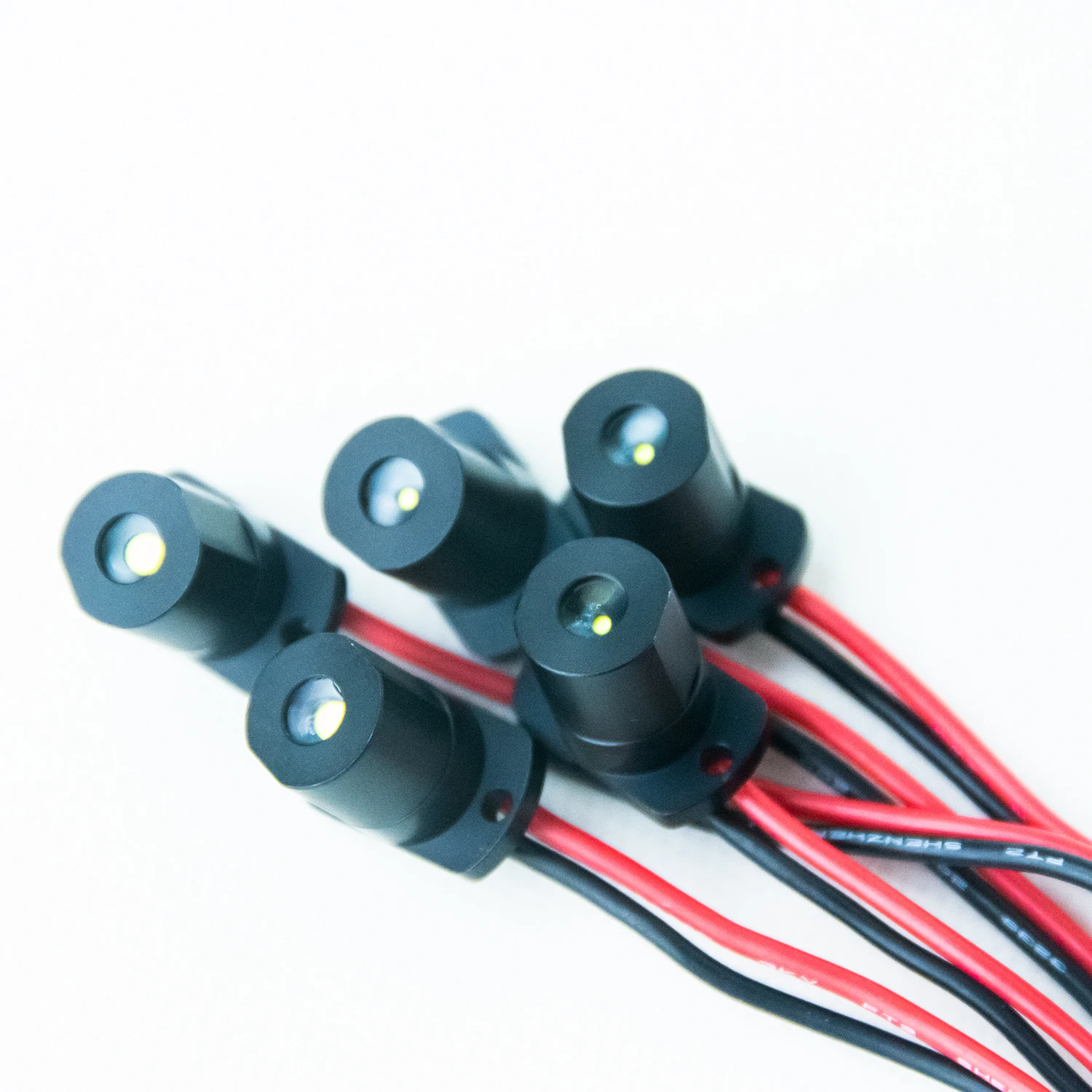

Details Images
Product Paramenters
Product Name | L1117 laser light source module |
Main material | aluminum |
Light color type | White, yellow, green |
Color temperature (K) | Customized requirements (4500-8000) |
Laser | OSRAM 5W |
Optical power | 5W |
5 meters measured illumination | 40000 LUX |
Luminous flux (4V/2A) | 860 lm |
Forward current (MAX) | 1-3 A |
Operating voltage (MAX) | 4.3V |
Operating temperature (℃) | -40℃-120℃ |
Laser module product line | ||||||||||
Item | Laser | Temperature | Luminous color | Illuminance | Main application | |||||
Laser module | Osram 5W | customize | White light, yellow light | 13000LUX（6M） | Working lights, rear mounted car laser headlights, beam lights, front fog lights, stars and so on | |||||
Flashlight | Osram 5W | customize | White light | 13000LUX（6M） | ||||||
Product packaging
Why Choose Us
FAQ
1. Are you factory?
Yes, we are the original manufacturer of laser flashlights.Our company is a high-tech enterprise integrating R&D, manufacturing and sales of phosphor, fluorescent composite materials, laser modules, laser lighting and other products.
2. Can you provide OEM service?
Yes. We provide OEM , ODM services，such us Custom logo ，package label and so on.
3. What is your lead time for delivery?
Normally the delivery time of samples is 5-7 days.
Yes, we are the original manufacturer of laser flashlights.Our company is a high-tech enterprise integrating R&D, manufacturing and sales of phosphor, fluorescent composite materials, laser modules, laser lighting and other products.
2. Can you provide OEM service?
Yes. We provide OEM , ODM services，such us Custom logo ，package label and so on.
3. What is your lead time for delivery?
Normally the delivery time of samples is 5-7 days.
The large order is arranged according to the actual situation.Please consult with our customer service
4. How long is your warranty?
We provide 1 years warranty for all our products, but accessories are not covered by warranty.
4. How long is your warranty?
We provide 1 years warranty for all our products, but accessories are not covered by warranty.
