Hot Sales Class I Medical 4 Divide Video Endoscopy Camera System Factory Price With all Accessories
- Category: >>>
- Supplier: Shenzhen Tuyou Medical Imaging Co. Ltd.
Share on (1601259064165):
Product Overview
Description
Product Parameters
Product Item No. | TV-LSD101A (4K Carema) |
Camera Parameters | ||
Image Sensor | 1/1.8” CMOS | |
Effective Pixels | 3860(H) × 2160(V)Approx. 8.46M pixels | |
Resolution | SDI 4K 60fps | |
FREEZE | The picture freezes | |
AWB | One Button White Balance | |
Min-illumination | Color:DSS:0.017LUX BW DSS: 0.008 LUX | |
S/N Ratio (Signal to Noise Ratio) | More than 42Db(AGC off) | |
D-ZOOM | Image zoom 0-8X | |
Color | RED/GREEN/YELLOW/BLUE | |
Brightness | 1-30 steps | |
Sharpness | 1-40 steps | |
Lens Mode | ENT/Abdominal/Bladder/Uterine/Joint/Foramen/Fiber/Custom | |
Language | Chinese, English, Japanese, Korean and other languages | |
Working Environment | 0℃~40℃ | |
Power(Max.) Supply | DC12V ±10% <3W | |
Working Current | 250mA±10mA | |
Light Source Parameters | ||
Light Type | LED | |
Effective Optical Power | 100W | |
Illuminance | 400W LUX | |
Color Temperature | 4500-6500K | |
Brightness Adjustment | Support | |
Light Emitting Area (mm²) | 3.8mm | |
Service Life | 30000h | |
System Parameters | ||
Input Interface | SDI 4K 60FPS | |
Output Interface | HDMI/SDI/DVI/VGA/CVBS | |
Keypad Control | Control the mainboard menu and shortcut keys through RX/TX | |
Power | AC110V~240V | |
Shortcut Key Function | Freeze/White Balance/Video/Photo/Digital Zoom | |
Noise | <45db | |
Working Environment | -10℃~60℃ | |
Product Size | L336*W330*H116mm | |
Net Weight | 4.3KG | |
Products Description

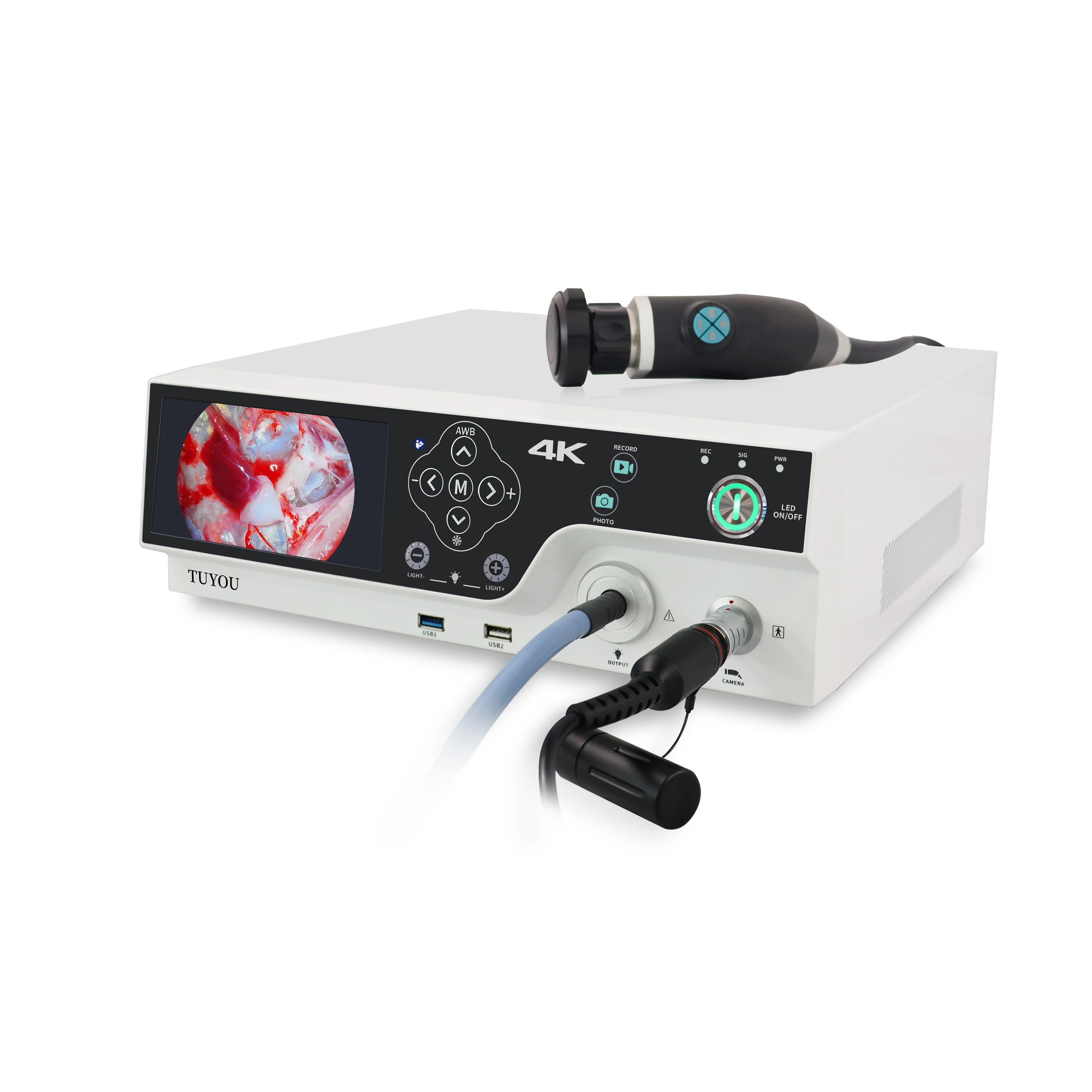

4K Endoscopic Light Source Imaging System
Product Introduction:

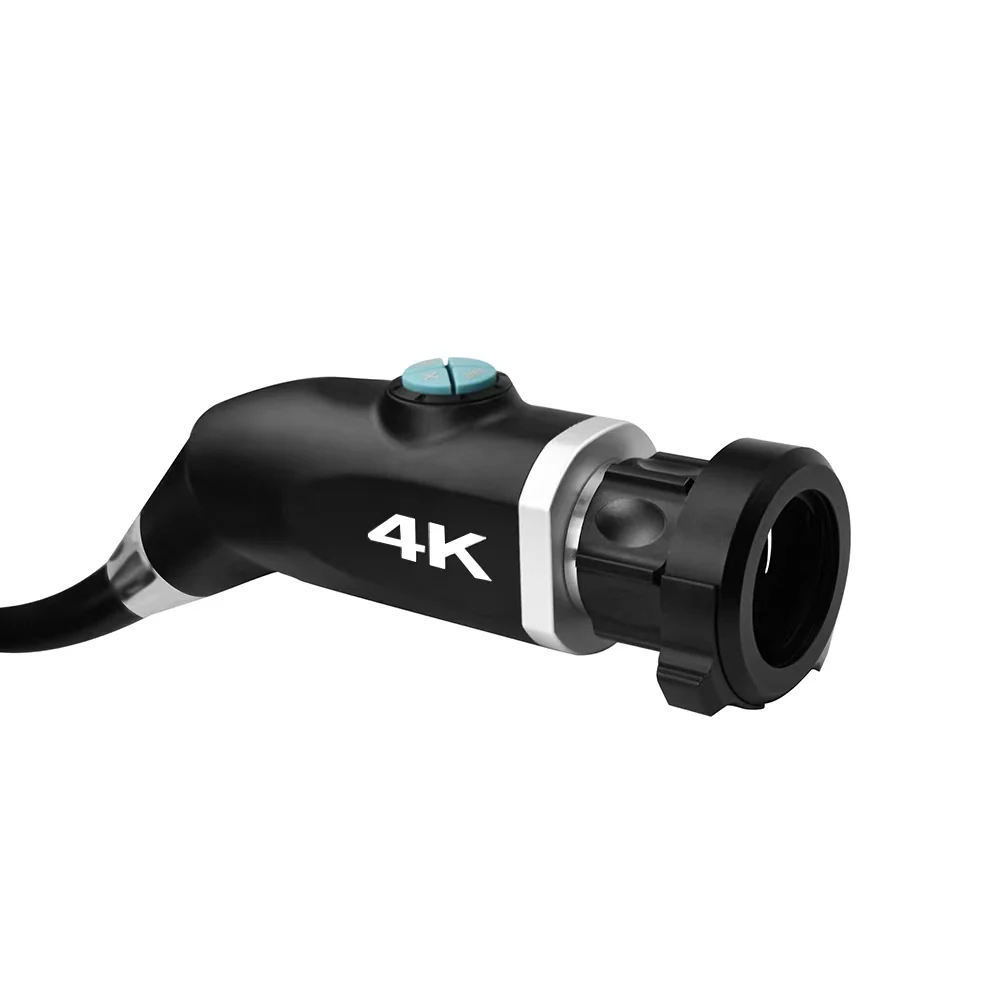

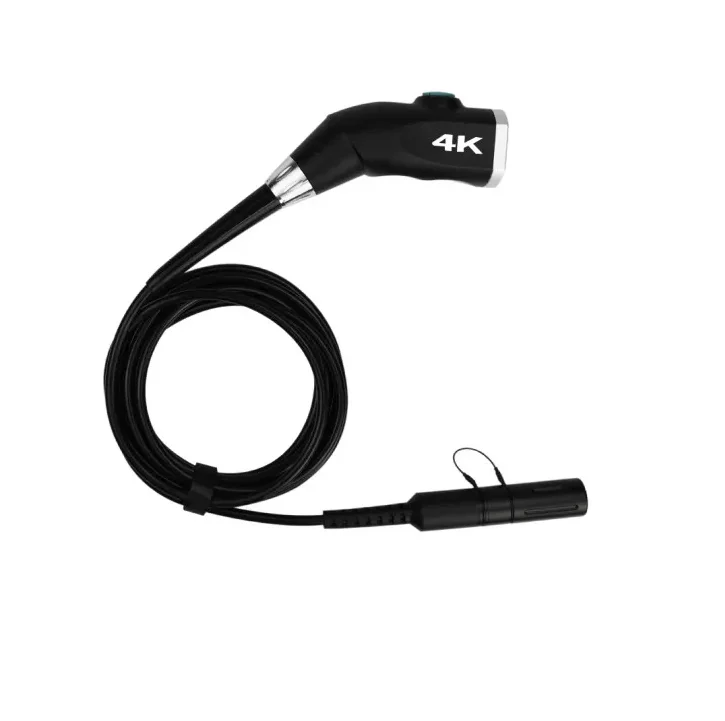

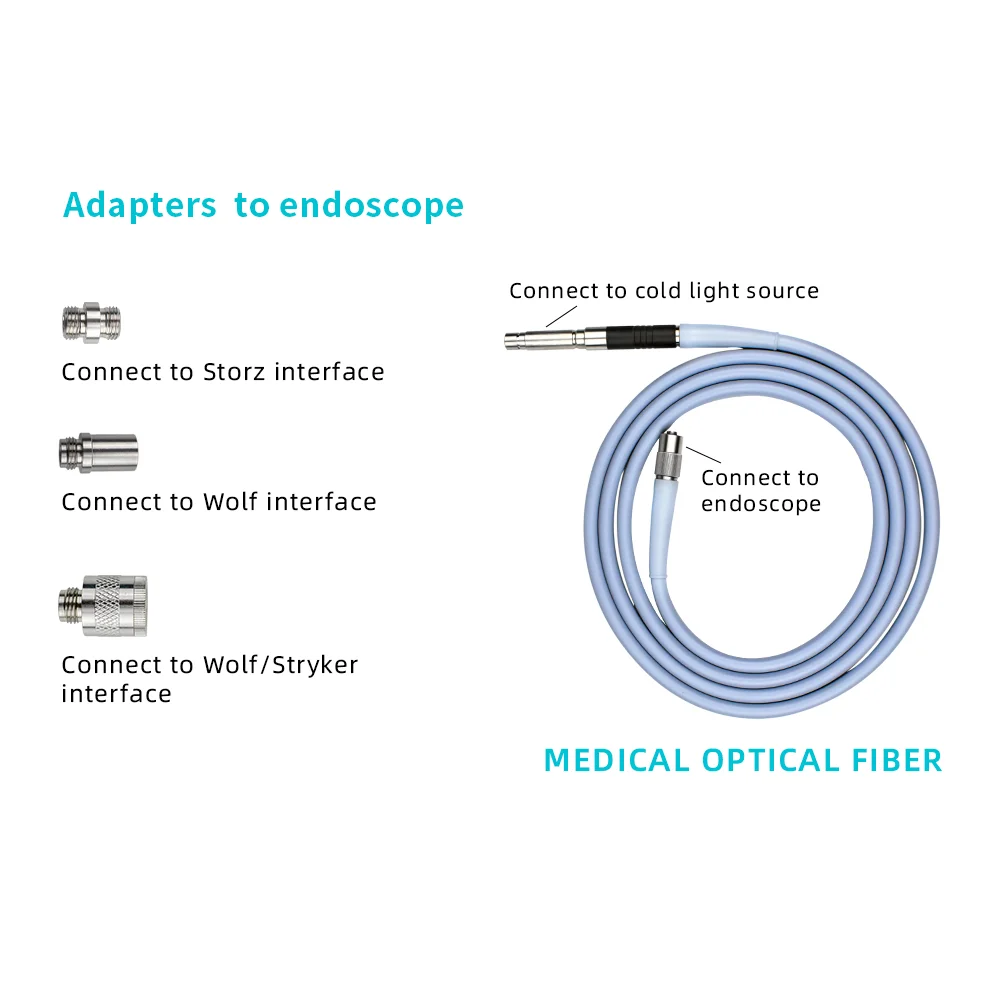

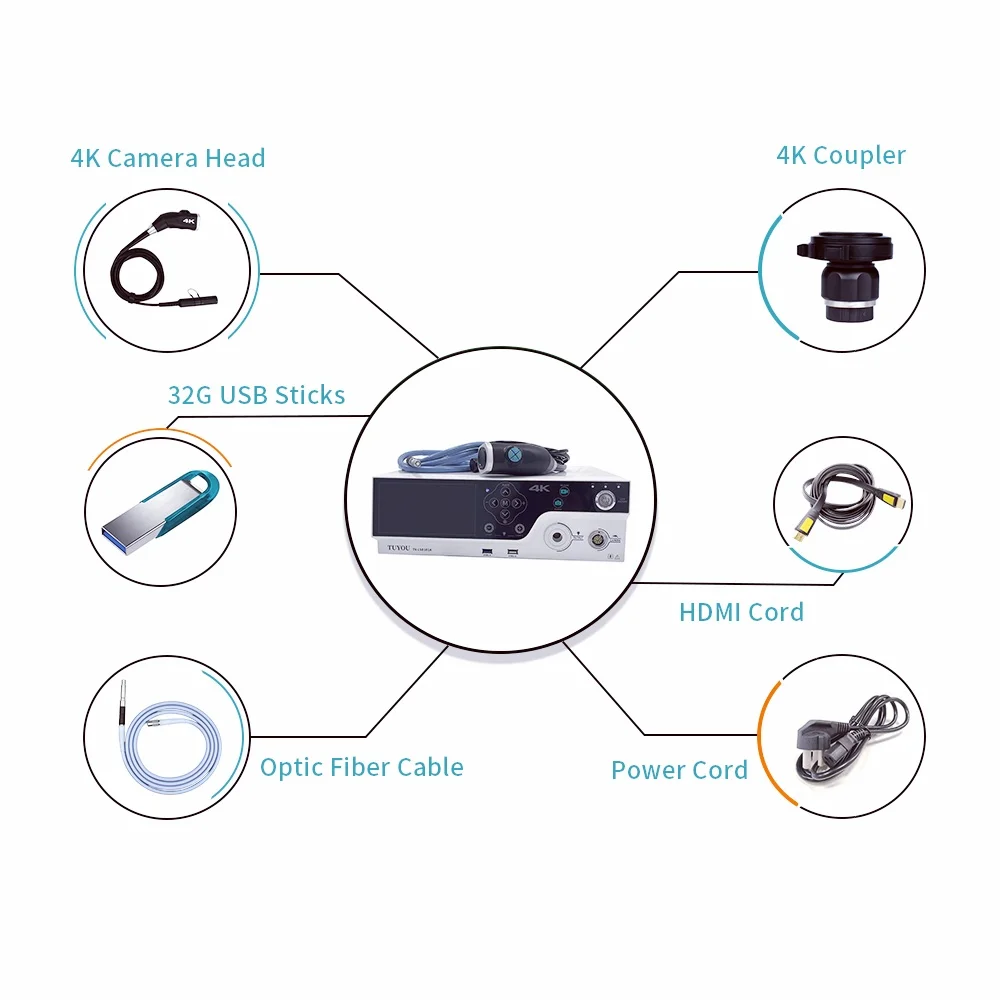

The endoscope light source imaging system consists of a endoscope processor, a handle camera, a light guide and an optical adapter (optical interface), has 4K ultra-high-definition imaging capabilities.
The endoscope light source imaging system consists of a endoscope processor, a handle camera, a light guide and an optical adapter (optical interface), has 4K ultra-high-definition imaging capabilities.
It is widely used in various types of surgery, such as ENT, urology, gynecology, ophthalmology, orthopedics, neurosurgery, medical cosmetic surgery and other departments in clinical practice.
● Multiple output signals, also can be connected to external display;
● One-key freeze, one-key white balance, one-key key to zoom in and out;
● Brightness memory function, the brightness of the LED light source is not initialized with the shutdown, and automatically memorizes the brightness before shutdown after the startup.
Customer Feedback
Company Profile
Shenzhen Tuyou Medical Imaging Co., Ltd.
Shenzhen Tuyou Medical Imaging Co., Ltd. A high-tech manufacturing enterprise integrating R&D, production, sales and service of medical endoscope camera system products. The company has more than 20 years of experience in the independent production and R&D of video products, and has completed SD, HD, 2K, 4K, fluorescence and other endoscope image and video systems, as well as disposable flexible endoscope series products.
We are committed to provide global customers with advanced, high quality and cost-effective endoscopic medical holistic solutions. Adhering to the life first, pioneering and innovative, honest and trustworthy business philosophy, with better service, updated products, to protect life and health contribution with you!

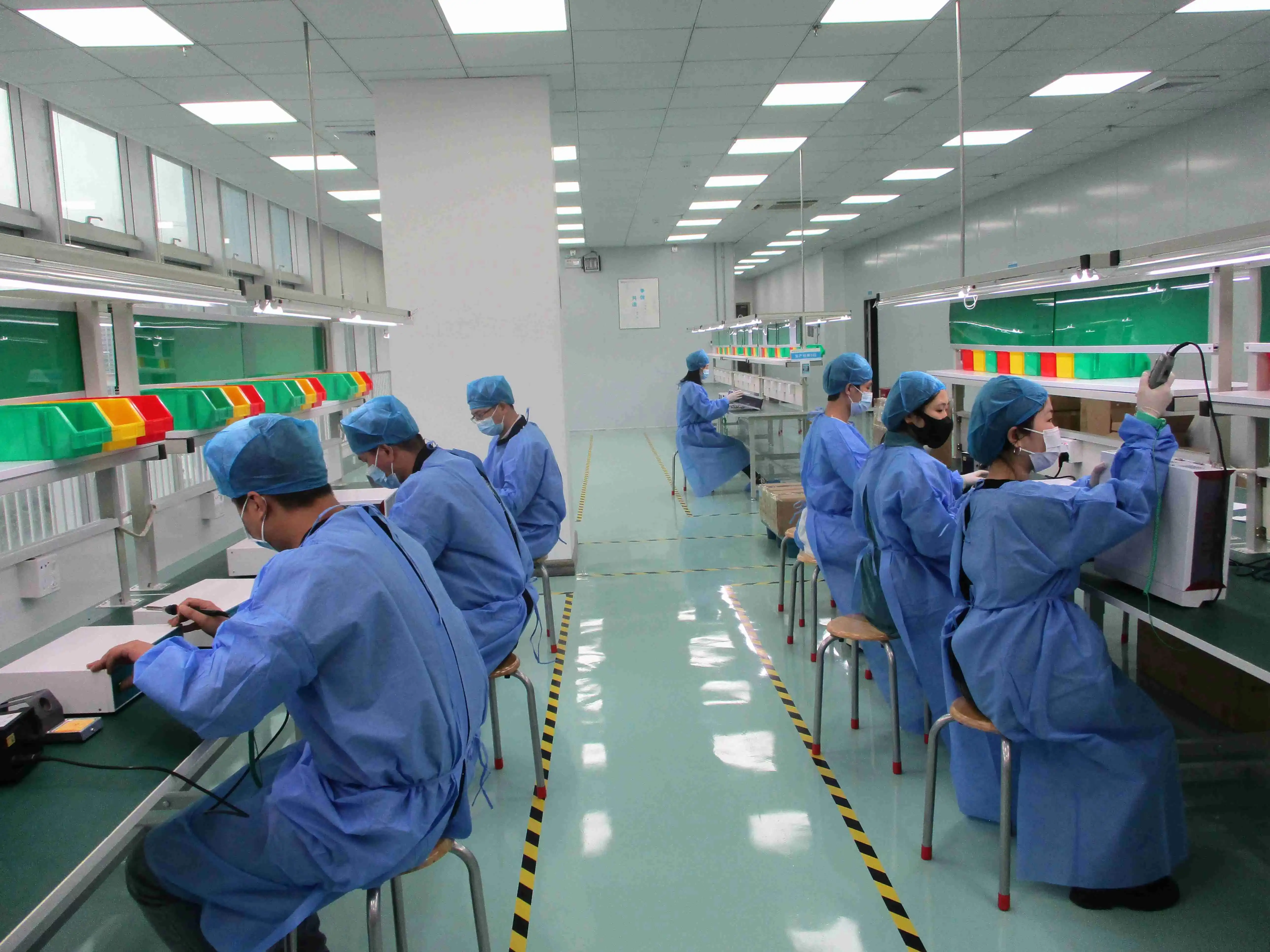

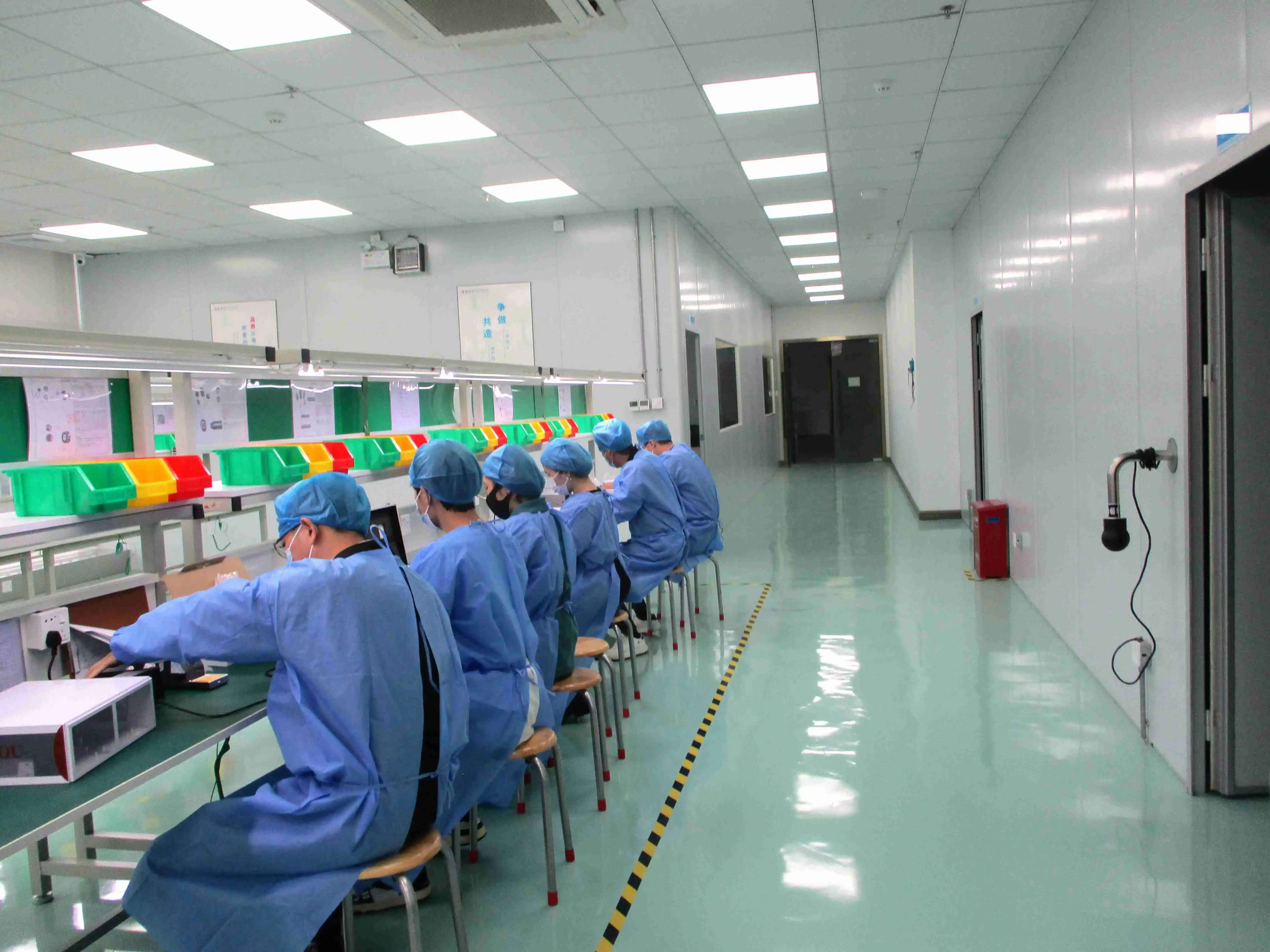

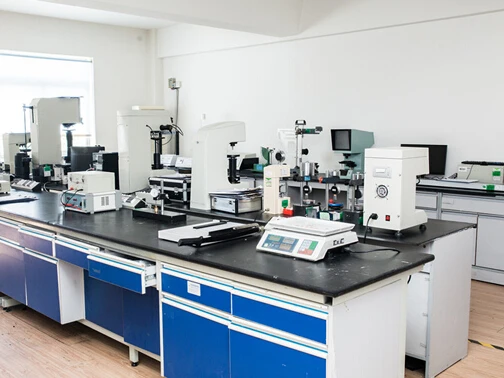

Advanced medical grade environmental protection plant, more than 2000 square meters of office environment, has won a number of national product R&D patents, has passed the international quality system CE/FCC/ROSH and a series of product certifications, providing OEM/ODM services for a number of national well-known enterprises.
We are committed to provide global customers with advanced, high quality and cost-effective endoscopic medical holistic solutions. Adhering to the life first, pioneering and innovative, honest and trustworthy business philosophy, with better service, updated products, to protect life and health contribution with you!
Certifications
Packing & Delivery
FAQ
Q: Are you a factory or a trading company?
A: We are a Chinese medical imaging instruments manufacture. All the products are made of our workers.
Q: Where are you ?
A: Our adress is buliding 3,Yunchuang Valley Southern Pacific, Fenghuang District, Shenzhen City, Guangdong Province, China.You are welcomed to visit our factory.
Q: Can you accept OEM?
A: Yes, we offer "TUYOU" brand to you. But if you need, we can also offer OEM service.
Q: What's your deliver time?
A: It will be delivered within 7 working days upon your payment; Samples are ready-made.
Q: What is the warranty?
A: The free warranty is two years. If there is any fault for our products within the free warranty period, we will repair it and
change the fault assembly for free.
A: We are a Chinese medical imaging instruments manufacture. All the products are made of our workers.
Q: Where are you ?
A: Our adress is buliding 3,Yunchuang Valley Southern Pacific, Fenghuang District, Shenzhen City, Guangdong Province, China.You are welcomed to visit our factory.
Q: Can you accept OEM?
A: Yes, we offer "TUYOU" brand to you. But if you need, we can also offer OEM service.
Q: What's your deliver time?
A: It will be delivered within 7 working days upon your payment; Samples are ready-made.
Q: What is the warranty?
A: The free warranty is two years. If there is any fault for our products within the free warranty period, we will repair it and
change the fault assembly for free.
Q:What's the payment term?
A.We accept payment by T/T Bank Transfer, Alibaba Trade Assurance Service, Western Union, Money Gram, Paypal, L/C, Cash etc.
A.We accept payment by T/T Bank Transfer, Alibaba Trade Assurance Service, Western Union, Money Gram, Paypal, L/C, Cash etc.
