Brackets mounted 200W Monocrystalline Panels 40cells Lightweight Semi Flexible Solar Panel with Microinverter for Balcony System
- Category: >>>
- Supplier: Shenzhen Suns Energy Co. Limited.
Share on (1601259147488):
Product Overview
Description
FLEXIBLE SOLAR PANEL 200W
Models: JVBP-200M

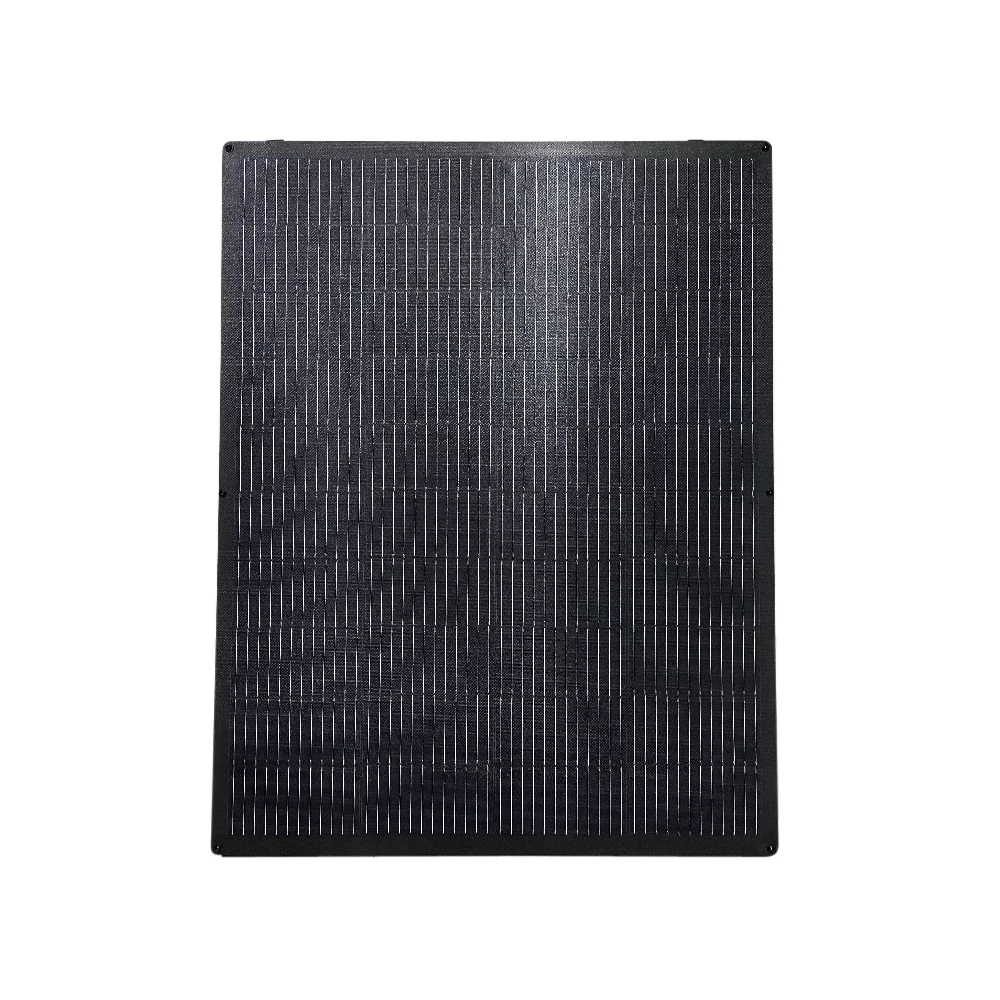

Brackets mounted 200W Monocrystalline Panels 40cells Lightweight Semi Flexible Solar Panel with Microinverter for Balcony System
Specification
FLEXIBLE SOLAR PANEL | ||
Electrical Characteristics | ||
Model Type | JVBP-200M | |
Peak Power (Pmax) | 200 | |
Maxcimum Power Votage(Vmp) | 22.62V | |
Maximum Power Current(Imp) | 8.85A | |
Open Circuit Voltage(Voc) | 26.57V | |
Short Circut Current(lsc) | 9.36A | |
Module Elficiency(%) | 19.80 | |
STC: Irradiance 1000W/m2,Cell Temperature 25℃, Air Mass 1.5G | ||
Mechanical Specifications | ||
Cell Type | 210x105 Mono | |
No.of Cells | 40 (4*10) | |
Dimensions | 1130*900*2.5mm | |
Weight | 3.7kg | |
Junction box | IP66 / P67 | |
Output cables | 2.5mm2 - 50cm cables + MC4 | |
MaxWind Load/Snow Load | 2400Pa/5400Pa | |
MaxWind Load/Snow Load | 2400Pa/5400Pa | |
Thermal Characteristics Operating Conditions | ||
Maximum System Voltage(V) | 1000 | |
Maximum Seres Fuse Rating(A) | 10 | |
Power Tolerance | 0~+3% | |
Pmax Temperature Coefficients(W/℃) | -0.400% | |
Voc Temperature Coefficients(V/℃) | -0.330% | |
Isc Temperature Coefficients(A/℃) | +0.048% | |
NOCT Nominal Operaling Coll Temperature(℃) | 45±2 | |
Operating and Storage Temperalure(℃) | -40~+85 | |
Features:
1.High-Efficiency Mono-crystalline Cells: Harness more power with our high-grade mono-crystalline cells that ensure a higher conversion rate, providing a robust power for 200W.
2.Ultra-Lightweight Design: Installation is a breeze thanks to the light yet durable construction, making it ideal for balcony structures without the need for heavy-duty support.

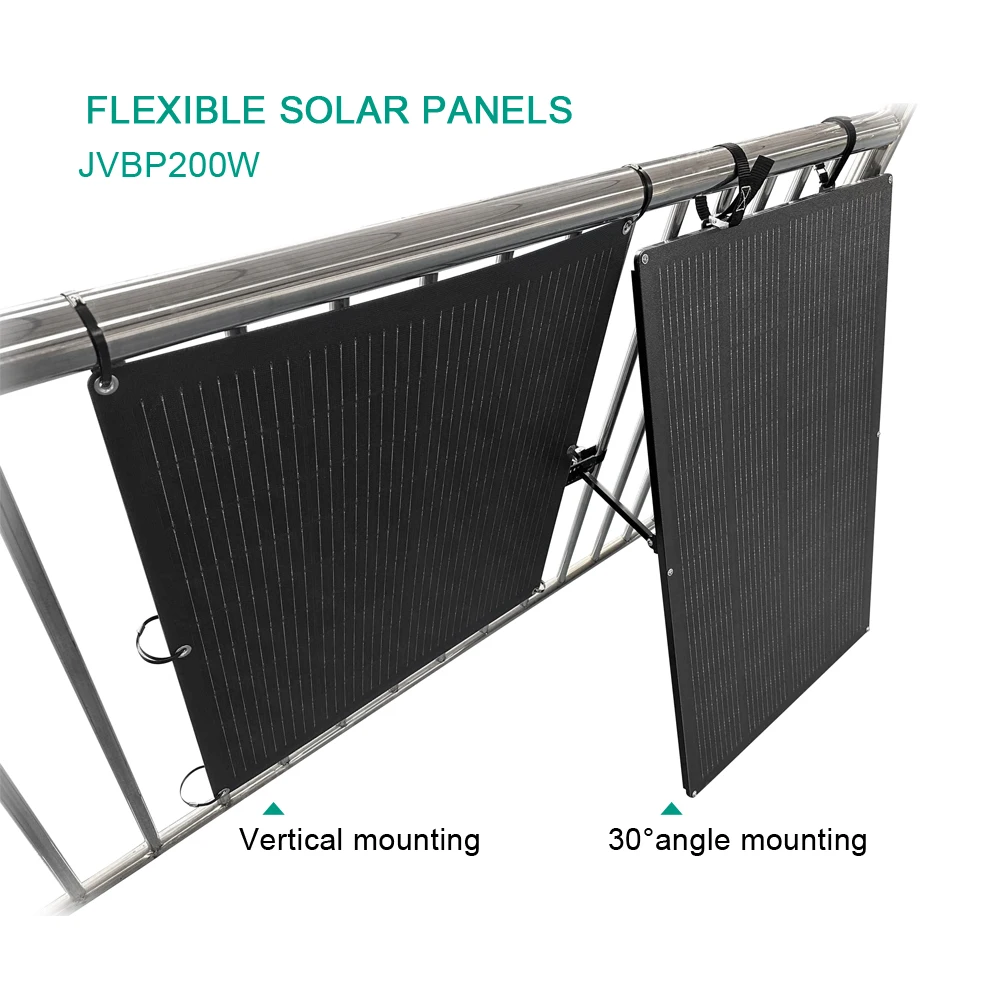

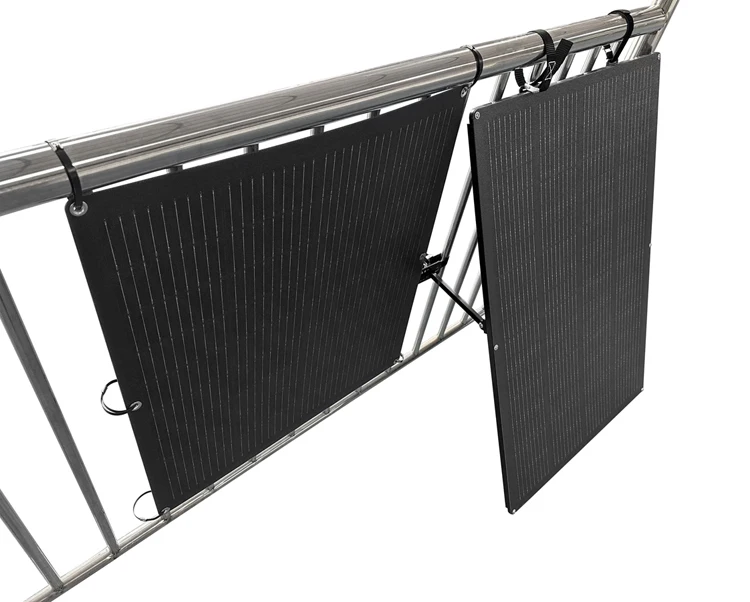

3.Flexible Mounting Options: Whether you prefer the optimal sun exposure of angled mounting with our simple bracket system or the sleek look of vertical balcony mounting without a frame, our panels adapt to your space and needs.
4.Sophisticated Integration with Smart Battery Systems: Pair it with our smart battery to create an efficient solar balcony system capable of storing and managing the energy you harvest throughout the day.
5.Easily Expandable: Start small or go big – our panels are designed to work cohesively so you can expand your system as needed.
2.Ultra-Lightweight Design: Installation is a breeze thanks to the light yet durable construction, making it ideal for balcony structures without the need for heavy-duty support.
3.Flexible Mounting Options: Whether you prefer the optimal sun exposure of angled mounting with our simple bracket system or the sleek look of vertical balcony mounting without a frame, our panels adapt to your space and needs.
4.Sophisticated Integration with Smart Battery Systems: Pair it with our smart battery to create an efficient solar balcony system capable of storing and managing the energy you harvest throughout the day.
5.Easily Expandable: Start small or go big – our panels are designed to work cohesively so you can expand your system as needed.
FAQ
Q1: Why choose our company?
A: Our company had set up at 2010, have 14 years experience in off grid solar field. In addition, we use Alibaba platform
A: Our company had set up at 2010, have 14 years experience in off grid solar field. In addition, we use Alibaba platform
for 13 years as supplier.
Q2: Where is your factory located?
A: Our factory is located in Shenzhen which is near Shenzhen and Hong Kong sea port. Cheap and fast on shipping.
Q 3: What qualifications and strengths does your company have?
A: Our company won the "Government authorized Hi-Tech Enterprise certificate " in November 2015 (Remark: This is a national level comprehensive strength certificate).
Q4: How many solar systems do you produce every month?
A: We can produce 10000 units every day.
Q5: Can you provide sample?
A: Yes, we can provide you sample, but you need to pay for the sample and freight firstly.We will return the fee after you make an order.
Q6: Can you use our brand?
A: Yes, OEM is available.
Q7: Is your products the lowest price?
A: Ex-factory price, the same quality, we are much cheaper than other suppliers.
Q8: Could you print our company LOGO on the product and package?
A: Yes, we can do that.
Q9: Do you accept custom design on size?
A: Yes,We can customize the design according to your inquiry.
Q10: Can we design packaging?
A: Yes, default is regular packing, we can make customer’s own packing.
Q2: Where is your factory located?
A: Our factory is located in Shenzhen which is near Shenzhen and Hong Kong sea port. Cheap and fast on shipping.
Q 3: What qualifications and strengths does your company have?
A: Our company won the "Government authorized Hi-Tech Enterprise certificate " in November 2015 (Remark: This is a national level comprehensive strength certificate).
Q4: How many solar systems do you produce every month?
A: We can produce 10000 units every day.
Q5: Can you provide sample?
A: Yes, we can provide you sample, but you need to pay for the sample and freight firstly.We will return the fee after you make an order.
Q6: Can you use our brand?
A: Yes, OEM is available.
Q7: Is your products the lowest price?
A: Ex-factory price, the same quality, we are much cheaper than other suppliers.
Q8: Could you print our company LOGO on the product and package?
A: Yes, we can do that.
Q9: Do you accept custom design on size?
A: Yes,We can customize the design according to your inquiry.
Q10: Can we design packaging?
A: Yes, default is regular packing, we can make customer’s own packing.
