Top 10 ZUMAX Pure Sine Wave Inverter 10kw 11Kw Solar Inverter Home Use Hybrid Inverter With Ac Charger
- Category: >>>
- Supplier: Dongguan Zumax Technology Limited
Share on (1601259249967):
Product Overview
Description
Product Details
Nominal Voltage | 220/230/240VAC | ||
Voltage Range | 90-280VAC3V(Inverter Mode) 170-280VAC3V(UPSMode) | ||
Frequency | 50-60Hz Auto sensing | ||
Rated Output Power | 11000W | 11000W | |
Output Voltage(Ac) | [220/230]240VAC±5% | ||
Output Frequency | 50/60Hz±0.1% | ||
Waveform | Pure sine wave | ||
Transfer time(AC to DC) | 10ms for Computer Equipment, 20ms for Household Equipment | ||
Peak Power | 22000VA | ||
Overload Capacity(Battery Mode) | 21s@105%~150%Load； 11s@150%~200%Load； 400ms@>200%Load | ||
Products Description
Model | D-11KW | ||
Nominal Voltage | 220/230/240VAC | ||
Voltage Range | 90-280VAC±3V(Inverter Mode)170-280VAC±3V (UPS Mode) | ||
Frequency | 50-60Hz Auto sensing | ||
Rated Output Power | 11000W | ||
Output Voltage(Ac) | 220/230/240VAC±5% | ||
Output Frequency | 50/60Hz±0.1% | ||
Waveform | Pure sine wave | ||
Transfer time(AC to DC) | 10ms for Computer Equipment,20ms for Household Equipment | ||
Peak Power | 22000VA | ||
Overload Capacity(Battery Mode) | 21s@105%~150% Load11s@150%~200% Load400ms@>200% Load | ||
Grid connected Operation | Output Voltage | 220/230/240VAC | |
Grid Voltage Range | 195-253VA | ||
Grid Frequency Range | 49-51±1Hz/59-61±1Hz | ||
Output Current | 47.8A | ||
Power Factor Range | >0.99 | ||
Peak Efficiency(Battery Model) | 98% | ||
Norminal Voltage | 48VDC | ||
Constant Charging Voltage | 56.4VDC | ||
Float Charging Voltage | 54VDC | ||
PV Charging way | MPPT | ||
Max PV Input Power | 2*5500W | ||
MPPT Controller Voltage | 90-500VDC | ||
MAX PV Input Voltage | 500VDC | ||
MAX PV Charge Current | 150A | ||
MAX AC Charge Current | 150A | ||
MAX Charge Current | 150A | ||

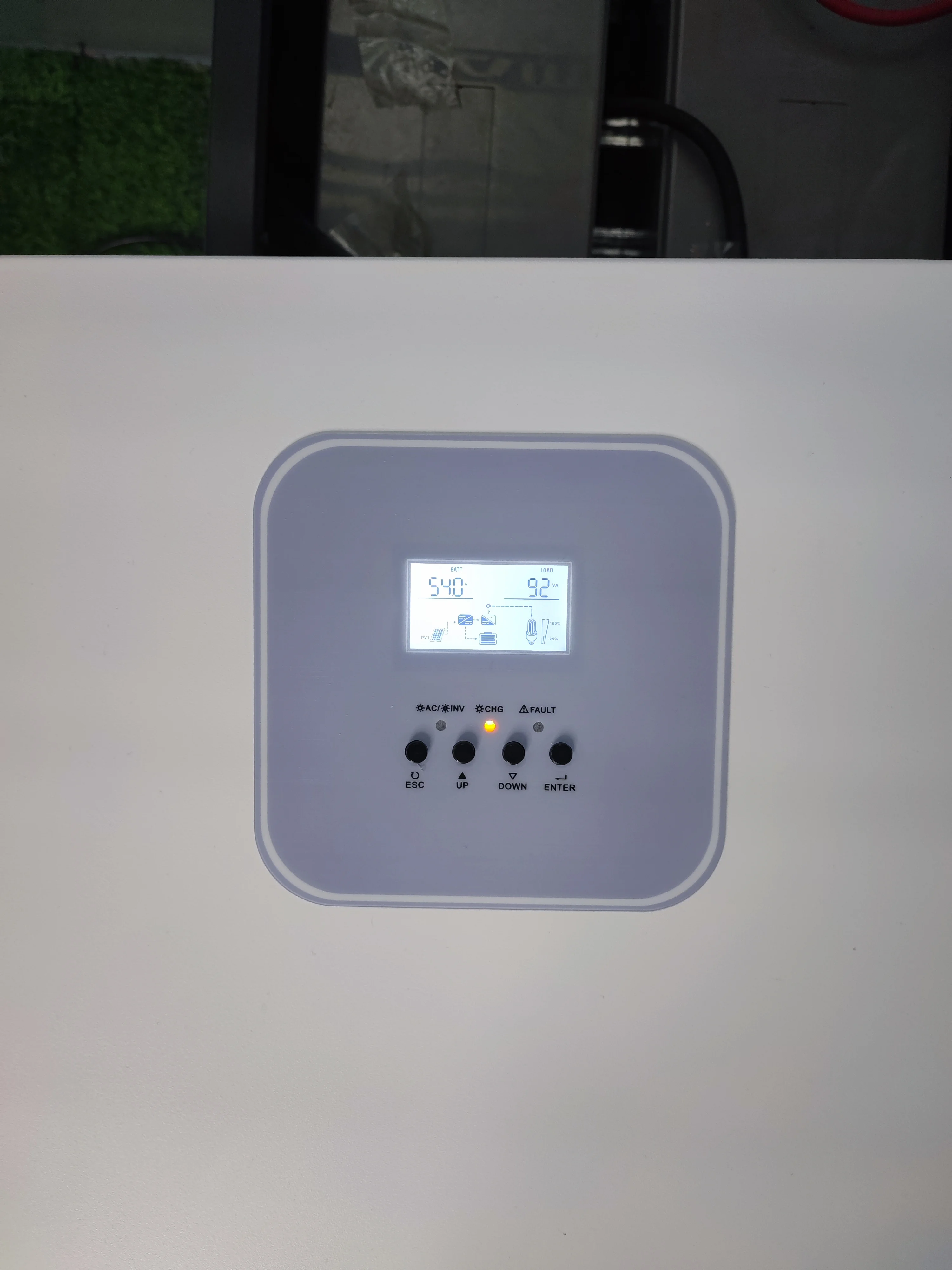

LCD Display | AC input Voltage,AC input frequency,PV Voltage,PV Current,Output Voltage, Output Frequency, Battery Voltage,Load Current,etc. | ||
RS232 | 5PIN/Pitch2.0mm | ||
Expansion Slot Communication Interface | 2x5PIN/Pitch2.54mm,Lithium battery BMS communication card、WIFI, etc | ||

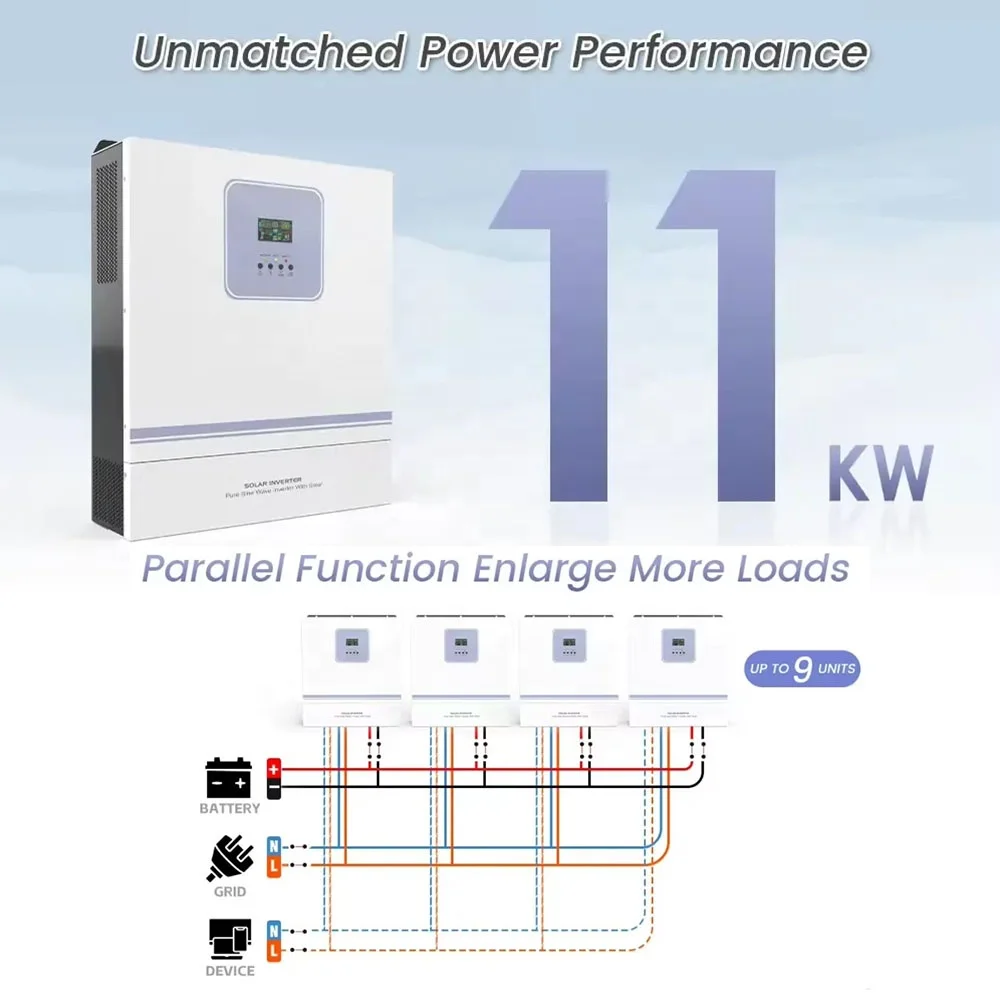

Parallel Interface | Yes | ||
Operating Temperature | 0~40℃ | ||
Humidity | 20%~95%(Non-condensing) | ||
Storage Temperature | -15~60℃ | ||
Altitude | <1000m | ||
Noise(dB) | ≤50db | ||

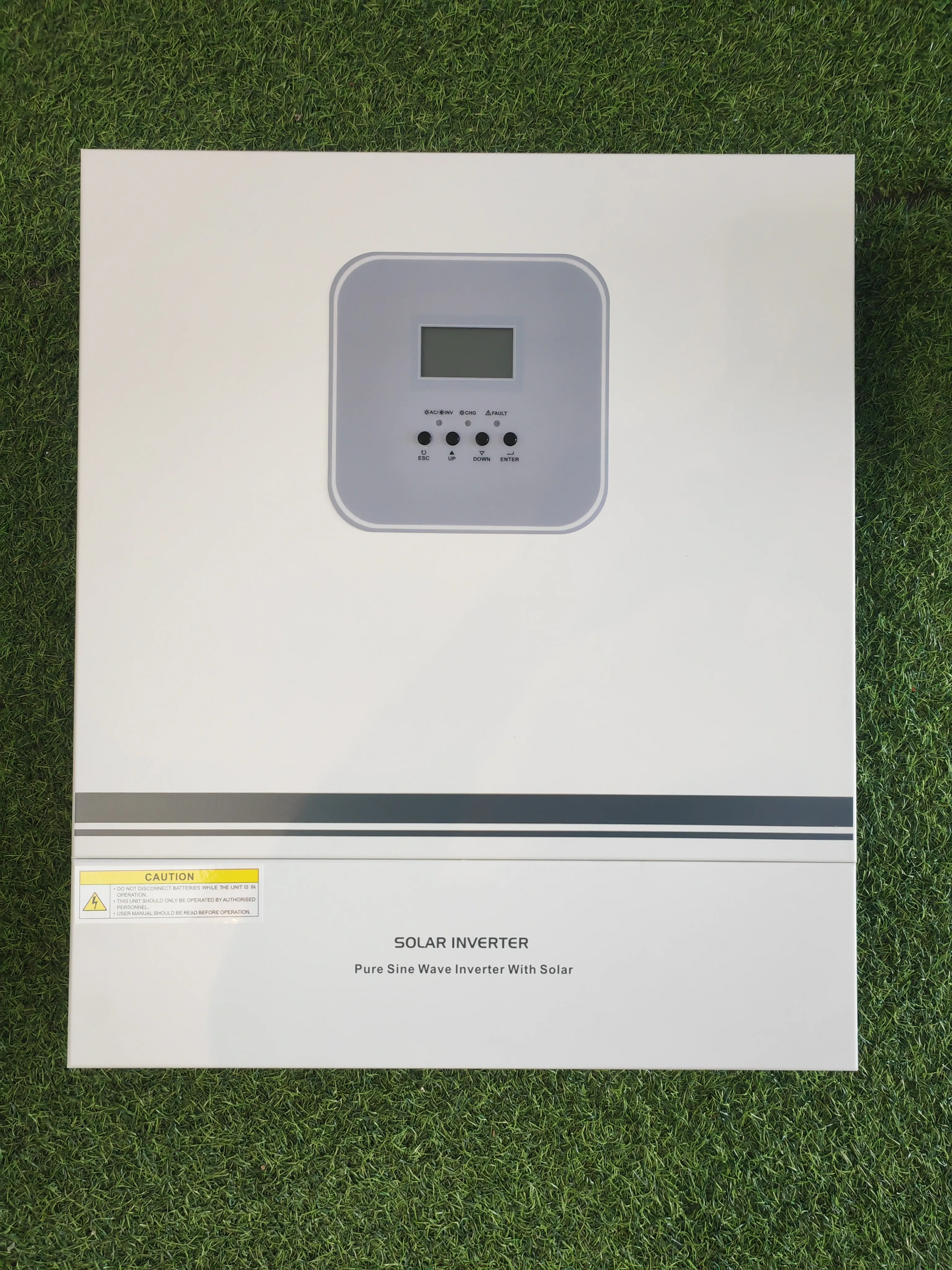

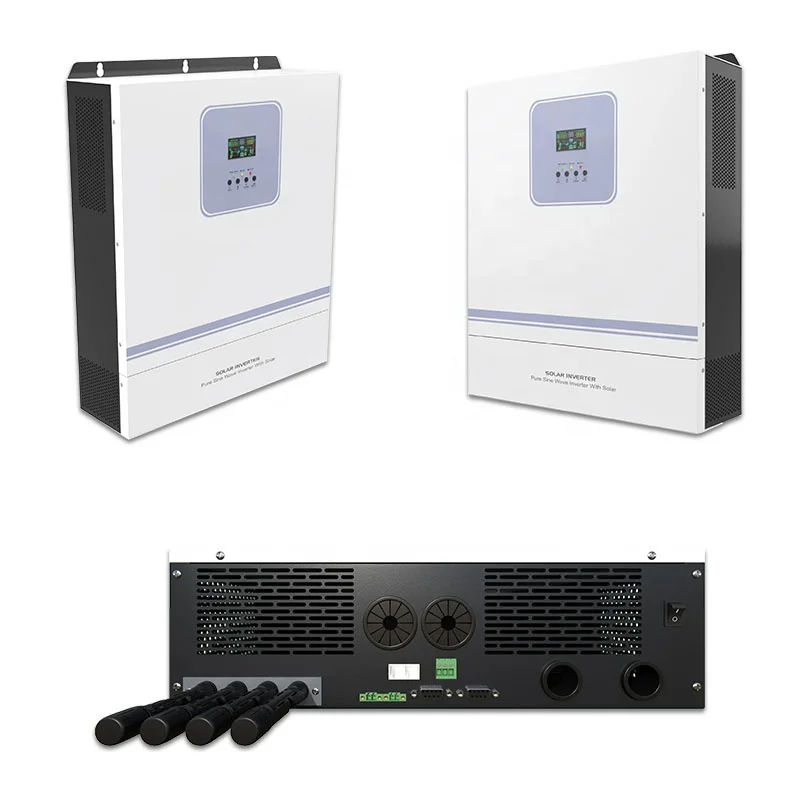

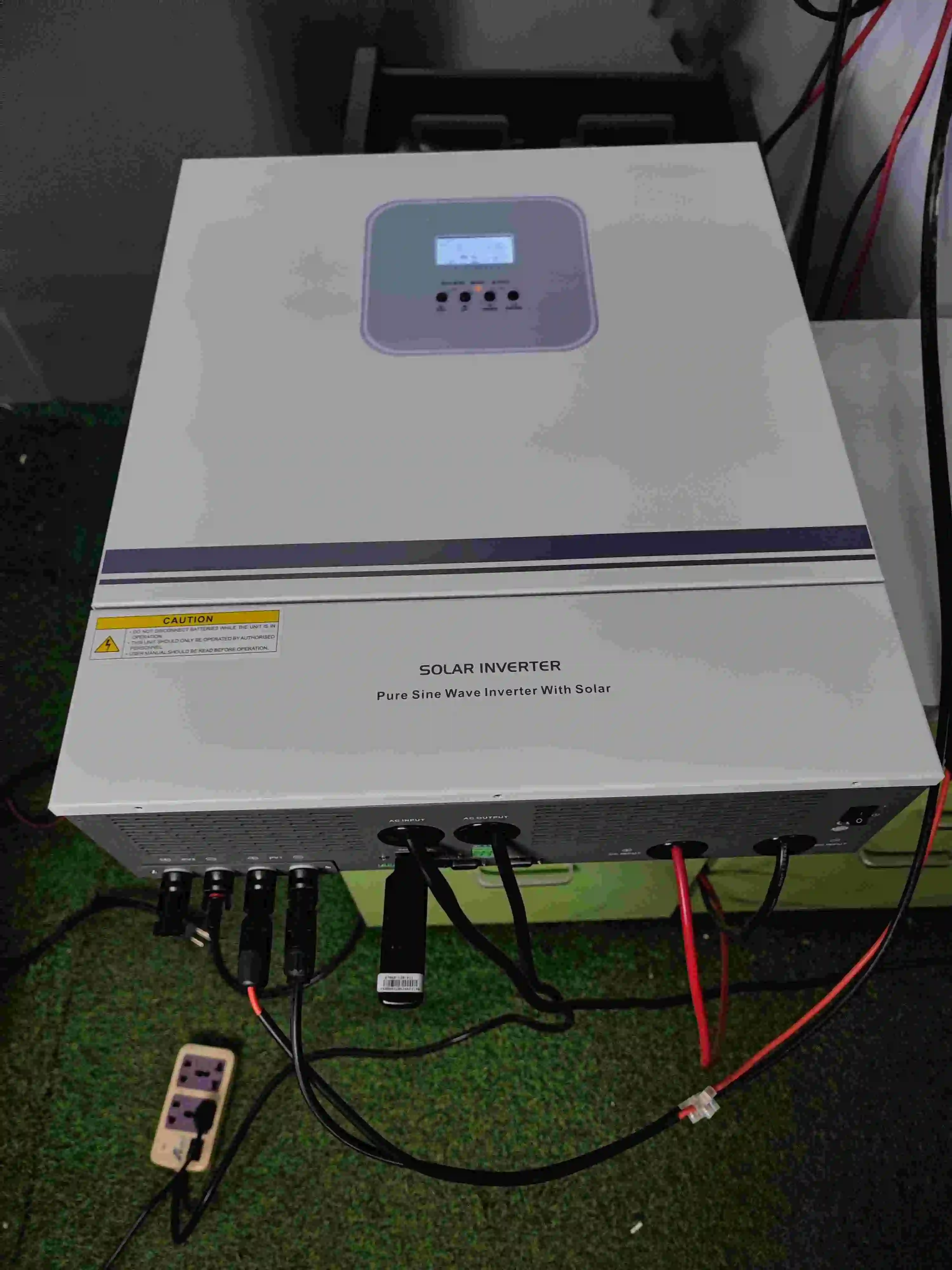

Product Photograph
Company Profile
Dongguan Zuma Technology Co., Ltd
Established in 2010, Zumax International Limited) is a high-tech enterprise concentrating in power supply, solar inverter, lithium battery,server/computer power supply and power professional research,production, sales and service. The manufacturer located in Dongguan City, Therefore, it possesses good geographical positions and convenient transportation conditions. We have our own factory building of more than 5000 square meters, and there are more than 10 senior engineers and 120 staff engaged in the professional production, Now our production has stepped into certain standardization and scope. To ensure product quality and increase production efficiency, we have introduced advanced technology and equipment from abroad and strictly carries out the international quality standards, we have already passed the ISO9001, UL, FCC, CE, CB. C / managemen and quality certificate. Our company take "Perfect Customer Service, Excellent Quality Continuous Creation" as our main principle, and our products have received warm reception from our customers. As fierce competition and decline market in power industry, our business increase as with reliable technology, good material and creative mind, which helping us win a sound reputation from our customers. Welcome to visit us.
SHIPPING |
①FedEx/DHLUPS/TNT for samples，Door-to-Door. |
②By Air or by Sea for batch goods,for FCL；Airport Port receiving. |
③Customers specifying feright forwarders or negotiable shipping methods. |
④Delivery Time：3-7 days for samples；5-25 days for batch goods. |
FAQ
Q1: Why you should choose us?
---More than 20 years Electrical Equipment factory experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 1-2years warranty and 1% sapre parts for free
---We will repair the PCB or provide new one
Q3: What kind of certification you have?
---ISO9001,ISO14001, CE,ROHS,UL,and so on
---All series product pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days;
Q5. Can I have a sample order?
---Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ?
---Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ,1 pcs for sample checking is available.
Q7. Do you support OEM?
---Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
