Perfect Laser glass Pvc Pipe Sunglasses Pen Ceramic abs 3w 5w uv laser marking machine
- Category: >>>
- Supplier: Perfect Laser (wuhan) Co. Ltd.
Share on (1601259340994):
Product Overview
Description

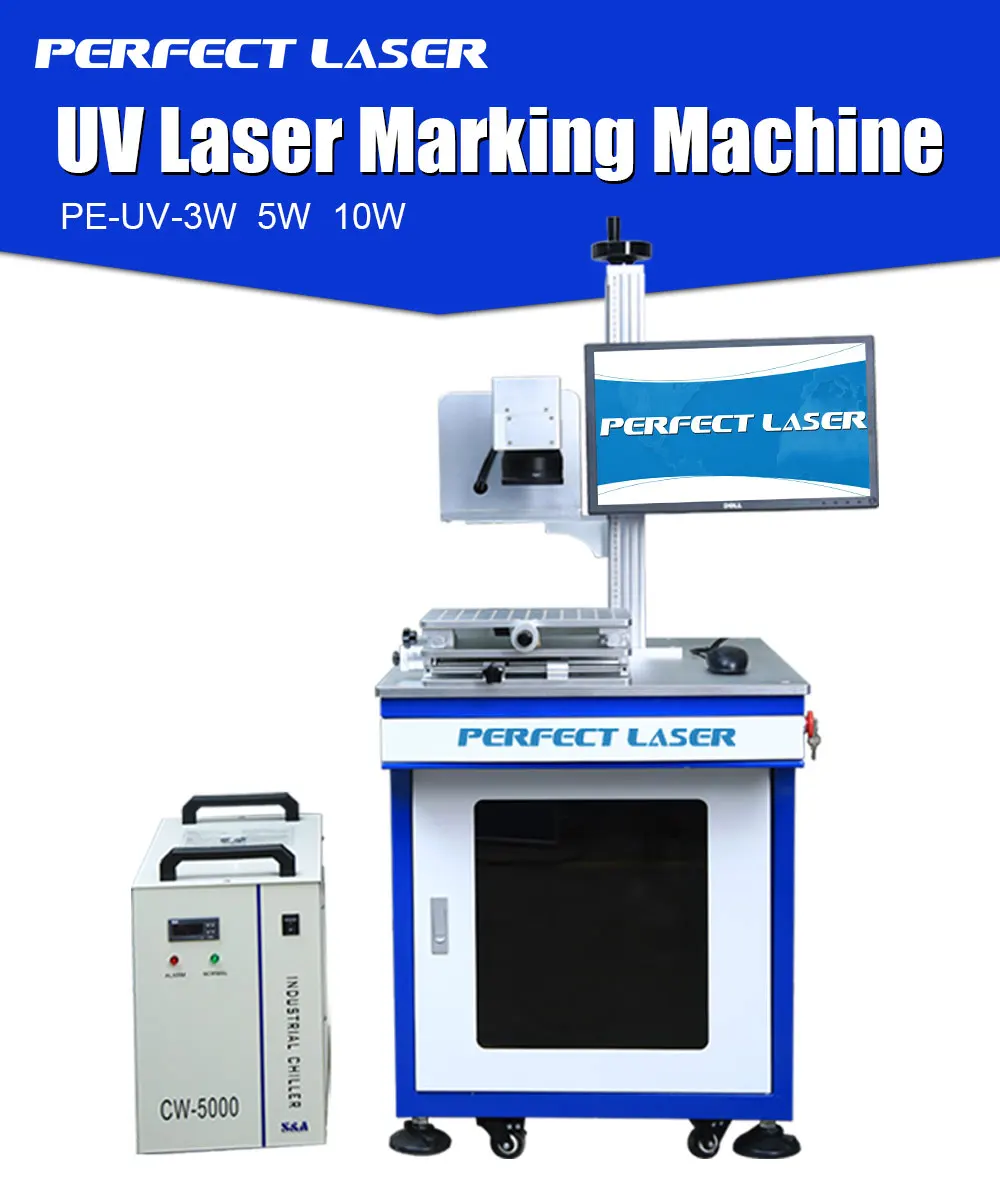

Perfect Laser- glass Pvc Pipe Sunglasses Pen Ceramic 355nm table type abs uv laser marking machine 3w
Model: PE-UV-3W/5W
Contact:Sara MP:+86 13971657490 Email: sales021@perfectlaser.net
Product Description
Perfect laser is an industrial laser equipment manufacturer since 1995, more than 15 years Alibaba gold supplier. our machine has been exported to more than 180 countries and regions. Due to our machines' reliable quality and affordable price, we have been certified by European CE, ISO9001:2000 quality system.
Application：
The uv laser marking machine abs 3w is widely used in 3C industry marking, as well as industrial micro machining, including marking for adiversity of materials, plastic, glass, LED scribing, laser rapid prototyping, removal of metal and non-metal coating, silicon wafer processing and so on.
Main Features
(1) Adopt doubling technique of intravenous frequency has greatly improve the stability of laser. Design on laser cavity adopts a series of optimization method, so as to ensure the beam quality as the fundamental mode.
(2) The table type uv laser marking machine takes 355nm pumped purple light laser device as the light source. Narrower pulse width and smaller heat affection contribute to generate peak power. The higher the peak power is, the wider the adapting range of materials is. This implement perfect 355nm uv laser marking machine 3w in some relatively hard material.
(3) Higher pulse stability, namely better pulse consistency of laser produces the same carving effect, so the UV laser engraving machine is very suitable for precision UV laser marking. Higher pulse repetition frequency meets the need of quick marking and
high production efficiency.
(4) High efficiency of the photoelectric conversion and long service life.
(5) Automatic in a rotary table (optional item), convenient feeding, fast speed, high efficiency.
(6) The mark is of environmental protection, comply with ROHS standard
(7) The 355nm uv laser marking machine 3w can support logos and graphs designed in DXF format from Auto-CAD, PLT, BMF, AI, JPG, etc.
(8) The uv laser marking machine abs 3w can mark date, bar code and two-dimension code automatically.
(9) Superior performance, good stability, high conversion rate and low energy consumption.
(2) The table type uv laser marking machine takes 355nm pumped purple light laser device as the light source. Narrower pulse width and smaller heat affection contribute to generate peak power. The higher the peak power is, the wider the adapting range of materials is. This implement perfect 355nm uv laser marking machine 3w in some relatively hard material.
(3) Higher pulse stability, namely better pulse consistency of laser produces the same carving effect, so the UV laser engraving machine is very suitable for precision UV laser marking. Higher pulse repetition frequency meets the need of quick marking and
high production efficiency.
(4) High efficiency of the photoelectric conversion and long service life.
(5) Automatic in a rotary table (optional item), convenient feeding, fast speed, high efficiency.
(6) The mark is of environmental protection, comply with ROHS standard
(7) The 355nm uv laser marking machine 3w can support logos and graphs designed in DXF format from Auto-CAD, PLT, BMF, AI, JPG, etc.
(8) The uv laser marking machine abs 3w can mark date, bar code and two-dimension code automatically.
(9) Superior performance, good stability, high conversion rate and low energy consumption.
Technical Data
Model | PE-UV-3W/5W | PE-UV-10W | |
Laser type/wave length | 355nm | ||
Laser output power | 3W/5W | 10W | |
Beam quality㎡ | <1.1 | <1.3 | |
Marking speed | 400 characters per second | 500 characters per second | |
Repeated accuracy | ±0.001mm | ||
Working area | 110×110mm or 180×180mm ( adjustable ) | ||
Machine power | 800W | 1200W | |
Power supply | 380V/50-60Hz or 220V/50-60Hz | ||
Minimum character | 0.1mm | ||
Minimum line width | 0.015mm | ||
Life of the laser machine | >100,000 hours | ||
Cooling system | Water Cooling | ||
Control interface | Standard USB | ||
Overall dimensions | 900mm×680mm×1200mm | ||
