High Flow Fuel Dispenser Filter Spin on Cartridge Oil Filter R18189MB 10 with 1 inch NTP Aluminum Adapter

Product Overview

Description

Product Description

Features:

1.The Model R18189MB-10 Cross References with the Cim-Tek 70120(400MB-10) and PertoClear 40510D-AD
2.R18189MB-10 offers efficient 10 micron (nominal) particulate removal, and senses both free and emulsified water in neat gasoline, diesel and biodiesel.
3.R18189MB-10 is designed to slow flow as an indicator of the presence of water in neat gasoline, diesel and biodiesel.Slows flow rate to notify the operator that water is present in fuel and action is required.
4.R18189MB-10 is also designed to detect and react to phase separation in ethanol blended gasoline,R18189MB-10 filters will significantly restrict the flow of fuel if they detect phase separation.
5.Removal phase separation in straight gasoline, gasoline and ethanol blends up to 25%,and ultra-low Sulfur diesel.

Details Images

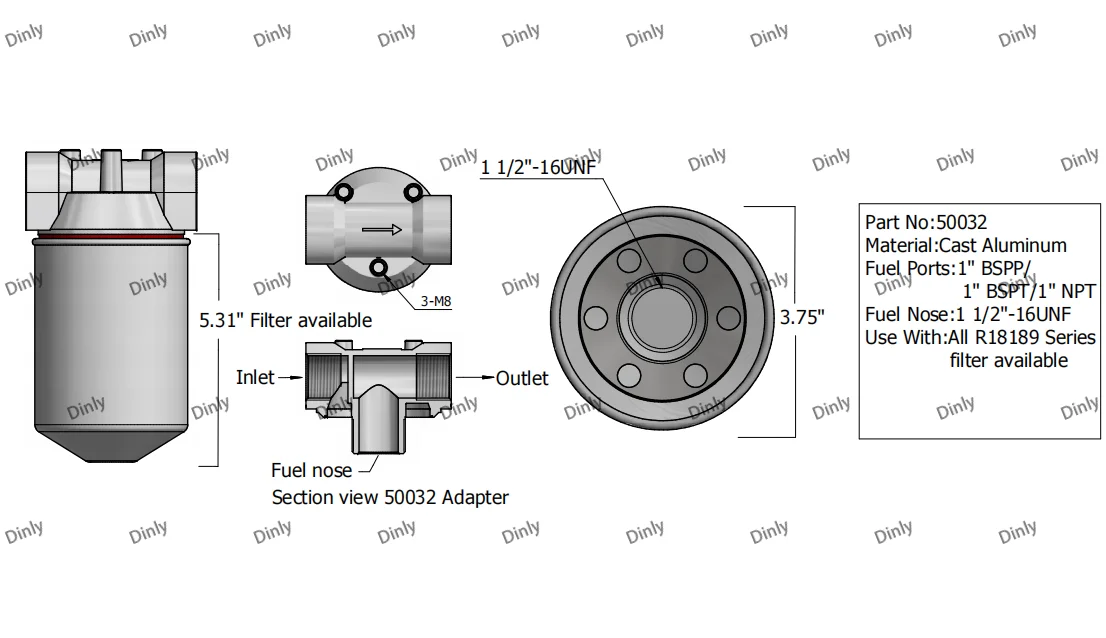

Thread Size : 1 1/2"-16UNF

The model R18189MB-10 utilizes a standard 1 1/2"-16 UNF mounting thread ref. (1" flow) required for most spin-on filter adapters used in Gilbarco, Wayne, Bennet, Tokheim and other major manufacturers’ dispensers,as well as with adapters used in the aftermarket.



Brand Name	Dinly

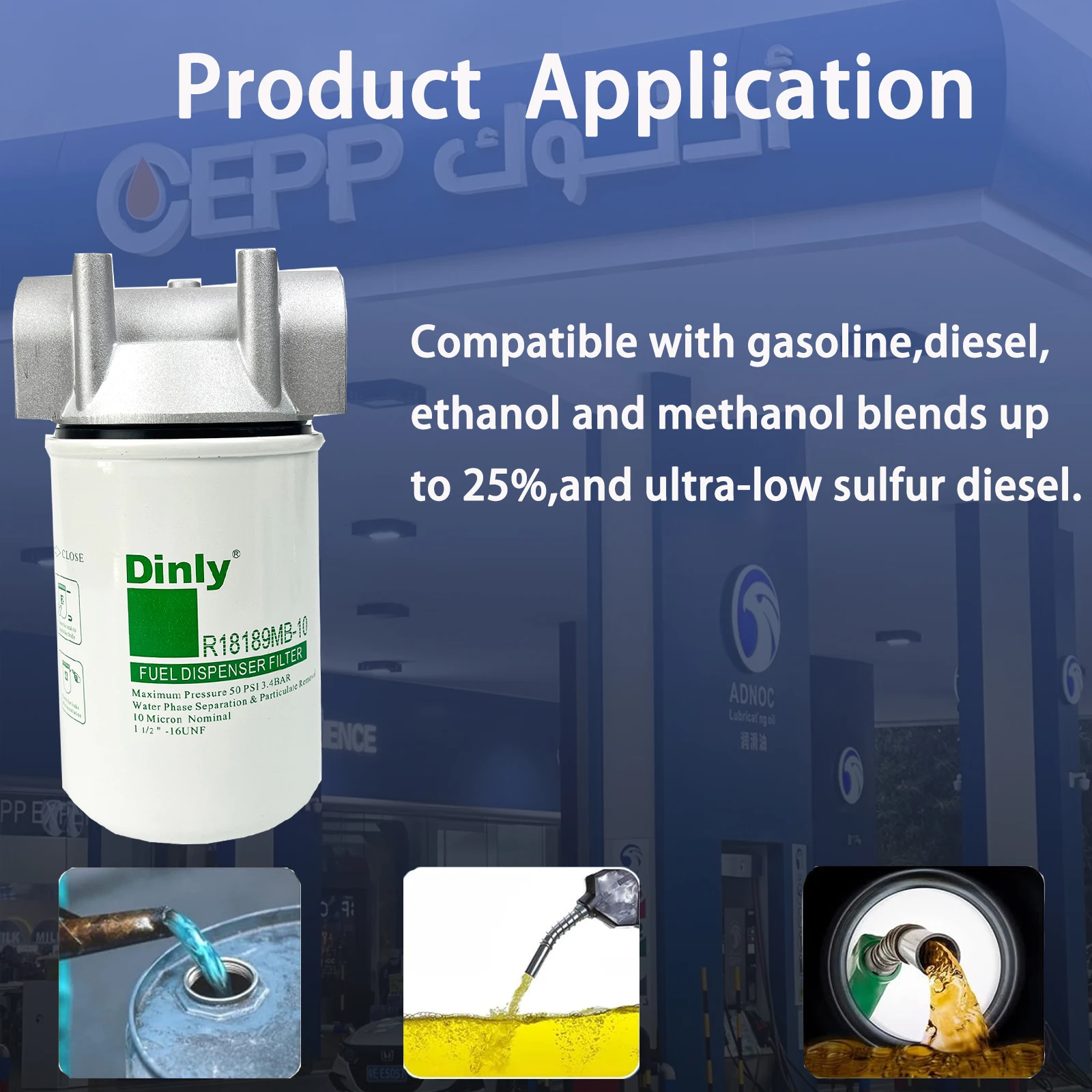

Application	gas station, fuel station
Fuel Type	Straight Gasoline, Ethanol Blends up to 25%
Function	Remove Particulate & Detect Water

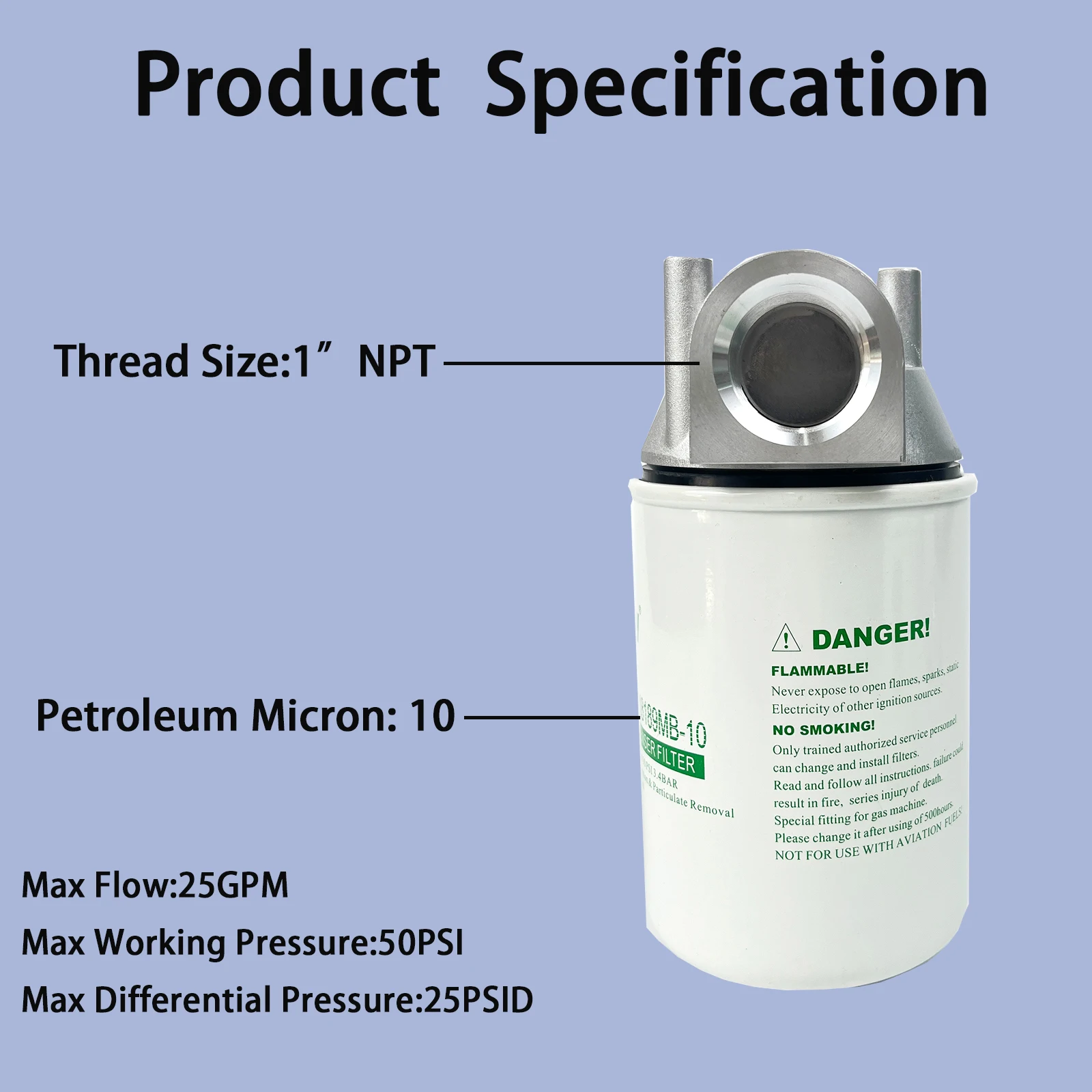

Thread Size	1 1/2"-16UNF
Petroleum Micron	10
Media	multi-layer composite media

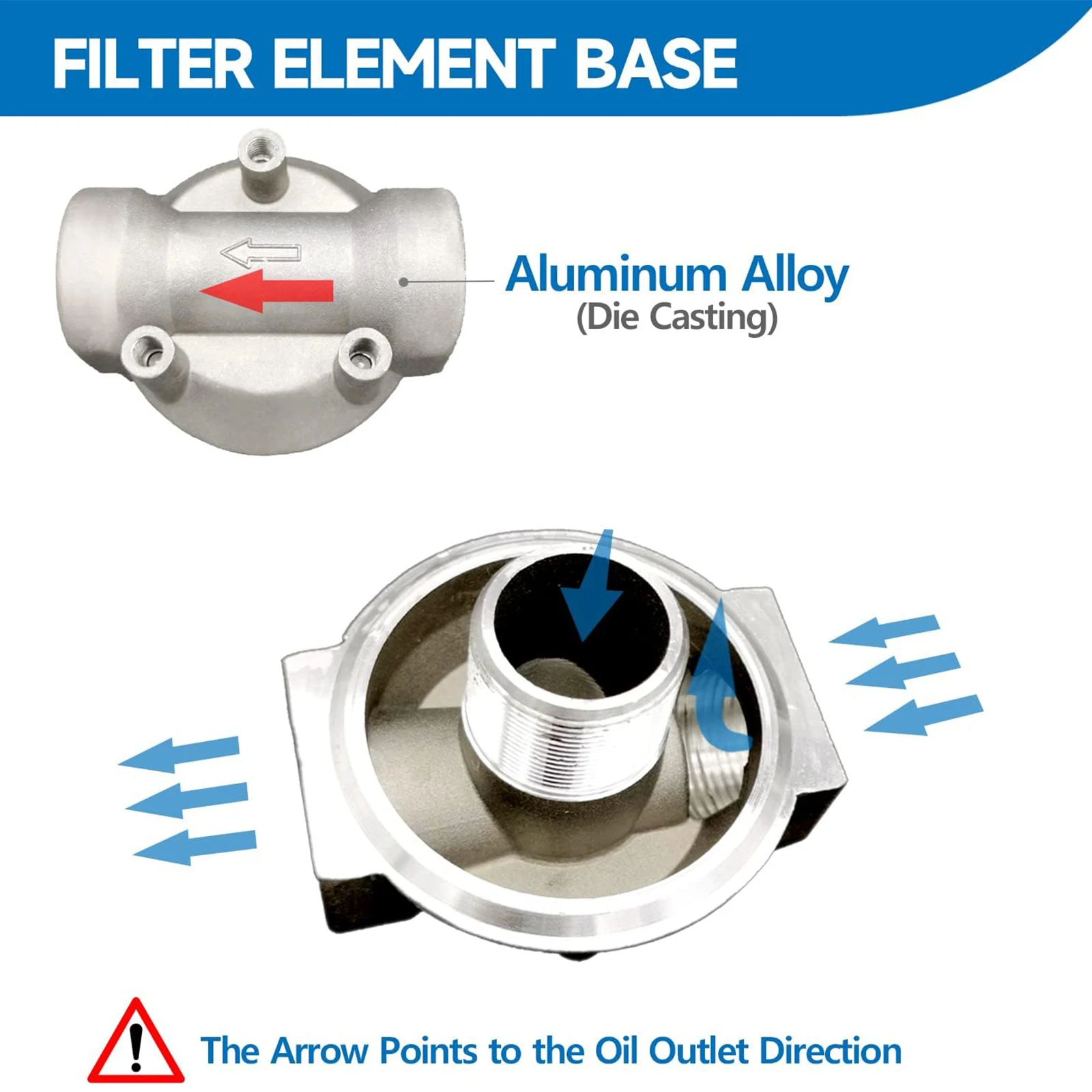

Holder No	50032
Fuel Ports	1"BSPP/ 1"BSPT/ 1"NPT
Material	Cast Aluminum
