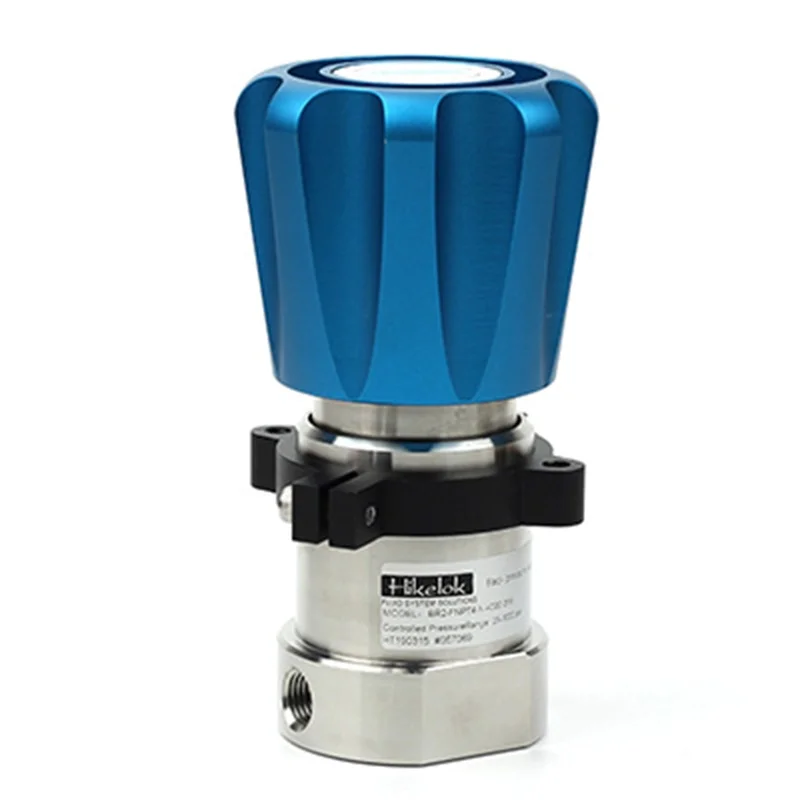

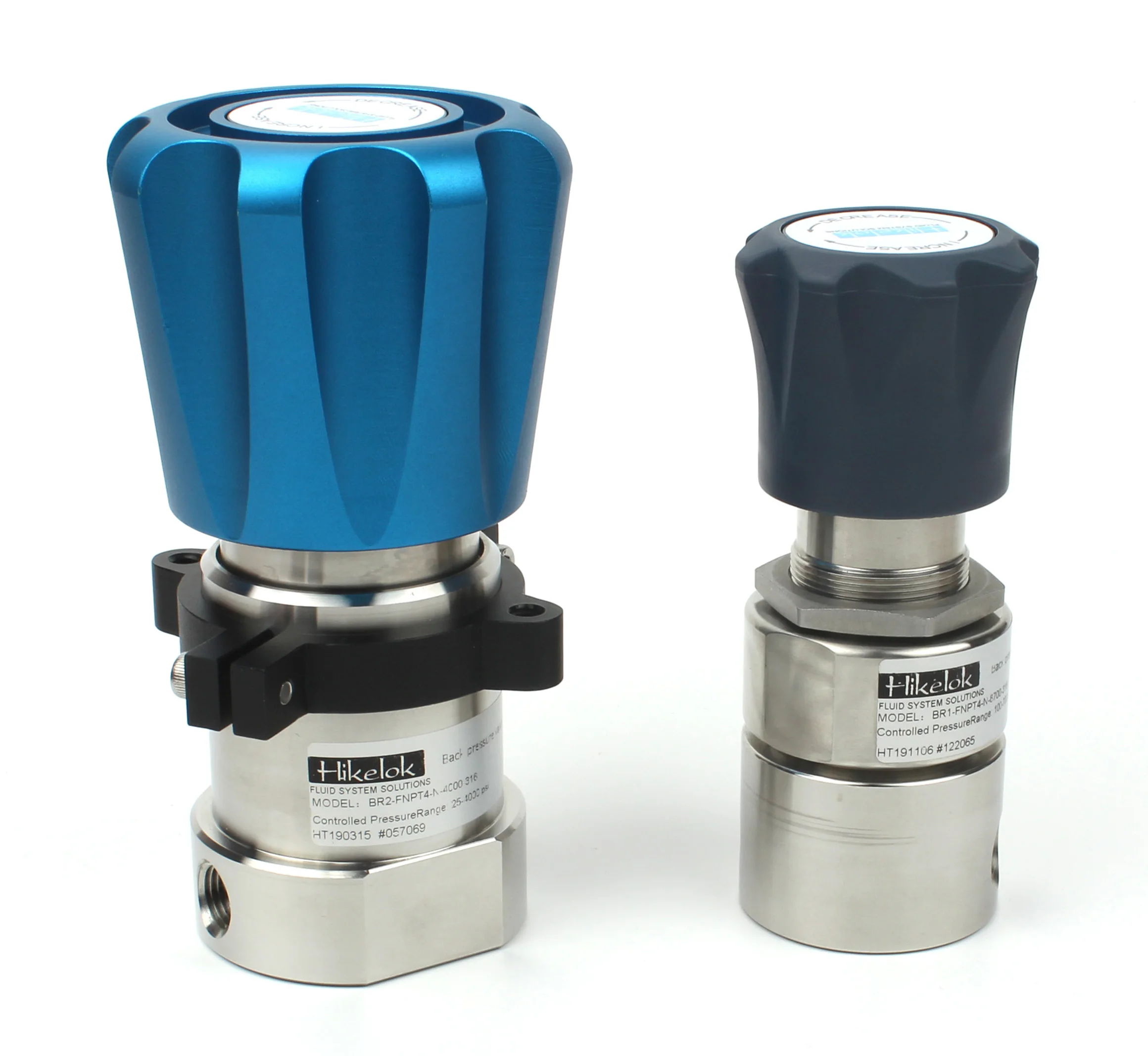

High Pressure 10 10000 psi Controlled Pressure Back Pressure Regulator Stainless Steel 1/4 Female NPT Regulators
High Pressure 10- 10000 psi Controlled Pressure Back- Pressure Regulator Stainless Steel 1/4 Female NPT Regulators
High Pressure 10- 10000 psi Controlled Pressure Back- Pressure Regulator Stainless Steel 1/4 Female NPT Regulators
High Pressure 10- 10000 psi Controlled Pressure Back- Pressure Regulator Stainless Steel 1/4 Female NPT Regulators

High Pressure 10 10000 psi Controlled Pressure Back Pressure Regulator Stainless Steel 1/4 Female NPT Regulators

Share on (1601259391898):


Price:$150.00

Quantity:


Product Overview

Description



Specification


Product name
Back- pressure regulator
CV value
0.10
Controlled pressure range
10-1500 psig (0.69-103 bar), 15-2500 psig (1.03-172 bar), 25-4000 psig (1.72-275 bar), 50-6000 psig (3.45-413 bar), 200-10000 psig (14.79-689 bar)
Max inlet pressure
10000 psi


Product Description


Application
Reactor pressure control
Over-pressurization relief
Pump discharge pressure control

Features:
Maximum Inlet pressure 10000 psig (689 bar)
Economical, compact design
Piston sensed design is safe and reliable
Optional gauge ports and panel mounting
Flow capacity Cv=0.10
Low handknob torque for easy operation
Bubble-tight shutoff at all reseating pressure

Operating Parameters:

Maximum Inlet Pressure :
10000 psig (689 bar)
Controlled Pressure Ranges :
10-1500 psig (0.69-103 bar), 15-2500 psig (1.03-172 bar), 25-4000 psig (1.72-275 bar),
50-6000 psig (3.45-413 bar), 200-10000 psig (14.79-689 bar)
Design Proof Pressure :
150% maximum rated
Leakage
Bubble-tight
Operating Temperature
PCTFE: -40°F to 165°F (-40°C to 74°C)
PEEK: -40°F to 392°F (-40°C to 200°C)
PI: -40°F to 250°F (-40°C to 121°C)
Flow Capacity
Cv=0.10
