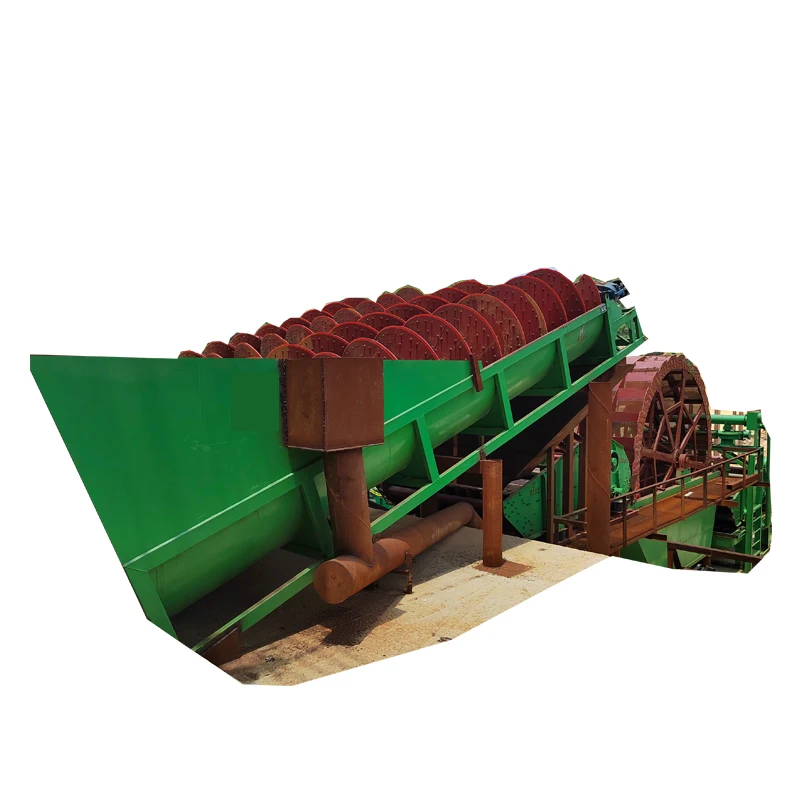

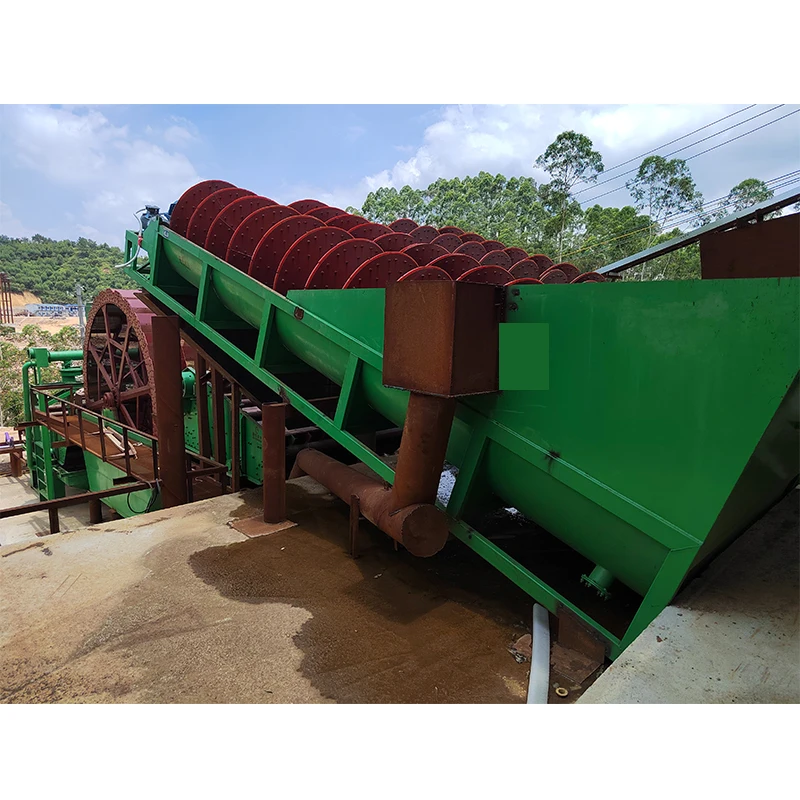

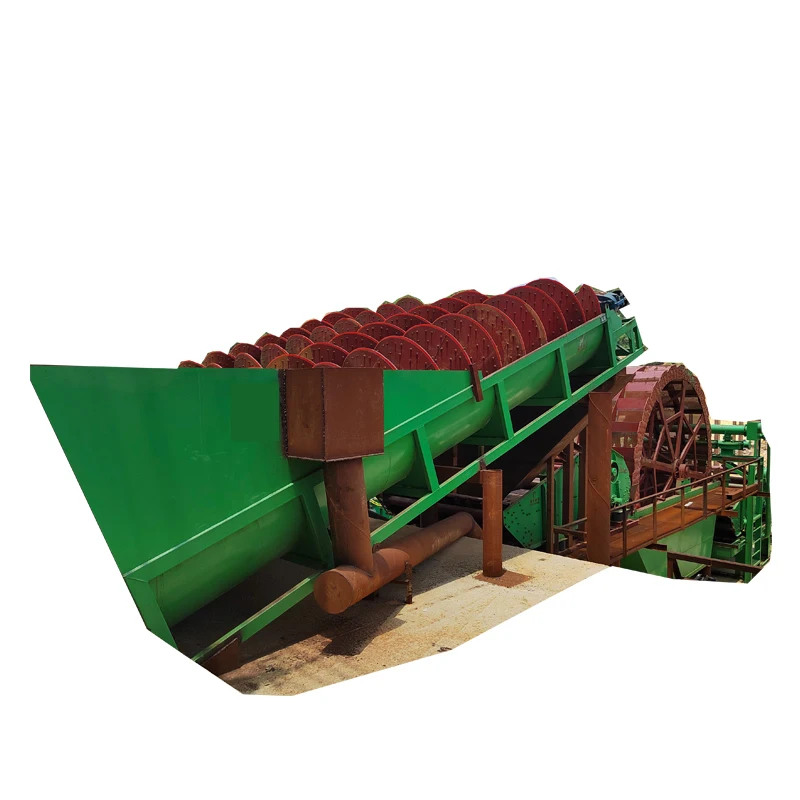

Double Spiral Sand Washer Low Power Consumption Screw Sand Washer Mobile Sand washer

Product Overview

Description

Main production fine sand recovery device, tailings dry drainage system, screening equipment, washing equipment and filter equipment and the entire tailings water mixture zero discharge system. Through the efforts , ZHONGPANXIN' technical staff and various suppliers to improve the equipment and the majority of users in the actual use of information feedback, in addition to Ty Series, the company has developed TX series of new sand washing and dehydration, TX-gdzs-laminated screen and TX-gzt-high frequency fine screen, TX-mvs-cnc electromagnetic high frequency decoration, TX-fmvs-cnc complex frequency electromagnetic high frequency decoration.



                                         High frequency stack laminated vibrating fine screen

has a super-high capacity, using high-quality, high-opening rate anti-blocking wear-resistant polyurethane screen, and also composed of 1 -5 layers of independent screen frame for multi-parallel can be very good for fine fine particles of material screening, is a dedicated for high-efficient screening of wet fine particles of material screening machine products.

Used in aluminum, bauxite, chrome ore, coal, copper, feldspar, iron ore, kaolin, lead and zinc ore and other materials.



Model	Layers	Vibration Frequency	Partition Size	Screening Area	Processing Capacity	Power	Mineral Concentration
TX-GDZS-1014	3	1405-1500	0.045-1.2	4.2	25-65	3.6	25---50% DEPENDS ON  SUPPLYING MATERIALS
TX-GDZS-1014	4	1405-1500	0.045-1.2	5.6	30-75	3.6
TX-GDZS-1014	5	1405-1500	0.045-1.2	7.0	50-100	4.4
TX-GDZS-1021	2	1405-1500	0.045-1.2	4.2	15-35	3.6
TX-GDZS-1021	3	1405-1500	0.045-1.2	6.3	30-65	3.6
TX-GDZS-1021	4	1405-1500	0.045-1.2	8.4	40-80	3.6
TX-GDZS-1021	5	1405-1500	0.045-1.2	10.5	50-95	4.4
TX-GDZS-1217	2	1405-1500	0.045-1.2	4.03	20-35	3.6
TX-GDZS-1217	3	1405-1500	0.045-1.2	6.05	40-65	3.6
TX-GDZS-1217	5	1405-1500	0.045-1.2	10.08	55-100	4.4
TX-GDZS-1224	3	1405-1500	0.045-1.2	9.07	34-70	4.4
TX-GDZS-1224	4	1405-1500	0.045-1.2	12.1	46-85	4.4
TX-GDZS-1224	5	1405-1500	0.045-1.2	15.12	58-100	7.0









High-frequency vibrating fine screen is suitable for screening impurities such as particles in pulp with concentration 55% , with strong handling capacity and large handling capacity Using flexible polyurethane screen mesh, high porosity. Widely used in coal, Non-ferrous metal, building materials, petroleum, other industries, such as slag removal (chip removal) , crude, dehydration and other fields





MODEL	Vibration Frequency	Slurry Stages	Screening Area	Processing Capacity	Power	Tilt Angle	Mineral Concentration
TX-GZT-1014	1405-1500	2	1.40	LESS 26	2.0	-5  TO 5	30-55%
TX-GZT-1021	1405-1500	3	2.10	LESS 35	2.2
TX-GZT-1224	1405-1500	3	1.03	LESS 35	3.0
TX-GZT-1540	1405-1500	4	6.30	LESS 45	3.6

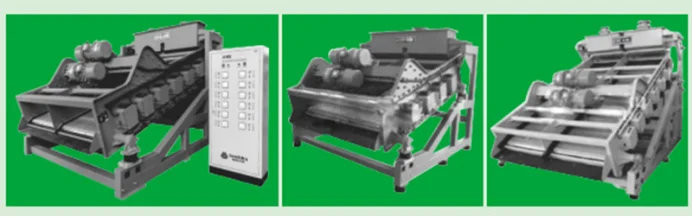

Numerical control complex frequency electromagnetic high frequency screen

This screen vibration is made of the combination of the whole machine linear vibrating screen and the electromagnetic vibrating screen, also called the complex frequency electromagnetic high frequency vibrating fine screen. The equipment is widely used in fine screening, dehydration and other operations such as mineral processing, coal preparation, Non-ferrous metal and non-metal, building materials, other industry, etc.

The classification series is mainly used for classification of fine material in mineral processing and coal preparation, the screen surface can be designed as 1 ~ 2 layers, and the dehydration series is mainly used for dehydration of tailings, quartz sand and coal slime,



MODEL	LAYER	SCREENING AREA	PROCESSING CAPACITY	POWER	SUPPLY MATERIAL (%)	USAGE
TX-FMVS-2020	1	4	15-30	7.4	LESS 46	Dry wet seperation
TX-FMVS-2020	2	8	30-60	7.4	LESS 46
TX-FMVS-2420	1	4.8	25-35	7.4	LESS 46
TX-FMVS-2420	2	9.6	50-70	7.4	LESS 46
TX-FMVS-2425	1	4.2	30-50	5.6	LESS 46
TX-FMVS-2425	2	8.4	35-100	5.6	LESS 46



Electromagnetic high-frequency vibrating screen

Electromagnetic high-frequency vibrating screen high efficiency, small amplitude, high screening frequency. Different from the principle of ordinary screening equipment, because the electromagnetic high-frequency screen adopts high frequency, on the one hand, it destroys the surface tension of pulp and the high-speed oscillation of fine material on the surface, the high density (specific gravity) of the useful minerals and the segregation are accelerated, and the probability of contact between the material and the sieve hole is increased.
