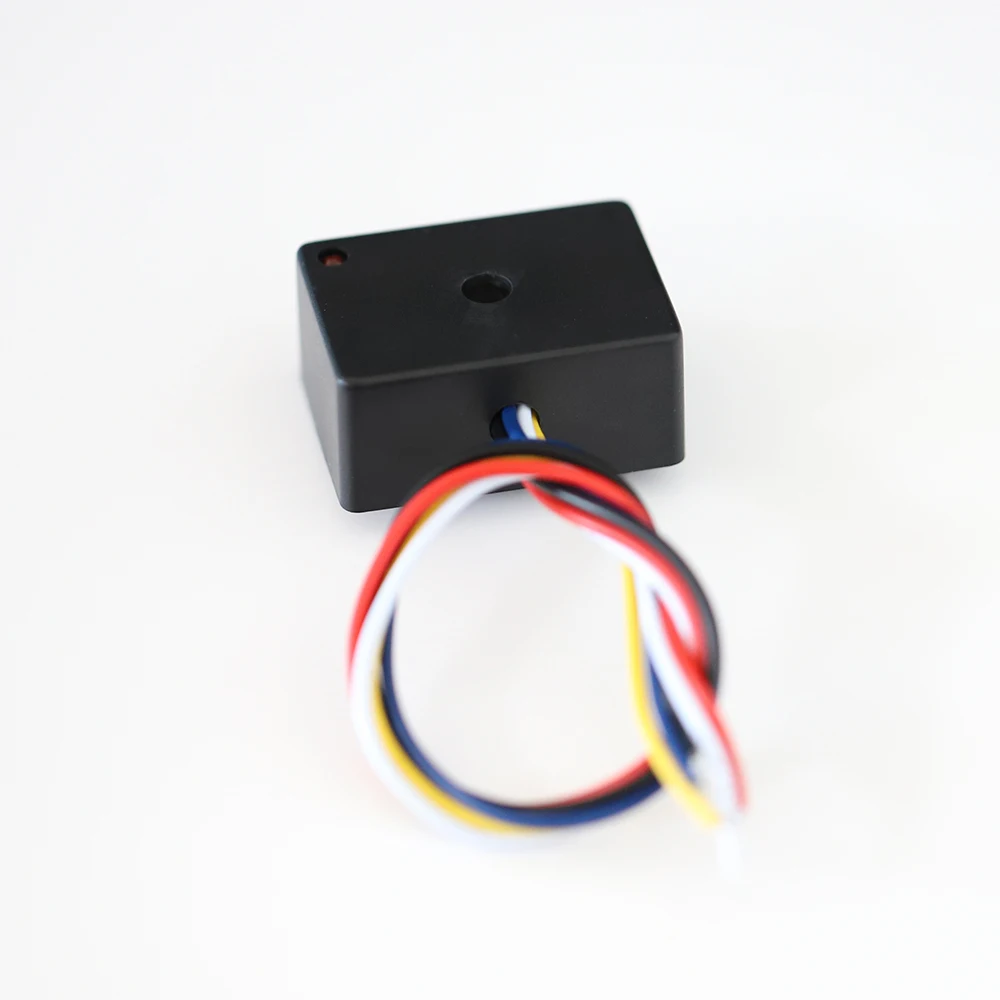

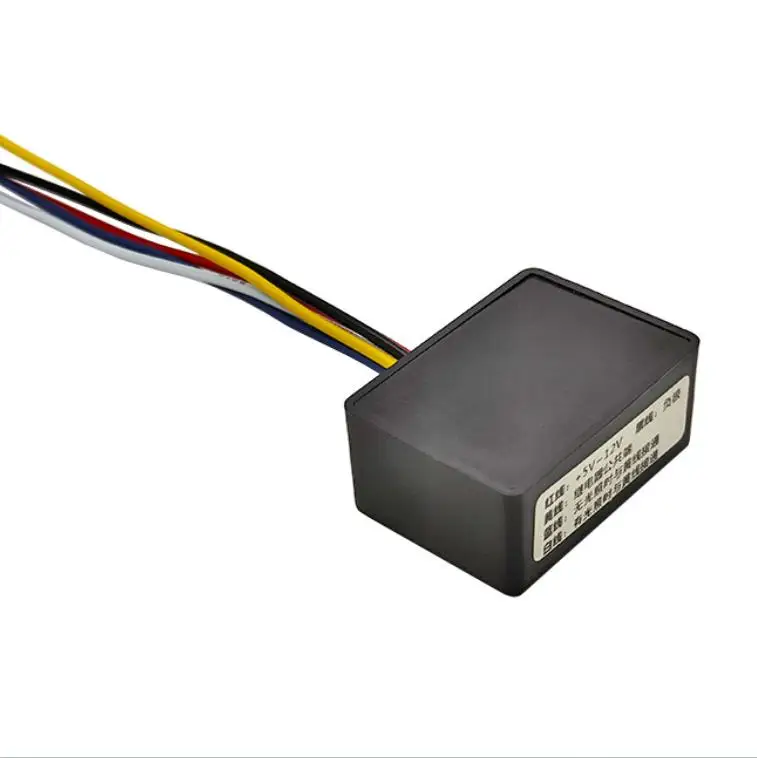

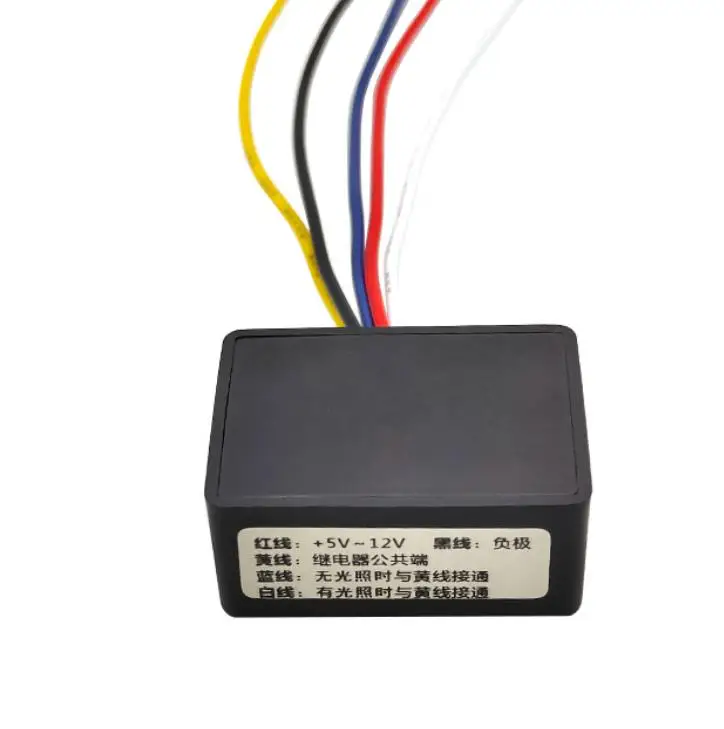

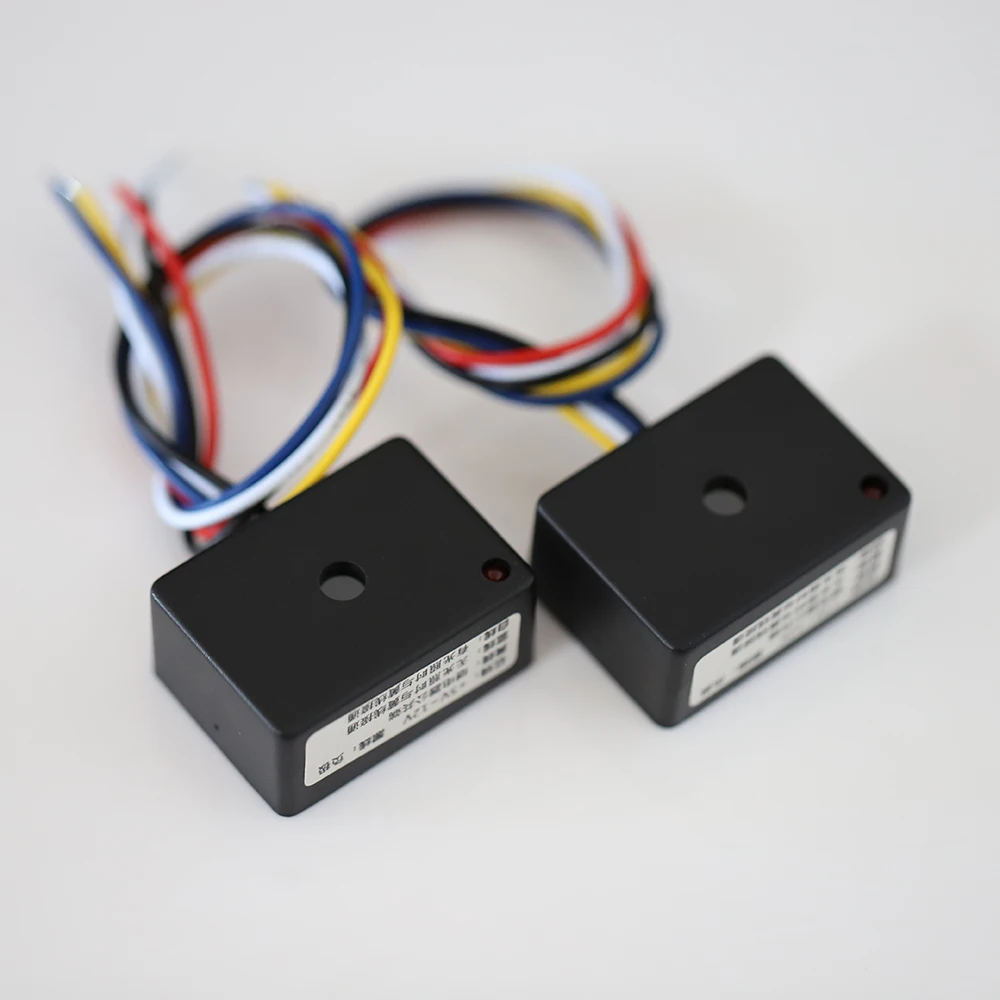

Green/blue/red infrared photoelectric switch Chamber security photoelectric 5 12V laser receiver
- Category: >>>
- Supplier: Changchun Realpoo Photoelectric Co. Ltd.
Share on (1601259598368):
Product Overview
Description
Product Overview
Specifications: 5~12VDC laser receiver
Power supply current: 50 mA
Mounting type: Surface mount type
Power supply voltage: 5~12V
Response time: 100ms
Product category: infrared receiving device
Wavelength: 400-1100nm
Power supply current: 50 mA
Mounting type: Surface mount type
Power supply voltage: 5~12V
Response time: 100ms
Product category: infrared receiving device
Wavelength: 400-1100nm
FEATURES AT A GLANCE
Product specification parameters
PRODUCT SPECIFICATIONPARAMETER DESCRIPTION
Product name: Laser receiver
Operating voltage: 5~12VDC
Working current: <50mA
Acceptable optical frequency bands:
400nm~1100nm, commonly used 405nm(blue light), 450nm(blue light), 532nm(green light)635/650/660nm(red light), 780/808/850/980nm(infrared light) can be received
PRODUCT SPECIFICATIONPARAMETER DESCRIPTION
Product name: Laser receiver
Operating voltage: 5~12VDC
Working current: <50mA
Acceptable optical frequency bands:
400nm~1100nm, commonly used 405nm(blue light), 450nm(blue light), 532nm(green light)635/650/660nm(red light), 780/808/850/980nm(infrared light) can be received
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Relay control current | < 3A |
2 | Overall dimensions | 36.3mm(L)*26.3mm(W)*16.6mm(H) |
3 | Length of external wire | 180mm × 5mm |
4 | Product model | SE1253280D-2290 |
5 | Line width | 3 (mm) |
PRODUCT CONFIGURATION
The company can be customized according to customer needs of various sizes of products, there are also a large number of conventional dimensions to choose from.
(according to diameter): 3.6mm, 4mm, 5mm, 6mm, 6.5mm, 7mm, 8mm, 9mm, 10mm, 12mm, 14mm, 16mm, 20mm, 22mm and so on.
(according to diameter): 3.6mm, 4mm, 5mm, 6mm, 6.5mm, 7mm, 8mm, 9mm, 10mm, 12mm, 14mm, 16mm, 20mm, 22mm and so on.
Successful Project
Product features: small size, sensitive response, acceptance distance

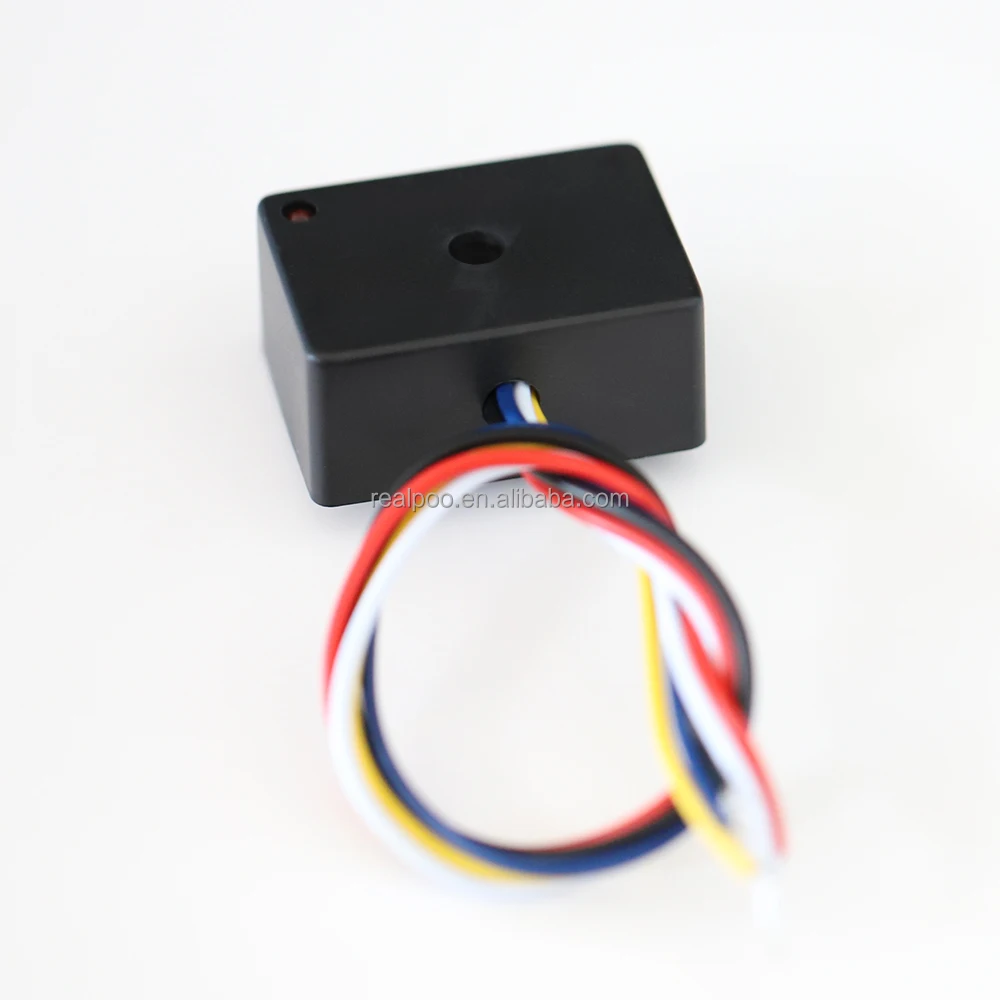

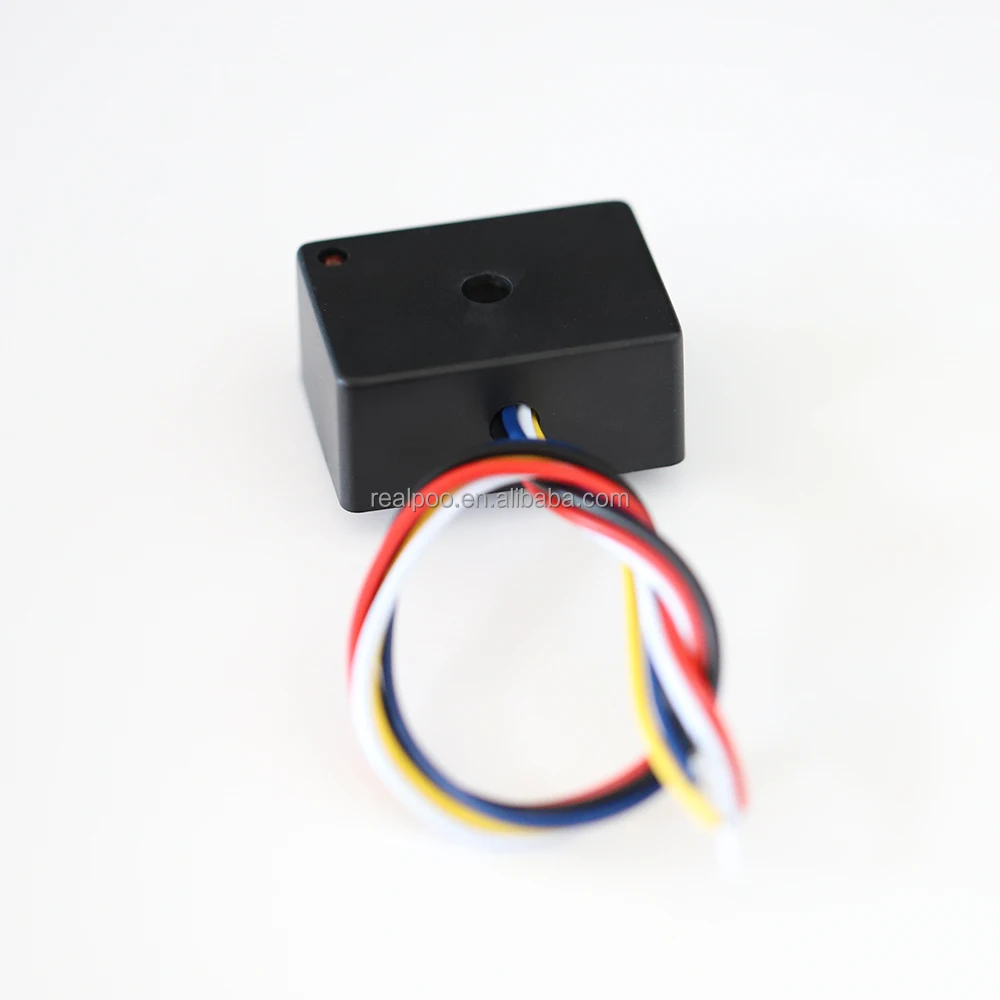

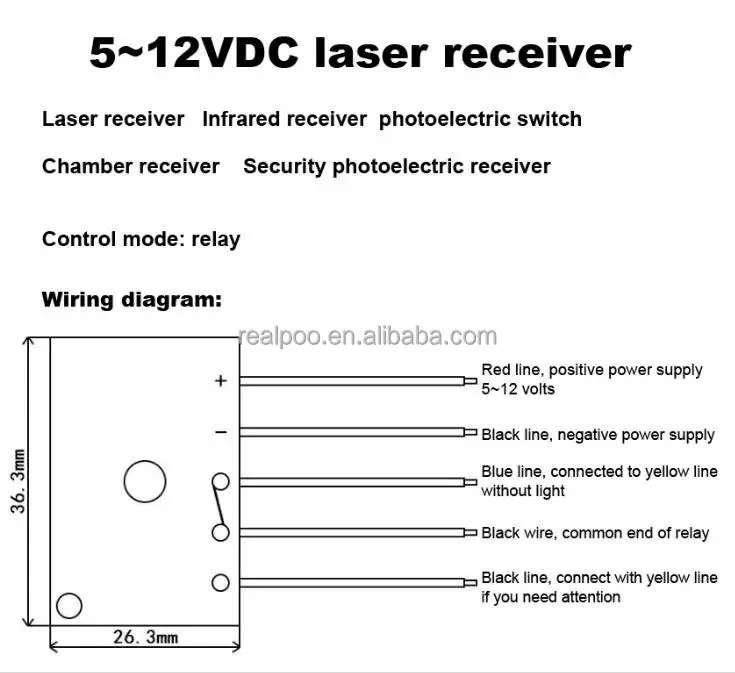

Usage: Shine the laser to the light receiving hole in the center of the receiver, the internal relay is closed, and the indicator light is turned off
Use note: When used in a strong light environment, try to avoid the receiver alignment of stray light, so as not to cause interference
Application: photoelectric detection, security anti-theft monitoring, laser counting, laser maze......
Usage: Shine the laser to the light receiving hole in the center of the receiver, the internal relay is closed, and the indicator light is turned off
Use note: When used in a strong light environment, try to avoid the receiver alignment of stray light, so as not to cause interference
Application: photoelectric detection, security anti-theft monitoring, laser counting, laser maze......
And so on
Package
Note: This product is packed in anti-static bag, and then packed in bubble bag.
