TJ 77 Automatic Hot stamping machine for paper embossed business card printing machine

Share on (1601259602404):


Price:$9,000.00

Quantity:


Product Overview

Description


TJ-77 Automatic Hot stamping machine for paper embossed business card printing machine


Product parameters:


Quality / safety certification ISO9001-2000





Technical parameters:


1 Power supply: 220V 50Hz.
2 Stamping area: 50x50mm
3 Stamping stroke: 40mm
4 Stamping pressure range selection :0.6-0 .8 mpa
5 Table size: 480x650mm
6 Servo motor: 200W
7 Curved throat clearance: 320mm
8 Heating power: 200W
9 Weight: 280Kg
10. Feeding: servo photoelectric positioning
11 Dimensions: 700x800x1200mm
12. Temperature range: Room temperature 300
°C





Advantages:
1. PLC control, easy to operate.
2. The table can be multi-faceted fine-tuning.
3. Stamping pressure, temperature, speed adjustable.
4. Servo motor feeding, the closing paper photoelectric positioning and adjustable.
5. Stamping head adjustable accordingly to facilitate stamping different heights workpiece.

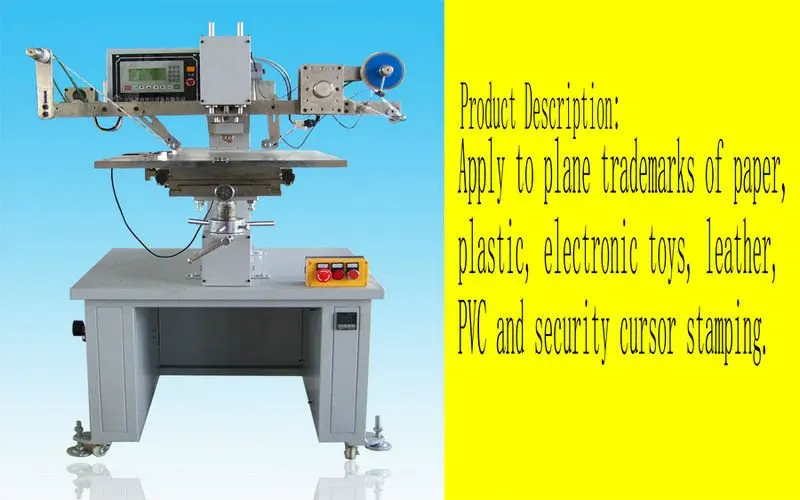

Product Description:


 Native plane stamping and thermal transfer. Accurate walking mode positioning servo motor. Table multi-faceted fine-tuning. Apply to plane trademarks of paper, plastic, electronic toys, leather, PVC and security cursor stamping.








Note: Can according to the customer demand manufacturing various stamping machines.

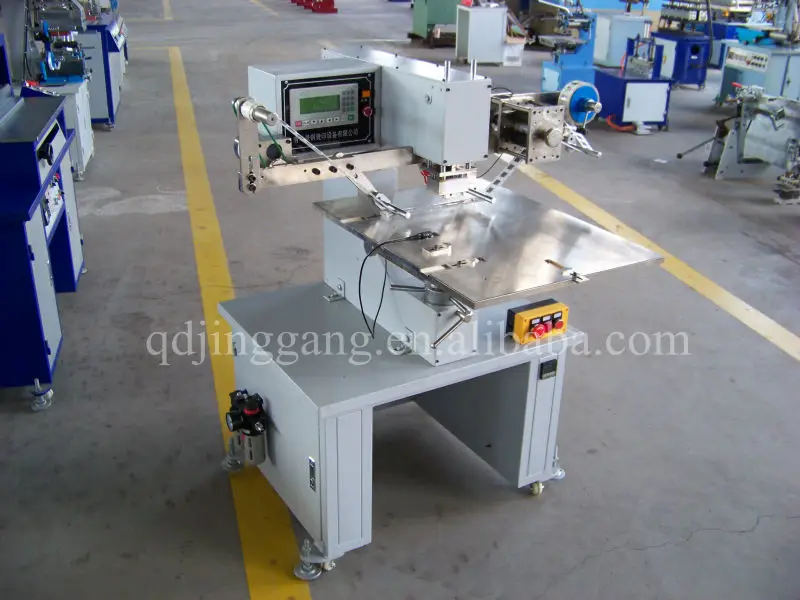

Product show:

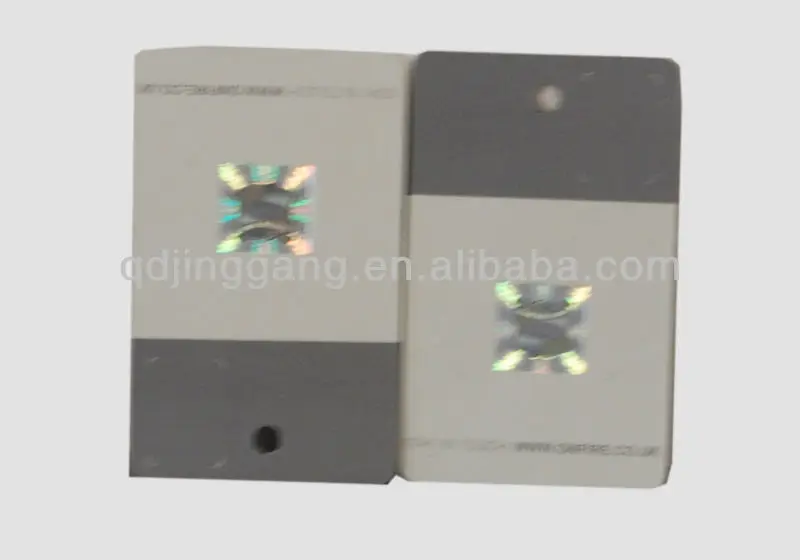

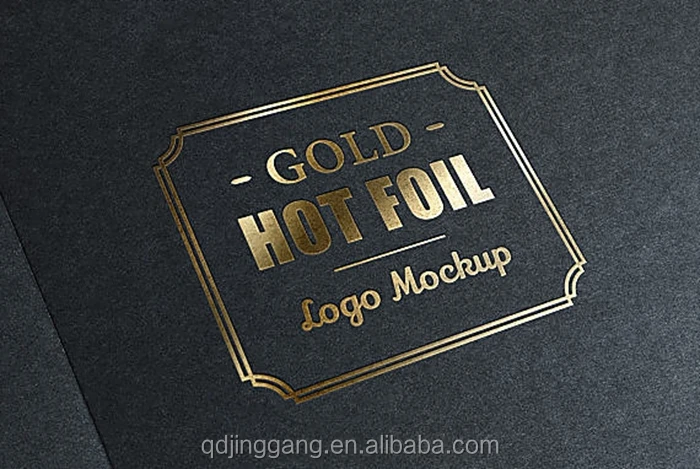

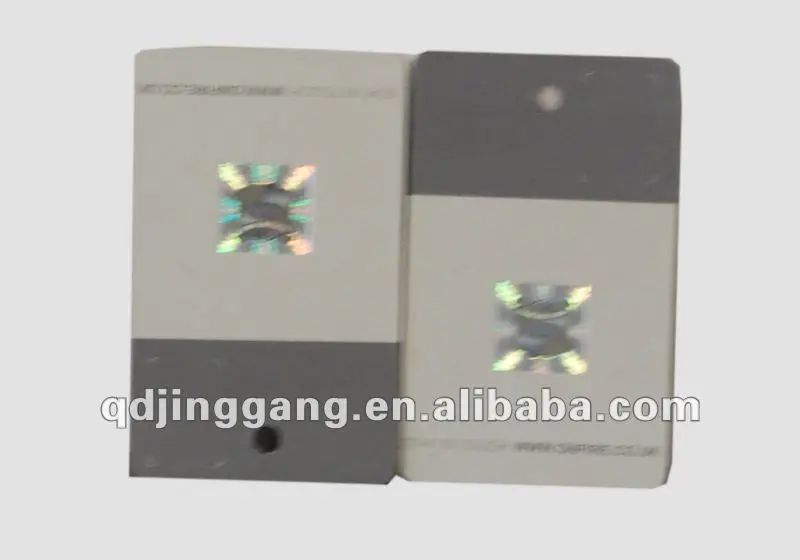

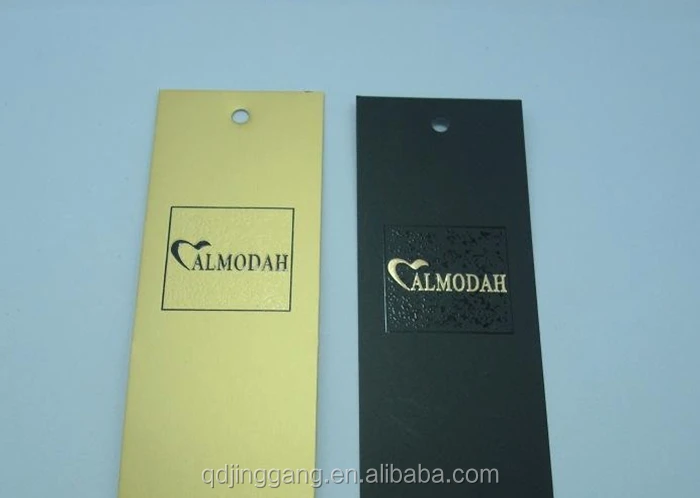

Bronzing samples:











 .jpg
