A TYPE High quality 6mm 1/4 rotary files bits electric burr grinder diamond cutters tungsten carbide burrs silver and copper
- Category: >>>
- Supplier: Yuyao Fenghua Carbide Alloy Cutting Tool FactoryYuyao Factory
Share on (1601259608841):
Product Overview
Description
Product Description
| 1.5mm-25mm Dia Tungsten Carbide Rotary Files Burrs YG6 / YG8 / YG10x |
| Recommended Grade | YG8, YG10X for carbide head,steel for shank diameter. |
| Size Rage | Head dia 1.5-35mm; Shank dia 2.35,3,6.8mm Increase length are available. |
| Tolerence | Head diameter is +-0.3mm; Shank diameter is -0.03- -0.01mm Totel length is +-0.5mm |
| Sets for carbide cutters. | 5pcs/8pcs/10pcs/ in aluminum sets 5pcs/8pcs/10pcs/ in plastic sets |
| Applications: | Milling out Weld dressing Deburring Cutting out holes Surface work Milling Weld dressing |

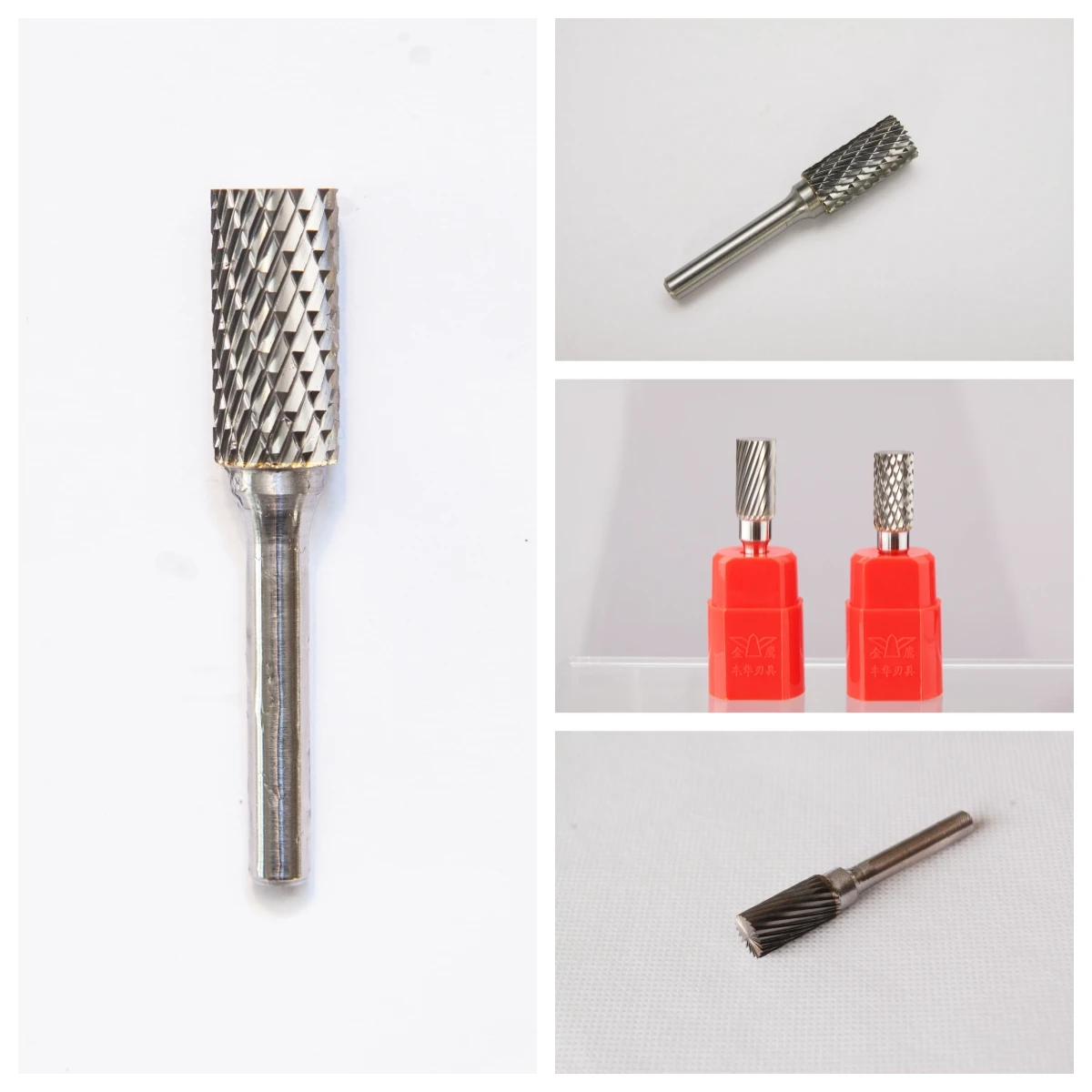

Products Real Shot

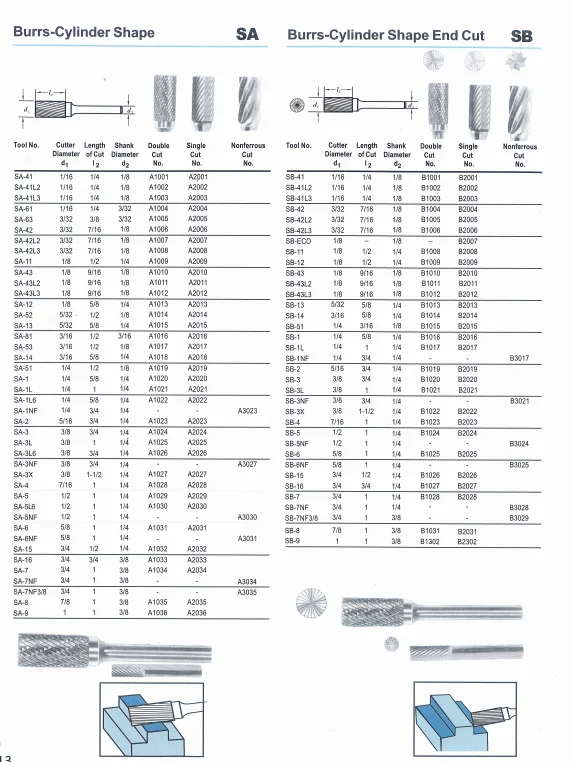

| Code | Order No. | Tooth | Cut Dia(mm) | Cut Length(mm) | Shank Dia(mm) | Shank Length(mm) | Overall Length(mm) |
| SA-1 | AX0616M06-45 | Double/Single/Aluma cut | 6 | 16 | 6 | 45 | 61 |
| SA-2 | AX0820M06-40 | Double/Single/Aluma cut | 8 | 20 | 6 | 40 | 60 |
| SA-3 | AX1020M06-40 | Double/Single/Aluma cut | 10 | 20 | 6 | 40 | 60 |
| SA-5 | AX1225M06-40 | Double/Single/Aluma cut | 12 | 25 | 6 | 40 | 65 |
SA-6 | AX1625M06-40 | Double/Single/Aluma cut | 16 | 25 | 6 | 40 | 65 |
| SA-7 | AX2025M06-40 | Double/Single/Aluma cut | 20 | 25 | 6 | 40 | 65 |
| SA-9 | AX2525M06-40 | Double/Single/Aluma cut | 25 | 25 | 6 | 40 | 65 |
