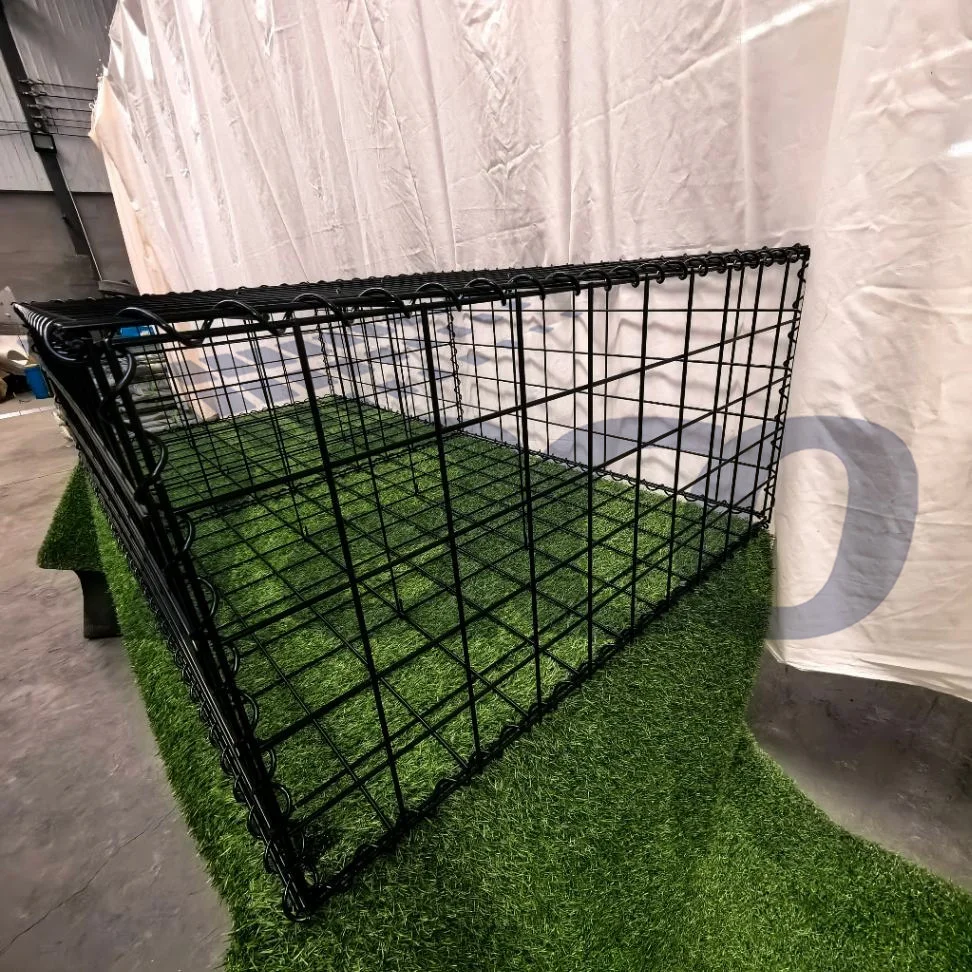

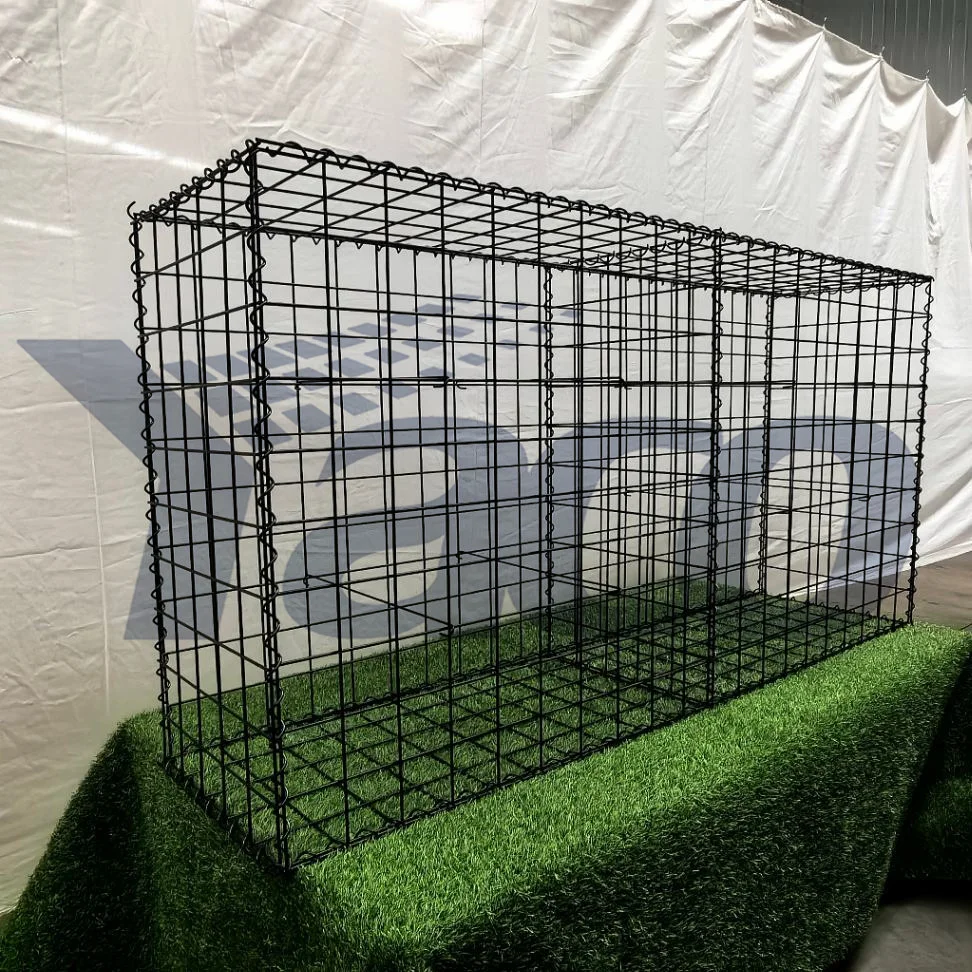

mini black pvc coated gabions steel cages filled with stones
- Category: >>>
- Supplier: Anping Yachao Hardware Wire Mesh Manufacture Co. Ltd.
Share on (1601259608929):
Product Overview
Description
Product Description
Gabion
We are manufacture of gabions. Any height and length can be produced.
Buy Direct from the factory, No middle man!
Detailed Images

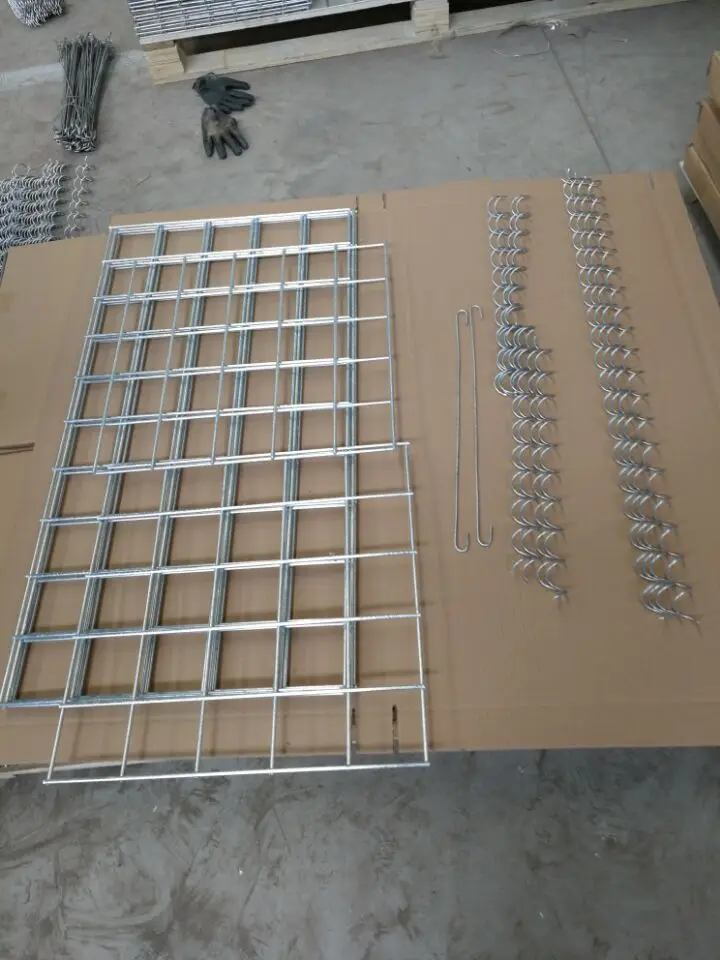

We supply various gabion accessories including spiral joints, hot rings, U clips and gabion stiffeners for gabion assembly and reinforcing.

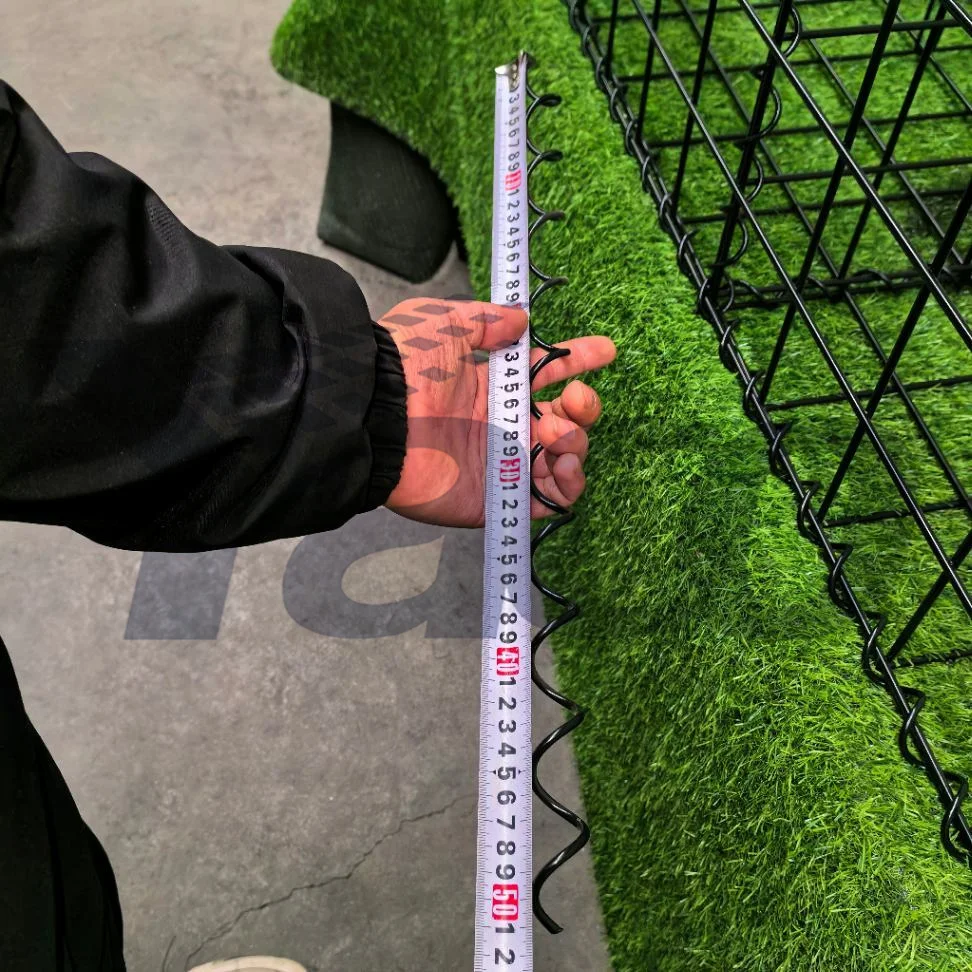

Type 1:Spiral wire connection
Type 2:C ring connection

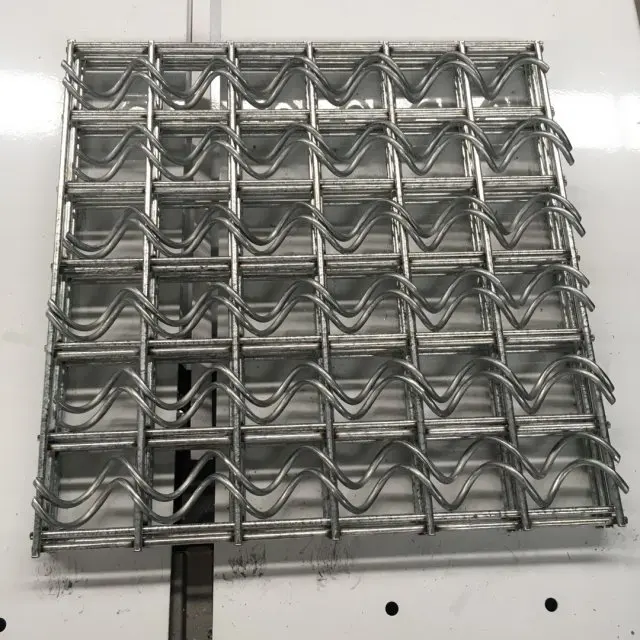

welded gabion sprial wire
welded gabion C ring connection

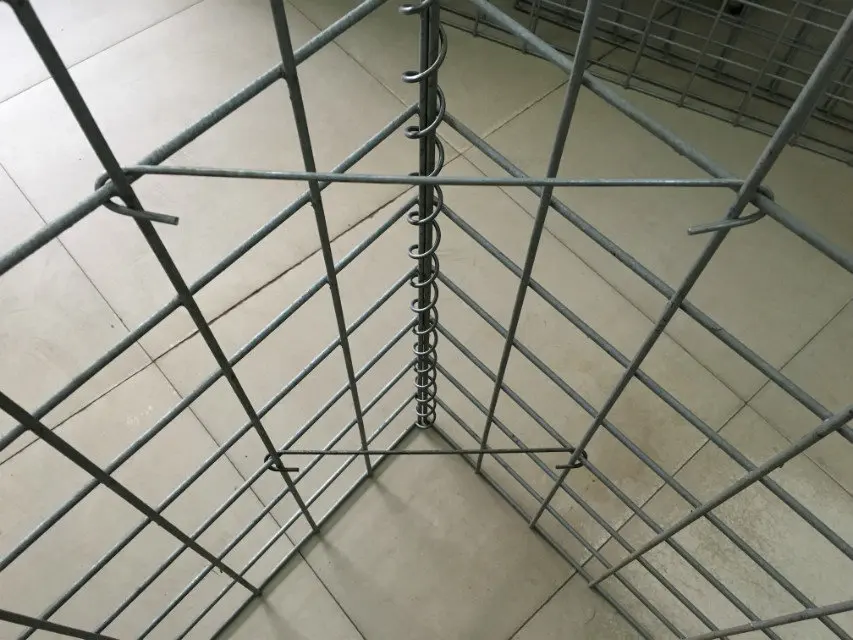

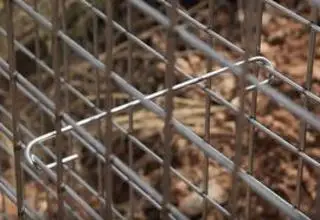

Gabion stiffeners
Gabion stiffeners, also known as gabion spacer, are designed to be placed in every corner or body of gabions to reinforce gabion cages.
The length can be 30cm,50cm,1m
the wire diameter is 4mm

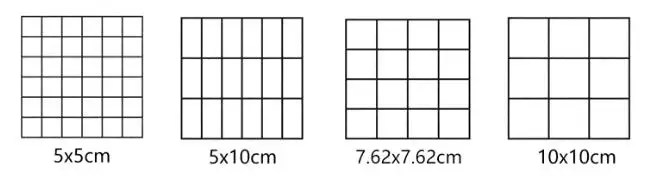

Aperture of the Welded Gabion
The hot selling hole size is 50x50mm, 76.2x76.2mm,75x100mm,50x100mm,100x100mm
Nominal Box sizes (m) | No. of diaphragms (no.) | Capacity per box (m3) | Corner stiffeners (piece) |
1.0x1.0x0.5 | Nil | 0.50 | 2 |
1.0x1.0x1.0 | Nil | 1.00 | 4 |
1.5x1.0x0.5 | Nil | 0.75 | 4 |
1.5x1.0x1.0 | Nil | 1.50 | 4 |
2.0x1.0x0.5 | 1 | 1.00 | 4 |
2.0x1.0x1.0 | 1 | 2.00 | 8 |
3.0x1.0x0.5 | 2 | 1.50 | 6 |
3.0x1.0x1.0 | 2 | 3.00 | 12 |
4.0x1.0x0.5 | 3 | 2.00 | 8 |
4.0x1.0x1.0 | 3 | 4.00 | 16 |
Strong welded mesh point
the welded point is strong and can used in military
Accurate wire diameter
We produce as your demand. Wire diameter tolerance is within 0.05mm

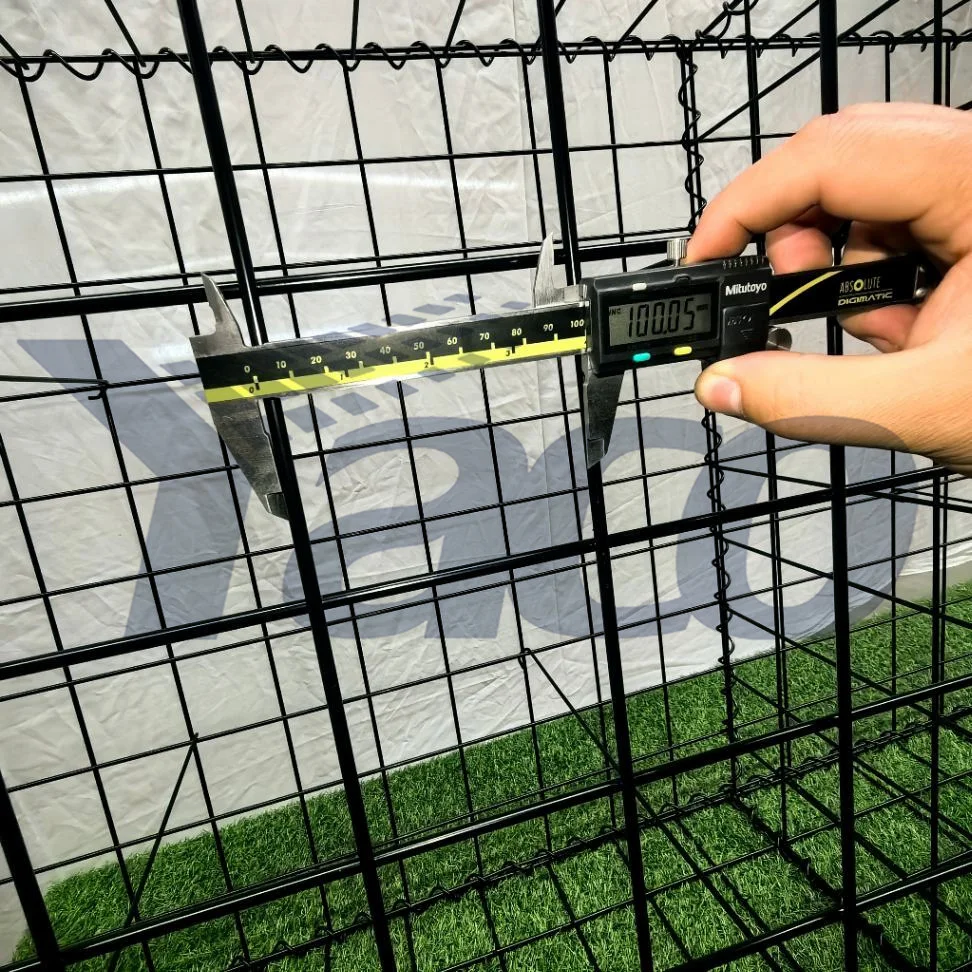

Accurate mesh size
We can produce aperture tolerance within 2mm
LxWxH
100x30x30cm
LxWxH
200x50x50cm
LxWxH
200x100x50cm
LxWxH
300x30x30cm

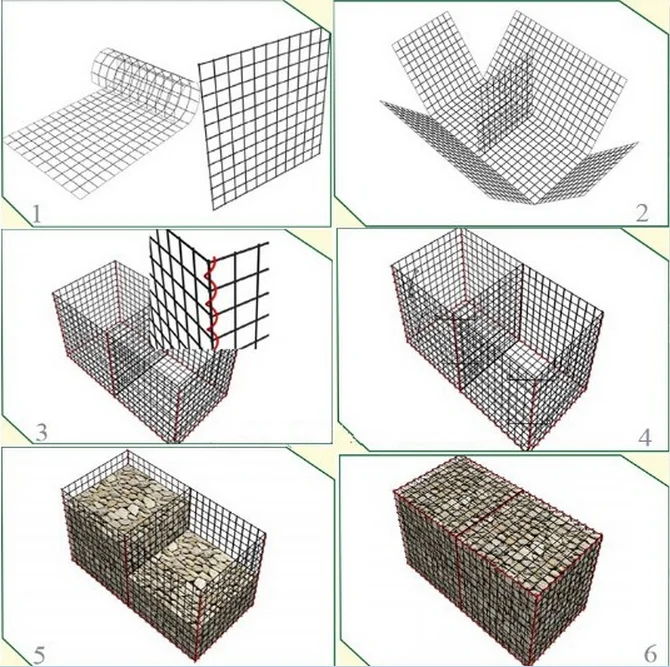

How to install welded gabion box?
* Step 1. Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.
* Step 2. Secure panels by screwing spiral binders through the mesh openings in adjacent panels.

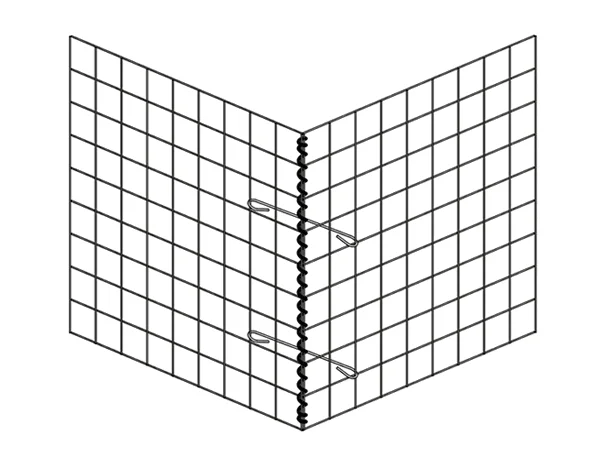

* Step 3. Stiffeners shall be placed across the corners, at 300mm from the corner.
* Step 4. Gabion box filled with graded stone by hand or with a shovel.
* Step 5. After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.
* Step 6. When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the up
* Step 2. Secure panels by screwing spiral binders through the mesh openings in adjacent panels.
* Step 3. Stiffeners shall be placed across the corners, at 300mm from the corner.
* Step 4. Gabion box filled with graded stone by hand or with a shovel.
* Step 5. After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.
* Step 6. When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the up

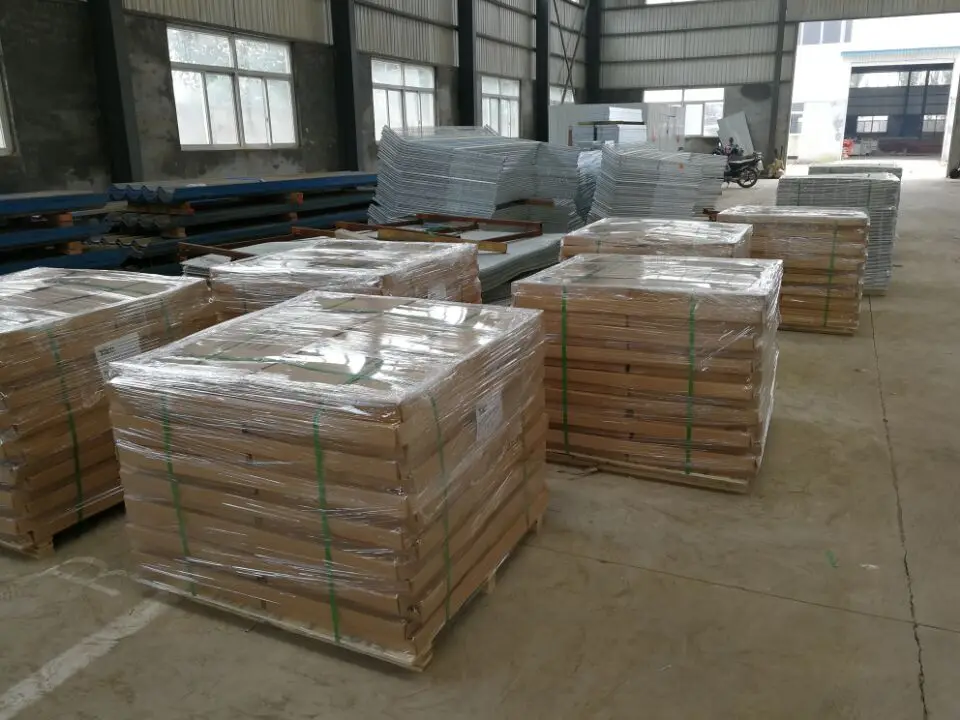

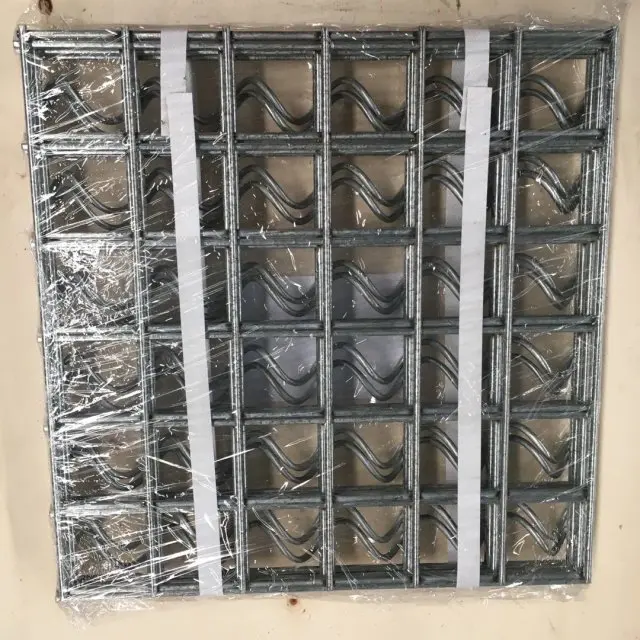

package

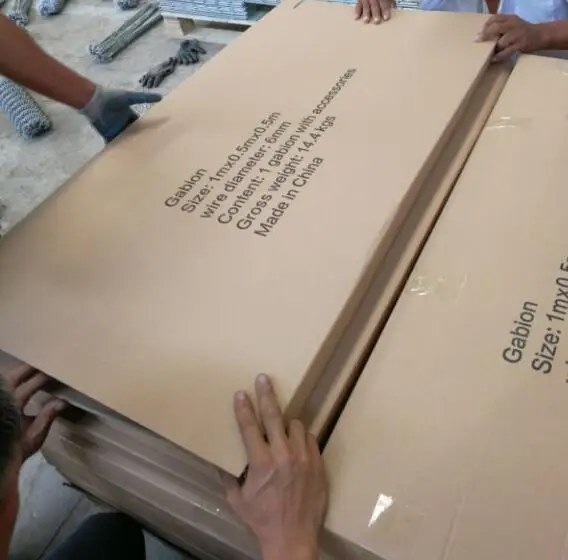

Customized packing: By carton

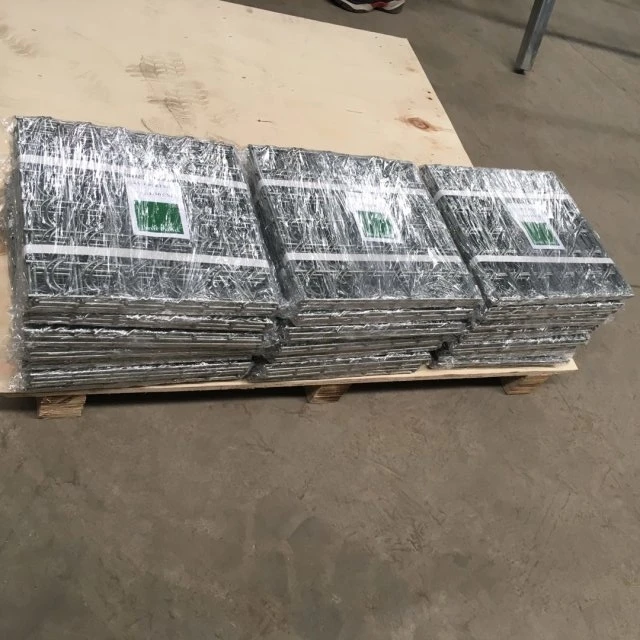

Customized packing: Using plastic film
Application
Gabion fence
Landscaping Gabion

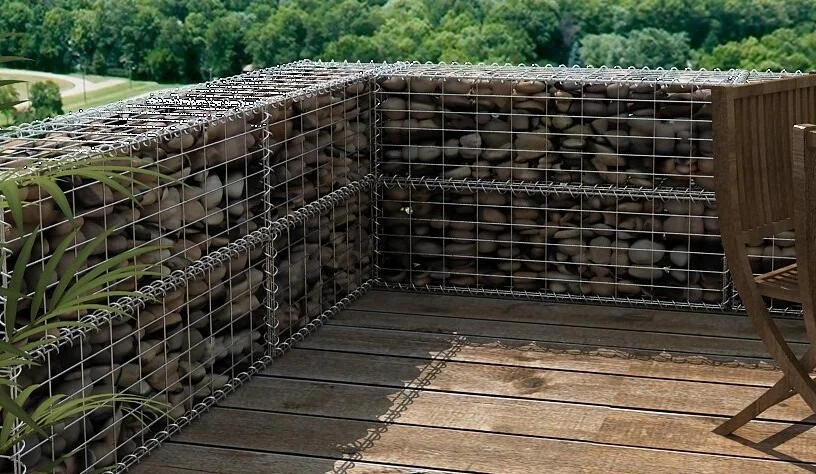

For gabion garden wall
Protection of trees, plants and crops
Chair and table gabion
