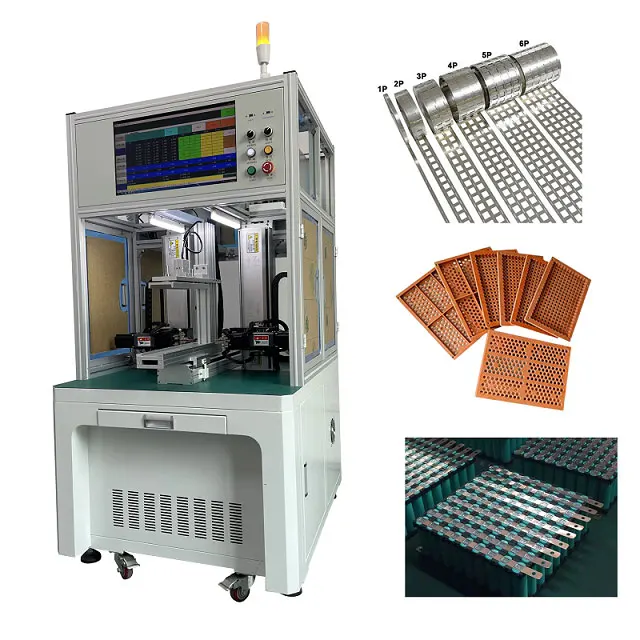

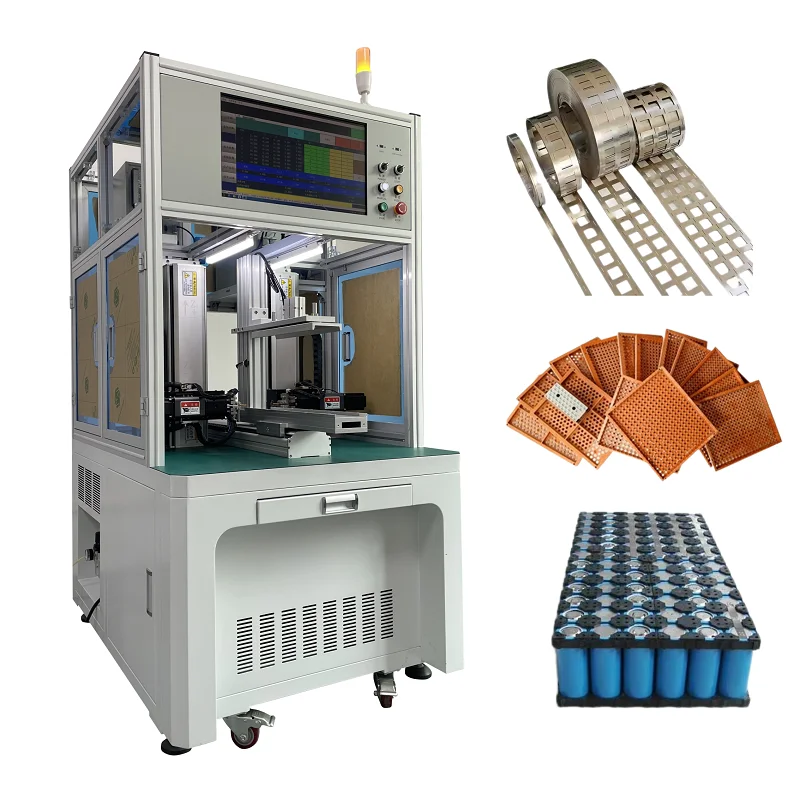

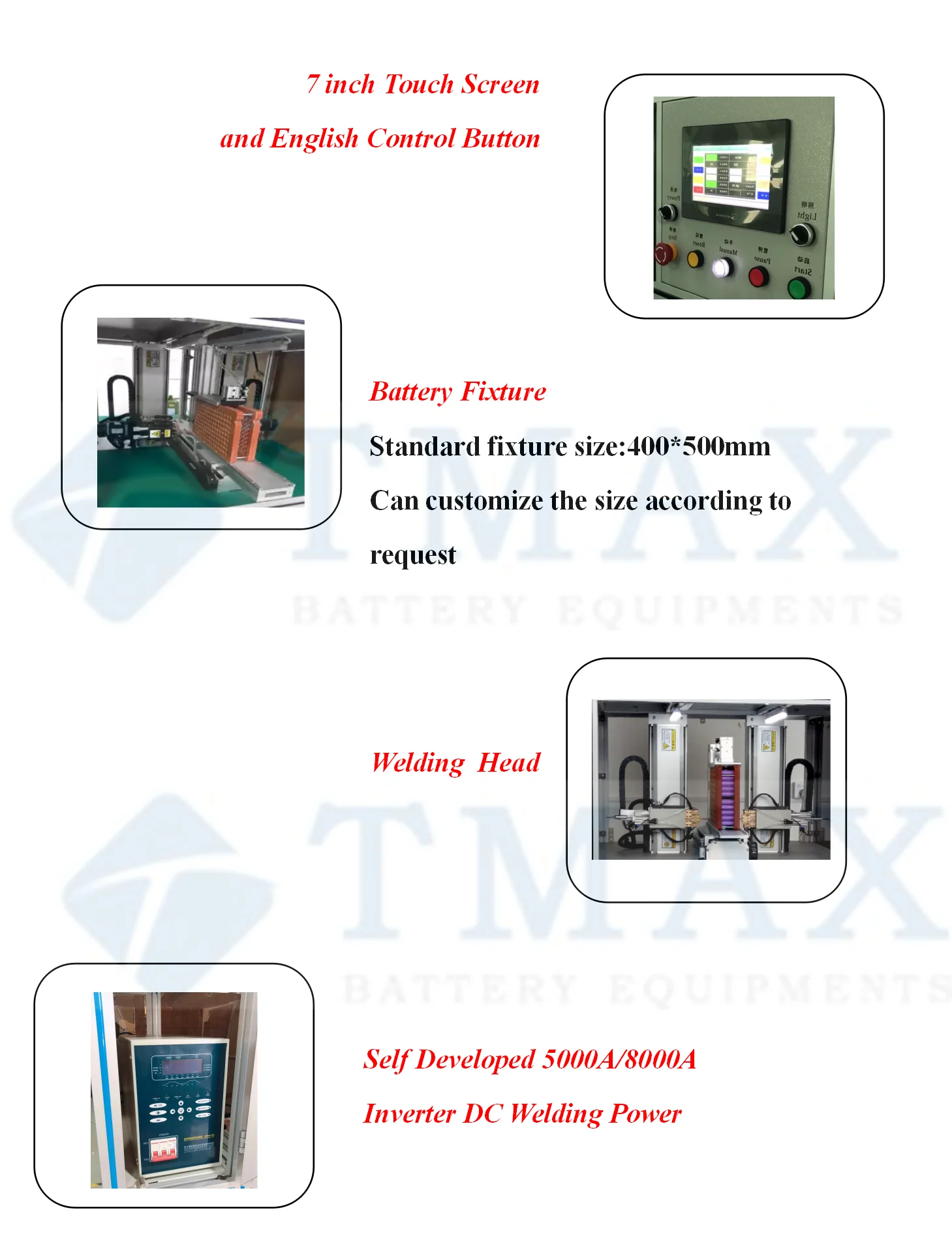

Automatic Double Side PC Control EV Battery Spot Welding Machine
Introduction:
The dual-sided automatic welding machine is specifically designed for cylindrical lithium batteries, widely used in power batteries (such as electric vehicle batteries) and other cylindrical battery packs. This equipment ensures high-quality welding through efficient welding technology, making it an ideal choice for enhancing battery production efficiency.
Advantages:
1. Automated Spot Welding: The highly automated spot welding process significantly improves production efficiency and reduces labor costs.
2. Data Upload Functionality: Welding data can be uploaded in real-time to the MES system, facilitating production monitoring and management, thereby increasing overall production transparency.
3. Flexible Customization: The Y-axis and Z-axis strokes can be customized according to customer needs, meeting different production environment requirements.
Parameters:
- Y-axis Stroke: 500mm (customizable)
- X-axis Stroke: 400mm (customizable)
- Maximum Spot Welding Speed: 0.35 seconds/spot (approximately 2000 18650 cells)
- Motor Drive Speed: 1000mm/S
- Maximum Cell Loading: X-direction: 16 cells; Y-direction: 20 cells
- File Group Storage Capacity: 100 groups
- Operating System: Embedded Human-Machine Interface (HMI)
- Transmission Method: Precision lead screw and guide rail from Taiwan
- Drive Method: Stepper servo motor
- Repeat Positioning Accuracy: ±0.02mm
- Dimensions: L: 1150mm, W: 1000mm, H: 1780mm
- Total Power: 4000W
- Total Weight: 350KG
- Maximum Y-axis Load Capacity: 30KG
- Input Power Supply: Single-phase AC 220V 50Hz / Three-phase 380V 50Hz
- Air Source: 0.4-0.6Mpa
- Control System: Includes upper computer control system

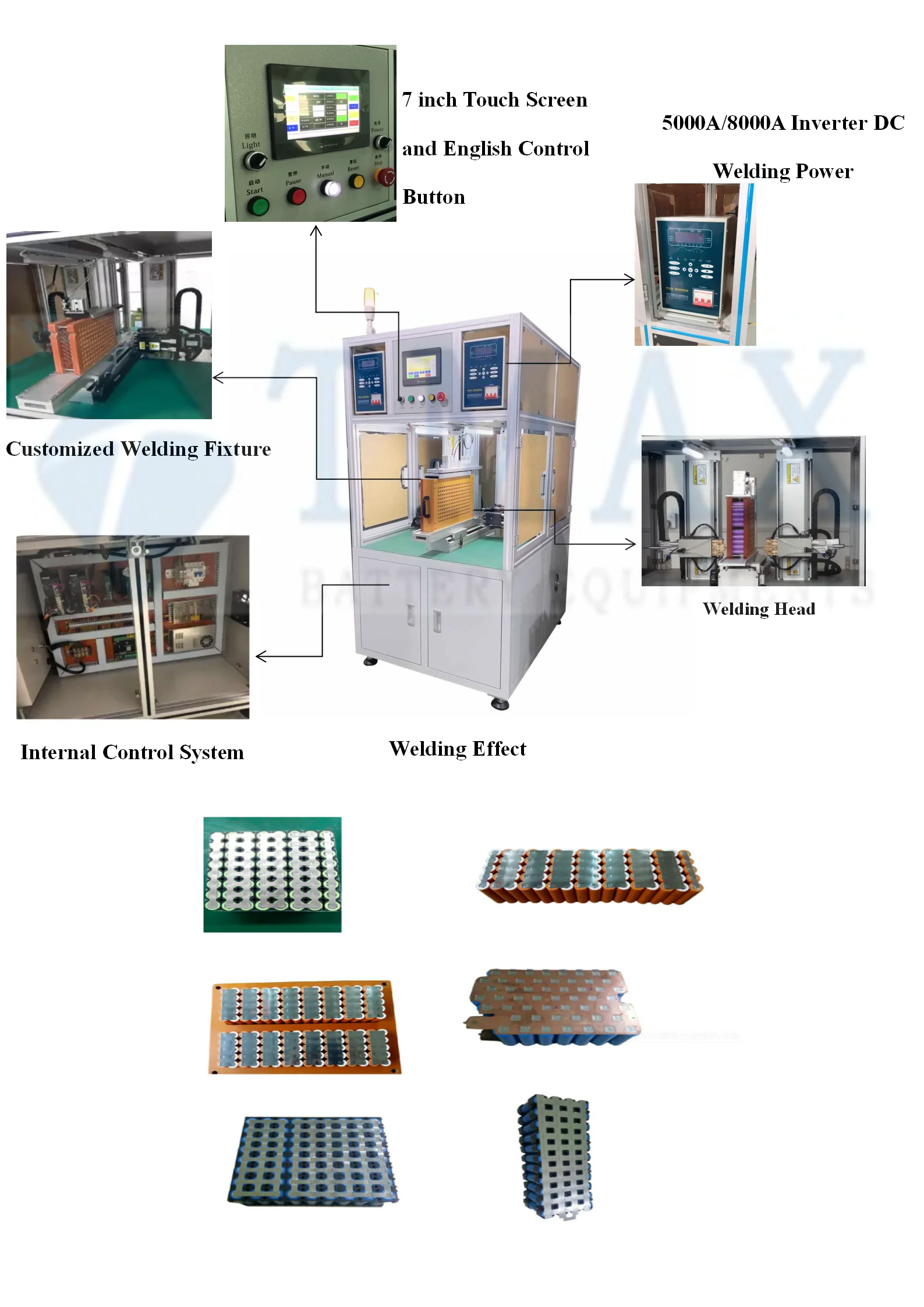

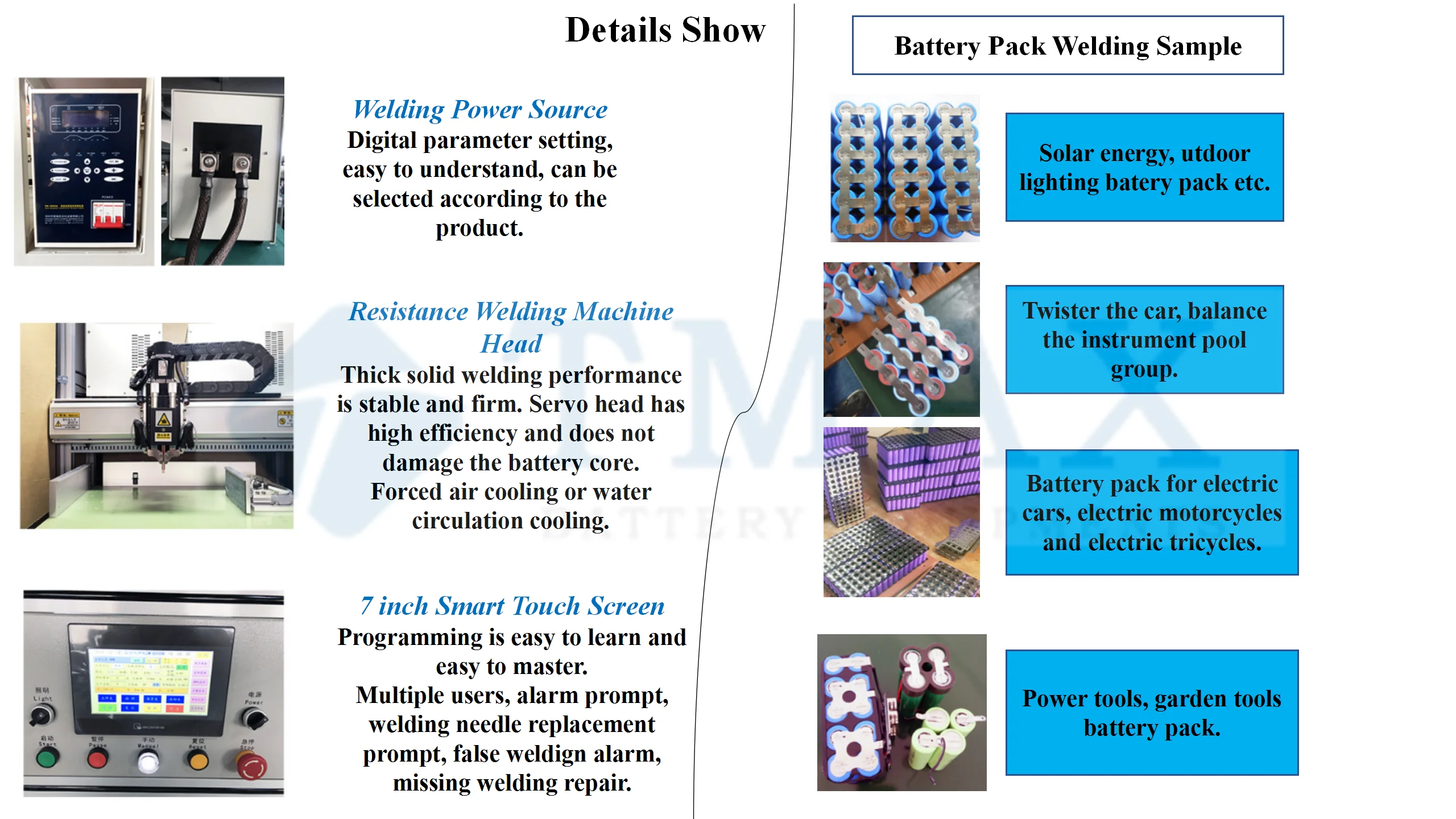

Product Images

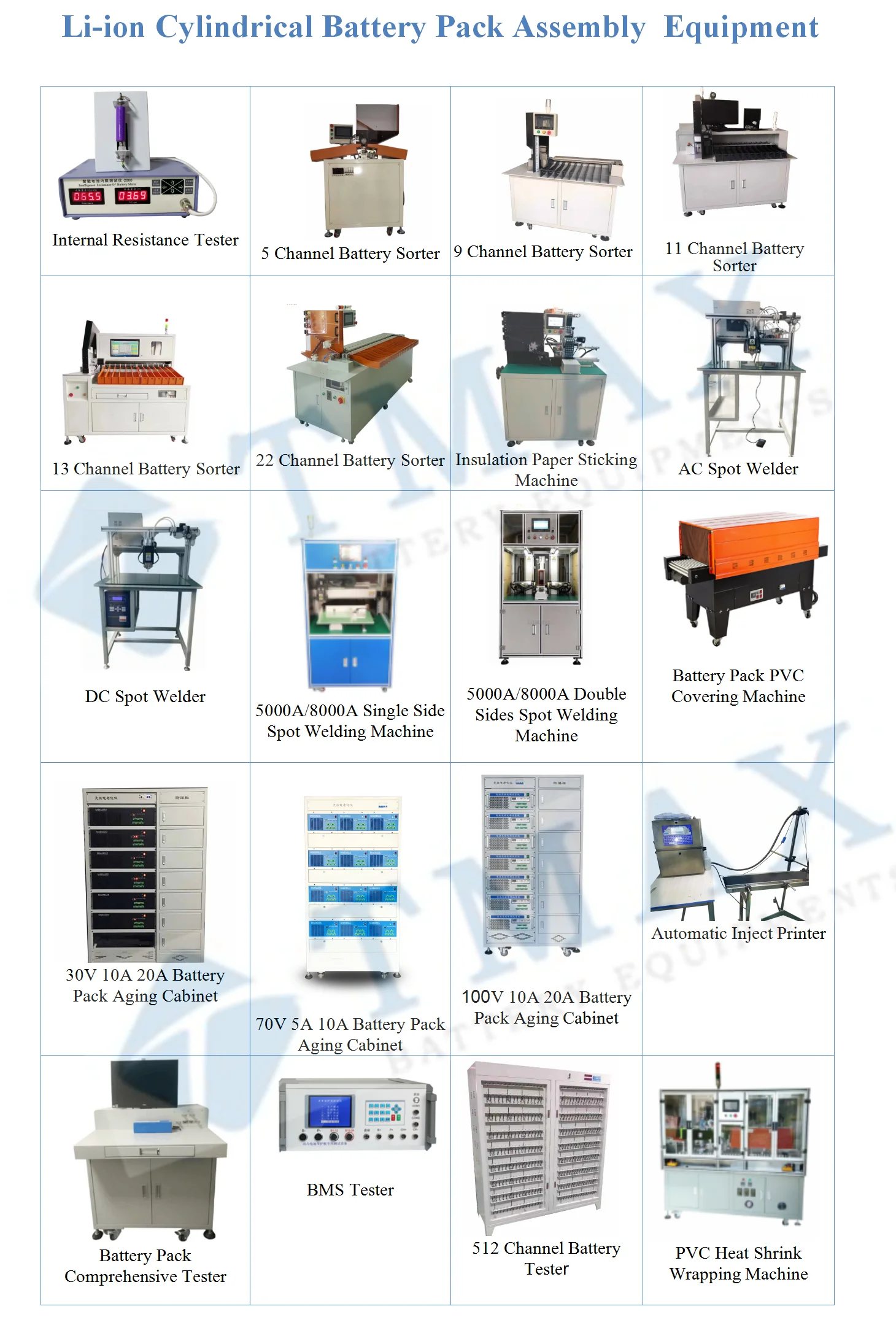

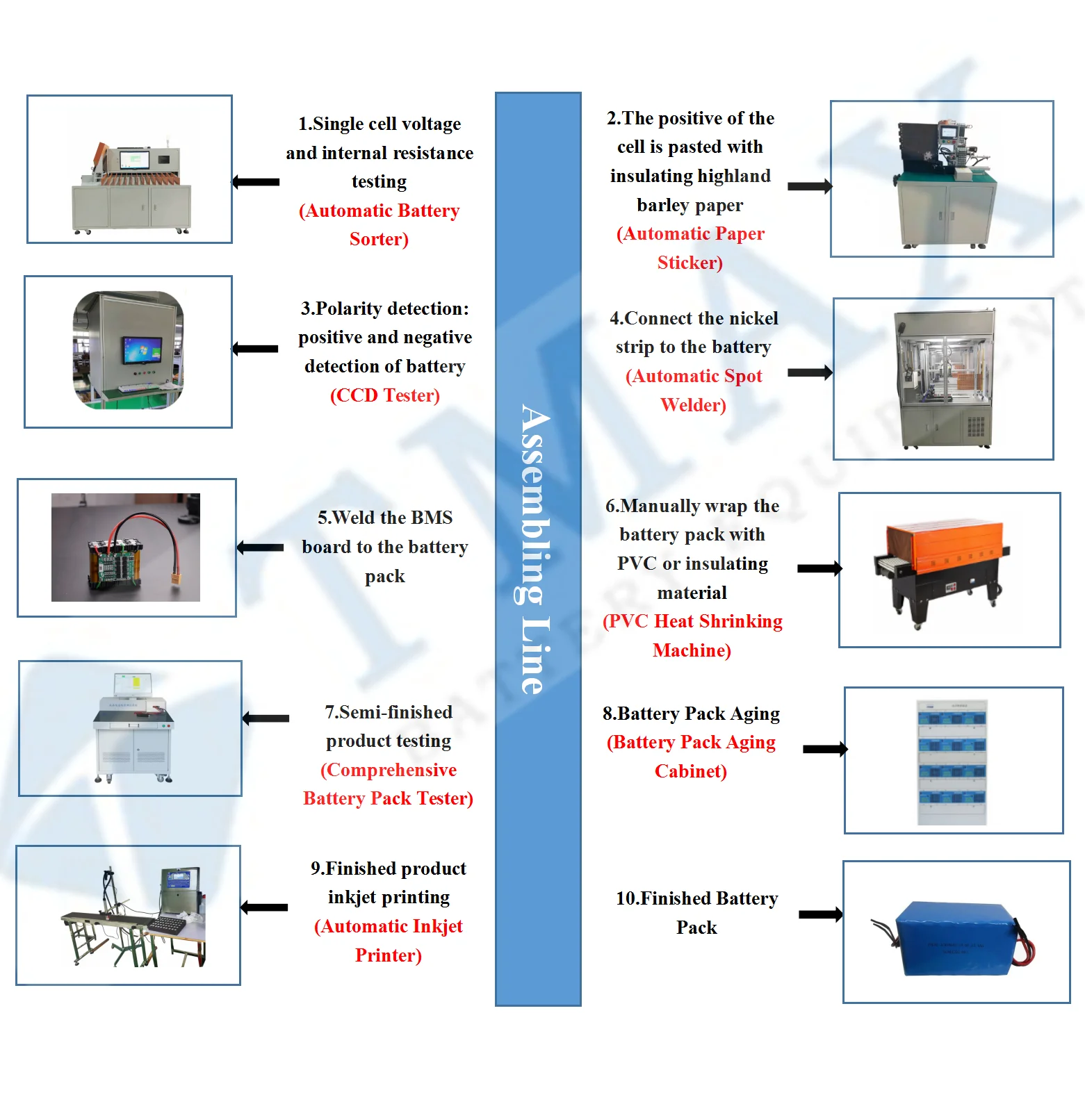

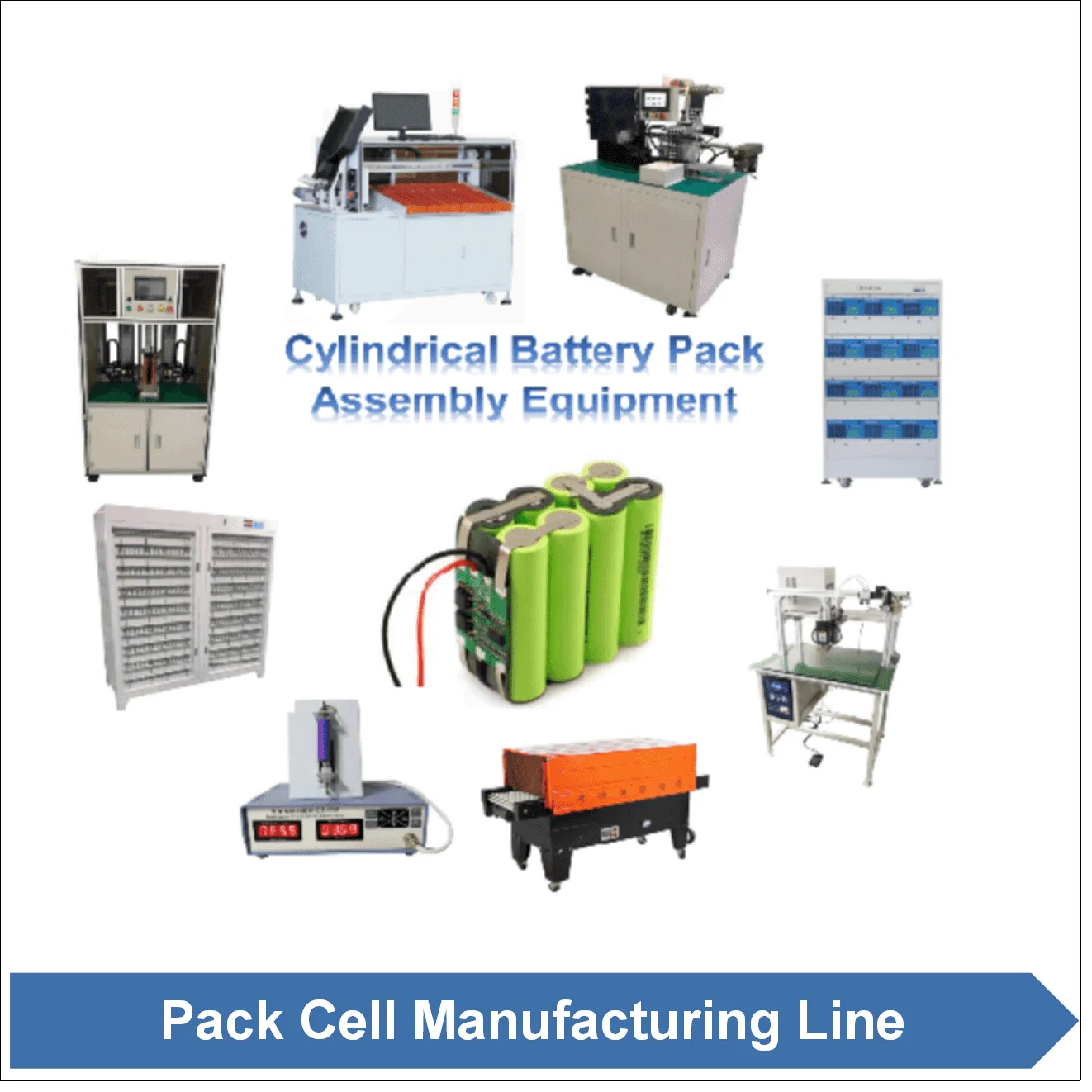

Battery Pack Assembly Equipment
