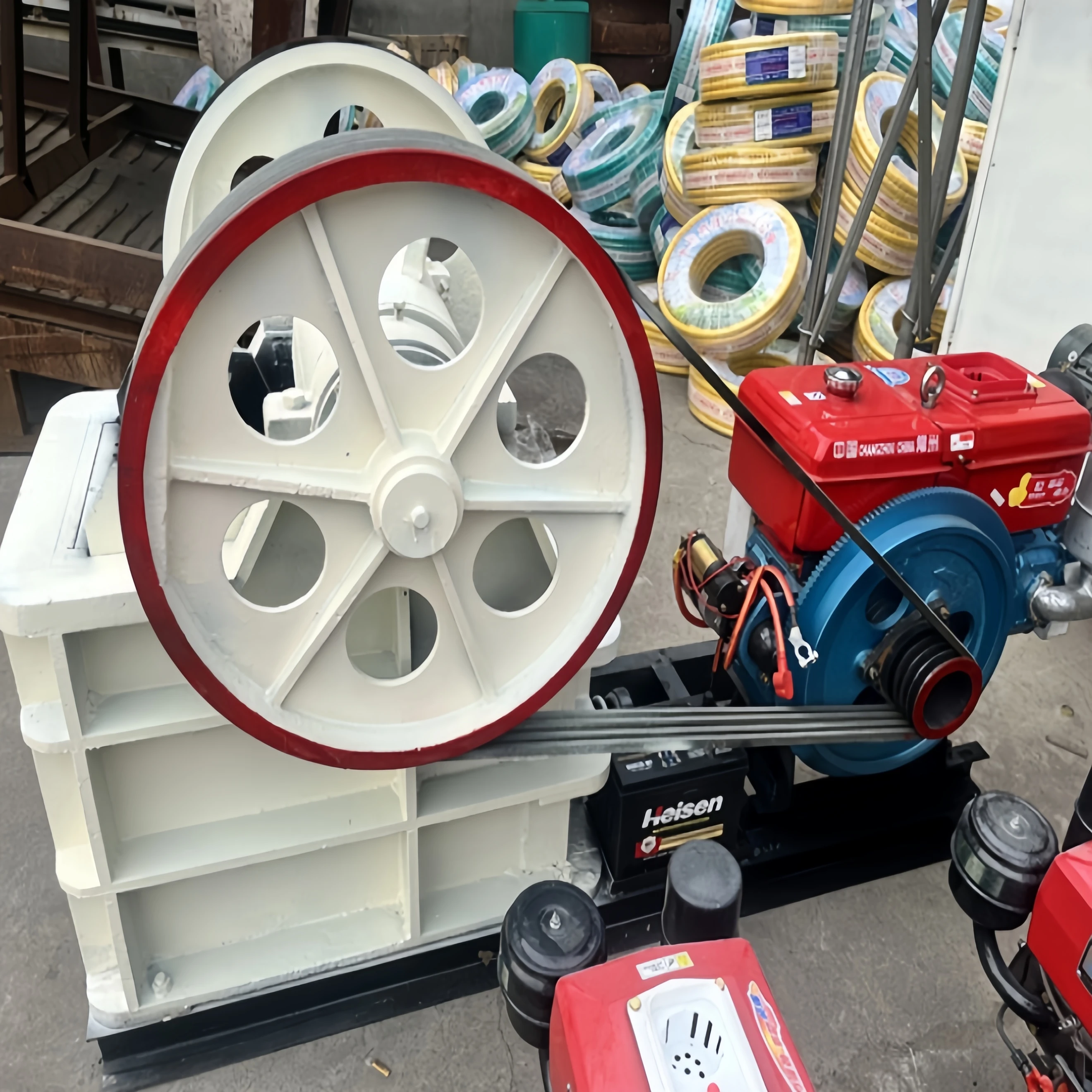

  • Portable PE 400 x 600 Ore Jaw crusher MinI for Rock Limestone Crushing

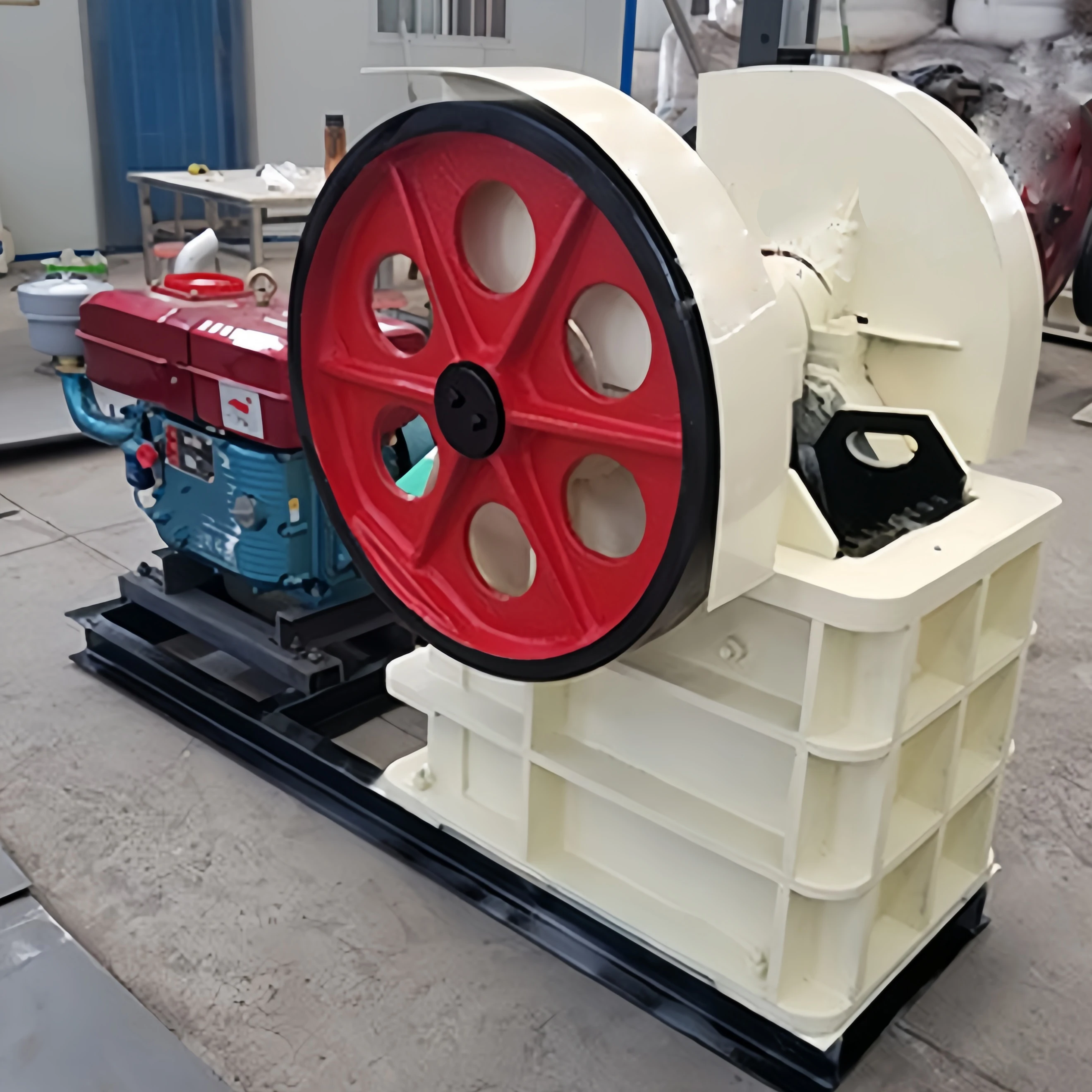

Portable PE 400 x 600 Ore Jaw crusher MinI for Rock Limestone Crushing
Portable PE 400 x 600 Ore Jaw crusher MinI for Rock Limestone Crushing
Portable PE 400 x 600 Ore Jaw crusher MinI for Rock Limestone Crushing
Portable PE 400 x 600 Ore Jaw crusher MinI for Rock Limestone Crushing
Portable PE 400 x 600 Ore Jaw crusher MinI for Rock Limestone Crushing
Portable PE 400 x 600 Ore Jaw crusher MinI for Rock Limestone Crushing
Portable PE 400 x 600 Ore Jaw crusher MinI for Rock Limestone Crushing

Portable PE 400 x 600 Ore Jaw crusher MinI for Rock Limestone Crushing

Share on (1601259614184):


Price:$2,650.00 - $2,750.00

Quantity:


Product Overview

Description



PRODUCT OVERVIEW


JAW CRUSHER
The jaw crusher is mainly used for breaking rocks of high and medium hardness and with a maximum compres*sive strength of 320Mpa. PE Series is used in the primary crushing, while PEX series the secondary crushing andfine crushing.

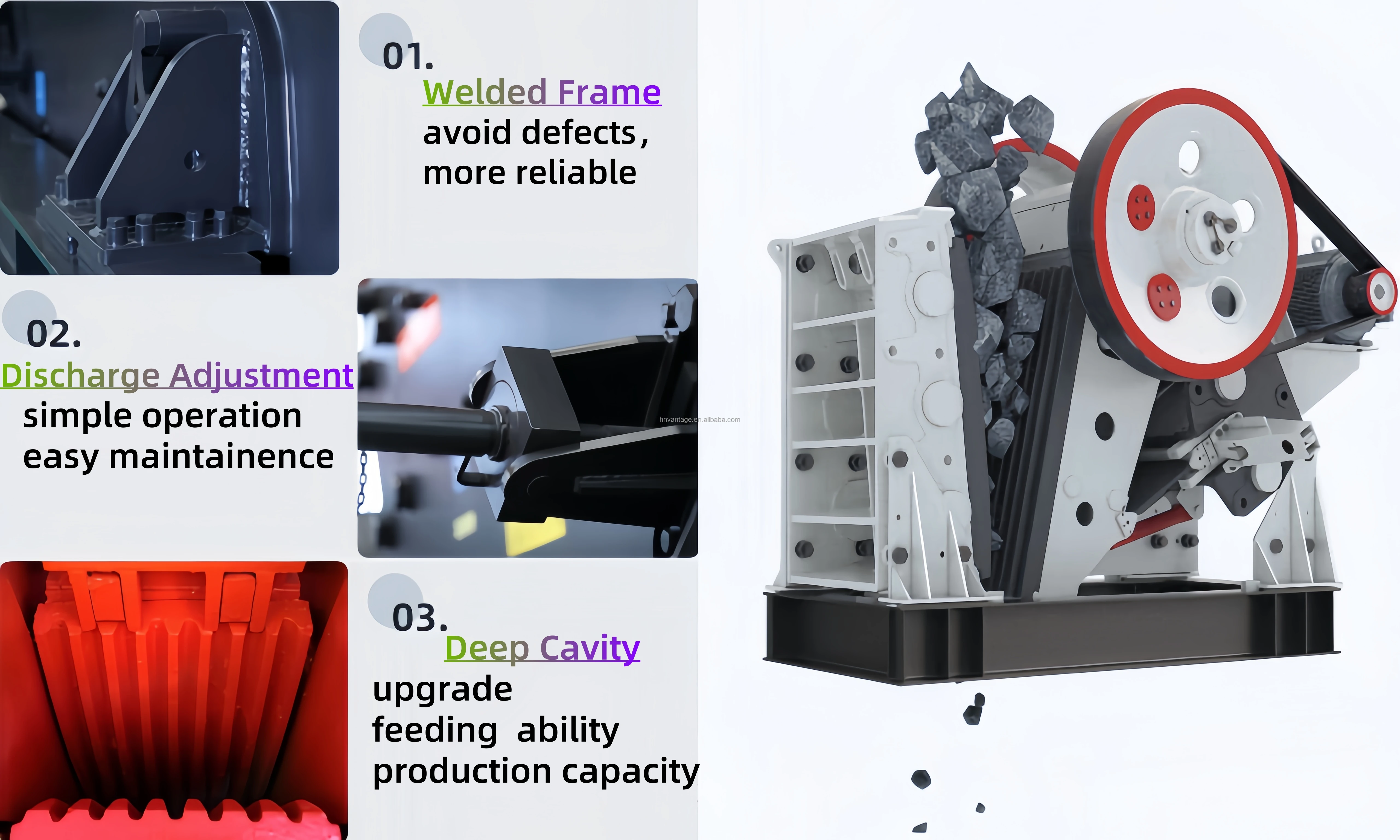

1.High reduction ratio and uniform product size;
2.Simple structure, easy maintenance and low operation cost,
3.Adjustable discharge opening;
4.Large crushing chamber increases production capacity;5.The eccentric shaft is forged and heat-treated.




SPECIFICATIONS


Model
Feed Opening Size (mm)
Max. Feed Size(mm)
Discharge Size(mm)
Capacity(t/h)
Rotary Speed of Eccentric Shaft(r/min.)
Power(Kw)
Weight(t)
Dimension (LXWXH) mm
PE-150x250
150x250
125
10-40
1-3
250
5.5
0.8
720x660x850
PE-200x300
200x300
180
15-50
2-6
260
7.5
1.2
910x750x990
PE-200x350
200x350
180
18-70
3-10
260
11
1.5
1000x870x990
PE-250x400
250x400
210
20-60
5-20
300
15
2.8
1300x1090x1270
PE-400x600
400x600
340
40-100
16-60
275
30
7
1730x1730x1630
PE-500x750
500x750
425
50-100
40-110
275
55
12
1980x2080x1870
PE-600x900
600x900
500
65-160
50-180
250
75
17
2190x2206x2300
PE-750x1060
750x1060
630
80-140
110-320
250
90
29
2660x2430x2800
PE-900x1200
900x1200
750
95-165
220-450
200
110
52
3380x2870x3330
PE-1000x1200
1000x1200
850
195-265
315-500
200
110
55
3480x2876x3330
PE-1200x1500
1200x1500
1020
150-300
400-800
180
160
101
4200x3300x3500
PEX-150x750
150x750
120
18-48
8-25
320
15
3.8
1200x1530x1060
PEX-250x750
250x750
210
25-60
13-35
330
30
5.5
1380x1750x1540
PEX-250x1000
250x1000
210
25-60
16-52
330
30
7
1560x1950x1390
PEX-250x1200
250x1200
210
25-60
20-61
330
37
9.7
2140x1660x1500
PEX-300x1300
300x1300
250
20-90
20-105
300
55
15.6
2720x1950x1600

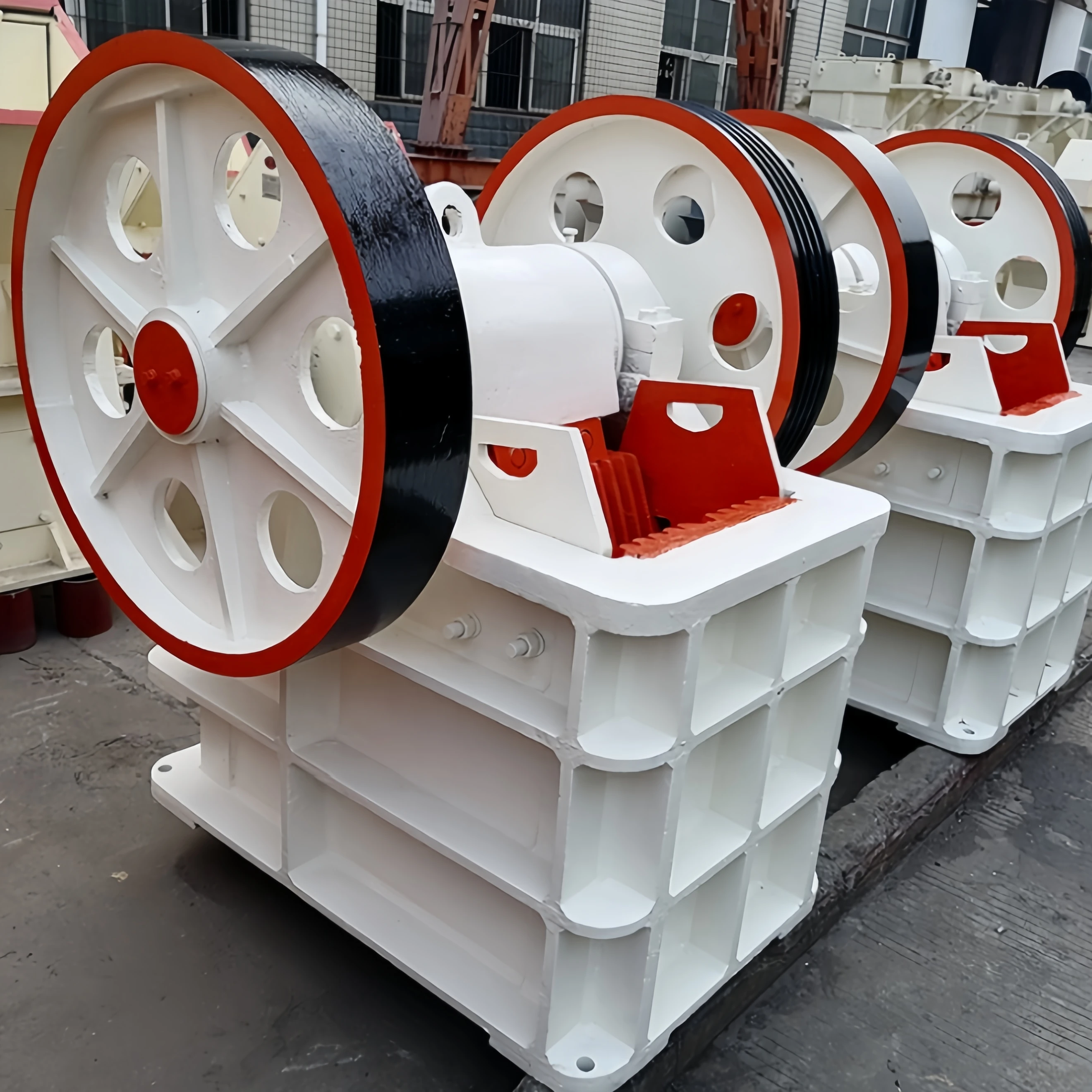

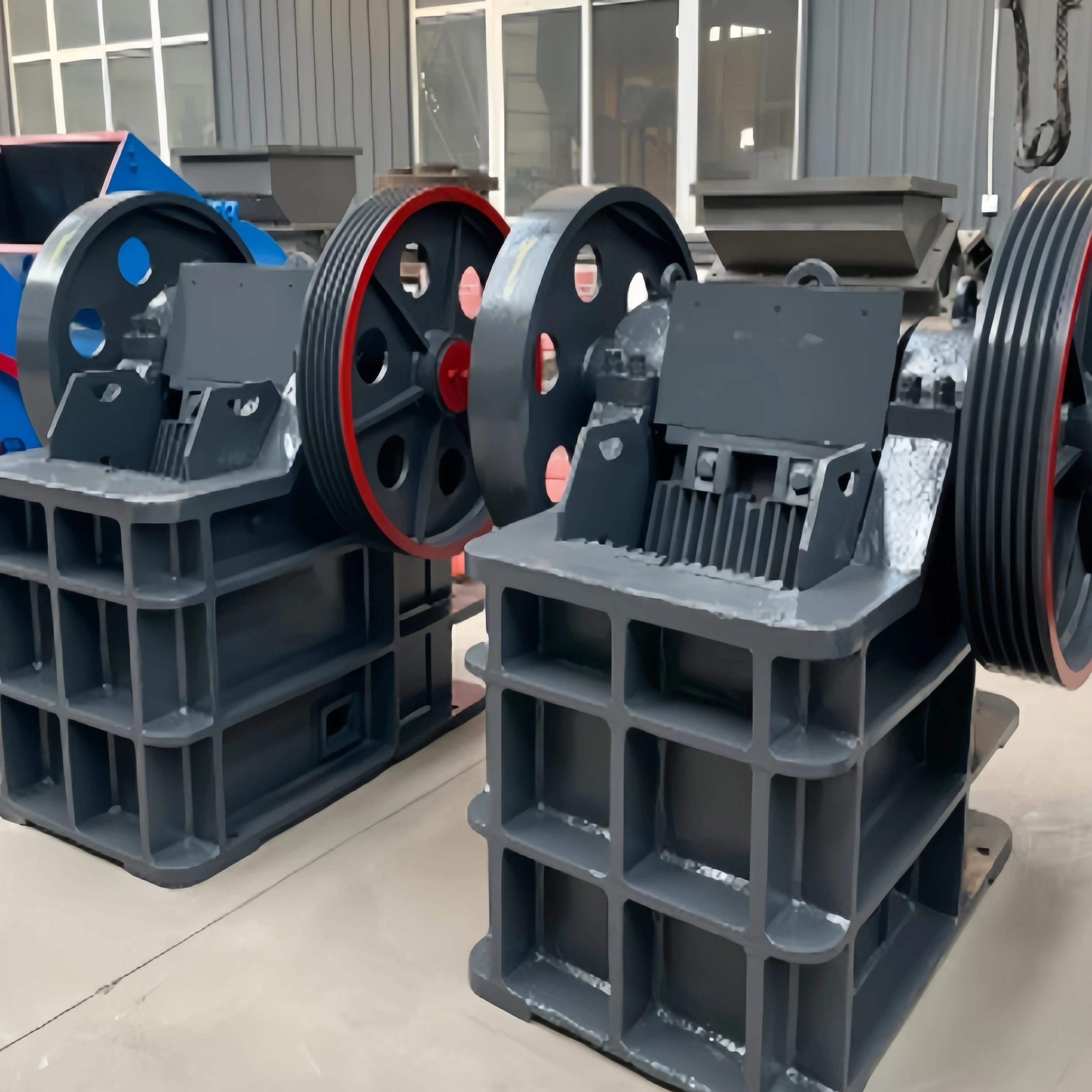

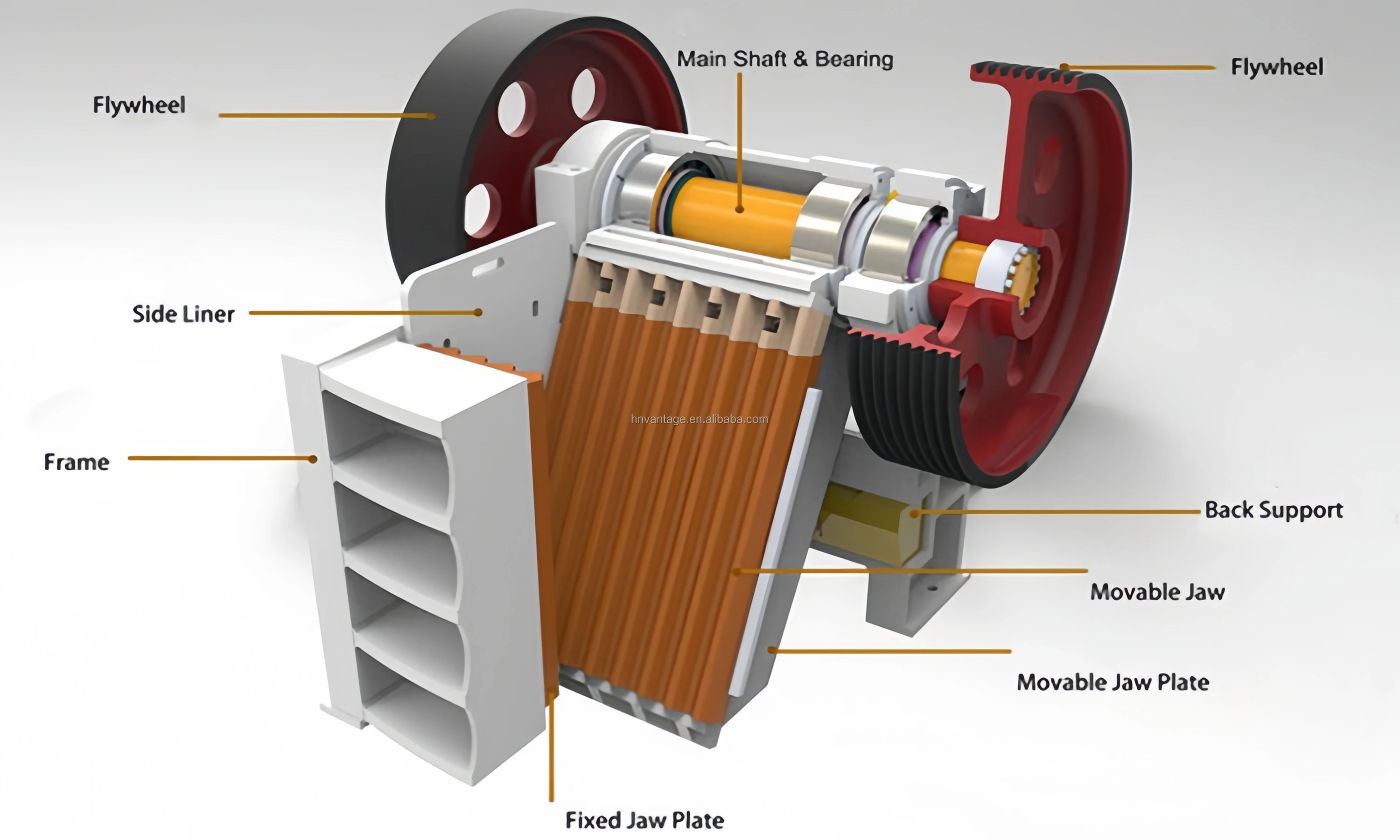

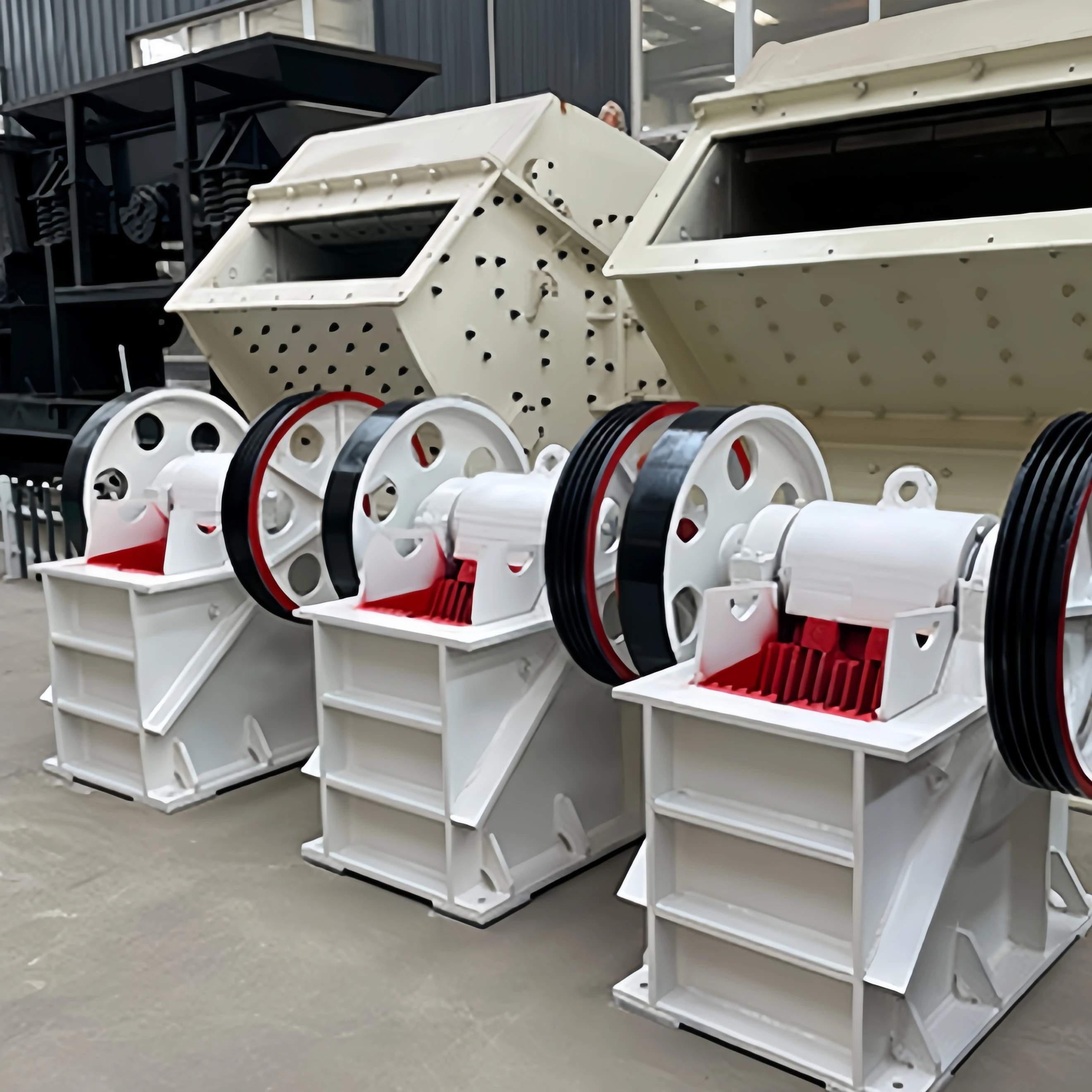

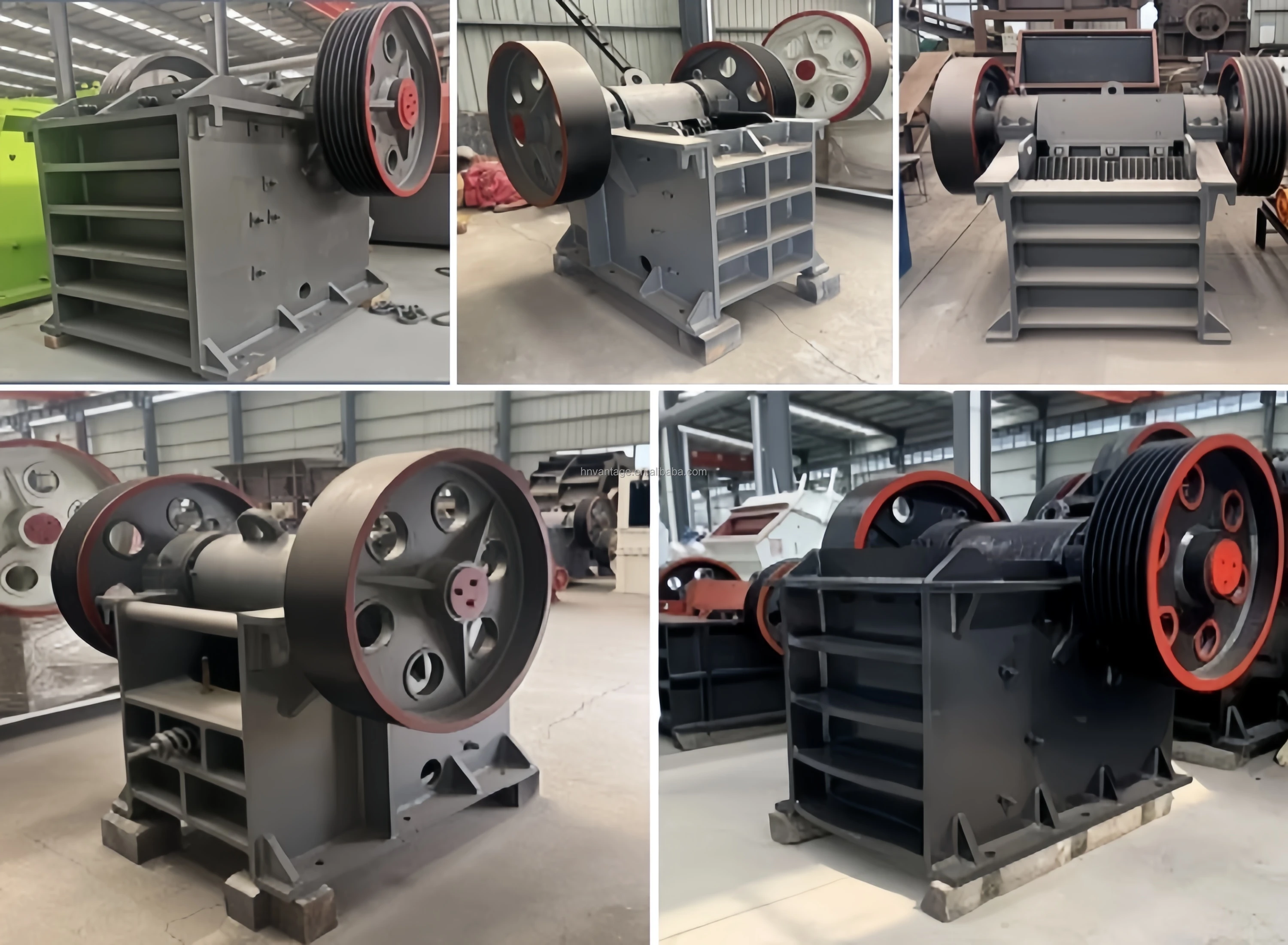

PRODUCT DETAILS

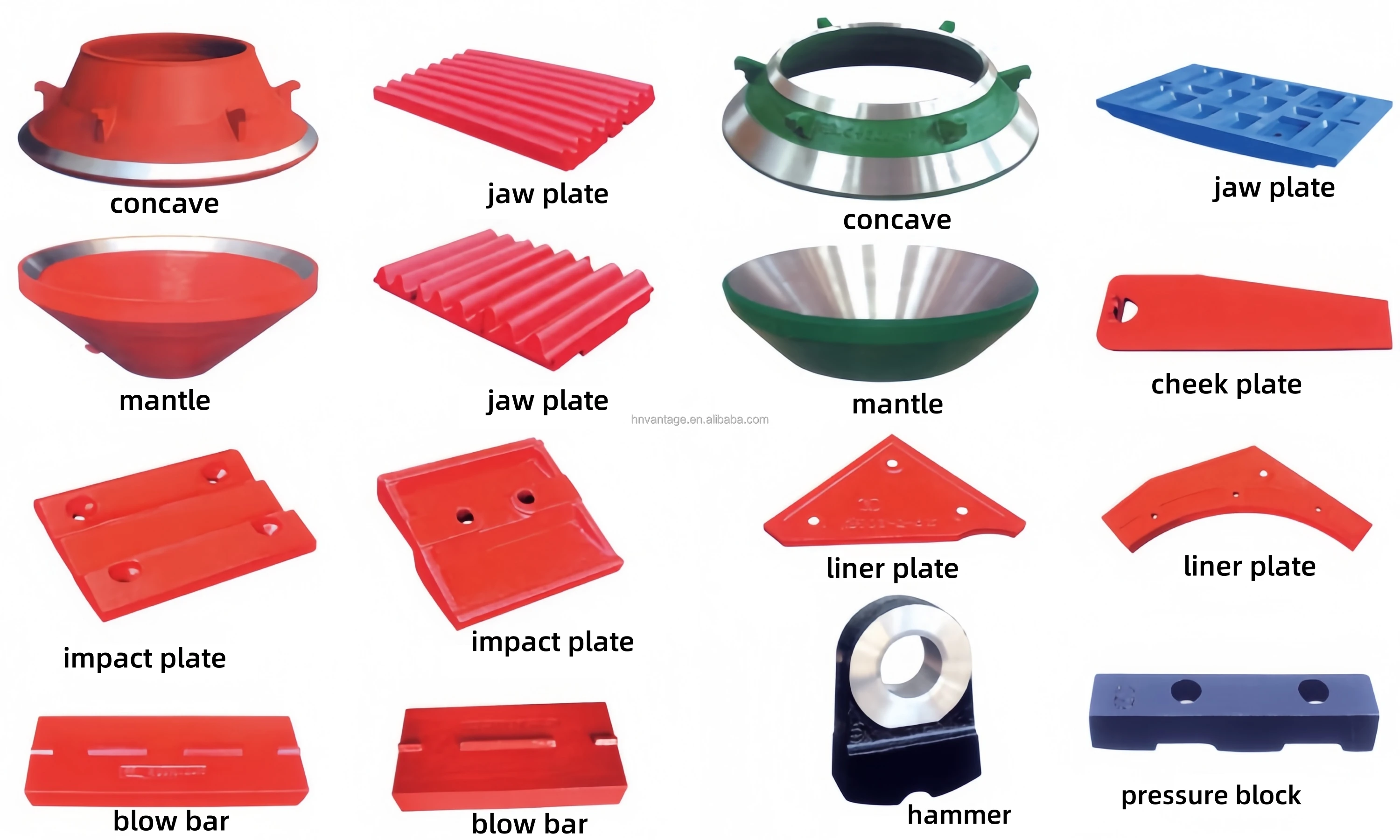

RELATED SPARE PARTS

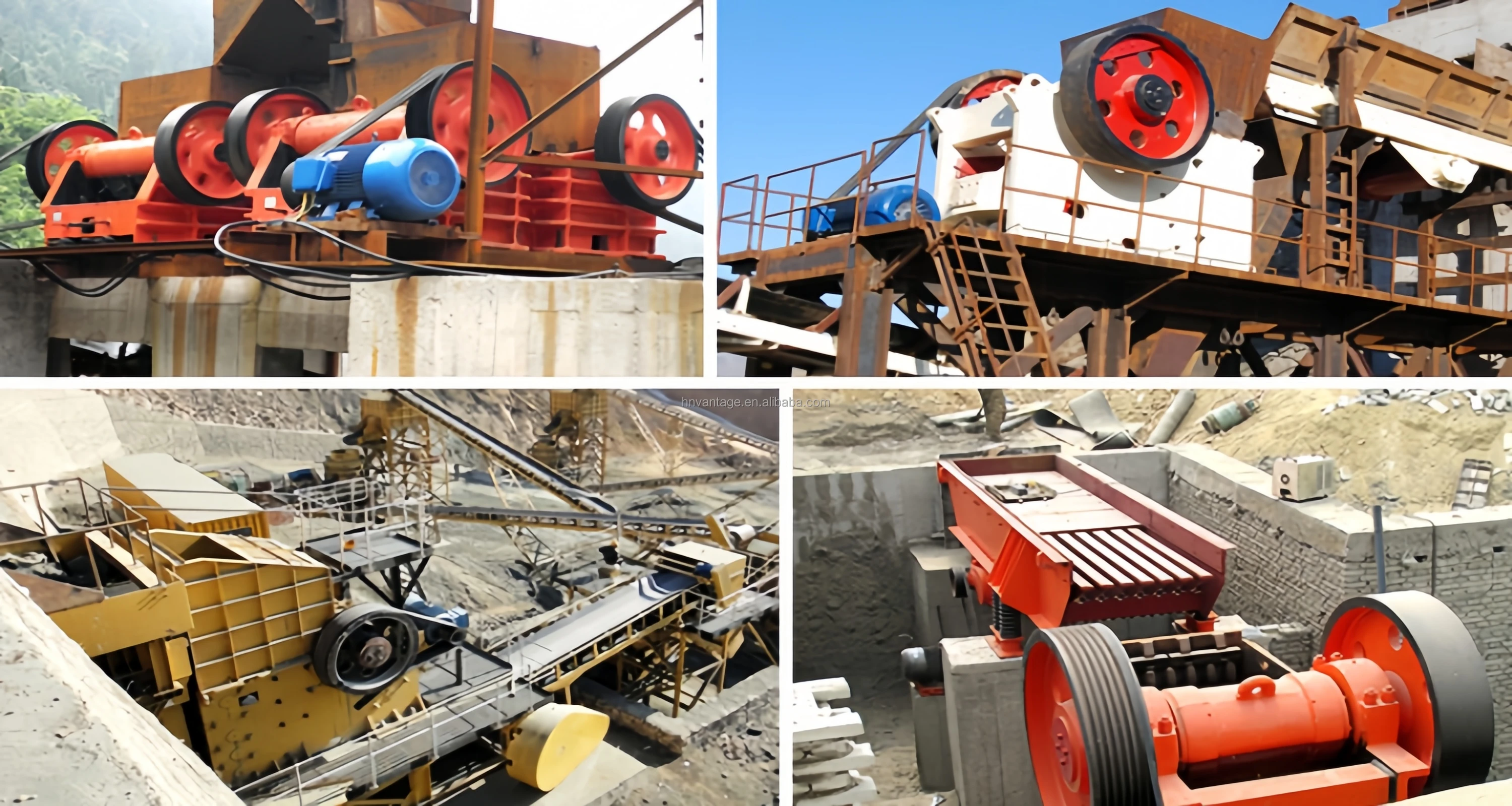

CUSTOMER CASES




ABOUT US




Zhengzhou Vantage Machinery Co., Ltd is a large-scale industrial company. The company has multiple processing workshops, including blanking, finishing, welding, assembly, casting, etc.
The main products of Vantage Equipment include four series of products: mineral processing equipment, crushing equipment, drying equipment and calcining equipment, which are widely used in metallurgy, mining, chemical, building materials, coal, refractory, ceramics and other industries. Among them, ball mills, magnetic separators, flotation machines, rotary kilns, classifiers, dryers and other complete sets of beneficiation equipment are suitable for the selection of copper, lead, tungsten, molybdenum, gold, iron, silver, manganese and other non-ferrous metal ores and fluorite, Potassium feldspar, quartz sand and other non-metallic mines. Among them, jaw crushers, impact crushers, sand making machines, vibrating screens, sand washing machines and other gravel crushing equipment are suitable for airports, railways, highways, and ordinary roads.
As an internationally renowned supplier of precision equipment and comprehensive services for the mineral processing industry, Vantage provides a complete set of mining solutions, including engineering consulting, beneficiation testing, mine plant design,equipment manufacturing, installation and commissioning and worker training.








PACKING AND DELIVERY






FAQ

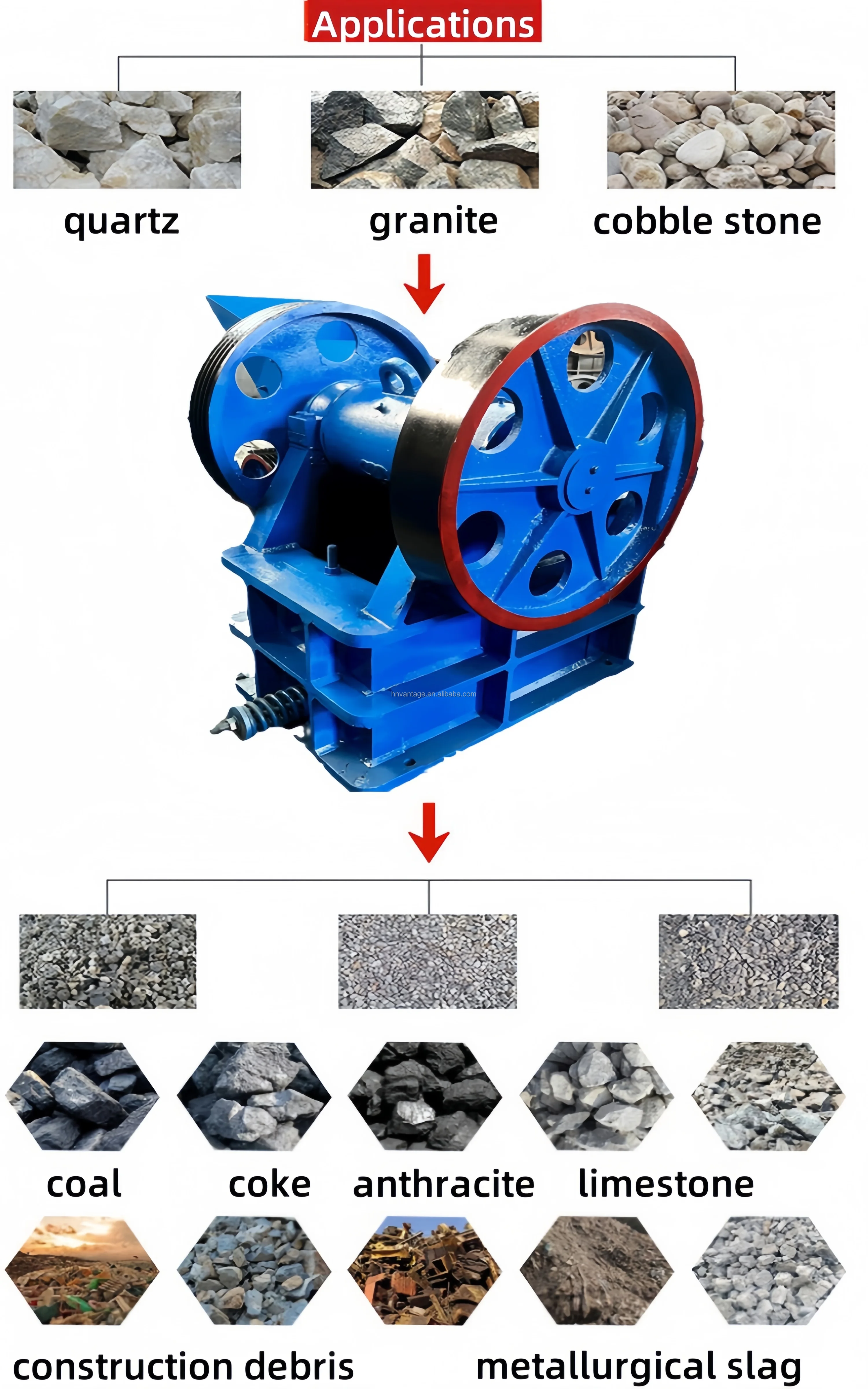

Q1: What applicable materials can be processed by the crusher?
A2: It is widely applied for the hard and soft rock materials with various hardness, like cobble stone, dolomite,limestone,plaster, coal ore, shale and marble and granite, etc.

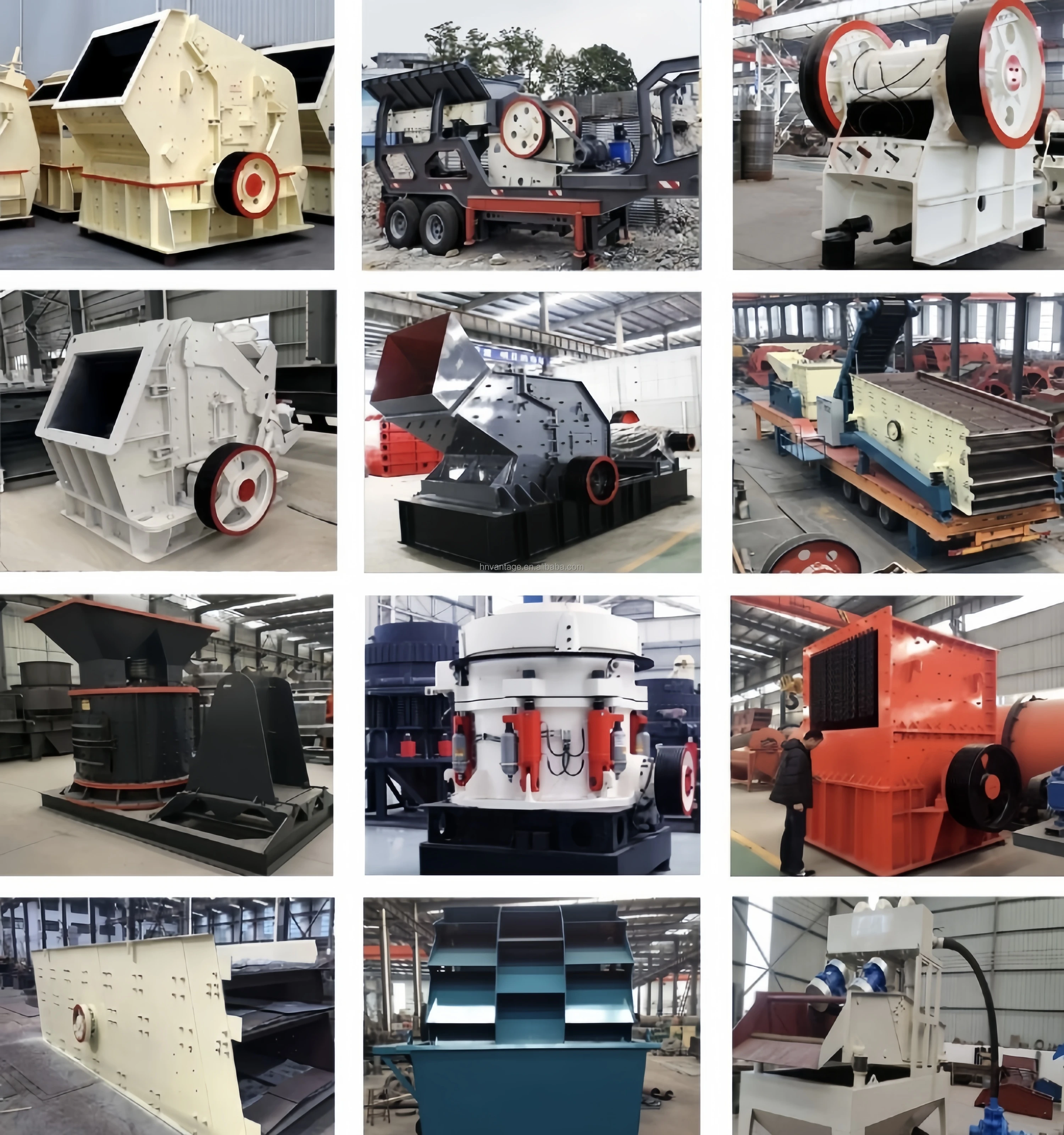

Q2: What are your main products related to the mining equipment?
A2: We mainly have Crawler or Tyre Mobile Crushing Station, Vibrating Feeder, Hydraulic Cone Crusher, Impact Crusher,VSI Sand Maker and Vibrating Screen as well.
Q3: Do you provide installation and commissioning service?
A3: Yes, our engineers are available for overseas assignment of providing gudiance and traning service at all times.
Q4: Do you provide spare parts like jaw plates, toggle plates, blow bars, bearings. concave ？
A4: We do have ample stock to supply the related parts with premium quality and competitive price.
Q5: What information should provide before getting a price?
A5: Kindly advise that 1）Do you need a single unit machine or a complete crushing line?
2) what is your desired final product, aggregate or sand？
3) What is your raw material and input size, what is final output size？
4) What is your requirement production capacity per hour?
