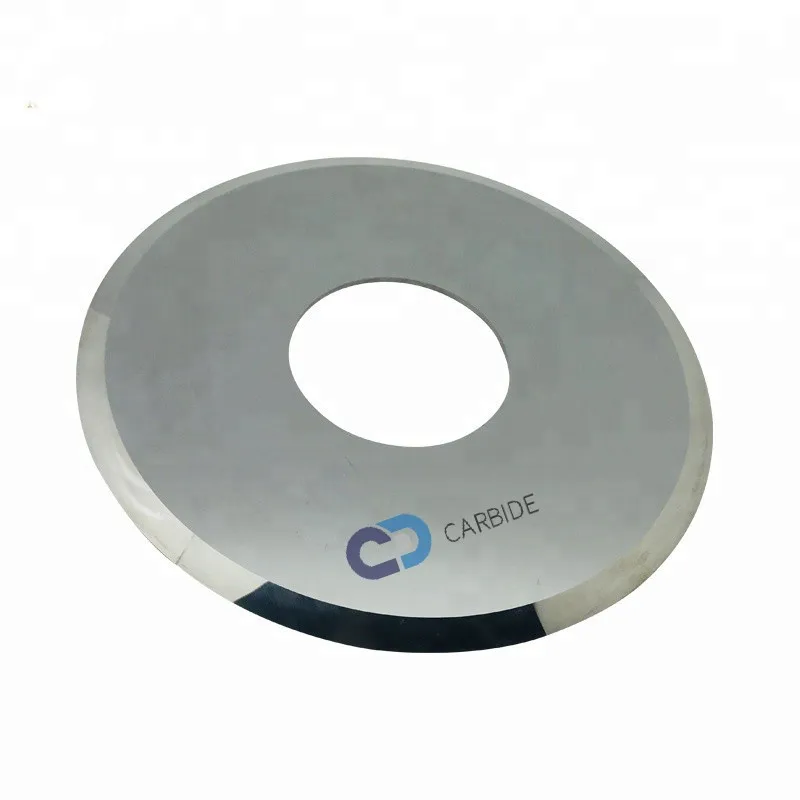

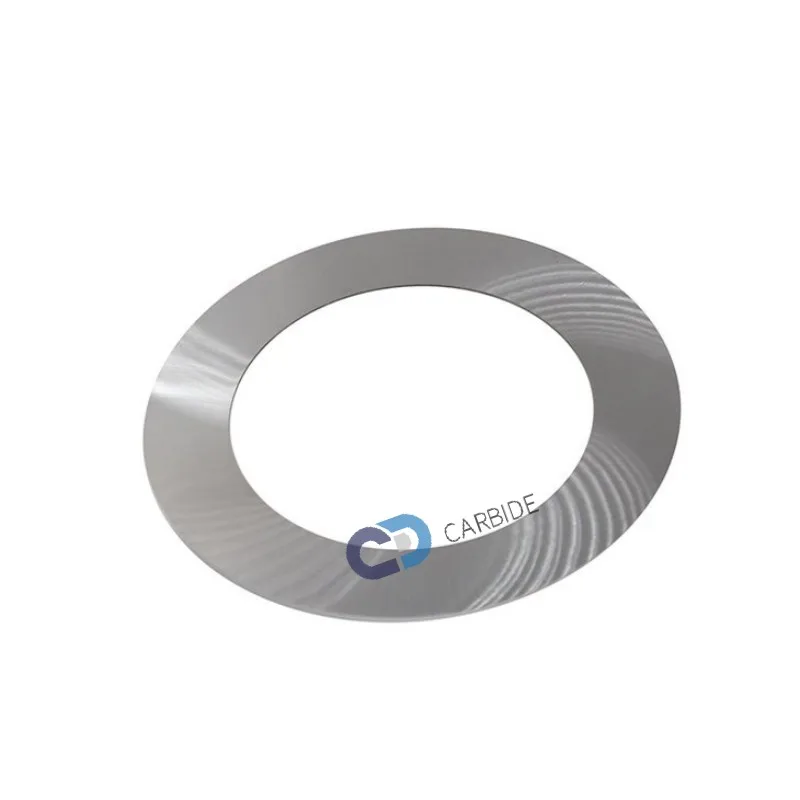

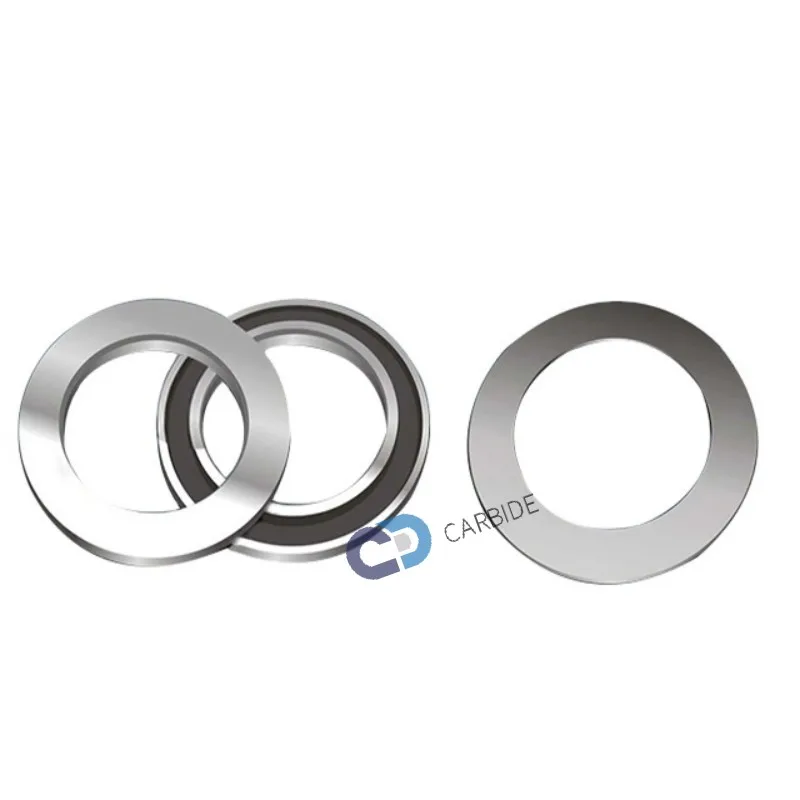

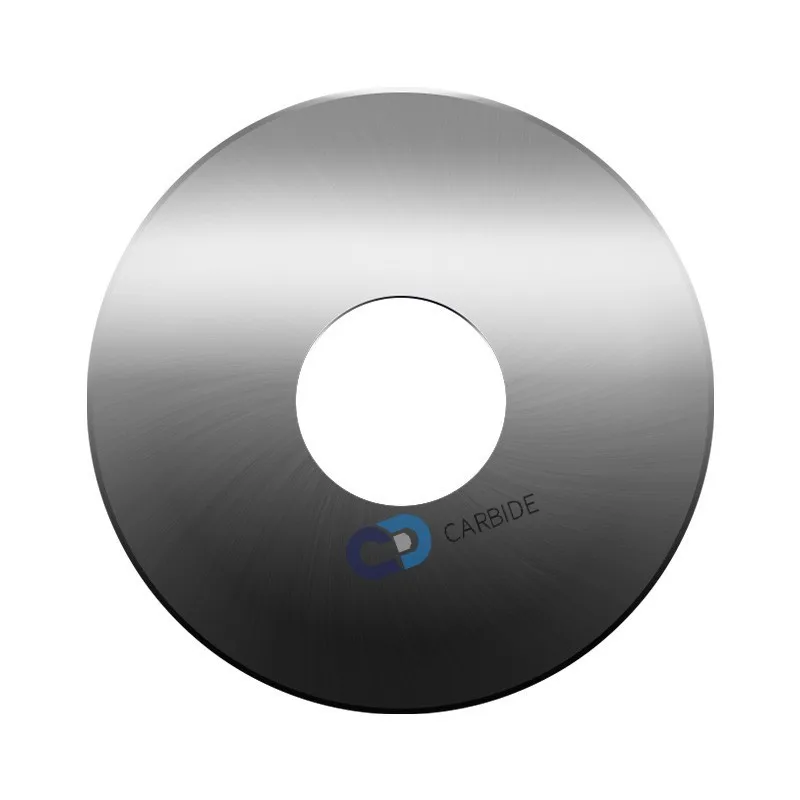

Tungsten Carbide Lithium Battery Knives Tungsten Carbide Circular Blades
- Category: >>>
- Supplier: Zhuzhou Chuangde Cemented Carbide Co. Ltd.
Share on (1601259641301):
Product Overview
Description
Products Description
Product Name | tungsten carbide slitting knife for lithium industry |
Material | Good Quality Tungsten Carbide |
Material Grade | K10, K20, K30, K40, YG6X,YG6,YG8, YG10X, YL10.2, YS2T etc. |
Size | As requirements |
Surface Treatment | Blank/Polished/Polished with coating |
Application | metal foil, copper foil. |

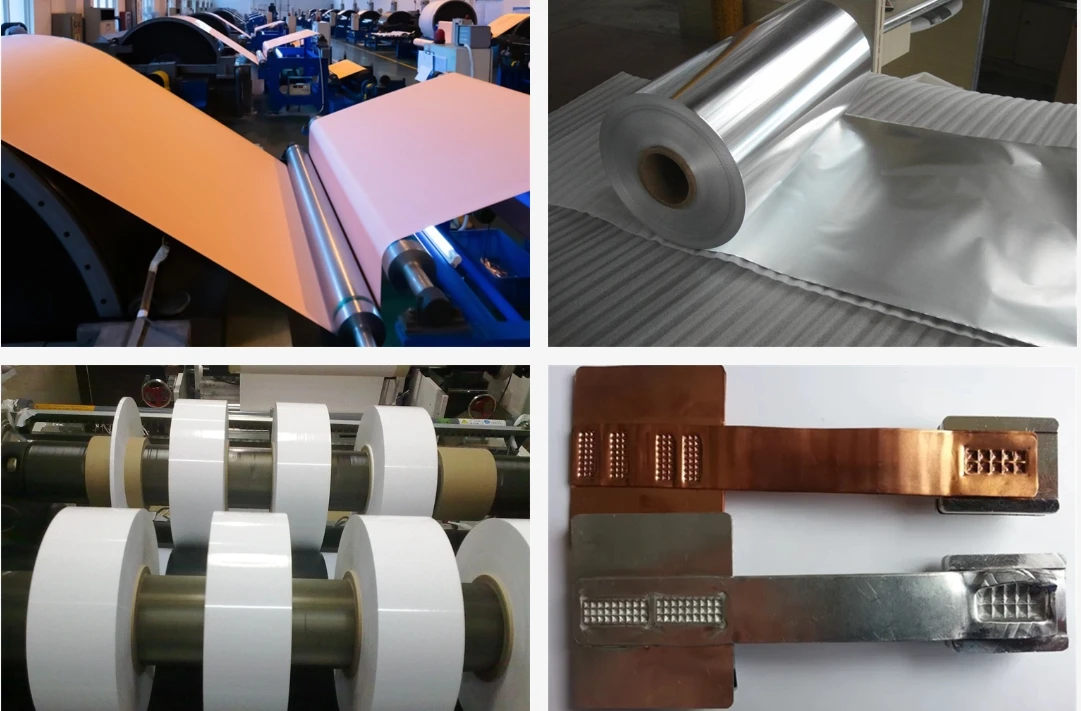

With the development of microelectronics technology development, miniaturized devices are increasing day by day, which puts high demands on power supplies. Lithium batteries have become an indispensable part of digital products. The electrode sheet is one of the core components of the lithium battery. The electrode sheet is generally cut from metal foil, copper foil. Tungsten steel lithium battery blades used in lithium battery manufacturing industry, the positive and negative pole of lithium battery slitting process, racked in pole pieces of the unit.
The cutting process of aluminum foil should be very precise, because any burr on the aluminum foil may cause a short circuit of the lithium battery. And to achieve such precise cutting requires sharp and wear-resistant tungsten carbide battery knives.
The cutting process of aluminum foil should be very precise, because any burr on the aluminum foil may cause a short circuit of the lithium battery. And to achieve such precise cutting requires sharp and wear-resistant tungsten carbide battery knives.
Item | Notes | OD(mm) | ID(mm) | T(mm) |
1 | Top Knife | 72 | 46 | 0.5 |
2 | Bottom Knife | 60 | 40 | 5 |
3 | Top Knife | 72 | 46 | 1 |
4 | Bottom Knife | 60 | 40 | 5 |
Product advantage:
Hardness Guarantee:The raw materials are heat treated, vacuum treated, and the hardness is higher.
Heat treatment in your own factory to ensure product stability.
Sharp edge: The knife edge is sharp, smooth, sharp and durable, imported precision processing equipment can process a variety of non-standard products to ensure the precision of the products.
Application
The blade is processed by high quality technology, with high overall strength, sharper and wear-resisting edge, and longer life!We can customize the blades of various sizes according to your requirements.The parallelism can reach within 0.002mm and the thickness tolerance is within ±0.001mm. It is mainly used Dry panel slitting and slitting and various slitting units. Our company can produce all kinds of circular scissors within 1.2 meters in diameter and ultra-high precision circular scissors within 0.5 meters in diameter.
Company Profile
Zhuzhou Chuangde Cemented Carbide Co.,Ltd located in Zhuzhou,Hunan, China .lt mainly produces Tungsten heavy alloy,Tungsten & Molybdenum alloy,and Silicon Carbide products etc. We have highly qualified motivated and experienced employees who are providing synergies in our company which are necessary to create and guarantee high-quality and long-lasting solutions for our customers.We provide a worldwide distribution network. Asa medium-sized company we react fast and we are flexible to our customer requirements. Based on partnership, we supply suitable solutions for there spective needs.
Our company was certified after ISO in 9001:2015.A comprehensive quality assurance system guarantees high-class standards of our products.Our production are exported to UK, European, Japan, Taiwan and South-east Asia etc.
Our company was certified after ISO in 9001:2015.A comprehensive quality assurance system guarantees high-class standards of our products.Our production are exported to UK, European, Japan, Taiwan and South-east Asia etc.
Customized Service
We not only produce the standard types, but also the carbide parts based on your designs. We have rich experience on this and a big part of our product is from our clients' designs. We can provide the technical support, like how to select the right grade of carbide to match your using purpose, we will make it very easy and simple to do business with us.If you need a customized service,please contact us
Packaging & Shipping
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons, we also can pack the goods based on your requirements,like your own labels.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 15-25 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6. What is your sample policy?
A: We can send you the sample free of charge if it is standard type. For non-standard type, we may need to charge for the mould fee.
Q7. Do you test all your goods before delivery?
A: All the goods will be tested by three times (inspection for material, semi-product and final product) before we send them to you, all data will be recorded.
Q8: How do you make our business long-term and good relationship?
1. Good and stable quality based on our strict quality control system.
2. Fast delivery based on our high production capability.
3. Technical support based on our professional technical team.
4. Simply and easy to do business, to save your time, money and energy.
A: Generally, we pack our goods in neutral white boxes and brown cartons, we also can pack the goods based on your requirements,like your own labels.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 15-25 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6. What is your sample policy?
A: We can send you the sample free of charge if it is standard type. For non-standard type, we may need to charge for the mould fee.
Q7. Do you test all your goods before delivery?
A: All the goods will be tested by three times (inspection for material, semi-product and final product) before we send them to you, all data will be recorded.
Q8: How do you make our business long-term and good relationship?
1. Good and stable quality based on our strict quality control system.
2. Fast delivery based on our high production capability.
3. Technical support based on our professional technical team.
4. Simply and easy to do business, to save your time, money and energy.
