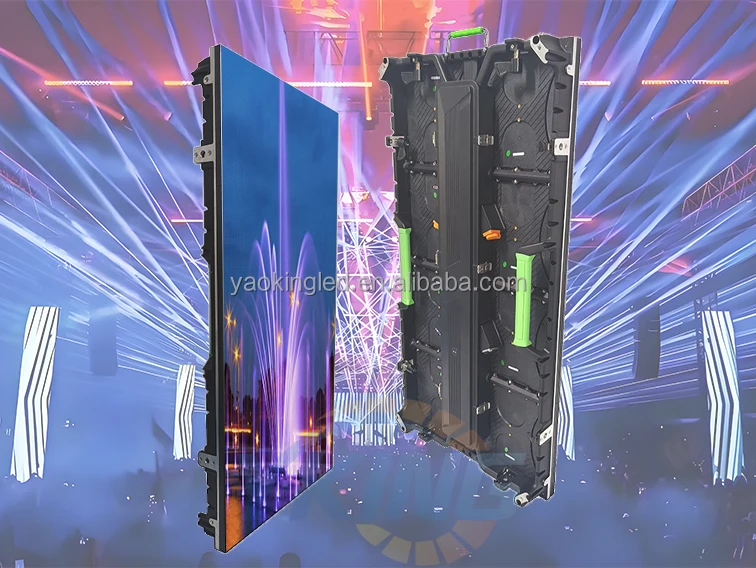

YK DSP5X10 3.91 P3.91 Wide Color Gamut Led Rental Screen Video Wall

Product Overview

Description

Specification of The 50X100CM P3.91 Rental LED Display Screen

Physical Parameter	Item Number	YK-DSP5X10-3.91
	Cabinet size	L500×W1000×H80
	Cabinet material	Die casting Aluminum
	Modules Per cabinet	8
	Pixel pitch	3.91MM
	Panel size	L250*H250*T13.5MM
	Pixel density/ M²	65536 Point/ M²
	LED configuration	SMD1515 (Black)
	Cabinet resolution	128X256=32768 DOTS
Optical Parameter	Pixel density/ Cabinet	128x256 Points
	Driving method	Constant current 1/32 scan
	Input frequency	≥60Hz/S
	Refresh frequency	≥3840Hz/S
	Equilibrium brightness	1500-2000cd/M² / 1500-2000nits
	CCT color temperature	8500K-11500K
	Gray scale	≥16.7M, 16bit
	Lamp failure rate	<0.0001
Electrical Parameter	Receiving card	Novastar
	Module working voltage	5V DC
	Driving device	PMW
	Average power consumption	134W  ( 268W/M² )
	Maximum power	400W  ( 800W/M² )
	Display working voltage	AC110-220V , 50~60HZ
	Resist the electricity	1500V last 1min,No breakdown
Installation& maintenance Parameter	Viewing angle	H160, V160°
	Best viewing distance	2Meters - 80 Meters
	Working environment temperature	-10~60 ℃
	Working environment humidity	RH 10%~RH 70%
	Mean free error time	>5000 Hours
	Lifespan	100000 Hours
	Antijam Standard	IEC801/ IEC1000-4
	IP rating	The back IP40,The front IP50



Click here to get more details or coupons>>>

The Features of the Yaoking's LED Display Screen:

1. High Density, 256x256pixels/ M²  (Based on Pixel pitch=3.91mm)

2. High brightness, 1500-2000cd/ M² (1500-2000nits)

3. High Refresh Rate, ≥3840Hz/S, Smooth Video, Delicate Images for eye-pleasing.

4. Made in China high efficient SMD LED Light Source.

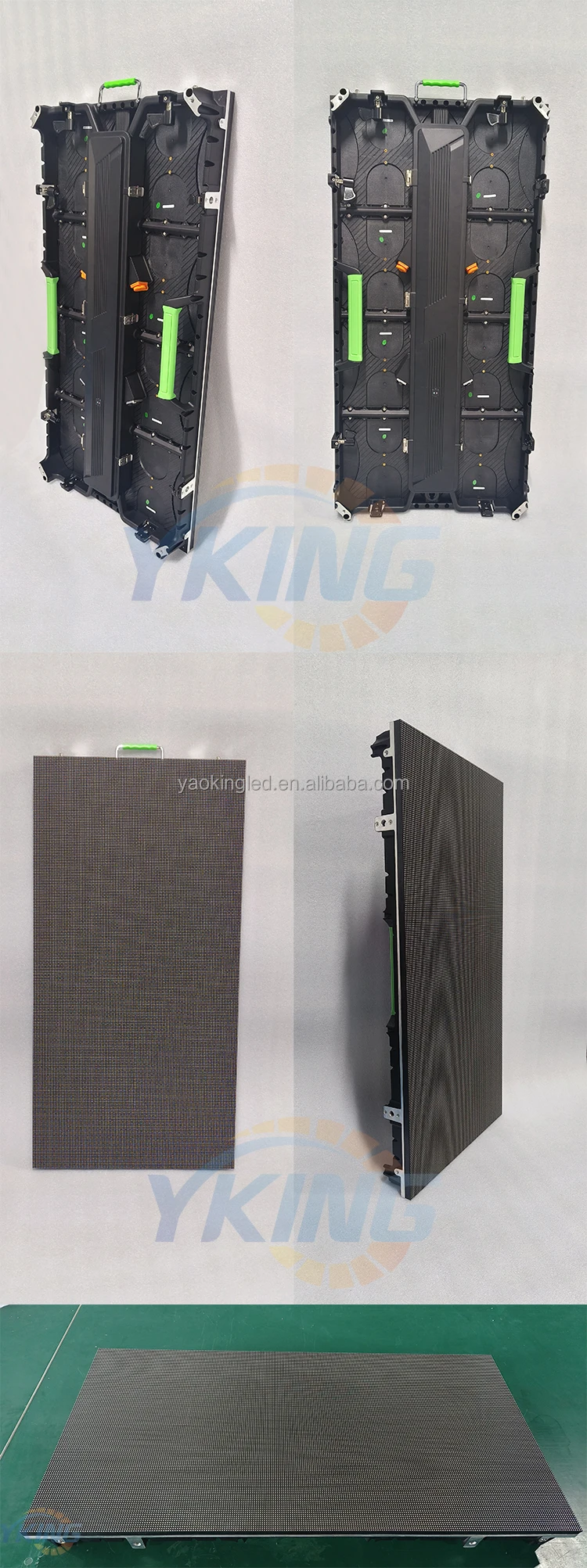

5. Die-Casting Aluminum Cabinet, Polished and black painted.

    Heat dissipation, Structure Intensity, Contracted design,and Energy Saving balanced.

6. Slim thin design, Low carbon material need, eco-friendly.

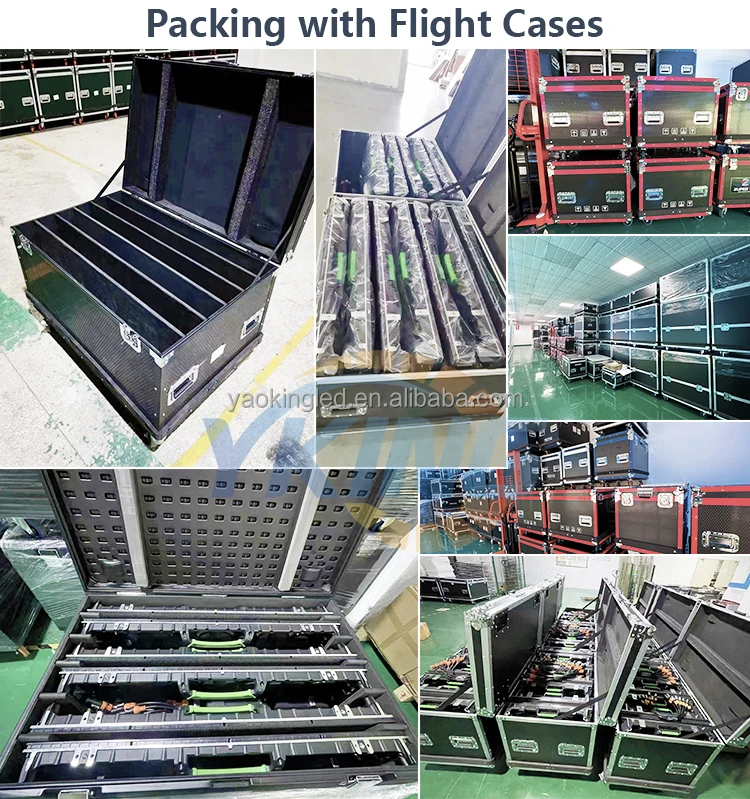

    Easy carry and convenient packing.

7. Creative Driving IC protection design, cable-invisible design.

8. New self-design Energy saving circuit design, Power consumption saved>10%.

9. Design with Anti-collision and Anti bumping details for both LED modules and cabinet.

10. More than 10 years technology accumulation in LED field.

      Mature technology, craftsmen quality, Stable and reliable.

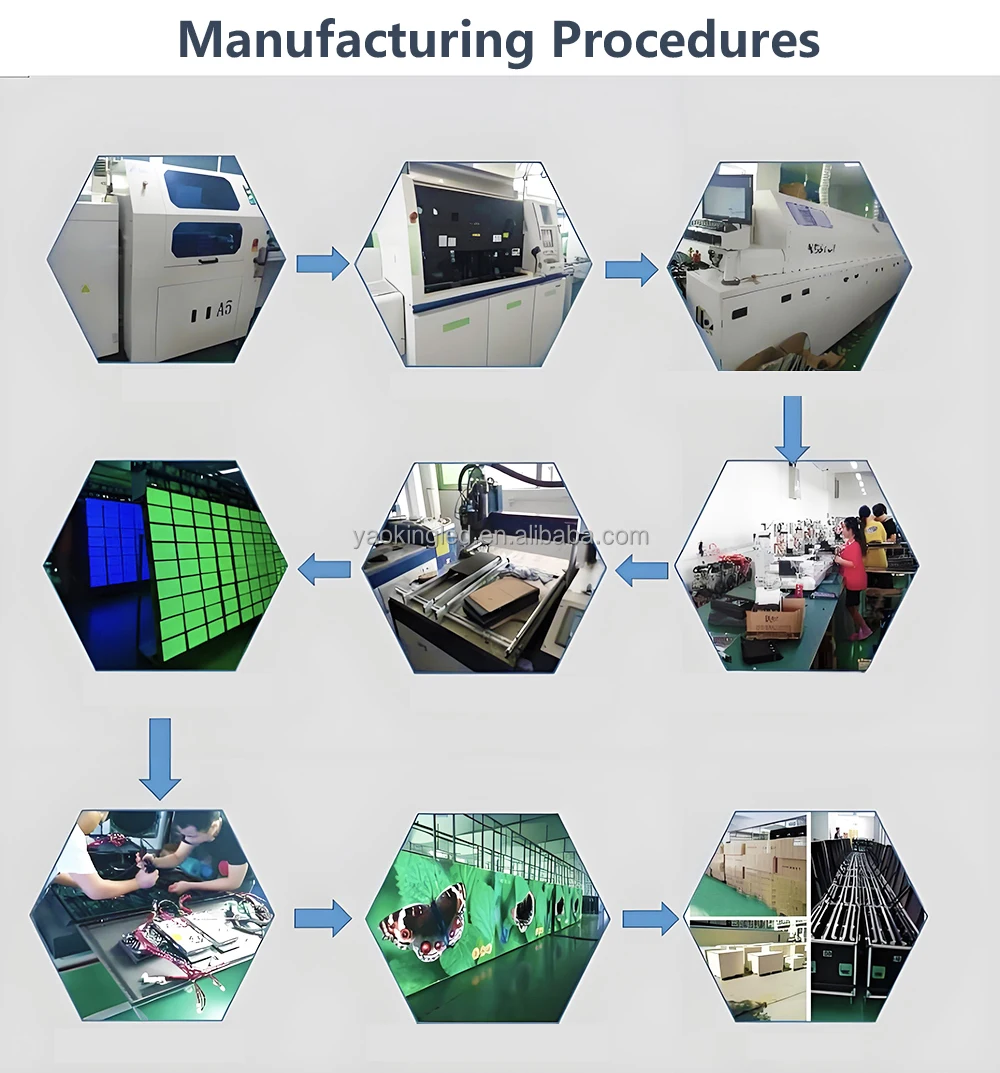

11. Strict material quality inspection, In-process quality inspetion and finished production inspection,

      Quality guaranteed throughout the whole process.



More...↓↓↓

Wide color gamut (WCG).

Novastar hardware supported, wider system compatibility.

Various methods for installation. Hanging, Stacking, Wall Mounting, Embeded,Truss...

Seamless contiguity/ Seamless Splicing.

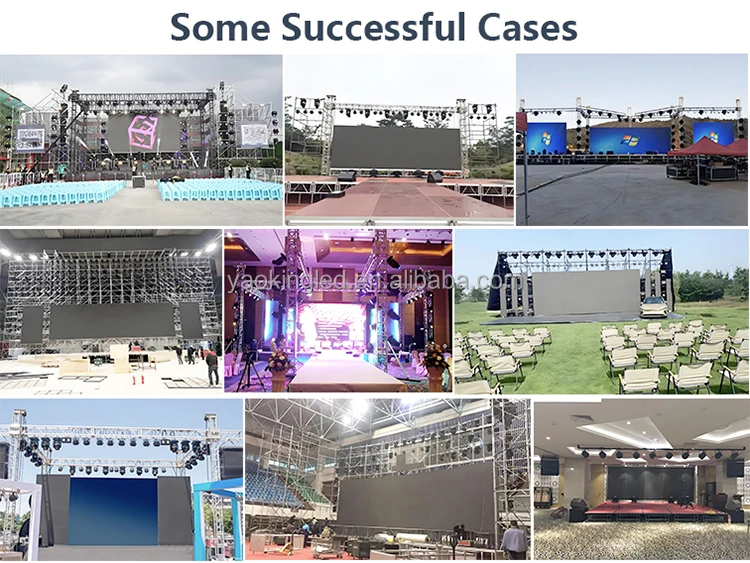

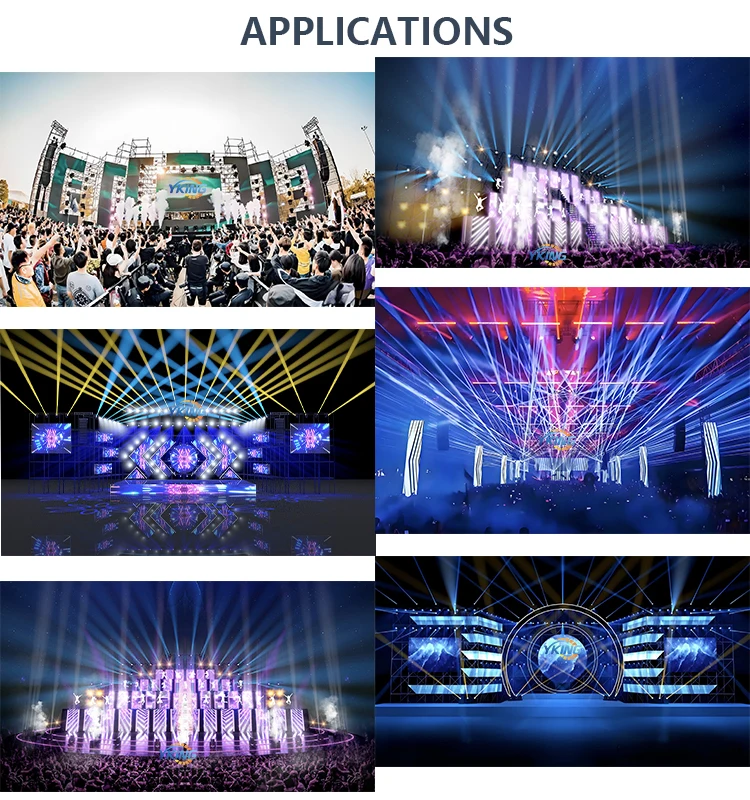

Ideal choice for different kind events, club, conference, exhibitions...

More features waiting you to discover...
