HOT selling drive thru digital menu board for QSR factory price with intercom order system
- Category: >>>
- Supplier: Guangzhou Li Cheng Electronic Technology Co. Ltd.
Share on (1601259660852):
Product Overview
Description
Products Description
How to use?
1.55" high brightness LCD menu board gives outstanding visibility in outside, the driver can easily read the digital menu board.
The LG industrial glass withstand 110 degrees on the surface, so it can face to sunlight in summer, and without blacken area.
The high contrast and high resolution screen gives vivid videos and pictures on the digital menu board.
2.The 55" LCD screens are protected by aluminum enclosure, which is made of aluminum profile and tempered glass cover. It's IP65 protection and anti corrosion. So the CNLC LCD food kiosk are popular in the cities nearby the sea.
In addition,the aluminum enclosure is very good at heat dissipation, that's why our product is working well in extremely hot place .
CNLC aluminum profiles have stable physical properties and will not be affected by thermal expansion and contraction. Even if using in outdoor for a long time, aluminum profiles will not deform or bend.

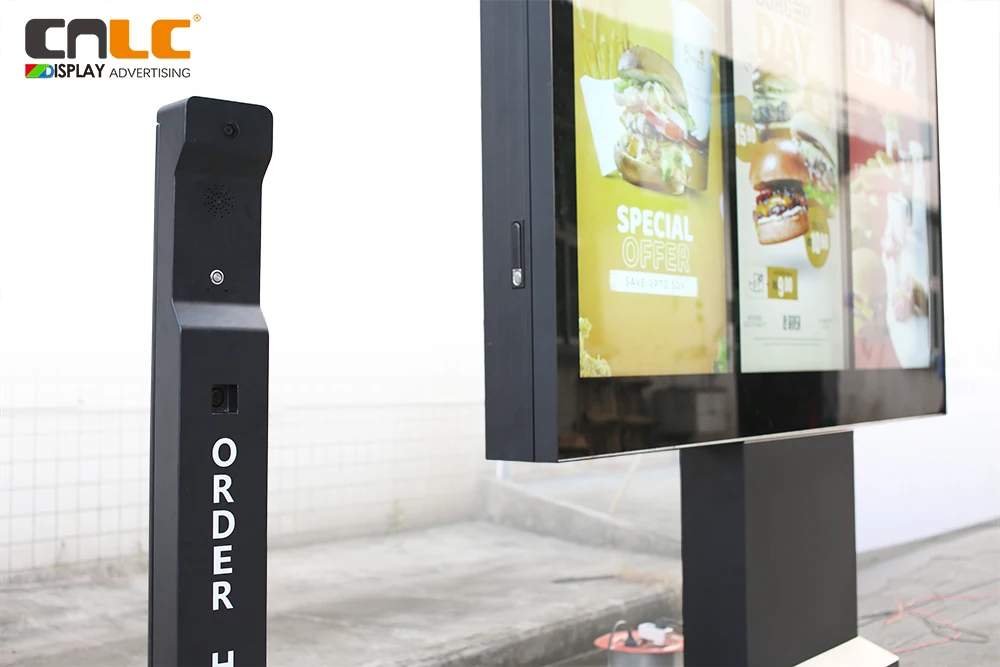

3.The intercom order system has a video monitor.
The standing post is integrated multi- electronic parts, including radar detecter (with button triggle),micphone and speaker and high definition camera; the server office has a server terminal with video monitor and headset.
1) When the car is approaching, the radar detecter will be triggled and the sever will make a call with the driver.
2) The driver can read the menu board and place order . The micphone is excellent in reducing ambient noise,sothat the sever can hear clearly; and the 10W speaker gives a load and clean voice.
3) The sever can monitor the driver from the screen, when finishing the order conversation, server can stop the call.

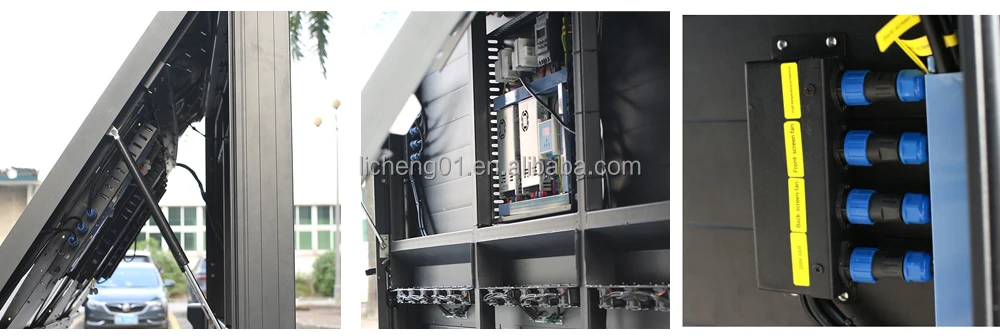

Aluminum Structure
Steel load-bearing frame Steel angle 4-5 mm thick Welded aluminum frame
lining of the frame and support Double slot for M6 screws to lock Lock the frame,polish and welding
with aluminum profile Finally powder coating, to achieve
the strong and elegant frame

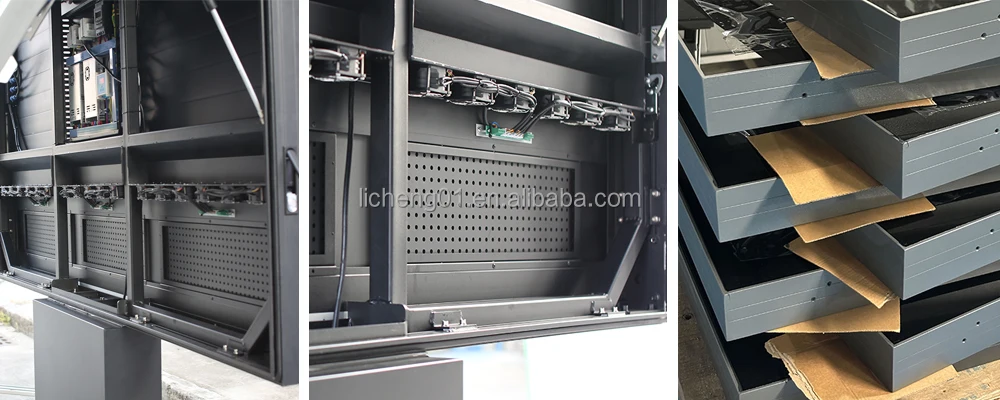

Circuit layout
1.Power supply of LCD screen is seperated from other electronics;
2.Indenpendent power supply for screen and other electronics;
3.Clear and brief layout , easy for maintenance.
Product details

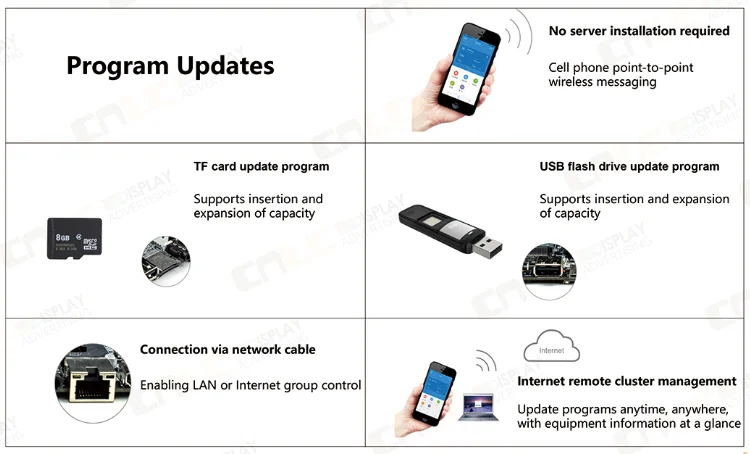

Program update method
Specifications
LCD Panel | 55" |
Resolution | 1920x1080 |
LCD panel brand | LG industrial grade, withstand 110 ℃ |
Brightness | Direct backlit 3000cd/m² (through tempered glass) |
Contrast Ratio | Original LG glass : 1200:1 |
Orientation | Portrait |
Smart Temp System | Temp. controller and cooling fans |
Material of Enclosure | Aluminum profile casing |
IP Rating | IP65 |
Operating Temp | -30 to 60 ℃ (optional embedded heater) |
Running Time | 7/24 |
Certificates | CE FCC.RoHS |
Our Advantages
CNLC Display was established in 2007 located in Guangzhou,China. We have more than 16years of experience in production and development of advertising Displays.The mainproducts are outdoor high-brightness LCD digital signage, high-brightness LCD window display and indoor high-brightness advertising displays
