Bimetal Electric Thermal Overload Protector Switch Temperature Controller for Motor and Car Applications Household Use
- Category: >>>
- Supplier: Changzhou Changyue Electric Appliance Co. Ltd.
Share on (1601259701783):
Product Overview
Description
Products Description

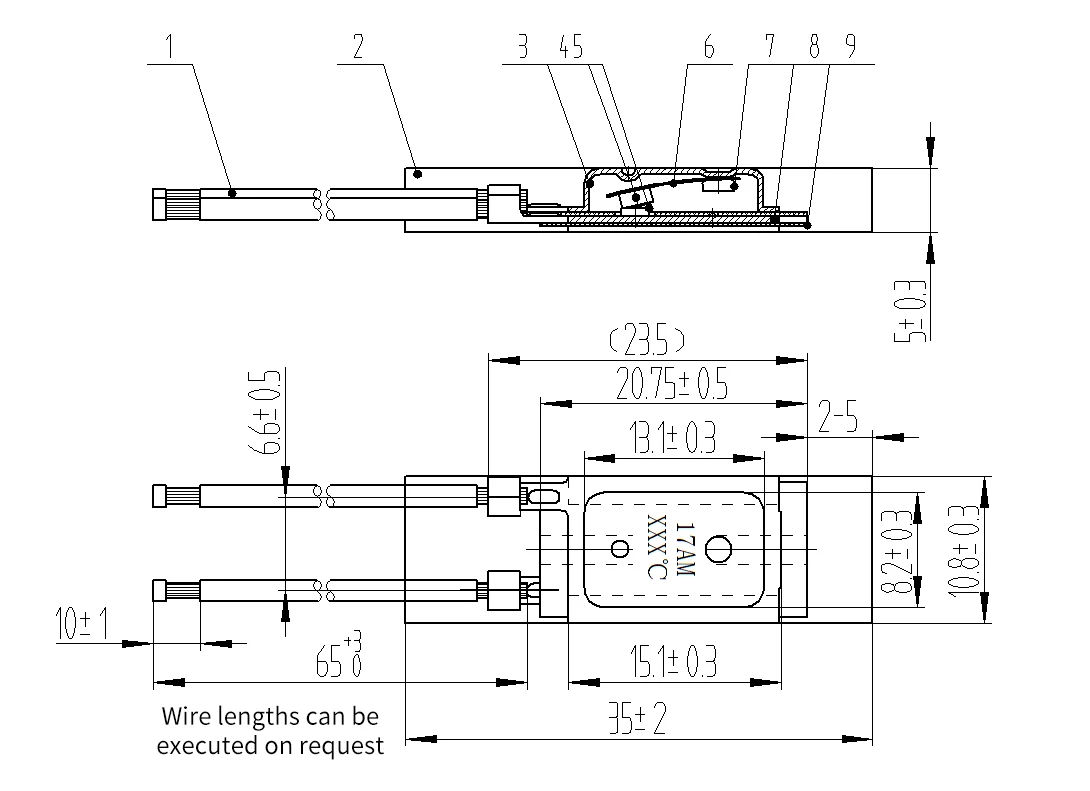

Schematic
1 Product type: 17AM thermal protector;
2 Product model number, specification code and factory label are clear and complete;
3The leads should be able to withstand a static tension of 8ON/root after riveting. 10S;
4. Electrical strength: the insulation sheath can withstand 1800VA (1 second without breakdown (leakage current 1mA);
5. Product contact resistance less than 50mΩ
2 Product model number, specification code and factory label are clear and complete;
3The leads should be able to withstand a static tension of 8ON/root after riveting. 10S;
4. Electrical strength: the insulation sheath can withstand 1800VA (1 second without breakdown (leakage current 1mA);
5. Product contact resistance less than 50mΩ

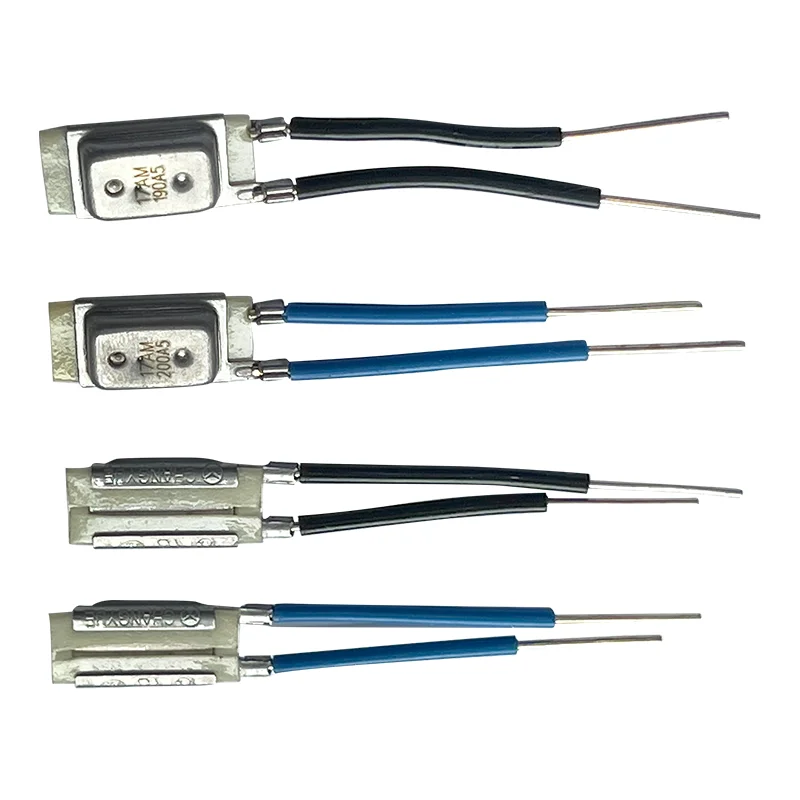

17AM Series Thermal Protectors
Operating temperature comparison table
Model Specification | Operating temperature | Resetting temperature | Model Specification | Operating temperature | Resetting temperature |
50℃ | 50±5℃ | 45-30 | 130℃ | 130±5℃ | 105-60 |
55℃ | 55±5℃ | 45-30 | 135℃ | 135±5℃ | 110-60 |
60℃ | 60±5℃ | 50-35 | 140℃ | 140±5℃ | 115-60 |
65℃ | 65±5℃ | 55-40 | 145℃ | 145±5℃ | 120-60 |
70℃ | 70±5℃ | 60-40 | 150℃ | 150±5℃ | 120-60 |
75℃ | 75±5℃ | 65-40 | 155℃ | 155±5℃ | 125-60 |
80℃ | 80±5℃ | 70-40 | 160℃ | 160±5℃ | 125-60 |
85℃ | 85±5℃ | 75-45 | 165℃ | 165±5℃ | 130-65 |
90℃ | 90±5℃ | 80-45 | 170℃ | 170±5℃ | 130-65 |
95℃ | 95±5℃ | 80-45 | 175℃ | 175±5℃ | 135-70 |
100℃ | 100±5℃ | 85-50 | 180℃ | 180±5℃ | 135-70 |
105℃ | 105±5℃ | 90-50 | 185℃ | 185±5℃ | 140-75 |
110℃ | 110±5℃ | 90-50 | 190℃ | 190±5℃ | 140-75 |
115℃ | 115±5℃ | 95-55 | 195℃ | 195±5℃ | 145-80 |
120℃ | 120±5℃ | 95-55 | 200℃ | 200±5℃ | 145-80 |
125℃ | 125±5℃ | 100-60 |
Note: Reset temperature is for reference only
