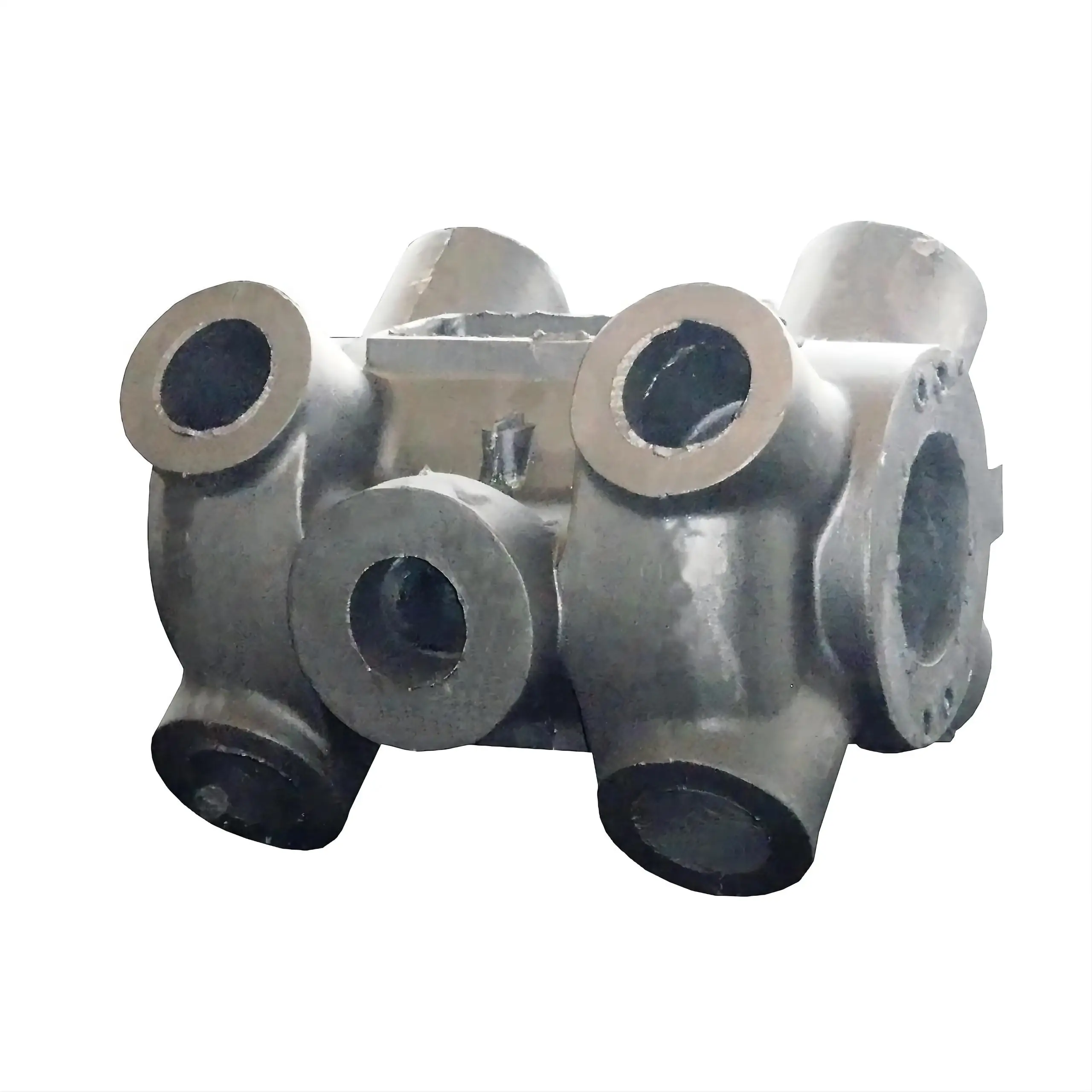

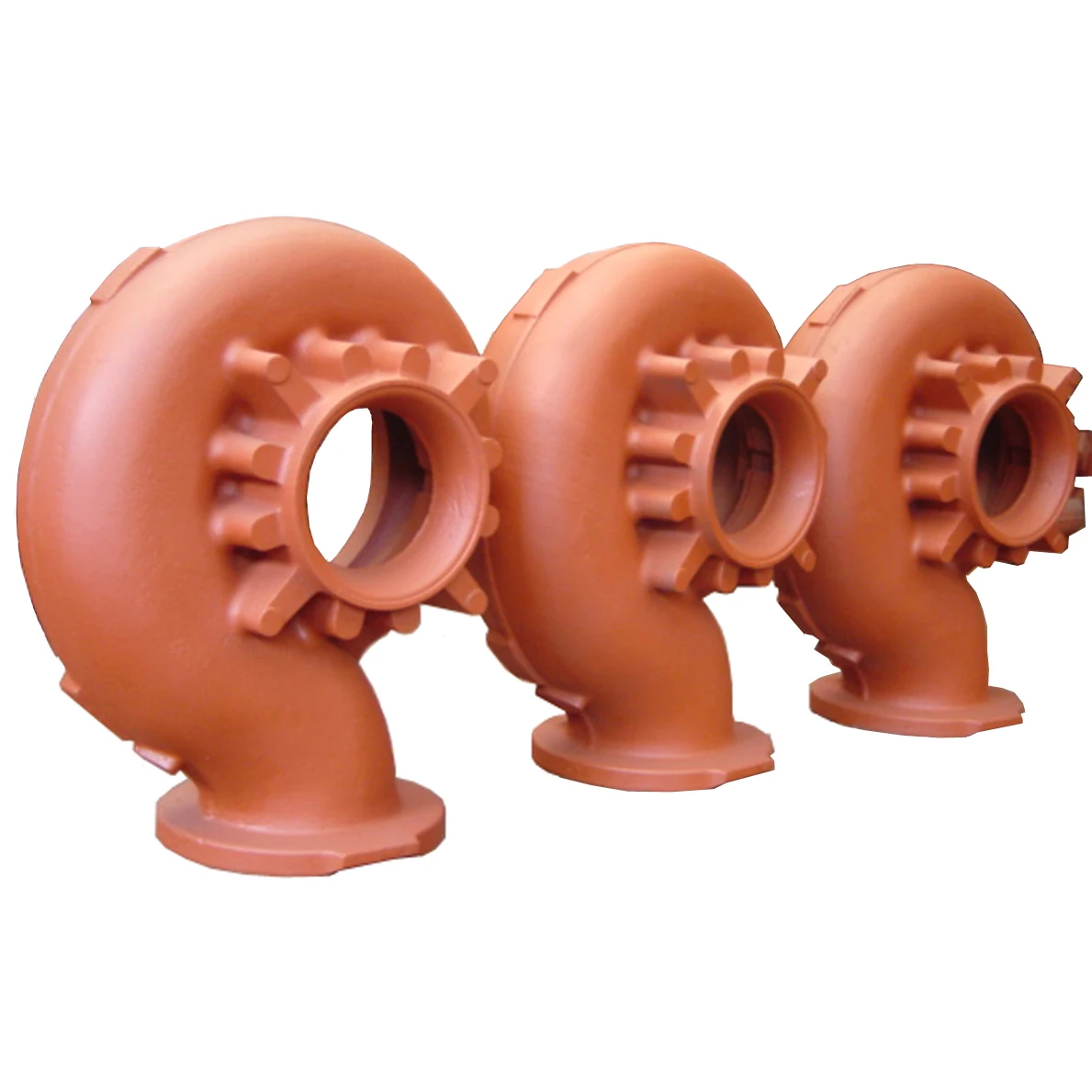

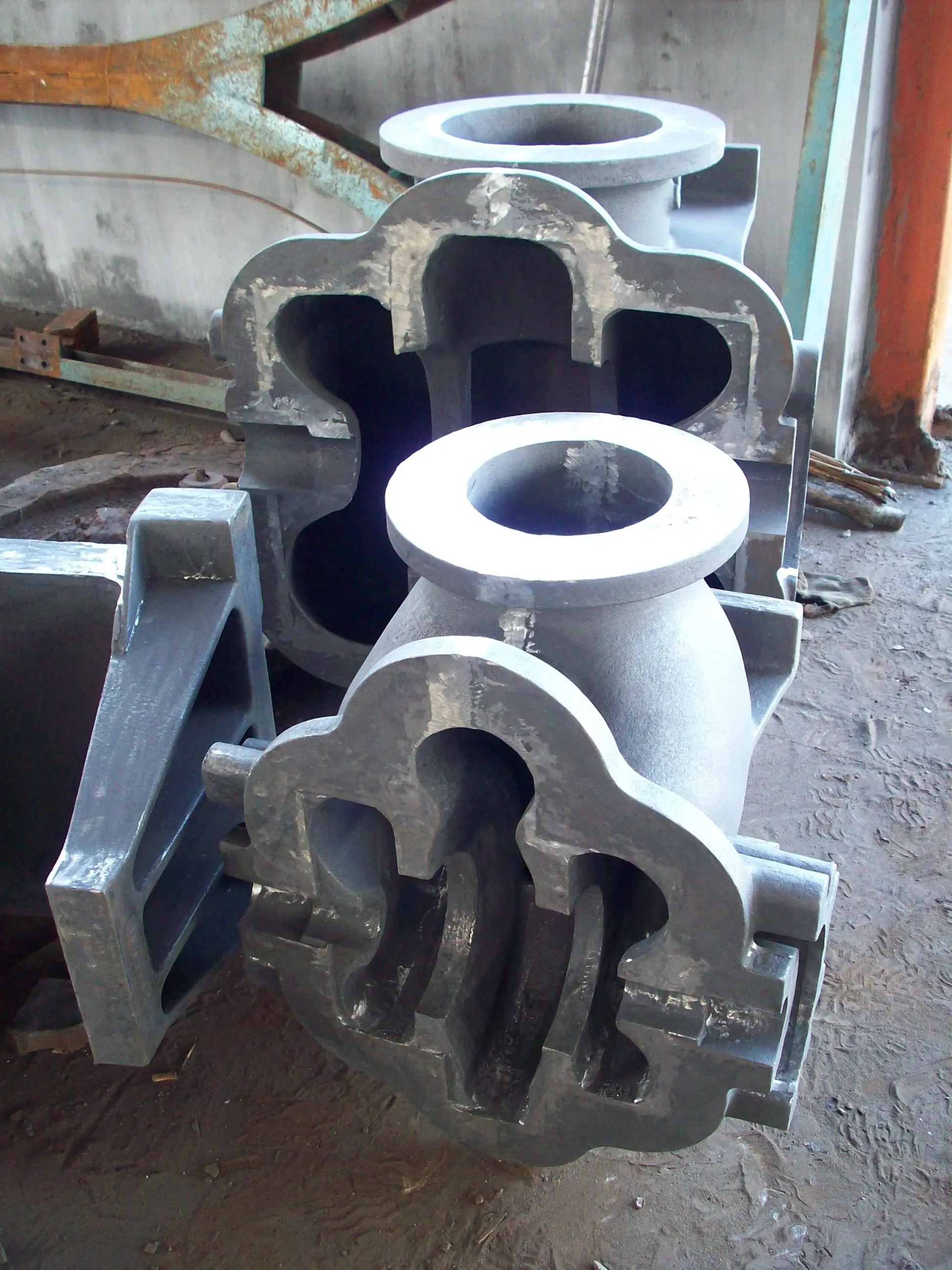

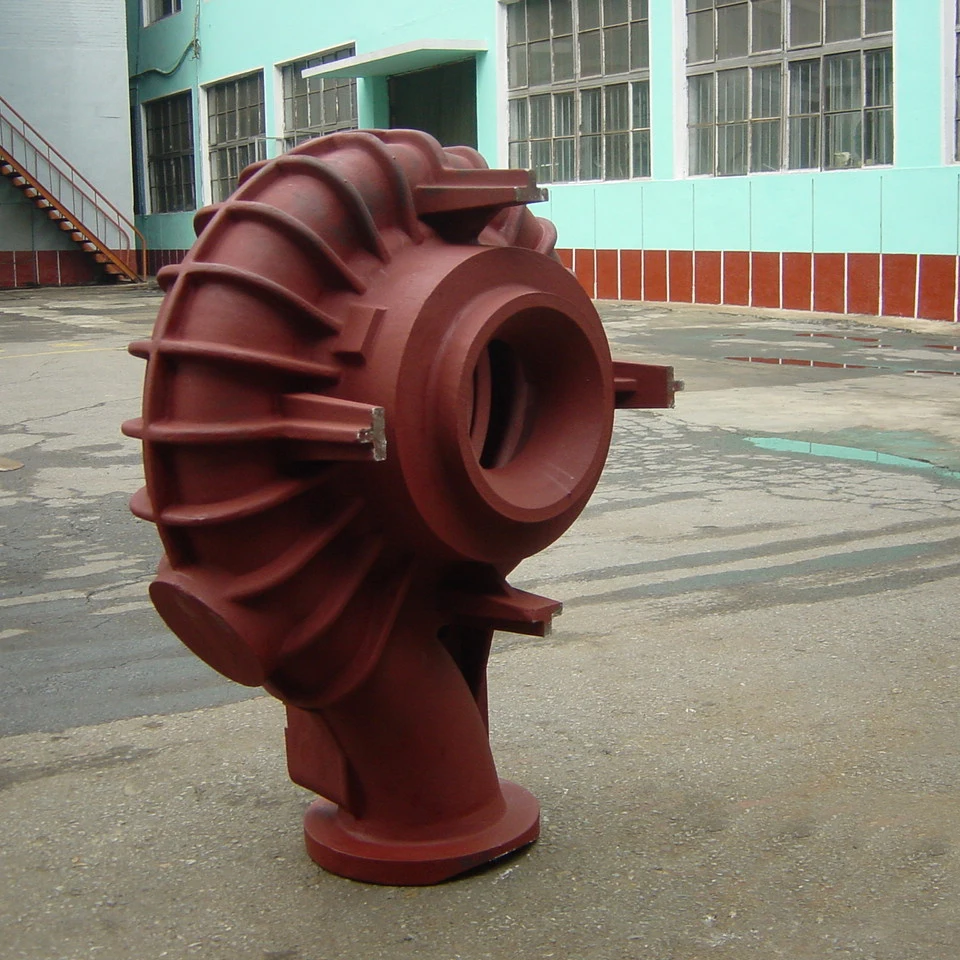

Customized Metal Foundry Cast Service Water Pump Body Sand Casting Parts Cast Iron Parts
Customized Metal Foundry Cast Service Water Pump Body Sand Casting Parts Cast Iron Parts
Customized Metal Foundry Cast Service Water Pump Body Sand Casting Parts Cast Iron Parts
Customized Metal Foundry Cast Service Water Pump Body Sand Casting Parts Cast Iron Parts
Customized Metal Foundry Cast Service Water Pump Body Sand Casting Parts Cast Iron Parts
Customized Metal Foundry Cast Service Water Pump Body Sand Casting Parts Cast Iron Parts
Customized Metal Foundry Cast Service Water Pump Body Sand Casting Parts Cast Iron Parts

Customized Metal Foundry Cast Service Water Pump Body Sand Casting Parts Cast Iron Parts

Share on (1601259702605):


Price:$29.86 - $29.88

Quantity:


Product Overview

Description





SPECIFICATION


Manufacturing Method
Sand Casting(Resin Sand, Pre-Coated Sand, Clay Sand, Water glass sand)
Material Standard
GB, ANSI, BS, DIN, JIS, ASTM, ASME, AISI, etc carbon steel, low carbon steel, middle carbon steel, G35, G45, WCB, WCA, WCC, ISO
340-550, etc. Alloy Carbon steel: G25CrMo4, Heat Resistant Steel, etc. Stainless Steel: SUS 304, 304L, 316, 316L, CF8, CF8M,
G-X7CrNiNb1189, etc. AS2074 or according to customer specific requirement.
Weight Range
1 kg to 100 Tons
General Casting Tolerance
CT8-CT12 ISO 8062 / Customized
Design Software
UG, Pro-E, Inventor
Mould Manufacturing
Yes
Casting Stimulation
Yes
Quality Standard
ISO 9001
Ultimate machining tolerance
0.005mm
Machining Roughness
Ra0.8-Ra3.2 according to customer requirement
Heat Treatment
Normalization , annealing, quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching
Surface Treatment
Shot/sand blast, polishing, Surface passivation, Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate, Dacromat
coating, Finish Painting






Patented  Material-Abrasinite and Toughness


Abrasinite 600
A Sharpen Tech designed and patented new wear resistant casting steel Ideal replacement for Ni-Mo modified Cr27 cast iron Hardness
HB620-660 Charpy unnotched Impact Value: >10 J Price of casting: At least 30% saving of Ni-Mo modified Cr27
Abrasinite 500
A Sharpen Tech designed low cost casting steel with combined wear resistance and high toughness.
Hardness HB530-560
V-notched Charpy Impact Value: >19J
Toughnite 400
A Sharpen Tech designed high strength high toughness casting steel.
This low cost casting steel does not need quenching to get high strength,
can avoid deformation from quenching.

Tensile Strength >1000MPa
Yield Strength ~800Mpa
Hardness HB400-420
V-notched Charpy Impact Value: 30J

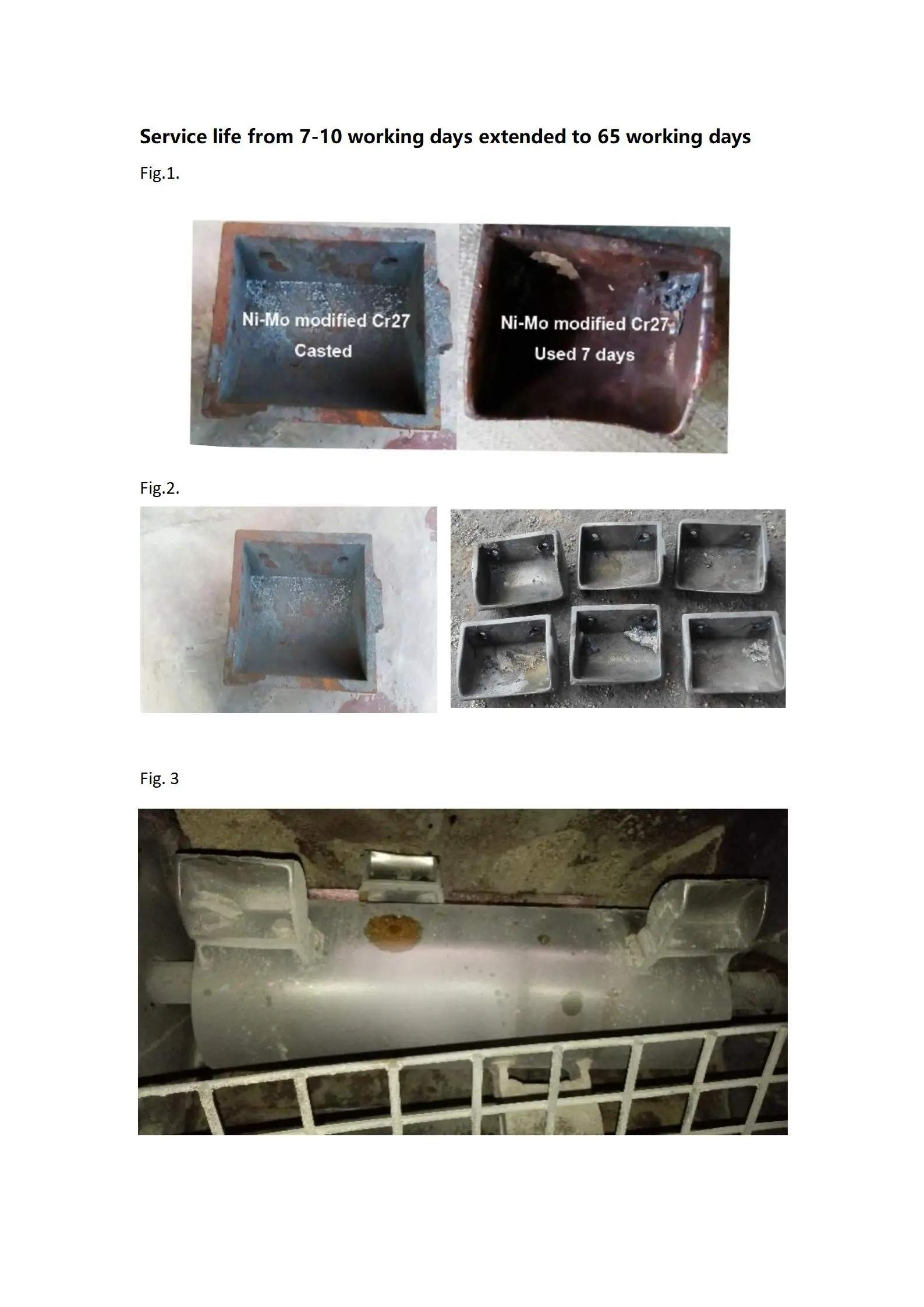

Fig.1. Sand bucket made of Ni-Mo modified Cr27, must replace worn bucket every 7-10 working days.
Fig.2. Abrasinite 600 used in the same machine, lasted 65 working days without replacing buckets.
Fig. 3. Sand buckets ready to be replaced after being used for 65 working days (2 shifts a day).
.
Abrasinite 600 has very good wear resistance with lower cost as it uses only about 1.5% of Cr, no Ni, no Mo, no other expensive alloy element added. The price of this material can be quite competitive.

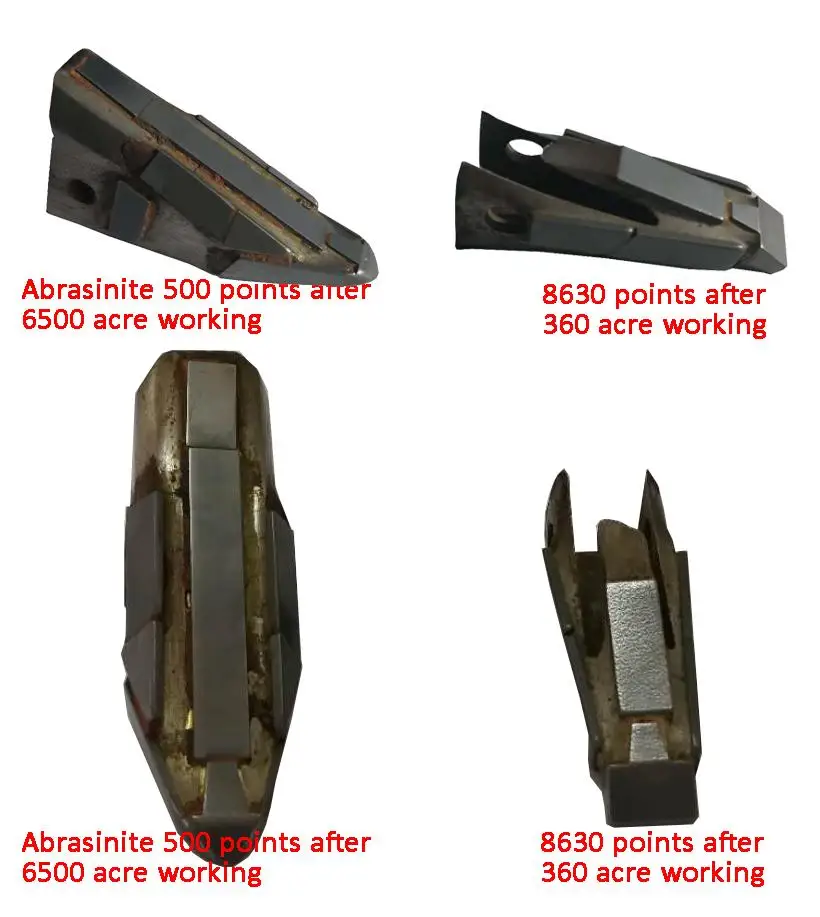

Farm Machinery- Points

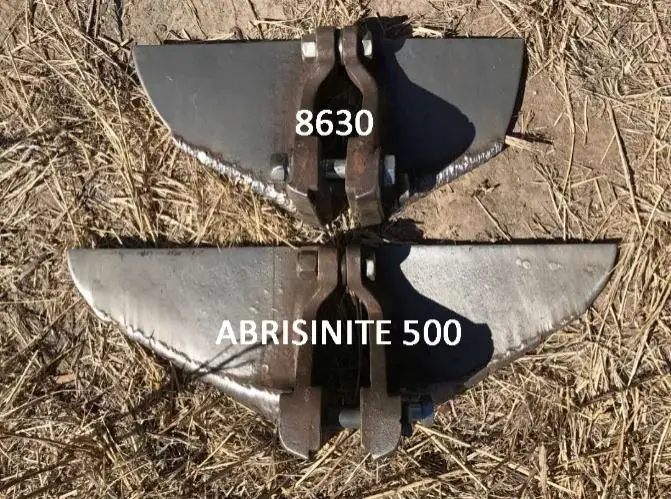

Abrasinite 500 with patented much finer particle powder welding VS. 8630 with normal big particle welding at the same soil and enduring the same hours.









Sharpen Tech Co.,Ltd.(SPT)is a multifaceted company offers a wide range of engineering and manufacturing expertise to global customers engaged in the agricultural,manufacturing,industrial,mining sectors and new material developing.
Since its birth it has developed,through an effective management,an enviable suite of products and services which are internationally renowned.

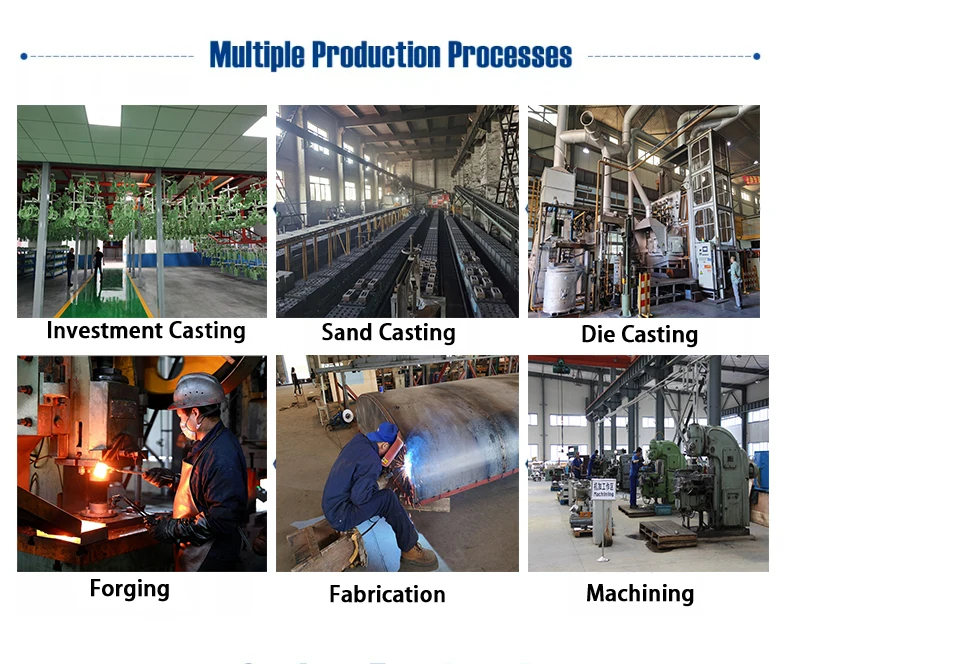

SPT Main Activities
.Farm machinery and spare parts
.Mining machinery and spare parts
.Fabrication and welding
.General machinery parts

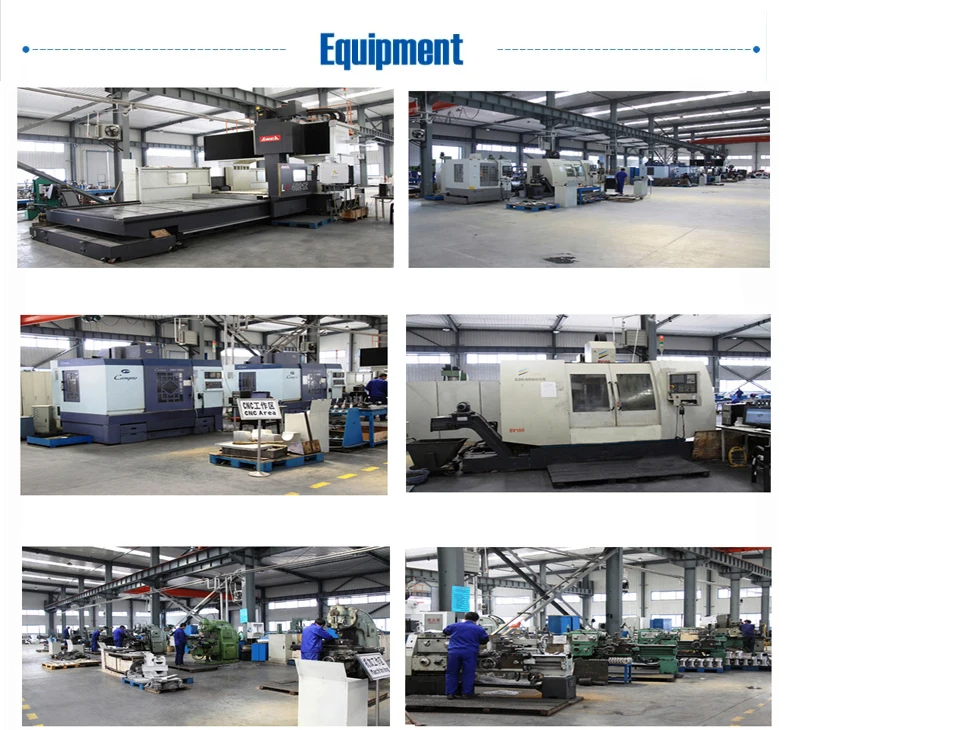

.Machining-High precislon CNC machining of turning, milling, boring,plasma and laser casting
















Q1. Are you a factory or trade company?
A: We are a factory with over 20 years in casting,forging ,fabrication and machining. We service customers in various fields such as mining, agriculture, car parts ,etc.
Q2. Where is your factory?
A: Our factory locates in Dandong City,Liaoning Province, where close to Dalian port within 1 hr drive.
Q3. How to quote?
A: Received the sample or drawing, then we will make the quotation.
Q4. How about the MOQ?
A: Depend on the weight and material, if it is our daily melting material, there is no MOQ.
Q5. Payment terms
A: Mold costs: 50% deposit,, balance after sample approval
Mass production: 50% deposit, balance upon B/L available.
Q6.Delivery time
A: Normally 25-40 days;
A: Standard or customized will both be available.

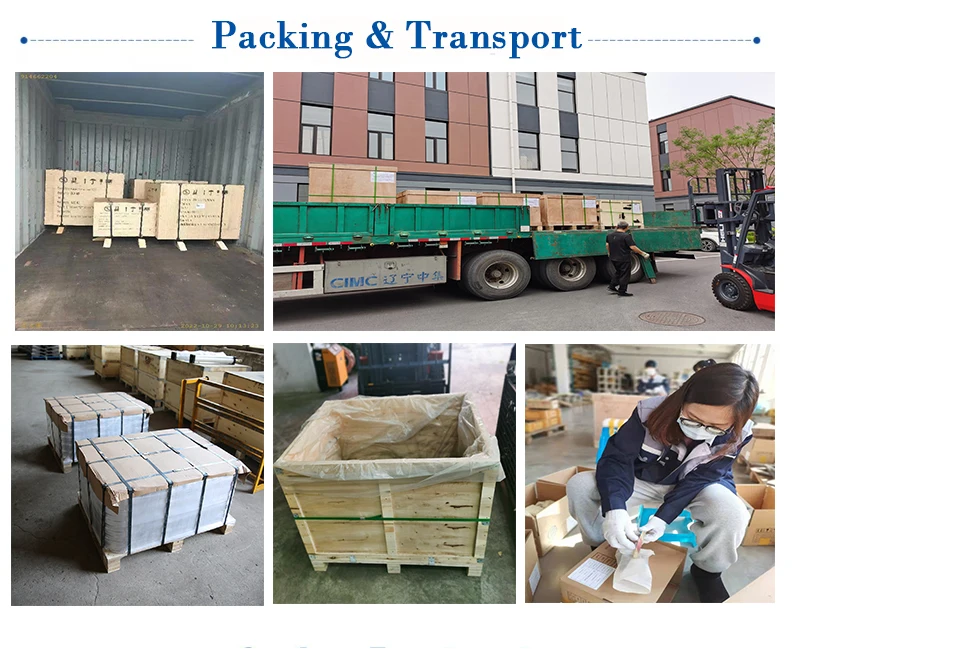

Q7. How about the packing?
A: Standard or customized will both be available.We will consider the transfer at warehouse and long time anti rust during on the sea.
Q8. How can I get more information?
A：If you need more information, you can send email to davidlee@sharpentech.cn, if you need any instant answer, please call 0086-135-1608-5845,thanks.
