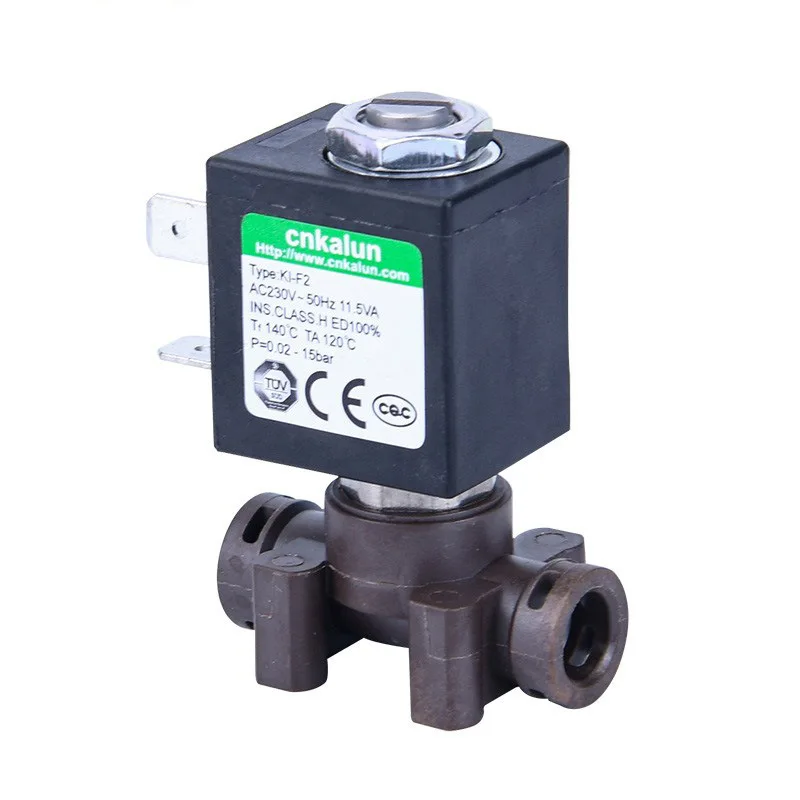

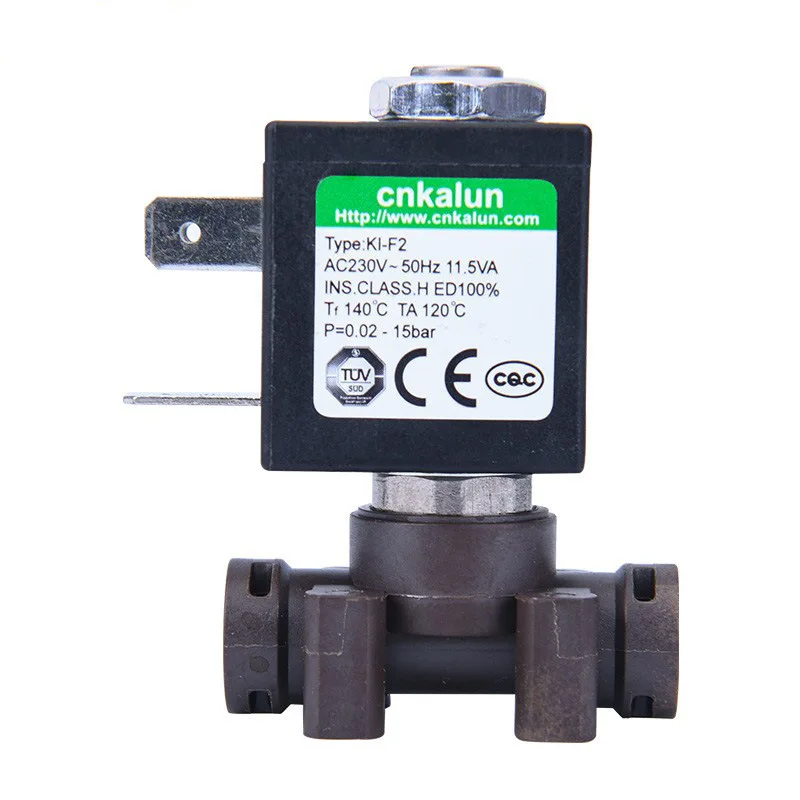

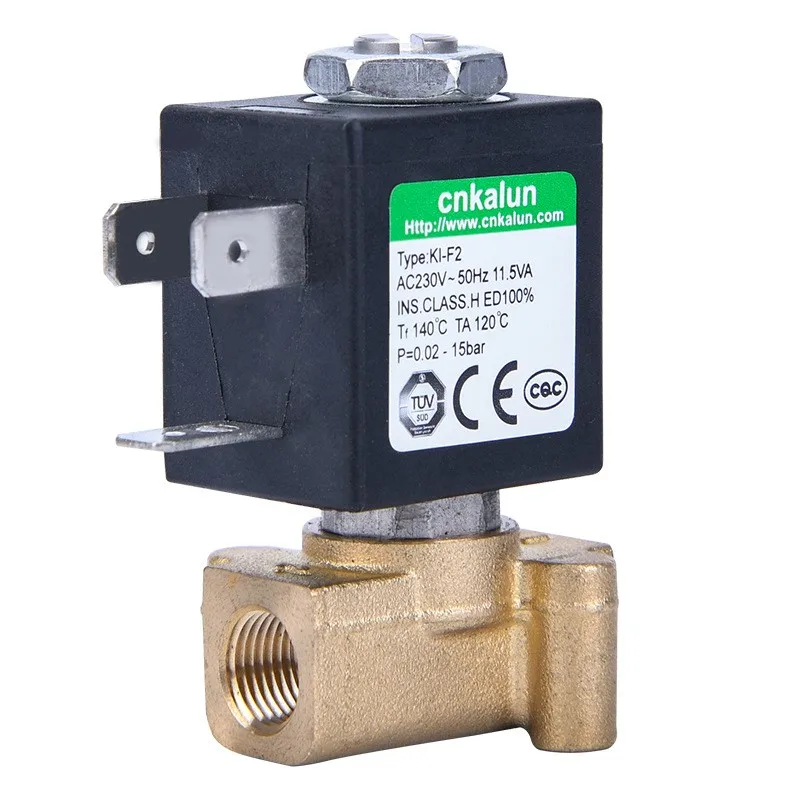

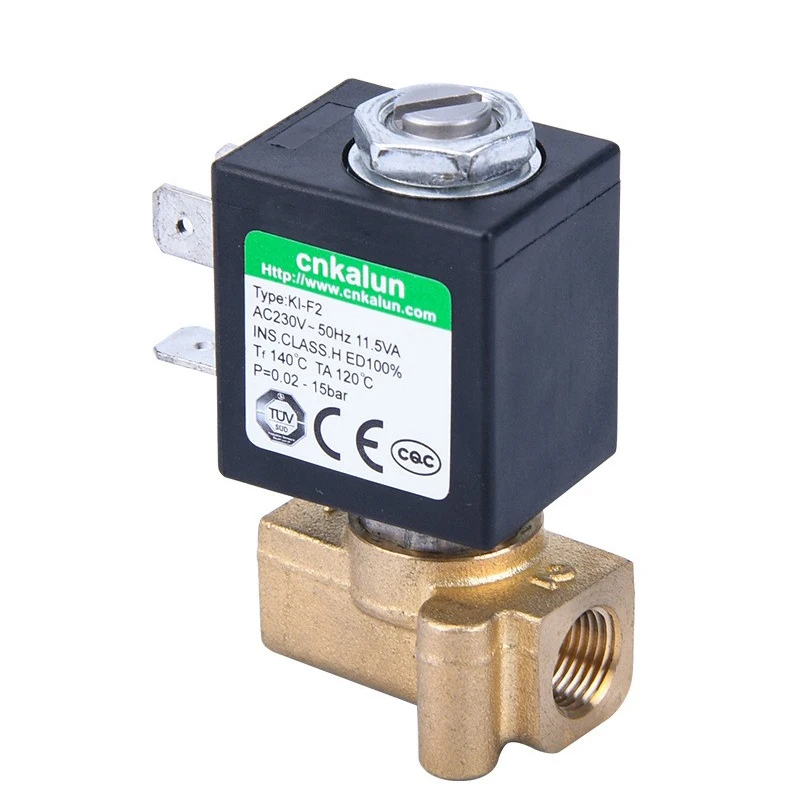

KL F2 High Pressure 0.02 20Bar NC Brass PPS Mini Solenoid Valve for Steam Generators
- Category: >>>
- Supplier: Dongguan Yanlun Electric Co. Ltd.
Share on (1601259710314):
Product Overview
Description
Product Description
KL-F2 DC12V DC24V AC110-240V 2Ways Solenoid Valve for Coffee
Machine
Product Name | Solenoid Valve | ||||||
Feature | 2 Station and 2 Ways | ||||||
Body Material | PPS/Brass | ||||||
Construction | Normal Close | ||||||
Orifice Size | 0.9MM, 1.2MM,2.0MM,2.3MM,6.0MM | ||||||
Rated Voltage And Power | DC12V, DC24V, AC110V, AC120V, AC220V, AC230V, AC240V | ||||||
Connections | Cannula G1/8‘’ | ||||||
Environmental Temperature | -10℃~+120℃ | ||||||
M.O.P.D | 0.02~20Bar | ||||||
Kv | 1)0.5L/min (ø0.9mm) 2)0.7L/min (ø1.2mm) 3)1.8L/min (ø2.0mm) 4)2.3L/min (ø2.3mm) 5)4.0L/min (ø6.0mm) | ||||||

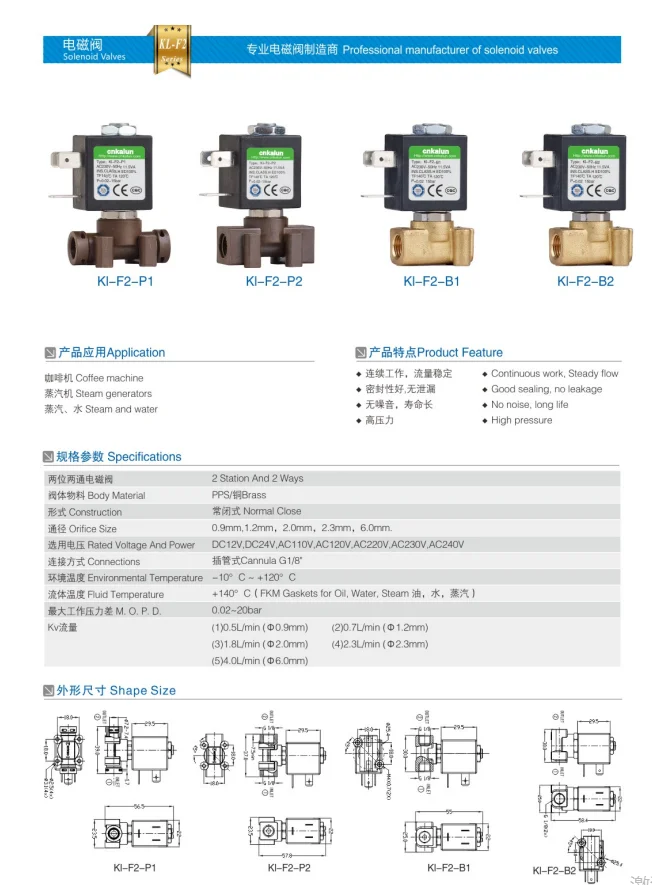

Products Catalogue
Packing & Delivery
Packing Details : poly bags /carton; inner boxes/ carton
Delivery Details : by sea, by air, by UPS, DHL, FEDEX, up to customer request.
1. blister box
2. inner box
3. cartons for oversea

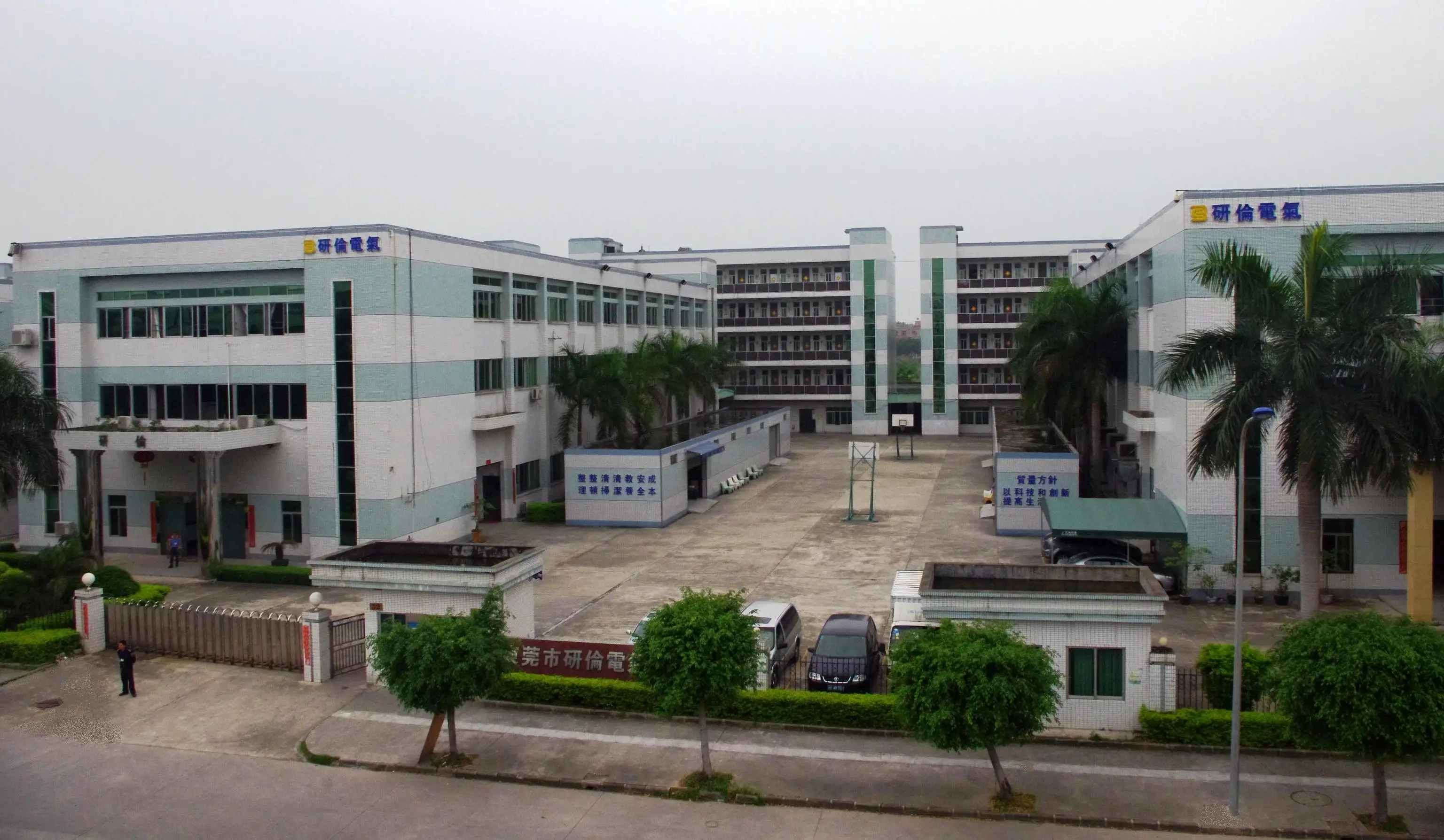

Company Profile
Equipment
Automatic workshop
Laboratory
Automatic Testing
Our Certifications
We have obtained the certification of TUV, UL, CE, JET,LFGB and the material can reach Rohs, Reach standard.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your advantage?
A: Our products have been exported to Europe, North America, South America, Southeast Asia, Central Asia, the Middle East, Africa and other countries and regions. We have first-class equipment and R & D engineer, the automation equipment have covered 80% of all production line,many types have been produced automatically.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
