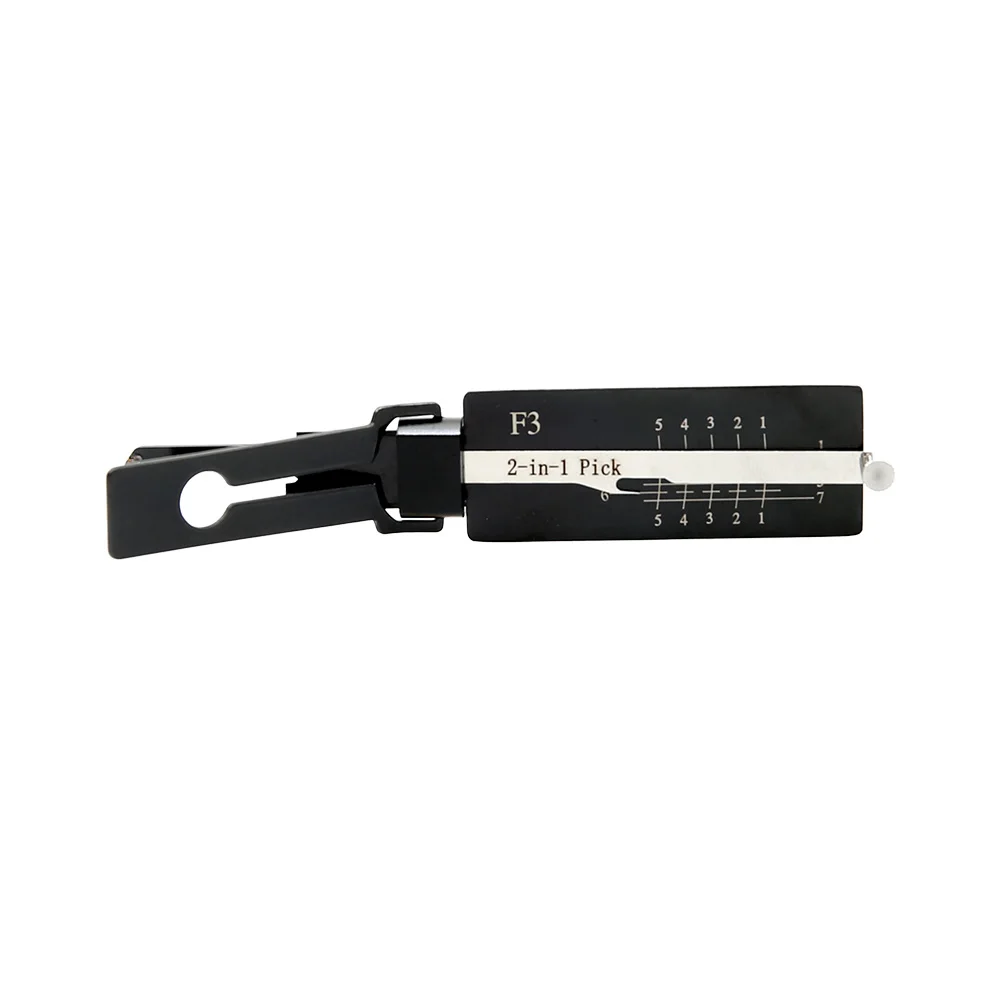

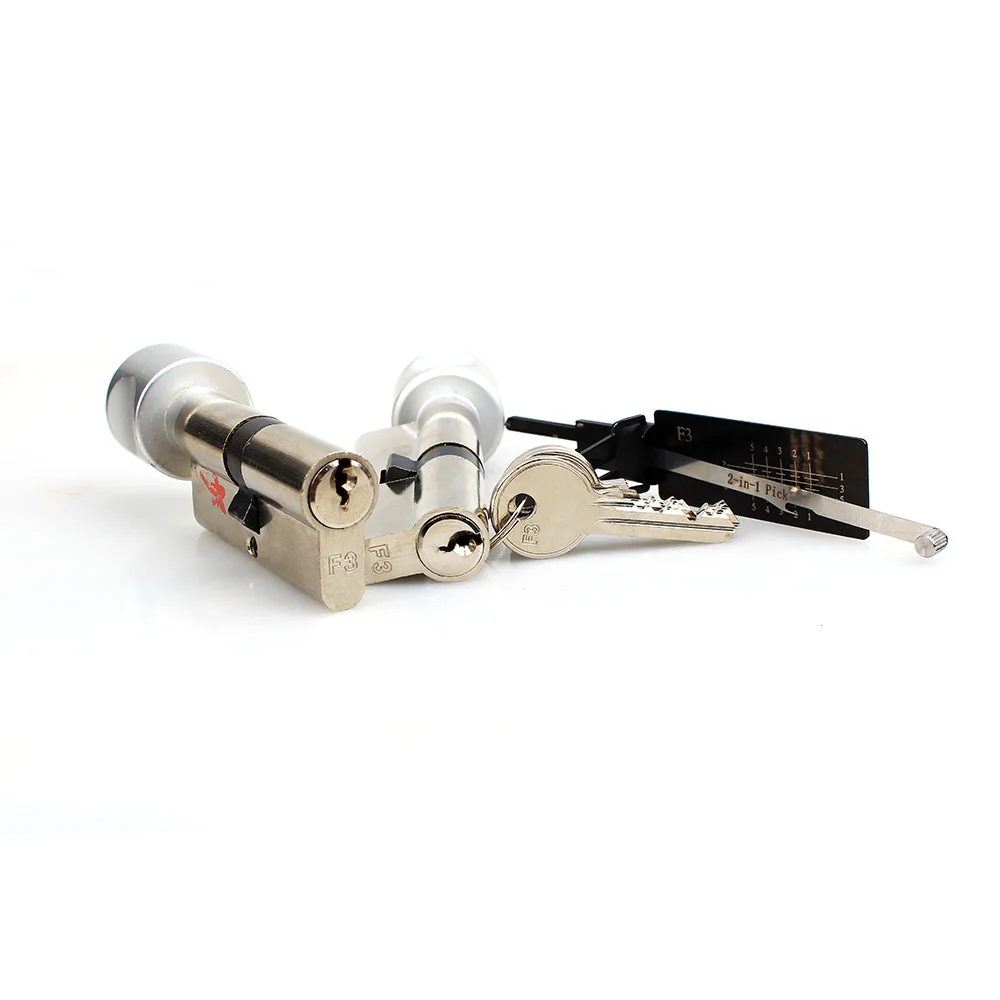

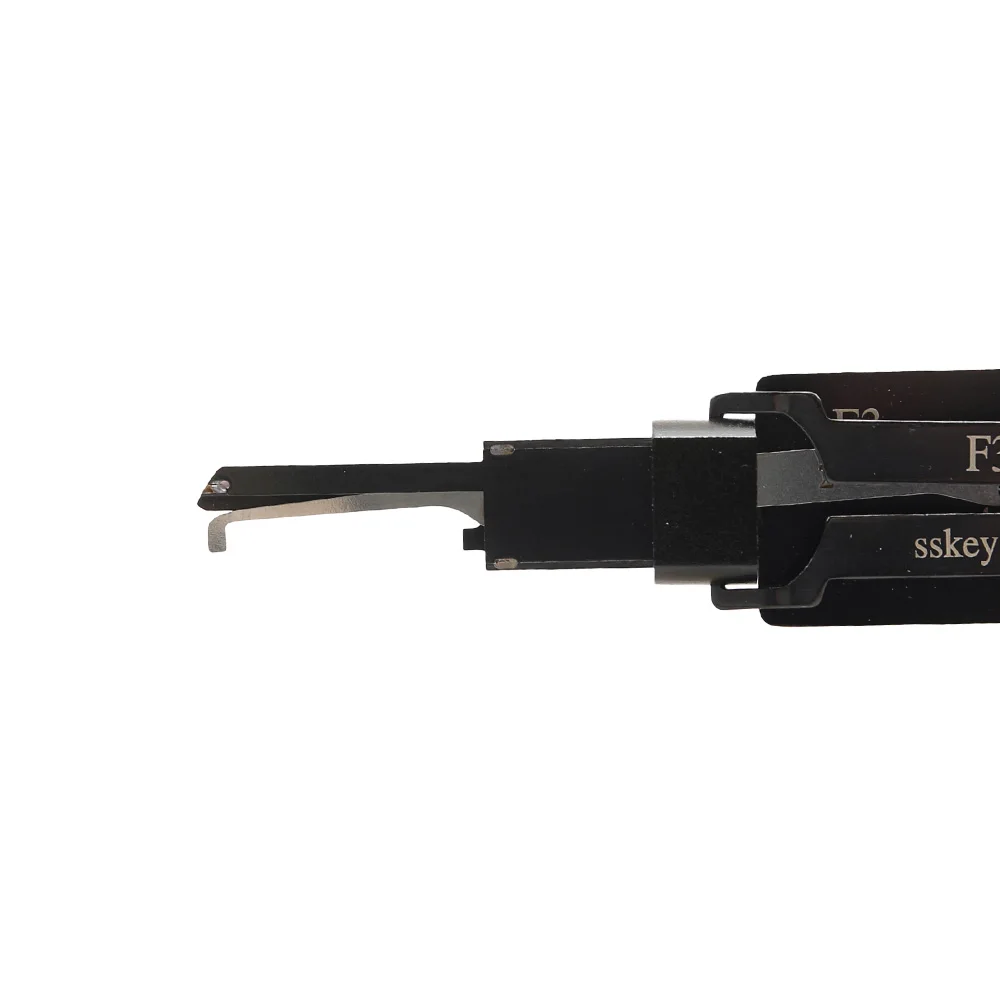

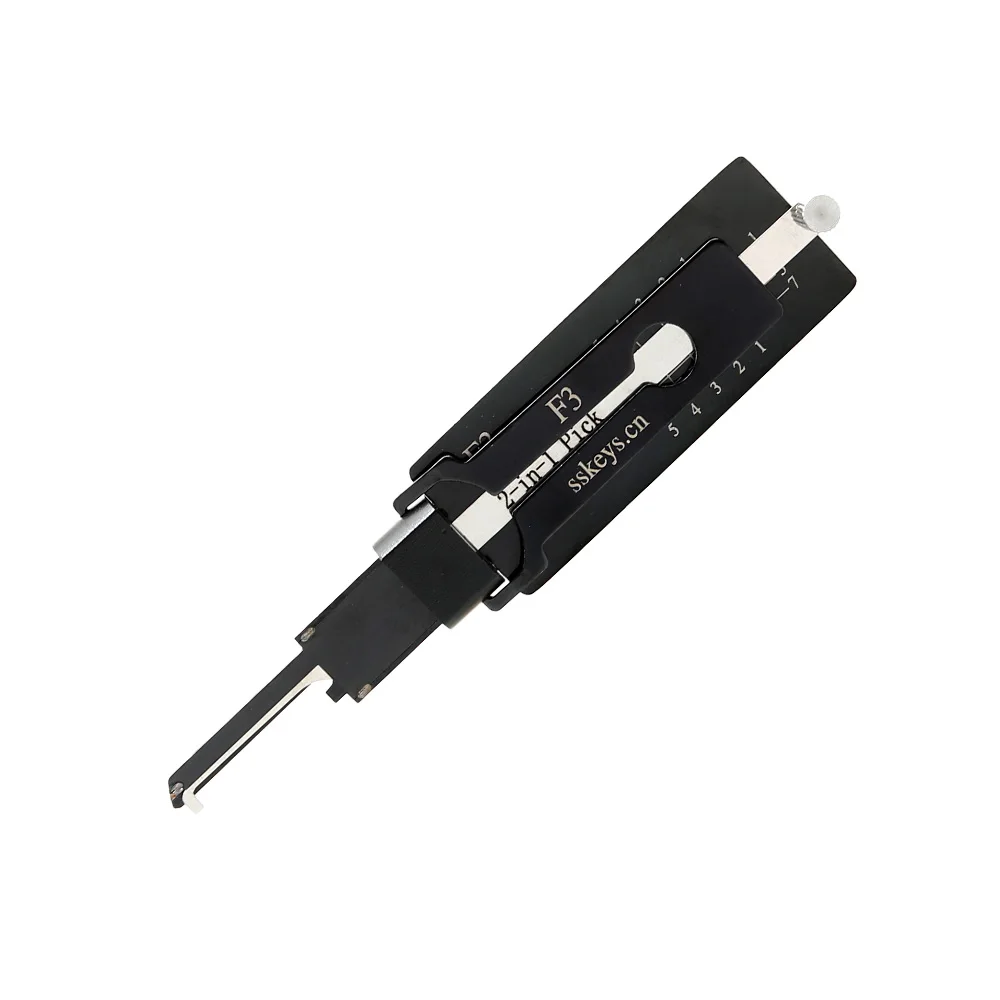

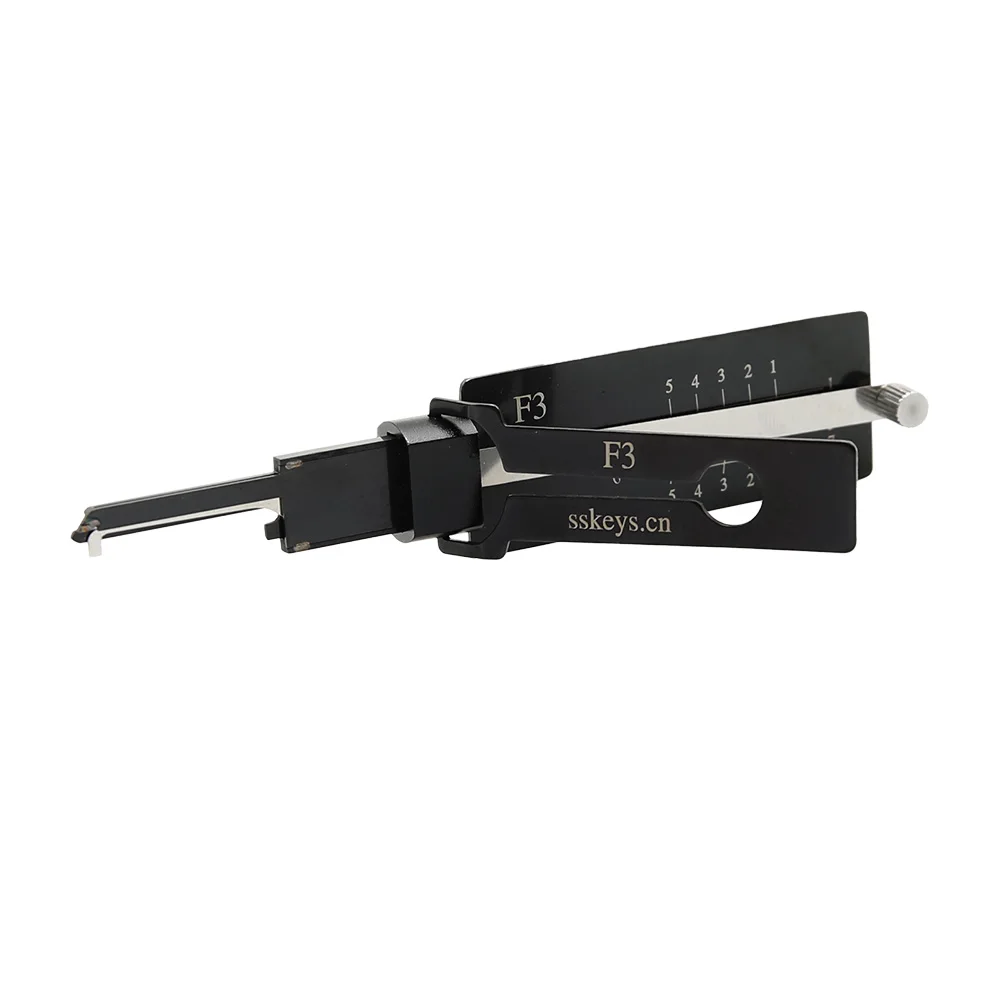

SS306 F3 Civil Residential Door 5 pin Lishi 2 in 1 Lock Pick Opener&Decoder Opening Tool Locksmith Supplies

Use this tool can locate accurate technical open for Honda, for Acura, for Idea, forTrumpche car door lock,ignition lock and trunk lock.It can read out the teeth number,can be cut model key open - according to the model match the key;
*Operate easy,convenient,all stainless steel refined;
*Durable,provide wholesales;
Opening direction:
when the main operator cabin on the left side use clockwise opening, counterclockwise to open when the right;
This lock need to open twice,it will stucked at the 45 degree place in the first opening,cause there have a half slice as resistance shrapnel,turn all as 90 degree after relieved the lock cylinder and can be open the lock;
when return this lock,it will stucked at 45 degree again,still need to relieve the resistance to return the shrapnel;
Special skills:

The lock is external milling 4 track,that is the 4 faces on the edge of the key all have working place,it divided into 6 tooth bit,6 tooth depth number,but its 6 tooth bit all is # 1 tooth depth,
On the A group # 5 tooth bit,master key all is # 5 depth,there is without A group 1 tooth bit on the car door lock cylinder,only inside ignition lock,
Ignition A group 1 tooth bit only have 1,2,3 tooth depth,B group # 5 tooth bit,also only have 3 or 5 tooth depth;
Please noted when make key:NC key cutting machine enter tooth number,A group 5 tooth bit enter 5,A,B group 6 tooth bit enter 1,ignition lock 1 tooth bit enter 1 first,second,third,in turn do 2 and 3.
When cut the key,ignore A group 5 tooth bit and A,B group 6 tooth bit,because it already cut in the slave key,
A group one side only 3 tooth bit have shrapnel,the other side 2,4 tooth bit have shrapnel,1,3,5 tooth bit not have,
B group one side 1,3,5 tooth bit have shrapnel,2,4 tooth bit not have,the other side 2,4 tooth bit have shrapnel,1,3,5 not have,
Opening method:

Firstly,test A group one side 2,4 tooth bit,then test A group other side 3 tooth bit,make it moving which not moving,hand don't strength,the lock is easy to push in the place of group A,but don't need push before,continue test B group 2 and 4 tooth bit,B group 1,3,5 tooth bit,make it moving which not moving,ignore the moving one,pay attention to control the hand,after finished A,B group,it will turn 45°,at this moment still need to open A group,test A group 3 tooth bit at first,then test A group 2,4 tooth bit,after opened all,read tooth,write down the tooth depth number and return,return still is A group;

When cut the key:when designed the slave key already designed don't need cut # 1 tooth depth,4,5 use same line,because the density is too thick,when scribed line have difficulty,observation is difficulty too,so please noted:the first line is 3 tooth depth on the scribed key,the second line is 4,5 tooth depth,the third line is 6 tooth depth,if is 2,then cut between 1,3,if is 4,then leave half line of 4,5 one line,if is 5,cut more 4,5 line,if is 6,then cut to the end;

We have all kinds of car lock decoder and try our best to provide the excellent products to our customers.
At the same time, we also support good after-sale service to our customers after you select our car lock open reader.
Car lock open reader car lock decoder for Honda, for Acura, for Idea, for Trumpche focus on high quality, we can offer you wholesales prices if you order large quantities.
