Improve Solar Off Grid Energy Storage System 24v 48v 100ah 200ah Wall Mounted Lifepo4 Battery Pack 5kwh 10kwh Power Wall
- Category: >>>
- Supplier: Shenzhen Improve Battery Co. Ltd.
Share on (1601259907338):
Product Overview
Description
Improve 48V/51.2V wall-mounted LiFePO4 battery is designed for residential energy storage, stylish and simple in appearance,save the space, supports wall-mounted installation.
Specification
System Demo | 48V100Ah | 48V200Ah | 51.2V100Ah | 51.2V200Ah | |||
Nominal Voltage | 48V | 51.2V | |||||
Nominal Capacity | 100Ah | 200Ah | 100Ah | 200Ah | |||
Nominal Energy | 4800Wh | 9600Wh | 5120Wh | 10240Wh | |||
Size | 615*420*145mm | 800*550*145mm | 615*420*145mm | 800*550*145mm | |||
Approx. Weight | ≈51KG | ≈85KG | ≈52KG | ≈89KG | |||

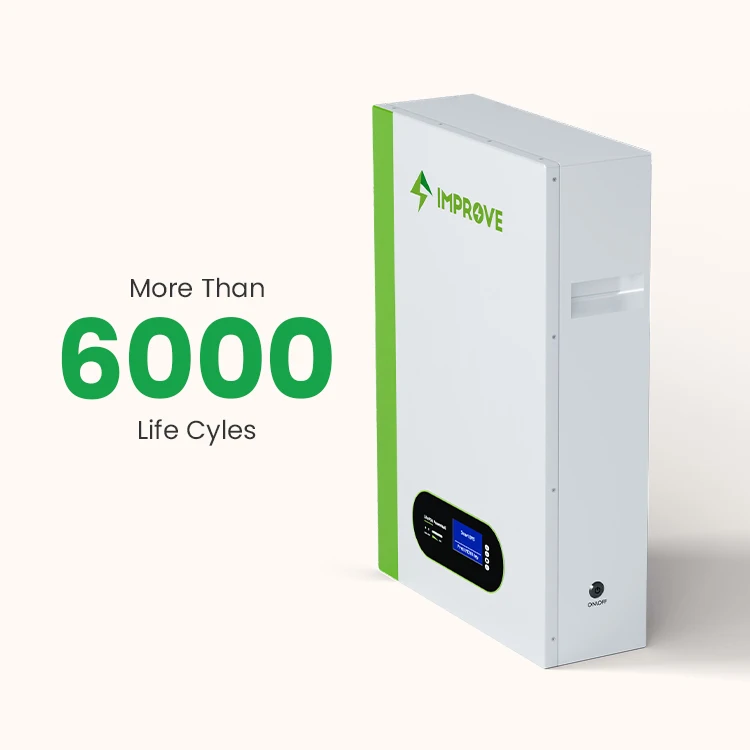

Cycles Life | 6000 Cycles @80%DOD, 0.5C, 25°C | ||||||
Communication Mod | CAN / RS485 / RS232 | ||||||
Charge Voltage | 54.75V | 58.4V | |||||
Discharge Cut-off Voltage | 37.5V | 40V | |||||
Max. Continuous Charge Current | 100A | 100A (200A customized) | 100A | 100A (200A customized) | |||
Max. Continuous Discharge Current | 100A | 100A (200A customized) | 100A | 100A (200A customized) | |||
Operating Temp | Charge: 0°C ~ 55°C / Discharge: -20°C ~ 65°C | ||||||
Max in Parallel | 16 units | ||||||
Details Images

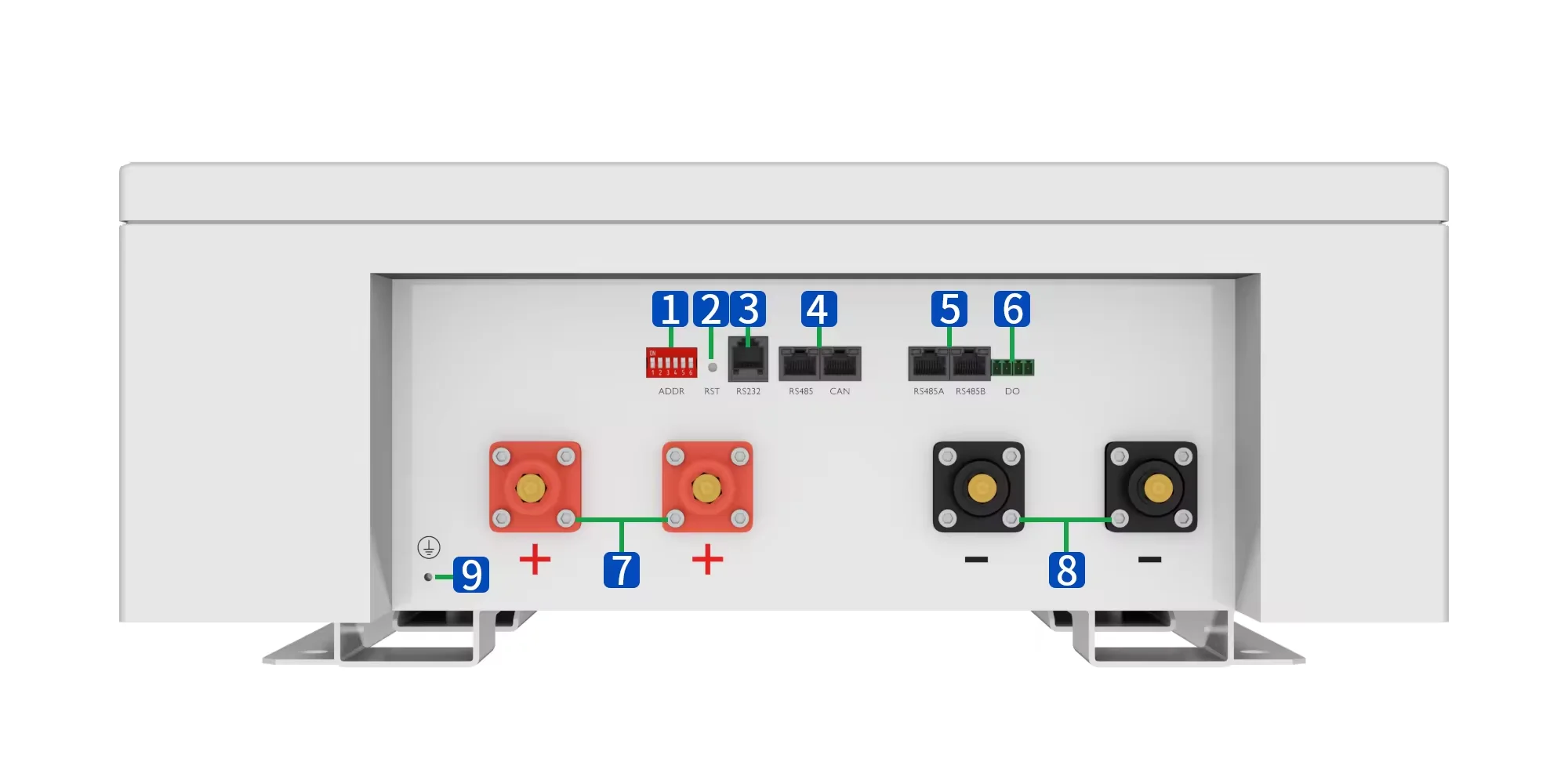

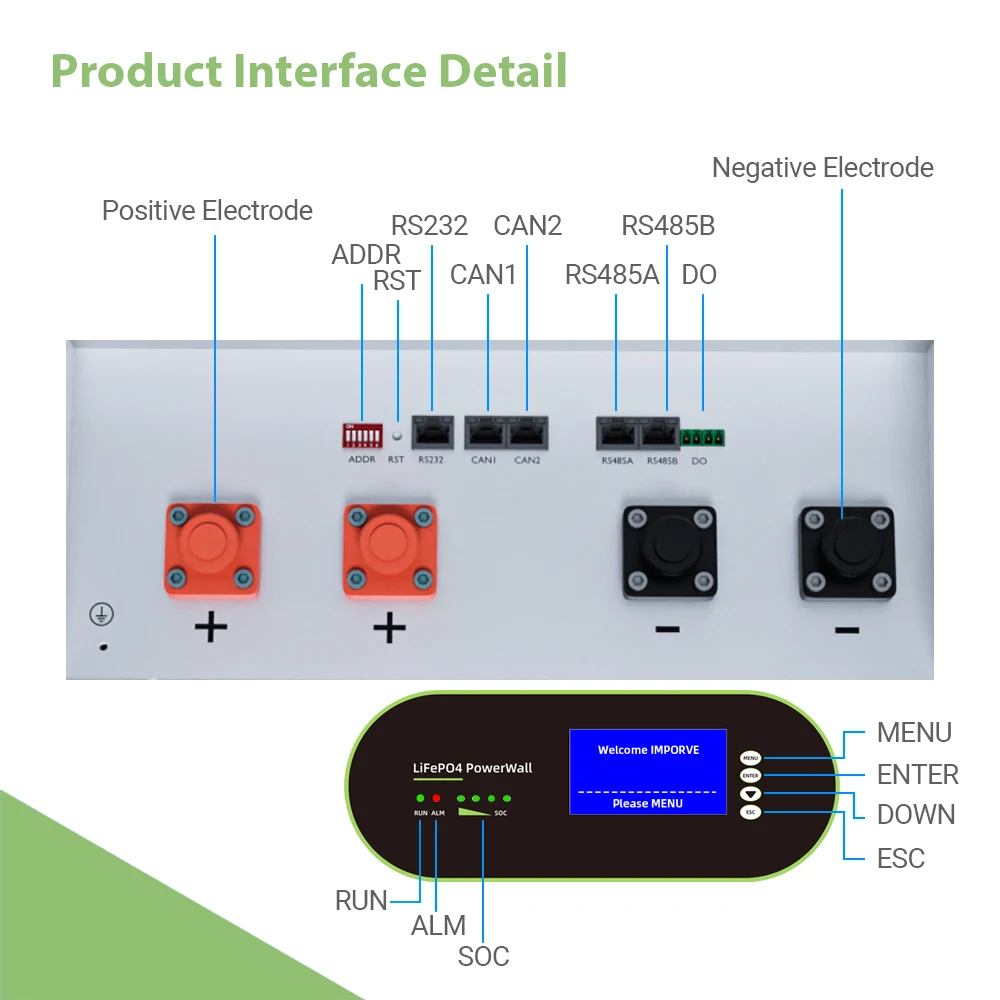

PIC of Port
1. ADDR Switch 2. RESRT Port 3. RS232 Communication Port 4. RS485/CAN Communication Port
5. RS485A/B Communication Port 6.DRY Port 7.BAT+ 8.BAT- 9.Grounding Terminal
DC Breaker
Power Switch
Parallel Diagram
PRODUCT FEATURES
1.High safety level of battery cells
2.Intelligent battery management system(BMS)
3.Light weight,Small size
4.Support a variety of communication protocols, support RS485, RS232, CAN, etc
5.Compatible with a variety of inverters
6.Longer cycle life
Contact: fancy@impbattery.com
1.High safety level of battery cells
2.Intelligent battery management system(BMS)
3.Light weight,Small size
4.Support a variety of communication protocols, support RS485, RS232, CAN, etc
5.Compatible with a variety of inverters
6.Longer cycle life
Contact: fancy@impbattery.com
Match All 48V DC Hybrid Inverter
Communication Base Station
UPS System
Utility Grid
Wind Energy

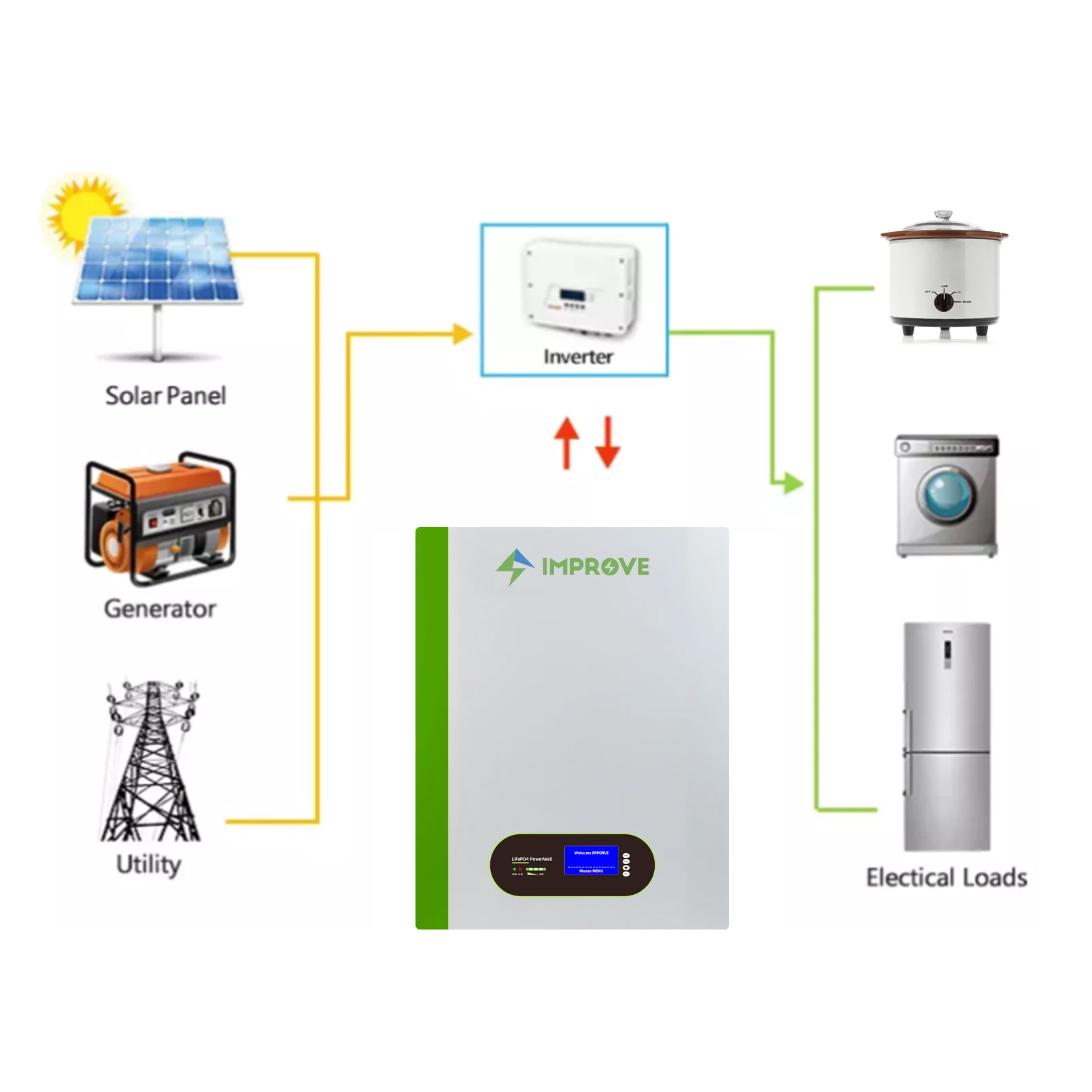

Household Solar System
Solar Plant
Using adavnced Lithium Iron Phosphate (LFP) battery, which has high safety performance, long cycle life, with service life of more than 10 years.
Small size, light weight, easy to carry,which can be quickly applied to various scenarios.

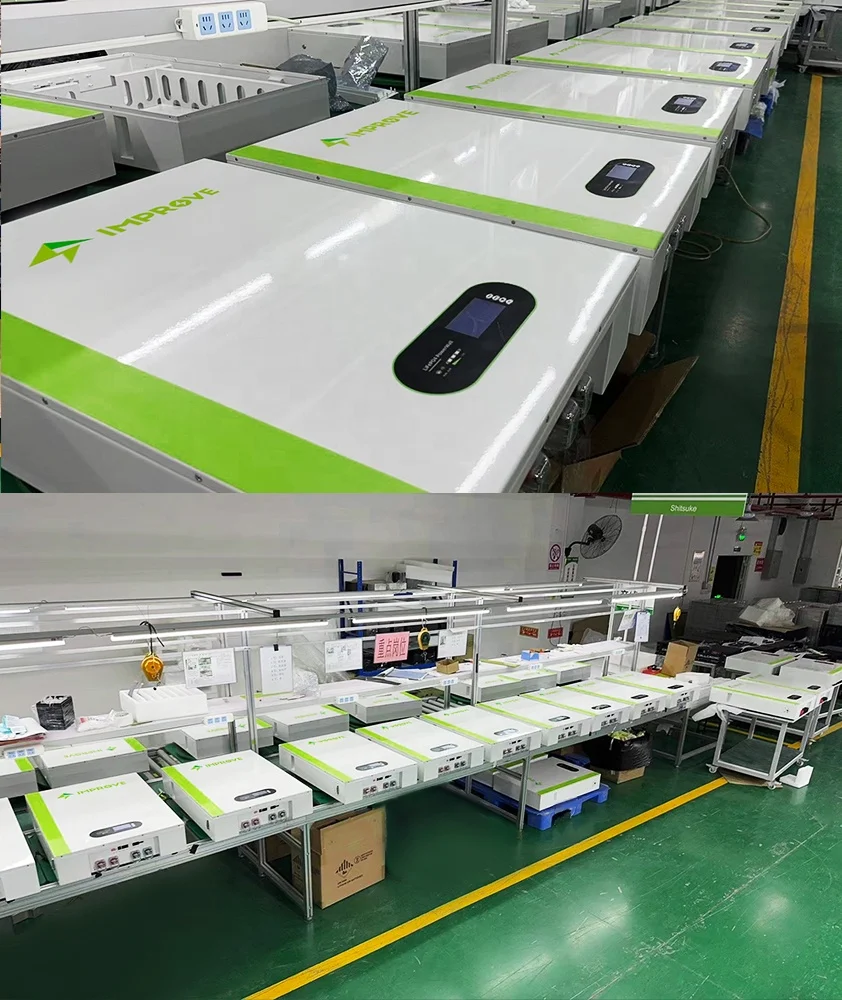

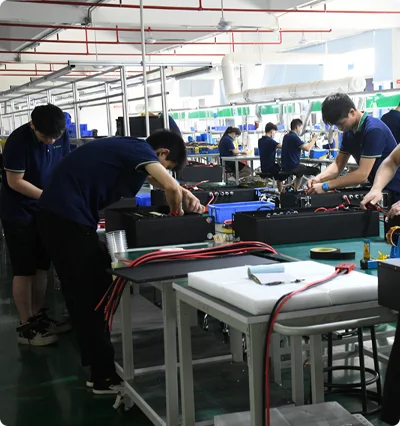

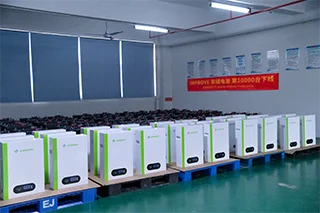

Company Profile

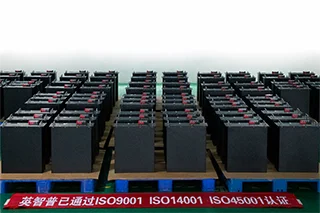

Certifications
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2014,sell to North America(20.00%),Eastern Europe(20.00%),South America(15.00%),Western Europe(15.00%),Eastern Asia(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),South Asia(5.00%),Mid East(4.00%),Southeast Asia(2.00%),Africa(2.00%),Oceania(2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Energy Storage Battery, Household LiFePO4 Battery, Cabinet Type LiFePO4 Battery, Golft Cart LiFePO4 Battery, Fokrlift LiFePO4 Battery, etc.
4. Why should you buy from us not from other suppliers?
We strive to consistently surpass customer expectations in quality, innovation, value, and service. We offer unparalleled attention to your specific battery specifications and needs.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish
We are based in Guangdong, China, start from 2014,sell to North America(20.00%),Eastern Europe(20.00%),South America(15.00%),Western Europe(15.00%),Eastern Asia(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),South Asia(5.00%),Mid East(4.00%),Southeast Asia(2.00%),Africa(2.00%),Oceania(2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Energy Storage Battery, Household LiFePO4 Battery, Cabinet Type LiFePO4 Battery, Golft Cart LiFePO4 Battery, Fokrlift LiFePO4 Battery, etc.
4. Why should you buy from us not from other suppliers?
We strive to consistently surpass customer expectations in quality, innovation, value, and service. We offer unparalleled attention to your specific battery specifications and needs.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish
