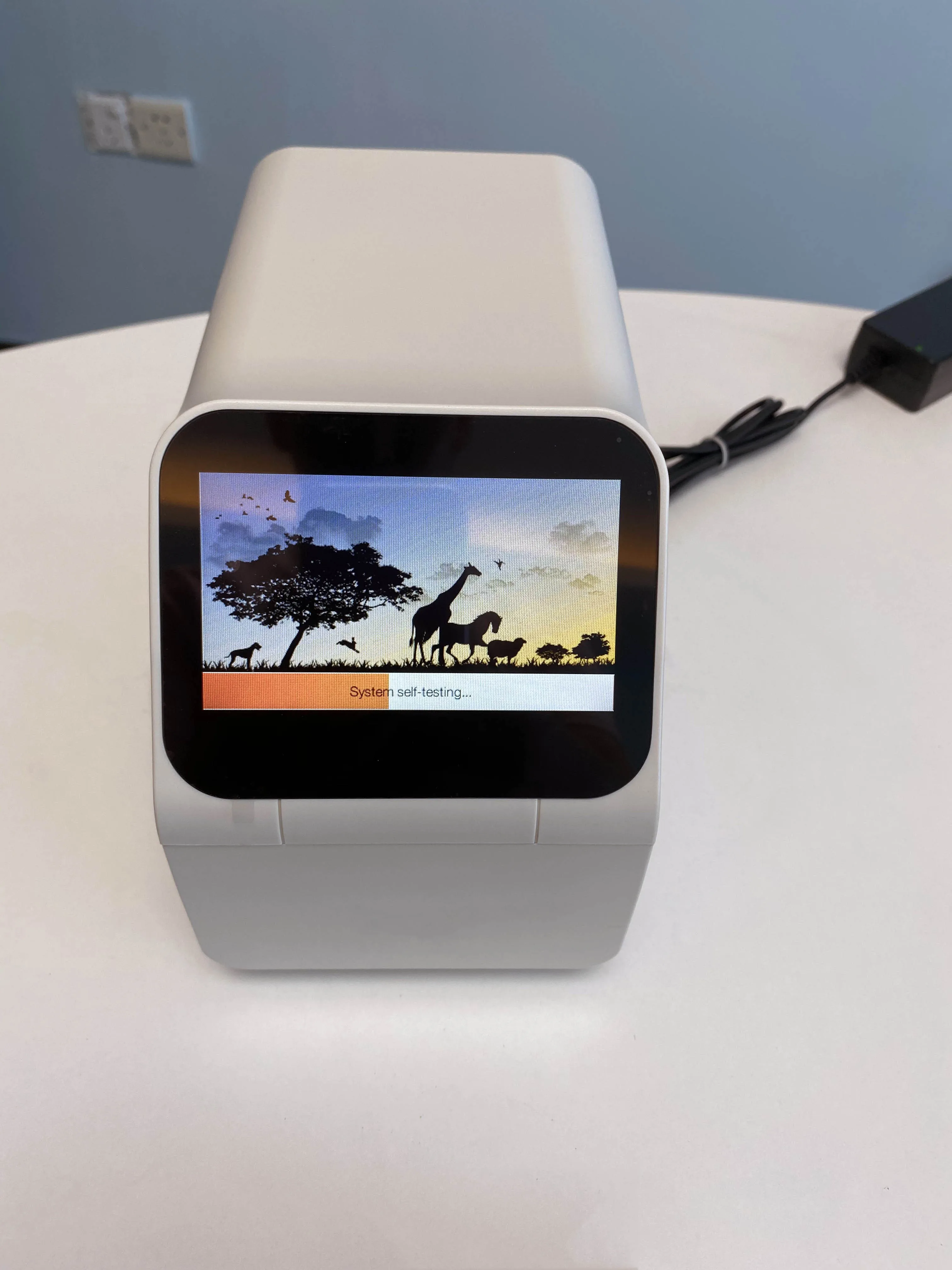

Portable MNCHIP veterinary dry chemistry analyzer automatic biochemical analyzer with reagent disk
- Category: >>>
- Supplier: MEDSINGLONG CO LTDMEDSINGLONG LTD
Share on (1601260019408):
Product Overview
Description
Product Description
Technical Specification
Specifications | ||
Sample Type | Whole blood(lithium-heparinized), Plasma(lithium-heparinized), Serum | |
Sample Size | 100μl | |
Time to Results | About 10 minutes | |
Parameters | Up to 17 parameters in one test, 32 parameters configured into 9 profiles | |

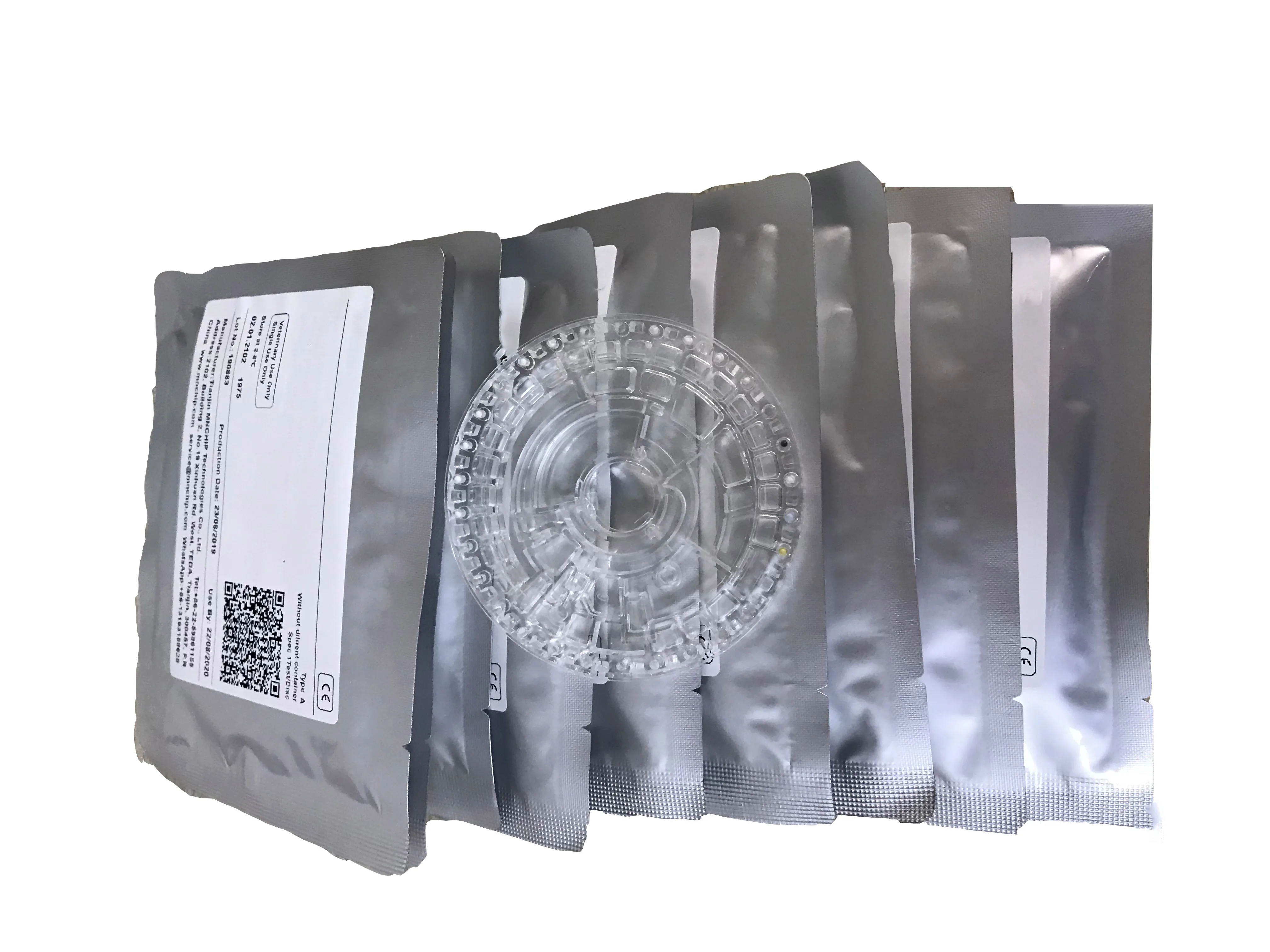

Reagent Disc | Disposable, prepackaged with self-contained lyophilized reagent | |
Calibration | Automatic self-calibration by scanning QR Code on the aluminum foil pouch | |
Quality Control | Built-in Realtime Quality Control(RQC) system | |
User Interface | Full-color touch screen | |
Connection Interfaces | WLAN, USB port, Ethernet interface, compatible with HIS | |
Print Mode | Optional external thermal printer, MNCHIP Medical Data Management Platform, HIS | |
Reaction Temperature | 37℃±0.1℃ | |
Data Capacity | More than 50,000 sets of patient and quality control data | |
Operation Environment | Temperature 10-30℃, Humidity 40-85% | |
Power Requirement | AC 100V-240V, 50-60HZ | |
Dimensions | 21(L)*12.5(W)*17.5(H)cm | |
Weight | 2.3kg | |
General Chemistry I(17) | TP, ALB, GLOB*, ALB/GLOB* , TBIL, DBIL, IBIL*, ALT, AST, CRE, UREA, UA, TG, CHOL, GLU , HDL-C , LDL-C* | |
Clinical Emergency(13) | AST, CK, CK-MB, LDH, α-HBDH, CRE, UA, K+, Na+, Cl-, CO2, GLU, AMY | |
Liver and Renal Function(11) | TP, ALB, GLO*, ALB/GLO*, TBIL, ALT, AST, GGT, UREA, CRE, GLU | |
Liver Function Panel(11) | TP , ALB , GLO * , ALB/GLO*, TBIL , DBIL, IBIL*, ALT , AST , GGT, ALP | |
Renal Function Panel(7) | ALB, CRE, UREA, UA, CO2, Ca2+, P | |
General Chemistry II(8) | K+, Na+, Cl-, CO2, GLU, CRE, UREA, AMY | |
Electrolyte Panel(7) | K+, Na+, Cl-, CO2, Ca2+, Mg2+, P | |
Myocardial Enzyme Panel(5) | AST, CK, CK-MB, LDH, α-HBDH | |
Glucose and Lipid Panel(6) | GLU, TG, CHOL, HDL-C, LDL-C*, GSP | |
