Power Your Lighting with Precision and Efficiency
boqi DALI Dimmable LED Driver offers cutting-edge lighting control with the DALI protocol (Digital Addressable Lighting Interface),
providing versatile and efficient lighting solutions. With full compatibility with IEC62386 standards, this LED driver can
seamlessly connect with any DALI-compliant device on the same bus control, ensuring reliable and robust performance in any
lighting environment.
providing versatile and efficient lighting solutions. With full compatibility with IEC62386 standards, this LED driver can
seamlessly connect with any DALI-compliant device on the same bus control, ensuring reliable and robust performance in any
lighting environment.

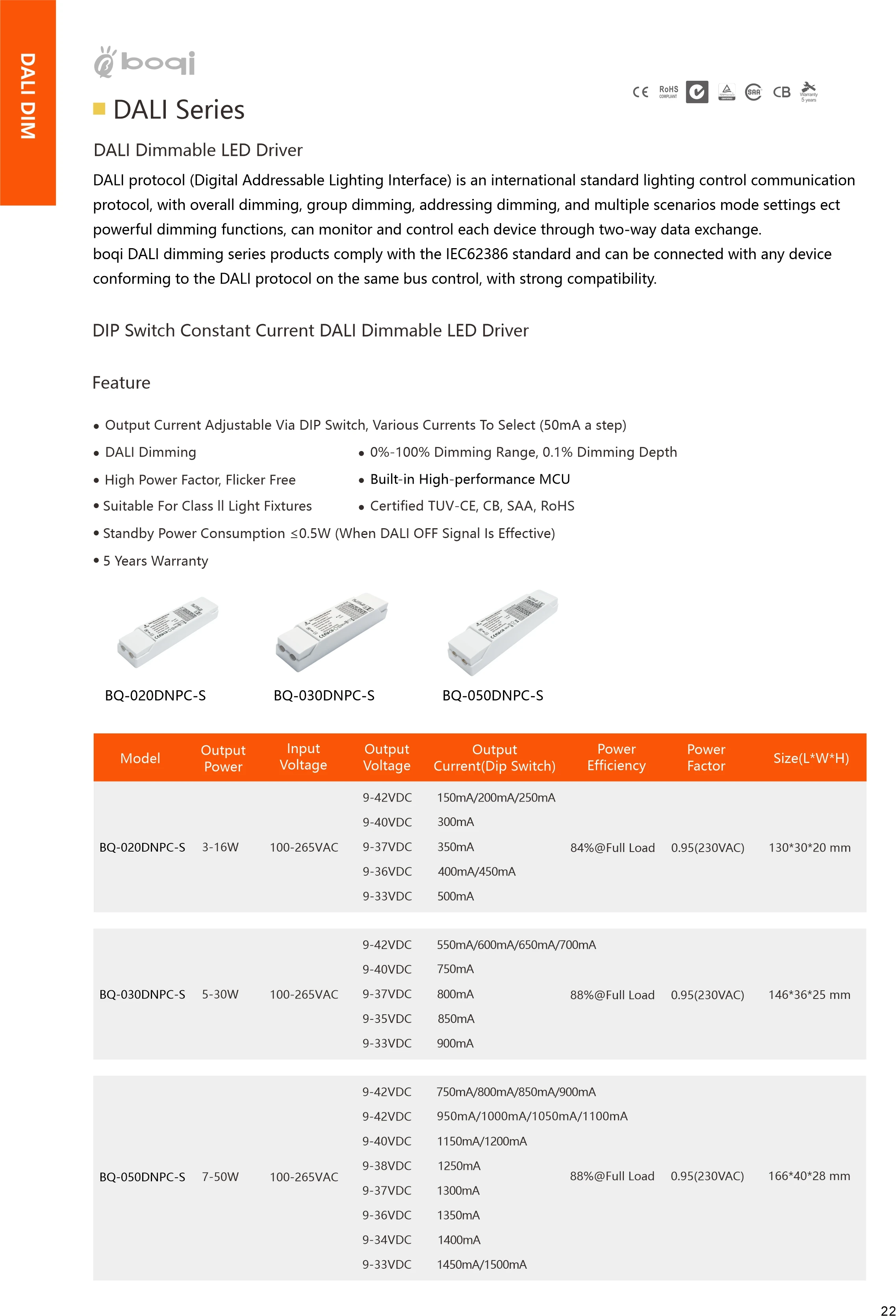

Products Description

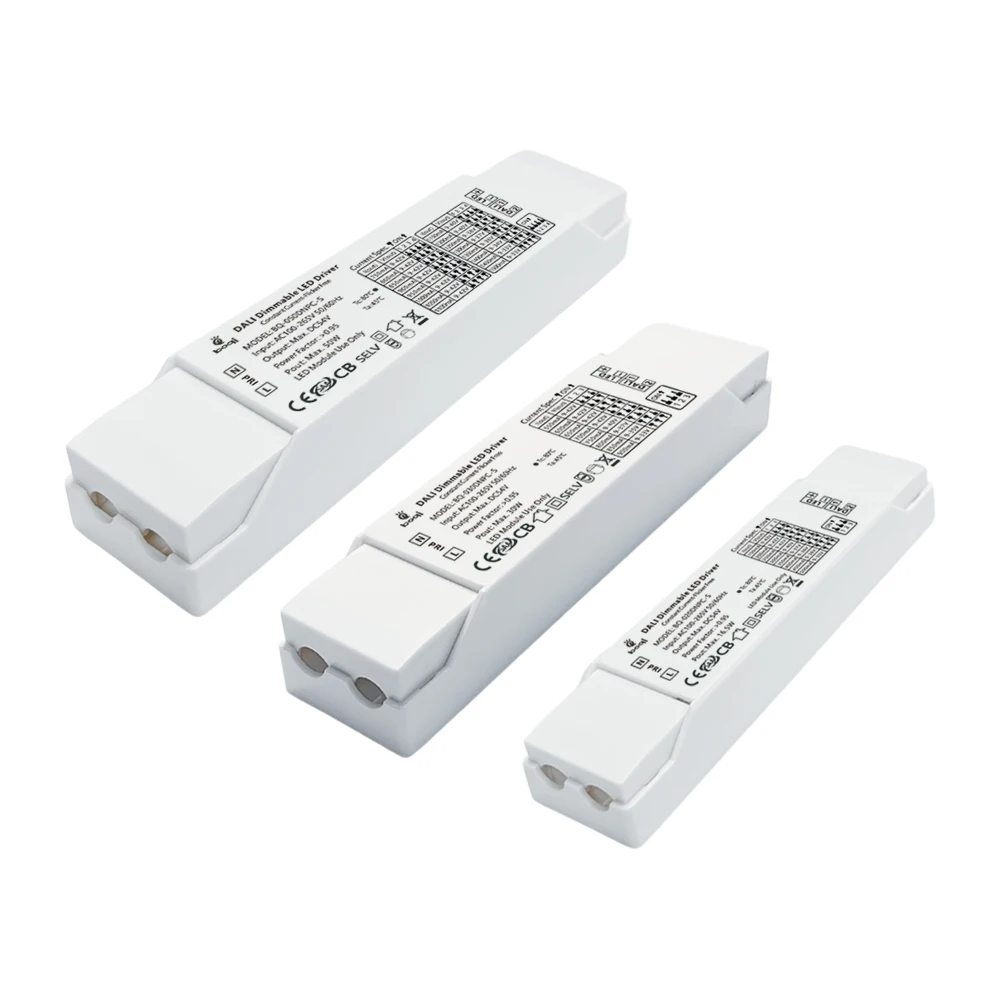

DIP Switch Constant Current DALI Dimmable LED Driver 16W
Feature
* Output Current Adjustable Via DIP Switch, Various Currents To Select (50mA a step)
* DALI Dimming
* 0%-100% Dimming Range, 0.1% Dimming Depth
* DALI Dimming
* 0%-100% Dimming Range, 0.1% Dimming Depth
* Constant Current output.
* High efficiency : up to 88%
* Built-in High-performance MCU
* High Power Factor, PF up to 0.95
* High efficiency : up to 88%
* Built-in High-performance MCU
* High Power Factor, PF up to 0.95
* Flicker Free, Flicker Index < 1%
* Certified TUV-CE, CB, SAA, RoHS
* Suitable For Class ll Light Fixtures
* Standby Power Consumption ≤0.5W (When DALI OFF Signal Is Effective)
* 5 Years Warranty
* Certified TUV-CE, CB, SAA, RoHS
* Suitable For Class ll Light Fixtures
* Standby Power Consumption ≤0.5W (When DALI OFF Signal Is Effective)
* 5 Years Warranty
Specification
Model | BQ-020DNPC-S | ||||||
Output | DC Voltage | 9-42V | 24V | ||||
Rated Current | 150mA-500mA | 1.67A | |||||
Output Power | 3-16W | ||||||
Flicker Index | Modulation depth ≤1% Complies with the flicker-free standard (IEEE Std 1789-2015) | ||||||
Ripple Current | <5% | ||||||
Current Tolerance | ±5% | ±0.5% | |||||
Temperature Drift | ±5% | ||||||
Start-up Time | <1.5S@230Vac | ||||||
Input | Voltage Range | 100-265VAC | |||||
Frequency Range | 47-63Hz | ||||||
Power Factor(Typ.)@ full load | 0.96@115VAC 0.95@230VAC @ full load | ||||||
THD(Typ.)@ full load | <10%@230Vac (DC42V full load) | ||||||
Efficiency(Typ.)@ full load | 84% @ full load | 88% | |||||
AC Current(Max.) | ≤0.13A/230Vac | ||||||
Inrush Current (Typ.) | ≤10A&120uS@230Vac (Max) | ||||||
Leakage current | <0.70mA | ||||||
Standby Power Consumption | ≤0.5W (when DALI OFF signal is effective) | ||||||
Protection | Short Circuit | Hiccup mode (auto-recovery) | |||||
Over Loading | ≤120% constant current limiting, auto-recovery | ||||||
Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||||||
Environment | Working TEMP. | -20~+45℃ (see below derating curve) | |||||
Working Humidity | 20~90%RH, non-condensing | ||||||
Storage TEMP. Humidity | -30~+80℃,10~90%RH | ||||||
TEMP .coefficient | ±0.03%/℃(0~50℃) | ||||||
Vibration | 10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||||||
Safety& EMC | Safety standards | EN61347 | |||||
Withstand voltage | I/P-O/P: 3.75KVac | ||||||
Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||||||
EMC EMISSION | EN55015; EN61000-3-2; EN61000-3-3； | ||||||
EMC IMMUNITY | EN61547 | ||||||

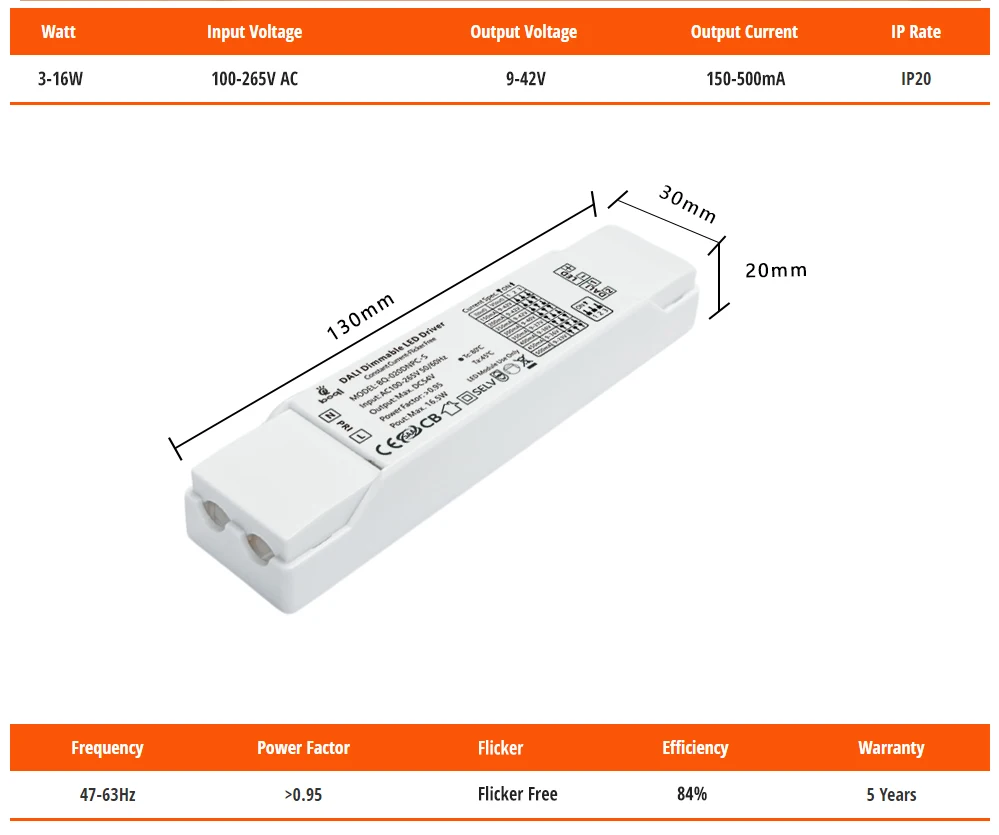

Others | Dimension | 130*30*20mm (L*W*H) | |||||
Warranty | 5 Years | ||||||

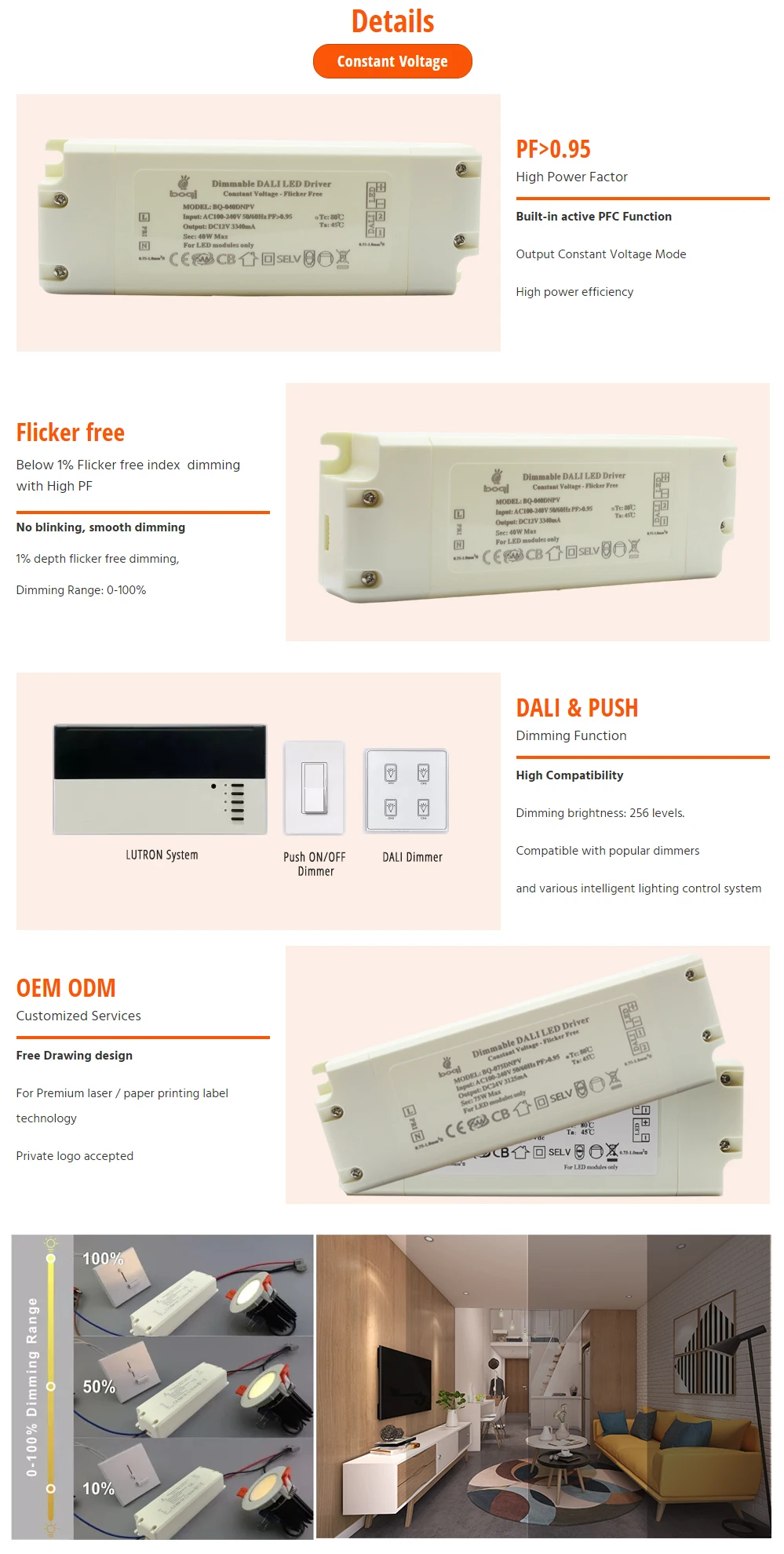

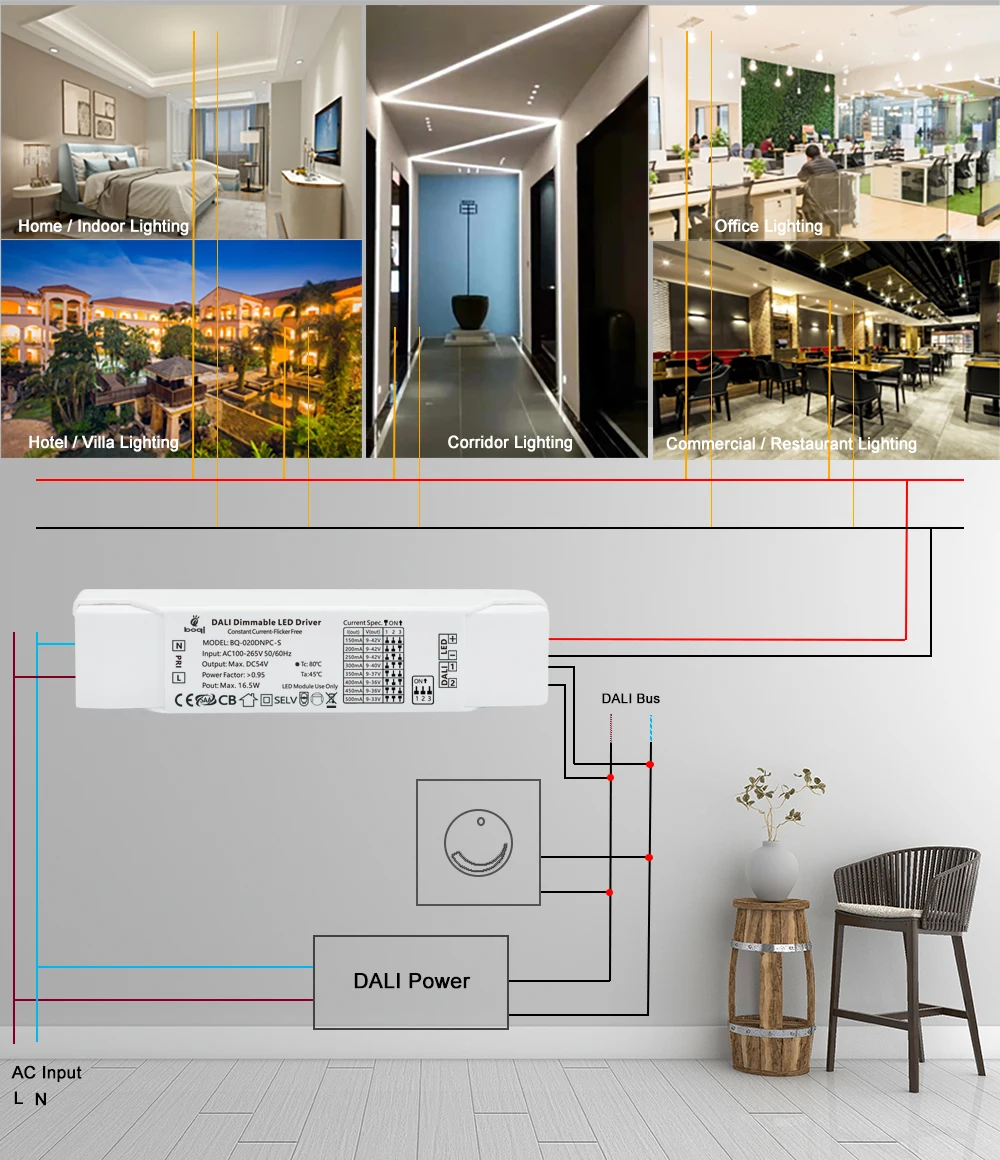

DALI Dimmable LED Driver Wiring Diagram
For the DALI Dimmable LED Driver wiring diagram, please follow these general steps to ensure correct installation and connection:
Wiring Diagram Overview:
1. Power Supply Connection:
- Connect the **AC Live (L)** wire from your power source to the **L** terminal of the LED driver.
- Connect the **AC Neutral (N)** wire from your power source to the **N** terminal of the LED driver.
- Ensure proper grounding if required.
2. LED Load Connection:
- Connect the **Positive (+)** terminal of your LED load to the **+ Output** terminal of the LED driver.
- Connect the **Negative (-)** terminal of your LED load to the **- Output** terminal of the LED driver.
3. DALI Interface Connection:
- Connect the two DALI signal wires to the **DA/DA** terminals on the LED driver. These wires can be connected in any order, as DALI is not polarity-sensitive.
4. DIP Switch Adjustment (if applicable):
- Adjust the DIP switch settings according to your desired output current. The switch settings will vary depending on the required mA output, and you should refer to the product's specification sheet for exact configurations.
Important Installation Tips:
- Ensure the power supply is switched off before making any connections.
- Follow local electrical codes and standards to maintain safety.
- Double-check all connections before powering on the LED driver to avoid damage or malfunction.
Wiring Diagram Overview:
1. Power Supply Connection:
- Connect the **AC Live (L)** wire from your power source to the **L** terminal of the LED driver.
- Connect the **AC Neutral (N)** wire from your power source to the **N** terminal of the LED driver.
- Ensure proper grounding if required.
2. LED Load Connection:
- Connect the **Positive (+)** terminal of your LED load to the **+ Output** terminal of the LED driver.
- Connect the **Negative (-)** terminal of your LED load to the **- Output** terminal of the LED driver.
3. DALI Interface Connection:
- Connect the two DALI signal wires to the **DA/DA** terminals on the LED driver. These wires can be connected in any order, as DALI is not polarity-sensitive.
4. DIP Switch Adjustment (if applicable):
- Adjust the DIP switch settings according to your desired output current. The switch settings will vary depending on the required mA output, and you should refer to the product's specification sheet for exact configurations.
Important Installation Tips:
- Ensure the power supply is switched off before making any connections.
- Follow local electrical codes and standards to maintain safety.
- Double-check all connections before powering on the LED driver to avoid damage or malfunction.
Application
- Offices and Workspaces: Provides adjustable lighting to suit different work environments, enhancing productivity and reducing eye strain.
- Retail Stores: Enables flexible lighting to highlight products, create ambiance, or adjust brightness based on time of day or special promotions.
- Hotels and Hospitality: Ideal for guest rooms, lobbies, and restaurants, allowing personalized lighting control to create a welcoming atmosphere.
2. Residential Lighting
- Smart Home Systems: Integrates seamlessly with home automation systems, offering customizable lighting scenes for different moods and activities.
- Living Rooms and Bedrooms: Provides dimmable lighting options for comfortable and cozy settings, perfect for relaxation or entertainment.
3. Architectural Lighting
- Art Galleries and Museums: Offers precise control over light intensity, making it suitable for highlighting artwork without causing damage or glare.
- Theaters and Auditoriums: Enables smooth dimming transitions for performances, ensuring the right ambiance during shows or presentations.
4. Outdoor and Landscape Lighting
- Street Lighting: Provides energy-efficient dimming options for outdoor environments, contributing to energy savings and better light management.
- Garden and Pathway Lighting: Enhances outdoor spaces with adjustable brightness levels, making it ideal for landscape designs and nighttime illumination.
5. Industrial Applications
- Warehouses and Factories: Offers energy-efficient lighting solutions with dimming capabilities to reduce energy consumption when full brightness is not required.
- Parking Garages: Provides adjustable lighting based on occupancy or time of day, contributing to energy savings and safety.
6. Educational Institutions
- Classrooms and Lecture Halls: Allows customizable lighting for different learning environments, ensuring optimal brightness for reading, writing, or presentations.
- Libraries: Offers adjustable lighting to create a comfortable reading environment while conserving energy.
7. Healthcare Facilities
- Hospitals and Clinics: Provides dimmable lighting options in patient rooms, examination areas, and waiting rooms, enhancing comfort and reducing glare for patients.
- Street Lighting: Provides energy-efficient dimming options for outdoor environments, contributing to energy savings and better light management.
- Garden and Pathway Lighting: Enhances outdoor spaces with adjustable brightness levels, making it ideal for landscape designs and nighttime illumination.
5. Industrial Applications
- Warehouses and Factories: Offers energy-efficient lighting solutions with dimming capabilities to reduce energy consumption when full brightness is not required.
- Parking Garages: Provides adjustable lighting based on occupancy or time of day, contributing to energy savings and safety.
6. Educational Institutions
- Classrooms and Lecture Halls: Allows customizable lighting for different learning environments, ensuring optimal brightness for reading, writing, or presentations.
- Libraries: Offers adjustable lighting to create a comfortable reading environment while conserving energy.
7. Healthcare Facilities
- Hospitals and Clinics: Provides dimmable lighting options in patient rooms, examination areas, and waiting rooms, enhancing comfort and reducing glare for patients.
FAQ For DALI Dimmable LED Drivers
1. What is a DALI Dimmable LED Driver?
The DALI (Digital Addressable Lighting Interface) Dimmable LED Driver is a lighting control device that allows precise adjustment of LED lighting intensity. It operates using the DALI protocol, enabling smooth dimming, group control, and addressing of LED lighting fixtures.
2. How does the DALI protocol work?
The DALI protocol is an international standard for lighting control that allows for bi-directional communication between the LED driver and a central controller. This enables individual or group control of lighting fixtures, offering flexibility in adjusting brightness, creating lighting scenes, and monitoring the status of connected lights.
3. Is the DALI Dimmable LED Driver compatible with all LED lights?
The DALI Dimmable LED Driver is compatible with most Class II LED lighting fixtures. However, it’s essential to ensure that the LED lights are designed to work with constant current drivers and are suitable for DALI dimming to ensure optimal performance.
4. Can I adjust the output current of the LED driver?
Yes, the output current can be adjusted via the DIP switch on the driver. It offers various current settings, allowing you to select the desired output current (with 50mA step increments) to match the requirements of your LED fixtures.
5. What is the dimming range of this LED driver?
The DALI Dimmable LED Driver provides a 0%-100% dimming range with a minimum dimming depth of 0.1%, allowing precise control over light intensity for different settings and applications.
6. Is the DALI Dimmable LED Driver energy-efficient?
Yes, it is highly energy-efficient. The driver has a standby power consumption of ≤0.5W when the DALI OFF signal is active, ensuring minimal power usage when not in operation.
7. What certifications does this LED driver have?
The DALI Dimmable LED Driver is certified with TUV-CE, CB, SAA, and RoHS, ensuring compliance with safety, quality, and environmental standards.
8. Can this LED driver be used in smart home systems?
Yes, the DALI Dimmable LED Driver is compatible with smart home systems that support the DALI protocol. It can be integrated into your existing lighting automation setup, providing adjustable and dimmable lighting control.
9. How do I connect the DALI Dimmable LED Driver to my lighting system?
To connect the DALI Dimmable LED Driver, you will need to connect the AC live and neutral wires to the driver, link the LED load to the driver’s output terminals, and connect the DALI signal wires to the DALI input terminals. Refer to the wiring diagram for a detailed guide.
10. Does the LED driver come with a warranty?
Yes, the DALI Dimmable LED Driver comes with a **5-year warranty**, ensuring reliable performance and customer peace of mind.
11. Can the driver be used for outdoor applications?
The DALI Dimmable LED Driver can be used for outdoor applications if it's installed in a suitable enclosure to protect it from moisture, dust, and extreme temperatures, as it is typically designed for indoor use.
12. What should I do if my LED driver is not dimming correctly?
If the LED driver is not dimming correctly, check the following:
- Ensure all wiring connections are secure.
- Verify that the LED fixture is compatible with DALI dimming.
- Make sure the DALI controller is correctly configured.
- Check the DIP switch settings for the desired current output.
The DALI (Digital Addressable Lighting Interface) Dimmable LED Driver is a lighting control device that allows precise adjustment of LED lighting intensity. It operates using the DALI protocol, enabling smooth dimming, group control, and addressing of LED lighting fixtures.
2. How does the DALI protocol work?
The DALI protocol is an international standard for lighting control that allows for bi-directional communication between the LED driver and a central controller. This enables individual or group control of lighting fixtures, offering flexibility in adjusting brightness, creating lighting scenes, and monitoring the status of connected lights.
3. Is the DALI Dimmable LED Driver compatible with all LED lights?
The DALI Dimmable LED Driver is compatible with most Class II LED lighting fixtures. However, it’s essential to ensure that the LED lights are designed to work with constant current drivers and are suitable for DALI dimming to ensure optimal performance.
4. Can I adjust the output current of the LED driver?
Yes, the output current can be adjusted via the DIP switch on the driver. It offers various current settings, allowing you to select the desired output current (with 50mA step increments) to match the requirements of your LED fixtures.
5. What is the dimming range of this LED driver?
The DALI Dimmable LED Driver provides a 0%-100% dimming range with a minimum dimming depth of 0.1%, allowing precise control over light intensity for different settings and applications.
6. Is the DALI Dimmable LED Driver energy-efficient?
Yes, it is highly energy-efficient. The driver has a standby power consumption of ≤0.5W when the DALI OFF signal is active, ensuring minimal power usage when not in operation.
7. What certifications does this LED driver have?
The DALI Dimmable LED Driver is certified with TUV-CE, CB, SAA, and RoHS, ensuring compliance with safety, quality, and environmental standards.
8. Can this LED driver be used in smart home systems?
Yes, the DALI Dimmable LED Driver is compatible with smart home systems that support the DALI protocol. It can be integrated into your existing lighting automation setup, providing adjustable and dimmable lighting control.
9. How do I connect the DALI Dimmable LED Driver to my lighting system?
To connect the DALI Dimmable LED Driver, you will need to connect the AC live and neutral wires to the driver, link the LED load to the driver’s output terminals, and connect the DALI signal wires to the DALI input terminals. Refer to the wiring diagram for a detailed guide.
10. Does the LED driver come with a warranty?
Yes, the DALI Dimmable LED Driver comes with a **5-year warranty**, ensuring reliable performance and customer peace of mind.
11. Can the driver be used for outdoor applications?
The DALI Dimmable LED Driver can be used for outdoor applications if it's installed in a suitable enclosure to protect it from moisture, dust, and extreme temperatures, as it is typically designed for indoor use.
12. What should I do if my LED driver is not dimming correctly?
If the LED driver is not dimming correctly, check the following:
- Ensure all wiring connections are secure.
- Verify that the LED fixture is compatible with DALI dimming.
- Make sure the DALI controller is correctly configured.
- Check the DIP switch settings for the desired current output.
Company Profile
Certifications
Application Projects
Relatd Products
Customer Reviews
FAQ
1. How about your goods’ quality?
100% burn-in tests, full-round tests.
All products approved by CE RoHS, some products have got TUV CB SAA certificates.
2. What is your warranty? And if I got wrong ones, how will you do with it?
3+ years. If any wrong, we will replace in your next order, or refund.
3. What is your minimum order quantity?
The MOQ is 1pcs.
4. Which payment terms you can accept?
We accept T/T, Western Union, Money Gram, Paypal, etc.
5. What are the shipping ways you can offer?
By air/sea/land, from Zhuhai jiuzhou port, Hongkong, Guangzhou.
6. How about your delivery time?
2-7 working days according the order. All standard products are in stock.
7. Can you make OEM?
Of course, OEM ODM provided.
100% burn-in tests, full-round tests.
All products approved by CE RoHS, some products have got TUV CB SAA certificates.
2. What is your warranty? And if I got wrong ones, how will you do with it?
3+ years. If any wrong, we will replace in your next order, or refund.
3. What is your minimum order quantity?
The MOQ is 1pcs.
4. Which payment terms you can accept?
We accept T/T, Western Union, Money Gram, Paypal, etc.
5. What are the shipping ways you can offer?
By air/sea/land, from Zhuhai jiuzhou port, Hongkong, Guangzhou.
6. How about your delivery time?
2-7 working days according the order. All standard products are in stock.
7. Can you make OEM?
Of course, OEM ODM provided.
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
