Single head Surgical Light LED Ceiling operation lamp Medical Shadowless Operation Surgical Lamp
- Category: >>>
- Supplier: Changsha Skyfavor Medical Devices Co. Ltd
Share on (1601260166522):
Product Overview
Description
Products Description
OT Light / Shadowless light
*This lamp design of Equilateral hexagon type. Moulding, multi-point light source design, flexible spot adjustment, so that the spot illuminance is more uniform, and perfect shadowless effect can also be achieved when the surgical lamp is partially shielded
* Rotating radius of lamp disk: ≥180 cm; lamp head can be pulled down to the vertical floor, so as to facilitate the illumination at various angles.
* Rotating radius of lamp disk: ≥180 cm; lamp head can be pulled down to the vertical floor, so as to facilitate the illumination at various angles.
* Adopt computer-aided modular design, focus on irradiation of multiple LED light columns, provide 4000K-6000K adjustable color
temperature close to natural sunlight, truly reflect the color of human tissues, and completely meet the needs of various surgical
lighting.
temperature close to natural sunlight, truly reflect the color of human tissues, and completely meet the needs of various surgical
lighting.
* Digital memory function, automatic memory of suitable illumination, no need to debug when starting up again
*Multi-unit and multi-centralized control method with the same power to ensure that the damage of single LED will not affect the
surgical illumination requirements
*Multi-unit and multi-centralized control method with the same power to ensure that the damage of single LED will not affect the
surgical illumination requirements

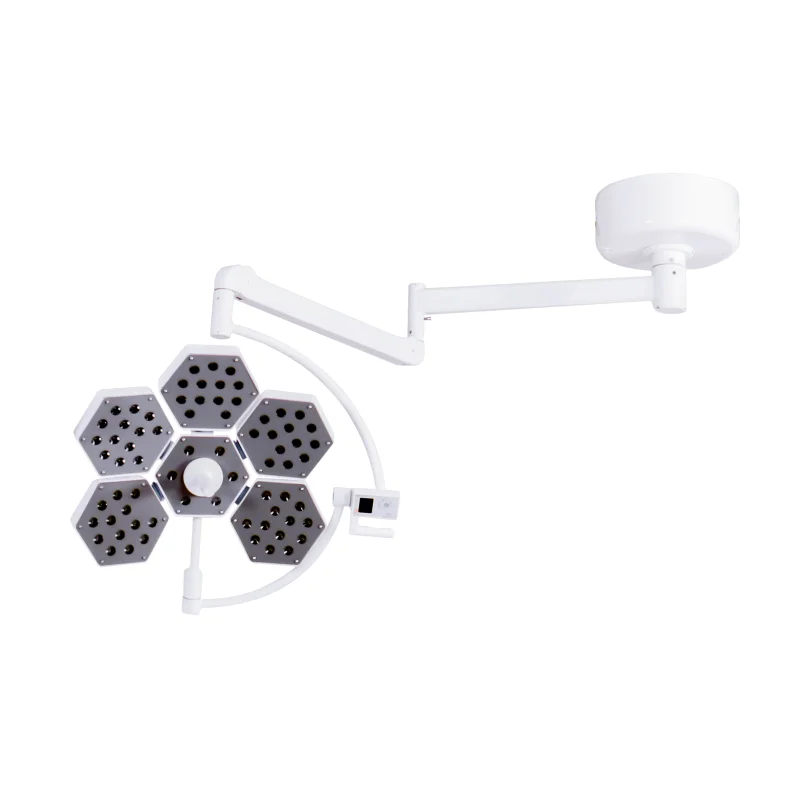

Single arm surgical light

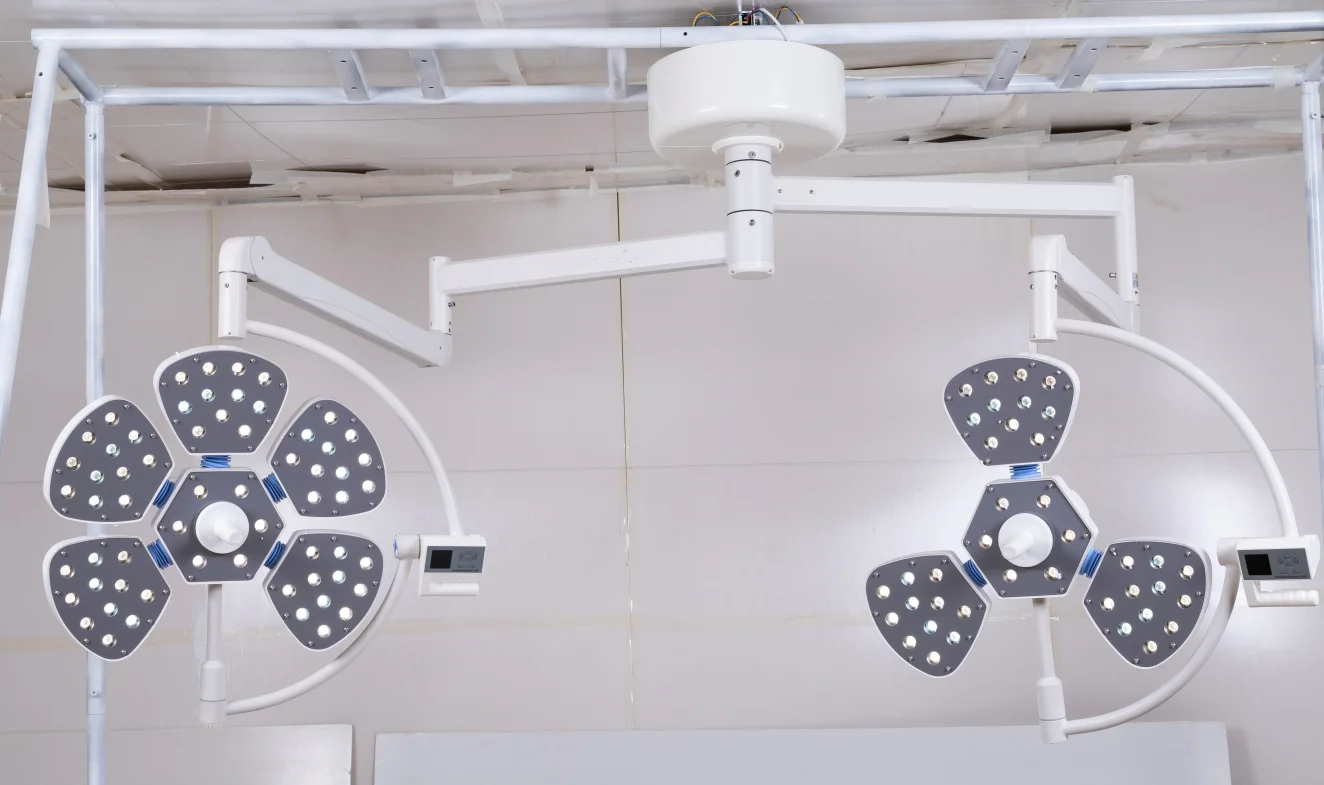

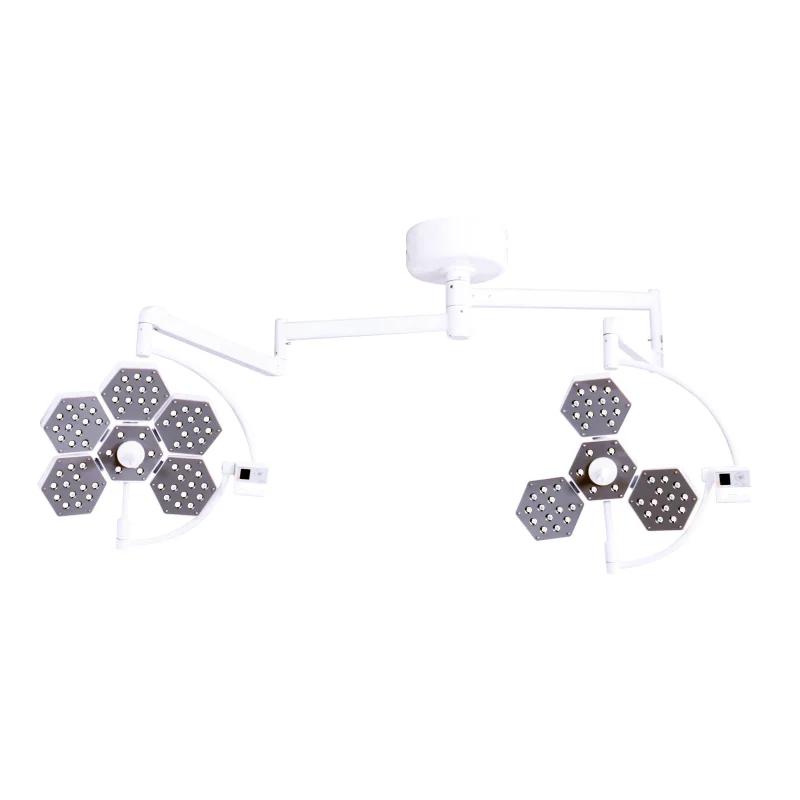

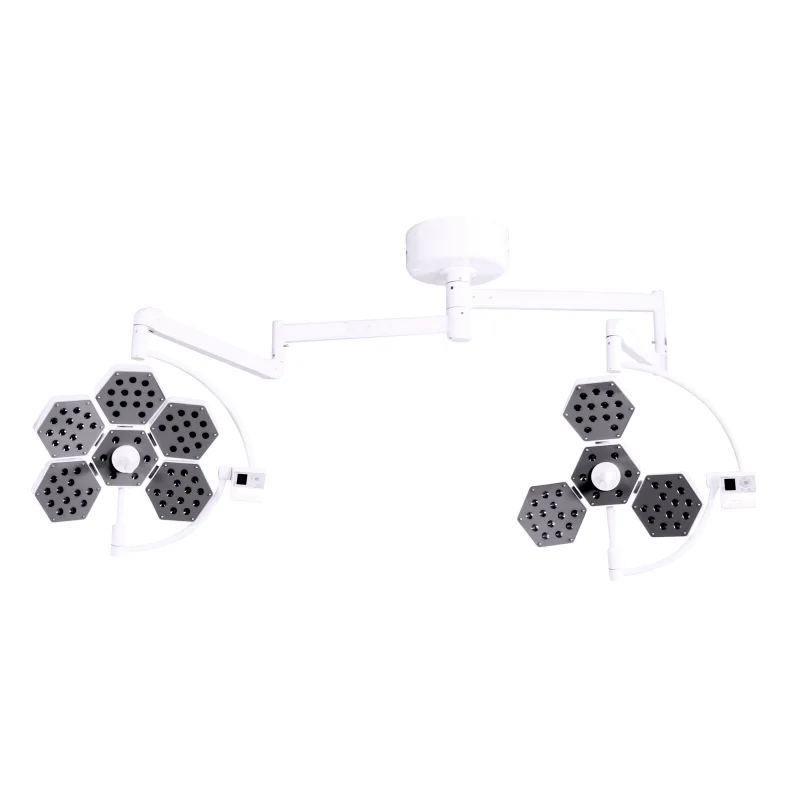

Dual arm OT lamp

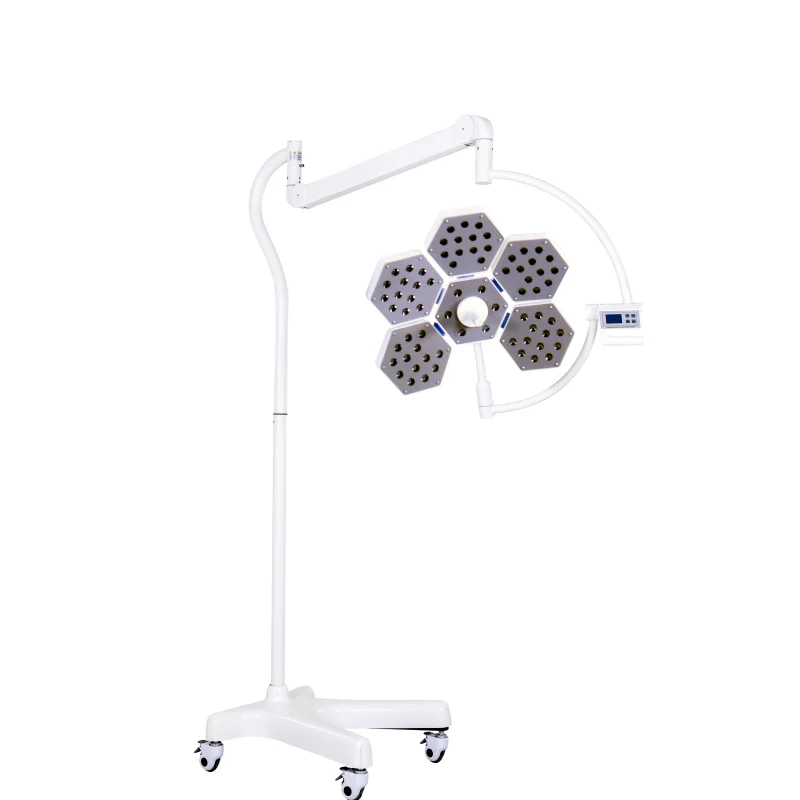

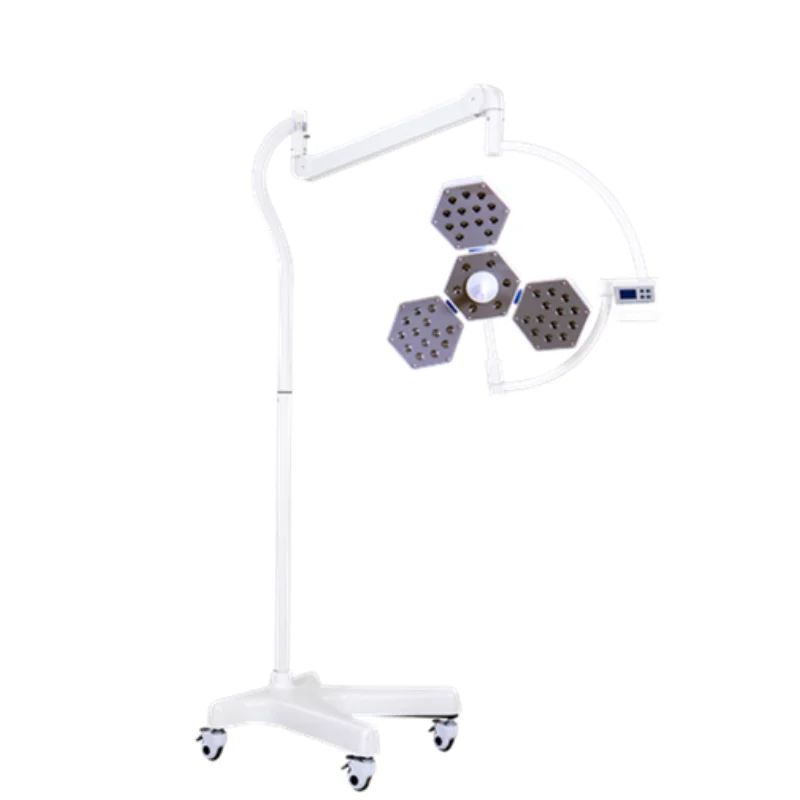

Examination lamp type
LED Operation Lamp -single head

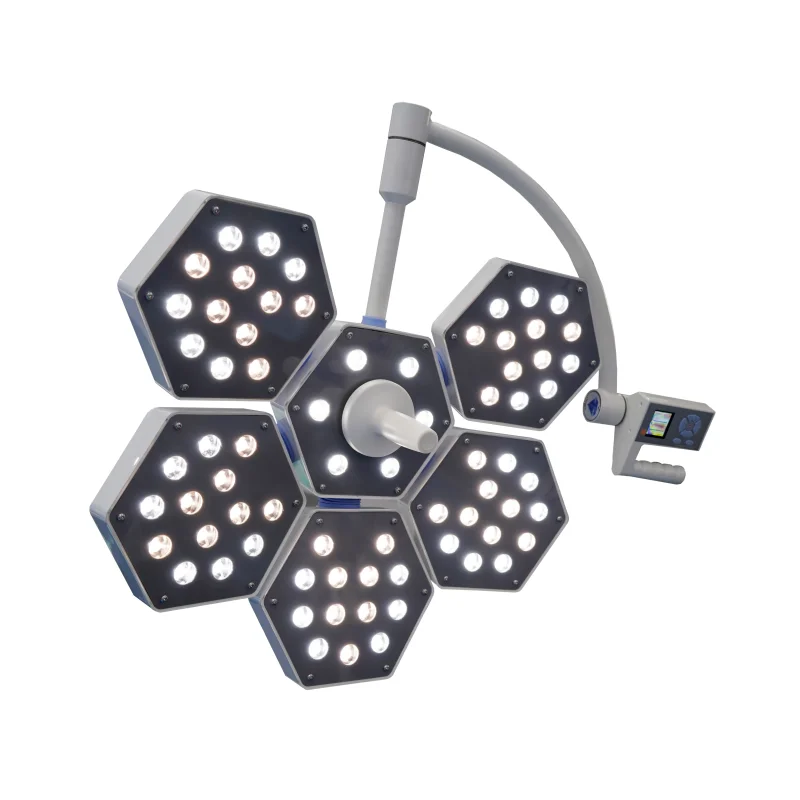

Equilateral hexagon type shadowless LED light
LED lamp
Every detail we focus on
Brand of bulb: OSRAM(German)
Stramlined, ultra-thin design
Liquid crystal display controller
Warm and cold light source: OSRAM
Product Paramenters
LED700 | LED500 | ||
Illuminance（Lux） | 40,000-180,000 | 30,000-160,000 | |
Lamp bulb quantity | 80 pcs | 48 pcs | |
Brand of bulb | OSRAM(German) | ||
Bulb life | >60,000 hours | ||
Color Temp(K) | 3700-5000 | ||
Color rendering index(Ra) | 85-98 | ||
Lightbeam depeth | 120cm | ||
Diameter of spot | 18-34cm | ||
Light adjust range | 1%-100% | ||
Temp rise(Operator head) | <1℃ | ||
LED700 | LED500 | ||
Illuminance（Lux） | 40,000- 160,000 | 30,000- 140,000 | |
Brand of bulb | OSRAM(German) | ||
Bulb life | >50,000 hours | ||
Color Temp(K) | 3700-5000 | ||
Color rendering index(Ra) | 85-98 | ||
R9 index | yes | ||
R11 index | yes | ||
Lightbeam depeth | 130cm//51 inch | ||
Diameter of spot | 16-28cm//6.3- 11inch | ||
Light adjust range | 1%- 100% | ||
LED5 | LED3 | ||
Illuminance（Lux） | 40,000-160,000 | 30,000-140,000 | |
Lamp bulb quantity | 61 pcs | 39 pcs | |
Brand of bulb | OSRAM(German) | ||
Bulb life | >50,000 hours | ||
Color Temp(K) | 3700-5000 | ||
Color rendering index(Ra) | 85-98 | ||
Lightbeam depeth | 120cm | ||
Diameter of spot | 16-28cm | ||
Light adjust range | 1%-100% | ||
Temp rise(Operator head) | <1.5℃ | ||
LED5 | LED3 | ||
Illuminance（Lux） | 40,000-180,000 | 30,000-160,000 | |
Lamp bulb quantity | 71 pcs | 45 pcs | |
Brand of bulb | OSRAM(German) | ||
Bulb life | >50,000 hours | ||
Color Temp(K) | 4000-6000 | ||
Color rendering index(Ra) | 85-98 | ||
Lightbeam depeth | 130cm//51 inch | ||
Diameter of spot | 16-28cm//6.3-11inch | ||
Light adjust range | 1%-100% | ||
Features of OT lamp:
Imported LED lamp beads are used, with low temperature rise, long life and low energy consumption.
Imported balance arm system, safer.
Microcomputer LCD touch screen, easy adjustment.
Ultra-thin streamlined lamp plate pole.
Imported transmitter, making power transmission more stable and less power loss.
Imported brand power supply, safer, more environmentally friendly and lower energy consumption.
Imported balance arm system, safer.
Microcomputer LCD touch screen, easy adjustment.
Ultra-thin streamlined lamp plate pole.
Imported transmitter, making power transmission more stable and less power loss.
Imported brand power supply, safer, more environmentally friendly and lower energy consumption.
Product details of shadowless operating lamp
1.Shadowless lamp adopts new type of LED cold light , with a life of more than 60,000 hours without replacing bulb. It is better than the traditional halogen lamp, and it can meet requirements of energy saving and environmental protection.
2.There is no heat or radiation in the light, and temperature rise of the doctor's head is less than 1℃.
3.Light beam is uniform, so as to ensure deep aggregation effect, to ensure the operation of high brightness, high depth lighting requirements.
4.Color temperature of LED Shadowless lamp is adjustable from 3500K to 5000K, which will not cause eye fatigue caused by long hours work.
5.It has manual focusing function, simple and portable operation.
6.Lightweight and high-quality balance arm suspension system can meet the needs of various heights, angles and positions during operation.
2.There is no heat or radiation in the light, and temperature rise of the doctor's head is less than 1℃.
3.Light beam is uniform, so as to ensure deep aggregation effect, to ensure the operation of high brightness, high depth lighting requirements.
4.Color temperature of LED Shadowless lamp is adjustable from 3500K to 5000K, which will not cause eye fatigue caused by long hours work.
5.It has manual focusing function, simple and portable operation.
6.Lightweight and high-quality balance arm suspension system can meet the needs of various heights, angles and positions during operation.
Case from Peru hospital
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
producing PET plastic containers and bottles in all shapes.
Product Package
For the safety of products, we usually use wooden box for packing the operation lamp
Recommend Products
Company Introduction
SkyFavor Medical Devices Co., Ltd
Built in 2015, SkyFavor Medical is located in Changsha, factory is located in Ningbo, China, covering more than 20000 square meters. We are a high-tech enterprise mainly engaged in the development, production and marketing of medical solution for Gas Pipeline System. Products include oxygen plant, air compressing system, medical vacuum system, medical gas manifold, gas alarm, zone valve box, bed head unit, OT control panel, gas outlet, oxygen flow meter, oxygen regulator, suction regulator, etc.
We have core technology management process, experienced market, fast and efficient manufacturing and processing capabilities and rich supporting processing and manufacturing resources.
Customers are all over the world, especially southeast Asia, Mid East, Latin America, East Europe, Africa and other regions. Efficient technology support, high quality products and best service have been recognized by our customers.
Hospital Successful Cases
Project in Ghana hospital
Project in Ecuador hospital
Project in Zambian hospital
Skyfavor products cooperated with Ministry of Health
Skyfavor products cooperated with UNITED NATIONS CHILDRENS FUND
Exhibition & Factory Visiting
Skyfavor attend Medic East Fair in Kenya
Skyfavor attend TIHE in Uzbekistan
Skyfavor attend Arab Health in Dubai
Skyfavor attend CMEF shanghai
Skyfavor visti Dubai customers
Thailand customers visit our air pant and vacuum system
Dubai customers visit our vacuum and air plant system
Technical meetings with customers
Skyfavor visti customers in Kenya
Certificates
FAQ
1. Can you do OEM or ODM service for theater light?
Yes. We can produce the operation lamp according to your requirement
2. What is the MOQ of Shadowless Lamp?
MOQ1pc, But more quantity, more better. More quantity can save the packing cost and shipping cost.
3. What is the delivery time of Ceiling Mounted Surgery Room lamp operating Light？
Generally 10 working days. Better check the details before ordering.
4. What is the package of the Ceiling operation lamp?
Wooden box, generally
