Product Overview

Description





Products Description


The features of stainless steel sand filter
1.High filtration density
2.304#stainless steel
3.High and low temperature resistance
4.Strong and durable , not easy to deform or break
5.Made of high-quality anti-corrosion and anti-wear material


Model
Inlet/outlet(inch)
Filtration Area (m3)
Flow
(m3/h)
Sand Weight
(KG)
Tank CBM (m3)
Tank Head CBM(m3)
Tank Head Weight
(kg)
SYGL-350
1.5
0.10
4.40
25
0.06
0.02
3
SYGL-400
1.5
0.13
6.30
34
0.09
0.02
3
SYGL-450
1.5
0.15
8.0
50
0.14
0.02
3
SYGL-500
1.5
0.24
11.4
80
0.20
0.02
3
SYGL-650
1.5
0.36
16.0
160
0.32
0.02
3
SYGL-700
1.5
0.40
20.0
220
0.41
0.02
3
SYGL-800
1.5
0.50
25.5
370
0.67
0.03
5
SYGL-900
1.5
0.62
30.0
447
0.92
0.03
5
SYGL-1000
1.5
0.74
35.0
700
1.28
0.03
5
SYGL-1200
1.5
1.12
50.0
1200
2.26
0.03
5


Details Images

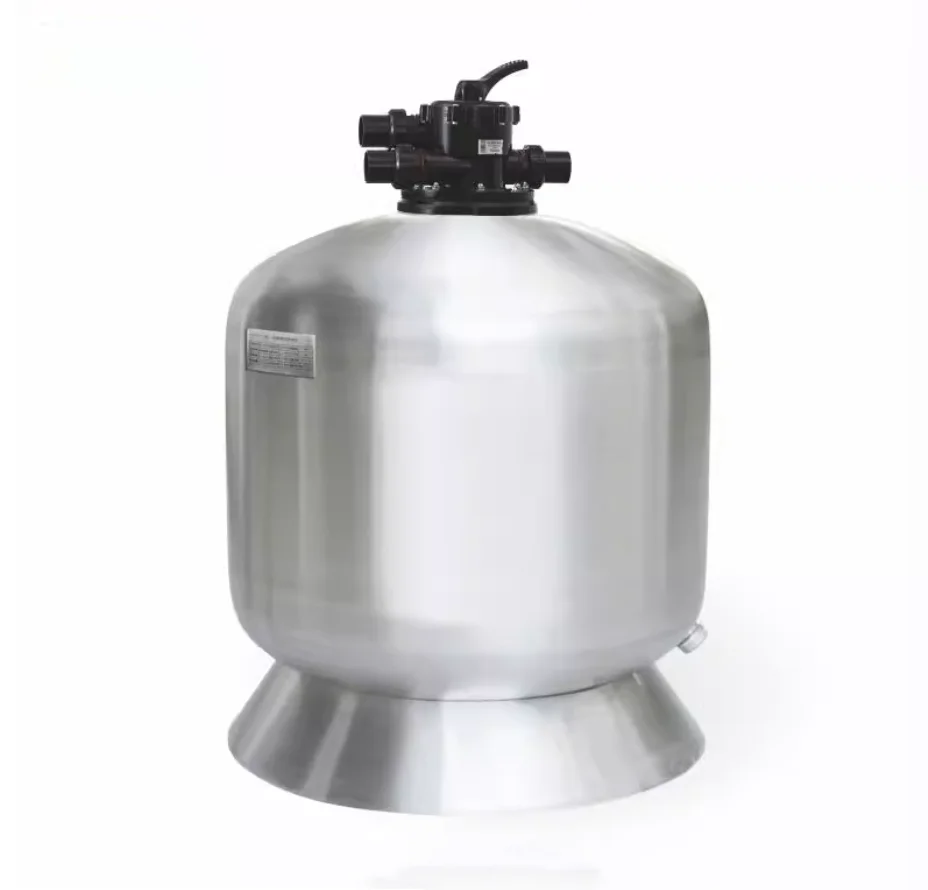

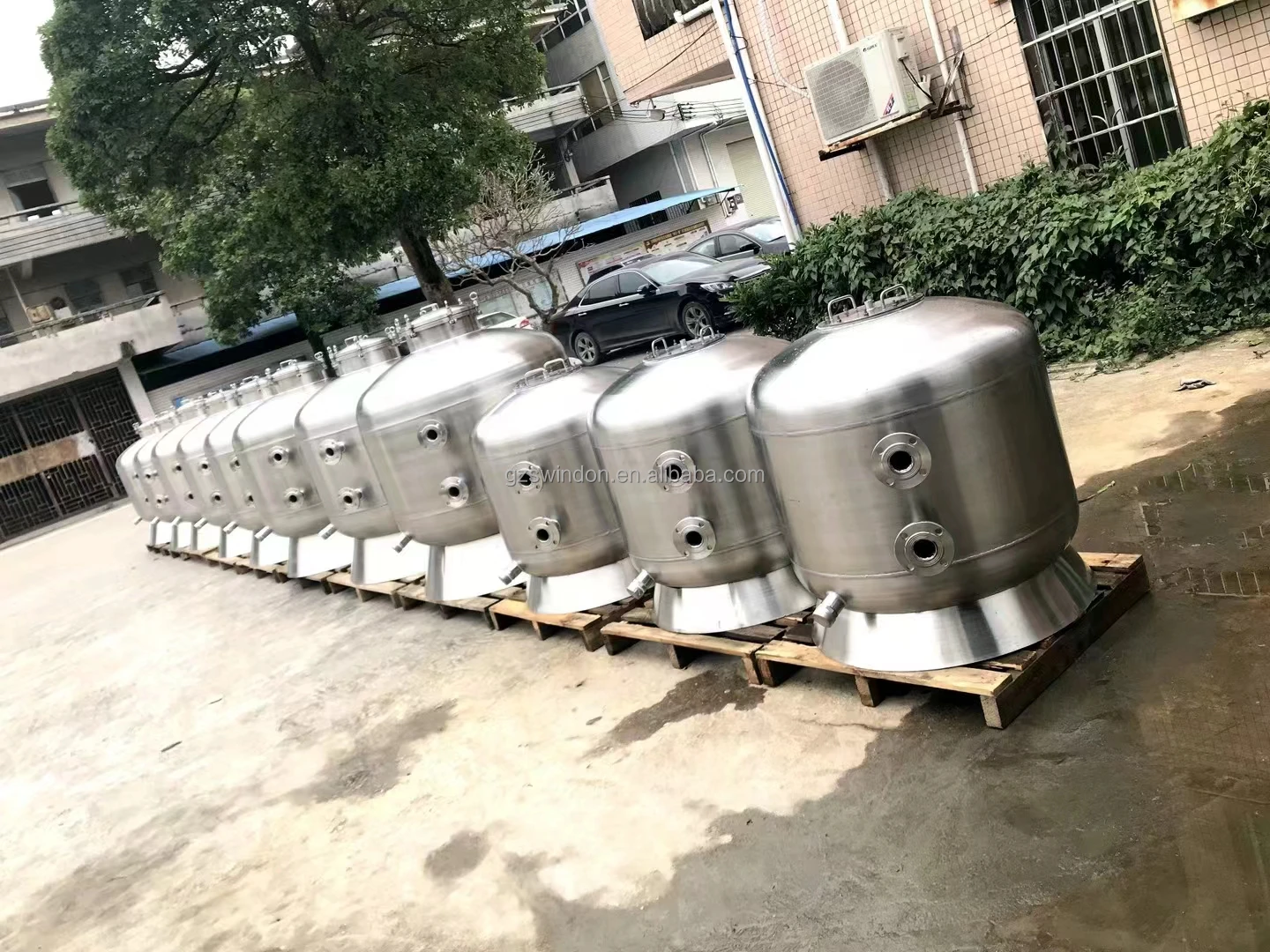

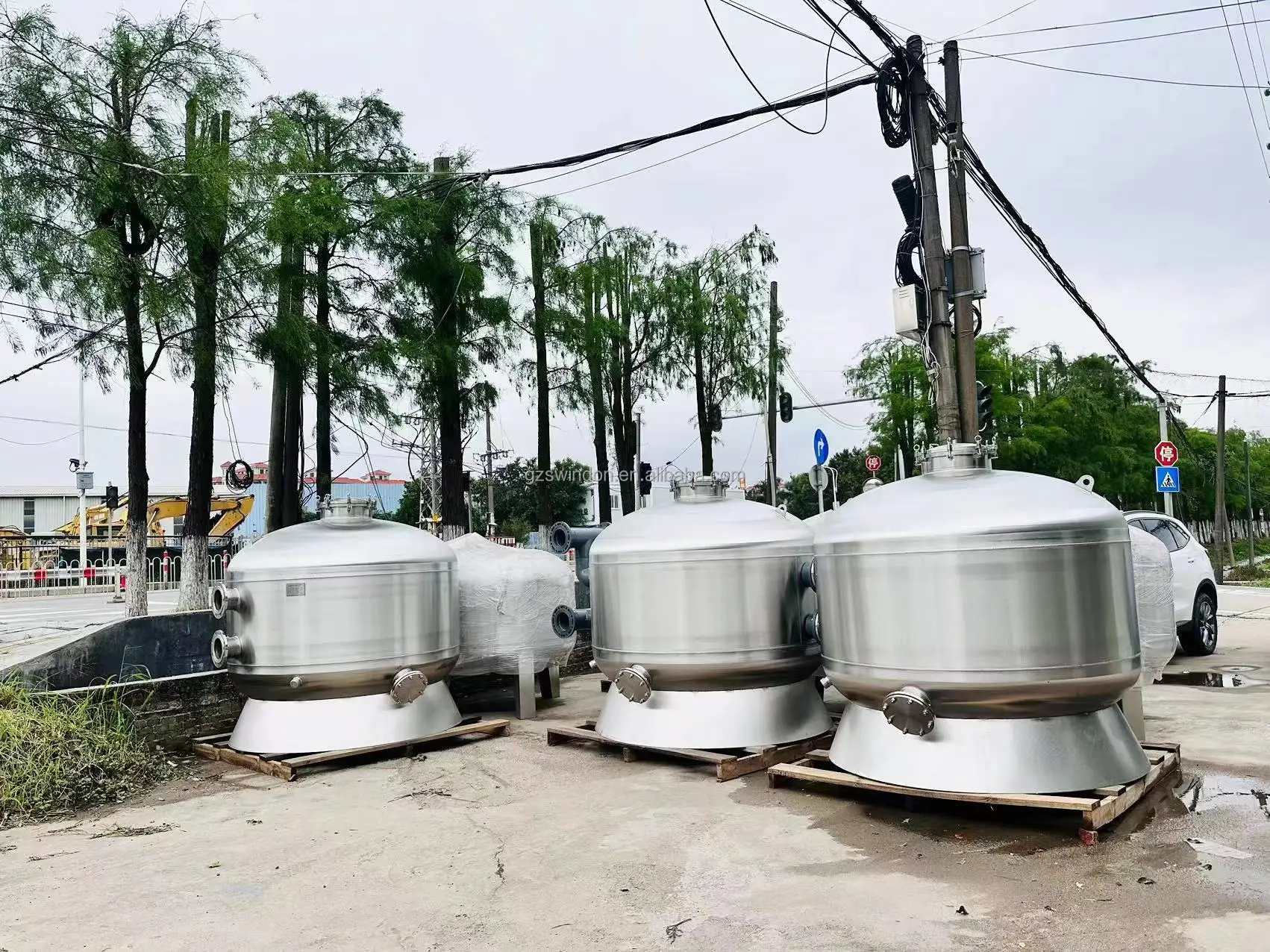

Sand filter system

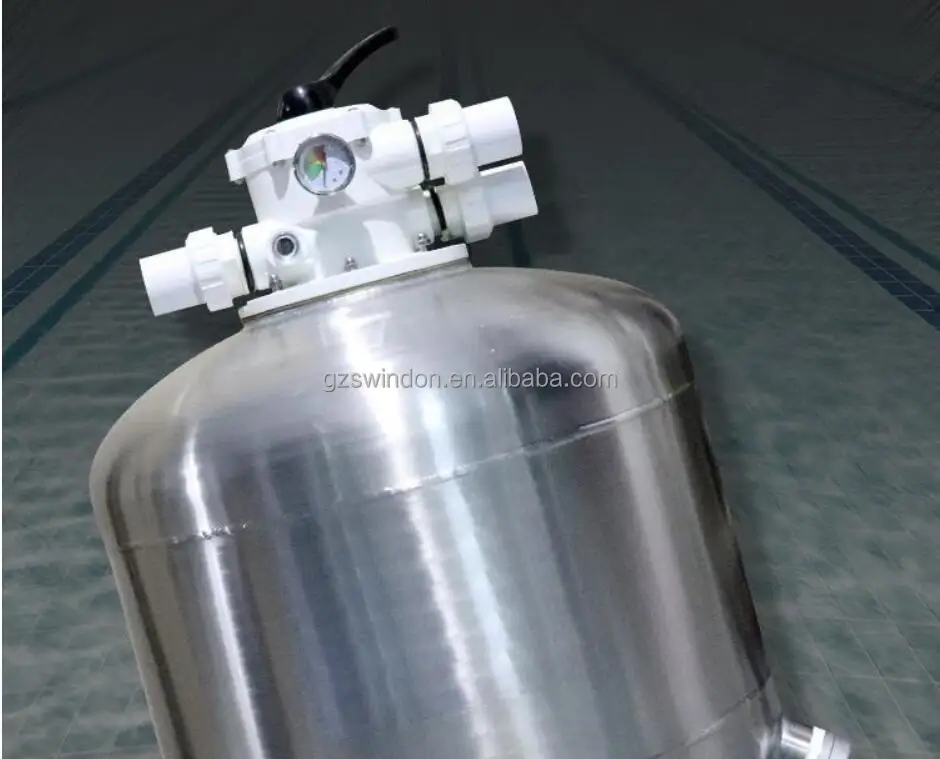

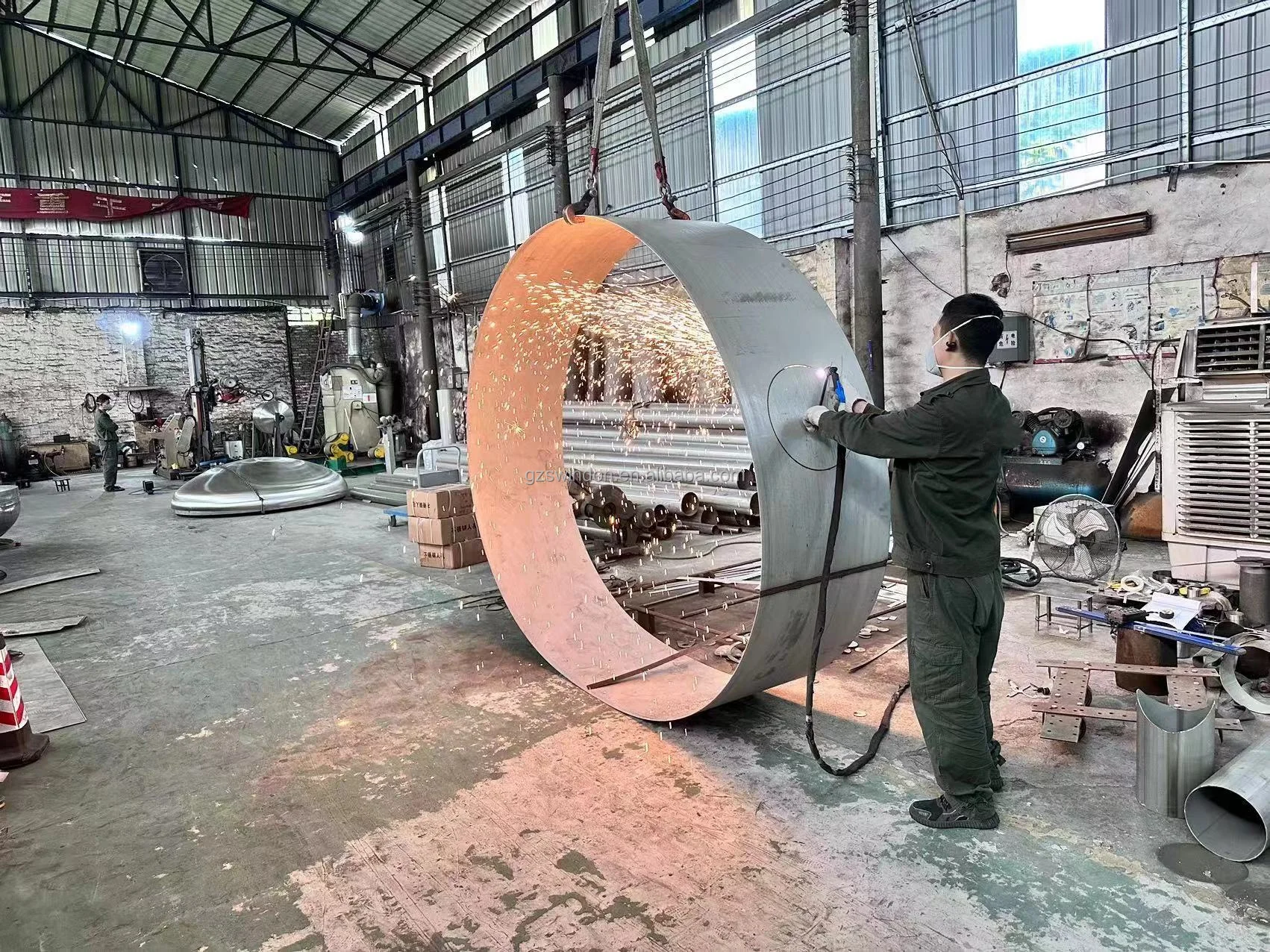

1.Stainless steel pressure-resistant sand filter body

2.swimming pool sand filters are made of 304# stainless steel material ,the surface is treated with brushing technology,rust-free,strong and durable ,and has a longer service life.

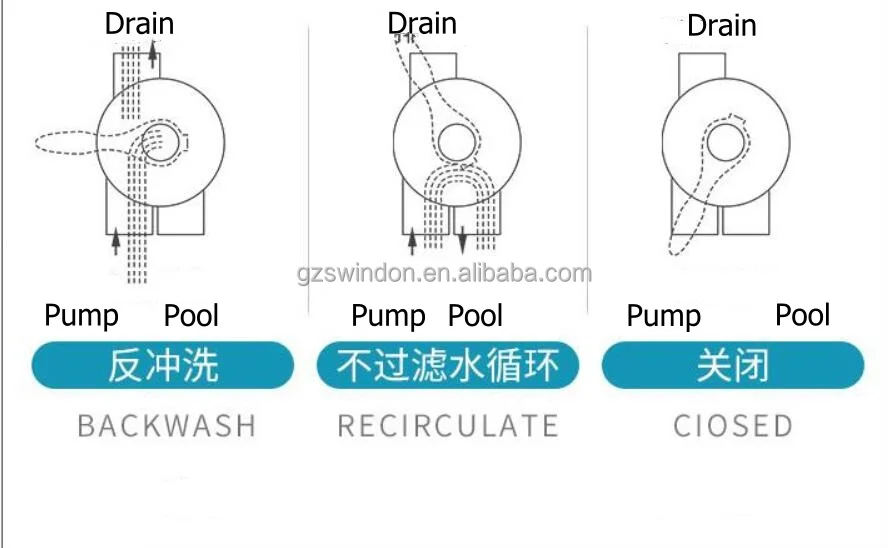

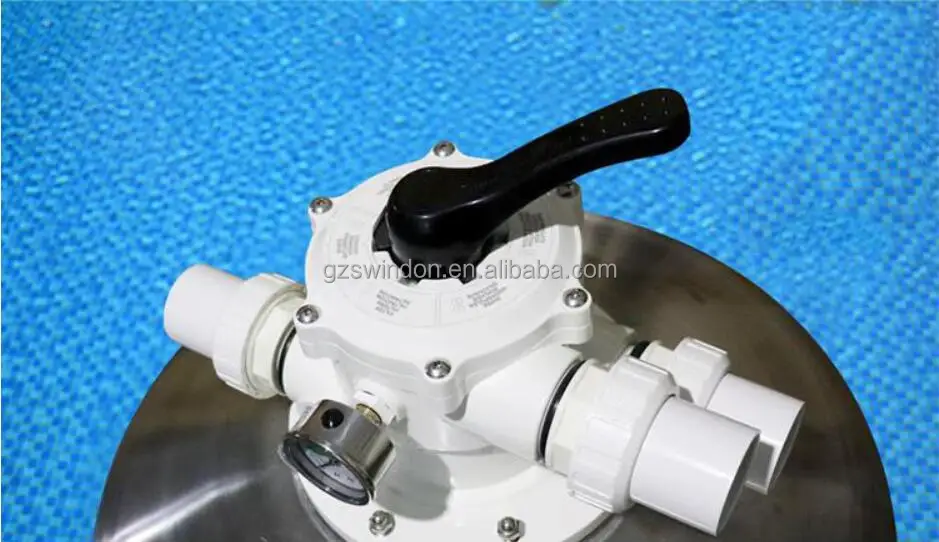

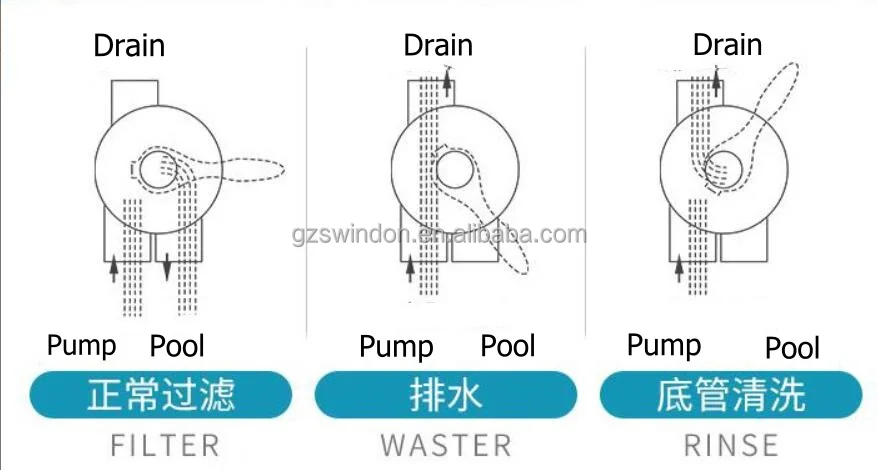

Easy-to-operate multifunctional six-way valve of swimming pool sand filters
Six valves of  pool sand filter can be operated to achieve six different functions according to the needs of each workflow .






Easy maintenance and cost saving
After sewage is filtered , the backwash function is used to remove the filtered dirt and impurities.

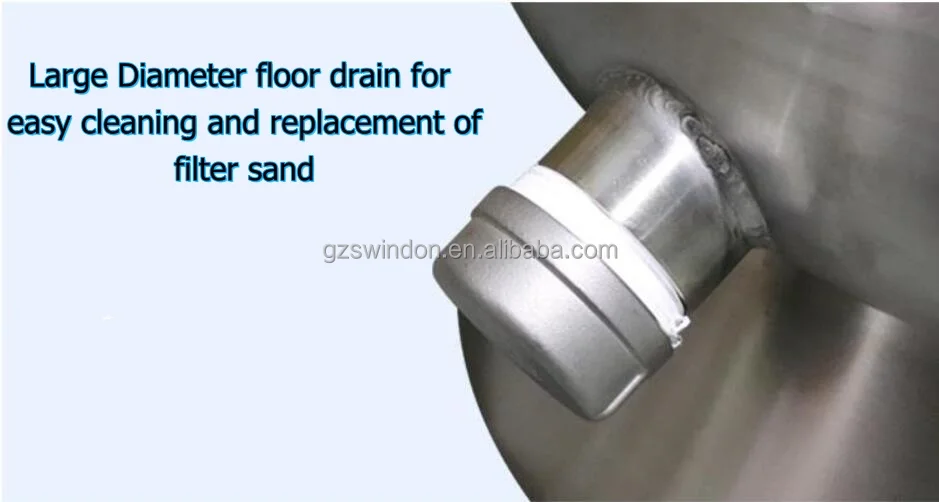

The bottom of the sand filters is designed with a sand discharge port of facilitate the replacement of filter sand .

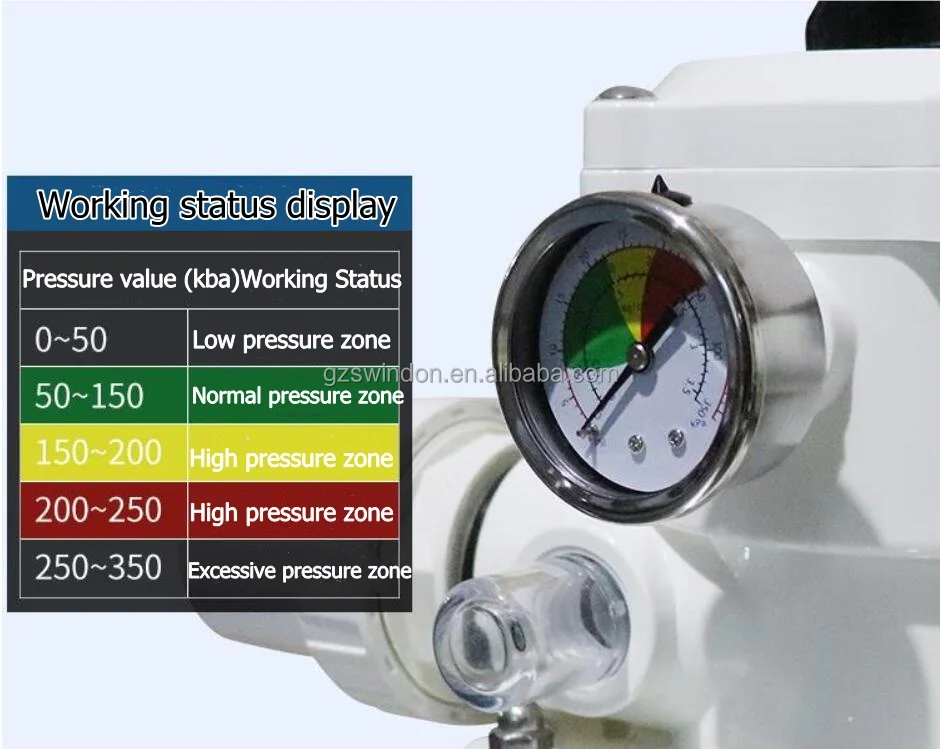

Pressure observation of pool filter system
The pressure gauge on the pool sand filter accurately displays the pressure inside the sand filter in real time to let you know the operating parameters of the sand filter at any time .

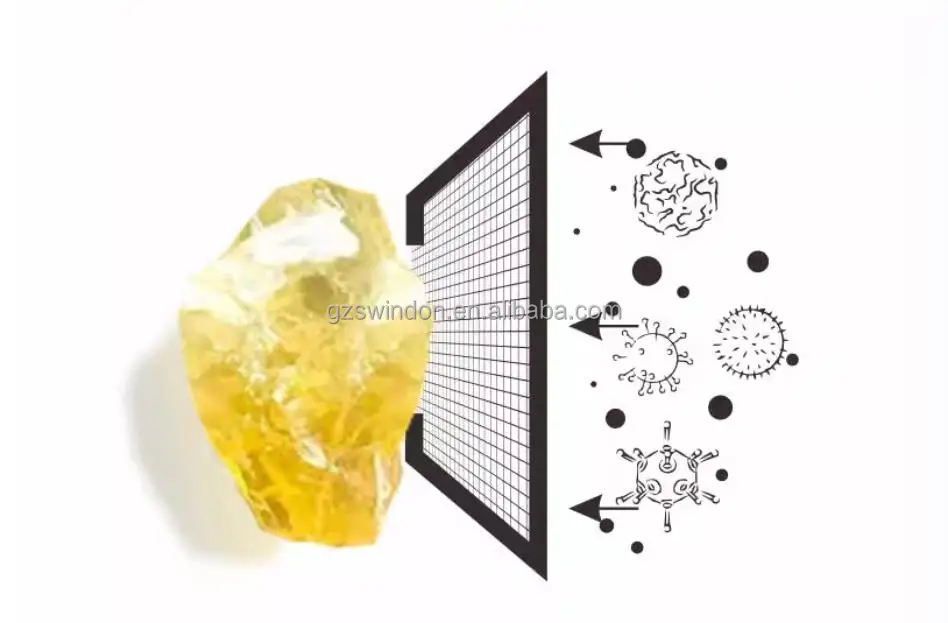

High-precision filtering effect
5-micron high-precision filtration effect, the adsorption surface is automatically cleaned , the filtration efficiency is not compromised , and it is antibacterial and not easy to harden .


High and low temperature resistance and excellent performance
High-quality stainless steel makes the sand filter tank more solid and has good stability, regardless of high or low water temperature .


Application


Widely used
The stainless steel filter machine can be used in swimming pools , spa pools , fish ponds , hot spring pools and large water parks,etc.


Filter effect comparison




Recommend Products


Side-mount stainless steel pool sand filter
Large side quartz sand filter
Horizontal Sand Filter

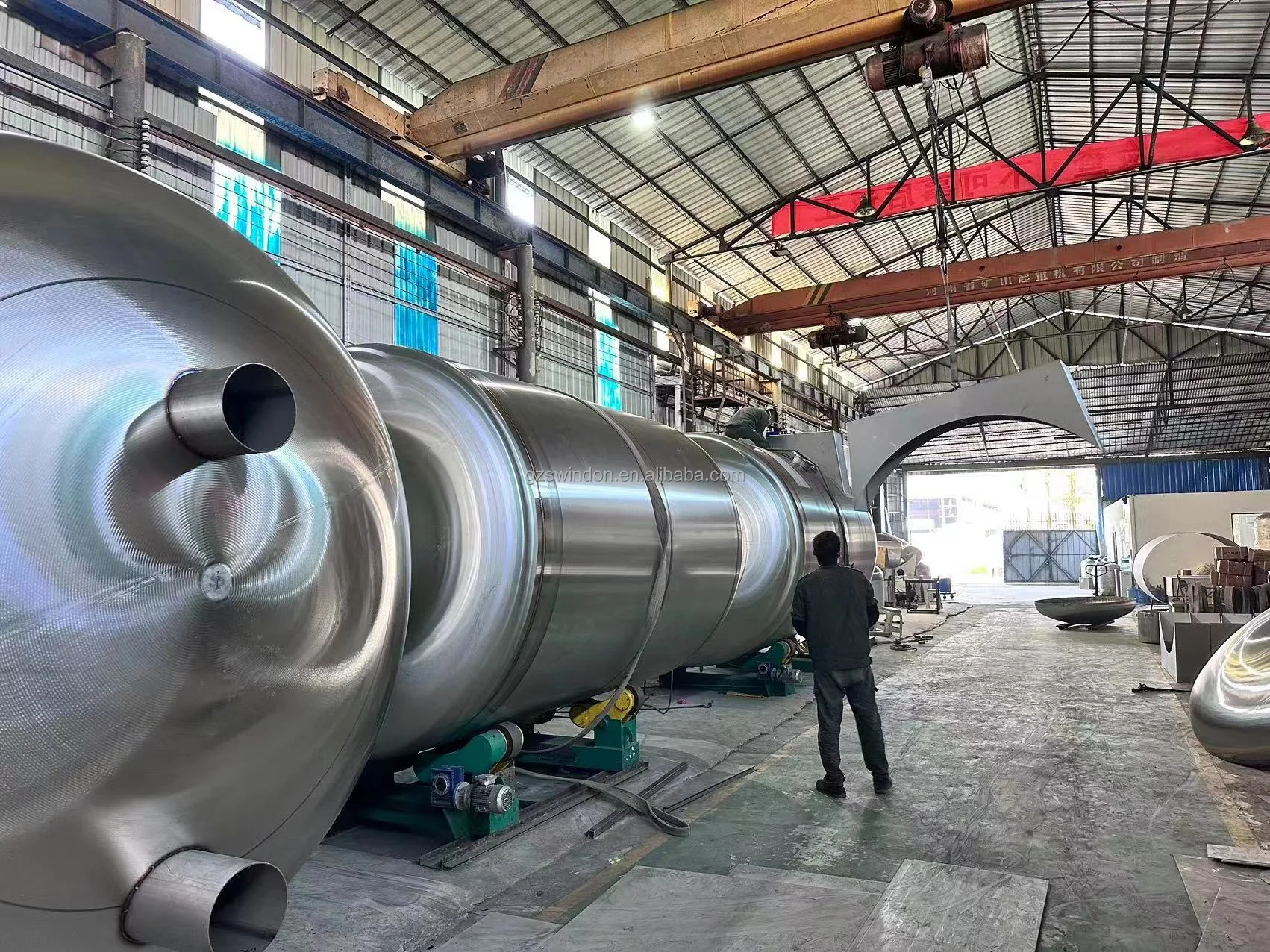

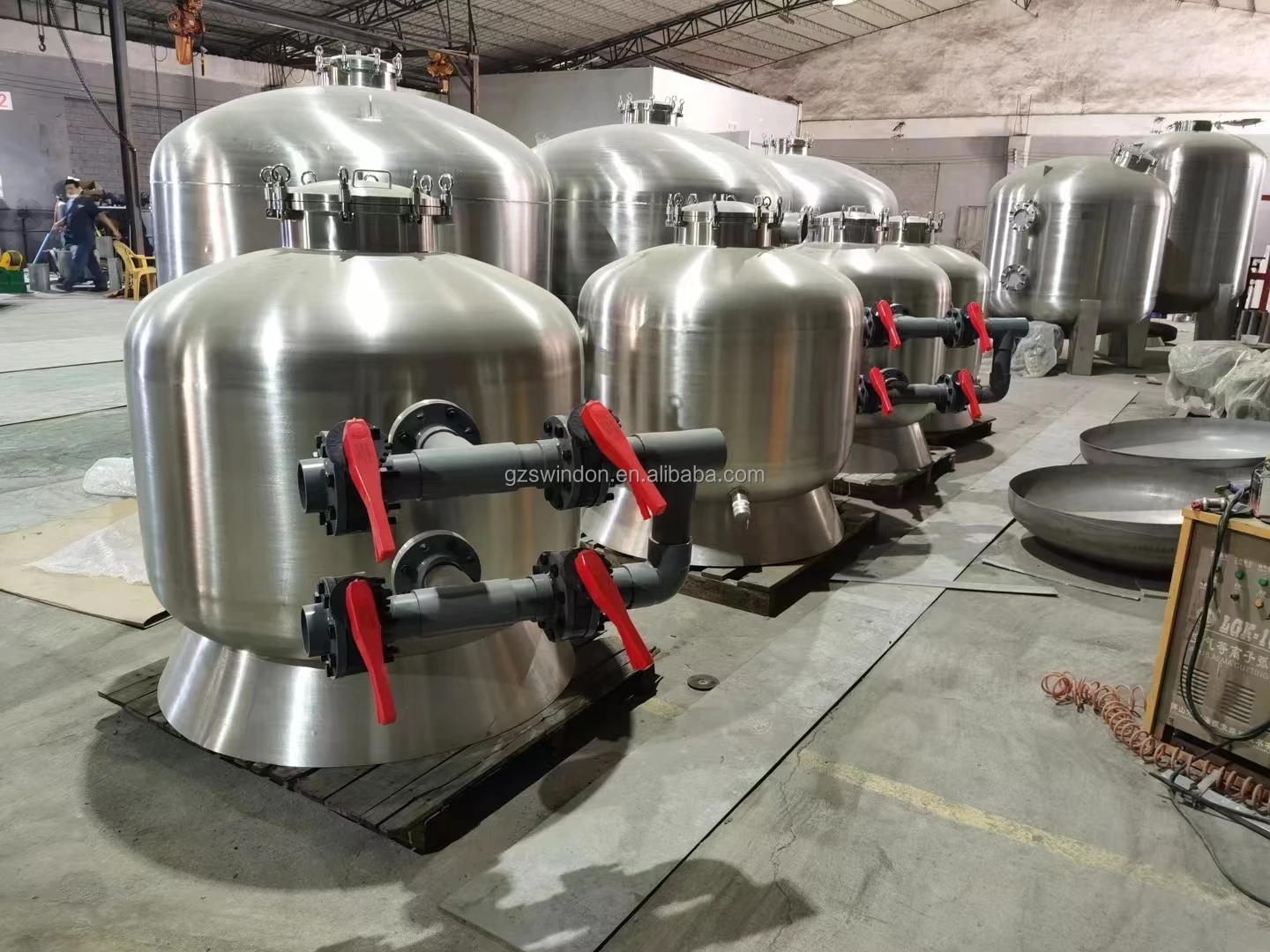

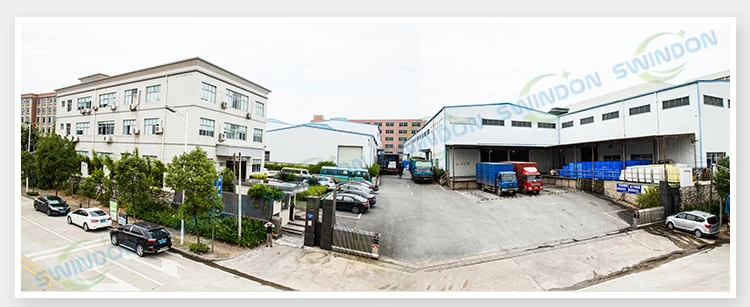

Factory Display
