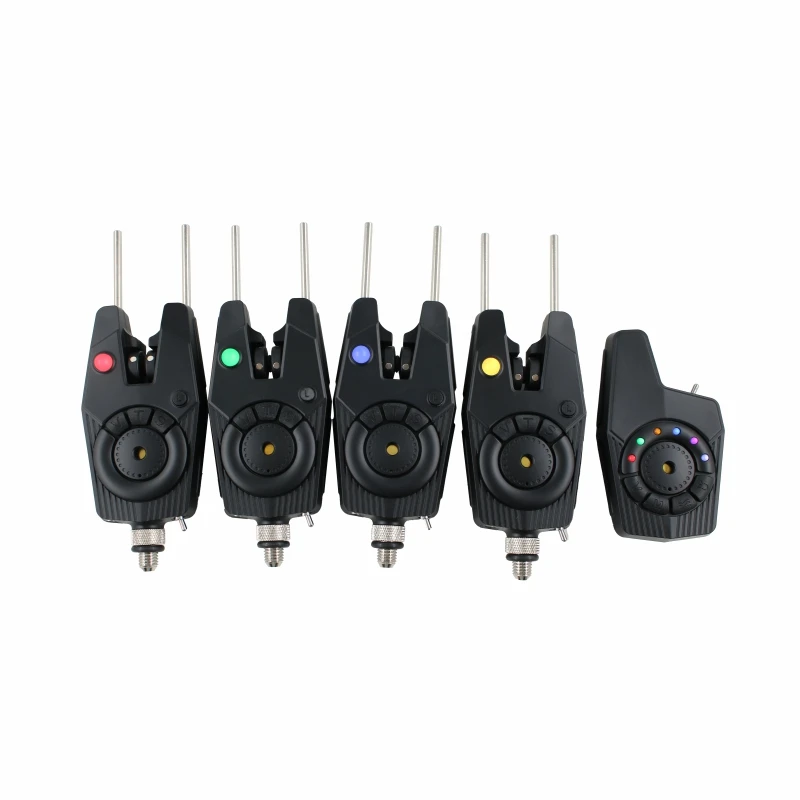

High sensitivity 6 LED colors nightlight waterproof JZH RF1688 Black Carp Fishing Bite Alarm 4 1 set with battery
- Category: >>>
- Supplier: Shenzhen JZH Technology Co. Ltd.
Share on (1601260447547):
Product Overview
Description
Product description
Bite alarm units
* 8 tones settings
* 8 volume settings
* 5 sensitivity settings
* 20 sec latching LED
* 8 magnet rollers
* Colorful running LED (12 colors)
* Push button LED dimmer
* Black satin smooth finish
* 200-220 meters
* Operates with the 9V * 1 battery
* 2.5 mm jack socket
* Memory function in bite alarm
* Toggle switch
* Removable storm ears
* Low battery function
* 8 tones settings
* 8 volume settings
* 5 sensitivity settings
* 20 sec latching LED
* 8 magnet rollers
* Colorful running LED (12 colors)
* Push button LED dimmer
* Black satin smooth finish
* 200-220 meters
* Operates with the 9V * 1 battery
* 2.5 mm jack socket
* Memory function in bite alarm
* Toggle switch
* Removable storm ears
* Low battery function

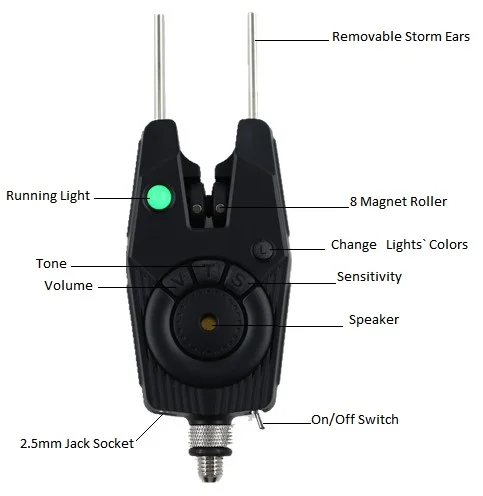

Alarm User Instruction
Inserting battery
slide down battery cover ------- insert 9V *1 battery
To complete the procedure, gently push back the battery cover.
Power on/off switch
Power ON:push the toggle switch to right.
Power OFF:push the toggle switch back left position.
Volume adjustment
Press the volume control “V”to step through the 8 volume settings, ranging from low to high and silent mode .
Tone adjustment
Press the tone adjustment button “T” to step through the 8 settings.
Sensitivity adjustment
Press the sensitivity adjustment button “S” to step the 5 sensitivity settings , ranging from Minimum to Maximum mode.
1 beep equals maximum sensitivity to 5 beeps minimum sensitivity.
Run indication / Low battery indication
When magnet roller wheel is activated .The latching LED will illuminate for 20 seconds and the run LED illumination stops
when the roller wheel finishes rotating ./ Running LED on bite alarm will flash /blink once every 5 seconds when battery is low .
Inserting battery
slide down battery cover ------- insert 9V *1 battery
To complete the procedure, gently push back the battery cover.
Power on/off switch
Power ON:push the toggle switch to right.
Power OFF:push the toggle switch back left position.
Volume adjustment
Press the volume control “V”to step through the 8 volume settings, ranging from low to high and silent mode .
Tone adjustment
Press the tone adjustment button “T” to step through the 8 settings.
Sensitivity adjustment
Press the sensitivity adjustment button “S” to step the 5 sensitivity settings , ranging from Minimum to Maximum mode.
1 beep equals maximum sensitivity to 5 beeps minimum sensitivity.
Run indication / Low battery indication
When magnet roller wheel is activated .The latching LED will illuminate for 20 seconds and the run LED illumination stops
when the roller wheel finishes rotating ./ Running LED on bite alarm will flash /blink once every 5 seconds when battery is low .
Receiver units
* 8 volume settings
* 6 colors clear LED choices
* Vibration mode/Silent mode
* 6 LED dimmer
* 200-220 meters
* Memory function in receiver
* Learn and erase code
* Low battery function
* Flashlight function
* Toggle switch
* Operate with 1.5V * 2batteries
* 8 volume settings
* 6 colors clear LED choices
* Vibration mode/Silent mode
* 6 LED dimmer
* 200-220 meters
* Memory function in receiver
* Learn and erase code
* Low battery function
* Flashlight function
* Toggle switch
* Operate with 1.5V * 2batteries

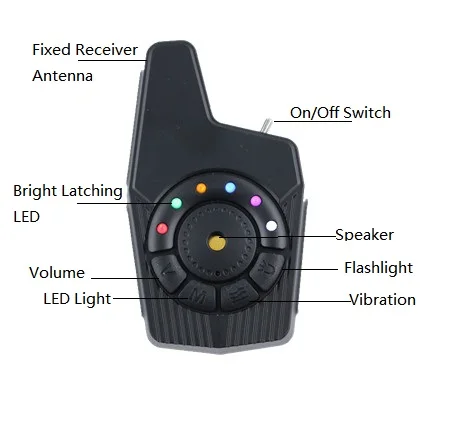

Receiver User Instruction
Inserting battery
Slide down battery cover ----- insert 1.5V *2 battery
To complete the procedure, gently push back the battery cover.
Power on/off switch
Power ON:push the switch to right.
Power OFF:push the switch back left position.
Volume adjustment
Press the volume control “V”to step through the 8 volume settings,
ranging from low to high and silent mode.
Vibration adjustment
Press the vibration button to choose vibration mode on or off.
Flashlight function
Press the flashlight button, the LED light on the top of the receiver will light up when pressed, and then go out when released.
Low battery indication
The rightmost latch LED on remote receiver will flash/blink once every 5 seconds when battery is low .
Inserting battery
Slide down battery cover ----- insert 1.5V *2 battery
To complete the procedure, gently push back the battery cover.
Power on/off switch
Power ON:push the switch to right.
Power OFF:push the switch back left position.
Volume adjustment
Press the volume control “V”to step through the 8 volume settings,
ranging from low to high and silent mode.
Vibration adjustment
Press the vibration button to choose vibration mode on or off.
Flashlight function
Press the flashlight button, the LED light on the top of the receiver will light up when pressed, and then go out when released.
Low battery indication
The rightmost latch LED on remote receiver will flash/blink once every 5 seconds when battery is low .
Transmitter | Receiver : |
Power Voltage : 9V * 1 | Power voltage : 1.5V *2 |
Standby Current : 0.15mA | Standby Current : 2.6mA |
Working current : 75mA | Working current : 40mA |
Shut down current : 0mA | Shut Down Current : 0mA |
Working Power : 9V | Receiving Sensitivity : -95db |
Frequency : 433MHz | Frequency : 433MHz |
Coverage range : 200~220m | Coverage Range : 200~220m |
Working Temperature :-10 ~70℃ | Working Temperature :-10 ~70℃ |
Learning method
1. Press the M button and hold down M button , sounds one time , then enter the learning , the receiver receive a signal while rotate the roller wheel of bite alarm , it will sounds again , that means learning successfully , when you need to learn other bite alarm , repeat the above operation .
2. Press the M button and hold down M button , sounds one time , then enter the learning , press M button to choose receiver LED light while rotate the roller wheel of bite alarm , it will sounds again , that means learning successfully, when
you need to Learn other bite alarm , repeat the above operation.
Erase method
Press the M button and hold down M button , sounds 6 seconds , all lights on,sounds two times again , erasing successfully and all code of bite alarm which had been stored are erased .
1. Press the M button and hold down M button , sounds one time , then enter the learning , the receiver receive a signal while rotate the roller wheel of bite alarm , it will sounds again , that means learning successfully , when you need to learn other bite alarm , repeat the above operation .
2. Press the M button and hold down M button , sounds one time , then enter the learning , press M button to choose receiver LED light while rotate the roller wheel of bite alarm , it will sounds again , that means learning successfully, when
you need to Learn other bite alarm , repeat the above operation.
Erase method
Press the M button and hold down M button , sounds 6 seconds , all lights on,sounds two times again , erasing successfully and all code of bite alarm which had been stored are erased .
Bite alarm:
8 tons settings / 8 volume settings / 5 sensitivity settings / Low battery warning /
Green, blue, red, yellow LED / On/Off
Green, blue, red, yellow LED / On/Off
Application
Company profile
Certificate
Factory
Exhibition&Customers

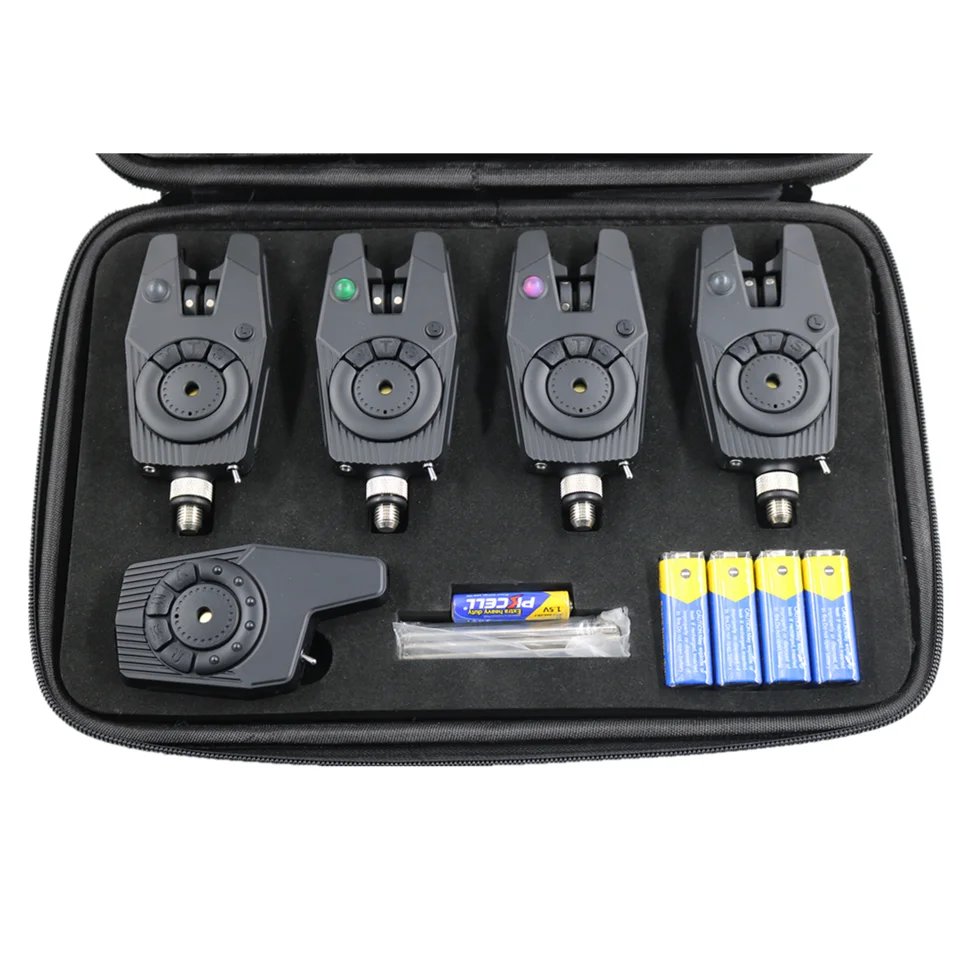

Package
FAQ
Q1: Who are we?
A1: We are based in Guangdong, China, start from 2015,sell to Western Europe(28.00%),Mid East(18.00%),North America(11.00%),Africa(11.00%),Northern Europe(11.00%),Southern
Europe(6.00%). There are total about 11-50 people in our office.
Europe(6.00%). There are total about 11-50 people in our office.
Q2: How can we guarantee quality?
A2: Always a pre-production sample before mass production; Always final Inspection before shipment;
Q3: What can you buy from us?
A3: Fishing Bite Alarm,Remote Control,Controller,Wireless Transmitter Modules,Wireless Receiver Modules
Q4: Why should you buy from us not from other suppliers?
A4:1. Our company has the professional team in developing the new products for 8 years.
2. Our company has the completed testing equipments.
3. Our company has gotten the reputation from European and America.
2. Our company has the completed testing equipments.
3. Our company has gotten the reputation from European and America.
Q5: Delivery time?
A5: Sample:7-10 working days; 50-200 sets: 10-15 working days; 200-2000 sets: 30-40 working days
